Multimaterial 4D Printing with Tailorable Shape Memory Polymers


We present a new 4D printing approach that can create high resolution (up to a few microns), multimaterial shape memory polymer (SMP) architectures. The approach is based on high resolution projection microstereolithography (PμSL) and uses a family of photo-curable methacrylate based copolymer networks. We designed the constituents and compositions to exhibit desired thermomechanical behavior (including rubbery modulus, glass transition temperature and failure strain which is more than 300% and larger than any existing printable materials) to enable controlled shape memory behavior. We used a high resolution, high contrast digital micro display to ensure high resolution of photo-curing methacrylate based SMPs that requires higher exposure energy than more common acrylate based polymers. An automated material exchange process enables the manufacture of 3D composite architectures from multiple photo-curable SMPs. In order to understand the behavior of the 3D composite microarchitectures, we carry out high fidelity computational simulations of their complex nonlinear, time-dependent behavior and study important design considerations including local deformation, shape fixity and free recovery rate. Simulations are in good agreement with experiments for a series of single and multimaterial components and can be used to facilitate the design of SMP 3D structures.


Three-dimension (3D) printing technology allows the creation of complex geometries with precisely prescribed microarchitectures that enable new functionality or improved and even optimal performance. While 3D printing has largely emphasized manufacturing with a single material, recent advances in multimaterial printing enable the creation of heterogeneous structures or composites that have myriad scientific and technological applications1,2,3,4,5. Commercial printing systems with these capabilities have been used in many innovative applications, but are limited because their development has largely proceeded with objectives of creating printed components with reliable mechanical properties and applications have generally emphasized linear elastic behavior with small deformations where the innovation arises from the sophisticated geometry. Independently, soft active materials (SAMs) as a class of emerging materials with the capability of exhibiting large elastic deformation in response to environmental stimuli such as heat6,7, light8,9 and electricity10,11, are enabling the creation of functional active components. SAMs including shape memory polymers (SMPs), hydrogels, dielectric elastomers have been used to fabricate biomedical devices7,12,13, wearable devices14,15, artificial muscles10,11 and other smart products16,17,18. However, applications of SAMs are limited by the current manufacturing approaches which constrain active structures and devices to simple geometries, often created with a single material and they have yet to broadly exploit the potential of tailored microarchitectures.

This picture is changing as 3D printing and SAMs are being integrated. The most notable example is the recently developed “4D printing” technology2,3 in which the printed 3D structures are able to actively transform configurations over time in response to environmental stimuli. There are two types of SAMs mainly used to realize 4D printing: hydrogels that swell when solvent molecules diffuse into polymer network and shape memory polymers (SMPs) that are capable of fixing temporary shapes and recovering to the permanent shape upon heating. The examples of the hydrogel-based 4D printing include complex self-evolving structures actuated by multilayer joints5, active valves made of thermally sensitive hydrogel19, pattern transformation realized by heat-shrinkable polymer20 and biominic 4D printing achieved by anisotropic hydrogel composites with cellulose fibrils21. However, the low modulus of hydrogels ranging from kPa to 100 kPa19,21 and the solvent diffusion based slow response rates in the time scale of a few ten minutes, hours and even days5,21,22 make the hydrogel based 4D printing not suitable for structural and actuation applications. Compared to hydrogels, SMPs have higher modulus ranging MPa to GPa7,23 and faster response rates (in the scale of seconds to minutes depending on actuation temperature)24,25. The examples of the SMP based 4D printing include printed active composites where precisely prescribed SMP fibers were used to activate the complex shape change2,3, sequential self-folding structured where SMP hinges with different responding rates were deliberately placed at different positions4 and multi-shape active composites where two SMP fibers with different glass transition temperatures26. To date, the SMP based 4D printing were mainly realized by commercial Polyjet 3D printer (Stratasys, Objet) which create materials with properties ranging between rigid and elastomeric by mixing the two base resins. The fact that users are not allowed to freely tune the thermomechanical properties beyond the realm of available resins impedes this 4D printing technology to advance to a wider range of applications. For example, the capability of 4D printed actuation is limited as the printed digital materials break at 10–25% 27; the printed structures could not be used in high temperature applications as the highest glass transition temperature of the available resin is about 70 °C4. In addition, this technology is not suitable for microscale applications as the lateral printing resolution is up to 200 μm inherently limited by the Polyjet printing method28.

In this paper we report a new approach that enables high resolution multimaterial 4D printing by printing highly tailorable SMPs on a projection microstereolithography (PμSL) based additive manufacturing system. We synthesize photo-curable methacrylate based copolymer networks using commercially-available materials. By tuning the material constituents and compositions, the flexibility of the methacrylate based copolymer networks enables highly tailorable SMP thermomechanical properties including rubbery modulus (from MPa to 100 MPa), glass transition temperature (from −50 °C to 180 °C) and the failure strain (up to 300%). Methacrylate based SMPs with different constituents or compositions form strong interface bonds with each other and enable fabrication of 3D structures made of multiple SMPs that can exhibit new functionality resulting from their dynamic thermomechanical properties. The PμSL based additive manufacturing system with high lateral resolution up to 1 μm exploits a digital micro-display device as a dynamic photo mask to dynamically generate and reconfigure light patterns, which then converts liquid monomer resin into solid via photo-polymerization in a layer-by-layer fashion29,30,31. A high resolution, high contrast digital micro-display device ensures high resolution structure made of methacrylate based SMPs that require higher exposure energy than acrylate based polymers which have been frequently used for 3D printing but do not have SM effect. Multimaterial manufacturing is achieved via an automatic material exchanging mechanism integrated into the PμSL additive manufacturing system. In addition, a highly fidelity computational tool based on the understanding of the shape memory behavior is used to facilitate the design of SMP 3D structures by simulating important design considerations including local deformation, shape fixity and free recovery rate. We believe this novel approach will translate the SMP based 4D printing into a wide variety of practical applications, including biomedical devices12,13,32,33, deployable aerospace structures34,35, shopping bags36,37 and shape changing photovoltaic solar cells38,39.


Multimaterial additive manufacturing system

We fabricate high resolution multimaterial shape memory structures on an additive manufacturing apparatus based on projection microstereolithography (PμSL)29,30,31. As shown schematically in Fig. 1a, a computer aid design (CAD) model is first sliced into a series of closely spaced horizontal two-dimension (2D) digital images. Then, these 2D images are transmitted to a digital micro display which works as a dynamic photo-mask30. Ultraviolet (UV) light produced from a light emitting diode (LED) array is spatially modulated with the patterns of the corresponding 2D images and illuminated onto the surface of photo-curable polymer solution. Once the material in the exposed area is solidified to form a layer, the substrate on which the fabricated structure rests is lowered by a translational stage, followed by projection of the next image to polymerize a new layer on top of the preceding one. This process proceeds iteratively until the entire structure is fabricated. In the current setup, the projection area is about 3.2 cm × 2.4 cm resulting in a pixel size of 30 μm × 30 μm. The lateral resolution can be further improved up to as high as 1 μm if a projection lens with high optical magnification is used29. The step-and-repeat method can be employed to extend printing area without compromising lateral resolution30. Multimaterial fabrication is enabled by automating polymer solution exchange during the printing process. Although many efforts40,41,42 have been made to develop multimaterial fabrication systems by adding the automated polymer solution exchanging mechanisms into the “top-down” fabrication system (as shown schematically in Fig. 1a) where the modulated UV light projected downwards to the polymer resin, the multimaterial fabrication system developed based on the “bottom-up” approach making the depth of transparent polymer solution containers independent of the part height helps to significantly reduce material contamination and improve efficiency of material use43, but requires precise control of the oxygen concentration to separate the printed parts from the transparent polymer solution containers without damaging them43,44.

Figure 1
figure 1

Schematics of multimaterial additive manufacture system.

(a) A workflow illustrates the process of fabricating a multimaterial structure based on PμSL (b) Photo-curable shape memory polymer network is constructed by mono-functional monomer, Benzyl methacrylate (BMA) as linear chain builder (LCB) and multi-functional oligomers, Poly (ethylene glycol) dimethacrylate (PEGDMA), Bisphenol A ethoxylate dimethacrylate (BPA) and Di(ethylene glycol) dimethacrylate (DEGDMA) as crosslinkers.

We fabricate shape memory structures using photo-curable methacrylate copolymers that form polymer networks via free radical photo-polymerization45,46,47. To understand the thermomechanical properties and shape memory (SM) effects of the materials and structures, we prepared polymer resins by using a mono-functional monomer, Benzyl methacrylate (BMA) as linear chain builder (LCB) and difunctional oligomers, Poly (ethylene glycol) dimethacrylate (PEGDMA), Bisphenol A ethoxylate dimethacrylate (BPA) and Di(ethylene glycol) dimethacrylate (DEGDMA) as crosslinkers that connect the linear chains to form a cross-linked network (shown in Fig. 1b). Details about polymer resin preparations can be founded in Methods. More selections of LCBs and crosslinkers are suggested by Safranski and Gall48.

Experimental Characterization

The photo-curable methacrylate networks provide high tailorability of thermomechanical properties of printed SMPs. Among them, the glass transition temperature (Tg), the rubbery modulus (Er) and the failure strain (εf) are the most critical properties for the design of active components as they dictate the shape recovery temperature and rate, constrained recovery stress and capability of shape change and/or actuation, respectively24,48,49,50,51. Figure 2a–c demonstrates that these thermomechanical properties can be tailored over wide ranges and still printed, by either controlling the concentration of crosslinker or using different crosslinkers. In Fig. 2a, for instance, for the copolymer network system consisting of BMA and crosslinker PEGDMA with molecular weight of 550 g/mole (denoted as B + P550), the Tg starts from 65 °C where the copolymer network system consists of pure BMA and then decreases with increase in the crosslinker concentration (See Supplementary Materials S1.1 I and Fig. S1a). The Tg of the copolymer networks consisting of the crosslinker PEGDMA with molecular weight of 750 g/mole (denoted as B + P750) and the crosslinker BPA with molecular weight of 1700 g/mole (denoted as B + BPA) follows the same trend of the B + P550 copolymer networks (Fig. S1b,c), while the Tg increases with increase in the crosslinker concentration of the copolymer network consisting of BMA and DEGDMA (denoted as B + DEG, Fig. S1d). The Couchman equation52 can be used to guide material design with a desired Tg by mixing the LCB and crosslinker with prescribed ratios: . Here, and are the glass transition temperatures of the respective pure-components and M1 and M2 are the corresponding mass fractions. In Fig. 2a, using the current LCB monomer, namely BMA and crosslinkers, namely PEGDMA, BPA and DEGDMA allows us to adjust Tg from −50 °C to 180 °C, while more flexibility can be obtained by choosing different LCB monomers and crosslinkers48 or even mixing more than one LCB monomers and crosslinkers to prepare the polymer resin53.

Figure 2
figure 2

Experimental characterization of methacrylate SMP networks.

Highly tailorable glass transition temperature (a), rubbery modulus (b) and failure strain (c) are controlled by either changing the mixing LCB/crosslinker ratio or using different crosslinkers. (d) The temperature effect on the failure strain of the SMP consisting of 90% BMA and 10% BPA. (e) The normalized exposure energy to cure a thin layer varies with the crosslinker concentration as well as the molecular weight of crosslinker. (f) The investigation on the interface bonding of a printed composite with two components arranged in series (inset).

Figure 2b shows that the rubbery modulus Er of the copolymer networks increases with increase in crosslinker concentration (see Supplementary Materials S1.2, Fig. S2 and Table S1), as expected from entropic elasticity54, Er = (3ρRT)/Mc; here, R is the gas constant, T is absolute temperature, ρ is polymer density and Mc is average molecular weight between crosslinks. The ratio ρ/Mc is the crosslinking density of the polymer network which is affected by crosslinker concentration as well as the molecular weight of the crosslinker. Comparing the four network systems, the B + DEG network has the highest rubbery modulus at the same mass fraction of crosslinker, as the highest molar weight of DEGDMA leads to the highest crosslinking density (See Supplementary Materials S1.3 and Table S2) and the highest Er.

The effect of crosslinker on failure strain εf is shown in Fig. 2c; these results were obtained from uniaxial tensile tests at temperatures 30 °C above each sample’s Tg where sample stays the rubbery state to eliminate the effect of viscoelasticity (see Supplementary Materials S1.2, Fig. S2 and Table S1). The results shown in Fig. 2c suggest that in the SMP system consisting of the same LCB and crosslinker, the lower crosslinker concentration gives higher stretchability. Figure 2c also shows that the copolymer network system formed with a higher molecular weight crosslinker has higher stretchability. For example, for the copolymer systems consisting of 10% crosslinkers, the stretchability can be increased from 45% to 100% at 30 °C above sample’s Tg by increase the molecular weight from 242.3 g/mol (DEGDMA) to 1700 g/mol (BPA) (See Supplementary Materials S1.2, Fig. S2 and Table S1). Figure 2d shows the temperature effect on the failure strain of an SMP sample consisting of 90% BMP and 10% BPA (See Supplementary Materials S1.4 and Fig. S3). The stretchability of this copolymer network is increased by decreasing the stretching temperatures and finally reaches the maximum of 330% at 40 °C where the temperature is close to the peak of the loss modulus indicating the highest energy dissipation. A more stretchable network can be achieved by further reducing the crosslinker concentration of BPA or replacing BPA with a crosslinker having higher molecular weight.

Not only does the chemical composition affect the thermomechanical properties of the printed SMP systems, it also affects the photo-polymerization kinetics that determines the build rate during manufacturing. As shown in Fig. 2e, at a given UV light intensity, less exposure energy (time) is required to cure a layer of the same thickness when the crosslinker concentration increases (See Supplementary Materials S1.5 and Fig. S4a). This is mainly attributed to the reaction diffusion-controlled termination during the polymerization of the methacrylate based copolymer system55,56,57. With more crosslinker, the crosslinking density of the polymer increases, which limits the propagation of free radicals that would otherwise reach each other to terminate the polymerization57. Figure 2e also shows that the copolymer network consisting of a lower molecular weight crosslinker (P550) requires less exposure energy (time) to polymerize a same thickness layer. This is primarily because the low molecular weight crosslinker (P550) contains more unreacted double bonds per unit mass than the high molecular weight crosslinker (P750) does. In addition, the increase of photo initiator reduces the exposure energy (time) to cure a same thickness layer (See Supplementary Materials S1.5 and Fig. S4b). Moreover, it is necessary to note that under the same condition methacrylate based SMP has comparatively lower reactivity57 than those acrylate based materials such as poly(ethylene glycol) diacrylate (PEGDA) and hexanediol diacrylate which have been frequently used to print 3D structure29,30,31,44,58,59. This comparatively slow but conversion-dependent57 photo-polymerization kinetics makes the methacrylate based SMPs require higher (longer) exposure energy (time) to cure a layer of the same thickness than the acrylate based materials (See Supplementary Materials S1.5 and Fig. S4c). Therefore, a high contrast digital micro display with moderate intensity of UV light is needed to avoid any unwanted curing on the unintended parts (Details about the digital micro display are described in Materials).

In a printed component that consists of more than one material, the interface bonding between them significantly impacts the mechanical performance of the composite. In Fig. 2f, we investigated the interfacial bonding by uniaxially stretching a composite with two components arranged in series (Component A: 50% B + 50% P550 with Tg = 31 °C and Component B: 90% B + 10% BPA Tg = 56 °C) at a temperature 30 °C higher than Tg of Component B, where the both components are in their rubbery state (See Supplementary Materials S1.6 and Fig. S5). The fact that the composite breaks at Component A which has a lower failure strain rather than at the interface indicates a strong interface bonding. The comparison of uniaxial tensile tests between the composite and the two components in Fig. 2e reveals that Components A and B form a strong covalently boned interface through which the composite transfers stress completely between the two components. Generally speaking, this strong interface bonding forms between the methacrylate based SMPs made of different compositions and constitutes.

Shape Memory Behavior

Two key attributes of SMPs are their ability to fix a temporary programmed shape (fixity) and to subsequently recover the original shape upon activation by a stimulus (recovery). Figure 3a shows a typical temperature-strain-time shape memory (SM) cycle that we used to investigate the fixity and recovery of SMP samples synthesized from different LCBs and crosslinkers that result in different Tg s. Figure 3b presents representative strain-time curves of a SMP strip sample made of 80% BMA + 20% P750. The SMP was first stretched to a target strain emax (20%) with a constant loading rate e (0.001 s−1) at a programming temperature TD (63 °C) and then the temperature was decreased to a TL (TL = 25 °C) with a cooling rate 2.5 °C/min. Once TL was reached, the specimen was held for 2 minutes and then the tensile force was removed. In the free recovery step, the temperature was increased to a recovery temperature TR (in Fig. 3b, TR = 35 °C, 40 °C, 50 °C and 60 °C, respectively) at the same rate of cooling and subsequently stabilized for another 20 min. (Details about the SM behavior testing are presented in Supplementary Material in S2.1 and Fig. S6).

Figure 3
figure 3

SM behavior of the (meth)acrylate based copolymer SMP network.

(a) The SM behavior has been investigated by following a typical SM cycle: at Step I, a sample is deformed by emax at a programming temperature TD; at Step II, the temperature is decreased from TD to TL while keeping the sample deformed by emax; at Step III, after unloading, there is a deformation bounce back Δe; at Step IV, the free recovery is performed by heating the sample to a recovery temperature TR. (b) The representative SMP strain-time curves achieved by stretching a SMP sample (80% BMA and 20% P750) at 63 °C, unloading at 25 °C and heating to 63 °C, 50 °C, 40 °C and 35 °C, respectively. (c) Shape fixity as a function of programming temperature. (d) Shape recovery time (t0.95) as a function of recovery temperature.

As shown in Fig. 3a,b, we use the small strain bounce back, Δe, of the SMP after unloading to define the shape fixity, i.e., Rf = (emax − Δe)/emax. Figure 3c shows that the shape fixity is a function of the programming temperature TD (Details about TD are listed in Supplementary Material Table S4): the SMP keeps a high shape fixity (>90%) when TD is above or near the SMP’s Tg and the shape fixity starts to drop dramatically when TD is 20 °C lower than the SMP’s Tg. The phenomenon that the shape fixity is a function of TD agrees the previous study24 and can be simulated by the recently developed multi-branch model which consists of an equilibrium branch corresponding to entropic elasticity and several thermoviscoelastic nonequilibrium branches to represent the multiple relaxation processes of the polymer24,60 (Details about the multi-branch model are presented in Supplementary Material S2.2–2.3). The model predictions agree with the experiments well and provide underlying understanding of the effect of the programming temperature TD on the shape fixity Rf (Details about model predictions are presented in Supplementary Material S2.4 and Figure S9). When TD is higher or near the Tg, an SMP has a high shape fixity Rf, as the time requires to relax all the nonequilibrium stresses is shorter than the time used for loading at TD and cooling to TL. When TD is decreased to a lower temperature the shape fixity Rf decreases as the nonequilibrium stresses do not have sufficient time to relax. For example, in Fig. 3c, the simulation indicates that for the SMP of 90% BMA + 10% BPA with Tg = 56 °C, Rf is decreased to nearly zero when TD is 25 °C where the polymer chain mobility is significantly reduced and the unrelaxed nonequilibrium stresses are stored as elastic energy.

Figure 3d indicates that the free shape recovery is a function of recovery temperature (Details about how to achieve the free recovery curve are presented in S2.1). We define the shape recovery ratio as Rr = 1−e(t)/(emax−Δe). We use the recovery time t0.95 that corresponds to a 95% shape recovery ratio to measure the shape recovery rate at different recovery temperatures TR24. Within the lab scale experiment time (an hour), the SMP samples were able to realize the 95% shape recovery only at the recovery temperature TR more than 10 °C higher than the SMP’s Tg (the measured t0.95 are listed in Table S5). The multi-branch model is also used to simulate the free recovery at different recovery temperatures TR and predict the recovery time t0.95 at different TR s (See Supplementary Material S2.4). Overall, t0.95 increases exponentially with a decreasing TR and for different SMPs, at the same TR, the one with a higher Tg requires a longer recovery time.

Three dimensional printed structures with a single SMP

Figure 4 shows the ability of our additive manufacturing system to create complex 3D structures that exhibit nonlinear large deformation SM behavior. As shown in Fig. 4aI, a spring was fabricated using a SMP with Tg = 43 °C (80% B + 20% P750). We demonstrated the SM effect of the spring by stretching it to a straight strand at 60 °C. The straight strand configuration was fixed (Fig. 4aII) after removing the external load at 20 °C. It recovered the original spring shape (Fig. 4aII–V) after heating back to 60 °C. The complicated nonlinear large deformation SM behavior of the spring was investigated by following the typical SM cycle for a spring with a representative segment (See Supplementary Material S3.3). Figure 4b shows the force-displacement relation when the spring was stretched at 60 °C. The spring becomes extremely stiff as it approaches to its fully unfolded state. The finite element (FE) simulations present the deformation contours in the progress of stretching the spring. Regardless of the maximum deformation on the two ends, the highest principle engineering strain on the main body of the spring was in the range from 70–100% which is about two to three times higher than the failure strain of previously reported SMPs used for 4D printing2, indicating the enhanced mechanical performance which is a necessity for active structures. In “4D printing” where the fourth dimension is “time”, a key desire is to control of the actuation rate. For the printed shape memory structures, the actuation rate can be controlled by the recovery temperature24,49. Figure 4c shows the recovery ratio of the stretched spring at different recovery temperatures. Here, the recovery ratio of the SM spring is defined as , where d(t) is the end-to-end displacement during heating, dmax is the maximum displacement before unloading at 20 °C and Δd is the bounce back displacement after unloading. As seen in Fig. 4c, is highly dependent on the recovery temperature. At 60 °C, the spring was fully recovered into the initial shape within 3 mins. The recovery rate was significantly slower at 35 °C where only about 10% recovery took place after 20 mins holding. The SM behavior including the free recovery at different temperatures of the 3D printed spring can be simulated by implementing the multi-branch model into FE software ABAQUS (Simulia, Providence, RI, USA). In Fig. 4c, the FE simulation reproduced the free recovery behavior at different recovery temperatures, indicating that the multi-branch model can be used to design complex 4D printed structures that are made of SMPs and exhibit complex nonlinear large deformation thermomechanical behaviors. Details about FE simulation of SM behavior of this printed spring are described in Supplementary Material S3.3 and Supplementary Movies 1a–d.

Figure 4
figure 4

3D printed shape memory structures with single material.

(a) A 3D printed shape memory spring (I) was programmed to a straight strand temporary configuration (II) and then recovered to its original shape upon heating (III–V). (b) Experimental characterization and FE simulation were performed to investigate the nonlinear deformation. (c) Experiments and simulations of the free recovery at different temperatures. (d) 3D printed SM Eiffel tower. (e) 3D printed SM stents.

Figure 4d shows a more refined and complex 3D printed structure Eiffel Tower standing on a Singapore dollar. It was printed with the SMP made of 80% B + 20% P750 too. Following the SM cycle, a temporary bent shape (Fig. 4dI) was achieved by bending the Eiffel tower at 60 °C and removing the external load after cooling to 25 °C. After heating back to 60 °C, the bent Eiffel tower gradually recovered its original straight shape (Fig. 4d, Supplementary Movie 2). Figure 4e demonstrates one of the most notable applications of SMPs — cardiovascular stent. Although there have been various efforts directed at fabrication12,32, material and structural characterization12,61,62 and simulations32,63,64,65, the design of the stents has been limited primarily by fabrication methods because traditional manufacturing approaches are usually complex, consisting of multiple time-consuming steps, to achieve the geometric complexity and resolution necessary for stents12,32. Our additive manufacturing system offers the ability to fabricate high resolution 3D shape memory structures with hardly any restriction of geometric complexity. Figure 4eI shows an array of stents printed in one batch with different geometric parameters including the height and the diameter of a stent, the number of joints, the diameter of ligaments and the angle between ligaments. In Fig. 4eII, a 3D printed stent was programmed into the temporary shape with a smaller diameter for minimally invasive surgery. After heating, the stent was recovered into the original shape with a larger diameter used to expand a narrowed artery. The finite element (FE) simulation shown in Fig. 4eII gives an insight into the local large deformation that occurs in the temporary shape and renders existing additive manufacturing systems and materials infeasible. The simulations provide a guide for the material selection based on the understanding of the thermomechanical properties from Fig. 2.

Three dimensional printed structures with multiple SMPs

Figure 5 demonstrates the printing of a 3D printed structure with multiple SMPs - multimaterial grippers that have the potential to function as microgrippers13 that can grab objects, or drug delivery devices33,66 that can release objects. Figure 5aI shows a number of multimaterial grippers with different designs including different sizes and numbers of digits (comparing Fig. 5aII and III), multiple materials placing at different positions (Fig. 5aIII and IV) and different mechanisms of the grippers to enable different functionalities (the closed grippers in Fig. 5aIII for grabbing objects and the open gripper in Fig. 5bV for releasing objects). In Fig. 5b, an as-printed closed (open) gripper was opened (closed) after programming and the functionality of grabbing (releasing) objects was triggered upon heating. Figure 5c shows time-lapsed images of a gripper grabbing an object (Supplementary Movies 3).

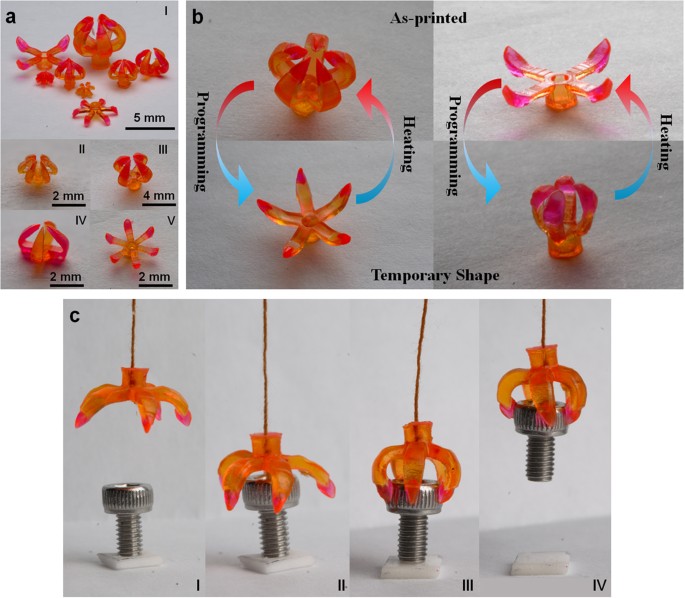

Figure 5
figure 5

3D printed multimaterial grippers.

(a) Multimaterial grippers were fabricated with different designs. (b) The demonstration of the transition between as printed shape and temporary shape of multimaterial grippers. (c) The snapshots of the process of grabbing an object.

Compared to contemporary manufacturing approaches13,33,66 that essentially realized the gripper deformation of folding or unfolding by creating strain mismatches between layers of a thin multilayer hinge with thickness from a few microns to a few hundred nanometers which is about 1000 times smaller than the size of the entire structure13,33,66, our approach is simple and straightforward enabling stiffer grippers with thick joints made of SMPs. Additionally, the capability of multimaterial fabrication enables us to print the tips of the grippers with the materials different from the SMPs constructing the joints and to design the stiffness of the tips based on that of the object to realize a safe contact. Details about material selections of the 3D printed grippers are described in Supplementary Material S4.1.

Finally, by controlling the dynamic properties of the different SMPs as investigated in Fig. 3d, we are able to design the time dependent sequential shape recovery4,67 of a structure fabricated with multiple SMPs. In Fig. 6, we demonstrate sequential shape recovery by printing a multimaterial flower whose inner and outer petals have different Tg s (inners petal made of 90% B + 10% BPA with Tg = 56 °C and outer petals made of 80% B + 20% P750 with Tg = 43 °C). We first closed all the petals at 70 °C and then decreased the temperature to 20 °C. After removal of the external constraint, the flower was fixed at the temporary bud state (Fig. 6a) where both the inner and outer petals stayed closed. The sequential recovery was triggered by raising the temperature first to 50 °C at which only the outer petals opened. The inner petals with Tg of 56 °C opened later after temperature was raised to 70 °C, completing the full shape recovery of the flower to its original blooming state (Fig. 6c). In Fig. 6d–f, a FE simulation (details can be founded in Supplementary Material S4.2) predicts this flower blooming process indicating that the multi-branch model can be used to design complex 4D printed structures that are made of multiple SMPs and exhibit sequential shape.

Figure 6
figure 6

The sequential recovery of a multimaterial flower.

The multimaterial flower in the original shape (c) was first programmed into the temporary bud state at 20 °C (a). The outer petals opened first after heating to 50 °C (b) and then, the flower fully bloomed at 70 °C (c). (d)–(f) represent the FE simulations of the corresponding flower blooming process.


Development of multimaterial fabrication system

To develop a high resolution multimaterial system based on PμSL, a CEL5500 LED light engine purchased from Digital Light Innovation (Austin, Taxes, USA) was used to work as the digital micro-display, a translation stage (LTS300) with 0.1 μm minimum achievable incremental movement and 2 μm backlash purchased from Thorlabs (Newton, New Jersey, USA) was used to work as the elevator, a stepper motor purchased from SparkFun Electornics (Niwot, Colorado, USA) controlled by Arduino UNO board works as a shaft to build the automated material exchange system. A custom LabView code was developed to control all the electronic components and automate the printing process.

Material synthesis

All the chemicals including the methacrylate based monomers and crosslinkers, photo initiator and photo absorbers were purchased from Sigma Aldrich (St. Louis, MO, USA) and used as received. Phenylbis (2, 4, 6-trimethylbenzoyl) phosphine oxide works as photo initiator mixed into the methacrylate based polymer resolution at the concentration of 5% by weight. Sudan I and Rhodamine B works as photo absorber fixed at concentration of 0.05% and 1% by weight, respectively.

Printing and post-processing

The designed 3D structures were first sliced into layers with a prescribed layer thickness (most structures here were sliced with 50 μm per layer). The custom LabVIEW with printing parameters which specify layer thickness, light intensity, exposure time, sends the sliced 2D images in order to digital micro display and controls the light irradiation of the digital micro displace and translational stage motion. Once the 3D structures were printed, they were rinsed by the ethanol solution to remove the extra unreacted polymer solution. After that, the 3D structures were placed into a UV oven (UVP, Ultraviolet Crosslinkers, Upland, CA, USA) for 10 min post-curing.

Additional Information

How to cite this article: Ge, Q. et al. Multimaterial 4D Printing with Tailorable Shape Memory Polymers. Sci. Rep. 6, 31110; doi: 10.1038/srep31110 (2016).


  • Bartlett, N. W. et al. A 3D-printed, functionally graded soft robot powered by combustion. Science 349, 161–165, 10.1126/science.aab0129 (2015).

    CAS  ADS  Article  PubMed  Google Scholar

  • Ge, Q., Dunn, C. K., Qi, H. J. & Dunn, M. L. Active origami by 4D printing. Smart Materials and Structures 23, doi: 10.1088/0964-1726/23/9/094007 (2014).

  • Ge, Q., Qi, H. J. & Dunn, M. L. Active materials by four-dimension printing. Applied Physics Letters 103, doi: 10.1063/1.4819837 (2013).

  • Mao, Y. et al. Sequential Self-Folding Structures by 3D Printed Digital Shape Memory Polymers. Scientific Reports 5, 13616, doi: 10.1038/srep13616 (2015).

    ADS  Article  PubMed  PubMed Central  Google Scholar

  • Raviv, D. et al. Active printed materials for complex self-evolving deformations. Scientific Reports 4, 7422, doi: 10.1038/srep07422 (2014).

    CAS  Article  PubMed  PubMed Central  Google Scholar

  • Lendlein, A. & Kelch, S. Shape-memory polymers. Angewandte Chemie International Edition in English 41, 2035–2057 (2002).

    Google Scholar

  • Lendlein, A. & Kelch, S. Shape-memory polymers as stimuli-sensitive implant materials. Clinical Hemorheology and Microcirculation 32, 105–116 (2005).

    CAS  PubMed  Google Scholar

  • Long, K. N., Scott, T. F., Qi, H. J., Bowman, C. N. & Dunn, M. L. Photomechanics of light-activated polymers. Journal of the Mechanics and Physics of Solids 57, 1103–1121, doi: 10.1016/j.jmps.2009.03.003 (2009).

    CAS  ADS  Article  MATH  Google Scholar

  • Ryu, J. et al. Photo-origami-Bending and folding polymers with light. Applied Physics Letters 100, 161908, doi: 10.1063/1.3700719 (2012).

    CAS  ADS  Article  Google Scholar

  • Keplinger, C. et al. Stretchable, Transparent, Ionic Conductors. Science 341, 984–987, doi: 10.1126/science.1240228 (2013).

    CAS  ADS  Article  PubMed  Google Scholar

  • Wang, Q. M., Gossweiler, G. R., Craig, S. L. & Zhao, X. H. Cephalopod-inspired design of electro-mechano-chemically responsive elastomers for on-demand fluorescent patterning. Nature Communications 5, doi: 10.1038/Ncomms5899 (2014).

  • Yakacki, C. M. et al. Unconstrained recovery characterization of shape-memory polymer networks for cardiovascular applications. Biomaterials 28, 2255–2263, doi: 10.1016/j.biomaterials.2007.01.030 (2007).

    CAS  Article  PubMed  PubMed Central  Google Scholar

  • Leong, T. G. et al. Tetherless thermobiochemically actuated microgrippers. Proc Natl Acad Sci USA 106, 703–708, doi: 10.1073/pnas.0807698106 (2009).

    ADS  Article  PubMed  PubMed Central  Google Scholar

  • Mosadegh, B. et al. Pneumatic Networks for Soft Robotics that Actuate Rapidly. Advanced Functional Materials 24, 2163–2170, doi: 10.1002/adfm.201303288 (2014).

    CAS  Article  Google Scholar

  • Kramer, R. K., Majidi, C. & Wood, R. J. In Robotics and Automation (ICRA), 2011 IEEE International Conference on. 1103–1107.

  • Song, Y. M. et al. Digital cameras with designs inspired by the arthropod eye. Nature 497, 95–99, doi: 10.1038/Nature12083 (2013).

    CAS  ADS  Article  PubMed  Google Scholar

  • Westbrook, K. K. et al. Two-way reversible shape memory effects in a free-standing polymer composite. Smart Materials & Structures 20, doi: 10.1088/0964-1726/20/6/065010 (2011).

  • Yamano, I. & Maeno, T. Five-fingered robot hand using ultrasonic motors and elastic elements. 2005 IEEE International Conference on Robotics and Automation (ICRA), Vols 1–4, 2673–26782005).

  • Bakarich, S. E., Gorkin, R., Panhuis, M. i. h. & Spinks, G. M. 4D Printing with Mechanically Robust, Thermally Actuating Hydrogels. Macromolecular Rapid Communications 36, 1211–1217, doi: 10.1002/marc.201500079 (2015).

    CAS  Article  PubMed  Google Scholar

  • Zhang, Q., Yan, D., Zhang, K. & Hu, G. Pattern Transformation of Heat-Shrinkable Polymer by Three-Dimensional (3D) Printing Technique. Scientific Reports 5, 8936, doi: 10.1038/srep08936 (2015).

    CAS  ADS  Article  PubMed  PubMed Central  Google Scholar

  • Sydney Gladman, A., Matsumoto, E. A., Nuzzo, R. G., Mahadevan, L. & Lewis, J. A. Biomimetic 4D printing. Nature Materials. 15, 413–418, doi: 10.1038/nmat4544 (2016).

    CAS  ADS  Article  PubMed  Google Scholar

  • Mao, Y. et al. 3D Printed Reversible Shape Changing Components with Stimuli Responsive Materials. Scientific Reports 6, 24761, doi: 10.1038/srep24761 (2016).

    CAS  ADS  Article  PubMed  PubMed Central  Google Scholar

  • Lendlein, A. & Kelch, S. Shape-memory polymers. Angew Chem Int Ed Engl 41, 2035–2057 (2002).

    PubMed  Google Scholar

  • Yu, K., Ge, Q. & Qi, H. J. Reduced Time as a Unified Parameter Determining Fixity and Free Recovery of Shape Memory Polymers. Nature Communication 5, 3066 (2014).

    ADS  Article  Google Scholar

  • Castro, F., Westbrook, K. K., Long, K. N., Shandas, R. & Qi, H. J. Effects of thermal rates on the thermomechanical behaviors of amorphous shape memory polymers. Mechanics of Time-Dependent Materials 14, 219–241, doi: 10.1007/s11043-010-9109-6 (2010).

    ADS  Article  Google Scholar

  • Wu, J. et al. Multi-shape active composites by 3D printing of digital shape memory polymers. Scientific Reports 6, 24224, doi: 10.1038/srep24224 (2016).

    CAS  ADS  Article  PubMed  PubMed Central  Google Scholar

  • Stratasys. Digital Materials Data Sheet (2015), Date of access: 5/6/2016.

  • Stratasys. Specifications of Stratasys J750, the ultimate full-color, multi-material 3D printer, (2016), Date of access: 5/6/2016.

  • Sun, C., Fang, N., Wu, D. M. & Zhang, X. Projection micro-stereolithography using digital micro-mirror dynamic mask. Sensors and Actuators a-Physical 121, 113–120, doi: 10.1016/j.sna.2004.12.011 (2005).

    CAS  Article  Google Scholar

  • Zheng, X. et al. Design and optimization of a light-emitting diode projection micro-stereolithography three-dimensional manufacturing system. Review of Scientific Instruments 83, 125001, doi: 10.1063/1.4769050 (2012).

    CAS  ADS  Article  PubMed  Google Scholar

  • Zheng, X. Y. et al. Ultralight, Ultrastiff Mechanical Metamaterials. Science 344, 1373–1377, doi: 10.1126/science.1252291 (2014).

    CAS  ADS  Article  PubMed  Google Scholar

  • Srivastava, V., Chester, S. A. & Anand, L. Thermally actuated shape-memory polymers: Experiments, theory and numerical simulations. Journal of the Mechanics and Physics of Solids 58, 1100–1124, doi: 10.1016/j.jmps.2010.04.004 (2010).

    CAS  ADS  Article  MATH  Google Scholar

  • Yoon, C. et al. Functional stimuli responsive hydrogel devices by self-folding. Smart Materials and Structures 23, doi: 10.1088/0964-1726/23/9/094008 (2014).

  • Gall, K., Mikulas, M., Munshi, N. A., Beavers, F. & Tupper, M. Carbon Fiber Reinforced Shape Memory Polymer Composites. Journal of Intelligent Material Systems and Structures 11, 877–886, 10.1106/ejgr-ewnm-6clx-3x2m (2000).

    CAS  Article  Google Scholar

  • Xin, L. et al. Fiber reinforced shape-memory polymer composite and its application in a deployable hinge. Smart Materials and Structures 18, 024002 (2009).

    Article  Google Scholar

  • Merali, Z. Profile: Zhong You - ‘Origami Engineer’ Flexes to Create Stronger, More Agile Materials. Science 332, 1376–1377 (2011).

    CAS  PubMed  Google Scholar

  • Wu, W. N. & You, Z. A solution for folding rigid tall shopping bags. P Roy Soc a-Math Phy 467, 2561–2574, doi: 10.1098/rspa.2011.0120 (2011).

    MathSciNet  Article  Google Scholar

  • Guo, X. Y. et al. Two- and three-dimensional folding of thin film single-crystalline silicon for photovoltaic power applications. P Natl Acad Sci USA 106, 20149–20154, doi: 10.1073/pnas.0907390106 (2009).

    ADS  Article  Google Scholar

  • Myers, B., Bernardi, M. & Grossman, J. C. Three-dimensional photovoltaics. Applied Physics Letters 96, 071902, doi: 10.1063/1.3308490 (2010).

    CAS  ADS  Article  Google Scholar

  • Chan, V. et al. Multi-material bio-fabrication of hydrogel cantilevers and actuators with stereolithography. Lab on a Chip 12, 88–98, doi: 10.1039/c1lc20688e (2012).

    CAS  Article  PubMed  Google Scholar

  • Choi, J.-W., Kim, H.-C. & Wicker, R. Multi-material stereolithography. Journal of Materials Processing Technology 211, 318–328, doi: 10.1016/j.jmatprotec.2010.10.003 (2011).

    CAS  Article  Google Scholar

  • Wicker, R. B. & MacDonald, E. W. Multi-material, multi-technology stereolithography. Virtual and Physical Prototyping 7, 181–194, doi: 10.1080/17452759.2012.721119 (2012).

    Article  Google Scholar

  • Zhou, C., Chen, Y., Yang, Z. G. & Khoshnevis, B. Digital material fabrication using mask-image-projection-based stereolithography. Rapid Prototyping Journal 19, 153–165, doi: 10.1108/13552541311312148 (2013).

    Article  Google Scholar

  • Tumbleston, J. R. et al. Continuous liquid interface production of 3D objects. Science 347, 1349–1352, doi: 10.1126/science.aaa2397 (2015).

    CAS  ADS  Article  PubMed  Google Scholar

  • Anseth, K. S., Wang, C. M. & Bowman, C. N. Reaction behaviour and kinetic constants for photopolymerizations of multi(meth)acrylate monomers. Polymer 35, 3243–3250, doi: 10.1016/0032-3861(94)90129-5 (1994).

    CAS  Article  Google Scholar

  • Bowman, C. N., Carver, A. L., Kennett, S. N., Williams, M. M. & Peppas, N. A. Polymers for information storage systems III. Crosslinked structure of polydimethacrylates. Polymer 31, 135–139, doi: 10.1016/0032-3861(90)90364-5 (1990).

    CAS  Article  Google Scholar

  • Kannurpatti, A. R. & Bowman, C. N. Structural evolution of dimethacrylate networks studied by dielectric spectroscopy. Macromolecules 31, 3311–3316, doi: 10.1021/Ma970721r (1998).

    CAS  ADS  Article  Google Scholar

  • Safranski, D. L. & Gall, K. Effect of chemical structure and crosslinking density on the thermo-mechanical properties and toughness of (meth)acrylate shape memory polymer networks. Polymer 49, 4446–4455, doi: 10.1016/j.polymer.2008.07.060 (2008).

    CAS  Article  Google Scholar

  • Ge, Q., Yu, K., Ding, Y. F. & Qi, H. J. Prediction of temperature-dependent free recovery behaviors of amorphous shape memory polymers. Soft Matter 8, 11098–11105, doi: 10.1039/C2sm26249e (2012).

    CAS  ADS  Article  Google Scholar

  • Nguyen, T. D., Qi, H. J., Castro, F. & Long, K. N. A thermoviscoelastic model for amorphous shape memory polymers: Incorporating structural and stress relaxation. Journal of the Mechanics and Physics of Solids 56, 2792–2814, doi: 10.1016/j.jmps.2008.04.007 (2008).

    CAS  ADS  Article  MATH  Google Scholar

  • Qi, H. J., Nguyen, T. D., Castro, F., Yakacki, C. M. & Shandas, R. Finite deformation thermo-mechanical behavior of thermally induced shape memory polymers. Journal of the Mechanics and Physics of Solids 56, 1730–1751, doi: 10.1016/j.jmps.2007.12.002 (2008).

    CAS  ADS  Article  MATH  Google Scholar

  • Couchman, P. R. Compositional Variation of Glass-Transition Temperatures. 2. Application of the Thermodynamic Theory to Compatible Polymer Blends. Macromolecules 11, 1156–1161, doi: 10.1021/ma60066a018 (1978).

    CAS  ADS  Article  Google Scholar

  • Voit, W. et al. High-Strain Shape-Memory Polymers. Advanced Functional Materials 20, 162–171, 10.1002/adfm.200901409 (2010).

    CAS  Article  Google Scholar

  • Treloar, L. R. G. The physics of rubber elasticity. 2d edn, (Clarendon Press, 1958).

  • Anseth, K. S., Decker, C. & Bowman, C. N. Real-Time Infrared Characterization of Reaction Diffusion during Multifunctional Monomer Polymerizations. Macromolecules 28, 4040–4043, doi: 10.1021/ma00115a045 (1995).

    CAS  ADS  Article  Google Scholar

  • Lovell, L. G., Stansbury, J. W., Syrpes, D. C. & Bowman, C. N. Effects of Composition and Reactivity on the Reaction Kinetics of Dimethacrylate/Dimethacrylate Copolymerizations. Macromolecules 32, 3913–3921, doi: 10.1021/ma990258d (1999).

    CAS  ADS  Article  Google Scholar

  • Young, J. S. & Bowman, C. N. Effect of Polymerization Temperature and Cross-Linker Concentration on Reaction Diffusion Controlled Termination. Macromolecules 32, 6073–6081, doi: 10.1021/ma9902955 (1999).

    CAS  ADS  Article  Google Scholar

  • Lee, H., Xia, C. & Fang, N. X. First jump of microgel; actuation speed enhancement by elastic instability. Soft Matter 6, 4342–4345, doi: 10.1039/c0sm00092b (2010).

    CAS  ADS  Article  Google Scholar

  • Lee, H., Zhang, J., Jiang, H. & Fang, N. X. Prescribed Pattern Transformation in Swelling Gel Tubes by Elastic Instability. Physical Review Letters 108, 214304 (2012).

    ADS  Article  PubMed  Google Scholar

  • Westbrook, K. K., Kao, P. H., Castro, F., Ding, Y. F. & Qi, H. J. A 3D finite deformation constitutive model for amorphous shape memory polymers: A multi-branch modeling approach for nonequilibrium relaxation processes. Mechanics of Materials 43, 853–869, doi: 10.1016/j.mechmat.2011.09.004 (2011).

    Article  Google Scholar

  • Yakacki, C. M. et al. Strong, tailored, biocompatible shape-memory polymer networks. Advanced Functional Materials 18, 2428–2435, doi: 10.1002/adfm.200701049 (2008).

    CAS  Article  PubMed  PubMed Central  Google Scholar

  • Gall, K. et al. Thermomechanics of the shape memory effect in polymers for biomedical applications. Journal of Biomedical Materials Research Part A 73A, 339–348, doi: 10.1002/jbm.a.30296 (2005).

    CAS  Article  Google Scholar

  • Ames, N. M., Srivastava, V., Chester, S. A. & Arland, L. A thermo-mechanically coupled theory for large deformations of amorphous polymers. Part II: Applications. International Journal of Plasticity 25, 1495–1539, doi: 10.1016/j.ijplas.2008.11.005 (2009).

    CAS  Article  MATH  Google Scholar

  • Anand, L., Ames, N. M., Srivastava, V. & Chester, S. A. A thermo-mechanically coupled theory for large deformations of amorphous polymers. Part I: Formulation. International Journal of Plasticity 25, 1474–1494, doi: 10.1016/j.ijplas.2008.11.004 (2009).

    CAS  Article  MATH  Google Scholar

  • Srivastava, V., Chester, S. A., Ames, N. M. & Anand, L. A thermo-mechanically-coupled large-deformation theory for amorphous polymers in a temperature range which spans their glass transition. International Journal of Plasticity 26, 1138–1182, doi: 10.1016/j.ijplas.2010.01.004 (2010).

    CAS  Article  MATH  Google Scholar

  • Malachowski, K. et al. Stimuli-Responsive Theragrippers for Chemomechanical Controlled Release. Angewandte Chemie-International Edition 53, 8045–8049, doi: 10.1002/anie.201311047 (2014).

    CAS  Article  PubMed  Google Scholar

  • Yu, K., Ritchie, A., Mao, Y., Dunn, M. L. & Qi, H. J. Controlled Sequential Shape Changing Components by 3D Printing of Shape Memory Polymer Multimaterials. Procedia IUTAM 12, 193–203, doi: 10.1016/j.piutam.2014.12.021 (2015).

    Article  Google Scholar

Download references


Q.G., A.H.S. and M.L.D. gratefully acknowledge support from SUTD Digital Manufacturing and Design Centre (DManD), supported by the Singapore National Research Foundation. Q.G. and N.X.F. acknowledge the SUTD-MIT joint postdoctoral programme. Q.G. acknowledges SUTD Start-up Research Grant and LNM Open Fund supported by State Key Laboratory of Nonlinear Mechanics, Institute of Mechanics, Chinese Academy of Science.

Author information

Authors and Affiliations



Q.G. developed the multimaterial 3D printing system, prepared photo-curable polymer resins, fabricated the multimaterial shape memory structures, conducted experiments and prepared the manuscript. A.H.S. conducted FEA simulations. H.L. conducted the preliminary experiments and contributed to the development of multimaterial 3D printing system and manuscript preparation. C.K.D. contributed to the development of multimaterial 3D printing system. N.X.F and M.L.D. contributed to the concept development and manuscript. All authors reviewed the manuscript.

Ethics declarations

Competing interests

The authors declare no competing financial interests.
