The shrinking and thinning sea-ice cover of the Arctic Ocean allows the sunlight to penetrate deeper into the water column and extend the sunlit period in subsurface waters1,2,3. The increased light penetration is already causing profound changes to key ecosystem functions, such as enhanced primary production in the marginal shelf seas, and a shifting phenology of ice algae and phytoplankton blooms4,5,6,7. The effects of the changing light field on higher trophic levels of the Arctic marine ecosystem, however, are not well understood.

The diel change in light intensity is the primary driver of the largest synchronized movement of organisms on Earth: the diel vertical migration of zooplankton8 (DVM). Commonly, zooplankton ascend to the surface during the night to feed on plankton and descend to deeper waters during the day to avoid visual predators. In the polar regions, winter-active zooplankton perform a seasonal vertical migration between greater depths during the polar day and shallow depths during the polar night9,10,11,12. Besides DVM, polar lipid-rich zooplankton perform an ontogenetic migration, spending the polar night in deep water to overwinter in dormancy13. Vertically migrating zooplankton act as an active biological carbon pump (also called a ‘lipid pump’14), accounting for 25–132% of the gravitational biological carbon pump driven by sinking particulate organic carbon15,16. Furthermore, the foraging success of visual predators, such as fish and marine birds and mammals, depends on the interplay between the timing and depth range of the zooplankton’s vertical migration and light penetration depth17,18,19.

Earlier studies using hydroacoustic measurements demonstrated that the vertical migration of Arctic zooplankton is particularly sensitive to low light intensities, but these studies were unable to resolve the top 20 m of the ice-covered ocean9,10,20,21,22. However, the water layer underneath the sea ice, here defined as the ‘under-ice habitat’, is important for zooplankton, because microalgae growing in sea ice (‘ice algae’) may provide critical food supply, particularly during the polar night23,24. Increasing light penetration through a thinning sea ice and reduced accumulation of snow may affect the timing of the seasonal migration of zooplankton into and out of the under-ice habitat, and hence the net duration of access to these resources.

Field observations indicate that the vertical migration of zooplankton often follows a trigger level of very low light intensity22. This trigger level must be measured under ambient conditions without disturbance by noise or light, both of which are typically emitted by human-operated research platforms21. Only then can trigger levels be implemented in coupled biogeochemical sea-ice–ocean models to predict the change in the timing of the seasonal migration into and out of the under-ice habitat based on future light penetration scenarios. In the polar regions, the low light intensities triggering vertical migration occur in the twilight periods during autumn and spring; that is, after sunset and before sunrise. Because both models and satellite products wrongly assume zero incoming radiation once the sun is below the horizon, an approach considering light penetration during the twilight periods is necessary to realistically model changes in the seasonal migration of zooplankton under sea ice25.

To investigate how light intensity controls the vertical migration of zooplankton in the under-ice habitat of the Arctic Ocean, we deployed an ice-tethered, autonomous biophysical observatory drifting across the Central Arctic Ocean (CAO) thousands of kilometres away from any artificial light and noise sources from September 2020 to April 2021. By analysing the data acquired we were able to identify the level of light intensity that triggered vertical migration. To predict likely shifts in the timing of zooplankton vertical migration in the upcoming decades, we applied this trigger level to future light fields derived from experiments of four CMIP6 (Coupled Model Intercomparison Project Phase 6) models with a new approach that made it possible to model the light field under sea ice during the autumn and spring twilight periods. The results allowed us to identify potential changes to the functioning of the high-Arctic ecosystem caused by new vertical migration patterns.

We deployed an autonomous biophysical observatory on sea ice at the end of the MOSAiC drift experiment with RV Polarstern in September 2020 (Polarstern expedition PS122/5)26,27. This observatory consisted, among other components, of an Acoustic Zooplankton and Fish Profiler (AZFP) measuring acoustic backscatter at 67, 125, 200 and 455 kHz in the top 50 m of the ocean, a radiation station equipped with hyperspectral light sensors measuring irradiance at the ice underside between 350 and 920 nm (ref. 28), and a CTD (conductivity, temperature, depth) buoy measuring salinity, temperature and pressure at five depth levels (10, 20, 50, 75 and 100 m) (Extended Data Fig. 1 and Supplementary Fig. 1). All data from the observatory were transmitted via the Iridium satellite system. Between the beginning of the measurements on 18 September 2020 close to the North Pole and the end of the study period on 1 April 2021 north of Greenland, the observatory drifted 1,035 km across the CAO (Fig. 1a). After the departure of RV Polarstern on 20 September 2020, the observatory was not exposed to external disturbances by noise, artificial light or human activity.

Fig. 1: Acoustic backscatter during the drift of the autonomous sea ice observatory.
figure 1

a, Map showing monthly drift positions. Bathymetry: International Bathymetric Chart of the Arctic Ocean (IBCAO) v.4.0 (ref. 55). b, Time series plot of mean volume backscattering strength (Sv) at 125, 200 and 455 kHz for the entire observation period. The dashed vertical lines indicate (from left to right) the approximate dates of the first day of the autumn nautical twilight period, the beginning of the polar night, the end of the polar night and the last day of the spring nautical twilight period.

Full size image

Observations of zooplankton vertical distribution

We observed changes in the depth distribution of scatterers in relation to the seasonal cycle of solar irradiance at 125, 200 and 455 kHz, whereas there was nearly zero backscatter at 67 kHz. These frequencies are suitable to detect copepods and other mesozooplankton and macrozooplankton as small as 3 mm and make it possible to differentiate the main functional groups of Arctic zooplankton12,29. During the end and the beginning of the polar day, the bulk of the backscatter was confined below a subsurface backscatter maximum (SBM) between 20 and 30 m depth, and the water above the SBM was virtually void of scatterers (Fig. 1b). Once the sun set and true darkness prevailed close to the surface, however, most of the backscatter was concentrated between the SBM and the ice underside, a water layer we consider as the ‘under-ice habitat’ in the context of this study (Figs. 1 and 2).

Fig. 2: Diel variability of backscatter during the autumn and spring twilight periods.
figure 2

a,b, Depth-integrated nautical area scattering coefficient (sA) at 455 kHz above the SBM during the autumn (a) and spring (b) twilight periods. Note the different scales of the y axis in a and b. Relative change in sA during the day was estimated by a loess smoother. c, Echogram of the mean volume backscattering strength (Sv) at 455 kHz during the 2020 autumn DVM period. The orange trigger level line indicates the depth at which the light intensity under the sea ice equals 2.4 × 10−4 W m−2.

Full size image

During the twilight period following the autumn equinox (22 September 2020), our data showed a 9-day-long period of pronounced DVM across the SBM (Fig. 2). At 455 kHz, the average integrated backscatter (sA) above the SBM varied between about 40 m2 nmi−2 at the diel solar minimum and less than 10 m2 nmi−2 at the diel solar maximum (Fig. 2a). During the twilight period preceding the spring equinox (22 March 2021), a diel migration pattern was again visible at 455 kHz (Fig. 2b), but very low acoustic backscatter impeded the detection of diel patterns in the higher frequencies (Extended Data Fig. 2).

Multifrequency analysis based on the relative sA at 125, 200 and 455 kHz (ref. 12) revealed that copepods dominated the acoustic backscatter (83%) in the 0–50 m surface layer. Larger zooplankton, such as euphausiids or pelagic amphipods, represented 15% of the acoustic signal and were concentrated in the top 5 m under the ice (Extended Data Fig. 3a). Because our hydroacoustic sampling did not include the ice–water interface, ice-associated amphipods probably accounted for a negligible part of the backscatter. Mesozooplankton sampling prior to the deployment of the autonomous observatory confirmed that late copepodite stages and females of Metridia longa and Calanus spp. dominated the mesozooplankton biovolume in the top 50 m under the sea ice (Extended Data Fig. 3b).

Trigger level of light intensity

To determine a level of light intensity triggering DVM during the twilight period, we estimated the light intensity when the zooplankton first migrated across the SBM by extrapolating from light measurements at the ice underside into the water column using an exponential decay of light with depth that was measured during the MOSAiC expedition in March and September 2020 (attenuation coefficient Kw = 0.14 ± 0.01 m−1). According to this analysis, scatterers crossed the SBM on 28 September 2020, as soon as the light intensity above the SBM decreased below 2.4 × 10−4 W m−2. Based on the standard deviation of Kw, this value was associated with an uncertainty of ±0.65 × 10−4 W m−2. Once this trigger isolume reached the ice underside on 7 October 2020, high backscatter remained distributed in the under-ice habitat until the spring twilight period. Between these dates, the scatterers timed their vertical migration to stay below the trigger isolume, performing DVM while following the movement of the isolume up and down with the diel light cycle (Fig. 2c). Accordingly, mean volume backscatter strength (Sv) at all three analysed frequencies was significantly lower above the trigger isolume than below it during the DVM period (paired t-test, P < 0.001 for 125, 200 and 455 KHz, respectively; Methods).

Future scenarios

As a proxy for the expected mid-21st-century shift in the onset of autumn and spring DVM, we calculated the difference (in days) between the mean date when the trigger isolume reaches 25 m depth in the 10 year period 2015–2024 and the 2045–2054 period. The depth of the trigger isolume was estimated based on light transmitted through sea ice and snow calculated from four different CMIP6 models. Each model was computed for the two scenarios SSP1-2.6 and SSP5-8.5, respectively, which consider different levels of greenhouse gas emissions related to socioeconomic growth (Figs. 3 and 4, Table 1 and Supplementary Figs. 4–7). To derive the light levels when the sun was below the horizon, we used twilight downwelling irradiance calculated with the radiation scheme of Spitschan et al.25, with corrections for solar angle30.

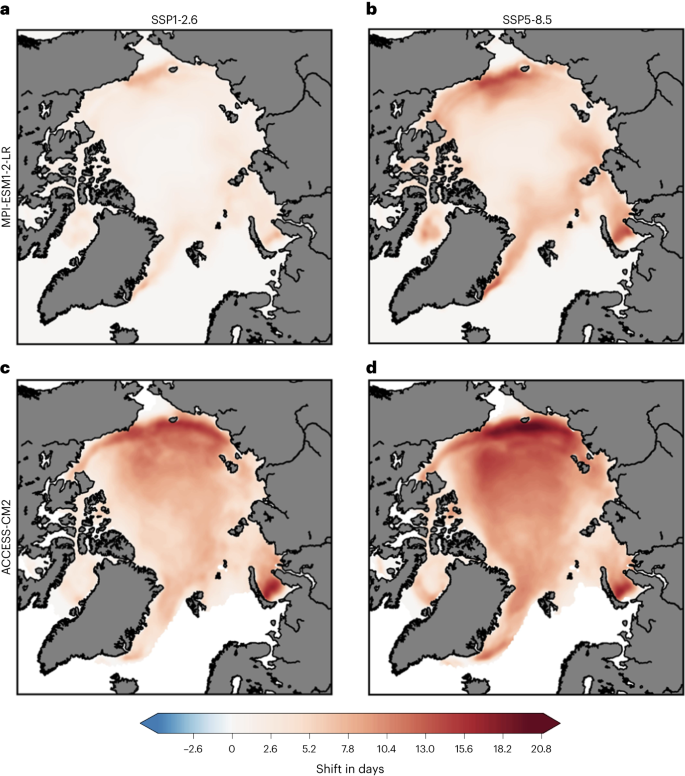

Fig. 3: Potential mean shift of autumn DVM onset in mid-21st century compared to present.
figure 3

a–d, Pan-Arctic maps of the weakest (MPI-ESM1-2-LR) (a,b) and strongest (ACCESS-CM2) (c,d) predicted average shifts of the autumn DVM onset for the SSP1-2.6 (a,c) and SSP5-8.5 (b,d) scenarios, when contrasting 2045–2054 with the baseline in 2015–2024.

Full size image
Fig. 4: Potential mean shift of spring DVM onset in mid-21st century compared to present.
figure 4

a–d, Pan-Arctic maps of the weakest (MPI-ESM1-2-LR) (a,b) and strongest (MRI-ESM2-0) (c,d) predicted average shifts of the spring DVM onset for the SSP1-2.6 (a,c) and SSP5-8.5 (b,d) scenarios, when contrasting 2045–2054 with the baseline in 2015–2024.

Full size image
Table 1 Mean shift in onset of DVM in LMEs
Full size table

Based on changes in the sea ice and snow cover, the four IPCC models projected a prolonged penetration of the trigger isolume below 25 m depth during the twilight periods, implying marked shifts in the onset of autumn and spring DVM in the surface waters for large parts of the Arctic Ocean. We plotted the projected shifts on continuous pan-Arctic maps (Figs. 3 and 4), and calculated mean shifts (± s.d.) for eight large marine ecosystems (LMEs) defined by the Arctic Council Working Group for the Protection of the Arctic Marine Environment (PAME)31 (Table 1). Each of the CMIP6 experiments had been repeated several times with identical conditions apart from slightly modified initial conditions, creating an ensemble of experiments (members). The resulting differences between those ensemble members are due to internal variability in the simulated coupled systems. In some regions, the simulated internal variability gave rise to a large spread of the model ensembles, reflected in greater standard deviations (Extended Data Fig. 4). We defined the projected mean shifts as ‘robust’ if the ratio of the mean shift to the s.d. was ≥2 (Table 1). For autumn, the models for SSP1-2.6 predicted robust positive mean shifts between 2 days in the Laptev Sea and 10 days in the Chukchi Sea and the East Siberian Sea, and for SSP5-8.5 between 4 days in the CAO and 14 days in the Beaufort Sea (Table 1). Notably, in the SSP5-8.5 scenario robust positive shifts of 4–9 days were predicted for the CAO, although it was not the most impacted region. Projected robust changes of the depth of the trigger isolume during spring implied a negative shift of the DVM onset to an earlier date between 2 days in the Canadian Archipelago and 9 days in the Chukchi Sea for SSP1-2.6, and between 2 days in the Laptev Sea and 12 days in the Beaufort Sea for SSP5-8.5 (Fig. 4 and Table 1). In spring, standard deviations in those regions with the highest projected shift were also high due to a large ensemble spread, indicating that predictions in these regions were associated with greater uncertainty (Extended Data Fig. 4b).

Discussion

Our simultaneous observations of zooplankton vertical migration and measured light intensities in the CAO revealed that sufficient light still penetrated the sea ice to control the DVM of zooplankton during the autumn twilight period. This indicates that the timing of the DVM phase marking the seasonal vertical migration of zooplankton at the beginning and the end of the polar night is highly sensitive to predicted increases in light penetration (Fig. 2c)1. The trigger level of 2.4  ✕ 10−4 W m−2 is within the order of magnitude assumed to trigger negative phototaxis in crustacean zooplankton32. In a hydroacoustic study in the ice-free Kongsfjorden, Hobbs et al.22 found that the DVM of zooplankton followed a trigger level of 10−7 µmol photons m−2 s−1, which had been experimentally determined in female Calanus spp. for certain wavelength bands in the blue and green part of the visible spectrum33. Converted to photon flux per wavelength band, the portion of energy from our trigger level transmitted within the 530 nm (green) band is 2.28 × 10−6 μmol photons m−2 s−1, which is within the experimentally determined value range of 10−8–10−6 photons m−2 s−1 triggering phototactic behaviour in Calanus spp. at 525 nm (ref. 33) (Methods).

DVM is often explained by a trade-off between access to food in the surface layer and predation risk8. The darkness of the high-Arctic polar night allows zooplankton to exploit resources from the under-ice habitat without added predation risk. Accordingly, the winter-active copepod Metridia longa resides in the surface layer during winter while dwelling at depths >100 m during summer34,35. Likewise, parts of the population of Calanus spp. remain active in the surface layer during the polar night, whereas the bulk of the population overwinters at greater depths36. During the autumn twilight period, chlorophyll-a fluorescence measurements by a sensor at the AZFP buoy indicated that some phytoplankton was still available for grazers in the under-ice habitat, but fluorescence steadily declined towards zero by mid-October (Supplementary Fig. 1d). During the polar night, remnant organic matter produced by ice algae may constitute a critical carbon source. Carbon from this ‘sea-ice food bank’ can be transferred into the water column by ice-associated organisms and organic particles released by brine rejection, or through friction between moving ice floes37,38,39. Based on recent studies indicating a year-round importance of ice-algae-produced carbon in polar food webs24,40,41, we suggest that this particle rain and its associated microfauna provide low but critical amounts of carbon necessary to satisfy the energy demand of winter-active zooplankton42,43. Furthermore, the persistent SBM at 20–30 m depth was probably associated with a strong pycnocline44 which retained food for zooplankton in the under-ice habitat (Methods and Supplementary Fig. 1e–l). The combination of low predation risk and persistent food availability in and above the SBM probably constituted an energetically positive trade-off for certain winter-active zooplankton species which ceased vertical migration and stayed in the under-ice habitat throughout the polar night.

Future changes in the timing of DVM onset in spring and autumn were inferred from projected changes of the depth of the trigger isolume during the twilight periods based on the output of a subset of four IPCC model ensemble experiments from CMIP6. These models had provided reasonable sensitivity of the sea-ice cover to greenhouse gas forcing45. However, the results of the model-based projections are still subject to various sources of uncertainty, for example, model performance and natural variability45. Notably, most of the models tend to underestimate present-day sea-ice thickness and to overestimate present-day sea-ice concentration in the marginal ice zones. This bias is strongest in the regions with the thickest sea ice north of the Canadian and Greenland coast in the Canadian Archipelago region, which were not the areas of focus in this study. Because we limited our study to the effect of changes in sea ice and snow on the light regime for which reliable CMIP6 models exist, we did not consider uncertainty derived from other potential changes that can affect the light regime in the future, for example, a changed albedo. The relations of standard deviations to the ensemble means of each model ensemble (Table 1) provide an indication of the robustness of the respective predicted shifts of the onset of DVM. The standard deviations depend on internal model variability and differ between the models. Robust results across the models show a range of shifts of 4 to 14 days in autumn and −2 to −12 days in spring for SSP5-8.5. We note, however, that within all four models each ensemble member represents a possible reality predicted by its model. Therefore, in some regions, extreme positive and negative shifts outside the standard deviations shown in Table 1 cannot be excluded (Supplementary Tables 2 and 3).

In the period 2045–2055, the peak of the spring phytoplankton bloom is expected to be several weeks earlier than at the present6. According to a model study by Tedesco et al.5, the spring ice algae bloom north of 80° N will be much more productive (up to 2,500% increase in gross primary production), but it will peak about 6 weeks earlier in the second half of this century compared to the present and will have vanished before the end of summer due to ice melt. Hence, in spite of increased productivity, delayed seasonal upward migration of zooplankton at the onset of the polar night further increase the gap between the peak blooms of phytoplankton and ice algae in early summer and the arrival of zooplankton in the under-ice habitat in autumn. Furthermore, delayed new-ice formation will largely limit the production of new biomass by ice algae in autumn46, leading to lower carbon stocks in the ‘sea-ice food bank’ during the polar night (Fig. 5). These effects reduce the survival probability of winter-active zooplankton, because they enter the polar night with lower energy reserves, and will probably find less ice-associated organic matter in the under-ice habitat4,5,47 (Fig. 5). In addition, earlier downward migration during spring could impact on the ecologically important copepod Calanus hyperboreus within its future distribution range. Female C. hyperboreus spawn at depth during winter, and the early nauplius larvae rise to the surface, while growing into larger copepodite stages48,49. An earlier descent of omnivorous copepods such as Metridia spp. can lead to increased predation on C. hyperboreus nauplius larvae before they have outgrown the prey size range of Metridia spp., compromising the recruitment of C. hyperboreus50 (Fig. 5). Other dynamics may apply in lower latitudes where boreal Calanus species may prevail in the future49. Ultimately, a reduced energetic trade-off may overall weaken the cue for vertical migration into the under-ice habitat in the future. In the CAO, juvenile and immature polar cod Boreogadus saida, the main prey of many Arctic birds and mammals, cover a great part of their energy demand from prey taken in the under-ice habitat51,52. Less prey in the under-ice habitat and an overall changing prey field will negatively impact on the survival of young polar cod in the CAO, with cascading effects on higher trophic levels53.

Fig. 5: Potential ecological impacts of shifts in the timing of seasonal migrations.
figure 5

a,b Present (a) and future (b) scenarios showing potential repercussions of negative (spring) and positive (autumn) shifts in the onset of DVM on zooplankton within the surface layer (0–50 m) of the Arctic Ocean, assuming a ‘business-as-usual’ (SSP5-8.5) scenario. The figure shows a schematic annual cycle with the summer in the centre, along a gradient from shelf seas at low latitudes (<80° N, left) to the CAO at high latitudes (>85° N, right). a, At present, zooplankton feed on the phytoplankton bloom during polar day. During the polar night, zooplankton dwelling in the under-ice habitat benefit from ice algae-produced carbon stocks, the ‘sea-ice food bank’. The springtime downward migration begins after nauplius larvae of the copepod C. hyperboreus have migrated to the surface and developed to copepodites. b, In the future, the springtime downward migration may begin so early that omnivorous zooplankton can prey on the developing C. hyperboreus nauplii before they ascend50. When they migrate into the under-ice habitat in autumn, zooplankton may have less carbon available due to a shorter productive period of ice algae. At high latitudes, a longer starvation period between the end of the phytoplankton bloom and the delayed migration into the under-ice habitat at the onset of polar night could additionally reduce winter survival of zooplankton. The intensity of the green-brown shading in sea ice symbolizes relative changes in ice algae-produced carbon stocks. The green shading of phytoplankton blooms is not scaled to productivity or biomass. DVM, diel vertical migration during the twilight period. Figure not drawn to scale. This figure is based on scenarios shown in Soreide et al.56, Leu et al.47, Wassmann and Reigstad4 and Ardyna and Arrigo6, under a Creative Commons License (https://creativecommons.org/licenses/by/4.0/).

Full size image

The application of a fully autonomous biophysical observatory enabled us to monitor animal behaviour under sea ice during its drift across the CAO, a task that has so far required immense logistic effort and therefore left considerable knowledge gaps regarding higher trophic levels in the Arctic ecosystem54. Similar technology will be important for understanding changes of the future Arctic ecosystem and its management, for example, under the Central Arctic Ocean Fisheries Agreement (CAOFA). By modelling twilight conditions at the beginning and the end of the polar night, our results show that future changes of the under-ice light field can strongly affect the timing of the seasonal vertical migration of zooplankton. These changes have the potential to impact on the future prosperity of ecological key species, their associated ecosystem functions, and biodiversity. This implies that considering biological processes during the twilight periods would be an important factor determining our ability to predict whether the CAO will become a ‘new oasis’ or a ‘desert’6, if the climate crisis cannot be controlled.

Methods

Autonomous biophysical observatory

We deployed an autonomous biophysical observatory on the ice floe of the MOSAiC expedition of RV Polarstern in September 2020 (PS122/5). This observatory made it possible to investigate the distribution of zooplankton in the top 50 m under the drifting sea ice in relation to environmental parameters, without introducing disturbance by invasive sampling gear or artificial light. The main component was an AZFP buoy (ASL Environmental Sciences) which recorded zooplankton vertical distribution from the autumn–winter transition close to the geographic North Pole on 18 September 2020 to the winter–spring transition north of Greenland on 1 April 2021. These measurements were complemented by under-ice irradiance and oceanographic measurements obtained from several co-deployed platforms.

AZFP buoy

The AZFP was integrated into a rugged sea-ice tethered buoy designed to survive the harsh conditions of the ice-covered ocean by Bruncin Observation Systems. The surface unit of the buoy was composed of a heavy metal cylinder housing the batteries, a solid frame carrying the main electronics, a glass half-dome with solar panels and a stable floatation body around the main hull. The buoy was powered by alkaline batteries sufficient for several months of operation, complemented by a solar-rechargeable power supply to support a higher sampling interval during summer. The surface unit was equipped with additional sensors, including GPS position, under-ice fluorescence, temperature, salinity and cameras. The underwater unit mainly consisted of the AZFP with its four downward-looking acoustic transducers, mounted in a frame fixed to the bottom of the battery cylinder with multiple steel wires and hanging just beneath the ice base (Extended Data Fig. 1). The buoy ran on a Linux operating system, configured to poll the entire sensor suite at regular intervals, and to transmit the recordings to a land-based station via the Iridium satellite network. AZFP sampling parameters and measurement intervals could be adjusted via a remote satellite connection at any time. The buoy was installed on the MOSAiC ice floe on 12 September 2020, in a hydro-hole through 1.3-m-thick level ice.

The AZFP recorded acoustic backscatter of zooplankton and fish in the water column at four frequencies: 67, 125, 200 and 455 kHz. In this study, we present data from the 125, 200 and 455 kHz transducers. The manufacturer calibrated all frequencies of the AZFP before deployment (±1 dB re 1 m−1). The transducers had a nominal −3 dB beam angle of 10° at 67 kHz, 8° at 125 and 200 kHz and 7° at 455 kHz. The pulse length was set to 500 μs, and the ping rate was 0.5 Hz in all frequencies. Measurements were averaged over burst periods of 2 min and a vertical cell height of about 0.5 m.

The AZFP buoy was fully operational on 18 September 2020. The last data transmission was recorded on 7 May 2021. For the purpose of this study, we limited the data to the period from the start of the twilight period at the end of the polar day on 18 September 2020 (89.1° N 107.4° E) to the end of the twilight period at the end of the polar night on 1 April 2021 (84.6° N 22.3° W). During this period, the observatory was mainly drifting over the Arctic Basin.

To maintain sufficient battery power, we applied an adaptive interval scheme. At the start of the survey on 18 September 2020, AZFP measurements were conducted every 2 h for a period of 20 min (10 bursts), and for 10 min (5 bursts) after 30 September 2020 (Supplementary Table 1). To save battery power during darkness, the interval between measurements was set to 12 h between 19 and 29 October 2020, and the measurement duration was increased to 20 min on 20 October 2020 (Supplementary Table 1). After 29 October 2020, the interval between measurements was set to 3 h, and the duration of measurements was reduced to 6 min (3 bursts). To maintain sufficient battery power until the end of the winter, the interval between measurements was further increased to 4 h on 12 January 2021 (Supplementary Table 1). The hydroacoustic data of the AZFP buoy are available at https://doi.org/10.1594/PANGAEA.954939 ref. 57.

Hydroacoustic data processing

Acoustic data were processed with Echoview 12 (Echoview Software). We used Echoview’s built-in algorithm to remove background and impulse noise, applying a minimum signal-to-noise ratio of 10 (refs. 58,59) In addition, echograms were visually inspected for bad data regions and artefacts, which were manually removed. Data were expressed as volume backscattering strength (Sv in dB re 1 m−1) for each measurement cell (~0.5 m × 2 min) between 1 m below the ice and 50 m depth. Initial data exploration revealed the presence of a pronounced SBM between about 20 and 30 m depth, which persisted from the beginning of the measurements until mid-March 2021 (Fig. 1). This SBM corresponded to a strong difference in salinity between CTD sensors positioned above and below the SBM and a strong density gradient (Supplementary Fig. 1), indicating that the elevated backscatter could have been related to both the impedance by a pycnocline and the aggregation of zooplankton at the pycnocline (Extended Data Fig. 3)44. The overlap of potential zooplankton backscatter with pycnocline-related backscatter did not compromise observations of the relative shifts in the vertical distribution of scatterers. For the analysis of DVM in the twilight periods (Fig. 2a,b and Extended Data Fig. 2), we integrated the backscatter data in 2-min-long cells reaching from 1 m depth to approximately 2 m above the SBM. For each integration cell, we calculated the nautical area scattering coefficient (sA in m2 nmi−2). A multifrequency analysis was conducted to discriminate the acoustic signal from different functional zooplankton groups based on their acoustic frequency response12. In short, the Sv echograms were divided into 2-min-long by 1-m-deep cells before being compared. Cells where Sv125kHz < Sv200kHz < Sv455kHz were assigned to copepods, cells where Sv125kHz > Sv200kHz < Sv455kHz were assumed to be dominated by larger zooplankton such as euphausiids or amphipods, and cells where Sv125kHz < Sv200kHz > Sv455kHz were assigned to chaetognaths. Data analysis and graphical presentation was conducted in R v.3.6.1 (ref. 60), using the editor RStudio v.2023.06.0 (ref. 61) as a programming tool.

Radiation station

A spectral radiation station consisting of three spectral radiometers (RAMSES-ACC-VIS, TriOS) was installed ~50 m from the AZFP buoy on 27 August 2020. The upward-looking under-ice sensor was installed 0.5 m below the ice base of a refrozen melt pond to measure transmitted irradiance. The sensor also carried an inclination and pressure module. A second upward-looking sensor was installed above the surface to measure incident irradiance as a reference. An external tiltmeter was attached to the sensor. The station also carried a third downward-looking radiometer measuring reflected irradiance, a light chain to measure in-ice light attenuation, a snow pinger to measure snow accumulation and a camera to monitor the state of the observatory (not used here). The radiation station stopped operating on 13 November 2020. The radiation station data are available at https://doi.org/10.1594/PANGAEA.948838 ref. 62.

CTD buoy

Water column structure was recorded and transmitted via the Iridium satellite network by a buoy equipped with five SBE37IMP Microcat CTDs (Sea-Bird Scientific) at 10, 20, 50, 75 and 100 m depth along an inductive modem tether. The buoy itself was built by Pacific Gyre. It was deployed at a location ~120 m from the AZFP buoy on 28 August 2020. The transmission interval was set to 10 min. A more detailed description of the buoy is given in Hoppmann et al.63. The data of this buoy are available online at https://doi.org/10.1594/PANGAEA.954992 ref. 64.

Zooplankton sampling

On 16 September 2020 at station PS122/5_62-71 of the MOSAiC expedition, the epipelagic zooplankton community was sampled vertically from 50 m depth to the surface (Hydrobios Multinet Midi; 150 µm mesh size, 0.25 m2). The multinet was equipped with an electronic flow meter measuring the amount of filtered water in m3 for each sample. Immediately after sampling, the animals were preserved in a 4% formaldehyde–seawater solution buffered with hexamethylenetetramine, and stored at room temperature until quantitative analysis at the Alfred-Wegener-Institute using the ZooScan scanning system65 (Biotom, Hydroptic). The sample was size-fractionated by sieving over 70 µm, 500 µm and 1,000 µm meshes to avoid overlapping large and small organisms on the scanner. The three size fractions were then scanned with a resolution of 2,400 d.p.i. The resulting scan was processed and separated into images with single objects using ZooProcess v.7.29 (ref. 65), a macro applied in ImageJ v.1.41o (ref. 66). The length and width of each individual (major axis, minor axis) were automatically measured. The single object images were uploaded to EcoTaxa67, a web application for the semiautomatic taxonomic classification of the images and sorted into taxonomic categories. Assuming each object to be an ellipsoid, the volume (mm3) of each zooplankton individual was calculated using the formula:

$$V=\frac{4\uppi }{3}\times \frac{a}{2}\times {\left(\frac{b}{2}\right)}^{2}$$
(1)

where V is the volume of an organism, a is the major axis and b is the minor axis. The biovolume of each taxonomic category was then calculated as the sum of all such individual volumes divided by the amount of filtered water of each sample (mm3 m−3).

Modelling under-ice light and projecting shift of DVM onset

Calculation of light intensity triggering vertical migration

To estimate the level of light intensity triggering the autumn DVM of zooplankton into the under-ice habitat above the SBM, we first identified the date on which the DVM crossed the SBM. To this end, we calculated the mean Sv within the under-ice habitat for each measurement interval between 20 September and 15 October 2020 (Supplementary Fig. 3). This figure reveals a very clear transition between low mean scattering values (around −90 dB) to higher mean scattering values (between −85 dB and −80  dB). This transition occurred between consecutive AZFP readings at 12:14:18 and 15:56:47 (UTC) on 28 September 2020. Then, we used the measured under-ice irradiance data from the radiation station and propagated it into the water column using an exponential decay following:

$${I}_{\mathrm{w}}={I}_{\mathrm{ui}}\times {\mathrm{exp}}(-{k}_{\mathrm{w}}\times{d}_{z})$$
(2)

where Iw is the light intensity in W m−2 transmitted into the water column, Iui is the under-ice light intensity measured by the radiation buoy, kw is the water attenuation coefficient and dz is the incremental depth in metres.

We calculated the attenuation in the water (kw) from spectral light measurements (400–700 nm) conducted by a remotely operated vehicle68 during seven dives in March and September 2020 (n = 1,213 measurements)69. The mean kw over the first 25 m depth was estimated at 0.14 ± 0.01 m−1 (mean ± s.d.). We provide the trigger level as irradiance (W m−2) and a photosynthetic photon flux density (PPFD, μmol photons m−2 s−1). For the irradiance, we considered the visible part of the spectrum (400–700 nm) from the measurements. For the PPFD, the trigger level was first estimated in W m−2 considering the total spectrum available (320–950 nm), and then converted into μmol photons m−2 s−1 following Castellani et al.70. The resulting irradiance light level at the depth of the SBM when DVM began (25 m) was 2.4 × 10−4 W m−2. Based on the standard deviation of kw, this value was associated with an uncertainty of ±0.65 × 10−4 W m−2. The corresponding PPFD value was 6.2 × 10−4 μmol photons m−2 s−1, with an uncertainty of 1.6 × 10−4 μmol photons m−2 s−1. In addition, we provide the light threshold for two single wavelengths in the blue part of the spectrum (455 nm) and the green part of the spectrum (530 nm) to compare our results with previous studies. The light thresholds for 455 and 530 nm were 7.06 × 10−6 and 2.28 × 10−6 μmol photons m−2 s−1, respectively. We then plotted the evolution of this trigger isolume and its uncertainty range as a function of time and depth with the backscatter data (Fig. 2c).

The trigger isolume rose through the SBM on 28 September and continued to become shallower in depth until it fully reached the surface on 7 October 2020. To statistically confirm the visual impression that the upper limit of high zooplankton backscatter followed the evolution of this trigger isolume during this period (Fig. 2c), we performed a one-sided paired t-test testing the null hypothesis that, within each measurement interval, mean Sv values above the trigger isolume were not significantly lower than below it. Mean Sv values above and below the trigger isolume between 28 September and 7 October 2020 were calculated by first transforming Sv values into their linear form sv to compute mean sv within each measurement interval, and then transforming the mean sv back into its logarithmic form Sv. Paired t-tests for all three analysed frequencies showed that mean Sv was significantly lower above the trigger isolume than below it throughout the period of DVM (125 kHz: t = −29.707, d.f. = 586, P < 0.001; 200 kHz: t = −32.095, d.f. = 585, P < 0.001; 455 kHz: t = −24.485, d.f. = 586, P < 0.001). This confirmed the notion that most zooplankton scatterers stayed below the trigger isolume and followed its daily up and down motion within the under-ice habitat.

Modelling

As a proxy of the expected mid-21st-century shift in the onset of the autumn and spring DVM, we calculated the difference (in days) between the mean dates when the trigger isolume reaches 25 m depth in both seasons for the 10 yr period 2015–2024 and for the 2045–2054 period. The projected shifts were determined considering future sea-ice concentration, sea-ice thickness, snow depth, cloud area fraction and surface temperature. To achieve this, we used model outputs based on the scenarios SSP1-2.6 and SSP5-8.5 from four different IPCC CMIP6 model ensembles. The model experiments used in this study have shown a reasonable climate-change-driven sea-ice loss compared to the change in global mean temperature45. Further selection criteria were the availability of daily outputs and of multiple ensemble members. The models were (number of ensemble members in parentheses): ACCESS-CM2 (5)71, MPI-ESM1-2-HR (2)72, MPI-ESM1-2-LR (29)73 and MRI-ESM2-0 (5)74. Decadal means for the periods 2015–2024 and 2045–2054 were calculated for sea-ice concentration, sea-ice thickness, snow depth, cloud area fraction and surface temperature for each ensemble member for the autumn–winter transition (September–December) and for the winter–spring transition (January to March). All ensemble members of each of the model scenario experiments were used to accommodate internal model variability (Supplementary Figs. 4–7).

Downwelling shortwave radiation at the surface was taken from the Clouds and the Earth’s Radiant Energy System (CERES) synoptic satellite-based products75. These products were available daily, at a 1° × 1° resolution over the Arctic Ocean and from instruments on board the Terra and Aqua satellites. Because future downwelling radiation is unknown, and our investigation focuses on the relative effect of future sea-ice and snow conditions predicted by climate model experiments, we used observed downwelling radiation for the period 1 September to 20 December 2020 and 1 January to 31 March 2021 for all years. As twilight and night light levels of downwelling shortwave radiation are not provided by this remote sensing dataset, we used twilight downwelling irradiance estimates based on the Commission Internationale de l’Eclairage (CIE) daylight model, extended with implemented supplementary basic functions based on field measurements, with corrections for solar angles25,30. For the purpose of this study, we calculated incoming solar spectra for sun angles between −28° and 0° at a 2° resolution. The broadband albedo was calculated based on observations during the SHEBA ice-drift experiment and considered constant at 0.84 (ref. 76).

The light transmission through snow and sea ice was calculated using an exponential decay of light through snow and sea ice using varying extinction coefficients based on physical conditions7. With this approach, snow depth and sea-ice thickness subgrid scale distributions are applied to account for the variability within each grid cell. For the water column, we applied the extinction coefficient determined during the MOSAiC expedition (Kw = 0.14 m−1). Then, we calculated the depth profiles of transmitted light into the water column in each grid cell of the 25 km EASE grid, averaged for the 2015–2024 and the 2045–2054 decades, respectively. These datasets were used to determine the Julian day at which the trigger level of 2.4 × 10−4 W m−2 (6.2 × 10−4 μmol photons m−2 s−1) is reached at a depth of 25 m in autumn and spring. The average ensemble values, standard deviations, minimum and maximum for each model in the different Arctic LMEs31 displayed in Table 1 and Supplementary Tables 2 and 3 were estimated using the Arctic mask shown in Supplementary Fig. 2. All calculations and analyses performed in the section Modeling under-ice light and projecting shift of DVM onset were performed in Python 3.7.13 and MATLAB_R2021.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
