Zinc homeostasis governed by Golgi-resident ZnT family members regulates ERp44-mediated proteostasis at the ER-Golgi interface

Amagai, Yuta; Yamada, Momo; Kowada, Toshiyuki; Watanabe, Tomomi; Du, Yuyin; Liu, Rong; Naramoto, Satoshi; Watanabe, Satoshi; Kyozuka, Junko; Anelli, Tiziana; Tempio, Tiziana; Sitia, Roberto; Mizukami, Shin; Inaba, Kenji

doi:10.1038/s41467-023-38397-6

Download PDF

Article
Open access
Published: 09 May 2023

Zinc homeostasis governed by Golgi-resident ZnT family members regulates ERp44-mediated proteostasis at the ER-Golgi interface

Nature Communications volume 14, Article number: 2683 (2023) Cite this article

3698 Accesses
9 Citations
53 Altmetric
Metrics details

Subjects

An Author Correction to this article was published on 12 June 2023

This article has been updated

Abstract

Many secretory enzymes acquire essential zinc ions (Zn²⁺) in the Golgi complex. ERp44, a chaperone operating in the early secretory pathway, also binds Zn²⁺ to regulate its client binding and release for the control of protein traffic and homeostasis. Notably, three membrane transporter complexes, ZnT4, ZnT5/ZnT6 and ZnT7, import Zn²⁺ into the Golgi lumen in exchange with protons. To identify their specific roles, we here perform quantitative Zn²⁺ imaging using super-resolution microscopy and Zn²⁺-probes targeted in specific Golgi subregions. Systematic ZnT-knockdowns reveal that ZnT4, ZnT5/ZnT6 and ZnT7 regulate labile Zn²⁺ concentration at the distal, medial, and proximal Golgi, respectively, consistent with their localization. Time-course imaging of cells undergoing synchronized secretory protein traffic and functional assays demonstrates that ZnT-mediated Zn²⁺ fluxes tune the localization, trafficking, and client-retrieval activity of ERp44. Altogether, this study provides deep mechanistic insights into how ZnTs control Zn²⁺ homeostasis and ERp44-mediated proteostasis along the early secretory pathway.

Targeted protein degradation: from mechanisms to clinic

Article 29 April 2024

The intrinsic substrate specificity of the human tyrosine kinome

Article Open access 08 May 2024

Giant organelle vesicles to uncover intracellular membrane mechanics and plasticity

Article Open access 04 May 2024

Introduction

Zinc is an essential catalytic or structural cofactor for ~10% of the human proteome¹. Since zinc ions (Zn²⁺) mediate key processes in virtually all subcellular compartments, disturbances in their homeostasis cause a wide spectrum of diseases^2,3. In eukaryotic cells, two transporter families play pivotal roles for the maintenance of Zn²⁺ homeostasis. Members of the ZnT (zinc transporter, SLC30) family mobilize Zn²⁺ from the cytosol into the extracellular space or the lumen of intracellular organelles, in exchange with protons. Meanwhile, ZIP (Zrt-/Irt-like protein, SLC39) family members transport Zn²⁺ in opposite directions. Their redundancy and different subcellular distribution suggest a tight regulation of Zn²⁺ fluxes in cells and organelles^2,4.

The early secretory pathway (ESP) comprising the endoplasmic-reticulum (ER) and the Golgi apparatus is the space where newly synthesized secretory proteins acquire their native structure and undergo key post-translational modifications, including metalation. The ESP harbors three dimeric ZnT (ZnT4, ZnT5/ZnT6, and ZnT7) and four ZIP members (ZIP7, ZIP9, ZIP11, and ZIP13) that may regulate the labile Zn²⁺ concentration (hereafter referred to as [Zn²⁺]) and fluxes². Their pharmacologic or genetic inhibition causes severe cellular and organismal problems^2,5,6,7, emphasizing the physiological importance of Zn²⁺ in the ESP. Yet, the function and regulation of these ZnT and ZIP family members are still poorly understood.

Endoplasmic reticulum protein 44 (ERp44) is a member of the protein disulfide isomerase (PDI) family, consisting of three thioredoxin-like domains and a C-terminal tail (C-tail) that ends with an RDEL ER-localization motif. ERp44 cycles between the ER and Golgi, controlling the localization of ER-resident enzymes that lack KDEL motifs (e.g. ER oxidoreductin 1α (Ero1α), ER aminopeptidase 1 (ERAP1), Peroxiredoxin 4 (Prx4)) and the folding of complex secretory cargo proteins (IgM, adiponectin or IL-12 subunits)⁸. ERp44 captures its clients in post-ER compartments, mostly forming disulfide-linked complexes via Cys29 in its active site, and retrieves them to the ER via KDEL receptors (KDELR)^{9,10,11,12,13,14,15,16}. Of note, our recent studies revealed that Zn²⁺ has a crucial role in regulating the structure and function of ERp44. Binding of Zn²⁺ to its histidine cluster located at the base of the C-tail triggers massive domain rearrangements that simultaneously exposes the substrate-binding surface for efficient client capture¹⁷. Although ZnT5, ZnT6, and ZnT7 are predicted to supply Zn²⁺ to ERp44 in the Golgi¹⁷, their precise roles in the regulation of ERp44-dependent protein quality control, and more in general in the maintenance of Zn²⁺ homeostasis in the ESP, remain to be elucidated.

For the purpose of quantitative Zn²⁺ imaging, we recently developed an organelle-targetable Zn²⁺-fluorescent probes, ZnDA-1H, ZnDA-2H and ZnDA-3H. These probes allowed us to determine that the [Zn²⁺] is much greater in the Golgi (25 ± 1 nM) than in the ER (14 pM)^18,19. Here we exploit this methodology to determine in detail the [Zn²⁺] in the different Golgi subregions (i.e. cisternae). Combining [Zn²⁺] measurements with systematic ZnT knockdowns, moreover, we characterize the roles of each ZnT complex in Zn²⁺ uptake into the different Golgi cisternae. In this connection, we observe that their individual or combined knockdown differently affects the subcellular localization, client retrieval activity, and ER-to-Golgi traffic of ERp44. Altogether, our results provide detailed mechanistic insights on how the different ZnTs control Zn²⁺ homeostasis along the ESP and ERp44-mediated proteostasis at the ER-Golgi interface.

Results

Targeting of Zn²⁺ probe to different subregions of the Golgi apparatus

We recently developed an organelle-targetable Zn²⁺ probe named ZnDA-1H, establishing the methodology for quantifying the [Zn²⁺] in the secretory pathway. The probe can be targeted, via its HaloTag ligand (HTL) moiety, to a desired organelle where a Halo-tagged protein is expressed as a fusion with a protein of known intracellular localization. Analysis of HeLa cells expressing a HaloTag-mannosidase-II (ManII) fusion protein revealed that the [Zn²⁺] in the Golgi ([Zn²⁺]_Golgi) was 25 ± 1 nM^18,20. To verify whether [Zn²⁺] varies in the different Golgi subregions, and to explore the role of the three main Golgi-resident ZnTs, we constructed Halo-tagged ERGIC-53 (ER Golgi intermediate compartment protein 53), ManII, TPST2 (tyrosyl protein sulfotransferase 2), and GalT (β−1,4-galactosyltransferase 1) proteins and expressed them in HeLa Kyoto cells. Considering the predicted topology models of the above marker proteins, HaloTag was inserted immediately after the signal peptide of ERGIC-53, and into the C-termini of ManII, TPST2 and GalT so that HaloTag is located in the luminal side of the Golgi apparatus. Immunofluorescence analyses revealed that, as expected, all Halo-tagged proteins largely localized in the Golgi area, overlapping with GM130, a cis-Golgi marker (Supplementary Fig. 1). To determine their localization with higher accuracy, we labeled the expressed Halo-tagged proteins with HaloTag-TMR ligand (HTL-TMR), and treated cells with nocodazole to create Golgi mini-stacks. The latter are believed to conserve the native-like multicisternal structure and transport functions of the Golgi^21,22,23 and allow higher resolution imaging. Subsequently, cells were fixed, immunostained for GM130 (cis-Golgi marker), giantin (medial-Golgi marker), ManII (cis-/medial-Golgi marker), and Golgin97 (trans-Golgi network (TGN) marker²²), and observed by Airyscan super-resolution microscopy. By using chromatic shift-corrected fluorescence images²⁴, we compared the signal positions of the Halo-tagged proteins relative to the markers (Fig. 1a, b). In this way, we verified the specific locations of Halo-ERGIC-53 in the immediate upstream of the cis-Golgi, hereafter called pre-cis-Golgi, ManII-Halo in the cis-/medial-Golgi, Halo-TPST2 in the medial-Golgi, and GalT-Halo in the trans-Golgi (Fig. 1a–c).

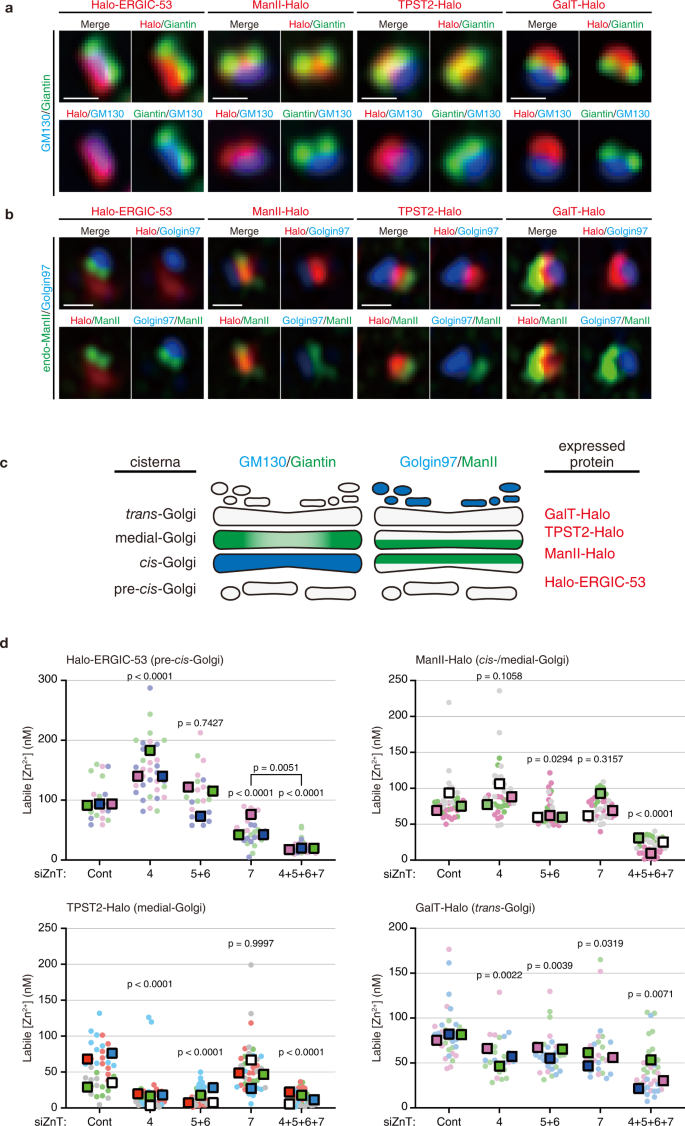

**Fig. 1: ZnT-mediated control of Zn²⁺ concentrations in the Golgi subcompartments.**

To determine the [Zn²⁺] in each Golgi cisterna with a different pH-value, we determined the K_d for Zn²⁺ of the HaloTag-ZnDA-1H conjugate at various pH values, taking into consideration the possible pH-dependent changes of Zn²⁺-binding affinity of the probe¹⁸. To this end, fluorescence intensity excited at 440 nm was measured at different pH and Zn²⁺ concentrations in vitro. We thereby determined that K_d for Zn²⁺ of the conjugate varied from 0.30 ± 0.02 µM at pH 7.4 to 1.6 ± 0.1 µM at pH 5.5 (Supplementary Fig. 2A, B).

For analyzing the pH in each Golgi cisterna of living HeLa Kyoto cells, pHluorin2, a ratiometric pH-sensitive fluorescent protein-based probe^25,26 was employed. We constructed and expressed pHluorin2-tagged STIM1(NN), ERGIC-53, ManII, TPST2, and GalT to measure pH in the ER, pre-cis-, cis-/medial-, medial-, and trans-Golgi, respectively. Cells were excited at 405 nm and 473 nm, and the fluorescent signal intensities, F₄₀₅ and F₄₇₃, were measured with laser scanning confocal microscopy. To gain a calibration plot of fluorescence signal intensity against pH, bacterially expressed MBP-pHluorin2 was immobilized on agarose beads, incubated at different pH, and then its fluorescence parameters were acquired under conditions identical to those used in live-cell imaging experiments (Supplementary Fig. 2C, D). By contrasting the F₄₀₅-to-F₄₇₃ ratios of pHluorin2 in cells to those on beads, we determined the pH values in the ER, pre-cis-, cis-/medial-, medial-, and trans-Golgi of HeLa Kyoto cells to be 7.11 ± 0.08, 7.02 ± 0.11, 6.53 ± 0.13, 6.51 ± 0.07, and 6.13 ± 0.12, respectively (Supplementary Fig. 2E, F).

Golgi-resident ZnT family members regulate Zn²⁺ concentrations in the different Golgi cisternae

Using the pH values thus obtained, we quantified the [Zn²⁺] in different Golgi cisternae under normal and ZnT4-, ZnT5/6-, and/or ZnT7-knockdown conditions. Quantitative real-time PCR (qRT-PCR) verified that each siRNA markedly and specifically reduced the mRNA levels of targeted genes (Supplementary Fig. 3A). Although the ZnT4-mRNA knockdown efficiency was moderate, the levels of exogenously expressed ZnT4-FLAG proteins were dramatically diminished in siZnT4 cells (Supplementary Fig. 3B). Given that ZnTs function as Zn²⁺/H⁺ antiporters^27,28,29, we further examined a possibility of Golgi acidification by ZnTs silencing. Our analyses with the pHluorin2-tagged proteins, however, indicated that the pH values were not significantly altered at any Golgi cisterna in the ZnT4-, ZnT5/6-, and/or ZnT7-knockdown cells compared to the normal (siControl) cells (Supplementary Fig. 2G, H).

As shown in Fig. 1d, our quantitative analyses revealed that, under the normal (siControl) conditions, the [Zn²⁺] in the pre-cis- (labeled by Halo-ERGIC-53), cis-/medial- (by ManII-Halo), medial (by TPST2-Halo), and trans-Golgi (by GalT-Halo) cisternae were 100 ± 7 nM (Means ± SEM, n = 23), 82 ± 5 nM (n = 35), 57 ± 5 nM (n = 36), and 84 ± 5 nM (n = 36), respectively. Statistical analyses confirmed that the medial-Golgi contains lower [Zn²⁺] than the other Golgi cisternae (Supplementary Fig. 4). In contrast, the [Zn²⁺] in the pre-cis-Golgi ([Zn²⁺]_pre-cis) tends to be higher than in the other Golgi cisternae although the differences between the pre-cis- and cis-Golgi and between the pre-cis- and trans-Golgi are not statistically substantial (Supplementary Fig. 4).

We next investigated the consequences of knocking down the three ZnTs, individually or in combinations. As expected, the simultaneous knockdown of ZnT4, ZnT5/6, and ZnT7 (i.e. siZnT4/5/6/7) markedly decreased the [Zn²⁺] in all Golgi cisternae (Fig. 1d). Similarly, the triple knockdown of ZnT5/6/7 decreased the [Zn²⁺] in all Golgi cisternae (Supplementary Fig. 5), suggesting that ZnT5/6/7 predominantly govern zinc homeostasis in the Golgi apparatus. Of note, the single knockdown of ZnT4, ZnT5/6 and ZnT7 significantly reduced the [Zn²⁺] in the trans-/medial-, cis-/medial-/trans-, and pre-cis-Golgi, respectively (Fig. 1d). Unexpectedly, silencing ZnT4 increased the [Zn²⁺]_pre-cis while ZnT5/6-knockdown had only marginal effects (Fig. 1d). Thus, even though the mechanisms of the ZnT4-mediated zinc regulation remain elusive in part (see also the next paragraph), the above data collectively indicate that ZnT4 and ZnT5/6 are primarily involved in delivering Zn²⁺ into the distal (i.e. medial-/trans-) Golgi, whereas ZnT7 is responsible for Zn²⁺ uptake into more upstream regions (i.e. pre-cis-Golgi).

Considering the possibility that disrupting Zn²⁺ homeostasis in the Golgi affects cytosolic Zn²⁺ homeostasis, we also measured the cytosolic [Zn²⁺] ([Zn²⁺]_cyto) by expressing a HaloTag protein with a nuclear export signal sequence (Halo-NES) and using ZnDA-2H, another zinc-detectable probe with higher affinity for Zn²⁺ than ZnDA-1H¹⁹. The cytosolic [Zn²⁺] of HeLa Kyoto cells was estimated to be 0.46 ± 0.14 nM under normal conditions. Intriguingly, ZnT4-silencing increased it to 0.63 ± 0.18 nM, whereas ZnT5/6-, ZnT7-, and ZnT4/5/6/7-silencing reduced it to 0.17 ± 0.09 nM, 0.19 ± 0.11 nM, and 0.35 ± 0.11 nM, respectively (Supplementary Fig. 6A). To interpret these unexpected results, we investigated the effects of silencing these transporters on the mRNA levels of several zinc homeostasis genes, metallothionein 2 A (MT2A), ZnT1, and ZIP14. MT2A and ZnT1 are known to be upregulated when cells are treated with excess Zn²⁺ ³⁰, whereas ZIP14 increases in cells upon zinc chelation with TPEN³¹. Our qRT-PCR analysis demonstrated that ZnT4-silencing upregulated MT2A transcription, whereas the other silencing conditions had marginal effects (Supplementary Fig. 6B). Thus, although the detailed mechanism is unknown, ZnT4 plays a significant role in regulating the [Zn²⁺]_cyto, and the increased [Zn²⁺]_cyto under the ZnT4 knockdown condition likely leads to the increment of [Zn²⁺]_pre-cis (see Discussion).

ZnT7 and ZnT6 localize at the different Golgi cisternae

Previous studies investigated the intracellular localization of ZnT6 and ZnT7^32,33. Here we sought to quantitatively investigate the intra-Golgi distribution of ZnT5/6 and ZnT7 using super-resolution microscopy. The specificities of anti-ZnT6 and anti-ZnT7 antibodies were confirmed by immunoblotting and immunofluorescence (Supplementary Fig. 7A–D). ZnT6 and ZnT7 signals almost completely disappeared from the Golgi after the corresponding knockdowns (Supplementary Fig. 7B, D). Thus, endogenous ZnT6 and ZnT7 are primarily localized in the Golgi. ZnT6 forms heterodimers with ZnT5, and thereby localizes ZnT5 in the Golgi³⁴. Thus, the ZnT6 signals likely correspond to ZnT5/6 heterodimers in the Golgi.

To determine the localization of ZnT6 and ZnT7 with higher accuracy, we created Golgi mini-stacks by nocodazole treatment, and analyzed them by super-resolution microscopy (Fig. 2a, c). Their cellular localization was classified into 5 groups (I–V or I’–V’) based on their locations relative to GM130, Halo-ERGIC-53 or TPST2 (Fig. 2b, d). The results revealed that most ZnT6 (~80%) localized downstream of GM130 (class I and II in Fig. 2b). In contrast, more than 80% of ZnT7 was found upstream of GM130 and well overlapped with Halo-ERGIC-53 (class III, IV, and V in Fig. 2b). Additional analyses revealed that both ZnT6 and ZnT7 accumulated mostly upstream of TPST2-Halo (Class III’, IV’, and V’ in Fig. 2d). Thus, ZnT6 mainly localizes in the cis- and medial-Golgi, whereas ZnT7 in the pre-cis- and cis-Golgi. The sub-cellular localizations of ZnT6 and ZnT7 were not altered by ZnT4-, ZnT5/6-, or ZnT7-silencing (Supplementary Fig. 8A–F), excluding the possibility of gross relocalizations of the ZnTs in response to [Zn²⁺] changes.

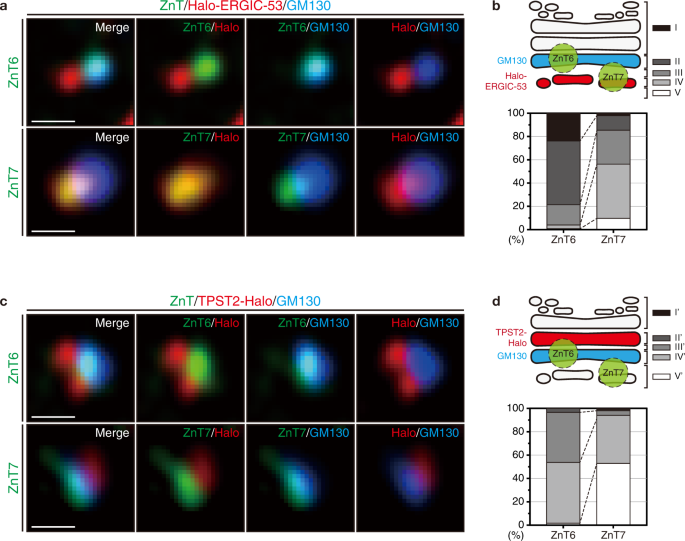

**Fig. 2: Intracellular localization of ZnT6 and ZnT7.**

Golgi-resident ZnTs regulate the intracellular localization of ERp44 differently

The different intracellular localization of ZnTs suggests that each family member has distinct physiological function. ERp44 reversibly redistributes between the ER and Golgi depending on Zn²⁺ availability¹⁷. To explore which and how ZnT(s) regulate(s) ERp44 function, we first investigated the subcellular localization of ERp44 upon ZnT knockdown by calculating its Pearson’s correlation coefficient with GM130 (Fig. 3). In control cells, ERp44 was mostly observed as dot-like structures widely in the cell and showed good colocalization with GM130 and endogenous ERGIC-53, indicating that ERp44 primarily localizes in the Golgi and ERGIC (Fig. 3a and Supplementary Fig. 9A). Additionally, ERp44 was also found in the ER and ERES (ER exit site) (Supplementary Fig. 9C), as reported previously¹⁰. In agreement with previous observations¹⁷, the simultaneous knockdown of ZnT4, ZnT5, ZnT6 and ZnT7 relocated ERp44 to the Golgi area. Notably, the single knockdown of ZnT7 was sufficient to dislocate most ERp44 to the Golgi area (Fig. 3a, b). In contrast, the knockdown of ZnT4 or ZnT5/6 significantly reduced the localization of ERp44 in the Golgi and ERGIC (Fig. 3a, b, and Supplementary Fig. 9A, B). In these conditions, ERp44 appeared to be associated with exogenously expressed Halo-STIM1(NN), an ER marker, and endogenous SEC24C, an ERES marker (Supplementary Fig. 9C). Thus, ERp44 seems likely to be transported back to the ER and/or ERES more efficiently in ZnT4- and ZnT5/6-knockdown cells than in control cells. This observation is consistent with the increased [Zn²⁺]_pre-cis under the ZnT4-knockdown condition (Fig. 1d), while ZnT5/6-knockdown cells may exploit other mechanisms for promoting the retrograde transport of ERp44 to the ER.

**Fig. 3: Different contributions of the Golgi-resident ZnTs in regulating the intracellular localization of ERp44.**

In this connection, we investigated whether the altered [Zn²⁺]_Golgi affects the function of COPI and KDELR, essential components for the Golgi-to-ER retrograde transport. A slight increase of β-COP, a COPI coatomer protein, at the Golgi was observed upon ZnT4-, ZnT5/6-, ZnT7-, or ZnT4/5/6/7-silencing (Supplementary Fig. 10). Two alternative explanations seem possible for this observation; active recruitment of the COPI coatomer proteins on the Golgi membrane, or prevented detachment of COPI-coated vesicles from the Golgi under the ZnTs knockdown conditions. In either case, the above results suggest that ZnT-knockdown does not impair recruitment of COPI coatomer proteins.

To investigate whether the relocation of ERp44 caused by ZnT4-silencing depends on its Zn²⁺-binding ability, we next observed the cellular localization of YFP-ERp44(3HA), a mutant lacking Zn²⁺-binding ability, under the ZnT4-silencing condition. As previously reported, YFP-ERp44(3HA) accumulated at the Golgi¹⁷, whereas YFP-ERp44(WT) distributed widely in the ER to Golgi area in normal cells (Supplementary Fig. 11). Notably, ZnT4-silencing reduced the Golgi localization of YFP-ERp44(WT), but not of YFP-ERp44(3HA), indicating that the enhanced ER localization of ERp44 upon ZnT4-silencing relies on its Zn²⁺-binding ability (Supplementary Fig. 11). Taken together, the increased [Zn²⁺]_pre-cis is the most likely cause for the ERp44 relocation to the ER in ZnT4-silencing cells.

To further explore the functional roles of each ZnT family member, we performed knockdown/rescue experiments, where cells silenced for all four ZnTs were transfected with siRNA-resistant ZnT4-FLAG, PA-ZnT5 + ZnT6-FLAG, or PA-ZnT7. The siRNA resistance of these genes was confirmed by immunoblotting (Supplementary Fig. 3C). Expectedly, PA-ZnT5, ZnT6-FLAG, and PA-ZnT7 were confirmed to localize in the Golgi area (Fig. 3c). In contrast, ZnT4-FLAG displayed puncta-like signals (Fig. 3c). To confirm the exact localization of ZnT4-FLAG, we visualized ZnT4-FLAG with several organelle markers including ER, ERGIC, cis-Golgi, TGN, COPI, recycling endosome, early endosome, lysosome, and autophagosome. Consequently, we found that while a small portion of ZnT4-FLAG was localized at the Golgi and plasma membrane, the major portion was at the early endosomes, recycling endosomes, and lysosomes, indicating that exogenously expressed ZnT4-FLAG populates the endocytic lysosomal pathway (Supplementary Fig. 12A, B). The expression of ZnT7 efficiently blocked the aberrant Golgi accumulation of ERp44 seen in ZnT4/5/6/7-knockdown cells (Fig. 3c, d). The expression of ZnT5 + ZnT6 also showed similar effect, but that of ZnT4 did not (Fig. 3c, d). Reduced Golgi localization of ERp44 was also observed when ZnT5 + ZnT6 or ZnT7 was overexpressed in otherwise untreated cells (Supplementary Fig. 13). In contrast, overexpression of ZnT4 did not alter the Golgi-localization of ERp44 (Supplementary Fig. 13). Thus, when overexpressed, ZnT7 and ZnT5/6, but not ZnT4, can reduce the Golgi localization of ERp44 likely through the increase of the [Zn²⁺] in proximal Golgi areas.

Zn²⁺ transport activity of ZnT7 is essential for the regulation of subcellular localization of ERp44

Next, we investigated whether the Zn²⁺ transport activity of ZnT7 is essential for regulating ERp44 localization. His and Asp residues on transmembrane helices 2 (TM2) and 5 (TM5) are predicted to coordinate Zn²⁺ via the HDHD motif, hence indispensable for the Zn²⁺ transport activity of ZnT7⁴. We thus mutated His70 (on TM2) and Asp244 (on TM5) of ZnT7 to alanine, and examined whether the resultant mutant (ADHA, Fig. 4a) retained the ability to regulate the subcellular localization of ERp44. Despite the similar expression levels and intracellular localization of wild-type and mutant ZnT7 (Fig. 4b and Supplementary Fig. S3D), PA-ZnT7(ADHA) did not rescue the Golgi accumulation of ERp44 in ZnT4/5/6/7-knockdown cells (Fig. 4c). Similarly, the complete mutations of the motif to alanine (AAAA) impaired the rescuing ability of ZnT7 (Fig. 4b, c). Thus, the Zn²⁺ transport activity of ZnT7 is essential for the regulation of intracellular localization of ERp44.

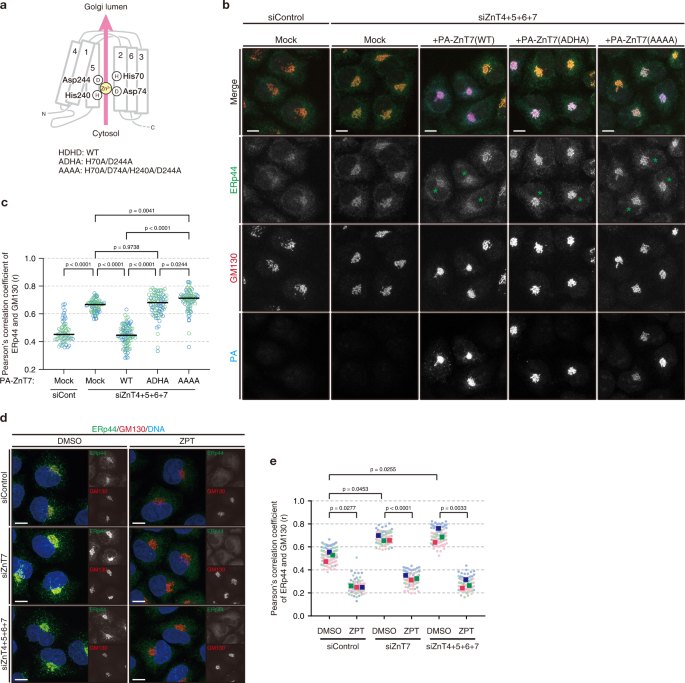

**Fig. 4: Zn²⁺ transport activity of ZnT7 is required for the control of subcellular localization of ERp44.**

ZnT7 was shown to activate TNAP by providing Zn²⁺ through the di-proline (PP)-motif located at the luminal loop 2³⁵. To investigate whether the PP-motif is also required for the regulation of ERp44, we replaced this motif with di-alanine. The resultant mutant ZnT7 (PP-AA) could rescue the phenotype of the ZnT4/5/6/7-knockdown at almost the same level as the wild type, suggesting that the PP-motif is not responsible for regulating the intracellular localization of ERp44 (Supplementary Fig. 3E and 14).

Importantly, Zn²⁺ supply with a specific ionophore compound (Zn²⁺/Pyrithione, ZPT) was able to redistribute ERp44 from the Golgi to the ER in cells lacking either only ZnT7 or all four transporters ZnT4/5/6/7 (Fig. 4d, e). Thus, we conclude that Zn²⁺ per se is the primary determinant of the localization of ERp44 in the ESP.

Golgi-resident ZnTs coordinately regulate the function of ERp44

Next, we examined the effects of the Golgi-resident ZnT knockdown on ERp44 function. As Zn²⁺-binding enhances the client-binding affinity of ERp44¹⁷, Zn²⁺ availability would likely affect the formation of ERp44-client complexes in cells. Indeed, ERp44-involving disulfide-linked oligomers formed in normal condition were greatly diminished by treating cells with TPEN, or silencing ZnT4/5/6/7 in combination (Fig. 5a). Similarly, the single knockdown of ZnT7, which reduces [Zn²⁺]_pre-cis (Fig. 1d), markedly decreased the formation of complexes (Fig. 5a, b). ZnT4-knockdown also inhibited the complex formation, but to a lesser extent than ZnT7-knockdown (Fig. 5a, b). This observation can be explained by the increased [Zn²⁺]_pre-cis upon ZnT4-knockdown (Fig. 1d). Presumably, the increased [Zn²⁺]_pre-cis promotes ERp44 to return to the ER (Fig. 3a) and release clients there due to the low [Zn²⁺]_ER¹⁹. The ZnT5/6-knockdown displayed marginal effects on the formation of the ERp44-client complexes although it greatly reduced [Zn²⁺] in the medial/trans-Golgi (Fig. 5a, b). These data suggest that ERp44 may form disulfide-linked oligomers primarily in the pre-cis-Golgi, and that Zn²⁺ in the distal Golgi areas affects the formation or accumulation of the oligomers to smaller extent than that in the proximal Golgi areas.

**Fig. 5: Different effects of the Golgi-resident ZnTs knockdown on ERp44 function.**

We previously showed that Zn²⁺-chelation with TPEN impaired the intracellular retention of ERp44¹⁷. We therefore investigated whether the knockdown of ZnTs allows ERp44 secretion. For this purpose, ZnTs knockdown cells were transfected with Halo-ERp44, and the cell lysates and conditioned media were analyzed by immunoblotting. Notably, the secretion of exogenously expressed Halo-ERp44 was significantly increased upon silencing of ZnT7 or ZnT4/5/6/7 (Fig. 5c, d), consistent with the enhanced Golgi accumulation of ERp44 under this condition (Fig. 3a). By contrast, ZnT4- or ZnT5/6-knockdown only marginally affected ERp44 secretion (Fig. 5c, d), suggesting different roles of the Golgi-resident ZnTs.

Next, the client retrieval activity of ERp44 was assessed under various ZnTs knockdown conditions by analyzing the secretion of its client proteins Ero1α, ERAP1 and Prx4 (Fig. 5e–j)^11,13,15,36. A redox-inactive Ero1α mutant, with Cys99 and Cys104 replaced by Ala, was used to prevent undesired perturbation of ESP redox homeostasis (i.e., hyper-oxidation). Consistent with our previous report¹⁷, simultaneous knockdowns of ZnT4, 5, 6, and 7 increased the secretion of all three clients (Fig. 5e–j). Whereas neither ERAP1 nor Ero1α was secreted efficiently by cells with lower ZnT7 levels, ZnT4- or ZnT5/6-knockdown significantly enhanced their secretion (Fig. 5e–h), implying a critical role of ZnT4 and ZnT5/6 in the ERp44-dependent client retrieval. Similar observation was made when employing Prx4 as a client, whilst ZnT7-knockdown slightly enhanced its secretion (Fig. 5i, j). Thus, ZnT4/5/6 appear to have greater responsibility for the ERp44-mediated client retrieval cycle than ZnT7. One likely explanation is that ZnT4/5/6, which import Zn²⁺ into the distal Golgi area (Figs. 1 and 2), serve to guarantee ERp44 to capture and retrieve clients throughout the Golgi, while under normal conditions, ERp44 does so at the pre-cis-Golgi in a ZnT7-dependent manner. In other words, ZnT4/5/6-mediated Zn²⁺ in the distal Golgi area plays a gatekeeper role for ERp44 to work as an effective inhibitor of undesired protein secretion (see also Discussion).

Golgi-resident ZnTs finely tune the traffic of ERp44

To gain deeper insight into the Zn²⁺-regulated traffic and client retrieval cycle of ERp44, we set up a retention using selective hooks (RUSH) system³⁷. To this end, we extended ERp44 at its N-terminus with a streptavidin binding peptide (SBP) and a FLAG tag, while streptavidin-KDEL was used as an ER-retention hook (Fig. 6a). As expected, SBP-FLAG-ERp44 was mainly localized in the ER (Fig. 6b). Upon biotin addition, SBP-FLAG-ERp44 started relocating from the ER to the Golgi, and this relocation was completed within 45 min. Thereafter, the intensity of the SBP-FLAG-ERp44 signals on the Golgi was decreased (Fig. 6b). A time-lapse imaging combined with the RUSH system further verified the biotin-triggered ER-to-Golgi relocation of SBP-Halo-ERp44 (Fig. 7). After reaching the Golgi, SBP-Halo-ERp44(WT) was seemingly kept localized around the Golgi and its peripheral wide area with network structures during the observation period of 60 min (Supplementary Fig. 15 and Supplementary Movie 5), suggesting that SBP-Halo-ERp44(WT) is cycling between the ER and Golgi. Similarly, a mutant lacking the RDEL ER-retrieval signal, SBP-Halo-ERp44(∆RDEL), exhibited the biotin-triggered ER-to-Golgi relocation. However, its Golgi localization was greatly reduced at 40–60 min after the biotin stimulation, probably due to the exit from the Golgi to the downstream compartments (Supplementary Fig. 15 and Supplementary Movie 6). Thus, our RUSH systems visualized the synchronized anterograde transport of ERp44 in the ESP and the different destinations of ERp44 (WT) and ERp44 (ΔRDEL) after reaching the Golgi.

**Fig. 6: ZnT controls the kinetics of ERp44 trafficking between the ER and Golgi.**

**Fig. 7: Time-lapse imaging of the ER-to-Golgi trafficking of ERp44 under various ZnT knockdown conditions.**

Quantitative analyses of the relative signal intensity of SBP-FLAG-ERp44 on the Golgi (F_Golgi/Total) demonstrated that the knockdowns of ZnT4, 5/6, and 7 affected the kinetics and behavior of ERp44 traffic in different manners (Fig. 6c and Supplementary Fig. 16A). ZnT4-knockdown cells showed only small increment of F_Golgi/Total and reached a plateau already at 15 min after biotin addition. ZnT5/6-knockdown cells displayed a continual increase of F_Golgi/Total over 60 min, but slower than siControl cells. In contrast, both ZnT7- and ZnT4/5/6/7-silenced cells showed a similar initial increment of F_Golgi/Total to siControl cells, but no significant decrease in F_Golgi/Total during 45–60 min.

To observe the ER-to-Golgi anterograde transport of ERp44 exclusively and thereby interpret the kinetics of the ERp44 traffic more precisely, we also quantitatively analyzed the biotin-triggered relocation of SBP-FLAG-ERp44(∆RDEL) (Fig. 6d and Supplementary Fig. 16B). In siControl cells, the F_Golgi/Total of SBP-FLAG-ERp44(∆RDEL) increased up to 15–30 min and then decreased, likely reflecting its transport to the downstream compartments and extracellular space. In support of this, significant amount of SBP-FLAG-ERp44(∆RDEL) was secreted out to the medium (Supplementary Fig. 16C). Intriguingly, this mutant displayed more rapid increment of F_Golgi/Total up to 30 min in ZnT4-silencing cells (Fig. 6d), indicating that the ER-to-Golgi transport itself was not impaired by the knockdown of ZnT4. Nevertheless, the F_Golgi/Total of SBP-FLAG-ERp44(WT) increased only marginally under this condition (Fig. 6c). Considering that the [Zn²⁺]_pre-cis was abnormally elevated in ZnT4-knockdown cells (see Fig. 1c), we surmise that the retrograde transport of ERp44 from the Golgi to the ER is accelerated in ZnT4-silencing cells. On the other hand, the ZnT5/6 knockdown showed no significant changes in F_Golgi/Total of ERp44(∆RDEL) after the biotin trigger. Given that greater amounts of ERp44(∆RDEL) were secreted out by ZnT5/6-silencing cells (Supplementary Fig. 16C), it can be interpreted that the anterograde intra-Golgi trafficking of ERp44 is accelerated under this condition so that the rates of the Golgi entry and exit of ERp44(∆RDEL) are almost equal to each other. In ZnT7-knockdown cells, similar to control cells, the F_Golgi/Total of ERp44(∆RDEL) was slightly but significantly increased at 15 and 30 min, and then decreased gradually during 30–60 min to reach almost the same level as at 0 min. ZnT4/5/6/7-silenced cells also exhibited an increment of F_Golgi/Total at 15 min, but significantly decreased thereafter, suggesting that under all ZnTs knockdown condition, ERp44(∆RDEL) can proceed on the secretory pathway as in normal cells. These results suggest that ZnT7- or ZnT4/5/6/7-knockdown does not affect the ER-to-Golgi transport of ERp44 per se, consistent with the similar level of secretion of ERp44(∆RDEL) between siControl and siZnT7 or siZnT4/5/6/7 cells (Supplementary Fig. 16C). The prolonged Golgi-accumulation of ERp44(WT) in the ZnT7- or ZnT4/5/6/7-knockdown cells is likely caused by prevention of the Golgi-to-ER backward trafficking due to the decreased [Zn²⁺]_pre-cis. Thus, ERp44 cycling was considerably influenced by ZnTs knockdowns, reinforcing the importance of ZnTs-mediated Zn²⁺ homeostasis in ERp44-mediated protein quality control.

Knockdowns of Golgi-resident ZnTs do not impair ER-to-Golgi trafficking

To gain more general insight into roles of Zn²⁺ in the ER-to-Golgi protein trafficking, we employed another model cargo protein in which the TM domain of ST6 β-galactoside sialyltransferase (ST), one of the Golgi-resident membranous proteins, was fused to the N-terminus of SBP-EGFP (Fig. 7a), and applied it to the RUSH experiments under the ZnTs knockdown conditions. ZnT(s)-silencing cells were co-transfected with pRUSH-ST-SBP-EGFP and Halo-ManII, a Golgi-marker. Cells were labeled with HTL-TMR and subjected to time-lapse imaging. Expectedly, ST-SBP-EGFP was initially localized at the ER-like area, and relocated to the Golgi upon the biotin stimulation (Fig. 7b). We quantified the intensities of EGFP and TMR fluorescent signals on the Golgi area, GFP_Golgi and TMR_Golgi, respectively, and calculated their ratio (GFP_Golgi/TMR_Golgi). The t_1/2 value was determined by a curve fitting for the time range of the ratio increase (Fig. 7c), and used to assess the effects of ZnTs-knockdown on the trafficking of ST-SBP-EGFP. Control cells showed a t_1/2 value of 10.2 ± 2.2 min, and this value was almost unchanged by any ZnTs-silencing (Fig. 7d). In conclusion, the ER-to-Golgi trafficking was not substantially affected by [Zn²⁺] changes caused by the knockdown of ZnT4, ZnT5/6, ZnT7, or ZnT4/5/6/7.

For comparison, we also investigated the effects of ZnTs-silencing on the trafficking of SBP-Halo-ERp44 using the RUSH system. The live-cell imaging of the ER-to-Golgi transport of SBP-Halo-ERp44 labeled with HTL-TMR (Fig. 7f–i, Supplementary Movies 7 and 8) indicated that the trafficking of SBP-Halo-ERp44 was ~10-fold faster (t_1/2 = 0.92 ± 0.71 min) than that of ST-SBP-EGFP (t_1/2 = 10.2 ± 2.2 min) in siControl cells, suggesting that cells have a system that accelerates the ER-to-Golgi transport of ERp44, as previously reported³⁸. In support of the immunofluorescence results using the fixed cells (Fig. 6c), ZnT4-silencing did not allow SBP-Halo-ERp44 to relocate to the Golgi (Fig.7f, Supplementary Movie 8). This observation is consistent with our notion that in ZnT4-silencing cells with higher [Zn²⁺]_pre-cis (Fig. 1d), ERp44 is transported back to the ER immediately after reaching this compartment. Of note, ZnT7- or ZnT4/5/6/7-silencing allowed the relocation of SBP-Halo-ERp44 to the Golgi, but significantly increased the t_1/2 value (Fig. 7h), whereas ZnT5/6-silencing did not (Fig. 7h). The initial slope of the TMR_Golgi signal increment (v₀) (Fig. 7g), which represents the rate of entry to the Golgi of SBP-Halo-ERp44, was not largely altered by the ZnTs knockdowns (Fig. 7i). Thus, [Zn²⁺]_Golgi seems unlikely to affect the ER-to-Golgi transport of ERp44 per se. We presume that lowering [Zn²⁺]_Golgi facilitates the secretion of ERp44 from the Golgi to the downstream compartments (Fig. 5c), leading to the apparently slower increase of the signals derived from Golgi-reached ERp44. As a result, it took a longer time until the signals reached a maximum plateau under the ZnT7- or ZnT4/5/6/7-silencing condition.

Discussion

Zn²⁺ import into the ESP is essential for many key ectoenzymes^{35,38,39,40,41,42,43}. By determining the localization of ZnT complexes and quantifying [Zn²⁺] in different Golgi cisternae, this study provides important insights into how each ZnT regulates Zn²⁺ homeostasis and ERp44 cycling and function in the ESP.

The first conclusion emerging from our high-resolution imaging analyses is that [Zn²⁺] changes dramatically amongst sequential ESP stations. Whilst picomolar in the ER, [Zn²⁺] reaches its maximum (~100 nM) in the most proximal Golgi cisterna (referred to herein as the pre-cis-Golgi). Lower levels (~60–80 nM) are then found in the cis-, medial- and trans-Golgi cisterna. This gradient seems likely to be a result of the discrete distribution of the three main ZnT complexes. Super-resolution microscopy analyses revealed that ZnT7 and ZnT5/ZnT6 accumulate mainly in the pre-cis-Golgi and cis-/medial-Golgi, respectively (Fig. 2a, c). The expression pattern of FLAG-tagged ZnT4 suggests that this transporter occupies distal regions of the secretory pathway, including the plasma membrane and endo-lysosomal pathway (Supplementary Fig. 12). On the whole, the sequential distribution of ZnT7, ZnT5/6 and ZnT4 explains the different effects of their knockdowns on the [Zn²⁺]_Golgi. At the same time, it implies that they play distinct functions. While the localization of ZnT6 was shown to rely on its association with ZnT5³⁴, the mechanisms underlying the differential ZnTs distribution are poorly understood. Unlike ZnT7, ZnT5 and ZnT4 are predicted to have extra N-terminal TM domain(s) that may define their localization via interactions with specific partner proteins. Further protein engineering and proteomic approaches are necessary to elucidate what determines the traffic and destinations of ZnT4/5/6/7.

An unexpected finding was that ZnT4-silencing increased [Zn²⁺]_cyto and [Zn²⁺]_pre-cis: the presence of ZnT4 in the plasma membrane might mediate Zn²⁺ efflux from the cytosol to the extracellular space (Supplementary Fig. 12). Previous work demonstrated that excess cytosolic Zn²⁺ can be incorporated into ERGIC-53-positive vesicles in S-nitrosocysteine-treated C6 cells⁴⁴. Likewise, the higher [Zn²⁺]_cyto in our ZnT4-silencing HeLa Kyoto cells may be imported into pre-cis-Golgi via ZnT7, resulting in the higher [Zn²⁺]_pre-cis. It is possible that the Golgi-resident ZIPs also contribute to Zn²⁺ homeostasis in the Golgi. Further analyses will reveal the deeper mechanisms of how ZnTs and ZIPs cooperatively regulate the [Zn²⁺]_Golgi.

The use of targeted pHluorin2 sensors confirmed that a rather steep pH gradient exists along the ESP. The pH value of the cis-Golgi is around 6.5, whereas the ER and pre-cis-Golgi maintain a neutral pH (Supplementary Fig. 2F). Such [Zn²⁺] and pH gradients are key in regulating functions of ERp44, whose affinity for Zn²⁺ ranges from 135 nM at pH 7.2 to 295 nM at pH 6.2¹⁷. The Golgi-to-ER retrieval of ERp44 depends on KDELRs that bind the C-terminal RDEL motif of ERp44¹⁵, mainly in pre-cis-/cis-Golgi^22,23,45,46. Given that the affinity of KDELRs for its clients increases at weakly acidic pH^47,48, KDELR most likely initiates the retrograde transport of ERp44 at the cis-Golgi.

Taken all together, our findings allow us to propose a refined model of protein quality control in the ESP, ensured by the cooperation of ERp44 and KDELR, modulated by the [Zn²⁺] and pH gradients (Fig. 8), and maintained by the sequential distribution of ZnT7, 5/6 and 4 complexes in post-ER compartments. ERp44 acquires Zn²⁺ and forms complexes with its clients or Zn²⁺-bridged homodimers¹⁷ as it enters the pre-cis-Golgi, where [Zn²⁺] is maximal in the ESP. When the client-ERp44 complexes reach the weakly acidic cis-Golgi, KDELR captures and retrieves the complexes to the ER via COPI-coated vesicles. The complexes are disassembled in the ER, owing to the low [Zn²⁺] and neutral pH in this organelle¹⁸. Once client proteins are released from ERp44, they become functional as ER-resident enzymes, or they resume folding and assembly to become mature proteins with the assistance of ESP chaperones. As an additional route, Zn²⁺-bound ERp44 may likely be transported back to the ER even without client binding, as ZPT treatment alone was sufficient for ERp44 to exit from the Golgi (Fig. 4c, d), and only traces of ERp44 are secreted by cells overexpressing it^12,14,17.

**Fig. 8: Proposed model of ERp44 trafficking regulated by Golgi-resident ZnT members for protein quality control in the early secretory pathway.**

The present study also demonstrated that ZnT7-knockdown reduced the formation of disulfide-linked complexes involving ERp44 in cells (Fig. 5a). Without bound clients, ERp44 would expose the RDEL-motif to lesser extent^{9, 12,14,17}, preventing ERp44 retrieval from the cis-Golgi and allowing more ERp44 movement to the distal Golgi areas. However, substantial amount of ERp44 remains intracellular (mostly in the Golgi) under the ZnT7-knockdown condition (Fig. 5c, e, g). Moreover, ZnT7-knockdown showed moderate effects on [Zn²⁺] in the cis-, medial- and trans-Golgi. Hence, ERp44 could acquire Zn²⁺ and bind client proteins at these Golgi cisternae even after ZnT7-knockdown. Under such circumstances, the complex would be readily recognized by KDELR, whose affinity is increased by lower pH values, and rapidly transported back to the ER, where the complex would be disassembled through Zn²⁺ release. In this way, the lifetime of the ERp44-client complexes can be shortened in ZnT7-knockdown cells, leading to the decrease of disulfide-linked complexes (Fig. 5a). In contrast, since ZnT4-knockdown increases the [Zn²⁺]_pre-cis (Fig. 1d), more ERp44 can bind Zn²⁺ and be retrieved to the ER. Consistently, less ERp44 accumulates in the Golgi of ZnT4-siliencing cells (Fig. 3a, b), accounting for their tendency to secrete ERp44 clients (Fig. 5e–j). ZnT5/6-knockdown markedly lowered [Zn²⁺] in the cis-, medial- and trans-Golgi while it little affected the [Zn²⁺]_pre-cis (Fig. 1d). We surmise that Zn²⁺ imported by ZnT4 and ZnT5/6 in the distal Golgi areas serves as a gatekeeping factor for the ERp44-mediated client retention, and its deprivation caused by ZnT4- or ZnT5/6-knockdown would allow even greater secretion of client proteins (Fig. 5e–j).

Our previous study revealed that acidic pH in the Golgi can activate ERp44 function by increasing the flexibility of its C-terminal tail^9,12. While the crosstalk between pH and zinc in the ESP is not fully understood, the present study demonstrates that lower ZnTs levels considerably affects ERp44 functions without significant changes in pH values at any Golgi cisternae (Supplementary Fig. 2G, H). In this regard, Zn²⁺ in the ESP acts as a more dominant regulator of ERp44 than pH. Presumably, pH homeostasis in the Golgi works upstream of Zn²⁺ homeostasis via stimulation of Zn²⁺/H⁺ antiporter activity of ZnTs, enabling the indirect modulation of ERp44 by pH.

ERp44-KO mice were reported to show growth retardation, cardiac developmental and functional defects and hypotension^13,49. Similarly, ZnT5-KO mice show growth retardation and male-specific death because of the arrhythmias⁵⁰. It is possible that ZnT5-KO inhibits the function of ERp44 and allows aberrant secretion of male-specific ERp44-client proteins, leading to the heart failure. Secretome analyses with ZnT5-KO cells will identify proteins that may cause the above phenotypes, and further elucidate the physiological roles of Zn²⁺-mediated protein quality control in the ESP.

In summary, we demonstrated that the [Zn²⁺] in each Golgi cisterna is strictly regulated by multiple ZnT family members. Strategies applied in this work will also be useful for studies on physiological function of the ER- and Golgi-resident ZIP members, which export Zn²⁺ from the organelle lumen to the cytosol and regulate the cellular Zn²⁺ homeostasis in concert with ZnTs. Further extensive studies will provide deeper and more comprehensive insight into mechanisms of Zn²⁺ homeostasis and its close relation to proteostasis in the ESP.

Methods

Cell culture and transfection

HeLa Kyoto cells were cultured in Dulbecco’s modified Eagle’s medium (DMEM; Nacalai Tesque) supplemented with 10% fetal bovine serum (FBS; Thermo Fisher Scientific, or Nichirei Biosciences Inc.). Plasmids and small interfering RNAs (siRNAs) duplexes were transfected with FuGENE-HD transfection reagent (Promega) and Lipofectamine RNAiMAX (Thermo Fisher Scientific), respectively.

RNA interference

The Silencer Select siRNAs targeting human ZnT4, ZnT5, ZnT6, and ZnT7 were purchased from Thermo Fisher Scientific (Supplementary Table 1). The relative amount of mRNA remaining 48 h after transfection was determined by qRT-PCR analysis using PrimePCR assays (Bio-Rad; Supplementary Table 2) and SsoAdvanced Universal SYBR Green Supermix (Bio-Rad). Thermal cycle reaction and SYBR Green detection were performed using CFX96 Touch Deep Well Real-Time PCR Detection System (Bio-Rad).

Reagents and antibodies

4’,6-Diamidino-2-phenylindol (DAPI; Nacalai Tesque), N-ethylmaleimide (NEM; Nacalai Tesque), N,N,N’,N’-tetrakis(2-pyridylmethyl)ethylenediamine (TPEN; Dojindo Laboratories), zinc pyrithione (ZPT; Tokyo Chemical Industry), HaloTag TMR ligand (HTL-TMR; Promega), and Chelex 100 chelating resin (1432832, Bio-Rad) were commercially purchased. Antibodies were purchased as follow: mouse monoclonal antibodies against β-actin (clone AC-15; Sigma) (1:5000 for Western blot (WB)), FLAG (HRP-conjugated, clone M2; Sigma) (1:10000 for WB), FLAG (clone M2; Sigma) (1:2000 for Immunofluorescence (IF)), GAPDH (clone GAPDH-71.1; Sigma) (1:20000 for WB), GM130 (clone 35; BD biosciences) (1:2000 for IF), golgin97 (A-21270, Invitrogen) (1:200 for IF), rat monoclonal antibody against PA (NZ-1; FUJIFILM Wako Chemicals) (1:10000 for WB and 1:5000 for IF), a rabbit monoclonal antibody against ERp44 (clone D17A6; CST) (1:1000 for WB), and rabbit polyclonal antibodies against mannosidase II (AB3712, SIGMA) (1:200 for IF), giantin (924302, BioLegend) (1:2000 for IF), GM130 (PM061; MBL) (1:2000 for IF), SEC24C (HPA040196, SIGMA) (1:500 for IF), βCOP (ab2899, Abcam) (1:1000 for IF), a DDDDK-tag (PM020, MBL) (1: 4000 for IF), and ZnT6 (HPA057328; Atlas Antibodies) (1:500 for IF and 1:1000 for WB). The anti-ERp44 mouse monoclonal antibodies (clone 36C9 and 2D5) (36C9; 1:1000 for WB, 2D5; 1:50 for IF) were previously described^10,15. The anti-ZnT7 rabbit polyclonal antibody was raised against a synthetic peptide composed of residue 2–16 of human ZnT7 (PLSIKDDEYKPPKF) (eurofins genomics) and affinity-purified. DYKDDDDK-conjugated beads (clone 1E6) (1:200 for immunoprecipitation) were purchased from FUJIFILM Wako Chemicals.

Plasmid construction

The cDNAs coding full-length human ZnT4, ERGIC-53, or TPST2 and a part of GalT (1–61) or mannosidase II (ManII) (1–117) were amplified from human cDNA library obtained from HEK293T or HeLa Kyoto cells. The cDNAs coding ZnT5, ZnT6, or ZnT7 were codon-optimized for expression in human cell (Thermo Fisher Scientific). PCR-amplified cDNA fragments or Halo-tag were subcloned into pEF4 (Thermo Fisher Scientific) or pcDNA3.1(+)-PA plasmids using In-Fusion HD cloning kit (Takara Bio Inc.). Point mutations were introduced using a PrimeSTAR mutagenesis basal kit (Takara Bio Inc.) with appropriate sets of primers. Construction of mouse Prx4-3×FLAG was described previously⁵¹. Used primers in this study are summarized in Supplementary Table 3.

Immunoblotting

To analyze disulfide-linked oligomers involving ERp44 under ZnT knockdown conditions (Fig. 5a), HeLa Kyoto cells were transfected with siRNAs and cultured for 48 h. After additional 3 h incubation in fresh media, cells were washed with PBS twice and lysed in ice-cold 10% TCA (trichloroacetic acid) as described previously⁵². Precipitants were washed with acetone three times and dissolved in SDS-NEM buffer (100 mM Tris-HCl, pH 6.8, 2% SDS, and 50 mM NEM) with sonication. Total protein concentration was determined by BCA method, and 10 µg of proteins were resolved by SDS-PAGE and analyzed by Western blot analyses. Signal intensities of immunoreactive bands were quantified using Image Lab software (Bio-Rad).

Immunofluorescence

To analyze the effects of siRNAs on the intracellular localization of ERp44, HeLa Kyoto cells plated on coverslips were transfected with 5 nM siRNAs and incubated for 48 h. Cells were washed with PBS twice, fixed with 4% paraformaldehyde/PBS for 15 min, permeabilized by 0.1% TritonX-100/PBS for 15 min, and blocked with 2% FBS/PBS for 1 h. Coverslips were incubated with anti-ERp44 mouse monoclonal and anti-GM130 rabbit polyclonal antibodies diluted in Signal Enhancer HIKARI for Immunostain Solution A (Nacalai Tesque) overnight at 4 °C. CF488A- (20014-1), CF568- (20101-1), or CF633- (20121-1) conjugated anti-mouse IgG (Biotium), and CF488A- (20015-1) or CF568- (20103-1) conjugated anti-rabbit IgG antibodies (Biotium) were used as secondary antibodies. Nuclei were stained with DAPI. For knockdown/rescue experiments, anti-PA labeled with CF405M using Mix-n-Stain Antibody Labeling Kit (Biotium) and Alexa Fluor 594-conjugated anti-DDDDK-tag antibodies (M185-A59; MBL) were added to the cells after washing secondary antibody. Fluorescence images were acquired using a laser scanning confocal microscopy (FV1000 with FluoView software ver. 4.2, Olympus, or LSM980 with ZEN software ver. 3.4.91.00000, Carl Zeiss) equipped with UPLSAPO 60x silicon oil-immersion objective lens (NA 1.30) or C Plan-Apochromat 63×oil-immersion objective lens (NA 1.40). Pearson’s correlation coefficient values were calculated using JACoP plugin on ImageJ software.

To observe fluorescence signals from the Golgi mini-stacks, HeLa Kyoto cells were plated on Carl Zeiss Cover Glasses, High Performance (474030-9000-000, Carl Zeiss) and transfected with Halo-ERGIC-53, ManII-Halo, TPST2-Halo, or GalT-Halo. After 36 h incubation, cells were washed with Chelex-treated HHBSS twice, and Halo-proteins were labeled with 5 nM HTL-TMR in serum- and phenol red-free DMEM for 30 min. Cells were then washed with Chelex-treated HHBSS twice, and subsequently treated with 33 µM nocodazole or vehicle (DMSO) for 4–6 h in complete media. Cells were washed with PBS twice, fixed with 4% PFA/PBS for 10 min (for IF of GM130 and giantin) or ice-cold methanal for 15 min at −30 °C (for IF of endogenous ManII and golgin97), and treated with antibodies diluted in Signal Enhancer HIKARI for Immunostain Solution A (for GM130 and giantin) or Signal Enhancer HIKARI for Immunostain Solution B (Nacalai Tesque, for ManII and golgin97) overnight at 4 °C. Secondary antibodies were treated as above, except for using Alexa Fluor Plus 488 conjugated anti-Rabbit IgG (A32731, Thermo Fisher Scientific). Coverslips were mounted onto slide glasses using ProLong Glass Antifade Mountant (P36982, Thermo Fisher Scientific). Fluorescence images were obtained by Airyscan super-resolution microscope system (Carl Zeiss) comprised on a Zeiss LSM880 confocal microscope or Airyscan2 super-resolution microscope system comprised on a Zeiss LSM980 confocal microscope equipped with an oil-immersion objective lens (C Plan-Apochromat 63×, NA 1.4, Oil DIC UV-VIS-IR M27). Pixel size of images was 47 nm or 42 nm, and the z-step of image stacks was 185 nm or 150 nm. Image stacks were subjected to Airyscan processing. Chromatic shifts were corrected by Chromagnon software²⁴. Fluorescence images of 100 nm Tetraspeck beads (T2729, Thermo Fisher Scientific) were used as reference. The localizations of ZnT6 and ZnT7 relative to cis- and pre-cis- or medial-Golgi markers were observed and analyzed for grouping manually.

To assess the ER/ERES localization of ERp44 (Supplementary Fig. 9C), HeLa Kyoto cells transfected with Halo-STIM1(NN) were labeled with HTL-TMR and fixed with glyoxal solution as previously reported⁵³. Permeabilization, blocking, and antibody treatment were performed as above. Fluorescence images were acquired with Airyscan2 super-resolution microscope comprised on LSM980 equipped with C Plan Apochromat 63x oil immersion lens (NA 1.40).

[Zn²⁺] measurement

[Zn²⁺] measurement with ZnDA-1H was performed as described previously^18,20 with several modifications. HeLa Kyoto cells (0.2 × 10⁵) were plated onto glass-bottomed dish and transfected with 5 nM siRNAs. After 12 h incubation, 200–250 ng of plasmids for expressing Halo-tagged protein were transfected, and cells were incubated for additional 36 h. To label Halo-proteins, cells were washed with Chelex-treated HEPES-buffered HBSS⁵⁴ (HHBSS; 30 mM HEPES-NaOH, pH 7.4, 5.36 mM KCl, 137 mM NaCl) twice, and incubated with serum- and phenol red-free DMEM containing 250 nM ZnDA-1H and 5 nM HTL-TMR for 30 min. After incubation, cells were washed with Chelex-treated HHBSS twice, and culturing medium was exchanged with prewarmed Imaging buffer (Chelex-treated HHBSS supplemented with 3.0 mg/mL glucose, 1.8 mM Ca(CH₃COO)₂, and 1 µM ZnSO₄). Time-lapse images were acquired for 20 min at 30 s intervals by laser scanning microscopy (FV1000) equipped with UPLSAPO 60x silicon oil-immersion lens (NA 1.30). ZnDA-1H and TMR were excited by 473 nm and 559 nm laser, respectively. Cells were then fixed with 4% PFA/PBS for 10 min and washed with Chelex-treated HHBSS three times. To obtain additional images of zinc-saturating and zinc-depriving conditions, fixed cells were incubated with Chelex-treated HHBSS containing 25 µM ZPT and subsequently treated with 100 µM TPEN, respectively. Fluorescence intensities of ZnDA-1H and TMR were quantified by ImageJ software, and [Zn²⁺] was determined using the following Eq. (1):

$$\left[{{{{{\rm{Zn}}}}}}^{2+}\right]_{{{{{\rm{labile}}}}}}={K}_{{{{{\rm{d}}}}}}\frac{R-{R}_{\min }}{{R}_{\max }-R}.$$

(1)

where R is the signal ratio of ZnDA-1H/TMR, R_min is the minimum value of R, R_max is the maximum value of R, and K_d values of ZnDA-1H are 0.35 nM for pre-cis-Golgi (pH 7.0), 0.54 nM for cis-/medial- and medial-Golgi (pH 6.5), and 0.90 nM for trans-Golgi (pH 6.0).

To measure the [Zn²⁺]_cyto, HeLa Kyoto cells were transfected with 250 ng of Halo-NES (nuclear export signal). Time-lapse imaging was performed as previously reported¹⁹. Briefly, HaloTag proteins were labeled with 42 nM of ZnDA-2H and 5 nM of HTL-TMR for 30 min. Fluorescence images were obtained every 20 s for 25 min with Zeiss LSM980 laser scanning confocal microscope equipped with Plan Apochromat 40x lens (NA = 0.95). At 5 min and 15 min, TPEN (final 10 µM) and ZPT (final 5 µM) with ZnSO₄ (final 50 µM) were added to the dish, respectively. The [Zn²⁺]_cyto was calculated as same as above. A K_d value of ZnDA-2H is 2.7 nM (pH7.4).

pH measurement for organelle lumens

The pHluorin2 cDNA was amplified from the pME pHluorin2 plasmid and fused to ERGIC-53, ManII, TPST2, GalT, and STIM1(NN) by InFusion HD for the purpose of targeting to the pre-cis-, cis-/medial-, medial-, trans-Golgi and the ER, respectively. HeLa Kyoto cells plated onto glass bottomed dish were transfected with pHluorin2-tagged proteins and incubated for 36 h. Cells were washed twice with Chelex-treated HHBSS, and culturing media were exchanged with imaging buffer. The cells were incubated on humidified stage of microscopy at 37 °C for 15 min, and subsequently subjected to live-cell imaging. Fluorescence signals of pHluorin2 excited with 405 nm (F₄₀₅) and 473 nm (F₄₇₃) lasers were obtained, and the signal intensities were quantified using ImageJ software. For pHluorin2 signal calibration, pHluorin2 was fused with MBP on pMal vector, and MBP-pHluorin2 proteins were expressed in BL21 E. coli strain. Harvested bacterial cell pellets were homogenized by sonication in lysis buffer (50 mM Tris-HCl, pH 8.0, 300 mM NaCl, 1 mM EDTA) supplemented with protease inhibitor cocktail (Nacalai Tesque, 03969-21). Bacterial debris were clarified by centrifugation twice, and resultant supernatant was harvested. An aliquot of lysates was diluted in lysis buffer, and incubated with 100 µL of amylose resin (NEB, E8021) with rotation at 4 °C overnight. The beads were thoroughly washed with lysis buffer, divided into several tubes, and washed with each pH calibration buffer (10 mM bis-Tris-HCl, pH 5.56–8.31, 150 mM NaCl) twice. The beads in pH calibration buffer were transferred onto glass bottomed dish and its F₄₀₅ and F₄₇₃ signals were obtained by microscopy with identical parameters for cell image acquisition.

Secretion assay

HeLa Kyoto cells (1.5 × 10⁵) plated on 60-mm plate were transfected with 5 nM siRNAs. After 6 h incubation, cells were transfected with Halo-ERp44, Ero1α (C99A, C104A)-FLAG, ERAP1-FLAG, or mPrx4-3×FLAG and incubated for additional 36 h. Cells were washed twice and incubated in Opti-MEM for 4 h. Conditioned media were collected and clarified by centrifugation. To concentrate the secreted Halo-ERp44 or mPrx4-3×FLAG proteins, aliquots of resultant supernatants were precipitated by mixing with the same volume of ice-cold 10% TCA. Precipitants were washed with acetone and dissolved in 1 × SDS-loading buffer. To concentrate FLAG-tagged ERp44-client proteins, clarified conditioned media were incubated with anti DYKDDDDK tag antibody beads (Fujifilm Wako Pure Chemicals, 018-22783) at 4 °C with rotation for 3.5 h. Beads were then washed with PBS-T three times, and precipitated proteins were eluted with 1x SDS-loading buffer. To analyze intracellular proteins, cells remaining on plates were lysed in 1 × SDS-loading buffer and homogenized by sonication. Samples were denatured at 70 °C for 10 min, and subjected to SDS-PAGE under reducing conditions. Protein bands were visualized by immunoblotting analyses and quantified by Image Lab software.

RUSH assay

To perform the RUSH assay, HeLa Kyoto cells (0.4 × 10⁵) were plated onto 15-mm round coverslips in a well of 6-well plate, and transfected with 5 nM siRNAs against the ZnTs. After 6 h incubation, 300–400 ng of pRUSH-ERp44 plasmids were transfected and incubated for another 36 h. Culturing media were exchanged to 900 µL of DMEM containing 10% streptavidin beads-pretreated FBS and cells were cultured for 3 h. Cells were then stimulated by 100 µL of DMEM containing 400 µM biotin for 0, 15, 30, 45, or 60 min, washed with PBS twice, and fixed with 4% PFA/PBS for 10 min. Fixed cells were subjected to immunofluorescence analyses as above. To determine which cell was transfected, 10 ng of LifeAct-Venus was cotransfected with pRUSH-ERp44 (∆RDEL) as a transfection marker, and cells with similar expression level of LifeAct-Venus were randomly chosen and analyzed. To quantify the relative signal intensity of SBP-FLAG-ERp44 on the Golgi, the Golgi region was determined from fluorescence images of GM130. Signal intensities of SBP-FLAG-ERp44 on the Golgi (F_Golgi) and total cell (F_Total) were measured with Fiji, and its ratio (F_Golgi/Total) was calculated.

Time-lapse imaging of RUSH assay

For the time-lapse imaging under the ZnTs knockdown conditions (Fig. 7 and Supplementary Fig. 15), HeLa Kyoto cells plated on 35-mm glass bottom plates were transfected with siRNAs of target ZnTs as above. Cells were further cotransfected with a combination of pRUSH-ST-SBP-EGFP and ManII-Halo or a combination of pRUSH-Halo-ERp44 and ManII-pHluorin2. ManII was used as a Golgi marker protein. After 36 h incubation, Halo proteins were labeled with 5 nM HTL-TMR for 30 min, and culturing media were exchanged to 900 µL of phenol red-free DMEM supplemented with 10% streptavidin beads-pretreated FBS, 20–50 mM HEPES-NaOH, pH 7.2, and 4 mM l-glutamine and cells were cultured for additional 3 h. The glass bottom plate was replaced onto 37 °C-prewarmed stage of microscopy and subjected to image acquisition. Fluorescence images were acquired every 1 min for 65 min with Airyscan2 multiplex 4Y mode on LSM980 (Carl Zeiss) equipped with Plan Apochromat 40x lens (NA = 0.95). At 5 min, 100 µL of phenol red-free DMEM containing 400–800 µM biotin was added to the dish (final 40–80 µM). Images were subjected to Airyscan processing. The Golgi area was determined based on the ManII-signal, and fluorescence intensities of TMR and EGFP or pHluorin2 in the Golgi area were measured using a Fiji software. Relative intensities of the ST6-SBP-EGFP and SBP-Halo-ERp44 signals on the Golgi area were calculated, and the fitting curve and t_1/2 values were obtained by Plateau followed by one phase association function on Prism software. The v₀ values were estimated using first 4 points of the obtained fitting curves.

Determination of apparent K _d for Zn²⁺ of Halo–ZnDA-1H

The apparent K_d for Zn²⁺ values of Halo–ZnDA-1H at pH 5.5 and 6.0 were determined by the method described in the previous paper^18,19. Briefly, 64 µM of purified HaloTag protein was incubated with 70 µM of ZnDA-1H in Chelex-treated HEPES buffer (100 mM, pH 7.4) for 30 min at 37 °C under dark conditions. To remove the unreacted ZnDA-1H, ultra-filtration was performed using Chelex-treated HEPES buffer (100 mM, pH 7.4). The fluorescence titration of Halo–ZnDA-1H (100 nM) was performed under the control of free Zn²⁺ concentrations ranging from 15 nM to 1.1 × 10⁴ nM at pH 5.5 and from 6.9 nM to 4.3 × 10³ nM at pH 6.0 using the nitrilotriacetic acid (NTA)-Zn²⁺ buffer⁵⁵ (100 mM MES, I = 0.1 M (NaNO₃), pH 5.5 or 6.0) at 37 °C. The apparent K_d values were determined by changes in fluorescence intensity at 508 nm.

Quantification and statistical analysis

Statistical analyses were performed with Prism software version 7.0a, 9.2.0, or 9.3.0 (GraphPad Software), using one-way ANOVA followed by Dunnett’s test or Tukey’s test for comparison of multiple datasets. Data represent the means of the indicated number of independent experiments. Error bars indicate the standard error of the mean (SEM) or the standard deviation (SD). p < 0.05 was considered to be significant.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The datasets generated during and/or analyzed during the current study are available in the supplementary information. Source data are provided with this paper. All other data supporting the conclusions and findings of this study are available from the corresponding author on request. Source data are provided with this paper.
