Introduction

The stability of Pine Island Ice Shelf and the Pine Island Glacier are of paramount importance to sea level rise and the mass balance of the West Antarctic Ice Sheet (WAIS)1. Geothermal heat sources and the production of subglacial water can influence the bottom boundary condition that partly determines the glacial mass balance2,3,4. Variability in the subglacial water supply5, including that caused by intermittent heat flux6, can lead to ice sheet instability. Thus, the existence of subglacial volcanism impacts both the stable and unstable dynamics of an ice sheet such as the WAIS.

Determining the distribution of geothermal heat flow to the WAIS is complicated by the presence of an extensional volcanic rift system that stretches across Marie Byrd Land from the Pine Island Glacier to the Ross Ice Shelf and into the Ross Sea7,8. This is known as the West Antarctic Rift System (WARS). To date, as many as 138 volcanoes have been identified throughout West Antarctica9, including the presently active Mt. Erebus10 along the Terror Rift, as well as Mt. Siple10 and Mt. Waesche11, which both show evidence of recent activity. However, the locations and extent of volcanic activity along the WARS are debated, because many of these 138 known volcano-like features are buried beneath several kilometers of ice, and some evidence suggests that much of the interior subglacial WARS is dormant12,13. Yet, recent direct measurement of the thermal gradient beneath the Whillans Ice Stream have revealed heat fluxes that exceed the background geothermal gradient4. The apparent surface deformations in the WAIS thickness also suggest localized heat fluxes that are most likely volcanic due to their intensity14,15, while ash layers from ice cores reveal more recent eruptions16. Last, the detection of earthquakes as recently as 2010 suggest magma migration beneath the Executive Committee mountains, in a region of Marie Byrd Land where seismic studies have revealed thin crust and low-density mantle material beneath13. Despite the accumulation of evidence, definitive proof of contemporary subglacial volcanism in West Antarctica is still missing.

Subglacial volcanism implies melt and subglacial water has been observed through active seismics17,18. However, subglacial hydrology can be driven by non-volcanic geothermal heat and friction between the bedrock and the ice sheet, and to date there is no direct evidence of melt by present day volcanism beneath the WAIS. Consequently, the magnitude of subglacial meltwater production and transport remains unknown. Here we report on helium isotope and noble gas measurements that provide geochemical evidence of subglacial heat flux that can only be volcanic in origin and of subglacial meltwater production that is subsequently transported into the cavity of the Pine Island Ice Shelf.

Presently, the greatest contributor to ice shelf instability around Antarctica appears to be an increase in ocean heat supply to the cavities of Antarctic ice shelves19. Circumpolar Deep Water (CDW) is the primary heat source for melting glacial ice and its increased presence on the Amundsen Sea continental shelf has been implicated in the rapid melting and grounding line retreat observed beneath the Pine Island Glacier19,20,21 and in the atmospheric warming along the western Antarctic Peninsula22. The ocean–atmosphere mechanisms that draw more CDW onto Antarctic continental shelves are challenging to characterize and remain poorly understood23, although the concentration and distribution of CDW and its year-to-year variations have revealed connections to climatic changes in the regional winds21,24.

In addition to temperature and salinity, helium isotopes are commonly used as a tracer for CDW around Antarctica, because CDW is typically the only source of elevated 3He in Antarctic coastal waters25.  Therefore, we first describe the isotopic background against which the evidence of volcanism can be contrasted. The 3He/4He isotope ratio is typically expressed in percent (%) deviation from the atmospheric ratio (RA) as \({\mathrm{\delta }}^3{\mathrm{He}} = \left( {{{R}}_{{\mathrm{obs}}}{{/R}}_{\mathrm{A}} - 1} \right) \times 100\) at abundances typically found in the ocean. Details of CDW geochemistry can be found in the Supplementary Note 1. Six expeditions to the Pacific and Atlantic sectors of the Southern Ocean provide 1610 δ3He measurements (Fig. 1). These historical data show maximum values of δ3He in the core of CDW in the Weddell Sea (Atlantic Sector) of 10.2%26, and in the Ross and Amundsen Seas (Pacific Sector) of 10.9%, all of which can be traced to subpolar mid-ocean ridge systems in the Pacific27, Indian and Atlantic Oceans28.

Fig. 1
figure 1

Map of 3He measurements around Antarctica. Station locations for helium/neon data used in Fig. 2. a An expanded view of the Amundsen Sea and locations of helium/neon hydrographic stations during NBP07-02 (2007, yellow) and JR294 (2014, red). The “ + ” demarcates the approximate location of the Hudson Mountain Subglacial Volcanoes. The blue dashed line demarcates Pine Island Bay. The mapped region of the Amundsen Sea is indicated by the inset box in b, which depicts the regional and offshore helium isotope hydrography, also included in Fig. 2

CDW is modified through ventilation on the continental shelves and this reduces the δ3He in continental shelf waters. In the Amundsen Sea, CDW can penetrate along troughs to reach ice shelves29 at potential temperatures (θ) that range from θ = 0.5 to 1.2 °C with salinities S > 34.621. This variable modification of CDW is also reflected in the δ3He from the Amundsen Sea: the warmest water in Pine Island Bay (PIB, blue box in Fig. 1) in 2007 exhibited θ = 1.24 °C and δ3He = 9.79%. In 2014, the warmest water in PIB was characterized by θ = 1.14 °C and δ3He = 9.1%. This water is found in the deep troughs of the continental shelf between 600 and 1000 m. However, the two expeditions to PIB in 2007 and 2014 have revealed seawater exhibiting δ3He values that reach a maximum of δ3He = 12.3%, which stands well above the deep δ3He maxima in CDW (Fig. 2a). This excess δ3He is most prominent at the Pine Island Ice Shelf front (Fig. 3), and thus far was not encountered further west in the Amundsen Sea, nor at the front of adjacent ice shelves, and neither in the Ross30 nor the Weddell Seas31, including the Ross and Filchner-Ronne ice shelves. The anomalously high δ3He values in PIB also coincide with elevated neon concentrations (colored circles in Fig. 2). Neon concentrations above atmospheric equilibrium are found within melted glacial ice25,32, suggesting that the excess 3He is associated with glacial meltwater at the front of the ice shelf. Significantly, the excess 3He is not distributed evenly and is not found near the strongest meltwater outflow33. This suggests that the excess 3He signal originates in a unique, localized meltwater source, rather than a diffuse distribution that is found in all meltwater along the cavity front.

Fig. 2
figure 2

Distribution of 3He vs. potential temperature. a The gray circles are values of dissolved δ3He vs. seawater potential temperature (°C) from six expeditions to the Pacific and Atlantic sectors of the Southern Ocean: NBP00-01, NBP07-02, JR239, I6S, S4P, and JR294 (Ocean2ice), N = 1610. The samples colored by neon concentration are the 106 gas samples collected in Pine Island Bay during NBP07-02 (squares) and JR294 (circles). b The gray shaded area represents the 99% confidence region using a bootstrap resampling statistic to reproduce the observed values of δ3He from the water mass mixing model that has been constrained by neon, θ and S. In total, 28 of the 106 helium isotope samples exceed the upper confidence limit

Fig. 3
figure 3

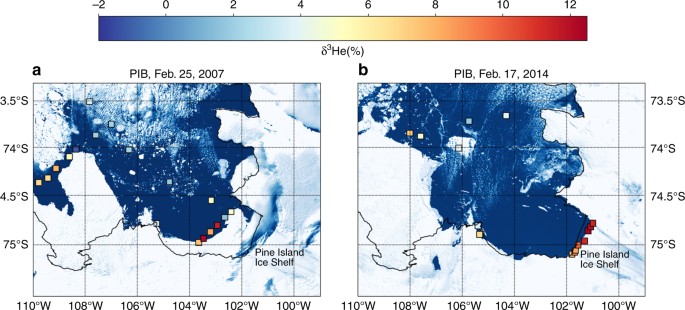

Map of elevated 3He samples from 2007 and 2014 in Pine Island Bay. MODIS images of Pine Island Bay on a 25 February 2007 and b 17 February 2014. In 2007, fast ice precluded sampling directly at the front of the ice shelf cavity. The colored squares depict the maximum value of δ3He in the top 300 m of the water column

Results

Testing for a unique 3He source

To establish whether the 3He distribution observed in PIB can be explained by mixing between CDW and the other Amundsen Sea water masses, we employed a linear mixing model—Optimal Multiparameter analysis (OMP)—to map the range of likely δ3He values. The principal water masses in PIB can be categorized as modified CDW34, Amundsen Surface Water (ASW), and Glacial Meltwater (GMW). CDW is the densest water mass in the Amundsen Sea and dominates the water column below 400 m and the density horizon of σ θ  = 27.89 kg m−3. We define ASW as water found between the ocean surface and the mixed layer base, with θ values near the seawater freezing point (−1.9 < θ < −1.8 °C), salinities ranging from 33 to 34.2, and δ3He values that range from the atmospheric equilibrium value of δ3He = −1.7 up to δ3He = 2.5%. The hydrographic properties of ASW reflect the fact that in certain regions/times the ocean surface equilibrates with the atmosphere, but can also show a strong disequilibrium as a result of extensive sea ice cover. δ3He in pure GMW should be close to zero, as it is derived from the air trapped in glacial ice. This range of variation defines the mixing space between warm, salty CDW, and colder, fresher air-equilibrated water, or between CDW and water from the previous winter.

The samples obtained in PIB in 2007 and 2014 do not follow the mixing space mapped out by the CDW–ASW water masses (Fig. 2). A fork in the δ3He distribution occurred between θ = −1.5 and −0.5 °C, with δ3He exceeding the average CDW end member (9.15 ± 0.65) in 2014 by up to 33% (δ3He = 12.2) and in 2007 by 35% (δ3He = 12.3). The δ3He in excess of the CDW maximum was found above 300 m and primarily at the front of the Pine Island Ice Shelf (Fig. 3).

Altogether, 28 of the 106 δ3He samples measured in PIB exceeded the upper limit of the 99% confidence criterion (see Methods and Supplementary Figure 3) for δ3He produced by mixing between CDW and ASW, strongly suggesting that there is another source of 3He in PIB in addition to CDW.

Identifying the possible sources of local 3He production

The mantle is the largest reservoir on the planet, but 3He is also produced via 3H decay in the atmosphere and during detonation of nuclear devices35, although very little thermonuclear 3H was deposited in the Southern Ocean36. The maximum measured 3H in the Amundsen sea during 2014 was 0.13 TU, which corresponds to 1.4 × 10−17 moles 3He kg−137. For comparison purposes, δ3He = 1 corresponds to roughly 1.3 × 10−15 moles 3He kg−1, or a factor of 100 greater than the tritiugenic 3He. In other words, the presence of 3H can account for at most 0.2% of the 3He excess that was observed. The balance of production with a 12.43-year half-life and air–sea gas exchange means that the actual tritiogenic 3He would be even less. In summary, the 3He contribution from tritium decay is insignificant.

Seismic, magnetic, and gravity swaths from the Amundsen Sea indicate the existence of thinning crustal features running NE to SW between 72 and 74 °S. In this region, the distance to the Mohorovičić discontinuity is thought to be 22–24 km below the earth’s surface38. However, these features are north of PIB and have not been associated with crustal motion since before 90 Ma ago. The excess 3He found in PIB occurred primarily at the front of the ice shelf cavity and above 500 m depth, indicating that if the thin crust were the source of excess helium, we would observe its trace in the deep waters of the Bay before it could mix into the lighter meltwater at the surface and front of the ice shelf.

The existence of a tectonic fissure directly beneath the Pine Island Ice Shelf might also be a source for the mantle 3He observed at the front. However, such a feature would also produce a strong thermal anomaly that was not consumed by melting ice. This anomaly would likely disturb the thermohaline structure of the ice shelf cavity and appear as a mismatch in cavity heat budget calculations39. The Autosub mapping expeditions into the Pine Island ice cavity have not revealed thermal anomalies of this nature19.

The 3He/4He isotope ratio that is used to compute δ3He can also be affected by the production of 4He through the radioactive decay series that begins with 238U, naturally abundant in many rock types within the continental crust, which can subsequently leach into groundwater and sediment porewater40. The δ3He signal that we observe at the front of the Pine Island Ice Shelf may include additional 4He from crustal rocks, but this incorporation drives the 3He/4He isotope ratio toward low values, which is the opposite direction from that of the mantle41, so additional 4He production would mask or underestimate the mantle helium component. There are no known processes for removing 4He gas, save bubble formation, or diffusive degassing, which would affect all the dissolved gases in a similar manner.

Lacking a heat source beneath the cavity or in PIB, the next most likely source is upstream of the cavity beneath or within the ice sheet. The observation of debris-rich basal layers in icebergs at the grounding line reveals the transport of glacial till and rubble across the grounding line. These debris-laden glaciers are not a likely 3He source. Mantle 3He escapes during magma degassing, which produces steam and volatile gas transport in adjacent hydrothermal fluids42. Even if the glacial debris is rich in basalts, these cooled magmas have already lost much of their 3He burden during the cooling process. Hereafter, we refer to the magma-driven hydrothermal heat transport as the “volcanic heat flux.”

Implications of excess 3He

If the mantle helium source is located beneath the Pine Island Glacier or its tributaries, these geochemical measurements, collected at the front of the ice shelf cavity, reveal a subglacial hydrologic flow path that exchanges water with the marine-terminating margin of the glacier, and that volcanic heat may be contributing to subglacial melt beneath the Pine Island Glacier. Radar data show that ice sheets heave under tidal influence43, suggesting that water could be exchanged past the ice shelf grounding line. Stable isotopes from sediments beneath the Whillans Ice Stream also indicate a small percentage of seawater intrusion44. Whereas these are apparently the first geochemical measurements from the Amundsen Sea demonstrating the transport of sub-basal meltwater to adjacent coastal seas, this process is well-documented in subterranean groundwater discharge45 and there is evidence of similar discharge beneath the Ross Ice Shelf, although helium isotopes suggest that at this location the subglacial water interacted mainly with continental crust, rather than volcanic rocks46.

Considering the abundance of volcano-like features along the WARS9, ice sheet contact with a volcanic heat source is the mostly likely source of excess 3He. Volcanism in the WARS was most active around 30 Ma before present47, but there is evidence of more recent eruptions48. The adjacent Thwaites glacier, which drains to the Amundsen Sea, shows strong radar returns that indicate subglacial meltwater, suggesting volcanism and high localized heat flux8,15. However, the Thwaites drainage is isolated from the Pine Island drainage, so meltwater from the Thwaites is not a likely source for the mantle helium we observed. Instead, the Pine Island ice stream funnels through a deeply scoured subglacial trough49 that receives ice from tributaries to the east in the Hudson Mountain range. Rocks from the exposed portion of the Hudson Mountains, including Mt. Manthe date between 4.6 and 5.0 Ma before present, with some observations of presently active fumaroles48. Within the Hudson Mountains, this network of between 310 and 119 volcanic landforms lie upstream of glacial Tributary 6 and of PIB. Evidence of subglacial volcanism is present in the form of an ash deposit covering some 23,000 km2 near 500 m depth in the ice sheet48. This ash layer reveals an eruption that dates to approximately 2.22 ± 0.240 ka before present48. These subglacial volcanoes in the Hudson Mountain range (Fig. 1) are the most plausible source of mantle helium to the Pine Island subglacial drainage network.

Calculation of volcanic heat flux

The excess neon found in samples with excess 3He reveals a connection between mantle helium and glacial meltwater production, which is consistent with the production of subglacial melt by volcanic heat beneath the grounded Pine Island Glacier. We have estimated this volcanic heat content using the average of 17 reported estimates of 3He/heat ratio (HR) from subsea hydrothermal vents. Lupton et al.50 provide a summary of the HR values, whereas Jenkins et al.37 give a recent estimate for the Atlantic spreading center. The mean and standard deviation of the literature values from subsea floor vents yield a 3He/HR = 17 ± 6 × 1016 J per mol 3He (Supplementary Table 2). We computed the 3He excess (3Heexc) as the difference between the measured 3He and the 3He predicted by the linear mixing model (3HeOMP, see Methods). The 3Heexc, expressed in mol kg−1 of seawater divided by HR provides an estimate of volcanic heat content in Joules per kilogram of seawater (J kg−1).

Based on the observed 3He excesses, the mantle-derived heat at the front of the ice shelf cavity is 32 ± 12 J kg−1 of seawater. This excess heat is small compared to the heat content of CDW20 (ca. 12 kJ kg−1), demonstrating that volcanic heat does not contribute significantly to the glacial melt observed in the ocean at the front of the ice shelf. This interpreation is consistent with our understanding of melt dynamics beneath the Pine Island Ice Shelf - that most of the basal melt occurs within the cavity, as a result of ocean heat supply20. Yet, the relatively dilute volcanic heat source may be much more concentrated at the time of contact with the ice sheet, and the magnitude more significant when compared to the background geothermal heat supply to the grounded glacier. We infer the heat flux to the ice sheet using observations of the cavity circulation at the ice shelf front (Eq. 3).

After accounting for uncertainty in the gridded interpolation of 3He data, temporal variability in strength of perpendicular velocity, and uncertainty in the estimate of HR (see Methods), the volcanic heat flux exiting the cavity beneath the Pine Island Ice Shelf was Q = 2500 ± 1700 MW in 2014, with peak flux occurring between 50 and 250 m below the ocean surface (Fig. 4). How does this heat source compare with present day active volcanoes, hotspots or hydrothermal vents? Heat energy released by volcanoes and hydrothermal vents suggests that the heat source beneath the Pine Island Glacier is roughly 25 times greater than the bulk heat flux from an individual dormant volcano. A survey of 51 dormant or quiescent volcanoes indicates that they release less than 500 MW of heat energy, with an average of 97 MW51,52. These dormant volcanoes release the majority of their heat into their crater lakes (50–250 MW), but fumaroles and geysers may intermittently contribute an additional 50 and 1000 MW42. See Supplementary Table 3 for a review of the heat estimation methods.

Fig. 4
figure 4

Distribution of velocity and mantle heat at the front of Pine Island Ice Shelf. Section along the edge of the Pine Island Ice Shelf in 2014 (as indicated by colored squares in Fig. 3b). a Shows the discrete sum of Inward, Outward, and Net mantle heat flux in Megawatts (MW) at each depth horizon in the heat flux grid. b, c Depict water velocity perpendicular to the front of the Pine Island Ice Shelf (uperp, gridded data) as filled contours; positive values indicate flow out of the ice shelf. The break at 32 km exists because the two sections were collected at different times, separated by less than 24 h. Colored circles depict the discrete estimates of mantle-derived heat in Joules per kg of seawater, determined from the excess 3He. The white contour lines are estimates of glacial meltwater (‰) from the linear mixing model

The heat flux liberated from an active volcano is considerably greater: measurements collected over the past four decades show that Grimsvötn, one of Iceland’s most active volcanoes, releases 4250 MW53 through its crater and into the ice fields along its slope. A similar measurement taken from Nyiragongo volcano in the Democratic Republic of Congo, revealed that magma convection before the 1977 eruption released at least 16,000 MW of heat energy54.

Whereas dormant volcanoes release hundreds of MW of heat, submarine vent fields along active mid-ocean ridges can release thousands of MW or more. The Southern Symmetrical Segment and the Endeavor Segment of the Juan de Fuca Ridge produce heat fluxes of 1700 and 580 MW, respectively55. The Lucky Strike Field along the East Pacific Rise produces 3800 MW of heat energy through smokers and hydrothermal vents56.

It is worth noting that the volcanic heat flux reflected by excess 3He only captures convective heat transfer via hydrothermal fluids. The 3He tracer does not capture sensible and conductive heat transfer, which can also be elevated as a consequence of thin crust and a proximal magma heat source57. Consequently, 2500 MW may be an underestimate of the total volcanic heat supply.

Implications of a volcanic heat source

The impact of the inferred volcanic heat flux on the flow characteristics of Pine Island Glacier depends upon the intensity of the volcanic heat flux (heat flux per unit area) at the base of the ice sheet and possibly upon the temporal variations in this heat source, because transients in the subglacial melt supply have the greatest impact on the ice sheet sliding rate5. We lack the information needed to estimate the heat flux intensity with present data sources, but we can compare it with other natural systems. The heat flux intensity from submarine vents in the Gulf of California is 1900 mW m−2 on average, and 15,000 mW m−2 at a maximum, but such intense fluxes would likely manifest as large deviations in the surface of the Pine Island ice sheet elevation.

A recent set of model experiments that emplaced a mantle plume at various regions beneath the WAIS revealed that heat flux greater than 150 mW m−2 leads to high melt production and subglacial drainage events58. The experiments used mantle plumes that varied from 50 to 300 km in radius; if the 2500 MW of volcanic heat beneath Pine Island Glacier originated from a plume in this size range, it would imply a glacial heat flux of between 318 and 9 mW m−2. If the plume were large (i.e. 300 km radius), the heat flux would be well below the canonical background of 50–70 mW m−2; conversely, a 50 km mantle plume would suggest intensive subglacial heating and likely melt. These model experiments did not include the Pine Island Glacier within their domain, but we note that the adjacent Thwaites Glacier proved largely insensitive to the presence of a mantle heat source. Basal friction is high beneath the Thwaites Glacier leading to significant basal heat production and the additional heat from a mantle plume did not drastically alter the ice stream velocity58.

Distribution of volcanic 3He between 2014 and 2007

In 2014, the volcanic 3He excess was concentrated within a meltwater outflow located across the eastern and central sections of the front of the ice shelf, but did not appear in the strongest meltwater outflow, which occurs at the western end of the section33. In 2007, the 3He excess was not as broadly distributed at the ice shelf front, and the most excessive values were found further to the west (Fig. 3). The difference in the location and distribution of the excess 3He has several possible explanations. One is a change in the strength of the 3He source, and therefore a change in volcanic heat flux between the 2 years. The difference might also reflect a change in the subglacial hydrology that delivers 3He to the ice shelf cavity. The ice shelf underwent rapid and extensive grounding line retreat between 2007 and 201419, which may have altered the hydrostatic pressure gradient driving subglacial flow across the grounding line59. Alternatively, the grounding line retreat may have produced a change in the cavity circulation and entrainment of subglacial meltwater.

One additional complication to the comparison of 2007 and 2014 measurements is the barrier of fast ice that kept NBP07-02 from reaching the front of the ice shelf, resulting in a transect of water samples about 50 km away from the ice shelf, further out in PIB during 2007. The difference in location of the excess 3He may have been a result of the anti-cyclonic circulation in the Bay, which predictably advects the excess 3He toward the west upon exiting the cavity60.

Discussion

The mantle 3He observed at the front of the Pine Island Ice Shelf, first in 2007 and again in 2014, reveals the presence of a volcanic heat source upstream of the Ice Shelf. The observation of this unique helium isotope signature, together with what is known of the bed forms and fluvial morphology of the Glacier suggests that this volcanic heat source lies within the Hudson Mountain range, and is driving a subglacial melt that subsequently crosses the ice shelf grounding line. Our calculations indicate that the volcanic heat source is comparable in magnitude to the active vent fields found along ocean spreading centers. The inferred heat supply is more than ten times the heat energy released by dormant (but not extinct) shield volcanoes on land.

These geochemical measurements provide an independent line of evidence of present day subglacial volcanism in Marie Byrd Land. They also support a growing list of studies revealing that regional volcanism is a recurring characteristic of the basal boundary beneath the WAIS. The present estimate of convective volcanic heat flux alone suggests a heat source of Q = 2500 MW, which is ~ 50% as large as the Grimsvötn volcano on Iceland, even before sensible and conductive heat flux have been accounted for. Simulations of the adjacent Thwaites Glacier may suggest that such a heat source will not significantly alter the subglacial melt rate in comparison with the high rate of friction58, but this could be circular argument if volcanic heat supply is already part of the recipe of processes leading to high velocity and frictional heating of the ice streams in the Pine Island and Thwaites Glacier. The magnitude and the variations in the rate of volcanic heat supplied to the Pine Island Glacier, either by internal magma migration8, or by an increase in volcanism as a consequence of ice sheet thinning61, may impact the future dynamics of the Pine Island Glacier, during the contemporary period of climate-driven glacial retreat.

Methods

OMP calculation

The water mass tracers used to constrain the OMP solution were potential temperature (°C), salinity (no units), and neon concentration (μmol kg −1). The concentration of 4He was not used, because of the potential covariance between 3He and 4He. Helium-4 can increase as a consequence of uranium decay in the continental crust41, which could mingle with the 3He signal as a result of passing through sedimentary pore spaces beneath the glacier.

The OMP uses a non-negative least squares method to resolve the relative contributions of three water masses—CDW, ASW, and GMW,

$${\mathbf{f}} = \mathrm {inv}\left( {{\mathbf{C}}^T{\mathbf{wC}}} \right){\mathbf{C}}^T{\mathbf{wy}},\;{\mathbf{f}} \ge 0.$$
(1)

where C is the matrix of tracer properties in CDW, ASW, and GMW, w is a weight matrix, and y is the vector of observed tracer concentrations in each water sample. The weights in w are diag (0.5,0.03,125) for temperature, salinity, and neon, and were determined such that each element in CTw has an order − 1 magnitude to ensure that each water mass tracer exerts a proportionate influence on the solution. The result, f, contains the relative fraction of each water mass in the given sample, which was used to reconstruct the 3He value (δ3HeOMP) that would be expected from mixing between water masses in the Amundsen Sea,

$$\delta ^3{\mathrm{He}}_{{\mathrm{OMP}}} = \delta ^3{\mathrm{He}}_{{\mathrm{CDW}}}\cdot{\mathbf {f}}_{{\mathrm{CDW}}} + \delta ^3{\mathrm{He}}_{{\mathrm{ASW}}}\cdot{\mathbf{f}}_{{\mathrm{ASW}}} + {0\cdot\mathbf{f}}_{{\mathrm{GMW}}}$$
(2)

Equation 2 is written to emphasize that the expectation is for δ3He = 0 in glacial melt, because the 3He/4He ratio is normalized to air, and air bubbles are the source of helium in glacial ice.

To capture the potential range of δ3He that is brought on by variations in the water mass properties, the OMP solution and δ3He reconstruction for PIB were randomly resampled using a Bootstrap method62. Appreciating that 2007 and 2014 were climatologically distinct years21, we use the extrema in potential temperature, salinity, neon, and δ3He from both years to define the water mass variability. The tracer values and uncertainties within each water mass are assumed to be normally distributed with parameters (μ, σ), and listed in Supplementary Table 1. The OMP solution was resampled with 1500 iterations to define the parameter space (Fig. 2b, gray shading). The fit quality, quantified by \(\left\| {1 - {{r}}_i} \right\|\), where r i are the model-data misfit, was better than 0.97 for all of the samples from 2007 and 2014, including those from PIB. Typically, a fit quality of 0.95 or better is considered acceptable level misfit63.

Geothermal heat flux calculation

The bulk volcanic heat flux across the ice shelf front can be estimated by discretely integrating the scalar product of the convective mantle heat content (inferred from the 3He excess found in seawater) with the seawater velocity perpendicular (uperp,i) to the ice shelf,

$$Q = \mathop {\sum}\limits_i {\left[ {\,{}^3{\mathrm{He}}_{{\mathrm{exc}}}} \right] \cdot {\mathrm{HR}} \cdot {{u}}_{{\mathrm{perp}},{{i}}} \cdot \rho _{\mathrm {sw}}{\mathrm{d}}A}$$
(3)

The [3Heexc] i values have been interpolated onto the grid of perpendicular velocities at the ice shelf front and dA is the surface area of each velocity grid cell (80 m2). The velocity data were obtained by the shipboard Acoustic Doppler Current Profiler (SADCP), during JR294 in a period coincident with the 2014 water sampling for helium and neon. The SADCP data from JR294 are broadly consistent with the established ice shelf cavity circulation; tides are weak in PIB, but the strength of meltwater outflows varies interannually by tens of percent24. The SADCP penetrates to 600 m, so the flow beneath 600 m is not resolved. However, the water column below 600 m is predominantly CDW and we found almost no glacial meltwater nor mantle-derived 3He below that depth.

Estimation of uncertainty in the geothermal heat flux

We identified three principal sources of uncertainty in the computation of Q using Eq. (3): uncertainty in the ratio of 3He to mantle heat (HR), variations in the magnitude of water velocity at the cavity front (uperp), and error introduced by interpolating coarse 3He measurements onto the finer resolution velocity field. Here we discuss these terms, respectively.

The calculation of heat content in J kg−1 seawater is based upon literature values of the 3He/HR64. For the present estimate, we use values of HR that fit the geologic description of the WAIS rift. The WAIS rift system is described as a composition of predominantly shield volcanoes, with no apparent plate motion underneath West Antarctica47, and characteristics that are similar to certain island arc volcano systems, such as the Canary Island volcanoes7. Based upon these descriptions, estimates of HR from the literature were taken from regions where active vents are known to occur. The average HR from these measurements is 17 ± 6 × 1016 J per mol 3He and these studies are summarized in Supplementary Table 2.

Seawater flow within an ice shelf cavity is first order geostrophic, and can be reproduced using the thermal wind balance65. PIB follows this flow pattern, with persistent flow features including a strong meltwater jet on the west side of the ice shelf33, partly as a result of weak tides in the Amundsen Sea66. Although the flow field is relatively stable, the strength of the cavity circulation and the magnitude of the velocity at the ice shelf front are known to vary by ca. 20% between years21. We use this uncertainty and the spatial mean of up (0.03 ms−1) to estimate the uncertainty in the heat flux estimate that is introduced by seasonal to annual variations in the ice shelf cavity circulation (\({\mathop{\rm{var}}} [ {{{u}}_{{\mathrm{perp}}}} ] = ( {0.2{\bar{u}}_{{\mathrm{perp}}}^{}} )^2\)).

It is apparent from the velocity field that the geochemical data do not capture all of the variations in the flow field (Fig. 4). For example, water samples for helium were not collected in the strong outflow observed near km 5, which has a high meltwater concentration34. To examine how the coarse resolution in 3He could affects the heat flux estimate from Eq. (3), both δ3He and potential temperature were interpolated onto the SADCP grid. The total area, covered by the SADCP grid, which extends to a maximum of ~ 600 m (Fig. 4) is 25.25 km2. Potential temperature is 1 m vertical resolution, compared with ca. 75 m for 3He, and the two tracers broadly follows the same pattern (e.g., high in CDW; low in ASW and GMW). Therefore, potential temperature can serve as a higher resolution proxy for 3He. We used a linear regression (R2 = 0.79, Supplementary Figure 1) to produce “proxy” 3He values from potential temperature. By comparing the spatial variations in the 3He from the mixing model (3HeOMP, described in Eq. (2)) and the proxy 3He (3Hepr) grids, we have a measure of the uncertainty produced by interpolating 3He from coarse to fine resolution. The spatial variations are captured by applying the norm of the gradient operator, \(\left\| \nabla \right\| = \left[ {\left( {} \right)^2{\mathrm{/d}x}^{\mathrm{2}} + \left( {} \right)^2{\mathrm{/d}y}^{\mathrm{2}}} \right]^{0.5}\) to both grids and we computed the uncertainty in the coarsely sampled 3He grid (GErr) as the modulus of gradient of 3HeOMP and the proxy 3He (3Hepr, Supplementary Figure 1),

$${\mathrm{GErr }}{\mathrm{(\% )}} = \frac{{\left\| {\nabla \,{}^3{\mathrm{He}}_{{\mathrm{OMP}}} - \,{}^3{\mathrm{He}}_{\mathrm {pr}}} \right\|}}{{\,{}^3{\mathrm{He}}_{{\mathrm{OMP}}}}}\frac{1}{{\left\| \nabla \right\|}} \times 100$$
(4)

These are used, instead of the observed 3He, because the observed data contain the additional 3He source, which does not conform to the linear relationship between 3He and temperature. Depth profiles of the 3He measurements can be found in Supplementary Figure 2.

We find the coarse distribution of helium samples introduces up to 14% uncertainty into the full-scale 3Heexc estimates (Supplementary Figure 4). In addition, the SD in literature HR values indicates additional uncertainty of 36% on the heat flux calculation (Supplementary Table 2, Eq. (3)) and the variability in the seawater velocity magnitude introduces another 20% uncertainty. These three sources of error are propagated using a Taylor expansion to express the variance in Eq. (3) for Q in Watts,

$$\begin{array}{l}{\mathop{\rm{var}}} \left[ Q \right] = {\mathop{\rm{var}}} \left[ {\,{}^3{\mathrm{He}}_{{\mathrm{exc}}}} \right]{\mathrm{ }}\left( {\frac{{{\mathrm{d}}Q}}{{{\mathrm{d}}\,{}^3{\mathrm{He}}_{{\mathrm{exc}}}}}} \right)^2 + {\mathop{\rm{var}}} \left[ {{\mathrm{HR}}} \right]{\mathrm{ }}\left( {\frac{{{\mathrm{d}}Q}}{{{\mathrm{dHR}}}}} \right)^2 + {\mathop{\rm{var}}} \left[ {{{u}}_{{\mathrm{perp}}}} \right]{\mathrm{ }}\left( {\frac{{{\mathrm{d}}Q}}{{{\mathrm{d}u}_{{\mathrm{perp}}}}}} \right)^2\\ {\mathop{\rm{var}}} \left[ Q \right] = \left( {\frac{\mathrm{GErr}}{{100}}\overline {\left[ {\,{}^3{\mathrm{He}}_{{\mathrm{exc}}}} \right]} } \right)^2{\mathrm{ }}\left( {\mathop {\sum}\limits_i {{\mathrm{HR}u}_{{\mathrm{perp}}}\rho _{{\mathrm{sw}}}{\mathrm{d}}A} } \right)^2 \ldots\\ \quad \quad \quad \quad \; +{\mathop{\rm{var}}} \left[ {{\mathrm{HR}}} \right]\left( {\mathop {\sum}\limits_i {\,{}^3{\mathrm{He}}_{{\mathrm{exc}}}{{u}}_{{\mathrm{perp}}}\rho _{{\mathrm{sw}}}{\mathrm{d}}A} } \right)^2 \ldots\\ \quad \quad \quad \quad \; + \left( {0.2\overline {{u}} _{{\mathrm{perp}}}} \right)^2\left( {\mathop {\sum}\limits_i {{\mathrm{HR}}\,{}^3{\mathrm{He}}_{{\mathrm{exc}}}\rho _{{\mathrm{sw}}}{\mathrm{d}}A} } \right)^2\end{array}$$
(5)

The term \(\overline {\left[ {\,{}^3{\mathrm{He}}_{{\mathrm{exc}}}} \right]}\) is the average of the excess 3He, which is computed as the difference between the observed 3He concentration and the reconstructed 3He from the OMP model. The term var[HR] is the variance in literature values listed in Supplementary Table 2, or 3.6 × 1033 J mol−1, and var[uperp] is estimated as describe above.
