Introduction

In 2D systems, disorder induces quantum interferences between electronic wave functions, eventually leading to their localization. No matter how weak the disorder, Anderson localization prevents the diffusion of the electronic motion so that no 2D metal can exist1. However, in the presence of competing orders, new electronic ground states can prevail2. In the case of thin disordered superconducting films, when Cooper pairing, competing with Coulomb repulsion, is not sufficient to establish a long-range coherence between localized states, an insulator is expected to arise from the superconducting ground state. This Superconductor-to-Insulator Transition (SIT) is either explained by amplitude or phase fluctuations of the superconducting order parameter, and conventional theories do not allow for any intervening metallic state3. Experimentally however, dissipative behaviors have been observed4,5,6,7,8,9,10,11. Several hypotheses have been put forward to explain these, amongst which: vortices-induced dissipation4,5; a coupling to a dissipative bath6; the existence of a quasi-2D metal12; the competition between Josephson coupling and the charging energy13; important Coulomb interactions14. Moreover, in the vicinity of the SIT, the focus has also recently been set on fluctuations as a possible cause for inhomogeneous electronic phases15,16. The nature and origin of such metallic-like behaviors is thus still debated. Whether they live on at T = 0 and constitute one of the system’s ground states is also an important issue that needs to be solved. In order to gain more insight on these questions, a systematic quantitative analysis of these dissipative phases would be extremely profitable.

Thin metal alloy films constitute particularly well-suited systems for this study. Indeed, in compounds such as a-NbxSi1−x (a-NbSi) which we consider, disorder can be progressively increased either by a reduction of the sample thickness or by a variation in stoichiometry, but also through a thermal treatment17,18. In this letter, we present the phase diagram of a-NbSi thin films across the disorder-induced SIT, along with the characterization of corresponding phases. Once superconductivity is destroyed, we surprisingly identify two metallic regimes – that we have called “Metal 1” and “Metal 2”. The insulating phase subsequently appears for films of normal conductivity smaller than e2/h. This suggests that, in this system, the SIT and the Metal-to-Insulator Transition (MIT) happen successively. The Metal 1 can be interpreted as emerging from superconducting fluctuations, whereas the Metal 2 should be of fermionic nature.

In this study, we have considered 40 samples with compositions x from 8.5 to 18.5%, thicknesses d from 4 to 50 nm, and submitted to heat treatments at temperatures θht from 70 to 250 °C. The effects of these disorder-changing parameters (x, d, θht) on the properties of superconducting a-NbSi thin films have been described elsewhere17. We will here examine the transport features of the films as a function of σN, the normal state conductivity at T = 500 mK, taken as a measure of disorder. All resistances (conductances) will be plotted in units of the quantum of resistance (conductance) h/e2 (e2/h). The films are continuous, uniformly disordered and amorphous up to θht = 500 °C. The deposition and heat treatment procedures are described in the Methods section. When superconducting, the samples are either 2D or in the quasi-2D limit, i.e. , where ξ is the superconducting coherence length. The films were measured using standard low frequency transport measurements at very low temperature (see Methods).

All films fall into one of four categories, identified by their low temperature transport characteristics. We will identify each one on a specific example – a 23-nm-thick a-Nb13.5Si86.5 film that has been thermally treated –. We will then quantitatively analyze each ground state and show how their features evolve with disorder.

The low temperature transport properties of the 23-nm-thick a-Nb13.5Si86.5 film are represented in Fig. 1a. The as-deposited film is superconducting, with a well-defined zero resistance state below the critical temperature Tc = 50 mK. As is usual, the superconducting phase presents a positive Temperature Coefficient of Resistance () at low temperature. After thermal treatment, σN decreases, signaling an enhanced effective disorder. Up to θht = 140 °C, the low temperature TCR stays positive, but the sheet resistance Rmin measured at T = 10 mK is finite. For θht = 110 °C, the resistance even saturates at low temperature. The sample then is in a phase that we shall call Metal 1. For θht > 140 °C, the sample is characterized by a negative TCR and a finite Rmin, corresponding to a phase we have named Metal 2. All finite resistances measured at our lowest temperature have been checked to be intrinsic and not due to experimental artefacts (see Methods). At even larger disorder, the system eventually becomes insulating. This phase can be described by a negative TCR and a diverging low temperature resistance (not reached in the data set shown in Fig. 1a).

Figure 1
figure 1

Superconductor- Metal Transitions.

(a) Sheet resistance as a function of temperature for a 23-nm-thick a-Nb13.5Si86.5 film at annealing temperatures θht ranging from 70 (as-deposited) to 250 °C. Left inset: blow-up around the θht = 150 °C curve. The horizontal dashed line is a guide for the eyes. Right inset: low temperature saturation regime for θht = 110 °C. The horizontal dashed line indicates Rmin. (b) Evolution of Tc and Tc0 as a function of the normal state conductivity σN in the superconducting and Metal 1 regimes, for 23-nm-thick samples (red and black dots respectively). Evolution of the residual resistance Rmin as a function of the normal state conductivity σN (blue squares), the blue dashed line corresponds to Rmin = 1/σN. This illustrates the fact that the transition between the Metal 1 and the Metal 2 phases occurs precisely when 1/σN = Rmin. The vertical pink line corresponds to the change of sign of the . Errors bars correspond to the last and first measured samples with negative and positive TCR.

Full size image

Let us analyze each phase more quantitatively. First, the superconducting state is characterized by two temperature scales. Starting from the high temperature regime, the resistance abruptly drops at Tc0, defined by the temperature at which the derivative is maximum . For low disordered films, this energy scale corresponds to the characteristic superconducting energy (see Methods and supplementary materials). The resistance then becomes null below the superconducting critical temperature Tc, indicating the establishment of global phase coherence. The evolution of these two characteristic temperatures with disorder is shown in Fig. 1b for 23-nm-thick samples. At low disorder, the two energy scales evolve in a similar manner. However, at a first critical conductivity σc1, Tc drops to zero, signaling the destruction of the macroscopic phase coherence, while Tc0 continues to be finite. σc1 therefore marks the transition between the superconducting and the Metal 1 phases. As will be seen in the phase diagram (Fig. 4), σc1 depends linearly on the thickness d and, in the strictly 2D limit, extrapolates to σQ = 4e2/h. In the Metal 1 phase, the R(T) characteristics abruptly drop below Tc0, but, while always maintaining a positive TCR, extrapolate to a finite value at T = 0. We have estimated this residual resistance to be close to Rmin, the resistance measured at T = 10 mK. The evolution of Tc0, Rmin, and of the sign of the TCR – all three characteristic of the Metal 1 phase – with disorder is given in Fig. 1b for the 23-nm-thick a-Nb13.5Si86.5 film. Although, in this phase, Tc0 no longer represents the superconducting critical temperature, its continuous evolution from the superconductor into the Metal 1 regime suggests the importance of superconducting fluctuations in this latter state. As can be seen, Rmin rapidly increases with increasing disorder, until, at a second critical conductivity σc2, the three quantities reflect a change of regime: the evolution of the residual resistance slows down, Tc0 extrapolates to zero and the TCR changes sign. For all measured samples, the modifications in the behavior of the TCR, of Rmin and of Tco simultaneously occur at σN = 1/Rmin, i.e. for a sample which would have a constant conductivity from T = 10 mK to T = 500 mK. However σc2 is not universal and varies with the film thickness as can be seen in Fig. 4.

Figure 2
figure 2

The Metal 2 phase.

(a) Sheet resistance as a function of temperature for a 5-nm-thick a-Nb13.5Si86.5 film where the disorder is tuned through thermal treatment. Each color corresponds to a different annealing temperature, varied from 70 °C (as deposited film) to 230 °C, by step of 20 °C. (b) Evolution of the characteristic temperature Tsat for the same film, as a function of the normal conductivity σN. (c) Residual conductivity σmin = 1/Rmin as a function of the normal conductivity σN for a-NbSi films, with niobium composition x ranging from 10 to 18.6%, thicknesses d ranging from 3 to 25 nm and heat treatment temperatures up to θht = 250 °C. Each symbol represents one film thickness and each color one composition at different annealing temperatures. The dashed line is a guide to the eyes. The dashed line represents the asymptote σmin = σN, reached in the limit σN ≫ e2/h.

Full size image

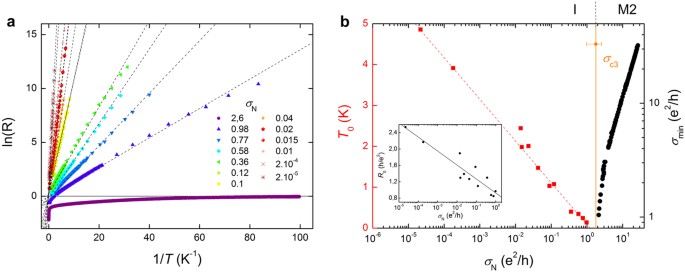

Figure 3
figure 3

The insulating phase.

(a) Sheet resistance as a function of the inverse of the temperature for all insulating samples (8.5% < x < 10% and 12.5 < d < 26.5 nm). For each sample, the normal conductivity σN is given in units of e2/h. Dotted lines are fits to the Arrhenius law. (b) Evolution of Arrhenius characteristic temperature T0 (red squares) and the residual conductivity σmin = 1/Rmin (black dots) as a function of the normal conductivity σN. The vertical orange line shows the critical disorder σc3. Inset: Evolution of Arrhenius characteristic resistance R0 as a function of the normal conductivity σN. The full line is a guide for the eyes.

Full size image

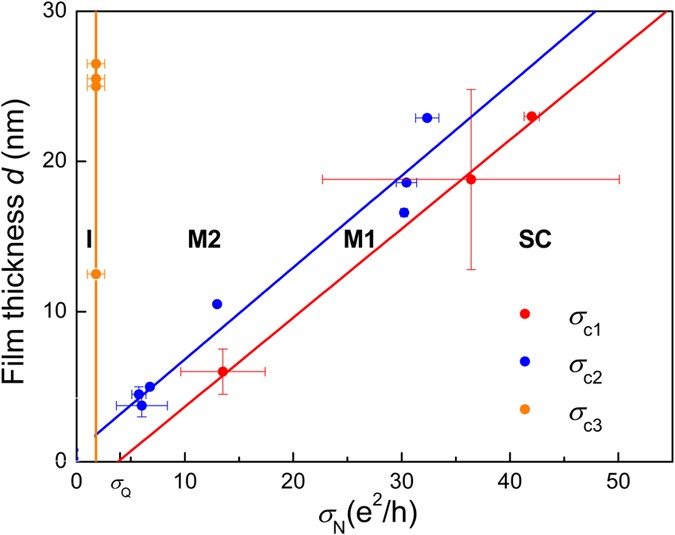

Figure 4
figure 4

Phase diagram of a-NbSi thin films.

Evolution of the film thickness d as a function of the normal conductivity σN. The color points correspond to the critical conductivities separating the different regimes described in the text. Lines are guides for the eyes. The lowest error bars have been determined using the two samples closest to the transition. As a function of σN, the system evolves from the superconducting (SC) phase to the Metal 1 (M1), the Metal 2 (M2) and finally reaches the insulating phase (I). The critical conductivity for the Superconductor - Metal 1 transition extrapolates to σQ = 4e2/h in the limit d → 0.

Full size image

Let us now specifically consider the Metal 2 phase. Figure 2a shows the evolution of the transport characteristics of a 5-nm-thick a-Nb13.5Si86.5 film with disorder. All curves show the same qualitative features: from the high temperature regime, the resistance first progressively increases as is expected on the insulating side of the SIT. However, below a characteristic temperature Tsat, the concavity of the R(T) curve changes, while maintaining a negative TCR, and levels off at low temperature at Rmin. Tsat can then be defined as the highest temperature at which Rmin is attained within 1%. This temperature is characteristic of the energy scale at which the saturation of the resistance sets in. The evolution of Tsat with disorder is plotted in Fig. 2b for the 5-nm-thick a-Nb13.5Si86..5 film: as disorder is increased, the temperature range over which shrinks, while the product Rmin σN becomes larger, showing a progressive weakening of the metallic state. In Fig. 2c is plotted the reduction of the residual conductivity σmin = 1/Rmin as the disorder level is increased, for all samples in the Metal 2 regime. The evolution is universal, thus showing that the sole knowledge of normal state conductivity σN fully determines the value of σmin, whatever the experimental disorder-tuning parameter (x, θht or d). This second metallic regime vanishes close to .

For films such that σN < e2/h, transport properties are consistent with an insulator typical of the SIT: as can be seen in Fig. 3a, they are well described by a phenomenological Arrhenius law: R(T) = R0 exp (T0/T). The evolution with disorder of the characteristic temperature T0 and the corresponding R0 is displayed in Fig. 3b. Like σmin in the previous Metal 2 phase, T0 decreases universally as σN increases, whatever the disorder-tuning parameter. Both characteristic parameters concurrently vanish at a third critical conductivity σc3 = (1.8 ± 0.8)e2/h.

Although the microscopic nature of these dissipative regimes is unclear for now, one can formulate some hypotheses. The continuous evolution of Tc0 from the superconducting phase into the Metal 1, where its value remains finite, assesses the importance of superconducting fluctuations in this first metallic regime. This argument is also supported by the thickness-dependence of all relevant quantities (Tc0, Rmin, σc1, and σc2) in this phase. Indeed, a previous work had evidenced the specific role of d, as opposed to θht or x, on the superconducting properties of a-NbSi films17. This distinct role is also found in the Metal 1 phase, but not in the Metal 2 or insulating regimes. The Metal 1 could then correspond to a phase where short living Cooper pairs survive locally to the destruction of global superconductivity. In the literature, one can find both theoretical predictions and experimental evidence of such an inhomogeneous electronic phase with non-zero pairing amplitude, coming from the destruction of superconductivity via phase fluctuations8,9,13,15,19. However these works considered systems with built-in inhomogeneities and cannot, rigorously, be applied to our system. Moreover, and although numerous experimental and theoretical works dealt with the possibility of a metallic state as a result of the interaction between disorder and superconductivity4,5,6,7,8,9,10,11,12,13,15,16, to the best of our knowledge, there has been no prediction of two distinct dissipative regimes in morphologically homogeneous systems at zero magnetic field. In the Metal 2 phase, by contrast, the transport characteristics seem to be only governed by the normal conductivity σN. This signals a transition or a crossover to a quasiparticules-dominated transport regime. In this phase, the saturation of the resistance at low temperature could be explained by a parallel channel of conduction short-circuiting the localized fermions20. The origin or nature of this additional channel, whether of quantum metal or incoherent Cooper pairs, is still to be determined, but also supports the inhomogeneous nature of electronic transport in this system.

All our results can be summarized in the phase diagram shown in Fig. 4, where the different regimes are represented as a function of disorder and film thickness. As can be seen, at lower thicknesses, the superconducting state occupies a larger portion of the phase diagram. Although counter-intuitive, this reflects how enhanced superconducting fluctuations may actually help the establishment of global phase coherence. In the d → 0 limit, Metal 2 vanishes, as could be expected in the case of a fermionic metal1 where the least amount of disorder is sufficient to localize the electrons at low enough temperature. The insulating phase sets in at the critical conductivity , independently of the film thickness. This level of disorder corresponds to the Ioffe-Regel criterion at which the MIT is expected in 3D21,22. This criterion has also been observed in 2D electron gases at the interface of semiconductor heterostructures23. The most surprising feature of this phase diagram is the appearance of the Metal 1 phase, which vanishes in the 3D limit but survives in the strictly two-dimensional limit, insofar as our results can be extrapolated. It grows from superconductivity and accompanies its evolution down to the lowest thicknesses. This intriguing dissipative state shows how quantum fluctuations do not only destroy ordering but may also significantly contribute to the appearance of new electronic phases.

Methods

Sample deposition and heat treatment procedure

a-NbSi films have been prepared at room temperature and under ultrahigh vacuum (typically a few 10−8 mbar) by electron beam co-deposition of Nb and Si, at a rate of the order of 1 Å.s−1. The evaporation rates of each source were monitored in situ by a dedicated set of piezoelectric quartz crystals in order to precisely monitor the composition and the thickness of the films during the deposition. These were also corroborated ex situ by Rutherford backscattering spectroscopy (RBS) measurements.

The films were deposited onto sapphire substrates coated with a 25-nm-thick SiO underlayer designed to smooth the substrate surface. The samples were subsequently protected from oxidation by a 25-nm-thick SiO overlayer. Similar films have been measured to be continuous, amorphous, and structurally non-granular at least down to a thickness d = 25 nm17.

The as-deposited films are considered to have experienced a thermal treatment at θht = 70 °C, due to heating during the deposition process. This was confirmed by low-temperature measurements of the conductivity17. Subsequent heat treatments have been performed for 1 h, under a flowing N2 atmosphere. To prevent any thermal shock, the samples were then slowly cooled back down to room temperature. TEM measurements were performed on similar films that were annealed in situ from θht = 70 °C to 700 °C: no structural nor composition changes have been observed up to an annealing temperature of θht = 500 °C17.

Estimation of the superconducting coherence length

A minimal estimate of the superconducting coherence length can be derived from the critical temperature Tc,bulk and normal conductivity σN, bulk of a bulk sample of same stoichiometry, using Gor’kov’s development of the Ginzburg-Landau theory in the dirty limit: with D = 0.6 cm2.s−1, extracted from critical field measurements24. For x = 13.5% (Tc, bulk = 146 mK), we have ξ = 43 nm and for x = 18% (Tc, bulk = 965 mK), ξ = 17 nm17. All the considered samples have d < ξ and can therefore be considered to be 2D from the point of view of superconductivity.

Transport measurements

Transport measurements were carried out down to 10 mK in a dilution refrigerator, using a resistance measurement bridge and standard ac lock-in detection techniques. The applied bias has been checked to be sufficiently low to be in the ohmic regime, or, when superconducting, below the critical current. All electrical leads are thermalized at the mixing chamber and at the different stages of the cryostat. They are also filtered from RF at room temperature.

To ensure the intrinsic nature of the low temperature dissipative regimes, we have checked that the measured residual resistances Rmin do not depend on the sample area, nor on its volume or geometry. Note that these dissipative states have also been observed in the case of a single sample that has been progressively annealed, and measured in the same measurement environment.

Determination of Tc0

The characteristic temperature Tc0 is defined by the temperature at which the derivative is maximum . This criterion agrees well with the temperature extracted from superconducting fluctuations analysis close to the superconducting transition. The comparison of the two methods is presented in the supplementary material.

Estimation of Rmin

We have taken Rmin = R(T = 10 mk) as an estimate of the residual resistance at zero temperature.

For samples that present resistance saturations at low temperature (both in the “Metal 1” and “Metal 2” regimes), the extrapolation of the resistance at zero temperature is equal (within 1%) to Rmin. For samples that have not reached the saturating temperature (sample with θht = 130 °C in Fig. 1a for example), equating the zero-temperature residual resistance to Rmin is an approximation. The corresponding error can be estimated by taking the low temperature slope of the R(T) curve and extrapolate it to T = 0. The error has been found to be smaller than 2% (except for θht = 130 °C: 18%).

Estimation of σc3

σc3 can estimated by two different methods:

  • Either by fitting the T0(σN) curve of Fig. 3b. This gives σc3 ≈ 1.3.

  • Or by taking the median point between the last metallic sample () and the first insulating one () which gives σc3 = 1.8 ± 0.8.

It is the latter criterion we have considered to draw the phase diagram in Fig. 4 since the corresponding error bars encompass the first two criteria.
