Elevating CDCA3 levels in non-small cell lung cancer enhances sensitivity to platinum-based chemotherapy

Kildey, Katrina; Gandhi, Neha S.; Sahin, Katherine B.; Shah, Esha T.; Boittier, Eric; Duijf, Pascal H. G.; Molloy, Christopher; Burgess, Joshua T.; Beard, Sam; Bolderson, Emma; Suraweera, Amila; Richard, Derek J.; O’Byrne, Kenneth J.; Adams, Mark N.

doi:10.1038/s42003-021-02136-8

Download PDF

Article
Open access
Published: 28 May 2021

Elevating CDCA3 levels in non-small cell lung cancer enhances sensitivity to platinum-based chemotherapy

Communications Biology volume 4, Article number: 638 (2021) Cite this article

2106 Accesses
11 Citations
9 Altmetric
Metrics details

Subjects

Abstract

Platinum-based chemotherapy remains the cornerstone of treatment for most non-small cell lung cancer (NSCLC) cases either as maintenance therapy or in combination with immunotherapy. However, resistance remains a primary issue. Our findings point to the possibility of exploiting levels of cell division cycle associated protein-3 (CDCA3) to improve response of NSCLC tumours to therapy. We demonstrate that in patients and in vitro analyses, CDCA3 levels correlate with measures of genome instability and platinum sensitivity, whereby CDCA3^high tumours are sensitive to cisplatin and carboplatin. In NSCLC, CDCA3 protein levels are regulated by the ubiquitin ligase APC/C and cofactor Cdh1. Here, we identified that the degradation of CDCA3 is modulated by activity of casein kinase 2 (CK2) which promotes an interaction between CDCA3 and Cdh1. Supporting this, pharmacological inhibition of CK2 with CX-4945 disrupts CDCA3 degradation, elevating CDCA3 levels and increasing sensitivity to platinum agents. We propose that combining CK2 inhibitors with platinum-based chemotherapy could enhance platinum efficacy in CDCA3^low NSCLC tumours and benefit patients.

Contactin 1 modulates pegylated arginase resistance in small cell lung cancer through induction of epithelial–mesenchymal transition

Article Open access 19 August 2019

Targeted therapy for LIMD1-deficient non-small cell lung cancer subtypes

Article Open access 11 November 2021

Breaking the crosstalk of the Cellular Tumorigenic Network by low-dose combination therapy in lung cancer patient-derived xenografts

Article Open access 17 January 2022

Introduction

Lung cancer is the leading cause of cancer-related mortality accounting for 18.4% of all cancer-related deaths worldwide^1,2. The most commonly diagnosed form of lung cancer is non-small-cell lung cancer (NSCLC) which is broadly subdivided into the adenocarcinoma (ADC) and squamous cell carcinoma (SqCC) histologies. Patients with NSCLC may undergo adjuvant chemotherapy for resectable disease, chemoradiotherapy, and maintenance immunotherapy for locally advanced disease or systemic treatment (chemotherapy, immunotherapy, and targeted agents) for advanced disease and palliative care. However, despite improvements in these strategies and the introduction of targeted therapies (including immunotherapy), the global 5-year survival rate remains poor at 19%³.

Chemotherapy employing platinum-based doublet combinations remains the cornerstone of treatment for non-oncogene driven NSCLC. Cisplatin, cis-Diamineplatinum (II) dichloride, is a common platinum agent used in the adjuvant setting, and in combination with radiation or immunotherapy for advanced NSCLC. The mechanism of action for cisplatin is the induction of DNA damage via the formation of inter- or intrastrand crosslinks (ICLs). These crosslinks impede DNA strand separation which occur during the cellular processes of replication fork progression and transcription⁴. While most NSCLC patients receive platinum-based chemotherapy, intrinsic or acquired resistance remains a primary issue with <50% of patients having an objective partial response^5,6,7. Identifying and providing alternative treatment options for those patients who will not benefit from platinum-based chemotherapy might improve NSCLC patient health outcomes. Hence, implementing biomarkers or additional combinational therapies is key to improving the effectiveness of platinum-based chemotherapy.

In the search for novel biomarkers or therapeutic targets, we have studied the protein cell division cycle associated protein-3 (CDCA3), also known as trigger of mitosis entry 1 (TOME-1). This protein primarily modulates cell cycle progression from the G2 phase to mitosis. CDCA3 reportedly forms part of a SKP1-Cullin-RING-F-box (SCF) ubiquitin ligase (E3) protein complex to promote the timely degradation of the inhibitory tyrosine kinase WEE1^8,9. While other molecular functions are yet to be determined, CDCA3 is associated with an emerging role in solid malignancies with upregulated expression noted in oral squamous cell carcinoma tissues¹⁰, liver cancer¹¹, gastric cancer^12,13, colon cancer^14,15 and breast cancer^16,17. We have previously identified a role for CDCA3 in NSCLC¹⁸. CDCA3 is commonly upregulated in NSCLC versus non-malignant tissue where elevated malignant expression of CDCA3 strongly correlates with poor patient outcomes. We also identified that CDCA3 is functionally important in mediating proficient G2/M cell cycle progression and tumour cell proliferation where depletion of this protein induces tumour cell senescence.

In the present study, we examined the potential of CDCA3 as a biomarker for tumour cell response to platinum-based chemotherapy. Our data demonstrate that CDCA3 levels, in patients and in vitro, correlate strongly with sensitivity to platinum agents. We also demonstrate that while CDCA3 protein levels are regulated by the anaphase-promoting complex/cyclosome (APC/C) in NSCLC, pharmacological strategies to block this protein–protein interaction enhance sensitivity to platinum agents.

Results

CDCA3 levels correlate with genome instability and chemotherapy sensitivity in NSCLC

To assess the utility of CDCA3 as a tool to identify platinum-based chemotherapy response in NSCLC, we evaluated available patient data for correlations with gene signatures or DNA-based measures of genome instability. Defective DNA repair is associated with improved response to DNA-damaging therapeutics such as platinum agents in lung cancer¹⁹ and other solid malignancies²⁰. To this end, we undertook bioinformatics analyses of TCGA datasets to correlate relative CDCA3 transcript levels with a homologous recombination deficiency (HRD) score in the ADC and SqCC NSCLC histologies. As shown in Fig. 1, CDCA3 expression significantly correlated with a HRD score in ADC and SqCC disease determined firstly by a multigene signature representative of HR deficiencies²¹ (Fig. 1a, b) and the unweighted sum of three genomic scars, namely loss of heterozygosity, telomeric allelic imbalance and large scale state transitions²² (Fig. 1c, d). In each analysis, correlations between CDCA3 expression and HRD score were stronger in ADC disease. Further, CDCA3 expression correlated with other features of genetic instability such as an increase in the number of gains or losses of chromosomal arms in both ADC and SqCC (see Supplementary Fig. 1a, b). We also identified that CDCA3 levels were significantly higher in ADC and SqCC tumours with features of abnormal chromosome count, termed aneuploidy, versus diploid tumours (see Supplementary Fig. 1c, d). Consistently, CDCA3 expression was significantly elevated in tumours exhibiting at least one whole-genome duplication in ADC and SqCC (see Supplementary Fig. 1e, f). Overall, CDCA3 correlates with markers of genomic and chromosomal instability.

**Fig. 1: CDCA3 correlates with genome instability and cisplatin sensitivity.**

We next evaluated correlations between CDCA3 and another multigene signature predictive of chemotherapeutic drug response, termed the pharmacogenomic predictor of sensitivity to chemotherapy (PPSC)²³. While first applied in breast cancers to predict pathologic complete response (pCR) to chemotherapy²³, this analysis has been used to assess NSCLC cases²⁴ and shows utility for DNA-damaging therapeutics. In ADC (Fig. 1e) and SqCC (Fig. 1f) disease, CDCA3 expression positively correlated with the PPSC signature with respective Spearman correlation coefficients of r = 0.49 and r = 0.31.

Given the correlations in the clinical data, we evaluated the correlation between CDCA3 protein levels, determined by western blot analysis in our previous study¹⁸ (see also Fig. 2a for CDCA3 protein levels), with platinum agent potency (IC₅₀ values) in a panel of NSCLC cell lines. Both cisplatin and carboplatin induced a dose-dependent reduction in cell viability across all cell lines tested (see Supplementary Fig. 1g). Consistent with our bioinformatics analyses, CDCA3 protein levels strongly correlated with the sensitivity of NSCLC cell lines to cisplatin (r = −0.9; Fig. 1g) and to carboplatin (r = −0.85; Fig. 1h), whereby CDCA3^high cell lines exhibited greatest cisplatin sensitivity. Of note, the CDCA3^high cell lines A549 and H460, versus three CDCA3^low cell lines, exhibited persistent nuclear foci of the DNA damage markers FANCI (Fig. 1i) and γH2AX (see Supplementary Fig. 1h) following an 8 h recovery from cisplatin exposure. Persistent DNA damage foci at the times tested, determined by immunofluorescence image analysis of high-throughput microscopy (see Supplementary Fig. 1i), point to a reduced DNA damage repair capacity. Collectively, these results suggest that CDCA3 expression correlates with DNA-based and functional measures of genome instability where CDCA3^high tumours are more sensitive to platinum agents.

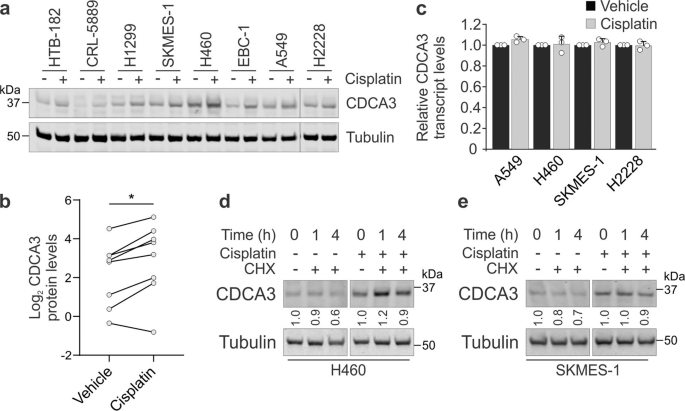

**Fig. 2: Platinum agents induce an upregulation of CDCA3 protein.**

Platinum agents induce the upregulation of CDCA3 protein through evasion of APC/C^Cdh1-mediated degradation

To explore mechanisms regulating CDCA3 levels, cisplatin treated NSCLC cell lines were examined for CDCA3 by western blot analysis. These data revealed that except for CRL-5889 cells, CDCA3 levels were upregulated ~1.5–2.5-fold in the majority of cell lines following 12 h of cisplatin treatment (Fig. 2a, b). CDCA3 transcripts were also assessed by quantitative real-time PCR (qRT-PCR) in a smaller panel of NSCLC cell lines treated with cisplatin. As shown in Fig. 2c, cisplatin treatment did not significantly impact the levels of CDCA3 transcripts in this small selection of cell lines.

We next asked whether platinum-induced stress could affect CDCA3 protein stability, thus yielding the increased levels of the protein. To do so, we chose the SKMES-1 and H460 cells, as model squamous and non-squamous NSCLC cell lines respectively, and also given that these cells have abundantly detectable CDCA3 protein levels suitable for protein half-life experiments. These cells were treated with cycloheximide to block protein synthesis in the presence or absence of cisplatin over the course of 4 h. Western blot analysis revealed that in the absence of cisplatin, CDCA3 levels were moderately reduced by ~30–50% in both H460 (Fig. 2d) and SKMES-1 cells (Fig. 2e), suggesting that the protein is being degraded in these cells. In contrast, CDCA3 protein turnover was markedly reduced in cisplatin treated NSCLC cells despite the presence of cycloheximide. Together, these data suggest that elevated CDCA3 levels induced by platinum result predominantly from increased protein stability and not enhanced transcription.

To explore the possibility that CDCA3 levels are regulated by protein degradation, we searched the primary protein sequence of CDCA3 for known motifs recognised by ubiquitin ligases. As shown in Fig. 3a, CDCA3 contains a C-terminal KEN box motif starting at Lys258⁸ and a D-box R-X-X-L motif commencing at Arg198. Each of these motifs are necessary for substrate recognition by the co-activator proteins Cdh1 or Cdc20, which serve to recruit substrates for poly-ubiquitination by the large multi-subunit E3 ubiquitin ligase anaphase-promoting complex/cyclosome (APC/C) for degradation by the 26S proteasome. To confirm which of the APC/C co-activators is required to promote CDCA3 degradation in NSCLC, we ectopically expressed escalating levels of either HA-tagged Cdh1 or Cdc20 in H460 cells. For these experiments, H460 cells were used as a model NSCLC cell line suitable for transfections and as a cell line with readily detectable endogenous CDCA3 by western blot analysis. As shown in Fig. 3b, endogenous CDCA3 levels were markedly reduced upon increased ectopic Cdh1 expression and less so with ectopic Cdc20 expression, suggesting that Cdh1, consistent with earlier reports⁸, is the predominant co-activator required to regulate levels of CDCA3 in NSCLC. Noticeably, CDCA3 lacks a classical ABBA motif, which is reported to be required for Cdc20 binding²⁵, perhaps defining the specificity for CDCA3 recognition by Cdh1 versus Cdc20.

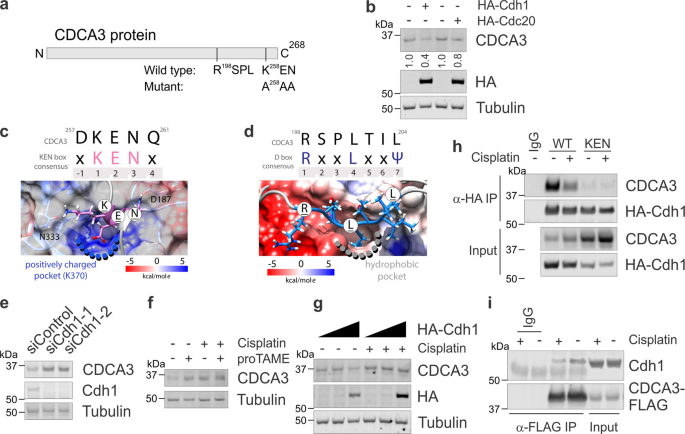

**Fig. 3: CDCA3 avoids APC/C^Cdh1-mediated degradation following exposure to cisplatin.**

We performed in silico analysis and molecular dynamics (MD) simulations to evaluate an interaction between CDCA3 and Cdh1. Firstly, PrDOS²⁶ and PSIPRED²⁷ protein sequence analyses suggested that CDCA3 is an intrinsically disordered protein which forms transient helical structures, particularly over sequences containing conserved motifs, including the KEN and D-box motifs (see Supplementary Fig. 2a, b). Our MD simulations confirmed the region containing the KEN motif (residues Gln254-Gln261) showed the presence of a transient helical structure (Fig. 3c) whereas the D-box motif did not converge to any prominent secondary structure within the timescale of the simulation (Fig. 3d). The KEN box of CDCA3 formed strong hydrogen bonds with Asn333, Asn335, Gln401, Thr377, Arg445, Phe188, Asp187, Tyr189 and Tyr420 of Cdh1. The D-box of CDCA3 engaged in hydrophobic interactions and formed hydrogen bonds with Asp180, Glu465 and Val219 of Cdh1. Indeed, our molecular model of CDCA3 and Cdh1 highlights that residues of CDCA3 interact with regions of Cdh1 that are consistent with other known Cdh1 interactants²⁸.

To experimentally confirm that Cdh1 modulates CDCA3 levels, H460 cells were depleted of Cdh1 using two independent siRNAs. Western blot analysis revealed that knockdown of Cdh1 resulted in elevated CDCA3 protein levels, further suggesting Cdh1 is the co-activator that regulates cellular CDCA3 levels (Fig. 3e). Consistently, treating H460 cells with proTAME, a cell permeable APC/C inhibitor²⁹, in the presence and absence of cisplatin induced the upregulation of CDCA3 protein (Fig. 3f). In addition, unlike in untreated cells, increased ectopic Cdh1 expression did not reduce endogenous CDCA3 protein levels in cisplatin treated H460 cells (Fig. 3g). These data further indicate that CDCA3 protein levels are regulated in an APC/C^Cdh1-dependent manner, particularly following platinum-induced stress.

To investigate the impact on binding to Cdh1, we performed immunoprecipitations between ectopic HA-Cdh1 and either CDCA3-WT-FLAG or the KEN box mutant (listed in Fig. 3a) that were expressed in H460 cells either treated with or without cisplatin. As shown in Fig. 3h, while loss of the KEN box completely abrogated binding to Cdh1, cisplatin treatment markedly reduced the association between CDCA3 and Cdh1. Reciprocal immunoprecipitation analysis indicated that platinum-induced stress reduced the association between ectopic CDCA3-FLAG and endogenous Cdh1 in H460 cells (Fig. 3i). These data highlight that levels of CDCA3 are regulated by the APC/C^Cdh1, particularly following platinum-induced stress.

Phosphorylation of CDCA3 by CK2 promotes an interaction with Cdh1 and degradation by the APC/C^Cdh1

To define molecular mechanisms regulating the levels of CDCA3, we further investigated the MD simulations of CDCA3 bound with Cdh1. For our modelling, we focused on the C-terminal region of CDCA3 containing the KEN and D-boxes which were bound to their respective regions within Cdh1. As shown in a representative snapshot from the simulation, CDCA3 formed a transient helical region from residues Glu230 to Lys244 and associated with a corridor of positive charges within Cdh1 (Fig. 4a). In particular, Ser222 and Ser229 when phosphorylated and with a net negative charge, interact within a positively charged cleft on the surface of Cdh1. Indeed, phosphorylation of these residues have been detected in phosphoproteome-wide screens^30,31,32. Sequence alignment of this region of CDCA3 highlights a similarity with known APC/C substrates, including ACM1, BUB1B, Cyclin A2 and BUB1²⁵, each containing ABBA motifs (Fig. 4b). Despite low sequence homology, charged or hydrophobic residues exist in similar positions between each of these APC/C substrates, raising the possibility that this non-canonical ABBA-like motif within CDCA3 aides an association with Cdh1.

**Fig. 4: Phosphorylation of CDCA3 promotes an interaction with Cdh1.**

We verified our simulations by immunoprecipitating HA-Cdh1 with either CDCA3-WT-FLAG or mutant forms of CDCA3-FLAG where the serine residues were individually, or both substituted with alanine residues. While individual loss of either Ser222 or Ser229 alone did not reduce an association with Cdh1, dual loss of both residues markedly reduced an association between CDCA3 and Cdh1 in H460 cells (Fig. 4c). Consistently, lambda phosphatase treatment of H460 cell lysates to remove phosphate moieties, abrogated the association of ectopic HA-Cdh1 and CDCA3-WT-FLAG by immunoprecipitation (Fig. 4d). These data suggest that post-translational modification of CDCA3 at Ser222 or Ser229 generates a non-canonical ABBA-like motif that, alongside the classical KEN and D-box motifs, is required for an efficient association between CDCA3 and APC/C^Cdh1.

To identify kinases responsible for the phosphorylation of, and hence regulation of CDCA3 levels, we performed an siRNA-based screen for 38 different kinases and assessed the levels of CDCA3 using immunofluorescence and high throughput microscopy. Of the 38 different kinases (see Supplementary Fig. 3a), only depletion of the casein kinase 2 (CK2) catalytic subunits, α (CSNK2A1) and ά (CSNK2A2), yielded a ~1.5-fold upregulation of CDCA3 protein levels compared with siRNA control transfected cells. Consistently, immunofluorescence analysis indicated that CDCA3 levels were elevated in CSNK2A1-depleted H460 cells treatment in the absence or presence of cisplatin (Fig. 5a). CK2 depletion resulted in CDCA3 upregulation to a degree comparable with cisplatin treatment alone (Fig. 5a). We sought to verify the siRNA experiments by using a pharmacological approach. CX-4945 is a potent small molecule inhibitor of CK2 that has undergone clinical testing^33,34,35,36. As shown in Fig. 5b and see Supplementary Fig. 3b, 24 h treatment of CX-4945 induced a ~1.3–2.3-fold upregulation of CDCA3 protein in all NSCLC cell lines, with the exception of CRL-5889 cells. To confirm the possibility that CDCA3 is a CK2 substrate, we probed immunoprecipitated endogenous CDCA3 from control or cisplatin treated H460 cells with an anti-phospho-CK2 substrate motif specific antibody. As shown in Fig. 5c, we detected immunoreactivity against CDCA3 with the CK2 substrate antibody which was reduced by ~60% following cisplatin treatment. Confirming the specificity of the CK2 substrate antibody, immunoreactivity against immunoprecipitated CDCA3 was prevented by CX-4945 treatment, both alone and when combined with cisplatin (Fig. 5d).

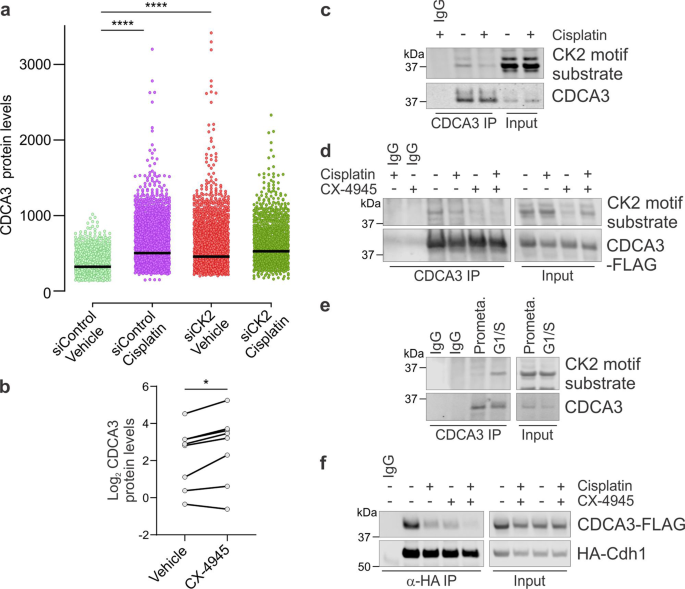

**Fig. 5: Phosphorylation of CDCA3 by CK2 promotes its degradation by the APC/C^Cdh1.**

Given CDCA3 levels are lowest in the G1 cell cycle phase, reportedly due to degradation by the APC/C^Cdh1 (ref. ⁸), we next assessed whether the CK2 phosphorylation status of immunoprecipitated CDCA3 varied across cell cycle phases. Phospho-CK2 immunoreactivity was detected in H460 cells arrested at the G1/S boundary by double thymidine treatment but not in mitotic arrested nocodazole treated cells (Fig. 5e). These data point to the possibility that CK2 phosphorylation might contribute toward regulating CDCA3 protein levels across the unperturbed cell cycle.

To examine the impact of CK2 phosphorylation upon CDCA3 association with Cdh1, immunoprecipitations between ectopic HA-Cdh1 and CDCA3-WT-FLAG were performed in the absence or presence of CX-4945, cisplatin or combination of both. As shown in Fig. 5f, like cisplatin, CX-4945 reduced the association between CDCA3 and Cdh1. Together, these data suggest CK2 plays a key role in regulating the levels of CDCA3, particularly following platinum-induced stress, whereby phosphorylation promotes the interaction between CDCA3 and Cdh1.

Combination of CK2 inhibitors with cisplatin show greater effectiveness in CDCA3^low NSCLC cells

Our bioinformatics and in vitro analyses uncovered that CDCA3^high NSCLC is more responsive to chemotherapy and platinum agents than CDCA3^low tumours. To confirm this, we ectopically overexpressed CDCA3 in EBC-1, CRL-5889 and HTB-182 cells which are endogenously CDCA3^low. By increasing CDCA3 protein levels in each of these cell lines (Supplementary Fig. 4a), the median cisplatin (Fig. 6a) and carboplatin (Fig. 6b) IC₅₀ values were reduced ~2- and ~6-fold respectively. These data suggest that increasing CDCA3 levels might improve platinum agent potency.

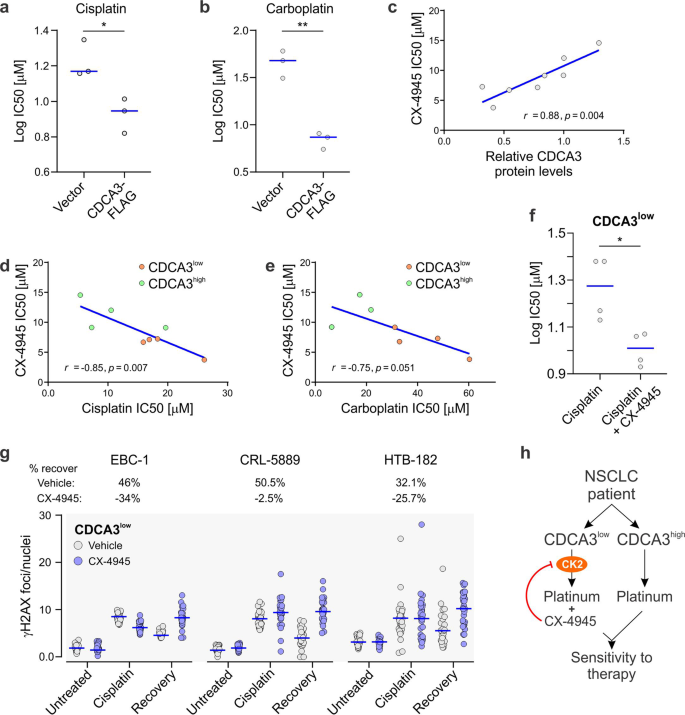

**Fig. 6: Combining CK2 inhibitors with cisplatin in CDCA3^low NSCLC.**

Given levels of CDCA3 protein are regulated by platinum in a CK2-dependent manner, we sought to determine whether CDCA3 had companion diagnostic potential in in vitro NSCLC models. To explore this, we evaluated the correlation of CDCA3 protein levels with CX-4945 potency (IC₅₀ values) in a panel of eight cell lines. CX-4945 reduced cell viability in a dose-dependent manner across all cell lines tested (see Supplementary Fig. 4b). CDCA3 levels strongly correlated with sensitivity to CX-4945 (r = 0.88), whereby CDCA3^low cell lines showed greater sensitivity (Fig. 6c). We next assessed the correlation between cisplatin and carboplatin potencies with CX-4945 potencies across all cell lines tested. As shown in Fig. 6b, sensitivity to cisplatin was inversely proportional to CX-4945 sensitivity with a strong negative correlation (r = −0.85). Although not statistically significant, carboplatin sensitivity was also inversely proportional to CX-4945 sensitivity (r = −0.75, Fig. 6e). By stratifying each cell line based on median CDCA3 expression, we identified that for both cisplatin and carboplatin potency correlations, CDCA3^low cells and CDCA3^high cells grouped separately, with the sole exception of H1299 cells in Fig. 6d. Based on these analyses, we evaluated the combination of cisplatin with respective IC₂₅ CX-4945 concentrations in the CDCA3^low cell lines, which are less sensitive to cisplatin than CDCA3^high cells (Figs. 1g and 6d). As shown in Fig. 6f, CX-4945 significantly enhanced median cisplatin potency from ~19 µM to ~10 µM. We next assessed whether CK2 inhibition might impact DNA repair capacity in the CDCA3^low EBC-1, CRL-5889 and HTB-182 cell lines by examining γH2AX foci as per Fig. 1i. As shown in Fig. 6g, combining CX-4945 with cisplatin increased the level of persistent γH2AX foci following drug recovery versus cisplatin treatment and recovery alone in all three cell lines. CX-4945 treatment alone did not induce γH2AX foci in these cell lines (Fig. 6g). These findings suggest CX-4945 sensitises NSCLC cells to cisplatin by reducing DNA repair capacity, particularly in those tumours selected based on CDCA3 expression.

Discussion

Predictive biomarkers of platinum response are necessary to improve the clinical management of lung cancer patients undergoing therapy. Our findings point to the possibility of exploiting CDCA3 expression to select NSCLC patients for platinum-based therapy (Fig. 6h). We document that in in vitro analyses and available patient data, CDCA3 expression correlates with genomic and functional measures of genome instability and platinum sensitivity in vitro. Functionally, CDCA3 has not been directly linked with maintenance of genome stability. However, CDCA3 has been identified in network analysis to contribute toward enabling tumours to cope with high levels of genome stability³⁷. This is in line with our observation that cisplatin-induced DNA damage causes an upregulation of CDCA3 protein via evasion of APC/C^Cdh1-mediated degradation (Figs. 2 and 3), suggesting that upregulation of CDCA3 expression is symptomatic of, and not causal of genome instability. However, upregulation of CDCA3 levels by ectopic expression resulted in enhanced sensitivity to cisplatin and carboplatin (Fig. 6a, b). Further work is required to determine whether modulating CDCA3 protein levels directly impacts genome stability. Despite responding to ICL DNA damage, we demonstrate that basal CDCA3 expression correlates with genome stability and platinum sensitivity (Fig. 1). It is worth noting that while our study focussed on sensitivity or an initial response to cisplatin, basal CDCA3 expression does not make any conclusions about likelihood of acquired platinum resistance. It is possible that some of the cell lines, perhaps those CDCA3^low cell lines, are representative of innate resistance but further studies are required. Nonetheless, our findings highlight the potential for basal CDCA3 levels as a screening tool at initial biopsy for treatment naïve NSCLC patients, in a process similar to the current immunotherapy biomarker PD-L1³⁸. Although requiring tissue biopsy, there are advantages to this approach versus other multimodal genomic or gene signature biomarkers³⁹. These include not being reliant upon specialist equipment, cost and ease of implementation⁴⁰. Moreover, given our prior validation of immunohistochemistry staining for CDCA3¹⁸, this method would be ideal to detect protein levels in tissue biopsies. However, further studies are necessary to define the low versus high expression staining parameters and to assess the predictive power for these CDCA3 expression parameters for determining therapy responsiveness in the clinical setting.

Our findings also point to the possibility that CDCA3 expression has companion diagnostic potential for the drug CX-4945, to improve cisplatin sensitivity in NSCLC (Fig. 6e). As a potent CK2 inhibitor, CX-4945 is currently under phase I/II clinical trial for cholangiocarcinoma patients in combination with a chemotherapy regimen containing cisplatin (clinicaltrials.gov identifier: NCT02128282). CK2 is a constitutively active tetrameric serine/threonine kinase, consisting of two catalytic (α and/or ά) and two regulatory (β) subunits, with a diversity of roles in cell cycle control, regulation of transcription, DNA repair and survival^41,42,43. We document that CK2 activity plays a key role in regulating CDCA3 levels by modulating its degradation by APC/C^Cdh1. Our findings highlight that, like other CK2 substrates, including those involved in maintaining genome stability^44,45,46,47, phosphorylation promotes protein-protein interaction, in this case between CDCA3 and Cdh1. It is worth noting that the CDCA3 phosphorylation sites Ser222 and Ser229 deviate from the S/T-X-X-D/E CK2 consensus motif. However, CDCA3 does contain negatively charged residues at positions n + 1 for Ser229 (Glu230) and n + 4 for both serines (Glu256 and Glu231) which are also observed in other substrates⁴⁸. Moreover, immunoprecipitated CDCA3 is immunoreactive with a CK2 phosphorylation specific antibody that is sensitive to CX-4945 (Fig. 5). Indeed, with these phosphorylation sites, we propose to have identified a novel non-canonical ABBA-like motif, which aligns electrostatically with other characterised ABBA motifs, promoting an interaction with Cdh1 (Fig. 4). Our findings suggest that this ABBA-like motif is dynamically regulated, given cisplatin-induced reduced phosphorylation of CDCA3 by CK2 causing a dissociation between CDCA3 and Cdh1. Although CK2 is active in DNA repair and in each cell cycle stage, it is likely that Ser222 and Ser229 are subject to regulation by unidentified phosphatases, particularly during DNA damage and mitosis (Fig. 5). Nonetheless, in those cells with low CDCA3 levels, possibly due to CK2 promoted degradation, CK2 inhibition sensitises NSCLC to platinum. While CX-4945 enhances chemotherapy in other solid malignancies^49,50, our findings indicate that in NSCLC, a strategy to first select tumours based on CDCA3 expression would enhance CX-4945 potency and sensitivity to platinum agents. Importantly, our findings lay the foundation for further testing in patient-derived disease models and future retrospective and prospective patient cohorts prior to clinical trial.

Methods

Ethical compliance

All human data was obtained from public resources with non-identifiable patients providing informed consent according to TCGA Ethical Board regulations (https://www.cancer.gov/about-nci/organization/ccg/research/structural-genomics/tcga/history/policies). All methods were also performed in accordance with relevant guidelines and regulations and approved by Queensland University of Technology (approval number 1900000269).

Antibodies, reagents and mammalian expression constructs

The CDCA3 antibody (HPA026587), monoclonal FLAG M2 antibody (F1804) and α-Tubulin antibody (T9026) were purchased from Sigma Aldrich. Antibodies against the HA tag (#3724) and phospho-CK2 substrate motif (#8738) were purchased from Cell Signaling Technology (Genesearch, Australia). The Cdh1 (ab77885) and γH2AX (ab26350) antibodies were from Abcam. The FANCI antibody (A301-254A) was from Bethyl Laboratories, Inc. 4′-6-diamidino-2-phenylindole (DAPI) was from Life Technologies and Complete EDTA-free protease inhibitor mixture was from Roche Applied Sciences. Donkey anti-rabbit and anti-mouse Alexa Fluor 488 antibodies were purchased from Life Technologies. CX-4945 was purchased from Selleck Chemicals Llc and proTAME was purchased from BostonBiochem. All other reagents were from Sigma-Aldrich except where noted. Mammalian expression construct for HA-Cdh1 was a gift from Marc Kirschner (Addgene plasmid #11596⁵¹) and the CDCA3-FLAG expression construct was generated by subcloning the full-length CDCA3 sequence in pcDNA3.1+ using the BamHI and EcoRI restriction enzyme sites. N-terminal consensus kozak sequence and C-terminal triple FLAG sequence were introduced using PCR.

Cell culture, transfections and cell treatments

All NSCLC cell lines were obtained from the American Type Culture Collection (ATCC) and maintained in RPMI-1640-medium + l-glutamine (Life Technologies), supplemented with 10% foetal bovine serum (FBS, Sigma Aldrich). All cell lines were cultured at 37 °C in a humidified 5% CO₂ atmosphere.

For transfections of the customised siRNA library, Lipofectamine RNAimax was used (Life technologies). The customised Silencer Select human kinase siRNA library (Cat. No. 4392425, Life Technologies) contained 62 lyophilised siRNAs targeting 38 different human kinases (see Supplementary Fig. 3a for listing of kinases). siRNAs in a 96 well were rehydrated according to manufacturer’s instructions and transfected into adherent H460 cells in glass bottom, black walled immunofluorescence 96-well plates. Scrambled Silence Select siRNAs were used as transfection controls (Life Technologies). Lipofectamine RNAimax was also used for transfection of individual Silencer Select pre-designed siRNAs targeting FZR1 (Cdh1 protein) and CSNK2A1 (Life Technologies). siCdh1-1 (ID: s27991); siCdh1-2 (ID: s27993); and siCK2 (DI: s3637). For expression construct transfection, FuGene HD transfection reagent was used (Promega Corporation).

For in vitro drug treatments prior to western blot or immunoprecipitation analysis, cells were treated with cisplatin (5 µM) or CX-4945 (5 µM) for 12 h or proTAME (10 µM) for 6 h. For protein half-life experiments, cells were treated with cycloheximide (70 µM) for 4 h in the presence or absence of cisplatin (5 µM). To block cells in prometaphase, cells were treated with either nocodazole (0.1 µg/mL) for 16 h. To block cells at the G1/S cell cycle boundary, cells were treated with thymidine (2 mM) for 16 h, followed by recovery in fresh culture media for 8 h before a second 16-h thymidine treatment.

Collection of lysates, immunoprecipitation and western blot analyses

For whole cell lysate collection, cells were washed with phosphate-buffered saline and lysed in lysis buffer (50 mM HEPES (pH 7.5), 150 mM KCl, 5 mM EDTA, 0.05% IGEPAL CA-630 (v/v), 1x protease inhibitor cocktail (Roche) and 1x phosphatase inhibitor cocktail (Cell Signaling Technology)). Following sonicated and centrifugation, total protein yield was determined by Bicinchoninic Acid (BCA) Protein assay (Sigma Aldrich). Total protein (20 µg) samples were denatured in 1x Laemmli Buffer supplemented with 8% β-mercaptoethanol for 5 min at 80 °C.

For immunoprecipitation, protein samples were prepared with 400 µg protein in 400 µl of lysis buffer. Lysates were incubated overnight with 3 µg of FLAG antibody, HA antibody or CDCA3 antibody overnight at 4 °C. Following incubation, lysates were incubated with protein A or G Dynabeads pre-equilibrated with lysis buffer (Invitrogen). The Dynabeads were denatured using 2x Laemmli sample buffer supplemented with 8% β-mercaptoethanol for 5 min at 80 °C.

Samples were separated on Bolt 4–12% Bis-Tris Plus pre-cast gels (Life Technologies) and transferred onto nitrocellulose membrane (GE Healthcare Life Sciences) using the semi-dry transfer Novex system (Life Technologies). Membranes first blocked using Odyssey blocking buffer (Li-Cor) were incubated with primary antibody overnight at 4 °C in a 1:1 solution of Odyssey blocking buffer and PBS-T. All primary antibodies were used at a dilution of 1:1000 except for antibodies targeting CDCA3 (1:800) and tubulin (1:5000). Following incubation, membranes were washed with PBS-T and incubated with appropriate secondary antibodies and imaged using the Li-Cor Odyssey system (Li-Cor). Images were acquired and subject to densitometry analysis.

Quantitative real time PCR

Total RNA was isolated using an Isolate II RNA mini kit (Bioline). Equal amounts of RNA (1 µg), quantified using a Nanodrop Lite spectrophotometer (Thermo Fisher Scientific), were reverse transcribed to generate cDNA using the Tetro cDNA Synthesis kit (Bioline). CDCA3 (forward primer 5′-GGACCCTGAGACTCCCAGAT-3′ and reverse primer 5′-GCCGCTTACCCTGTCGTAG-3′) and 7SL transcript levels (forward primer 5′-ATCGGGTGTCCGCACTAAGTT-3′ and reverse primer 5′-CAGCACGGGAGTTTTGACCT-3′) were determined using SYBR Green (Thermo Fisher Scientific) on a ViiA7 RT-PCR system (Thermo Fisher Scientific). CDCA3 levels were normalised to 7SL levels and analysed using the comparative CT method.

Immunofluorescence and high content microscopy

Cells were seeded at 1.0 × 10⁴ to 1.2 × 10⁴ cells per well on a glass-base 96-well plate (Corning) at and left to adhere for 12 h overnight before drug treatment. For treatments, cells were exposed to IC₅₀ concentrations of cisplatin for 12 h either alone or in the presence of IC₅₀ concentrations of CX-4945. For recovery experiments, drug treated cells were washed with PBS and cultured in fresh media for 8 h. Cells were fixed with 4% paraformaldehyde (PFA) in PBS for 20 min at room temperature (RT) and permeabilised with 0.1% Triton X-100 in PBS for 5 min at ambient temperature. The cells were subsequently blocked with 2% Donkey serum in PBS for 30 min at ambient temperature. Primary antibodies were diluted in 0.5% Donkey serum in PBS and incubated overnight at 4 °C. Antibodies targeting FANCI, γH2AX and CDCA3 were used at dilutions of 1:100, 1:1000 and 1:300 respectively. Fluorescent secondary antibodies conjugated with Alexa Fluor® dye were diluted in 0.5% Donkey serum in PBS and incubated for 1 h at RT (1:600 dilution). Following this, the cells were stained with Hoechst 33342 stain diluted in PBS (final concentration of 1 µg/mL) and incubated at RT for 5 min before imaging. Images were collected on an InCell Analyzer 6500 high content microscopy imaging system (GE Healthcare Life Sciences). Images were analysed using the CellProfiler software v3.1.9. FANCI or γH2AX foci were reported as foci per nuclei per field of view, n = 13–16 fields. A minimum of 800 cells were quantified per condition.

Cell viability assays

CellTiter-Glo 2.0 Luminescent assay (Promega Corporation) was used to determine cell viability for dose response assays. Cells at a density of 500 cells/well in white walled 384-well plates were drug treated 24 h following seeding. Following 48 h of treatment, CellTiter-Glo 2.0 was added to each well according to the manufacturer’s instructions. Luminescence was recorded using a PHERAstar FSX detection system (BMG Labtech). Following background value removal, data was normalised to untreated controls. Dose response curves were generated and drug potency values (IC₅₀) calculated using the GraphPad Prism 8 software.

Computational methods

Molecular modelling of CDCA3-Cdh1

A molecular model of CDCA3 was built based on the structure of S. cerevisiae APC/C activator protein Cdh1 bound to the three degrons of APC/C-CDH1 modulator 1 (PDB code: 4BH6)⁵². We report a molecular model of the WD40 propeller domain of human Cdh1 (Ser172-Ser474) and C-terminal domain of CDCA3 (Ser193-Glu267). The N-terminal domains outside of these sequences were not modelled, due to lack of homology with known 3D structures and the intrinsic disorder of the proteins. The KEN and D-box motifs of APC/C-Cdh1 modulator 1 were aligned with the two homologous degron sequences present in the C-terminal of CDCA3. We also looked for regions of negative charge in CDCA3 that could mimic the ABBA motif of APC/C-CDH1 modulator 1 and found a non-canonical ABBA-like motif from Arg220-Leu231. Firstly, the degrons motifs were modelled using position restraints and the remaining residues were then modelled from the template to CDCA3 using Modeller tool in UCSF Chimera. The S. cerevisiae cdh1 molecule is structurally homologous to human cdh1 (PDB code: 4UI9; chain R)⁵³ and was therefore replaced using MatchMaker tool in UCSF Chimera⁵⁴. The KEN, D box and non-canonical ABBA motifs of CDCA3 were modelled to interact with their respective sites on the Cdh1 molecule similar to the wild-type Cdk2-cyclinA2-Cks2-cdc20 complex (PDB code: 6Q6G)⁵⁵.

Molecular dynamics simulations of CDCA3-cdh1 complex

Atomistic molecular dynamics (MD) simulation was applied to refine and explore the conformational space of the modelled CDCA3-cdh1 complex. The complex was solvated in explicit water using tleap from the AmberTools 16 package⁵⁶. The Na+ ions were added to neutralise the system charge. The AMBER ff99SB*-ildn force field parameters⁵⁷ and TIP3P model⁵⁸ were used for the proteins/peptides and water molecules, respectively. MD simulation was performed using PMEMD.CUDA⁵⁹ from AMBER 16 suite of programmes on NVIDIA GPU, which were compiled with CUDA 7.5. The electrostatic interactions were calculated using the Particle Mesh Ewald method with 12 Å short-range electrostatic and van der Waals cutoffs. All simulations were performed under periodic boundary conditions in a cubic water box. The equations of motion were solved using a time step of 2 fs. The SHAKE algorithm and Langevin dynamics were applied to constrain bonds to non-heavy atoms and to control the temperature. Each system was minimised using steepest descent for 1000 steps and conjugate gradient for another 500 steps. After minimisation, the system was heated from 0 to 300 K in 50 ps simulation by applying 10 kcal/(mol•Å²) harmonic position restraints to the protein and peptide heavy atoms with a constant particle number, volume and temperature (NVT) ensemble. Each system was further equilibrated in the constant particle number, pressure and temperature (NPT) ensemble at 1 atm and 300 K for 650 ps with same restraints as in the NVT run. Another 20 ns equilibration was performed by applying 2 kcal/(mol•Å²) harmonic position restraints on the KEN, D box and the non-cannonical ABBA motifs under NPT condition. Finally, 400 ns production run was performed to study the stability and the conformational changes in the peptide-protein complex. Snapshots from last 300 ns (30,000 frames) were combined for plotting secondary structures and obtaining stastistics on hydrogen bonds using the CPPTRAJ module of AmberTools 16. UCSF Chimera was used for visualisation of trajectory and preparing images of the molecular models.

Bioinformatics analysis

Correlations between CDCA3 transcript expression and measures of genomic instability or response to chemotherapeutic drugs were assessed from The Cancer Genome Atlas (TCGA) RNAseq datasets. Specifically, log₂-transformed level 3 Illumina HiSeq RNASeq V2 mRNA levels (RSEM) were used. Homologous recombination deficiency (HRD) scores were generated from a 230 multi-gene signature (Peng)²¹ or unweighted sum of three (loss of heterozygosity, telomeric allelic imbalances and large scale transitions) genomic scars (sum)²² as previously described. The phamacogenomic predictor of sensitivity to chemotherapy (PPSC) was determined according to a previously described multigene signature²³. Somatic copy number variation analyses to assess chromosome arm gains or losses or the ploidy content of tumours were determined from SNP6 array copy number data as previously described⁶⁰. Whole-genome doubling events were calculated using the ABSOLUTE method as previously described⁶¹. Within the two NSCLC histologies, the correlation between relative CDCA3 transcript expression and each parameter was assessed by linear regression analysis with P-values, R-values and 95% confidence intervals reported according to Spearman’s rank correlation. Differences in reported sample numbers between figures are due to availability of appropriate copy number or gene expression data. These analyses were performed in the R statistical environment (R Core Team, Vienna, Austria).

Statistics and reproducibility

For in vitro experiments, data and statistical analyses were performed using GraphPad Prism V8 software. Results are shown as mean ± SD unless otherwise stated. Data were analysed using two-tailed Student’s t tests or Pearson correlation coefficients. P-values below 0.05 were considered significant and indicated using the following abbreviations: *P < 0.05, ****P < 0.0001.

Reporting summary

Further information on research design is available in the Nature Research Reporting Summary linked to this article.

Data availability

Source data underlying figures is presented in Supplemental Data 1. Plasmids and other relevant data are available from the corresponding authors upon request.
