Abstract
Convolutional neural networks (CNNs)—as a type of deep learning—have been specifically designed for highly heterogeneous data, such as natural images. Neuroimaging data, however, is comparably homogeneous due to (1) the uniform structure of the brain and (2) additional efforts to spatially normalize the data to a standard template using linear and non-linear transformations. To harness spatial homogeneity of neuroimaging data, we suggest here a new CNN architecture that combines the idea of hierarchical abstraction in CNNs with a prior on the spatial homogeneity of neuroimaging data. Whereas early layers are trained globally using standard convolutional layers, we introduce patch individual filters (PIF) for higher, more abstract layers. By learning filters in individual latent space patches without sharing weights, PIF layers can learn abstract features faster and specific to regions. We thoroughly evaluated PIF layers for three different tasks and data sets, namely sex classification on UK Biobank data, Alzheimer’s disease detection on ADNI data and multiple sclerosis detection on private hospital data, and compared it with two baseline models, a standard CNN and a patch-based CNN. We obtained two main results: First, CNNs using PIF layers converge consistently faster, measured in run time in seconds and number of iterations than both baseline models. Second, both the standard CNN and the PIF model outperformed the patch-based CNN in terms of balanced accuracy and receiver operating characteristic area under the curve (ROC AUC) with a maximal balanced accuracy (ROC AUC) of 94.21% (99.10%) for the sex classification task (PIF model), and 81.24% and 80.48% (88.89% and 87.35%) respectively for the Alzheimer’s disease and multiple sclerosis detection tasks (standard CNN model). In conclusion, we demonstrated that CNNs using PIF layers result in faster convergence while obtaining the same predictive performance as a standard CNN. To the best of our knowledge, this is the first study that introduces a prior in form of an inductive bias to harness spatial homogeneity of neuroimaging data.
Similar content being viewed by others
Introduction
In recent years, deep learning architectures relying on convolutional neural networks (CNNs) have advanced to a key technology for analyzing medical imaging data from various image sources including magnetic resonance imaging (MRI)1,2,3,4. In neuroimaging, state-of-the-art results have been achieved for diverse pixel-wise segmentation tasks (e.g., segmentation of white matter lesions, brain tumors or vessels)5,6,7,8 and image- or volume-wise classification of neurological or psychiatric diseases such as Alzheimer’s disease9,10,11, multiple sclerosis12 or schizophrenia2. The models used in most studies here are largely influenced by architectures which have been shown to be successful in computer vision tasks on natural images1,4,13.
However, in contrast to natural images, neuroimaging data is much more homogeneous (see Fig. 1) and data sets are typically orders of magnitude smaller. The homogeneity of neuroimaging is due to (1) the inherent structure of the brain, which is mostly identical for individual subjects, i.e. each brain consists of the same parts (cerebellum, frontal lobe, occipital lobe, etc.), which are arranged in the same way (e.g., the occipital lobe is in the back); and (2) neuroimaging data is usually further homogenized by normalizing them to a shared template within the MNI space such as the ICBM 152 atlas14,15,16. For this, linear and/or non-linear transformations are used and different software packages are available (e.g., SPM17, FSL18 or ANTS19). Generally, this is done to ensure that a voxel at a certain location contains approximately the same brain region in every image and allows researchers to investigate a specific region (e.g., the hippocampus) across subjects. In particular, this is a major prerequisite for mass-univariate as well as multivariate pattern analysis, which have been extensively applied in the neuroimaging domain20,21,22,23. Acquiring large neuroimaging data sets has high requirements both financially and in terms of expertise (e.g. scanning protocol definition, safety measures, ethical guidelines), and the strict privacy regulations of medical data in many countries makes the publication of these data sets challenging. Therefore, many machine learning (ML) studies are carried out on rather small, local neuroimaging data sets, and results often do not generalize24.
In addition, training machine learning models on MRI data can be highly time-consuming. The 3-dimensional nature of MRI data and its high resolution leads to an extremely high feature count per sample. This causes model training for a single run to take up to several hours and on larger data sets up to several days. The training time is inflated again when performing cross-validation or repeated splitting of the data, as is typically recommended25. The large feature count can also require the data to be read from disk at training time if it exceeds the available memory, which further impacts training time. Furthermore, the longer a model trains, the more energy is being used, which increases its carbon footprint26. Hence, it has become a challenge to reduce the computation time of machine learning models and to improve their efficiency.
A common method to deal with small sample sizes and to reduce run time is to incorporate known information or assumptions about the data distribution into the learning model. Technically, this can be seen as introducing a prior. In neuroimaging-based disease classification and segmentation studies, priors have been incorporated into machine learning models by using extracted group-level features, topological structure in form of a probabilistic atlas, random elastic deformations, or other biophysical understandings27,28,29,30,31. However, the application of priors in CNN-based disease classification studies is not yet common, even though putting highly homogeneous data into standard CNN architectures is sub-optimal. This is because computer vision CNNs are optimized to deal with the high spatial variance of natural images (see Fig. 1a). By using weight-sharing, filters in both early and late layers are being optimized to capture signals regardless of their position. Were all images spatially standardized, i.e., objects were in the same position and had the same angle or viewpoint, it would suffice to search certain abstract objects, such as the ears of a cat, solely within a certain sub-space (i.e., a patch). Although it seems natural to exploit the spatial homogeneity of standardized MR images into a model prior, the technical integration of priors into CNNs is difficult and, to the best of our knowledge, has not been done yet.
Another method, aimed at improving learning in small sample size regimes and reducing its training time, is to reduce the number of features through selection32. A model parameter, such as a neural network filter, that is being trained on the entire input will be subject to a greater superimposition of different distributions (from signal and noise) than it would on a smaller selection of those features, i.e. a sub-space. If we can assume that most selected sub-spaces contain sufficient discriminatory information, then the disentanglement task on each sub-space becomes easier. Therefore, training model parameters on a sub-space of the input should require fewer training samples and iterations for convergence. In Fig. 2, we plot typical neuroimaging analysis methods which use non-data-driven feature selection on the spectrum of how many input features each filter or classifier uses. The extreme case of reducing the input would be to fit a model for each voxel individually. This is the case in mass-univariate studies and entails the multiple comparison problem33,34,35. A fully-connected neural network is similar in that the weights are learned based on a single input feature and neighboring information is lost. An intermediate solution would be to train models on regions-of-interest (ROIs) or, more generally, image patches36,37.
In this study, we combine a spatial homogeneity prior with feature selection by introducing a new CNN architecture relying on patch individual filter (PIF) layers. In contrast to standard convolutional layers, PIF layers do not perform weight sharing across the entire input but learn individual filters for each location in the data. Since we assume that individual filters are especially relevant for more abstract features, we only exchanged later layers with PIF layers. For early layers, we used standard convolutional layers to learn globally relevant low-level features such as edges and blobs. Therefore, PIF layers invoke feature selection in the latent space instead of the input space. In Fig. 3, we show that a CNN retains the broader spatial specificity of the input space along the convolutional layers, therefore splitting in the latent space is analogous to splitting in the input space.
We evaluated the PIF-architecture with respect to a baseline vanilla CNN-architecture, and a patch-based CNN architecture for three exemplary tasks within the neuroimaging domain; namely sex classification based on the UK Biobank imaging data38, Alzheimer’s disease (AD) detection based on the Alzheimer’s Disease Neuroimaging Initiative39 (ADNI) database and multiple sclerosis (MS) detection based on private data from Charité-Universitätsmedizin Berlin. We hypothesized that PIF layers should increase predictive performance in smaller data sets and reduce training time for all kinds of data sets. In all cases, the PIF architecture resulted in a faster convergence, measured by the time until early stopping occurred, while obtaining areas under the receiver operating characteristic curves (AUC ROC) that are statistically not separable from the simple baselines.
Related work
PIF layers can be understood as a generalization of local convolutions where the sum of patch size and padding size equals the kernel size (e.g., implemented in Lasagne https://lasagne.readthedocs.io/en/latest/modules/layers/local.html and Keras https://keras.io/layers/local/). In patch-based training5,40,41, multiple patches are sampled from the data set and fed into the same classifier regardless of the position of each patch. Since the filters of the classifier are applied on all patches, the weights are shared between patches. Conversely, within PIF layers, weights are only shared within a spatially restricted patch. PIF layers are similar to the splitting of layers in Split-CNN42. Split-CNN splits both the input and feature maps into patches to reduce memory usage of the network. In contrast to PIF layers, Split-CNN can split using stochastic patch locations but tends to degrade predictive performance in most cases. PIF layers are furthermore different from PatchGANs43,44 which use Markovian patches as input for a discriminator network to focus penalization on high-frequency structures. Another approach introduced in Kamyar et al.45 uses a greedy two-stage training strategy: first, a patch-wise model is trained, second, the input image is split into 12 patches and latent features of the first model are extracted, and lastly, those feature maps are concatenated to train a final classification network. Since the extracted feature maps are concatenated in order to create a spatially smaller 3D input for the classification network, weights are in turn again shared between the feature map patches. No other method uses the abstraction of neural networks to spatially restrict the weight sharing in later layers only.
Methods
Priors in machine learning
Priors are assumptions about the world which shape how a model learns. In a way, priors are similar to data but are used differently: “[...] any additional information beyond the immediate data \(D\) of the current problem is by definition ‘prior information’ ”46. In Bayesian learning, the Bayes Theorem
determines the probability of an event using a prior distribution \(P(H)\) together with the likelihood \(P(D|H)\) divided by the marginal distribution of the data \(P(D)\). In neuroimaging, an example is determining the probability that a person has Alzheimer’s disease given their MR image (posterior probability \(P(H|D)\)). We know a priori the incidence rate of the disease \(H\) in our society or data set (\(P(H)\)) and estimate the likelihood that someone shows signs of AD such as atrophy \(D\) in their MRI (\(P(D|H)\)), as well as the probability of having atrophy regardless of their diagnosis (\(P(D)\)). In deep learning, priors or inductive biases can be specific choices in the network design that are based on assumptions about the task. Common examples include the use of convolutions for enabling equivariance over space or recurrence for equivariance over time47. Here, the data is being used to train a model, while the prior is being used to define how to learn from the data. If the prior makes correct assumptions about the world, it might compensate for too little data and facilitate faster training.
Description of PIF layers
For the analysis of spatially homogeneous and normalized MRI data, we introduce in this section a new CNN architecture relying on PIF layers. Although we perform all experiments in 3D, we describe and visualize here the methods for simplicity in 2D. PIF layers consist of 3 stages: (i) split, (ii) process and (iii) reassemble. Each output feature map of the previous layer is first split (i) into patches of size \((s_{x} \times s_{y})\). Next, the patches \(p_{ij}\) centered at row \(i\) and column \(j\) of all feature maps are processed (ii) with a series of local convolutions of kernel size \((k_{x} \times k_{y})\).
In comparison to the convolution operation
in which a kernel \(K\) is convolved with an input \(I\), the PIF operation
applies a patch specific kernel \(K_p\) to the current patch \(p\), where \({\hat{m}}, {\hat{n}} \in p\) and \(P\) is the set of all patches \(p\). When \(s > k\), weights are shared within each patch \(p_{ij}\) but not across patches. Lastly, all patches are reassembled (iii) in the same order as they were split. Figure 4 shows an overview of the layer design. PIF layers can be easily integrated into many CNN architectures and can be modified to contain other layer types besides convolutions. An implementation using PyTorch can be found here: https://github.com/derEitel/patch_individual_filter_layer.
When splitting a feature map into patches, one creates artificial borders which could reduce training performance. Each patch has several new and unnatural borders. These borders potentially cut through objects that the network might learn as a whole. For example, the splitting could cause a feature map region representing the hippocampus to be split into two patches. The first downside is that this leads to potential border effects in areas that would normally not be affected. Second, a symptom such as hippocampal atrophy might only be visible in one of the patches, causing the two patches to disagree. Simply speaking, one patch might forward activations that support the disease class, while the other patch might inhibit activation, supporting the control class. To mitigate these issues we perform a parallel strain of network in which the patches are split with an overlap to the original split. Each original patch location \((x_o, y_o)\) is shifted by half its patch size to the overlapping location \((x_{ov}, y_{ov})\):
This way, patches are added in a minimalistic fashion, centralizing the overlap between existing patches while neglecting additional patches at the image borders that would require padding and are likely less informative. We train all patches by averaging the gradients between the overlapping and non-overlapping patches during the backward pass.
LRP visualization
Layer-wise relevance propagation (LRP) is a method to analyze the behavior of deep neural networks and other machine learning methods48. It has been used in several studies in MR imaging49,50,51 and it was shown that identified relevant regions can overlap with clinically established relevant brain regions such as the medial temporal lobe in Alzheimer’s disease11,52 and the corpus callosum in multiple sclerosis12. LRP uses backpropagation to transfer the output score of the network into the input space and therefore creates heatmaps that show the relevance of each pixel. We propagate the relevance following the \(\alpha\)/\(\beta\)-rule:
here, the relevance from layer \(R^{l+1}\) is backpropagated to its preceding layer \(R^{l}\). Activations are divided into positive and negative contributions (\(z^{+/-}_{ij})\) between nodes \(i\) and \(j\). Additionally, activations are normalized with the sum of the positive/negative activations from that layer. The hyperparameters \(\alpha\) and \(\beta\) need to be tuned and are confined to \(\alpha = 1 + \beta\). In this study, we set \(\beta = 4\) which we found to work well in practice. Typically, one invokes the LRP backpropagation with the activation of the final layer, here we furthermore start with the activation of hidden neurons to obtain the relevance of a specific filter within the network. The adaptation of the LRP algorithm to the PIF layers requires splitting of the relevance in the same manner as we split the gradients during training. The relevance from the overlapping patches is simply averaged with the relevance from the non-overlapping patches.
Experiments
Model architecture
Based on the theoretical motivation, we compare here a baseline CNN model, whose architecture was optimized for the given task, to the same CNN architecture in which the final convolutional layer (before fully-connected layers) was replaced with a PIF layer (see Fig. 5). The model architecture is a shallow VGG-inspired53 CNN which contains only convolutional, max pooling, and fully-connected layers. Two variants, model A and model B, with 4 or 5 convolutional layers, as well as differences in their number of filters were used to test the effect of different model capacities. By using two architecture settings we avoid mistaking the effects of feature count for the effect of the PIF layer itself. In our experiments, on each data split, both the baseline and the PIF model were given a higher, a lower as well as an approximately even feature count. While the general architecture is the same for all data sets, slight modifications were necessary to match the dimensionality of the data. The deviations from Fig. 5 for each data set are depicted in the Supplementary Appendix. Additionally, we have tested a patch-based architecture which we adapted from Liu et al.54. The patch-based architecture in Liu et al.54 contains 4 convolutional layers and 2 fully-connected layers. Here, we apply it on patches obtained by splitting the input image into 2 \(\times\) 3 \(\times\) 2 patches across the x, y, and z dimensions. The exact implementation of all experiments can be found here: https://github.com/derEitel/patch_individual_filter_layer.
Data augmentation and transformation
For data augmentation, we used translation and flipping along the sagittal axis, which are typical augmentations in neuroimaging55,56,57. We applied data augmentation only to the UK Biobank and the ADNI data, but not to the MS data set, since here the validation performance was reduced when using data augmentation. For the PIF architecture, we performed only translation and not flipping, since the PIF layer requires patches to have the same content during each training iteration. All images were intensity normalized by dividing each by its maximum value before training.
Validation
The models were compared using both their predictive performance and their convergence speed. The predictive performance was measured using the area under the receiver operating characteristic curve (AUC ROC), balanced accuracy, sensitivity, and specificity. To evaluate the hypothesis that PIF architectures require fewer training iterations, we measured the number of iterations until early stopping occurs. Early stopping is a kind of regularization, which forces the model to end training after the performance has not improved for a fixed amount of iterations. Early stopping can also be caused by a model not being able to leave the initial optimization basin or being stuck in a poor local minimum, hence using the number of early stopping iterations as a measure of convergence is only feasible when the model achieves a good predictive performance. Furthermore, we investigated the training time of each experiment in seconds to measure its efficiency. All models have been run on the same computing system to avoid hardware-based effects on the training time.
As the results of CNNs can considerably vary between single training runs on neuroimaging data56, we run each experiment several times. Specifically, we follow the recommendations in Varoquaux et al.25 and repeat our experiments in 10 outer folds, each time randomly sampling the data into training, validation, and test sets. For each of the 10 data splits, we run hyperparameter optimization on the validation set by performing 5 experiments with randomly sampled hyperparameters from Table 1. We defined that both architecture variants needed to be sampled at least two times within five repetitions, whereas all other parameters had no sampling constraints. The best hyperparameter settings per validation set are then used on the independent test set, leading to 10 test scores which were averaged to present the final model performance. In total, this leads to training each model 50 times. As the run time on the full UK Biobank data set is prohibitively long, two instead of 10 random data splits were used on that data set.
Data sets
To study the effect of PIF layers we have compared the performance on three different structural MRI data sets. As we hypothesize that PIF layers should need fewer training examples to learn relevant features, we have run an additional comparison on a randomly sampled 20% subset of the selected UK Biobank and ADNI data sets. As the number of samples for the MS data set is already small, we did not use a subset here. All methods were carried out in accordance with relevant guidelines and regulations.
UK Biobank
For this study, 1854 T1-weighted images (MPRAGE, 3 Tesla) from the UK Biobank38 (www.ukbiobank.ac.uk) were randomly chosen to train a sex detection classifier. The MR images were obtained pre-processed from the UK Biobank repository combining data from several sites and scanners. The pre-processing pipeline included defacing, reduction of the field of view to remove empty space around the brain, and gradient distortion correction. Furthermore, images were non-linearly transformed to MNI152 space using the FMRIB Software Library18 (FSL). The final image size is 182 \(\times\) 218 \(\times\) 182 voxels. The target of the trained classifiers is to distinguish between female (n = 1005) and male (n = 849) brains. Data was split for each of the 10 repetitions into separate test (20%), validation (16%), and training (64%) sets.
ADNI
969 T1-weighted images (MPRAGE, 1.5 Tesla) from the Alzheimer’s Disease Neuroimaging Initiative39 (ADNI; www.adni.loni.usc.edu) database were used to discriminate subjects with Alzheimer’s disease (AD) from healthy controls (HCs). The ADNI was launched in 2003 as a public-private partnership, led by Principal Investigator Michael W. Weiner, MD. The primary goal of ADNI has been to test whether serial magnetic resonance imaging (MRI), positron emission tomography (PET), other biological markers, and clinical and neuropsychological assessment can be combined to measure the progression of mild cognitive impairment (MCI) and early Alzheimer’s disease (AD). The MR images come from different sites and scanners and were downloaded partially pre-processed. Already applied pre-processing steps included corrections for gradient non-linearity, intensity inhomogeneity, and phantom-based distortion. We furthermore registered all images to the ICBM152 standard template (asymmetric version 2009c at 1 mm) using non-linear registration from the Advanced Normalization Tools19 (ANTs). The final image size has been reduced to 96 \(\times\) 114 \(\times\) 96. The images stem from 193 AD patients and 151 HCs with up to three time points. To avoid data leakage, splitting of the data set for each repetition was done on the patient level and not on the image level leading to disjoint test (18%), validation (10%), and training (72%) sets.
VIMS
147 fluid-attenuated inversion recovery (FLAIR, 3 Tesla) images from the VIMS study (https://neurocure.de/en/clinical-center/clinical-studies/current-studies.html) of the NeuroCure center at Charité-Universitätsmedizin Berlin were used to separate patients with relapse-remitting multiple sclerosis (MS) and healthy controls (please see also Eitel et al.12). All images were acquired from the same 3T scanner (Tim Trio Siemens, Erlangen, Germany). After bias-field correction and robust field of view selection, the corresponding MPRAGE sequences were linearly registered to MNI space using FSL18. FLAIR images were then co-registered to the MPRAGE images using spline interpolation. The final image size has been reduced to 96 \(\times\) 114 \(\times\) 96. 76 images stem from patients with relapsing-remitting multiple sclerosis (MS) according to the 2010 McDonald criteria58, and the remaining 71 images stem from healthy controls. As the data set is small we dedicated a larger portion to the training set leading to splits of 15% for testing, 8.5% validation, and 76.5% training in each repetition.
Results and discussion
Table 2 shows the predictive performance results from all models averaged over 10 randomly selected test sets (2 in case of the large UK Biobank data set). The predictive performance between baseline and PIF model are almost identical for most metrics. For example, the AUC ROC on the full UK Biobank data (baseline 98.81%; PIF 99.10%) and on the full ADNI data set (baseline 88.89%; PIF 86.88%) differ only slightly, with the leading algorithm switching from experiment to experiment. This shows that the introduction of the PIF layer does not alter the predictive performance of the CNN. Otherwise, both baseline and PIF architecture strongly outperformed the patch-based approach in almost all metrics. The ROC curves are shown in Fig. 7 and Supplementary Fig. 2 in the Appendix. All results of the baseline and PIF model are comparable to those obtained in the current literature (sex classification59,60,61; AD detection62; MS detection12), however due to the large impact of different data sets, data splits, weight initialization and other factors of variance63 a direct comparison of accuracies between studies has little meaning. As noted in Wen et al.62 shallow models consisting of only convolutional and fully-connected layers are usually sufficient for classification on MR images and the exact number of layers has less influence than other factors of variation. We similarly found that neither model configuration A nor B was chosen more often than the other across all experiments.
Based on our results, we reject the hypothesis that PIF layers reduce the number of samples required to train a model. While we were expecting similar predictive performances between baseline and PIF model on the large data sets, we were expecting better predictive performances on the small data sets. However, in contrast to other work utilizing the splitting of feature maps42, we did not find a degradation of predictive performance either.
Figure 6 shows the training time of all experiments both in seconds and the number of iterations. Here, we compare all 50 runs (10 for the large UK Biobank data set) in terms of their training time since we are interested in reducing the overall time to train a model. In all experiments we can see that the PIF model strongly outperforms both patch-based and baseline models. Notably, on the ADNI small data set the PIF layer reduces the training time by almost 28% from 511.42 to 369.16 s and on the large UK Biobank data set by 25% from 20577.2 to 15331.8 s in comparison to the baseline.
For the number of iterations, the difference between baseline and patch-based approach was also highly apparent. On all but the ADNI big data set the average number of iterations until convergence has dropped largely by up to 24%. The number of iterations required for the patch-based model to converge is much larger than both baseline and PIF model on all data sets.
Increasing the resource efficiency of neural networks is an important challenge in order to reduce their \(CO_2\) footprint and enable a wider spread of research into departments with tight limitations on expensive computing resources such as GPUs26. Similarly, Sze et al.64 stated that “techniques that enable efficient processing of DNNs [deep neural networks] to improve energy efficiency and throughput without sacrificing application accuracy or increasing hardware costs are critical to the wide deployment of DNNs in AI systems”. By using PIF layers researchers applying deep learning in neuroscience can reduce their model training time by up to 28%.
Heatmap analysis
We created several LRP heatmaps to support the motivation for PIF layers and determine differences caused by the addition of a PIF layer. Since the UK Biobank data set has the largest sample size and both baseline and the proposed architecture achieved a high, very similar performance, we only show visualizations for the UK Biobank data. For evaluation, a high predictive performance is important, while differences between the models’ performances should be small. Otherwise, it remains unclear whether differences come from a gap in performance or the architecture itself. The figures shown are based on the selected models after hyperparameter search from the first outer fold, which was run on the test set.
First, we used the baseline model to investigate whether higher layer features in a CNN trained on MRI data will have a more localized focus than features from lower layers do. We generated LRP heatmaps using the outputs of both the intermediary and the final output layer (Fig. 7). Figure 8 shows the heatmaps obtained by backpropagating the activations of 4 randomly selected filters in convolutional layers 3 and 4 as well as the heatmap of the model output. The comparison between the heatmaps of convolutional layers 3 and 4 shows that the lower layer has more connected and dense heatmaps across all shown filters whereas the higher layers have more sparse heatmaps with several regions showing no activity, such as the right inferior and medial temporal lobes in filters 60 and 15 and parts of the cerebellum in filters 4 and 15. The LRP heatmap of the model score on the other hand does not portray these empty regions. As the final output is a combination of all convolutional filters the heatmap becomes more holistic and dense again. Nevertheless, trends emerge in many layer 5 filters which are reflected in the final output, such as a lower focus on the edge of the right inferior temporal lobe. This shows that the filters of the last convolutional layer tend to be more locally specific in the baseline architecture. As the PIF architecture enforces this higher layer locality through its feature map patches, it could be one of the causes of its faster convergence over the baseline.

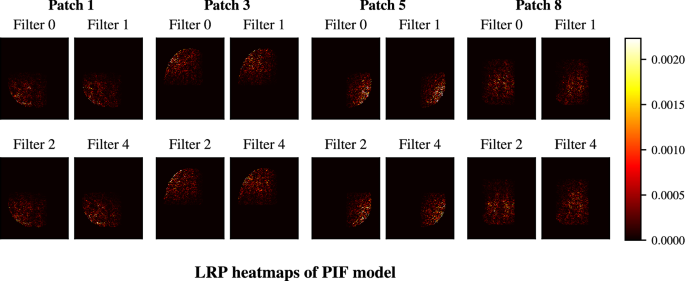

Next, we compared heatmaps from the baseline model to the proposed PIF architecture. Figure 9 shows the heatmaps of the UK Biobank PIF architecture, obtained from the PIF layer. Here, the locality due to the patches is highly apparent. Patches 1, 3, and 5 represent different quadrants, whereas patch 8 is an overlapping patch that is in the center of the image. Beyond that, the layer 4 heatmaps of the PIF model, as depicted in Fig. 10, show that the sparseness occurring in baseline layer 4 does not simply move down to layer 3 in the PIF model. If this had been the case, it could have been an indicator that the PIF layer does not add any disentanglement value and that the remaining model is able to learn similar features with a smaller capacity. Here, we can rather see that the layer 3 heatmaps between baseline and PIF model seem to be very similar in terms of general structure, indicating that the PIF layer does not obstruct the general learning performance of the CNN. Finally, the LRP heatmap of the final output in Fig. 10 shows a strong resemblance to the baseline heatmap in Fig. 8, although it is slightly less noisy.
Limitations
The major limitation of PIF layers is that it requires all examples to be spatially standardized. By design PIF layers require spatial homogeneity and ideally registration, while all inputs need to have the same number of features per dimension (e.g. same number of voxels). As the pre-processing was optimized for each data set individually, this refrained us from training a single classifier on all presented tasks. Nevertheless, when MRI data, as well as pre-processing pipelines, become more and more standardized, a holistic architecture might become conceivable. Furthermore, we have recently shown that linear and non-linear pre-processing of structural MRI increases the balanced accuracy on AD detection by 6–7% using a vanilla CNN65. This shows that the lengthy pre-processing process, which we assume a requirement for PIF layers, is also vital for achieving competitive results with other CNN architectures and henceforth, we have not considered the pre-processing times in this study. Potential border effects pose another limitation. While we reduced the risk of splitting important objects by using overlapping patches, we thereby introduced additional artificial borders which might be unfavorable and their effect should be addressed in future studies. Next, due to many ways to pre-process and split the data as well as large hyperparameter spaces, it is generally difficult to compare different deep learning algorithms, and thus we can not rule out that better configurations for each of the tasks exist. To keep the comparison as simple as possible, we only used randomly initialized CNN baselines. Lastly, backpropagation-based attribution methods such as LRP, which we have used to produce heatmaps in Figs. 8, 9 and 10, have lately been criticized in their ability to show relevant features about the given task66,67. However, in the setting of this study, the heatmaps were not used to determine causal relationships in the input–output mapping but solely to investigate the locality of different layers. Future studies might investigate the effect of transfer learning, combining several modalities and other validation strategies.
Conclusion
In this study, we have introduced PIF layers for CNNs. Based on the understanding that higher level layers learn more abstract and localized features, we have reinforced that learning direction by splitting higher level feature maps into patches and learning CNN features without weight-sharing between those patches. In scenarios where data is naturally homogeneous or spatially normalized, PIF layers can be introduced in order to reduce training time and the number of iterations until model convergence. PIF layers can be used in the same way as convolutional layers and do not degrade model performance, unlike other splitting methods42. They can be seen as introducing a spatial prior into the neural network model. Based on further knowledge about the data, one could tune this prior by adjusting the patch size to the size of a certain biomarker or relevant sub-regions in an image or could weigh patches based on a pre-defined hypothesis. Potential future applications are other standardized medical sets, e.g., coming from other modalities (PET, CT, other MRI sequences, etc.) or other parts of the body also requiring normalization. Tasks that require even more regional specificity, such as segmentation, might profit from the application of PIF layers as well.
References
Litjens, G. et al. A survey on deep learning in medical image analysis. Med. Image Anal. 42, 60–88 (2017).
Vieira, S., Pinaya, W. H. & Mechelli, A. Using deep learning to investigate the neuroimaging correlates of psychiatric and neurological disorders: Methods and applications. Neurosci. Biobehav. Rev. 74, 58–75 (2017).
Cole, J. H. et al. Predicting brain age with deep learning from raw imaging data results in a reliable and heritable biomarker. NeuroImage 163, 115–124 (2017).
Lundervold, A. S. & Lundervold, A. An overview of deep learning in medical imaging focusing on MRI. Zeitschrift für Medizinische Physik 29, 102–127 (2019).
Kamnitsas, K. et al. Deepmedic for brain tumor segmentation. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries (eds. Crimi, A. et al.) 138–149 (Springer International Publishing, 2016).
Kamnitsas, K. et al. Efficient multi-scale 3d cnn with fully connected crf for accurate brain lesion segmentation. Med. Image Anal. 36, 61–78 (2017).
Livne, M. et al. A U-net deep learning framework for high performance vessel segmentation in patients with cerebrovascular disease. Front. Neurosci. 13, 97 (2019).
Nair, T., Precup, D., Arnold, D. L. & Arbel, T. Exploring uncertainty measures in deep networks for multiple sclerosis lesion detection and segmentation. Med. Image Anal. 59, 101557 (2020).
Korolev, S., Safiullin, A., Belyaev, M. & Dodonova, Y. Residual and plain convolutional neural networks for 3d brain MRI classification. In 2017 IEEE 14th International Symposium on Biomedical Imaging (ISBI 2017), 835–838 (IEEE, 2017).
Rieke, J., Eitel, F., Weygandt, M., Haynes, J. D. & Ritter, K. Visualizing convolutional networks for MRI-based diagnosis of alzheimer’s disease. In Lecture Notes in Computer Science (Including Subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics), vol. 11038 LNCS, 24–31 (Springer, 2018).
Böhle, M., Eitel, F., Weygandt, M. & Ritter, K. Layer-wise relevance propagation for explaining deep neural network decisions in MRI-based Alzheimer’s disease classification. Front. Aging Neurosci. 11, 194 (2019).
Eitel, F. et al. Uncovering convolutional neural network decisions for diagnosing multiple sclerosis on conventional MRI using layer-wise relevance propagation. NeuroImage Clin. 24, 102003 (2019).
Guan, Z., Kumar, R., Fung, Y. R., Wu, Y. & Fiterau, M. A comprehensive study of Alzheimer’s disease classification using convolutional neural networks. CoRR abs/1904.07950 (2019).
Ashburner, J. Computational Neuroanatomy. Ph.D. thesis, University College London (2000).
Avants, B., Epstein, C., Grossman, M. & Gee, J. Symmetric diffeomorphic image registration with cross-correlation: Evaluating automated labeling of elderly and neurodegenerative brain. Med. Image Anal. 12, 26–41 (2008) (Special Issue on The Third International Workshop on Biomedical Image Registration-WBIR 2006).
Fonov, V. et al. Unbiased average age-appropriate atlases for pediatric studies. NeuroImage 54, 313–327 (2011).
Friston, K. J. Statistical Parametric Mapping. (Academic Press, 1994).
Jenkinson, M., Beckmann, C. F., Behrens, T. E., Woolrich, M. W. & Smith, S. M. Fsl. Neuroimage 62, 782–790 (2012).
Avants, B. B. et al. Advanced normalization tools (ants). Insight J. 2, 1–35 (2009).
Kriegeskorte, N., Goebel, R. & Bandettini, P. Information-based functional brain mapping. Proc. Natl. Acad. Sci. 103, 3863–3868 (2006).
Weygandt, M. et al. MRI pattern recognition in multiple sclerosis normal-appearing brain areas. PLoS One 6, e21138 (2011).
Haxby, J. V., Connolly, A. C. & Guntupalli, J. S. Decoding neural representational spaces using multivariate pattern analysis. Annu. Rev. Neurosci. 37, 435–456 (2014) (PMID: 25002277).
Haynes, J.-D. A primer on pattern-based approaches to fMRI: Principles, pitfalls, and perspectives. Neuron 87, 257–270 (2015).
Varoquaux, G. Cross-validation failure: Small sample sizes lead to large error bars. NeuroImage 180, 68–77 (2018) (New advances in encoding and decoding of brain signals.).
Varoquaux, G. et al. Assessing and tuning brain decoders: Cross-validation, caveats, and guidelines. NeuroImage 145, 166–179 (2017).
Schwartz, R., Dodge, J., Smith, N. A. & Etzioni, O. Green AI. CoRR abs/1907.10597 (2019).
Chong, M. et al. Individual parcellation of resting fMRI with a group functional connectivity prior. NeuroImage 156, 87–100 (2017).
Varoquaux, G., Gramfort, A., Baptiste Poline, J. & Thirion, B. Brain covariance selection: Better individual functional connectivity models using population prior. In Advances in Neural Information Processing Systems 23 (eds. Lafferty, J. D. et al.) 2334–2342 (Curran Associates, Inc., 2010).
Woolrich, M. W. et al. Bayesian analysis of neuroimaging data in fsl. NeuroImage 45, S173–S186 (2009) (Mathematics in Brain Imaging).
Dalca, A. V. et al. Unsupervised deep learning for Bayesian brain MRI segmentation. In International Conference on Medical Image Computing and Computer-Assisted Intervention, 356–365 (Springer, 2019).
Novosad, P., Fonov, V., Collins, D. L. & Initiative, A. D. N. Accurate and robust segmentation of neuroanatomy in t1-weighted MRI by combining spatial priors with deep convolutional neural networks. Hum. Brain Mapp. 41, 309–327 (2020).
Choupan, J. et al. Spatiotemporal feature selection improves prediction accuracy of multi-voxel pattern classification. bioRxiv (2019).
Genovese, C. R., Lazar, N. A. & Nichols, T. Thresholding of statistical maps in functional neuroimaging using the false discovery rate. Neuroimage 15, 870–878 (2002).
Poldrack, R. A. et al. Guidelines for reporting an fMRI study. NeuroImage 40, 409–414 (2008).
Pernet, C., Latinus, M., Nichols, T. & Rousselet, G. Cluster-based computational methods for mass univariate analyses of event-related brain potentials/fields: A simulation study. J. Neurosci. Methods 250, 85–93 (2015) (Cutting-edge EEG Methods).
Greenstein, D., Weisinger, B., Malley, J., Clasen, L. & Gogtay, N. Using multivariate machine learning methods and structural MRI to classify childhood onset schizophrenia and healthy controls. Front. Psychiatry 3, 53 (2012).
Srivastava, S., Eitel, F. & Ritter, K. Predicting fluid intelligence in adolescent brain MRI data: An ensemble approach. In Adolescent Brain Cognitive Development Neurocognitive Prediction (eds. Pohl, K. M., Thompson, W. K., Adeli, E. & Linguraru, M. G.) 74–82 (Springer International Publishing, 2019).
Sudlow, C. et al. Uk biobank: An open access resource for identifying the causes of a wide range of complex diseases of middle and old age. PLOS Med. 12, 1–10. https://doi.org/10.1371/journal.pmed.1001779 (2015).
Jack, C. R. Jr. et al. The Alzheimer’s disease neuroimaging initiative (ADNI): MRI methods. J. Magn. Reson. Imaging 27, 685–691 (2008).
Ghafoorian, M. et al. Deep multi-scale location-aware 3D convolutional neural networks for automated detection of lacunes of presumed vascular origin. NeuroImage. Clin. 14, 391–399 (2017).
Yoo, Y. et al. Deep learning of joint myelin and T1w MRI features in normal-appearing brain tissue to distinguish between multiple sclerosis patients and healthy controls. NeuroImage Clin. 17, 169–178 (2018).
Jin, T. & Hong, S. Split-cnn: Splitting window-based operations in convolutional neural networks for memory system optimization. In Proceedings of the Twenty-Fourth International Conference on Architectural Support for Programming Languages and Operating Systems, 835–847 (2019).
Li, C. & Wand, M. Precomputed real-time texture synthesis with markovian generative adversarial networks. In European Conference on Computer Vision, 702–716 (Springer, 2016).
Isola, P., Zhu, J.-Y., Zhou, T. & Efros, A. A. Image-to-image translation with conditional adversarial networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 1125–1134 (2017).
Nazeri, K., Aminpour, A. & Ebrahimi, M. Two-stage convolutional neural network for breast cancer histology image classification. In Image Analysis and Recognition (eds. Campilho, A., Karray, F. & ter Haar Romeny, B.) 717–726 (Springer International Publishing, 2018).
Jaynes, E. T. Probability Theory: The Logic of Science (Washington University, 1996).
Goyal, A. & Bengio, Y. Inductive biases for deep learning of higher-level cognition. arXiv preprint arXiv:2011.15091 (2020).
Bach, S. et al. On pixel-wise explanations for non-linear classifier decisions by layer-wise relevance propagation. PLoS One 10, e0130140 (2015).
Yan, W. et al. Discriminating schizophrenia from normal controls using resting state functional network connectivity: A deep neural network and layer-wise relevance propagation method. In 2017 IEEE 27th International Workshop on Machine Learning for Signal Processing (MLSP), 1–6 (2017).
Grigorescu, I. et al. Interpretable convolutional neural networks for preterm birth classification. arXiv: Image and Video Processing (2019).
Islam, J. & Zhang, Y. Understanding 3d CNN behavior for Alzheimer’s disease diagnosis from brain pet scan. arXiv preprintarXiv:1912.04563 (2019).
Oh, K., Chung, Y.-C., Kim, K. W., Kim, W.-S. & Oh, I.-S. Classification and visualization of Alzheimer’s disease using volumetric convolutional neural network and transfer learning. Sci. Rep. 9, 1–16 (2019).
Simonyan, K. & Zisserman, A. Very deep convolutional networks for large-scale image recognition. arXiv preprintarXiv:1409.1556 (2014).
Liu, M., Cheng, D., Wang, K. & Wang, Y. Multi-modality cascaded convolutional neural networks for Alzheimer’s disease diagnosis. Neuroinformatics 16, 295–308 (2018).
Esmaeilzadeh, S., Belivanis, D. I., Pohl, K. M. & Adeli, E. End-to-end Alzheimer’s disease diagnosis and biomarker identification. In International Workshop on Machine Learning in Medical Imaging, 337–345 (Springer, 2018).
Eitel, F. & Ritter, K. Testing the robustness of attribution methods for convolutional neural networks in MRI-based Alzheimer’s disease classification. In (eds. Suzuki, K. et al.) Interpretability of Machine Intelligence in Medical Image Computing and Multimodal Learning for Clinical Decision Support, 3–11 (Springer International Publishing, 2019).
Basaia, S. et al. Automated classification of Alzheimer’s disease and mild cognitive impairment using a single MRI and deep neural networks. NeuroImage Clin. 21, 101645 (2019).
Polman, C. H. et al. Diagnostic criteria for multiple sclerosis: 2010 revisions to the mcdonald criteria. Ann. Neurol. 69, 292–302 (2011).
Hu, D., Luo, Z. & Zhao, L. Gender identification based on human brain structural MRI with a multi-layer 3d convolution extreme learning machine. Cogn. Comput. Syst. 1, 91–96 (2019).
Anderson, N. E. et al. Machine learning of brain gray matter differentiates sex in a large forensic sample. Hum. Brain Mapp. 40, 1496–1506 (2019).
Schulz, M.-A. et al. Deep learning for brains? Different linear and nonlinear scaling in UK biobank brain images vs. machine-learning datasets. bioRxiv (2019).
Wen, J. et al. Convolutional neural networks for classification of Alzheimer’s disease: Overview and reproducible evaluation. Med. Image Anal. 63, 101694 (2020).
Bouthillier, X. et al. Accounting for variance in machine learning benchmarks. Proc. Mach. Learn. Syst. 3 (2021).
Sze, V., Chen, Y.-H., Yang, T.-J. & Emer, J. S. Efficient processing of deep neural networks: A tutorial and survey. Proc. IEEE 105, 2295–2329 (2017).
Klingenberg, M., Stark, D., Eitel, F. & Ritter, K. Mri image registration considerably improves CNN-based disease classification. In Proceedings of the Machine Learning in Clinical Neuroimaging Workshop at MICCAI 2021 (2021).
Adebayo, J. et al. Sanity checks for saliency maps. arXiv preprintarXiv:1810.03292 (2018).
Sixt, L., Granz, M. & Landgraf, T. When explanations lie: Why many modified BP attributions fail. arXiv arXiv-1912 (2019).
