INTRODUCTION

Although the major burst of gene expression occurs during the two-cell stage in mice, recent evidence suggest that the one-cell-stage embryo is transcriptional active, and the male pronucleus (PN) supports a significantly higher level of transcription than the female PN 1. This discrepancy may be attributed to the protamine-histone exchange that occurs in the male PN soon after fertilization. Compared to the female PN, the male PN has a larger volume, higher concentrations of transcription factors, higher levels of histone acetylation 2, 3, 4, undergoes extensive DNA demethylation 5, and is more sensitive to DNase I digestion 6. Thus, the male and female genomes are asymmetric in many aspects during the one-cell stage. However, it has not been clarified whether these differences remain after cleavage to the two-cell stage, when the chromosomes of two parental origins are unified in the nucleus.

The transcriptional programs of the eukaryotic cell are closely correlated with the cell cycle, for example, sequence-specific transcription factors are displaced from mitotic chromatin and then transcription ceases 7. Therefore, we hypothesized that the asymmetry between the two parental genomes could be lost during the first mitosis. However, it used to be difficult to address this possibility, since it's very hard to inhibit the mingling of parental genomes during the first mitosis. The parental genomes are mixed when the zygote enters into the metaphase of the first cell cycle, and are subsequently distributed equally to the two nuclei when exiting the interphase of the two-cell stage. In this study, a new method was developed, which could specifically inhibit the mixing of parental genomes during the first mitosis while permitting chromatin condensation and nuclei formation. Using this method, we demonstrated that the asymmetries of pronuclear volume and transcriptional activity between the male and female genomes was somewhat lost during the first mitosis.

MATERIALS AND METHODS

In vitro fertilization and culturing of embryos

Female mice at 21-23 d (ddY-SLC; SLC, Shizuoka, Japan) were superovulated with 5 IU of pregnant mare serum gonadotropin (Sankyo Co., Ltd., Tokyo, Japan) and treated 48 h later with 5 IU of human chorionic gonadotropin (hCG; Sankyo). Oocytes were collected in Whitten's medium 8 from the ampullae of the oviduct 15-16 h after hCG injection. Sperm were obtained from the cauda epididymis of the mature male ICR mouse and added into Whitten's medium. Oocytes were inseminated with capacitated sperm that had been initially incubated for 2 h at 37°C. Four hours after insemination, the embryos were washed with glucose-free CZB medium 9 and cultured in a humidified incubator of 5% CO2/95% air at 37°C. To inhibit the first round of DNA replication, embryos were exposed to 3 μg/ml aphidicolin before the zygotes entered the S phase.

Treatment of nocodazole and 6-dimethylaminopurine (6-DMAP) to produce PM-embryos

A new method was designed to produce embryos in which the parental genomes separate form the nuclei in a single karyocyte after exiting from the first mitosis. These embryos were designated as post-mitotic embryos (PM-embryos). Embryos with two pronuclei were collected 12 h after insemination and transferred into CZB medium containing 0.5 μg/ml nocodazole, in order to arrest the cell cycle at metaphase. Four hours later, 8 mM 6-DMAP was added to the medium. Nuclei were formed after being cultured for 3 h in the presence of nocodazole and 6-DMAP. The embryos were then washed and cultured in CZB medium without treatment for 5 h, and the volumes and transcriptional activities of the nuclei were examined.

Measurement of nuclear volume

Embryos were fixed in 3.7% paraformaldehyde and stained with 3 μg/ml 4,6-diamidino-2-phenylindole (DAPI) for 20 min. The cells were mounted on a slide in the anti-bleaching solution Vectashield (Vector Laboratories, Burlingame, CA, USA). Measurements of pronucleus/nucleus volume were carried out using a Leica TCS SP2 laser-scanning confocal microscope. The pronucleus/nucleus volumes of the embryos were obtained by multiplying the maximum pronucleus/nucleus sections by the thickness of pronucleus/nucleus along the z-axis. For each embryo, the ratio of the volume of the male pronucleus to that of the female pronucleus was calculated.

Immunochemistry stainning

Embryos were washed in PBS containing 3 mg/ml polyvinylpyrrolidone (PBS/PVP), fixed for 1 h in 3.7% paraformaldehyde in PBS, and permeabilized with 0.5% Triton X-100 in PBS for 20 min at room temperature. Then the cells were incubated for 1 h with a 1:200 dilution of the rabbit polyclonal antibody which specially recognizes dimethyl-lysine 9 on histone H3 (MeH3K9) (Upstate Biotechnology, Lake Placid, NY, USA), and then for 1 h with a secondary FITC-conjugated antibody (Jackson ImmunoResearch, West Grove, PA, USA). DAPI was used to mark the DNA of the cells. The cells were mounted on a glass slide in Vectashield and the fluorescence was detected using a Leica TCS SP2 laser-scanning confocal microscope.

In vitro transcription assay

The transcriptional activities of the embryos were determined by measuring the incorporation of 5-bromouridine-5-triphosphate (BrUTP; Sigma Chemical Co., St. Louis, MO, USA) into plasma membrane-permeabilized embryos 1. Briefly, the plasma membranes of the embryos were permeabilized by treatment with 0.05% Triton X-100 for 1-2 min. Permeabilized embryos were subjected to in vitro transcription reactions in which UTP was replaced by BrUTP in the reaction mixture. After incubation for 15 min at 33°C, the embryos were fixed overnight with 3.7% paraformaldehyde. Permeabilization of the nuclear membranes was performed on fixed oocytes with 0.2% Triton X-100 for 3 min. Incorporated BrU was detected by immunostaining with an anti-BrdU antibody, together with a Cy3-conjugated anti-mouse IgG secondary antibody (Jackson ImmunoResearch, PA, USA). In order to identify the male and female nuclei in the PM-embryos, the samples were counterstained with the anti-MeH3K9 antibody. Fluorescence was detected using the Leica TCS SP2 laser-scanning confocal microscope, and the signal intensity was quantified using NIH Image software. The pixel value/unit area was measured for the nucleus, and the average value of the two different regions of the cytoplasm was subtracted as background. This value was multiplied by the nuclear area to yield the total amount of fluorescence in the nucleus. Embryos were flattened to an extent such that the area could reflect the volume after permeabilization of the plasma membranes with 0.05% Triton X-100. For each embryo, the ratio of male to female pronucleus/nucleus transcriptional activity was calculated.

RESULTS

Production of PM-embryos by treatment with nocodazole and 6-DMAP

Male and female pronuclei began to form at 4 h after insemination (Fig. 1A), and the parental genomes combined and arrayed at the same equator when the embryos entered the M phase at 16 h after insemination (Fig. 1B). Initially, the embryos were arrested at metaphase by treatment with nocodazole, which is an inhibitor of microtubule organization. In these embryos, unification of male and female chromosomes was prevented, and these chromosomes were separated into two masses (Fig. 1C). Next, 6-DMAP was added to induce nuclear membrane formation in the nocodazole-treated embryos. We found that the embryos that had been arrested at metaphase by nocodazole formed two nuclei in the presence of 6-DMAP (Fig. 1D). In these nuclei, the chromosomes were decondensed. Moreover, we found that the formation of nuclei in the nocodazole-treated embryos depended on the concentration of 6-DMAP (Fig. 2). Although 2 mM 6-DMAP did not induce any nuclei formation (0/27), 4 mM and 8 mM doses of 6-DMAP induced the formation of nuclei in 46.8% (22/47) and 97.4% (76/78) of embryos, respectively.

Figure 1
figure 1

Confocal microscopy of one-cell embryos stained with DAPI. PM-embryos were produced by treatment with nocodazole and 6-DMAP. Embryos with two pronuclei were culled 12 h after insemination and transferred into CZB medium that contained 0.5 μg/ml nocodazole, to arrest the cell cycle at metaphase. Four hours later, 8 mM 6-DMAP was added to the medium. Nuclei were formed after culturing for 3 h in the presence of nocodazole and 6-DMAP. (A) One-cell embryo 6 h after insemination. (B) One-cell embryo 16 h after insemination (at M phase). (C) One-cell embryo arrested at the M phase by nocodazole treatment. (D) A PM-embryo.

Full size image
Figure 2
figure 2

Effect of 6-DMAP on the formation of nuclei. The percentages of nuclei formation in the embryos treated with various concentration of 6-DMAP are shown. The formation of nuclei was examined 3 h after 6-DMAP treatment. The numbers of embryos analyzed in the control group (0 mM), 6-DMAP-treated groups (2 mM, 4 mM, and 8 mM) were 50, 27, 47, and 78, respectively.

Full size image

To confirm that the nuclei in the PM-embryos were derived from maternal and paternal genomes, the H3K9 methylation patterns of the PM-embryos were examined. It has been reported that while H3K9 is methylated asymmetrically in the genomes of maternal and paternal origin in one-cell embryos, only the female genome is highly methylated on H3K9 10, 11, and that this asymmetry is maintained after the cleavage into the two-cell stage 12. In the present study, we confirmed that the maternal genome showed a high level of H3K9 methylation whereas the paternal genome did not in one-cell embryos (Fig. 3A). Similar methylation pattern was observed in the two chromosome masses separated in the metaphase-arrested embryos following nocodazole treatment (Fig. 3B), as well as in the two nuclei formed by subsequent treatment with 6-DMAP (Fig. 3C). These results demonstrate that maternal and paternal genomes have passed through the M phase and entered interphase reside separately in the two nuclei.

Figure 3
figure 3

Methylation of lysine 9 on histone H3 (H3/K9-Met) in one-cell embryos. Embryos were immunostained and the images were taken by a laser-scanning confocal microscope. (A, D) One-cell embryo 6 h after fertilization. (B, E) One-cell embryo arrested at the M phase by nocodazole. (C, F) A PM-embryo. DAPI stainning was used to mark the DNA of the cells (upper panel).

Full size image

Disappearance of the nuclear volume asymmetry between the two nuclei in the PM-embryo

In one-cell mouse embryos, the volume of the male pronucleus was larger than that of the female pronucleus: 1.69-fold at the G1 phase (6 h after insemination) and 1.64-fold at the G2 phase (12 h after insemination) (Fig. 4). This asymmetry of pronucleus volume was maintained up to 24 h after insemination when the embryos were exposed to the treatment of aphidicolin to inhibit DNA replication. The volume ratio of male/female pronuclei was 1.64 for the aphidicolin-treated embryos. However, the pronucleus volume asymmetry disappeared in the PM-embryos (Fig. 4). As we could not distinguish the nuclei as being derived from the paternal or maternal genome, we calculated the ratio for the two nuclei by dividing the volume of the larger nucleus by that of the smaller one, and found that the ratio was 1.01. The χ2 fitness test showed that there was no significant difference between the two volumes, suggesting that the nuclei derived from paternal and maternal genomes are approximately equal in volume.

Figure 4
figure 4figure 4

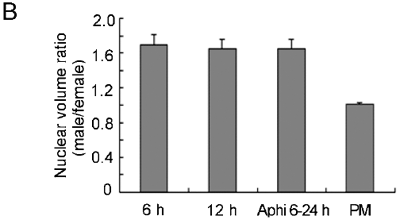

Relative volume of the nucleus derived from the paternal genome to that derived from the maternal genome. (A) Confocal microscopy images of PM embryos and one-cell embryos at 6 h, 12 h and 24 h after insemination. The one-cell embryos at 24 h were treated by aphidicolin from 6 h to 24 h after insemination (aphi 6-24 h). (B) Ratio of paternal/maternal nuclear volumes in the embryos described in (A). The numbers of embryos analyzed in 6 h, 12 h, aphi 6-24 h, and PM groups were 9, 10, 10, and 23, respectively.

Full size image

Disappearance of the transcriptional activity asymmetry between the two nuclei in the PM-embryo

Expression of the parental genomes was detected at the G2 phase in the one-cell stage, demonstrating a significantly higher level of transcription in the male pronucleus than in the female pronucleus (Fig. 5). The level of BrUTP incorporated by the male pronucleus was 2.06-fold higher than that of the female pronucleus. This asymmetric transcriptional activity between parental genomes maintained until 24 h after insemination, when DNA replication was inhibited by the addition of aphidicolin. In these embryos, the ratio of transcriptional activity between male and female pronucleus was 1.64. However, the asymmetry was lost in the PM-embryos (Fig. 5). When the nuclei derived from the paternal and maternal genomes were discriminated based on the fluorescence of the anti-methylated H3K9 antibody, no difference in transcriptional activity was detected between the nuclei of different parental origin. The ratio of transcriptional activity (paternal/maternal nucleus) was 1.02, which indicates that the transcriptional activities of the nuclei derived from paternal and maternal genomes are approximately equal in PM-embryos.

Figure 5
figure 5figure 5

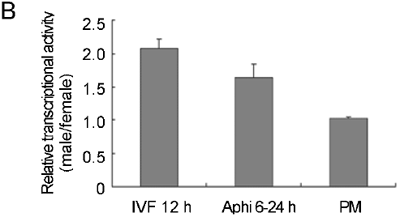

Relative transcriptional activity of the nucleus derived from the paternal genome to that derived from the maternal genome. (A) Confocal microscopy images of uridine incorporation in the PM-embryos and one-cell embryos 12 h and 24 h after insemination. The one-cell embryos at 24 h were treated by aphidicolin from 6 h to 24 h after insemination (aphi 6-24 h). M represents the male pronucleus, and F represents the female pronucleus. Tr, transcriptional activity determined by monitoring the incorporation of BrUTP (red color or shifted to black and white); H3K9-Met, methylation of lysine 9 on histone H3 (green color). (B) Ratio of paternal/maternal transcriptional activity in the embryos described in (A). The numbers of embryos analyzed in the 12 h, aphi 6-24 h, and PM-embryo groups were 26, 26, and 54, respectively.

Full size image

DISCUSSION

In the present study, we developed a new protocol to produce PM-embryos, in which the parental genomes separately formed nuclei in a single karyocyte after exiting from the first mitosis. The one-cell embryos were arrested at metaphase of the first mitosis by treatment with nocodazole, an inhibitor of tubulin polymerization, and were then induced to form nuclei by 6-DMAP, which is a phosphorylation inhibitor 13. Although nocodazole and 6-DMAP have been widely used to inhibit the cell cycle 14, 15, we could not exclude the possibility that the disappearance of the asymmetries on pronuclear volume and transcriptional activity between the male and female genomes was merely caused by the detrimental effects of these two agents. However, it was proved to be unlikely, as one-cell embryos that were treated simultaneously with nocodazole and 6-DMAP (8 mM) at the G2 stage did not enter metaphase, and they retained the two parental pronuclei with asymmetries of volume and transcriptional activity (data not shown).

Most mitotic events, such as nuclear membrane disintegration, chromosome condensation, and microtubule reorganization, are regulated by reversible phosphorylation of certain proteins 16, 17. It was reported that 6-DMAP could prevent germinal vesicle breakdown (GVBD) and chromatin condensation in the GV stage oocytes of mice, cows, and pigs 18, 19. Thus, the inhibition of protein phosphorylation reduces the ability of the mouse oocyte to break down the nuclear envelope and condense the chromosomes. Although phosphorylation-dependent disassembly of the nuclear membrane and chromosomal condensation has been well characterized during cell cycle progression through the G2 to M phases, it is not known whether the dephosphorylation events are sufficient to induce nuclear envelope formation and chromosomal decondensation during the M to G1 phases. The results of the present experiments suggest that inhibition of protein phosphorylation by 6-DMAP could induce the formation of the nuclear envelope and chromosomal decondensation in the cells, which are arrested at metaphase. Therefore, this protocol may prevent the loss of chromosomes in somatic cell hybrids, in which the two nuclei of the heterokaryon (a single cell that contains two different nuclei in a common cytoplasm) fuse and frequently lose chromosomes in culture. In addition, this study provides a model to investigate the regulation and function of specific trans-acting factors concerning gene expression in eukaryotes.

It is generally accepted that maturation promoting factor (MPF) is responsible for the induction of nuclear envelope breakdown (NEBD) and chromatin condensation. In all species studied, the appearance of MPF has been associated with a high level of protein phosphorylation 20. The activity of MPF fluctuate concordantly with protein phosphorylation. The induction of nuclear envelope formation and chromosome decondensation by 6-DMAP may lie in the following mechanism: 6-DMAP induces the dephosphorylation of MPF and its relevant proteins or inhibits their phosphorylation, and in turn the decreased activity of MPF induces the formation of nuclei and the decondensation of chromosomes in embryos that were arrested at metaphase.

During the production of cloned animals, previous studies suggest that the exposure of somatic nuclei to metaphase cytoplasm is an important process to ensure successful reprogramming of the genome and support for embryonic development 21, 22, 23, 24. It seems likely that NEBD and chromosomal condensation of the donor nuclei are both critical processes in genome reprogramming after transfer into recipient oocytes. In contrast, when activated oocytes with reduced MPF activity were used as recipients, the membranes and chromosomes of the transferred somatic nuclei remained intact and decondensed, respectively, and nuclear remodeling was unsuccessful in these reconstructed oocytes 24. These results suggest that direct interaction of the chromosome with the cytoplasmic environment is necessary for chromosome remodeling. And NEBD may play an important role in the reprogramming of differentiated nuclei by allowing direct interactions of chromosomes with cytoplasmic factor(s) in the oocytes. In the present experiments, the asymmetries of the nuclear volumes and transcriptional activities between parental genomes disappeared after the chromosomes interacted directly with the cytoplasm (Figs. 4 and 5). At the M phase, cytoplasmic factors are allowed to gain access to the chromosomes by NEBD, resulting in the reprogramming of the parental genomes. Our results suggest that the first mitosis presents a window for resetting the different transcriptional programs of parental genomes so that they are equivalent to each other.

Although many of the differences between male and female genomes are erased during the first cell cycle, asymmetric histone H3 methylation at lysine 9 (H3/K9) persists. In mouse embryos, methylated histone H3/K9 is restricted to maternal but not paternal chromatin before the four-cell stage 10, 11, 12. In the current study, the asymmetric H3K9 methylation in the parental genomes was retained in the PM-embryos (Fig. 3), although the maternal and paternal genomes showed the same levels of transcriptional activity (Fig. 5). Recent findings suggest that H3/K9 methylation is involved in the formation of the constitutive heterochromatin as well as the facultative heterochromatin of the inactive X chromosome 25, 26, 27, 28, 29. H3/K9 methylation has also been associated with the silencing of euchromatic genes 29, 30, 31. The biological significance of the maintenance of asymmetric H3/K9 methylation during early development still remains to be resolved.
