Highly branched polyethylene oligomers via group IV-catalysed polymerization in very nonpolar media

Abstract

Early transition metal catalysts produce high-density and linear low-density polyethylenes with spectacular efficiency. Nevertheless, these catalysts are ineffective in producing low-density polyethylene homopolymers with large –(CH2)xCH3 branch densities (x ≥ 5) or low-molecular-mass (Mn < 1,200 g mol−1) highly branched polyethylenes (HBPEs). The latter are potential alternative synthetic lubricants that have eluded efficient catalytic synthesis. Here we report the synthesis of low-Mn HBPEs with 61–93 branches per 1,000 carbon atoms from abundant ethylene as the primary feedstock using a soluble, highly active ion-paired organozirconium catalyst in a saturated hydrocarbon solvent. The unprecedented activity and branch selectivity reflect previously unrecognized aspects of the cationic catalyst–counteranion pairing in nonpolar media and are characterized spectroscopically and quantum mechanically. The HBPE products are rheologically and tribologically attractive candidates for synthetic lubricants.

This is a preview of subscription content, access via your institution

Access options

Rent or buy this article

Prices vary by article type

from$1.95

to$39.95

Prices may be subject to local taxes which are calculated during checkout

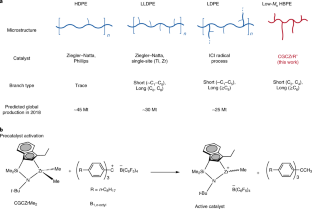

Fig. 1: Polyethylene categories, microstructural branching characteristics and precatalyst activation.
Fig. 2: Trends in CGCZrMe2+B1,n-octyl-catalysed ethylene polymerizations.

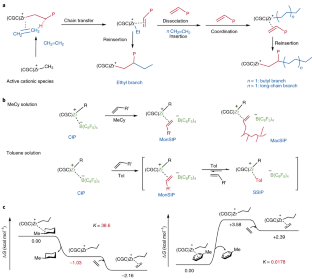

Fig. 3: Proposed polymerization mechanism, ion-pairing effects and DFT analysis.
