Introduction

Globally, low back pain (LBP) is among the leading causes of disability1 and is considered the largest single cause of disability in Western society, with lifetime prevalence of non-specific LBP estimated at 60–70% in industrialized countries2. With increasing patient demand in secondary and tertiary care, requesting appointments with rheumatologists, physical and rehabilitation medicine specialists and surgeons, LBP represents a highly relevant public health issue with enormous healthcare and socioeconomic costs3. The precise causes of such a burden have still not been clearly defined.

Modic change (MC) describes MR image signal change in subchondral and vertebral bone marrow adjacent to a vertebral body endplate. As visualized on T1- and T2-weighted MR imaging, MC can be divided into three different subtypes: Type 1, 2 and 34,5,6. MC is rarely observed adjacent to a healthy disc7 and tends to be associated with structural change such as disc degeneration (DD)7,8,9, disc herniation7,8,10, Schmorl’s nodes7 and vertebral endplate defect11. Similar to association of intervertebral DD with LBP12,13, also MC is associated with it14,15, and is now considered to be an independent risk factor for LBP16.

Different theories have been suggested regarding the aetiology of these conditions, but the pathophysiology of MC is still not fully understood, and the role of structural bony defects as an initiating factor for MC is not confirmed. Lately, clinical studies have focused attention on endplate defects as having a possible role in the aetiopathogenesis of MC17,18.

Rajasekaran et al.19 have reported that the presence of endplate defect was associated with DD in a clinical sample of 47 patients and 26 volunteers. Endplate defect evaluated on T1-weighted MR scans was classified into six categories according to severity of damage (type 1 to type 6), and total endplate (TEP) score was derived. Strong correlation between progressive grades of endplate defect and disc degeneration was shown, but unfortunately MC was not considered independently in the statistical analysis.

In a previous study from TwinsUK we have shown a strong association between endplate defect and DD in a large population based sample of volunteer twins20. As the association between endplate defect and DD was strong across the age spectrum, and as the endplate is positioned exactly between the intervertebral disc and the vertebral body, we sought to explore whether an additional association exists between endplate defect and MC.

Methods

Study population

The study population was part of the TwinsUK register of King’s College London (www.twinsuk.ac.uk)12. Clinical information on sex, body mass index (BMI), and lumbar DD had been collected previously. All subjects have signed an informed consent form. The study was approved by St. Thomas’ Hospital Ethics Committee and is in accordance with Declaration of Helsinki.

Magnetic resonance imaging and grading

Details of the MR scans, and grading of MRI findings, have been described previously21. Briefly, T2-weighted MR scans were performed on volunteer subjects unselected for LBP, using a Siemens (Munich, Germany) 1.0-T superconducting magnet. Sagittal T2-weighted images were obtained using a fast spin-echo sequence of time to recovery (TR)/time to echo (TE) 5000–4500/112 msec, with a slice thickness of 4 mm. Grading was performed on T2-weighted images.

Grading of endplate defect

As reported previously20, authors JHM and MR coded endplate defects in the baseline MRI scans from all 831 subjects (including 4155 discs and 8310 endplates). Endplate defect was evaluated on a scale of 1–6 (Table 1, Fig. 1) according to Rajasekaran et al.19 and total endplate scores for each disc were constructed by summing the endplate defect score of both rostral and caudal endplates in each functional spine unit19. Inter-rater agreement for the coding of endplate defect was calculated using Cohen’s weighted kappa and Pearson’s correlation.

Table 1 Endplate defect score.
Full size table
Figure 1
figure 1

Endplate grading. (A) Grade 1: Normal endplate, no breaks or defects, (B) Grade 2: Focal thinning (white arrow) of the endplate, no breaks or defects, (C) Grade 3: Focal disc marrow contacts (white arrow), but with maintained endplate contour, (D) Grade 4: Endplate defects up to 25% of the endplate area (white arrow), (E) Grade 5: Endplate defects up to 50% of the endplate area (white arrow), (F) Grade 6: Extensive damaged endplates up to total destruction (white arrows). From Rade M. et al. Vertebral endplate defect as initiating factor in intervertebral disc degeneration: Strong association between endplate defect and disc degeneration in the general population. Spine 43, 412–419 (2018). With permission.

Full size image

Agreement phase: An initial training phase was held in which an inter-rater agreement on endplate defect detection and grading of ≥0.85 was reached on at least 100 subjects and 1000 endplates, as reported previously20. Disagreements on coding scores were settled by discussion and consensus.

Grading of Modic change

The coding of MC was performed previously and has been described in detail elsewhere22. Briefly, a single observer (JHM) assessed all images without any prior knowledge of the clinical status. Inter-rater reliability was calculated when the second reader (SW) assessed randomly selected subset of images (n = 50). For the purpose of this study, MC was coded as absent (grade 0) or present (grade 1) for vertebral bone marrow adjacent to each endplate separately. MC detected only in one sagittal slice was not included. MC was considered to affect a lumbar disc if at least one of its endplates were affected.

Grading of disc degeneration

Disc degeneration has been evaluated earlier using Pfirrmann classification23. The classification consists of progressive evaluation of disc degeneration, assessed from grade 1 (homogeneous disc with bright hyperintense white signal intensity and normal disc height) to grade 5 (inhomogeneous disc with hypotense black signal intensity and no more detectable difference between the nucleus and annulus). In accordance with previous studies19,20, grade 4 or greater was considered an indicator of a degenerate disc.

Statistical analysis

Inter-rater agreement for the coding of endplate defects was calculated using Pearson’s correlation and Cohen’s weighted kappa as reported previously20. Critical scores were calculated for MC on the same lumbar level using Receiver Operating Curves (ROC)-analysis. Cumulative link mixed models and linear mixed models were used to analyse association between endplate defects and MC, adjusting for covariates and family structure. Kaplan-Meier survival analysis and Cox proportional hazards models analysis were carried out to infer any age-dependent relationship between endplate defect and MC. All calculations were performed in R using packages “psych”, “survival”, “ordinal”, “lme4”, and “OptimalCutpoints”.

Results

Table 2 summarises the twin sample and its characteristics. In total, there were 831 subjects (mean age 54 ± 8 years, 95.8% female) in the study. Male subjects in the sample were similar to females as regards age and prevalence of MC, but they had significantly higher TEP scores in the lumbar spine compared to females (median [IQR] 29 [20, 36] vs 22 [19, 28], p = 0.001 respectively).

Table 2 Characteristics of the sample from TwinsUK.
Full size table

Endplate defects and Modic change

The prevalence and distribution of endplate defect are presented in Table 3. In summary, grade 2 was the most prevalent grade and grade 6 was significantly more prevalent at the lower lumbar levels than upper (p < 0.001).

Table 3 The prevalence and distribution of vertebral endplate defects within the lumbar spine.
Full size table

MC was present in 267 (32.1%) subjects. Of all the endplates being evaluated, we found 646 (7.8%) MC in total. Figure 2 shows the prevalence of MC by individual endplate levels. The prevalence of MC was significantly higher at the lower (L4-S1) compared to upper (L1-L4) lumbar levels (p < 0.001).

Figure 2
figure 2

Prevalence and distribution of Modic change (MC) in the lumbar spine. The majority of MC is found in the lower lumbar spine (L4-S1) indicating a possible role of mechanical forces acting on the adjacent intervertebral discs and endplates of this anatomical region.

Full size image

Relationship between TEP score and MC

The prevalence of MC showed a significant correlation with increasing TEP score. Using multivariate linear mixed models to allow for covariates, TEP score was found to be strongly and independently associated with MC (risk estimates from 1.49 to 2.44 and p-values p < 0.001, at all lumbar levels, Table 4). Associations with other factors in the final multivariate models (including age, sex and BMI) were significant only at a few lumbar levels. ROC analysis indicated a critical TEP score of 6, above which there was a significantly higher likelihood of MC. Considering each lumbar level, similar cut-off points were found throughout the lumbar spine; TEP score of seven for L2/L3, and six for each of L1/L2, L3/L4, L4/L5, and L5/S1. Of all MC, 287 (81.3%) were at lumbar levels with TEP score ≥6 (Table 5).

Table 4 Risk factors for Modic change including endplate defects, by lumbar level.
Full size table
Table 5 Lumbar levels affected with MC distributed by total endplate (TEP) score <6 and ≥6.
Full size table

Regarding more precise endplate risk evaluation, the probability of having MC adjacent to the endplate having TEP score ≥6 was 6.4% at L1/L2, 12.2% at L2/L3, 21.9% at L3/L4, 48.5% at L4/L5, and 45.1% at L5/S1. Pearson’s correlation between TEP score and MC was statistically significant for every disc level. Considering the whole lumbar spine, if TEP score was ≥6 at any level, the probability of having MC at any level was 81.3%. At each lumbar level, there was a highly statistical significance in MC (p < 0.001) between those with and without TEP score ≥6 (except for L2/L3 TEP score ≥7).

A survival analysis paired with Cox proportional hazards model analysis provided the probabilities of having MC in the presence of TEP score <6 or ≥6, by age subgroups (Fig. 3). The probabilities increased significantly in TEP score ≥6 for all age strata.

Figure 3
figure 3

Survival analysis paired with Cox proportional hazards models analysis. Probability of having Modic change (MC) by TEP score ≥6 (denoted ‘Teps – Yes’ in the Figure) and <6 (denoted ‘Teps – No’ in the Figure). The probability is significantly increased in TEP score positive age subgroups at each disc level. The probabilities increase with age, and the influence of TEP score on MC is least at L5/S1. HR = hazard ratio.

Full size image

Discussion

This is the first large, population-based study examining the association between vertebral endplate defect and MC in the lumbar spine. Results showed that the presence of vertebral endplate defect in the lumbar spine was strongly associated with MC in the bone marrow adjacent to the endplate. When analysed by ROC, we found that a TEP ≥6 strongly predicted risk of MC.

Interestingly, our previous findings from the same sample from TwinsUK registry showed TEP ≥ 5 to be predictive for disc degeneration20 which may indicate that endplate defect, disc degeneration and MC are strongly associated with each other and it is highly likely that the same pathological process is involved. Moreover, our results are also in accord with the findings from another experiment in which endplate defect was correlated with DD in a clinical sample of 47 patients and 26 volunteers19. A cut-off score of 6 was found to be predictive of DD, after which a rapid response with a great increase of likelihood of DD for each unit increase in TEP score was shown, exactly as in our study with MC.

In a clinical study with 1-year follow-up, MC type 1 was associated with both decreasing the disc height and increasing the size of endplate defects17. In another longitudinal clinical study sample DD, endplate defects and MC were found to be significantly associated with each other. Endplate defect grade ≥4 was found to be a risk factor for both DD and MC progression, with MC being the last MR feature to develop in this process18. All these results seem to build on the same line of thoughts (Fig. 4).

Figure 4
figure 4

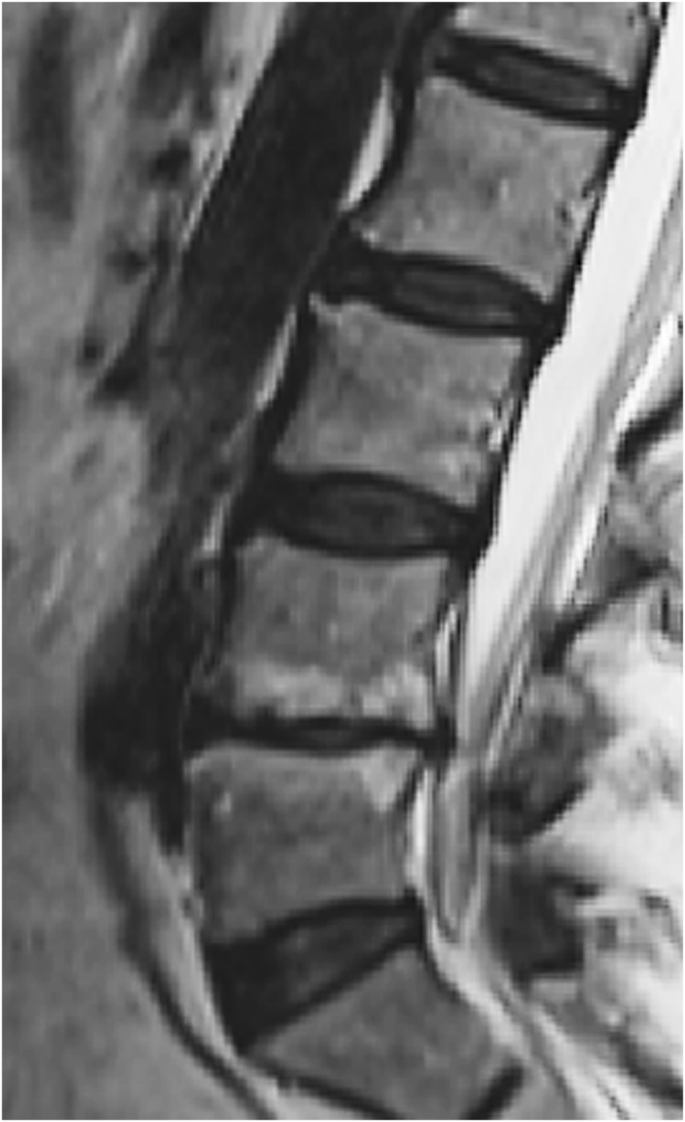

MRI scan showing endplate defect grade VI both at the L4/L5 rostral and caudal endplates, with associated Modic changes (MC) over both rostral and caudal bone marrows adjacent to endplates and disc degeneration evaluated as Pfirrmann grade 5. As the endplate is a fundamental part of the vertebral body-endplate-intervertebral disc motion segment, one could consider endplate defects to be an initiating factor not only for disc degeneration, but also for MC. MRI indicates magnetic resonance imaging. From Rade M, et al. Vertebral endplate defect as initiating factor in intervertebral disc degeneration: Strong association between endplate defect and disc degeneration in the general population. Spine 43, 412–419 (2018). With permission.

Full size image

With regards to the motion segment in the spine, the cartilaginous endplate is considered to be a mechanically vulnerable structure24, which helps to equalize loading between the vertebral body and the disc25. At surgery, herniated disc material is reported to be found to contain cartilage endplate more frequently in those patients also manifesting MC26. Moreover, cartilage endplate stripping increases the permeability of the endplate and thus facilitates passage between the vertebral body and the intervertebral disc26.

That endplate defect may lead to both MC and DD can be explained by the physical location of the endplate; being positioned between the disc and vertebral body. Biomechanical studies suggest that microfractures at the vertebral endplate27 allow inflammatory cytokines to pass from the intervertebral disc to the bone marrow to initiate MC28, while any physical defect in endplate may allow transport of pro-inflammatory mediators from the disc to the vertebral body, leading to the oedema characteristically seen in MC29.

It is also plausible that an endplate defect creates the basis for low-grade virulent anaerobic bacteria (Propionibacterium acnes, P. acnes) to enter the disc from the vertebral body and give rise to slowly developing infection28. In this context, intervertebral disc infected with anaerobic bacteria have been shown to be more likely to develop adjacent vertebral body MC than those without30.

Biomechanically, endplate defect has been shown to lead to decompression of the adjacent intervertebral disc nucleus, which in turn could drive the degeneration of the disc through several mechanisms by (i) increase of shear forces acting on the annulus31; (ii) decrease of stability at that spinal level32 inducing disruptive changes in the annulus; (iii) altered matrix synthesis33; and (iv) vascularisation of the nucleus pulposus with autoimmune changes30.

There are some limitations we would like to highlight in this study. The TwinsUK sample shows a marked female predominance, for historical reasons. For that reason, every trait was examined separately by gender to determine how best to account for differences in the analysis. TwinsUK participants have been shown to be representative of singletons for a wide range of lifestyle and demographic traits34. For historical and funding reasons, only T2-weighted scans were available and, therefore, the evaluation of MC types was not possible. This study is cross-sectional by design, and our results support the hypothesis that endplate defect may be the initiating factor for MC and intervertebral disc degeneration. As a suggestion for further improvement we suggest designing a longitudinal study of endplates, DD and MC to unequivocably confirm the direction of such causality. Another relevant strength is the thorough training phase undergone by the two evaluators (JHM and MR) leading to almost perfect inter-rater agreement for endplate defect: kappa value of 0.86, Pearson correlation 0.864, with correlation and kappa being employed in conjunction to uncover nonrandom examiner error, as in Hunt35.

Conclusions

To conclude, this study performed on a large population-based sample confirmed that endplate defect is strongly and independently associated with DD and MC, and that this relationship is evident in adults across the age spectrum and at all lumbar levels. As the same conclusions were reported for ED and DD in our previous study in the same population using the same methods, we imply that causal effects can occur between ED, DD and MC. A longitudinal study of twins’ MR spine scans and endplate is currently under way to better confirm the order of events.
