Background & Summary

Pulse oximetry is an essential healthcare tool for non-invasively measuring hemoglobin oxygen saturation (SpO2). It is widely used by healthcare professionals to treat, diagnose, and monitor the health of patients worldwide. Despite its critical role, pulse oximeter performance and accuracy are impacted by many factors, though the complete list of these factors and the magnitude of effects need to be better characterized. For instance, it is known that some pulse oximeters may report values different than the actual arterial functional saturation (SaO2) in patients with darker skin tones (usually higher), with potential impacts on health care and outcomes1,2,3,4,5,6,7,8,9,10. This growing literature highlighting health inequities has triggered a surge of new pulse oximetry research, as well as efforts by regulatory bodies to revise guidance and standards for pulse oximeter testing and performance11.

A significant barrier to the success of these research and regulatory initiatives is the lack of sufficient, high-quality data in the public domain. Most publicly accessible data on pulse oximeter performance come from two types of studies: (1) Controlled laboratory desaturation studies in healthy adults and (2) retrospective, observational clinical studies in real-world patient populations. Each source of data has potential limitations, which we hope to overcome with this dataset.

Controlled laboratory desaturation studies

In a controlled desaturation study, healthy adults undergo precise titration of inspired oxygen to achieve stable arterial oxygen (SaO2) saturation plateaus ranging from ~70–100%, as measured by arterial co-oximetry measured from radial arterial blood samples12. In a controlled laboratory setting, the data used for comparison of oximeter performance consists of precisely paired and stable SpO2 and SaO2 values. Though there are many other confounding influences, controlled lab studies establish a performance baseline, recognizing that real-world performance will vary. Globally, few laboratories exist that conduct these studies, and even fewer are independent and share data publicly.

Clinical studies

Clinical studies in real-world populations include patient populations that are not enrolled in laboratory studies, such as children and neonates, as well as patients with comorbidities and pathophysiologies that impact pulse oximeter performance. These studies provide the opportunity to assess the relationship between device performance, clinical care, and outcomes4,9,13. However, prospective studies are expensive and time intensive14,15, and as a result, most clinical studies to date have been either large retrospective studies or small prospective studies16.

Large retrospective studies, where SpO2 and SaO2 are retrospectively paired, usually via an electronic medical record (EMR), can be problematic. Limitations include the inability to ensure proper pulse oximeter probe placement, unknown SpO2 probe type, inability to account for SpO2 signal quality, timing mismatch between SpO2 and SaO2 sampling (i.e. SpO2 and SaO2 may not be from the same time), timing mismatch between SpO2 and SaO2 reporting (i.e. time a sample is drawn and time a sample is recorded in the EMR may not be the same or accurate), and clinical instability (i.e. SpO2 and SaO2 may be dynamic around the time of sample draw due to change in O2 delivery, suctioning or clinical improvement/deterioration). Additionally, data is rarely obtained over the full saturation range of 70–100% as very few patients have stable SpO2 values in the 70% to 88% range without some sort of corrective or dynamic intervention being performed (the exception being patients with congenital cardiac conditions)17. Taken together, these factors decrease the reliability and precision of the data needed to characterize the performance of pulse oximeters and their errors. Prospective studies produce higher-quality data and mitigate confounding but they are costly and time-consuming18.

The OpenOximetry dataset, introduced in this article, is built to address these challenges, combining data from controlled laboratory desaturation studies with data from multiple prospective studies to create a curated, clean, and reliable open-access source of data for investigators to answer questions regarding the impact of patient variables on pulse oximeter performance, across devices, over time and in different global settings. Secondly, we describe a common data structure for pulse oximeter data sets, including those from controlled laboratory desaturation studies and prospective clinical studies. Future releases of this dataset will include additional pulse oximeter performance tests, clinical trial data, prospectively collected observational data, and other data contributed by other researchers and institutions.

This initial dataset is derived from the Hypoxia Lab19 at the University of California, San Francisco. The dataset is intended to serve as a hub for laboratory-based desaturation studies and data from real-world prospective clinical trials, compiling data from ongoing prospective studies generating paired SpO2-SaO2 data that follow similar protocols14. By leveraging a common data structure, otherwise disparate data sets can be harmonized to help answer important questions on pulse oximetry.

Methods

Participants

Participants were recruited via multiple modalities. Recruitment materials were distributed electronically and physically to college campuses, affinity-based organizations, local parks, gyms and community centers, and professional conferences and symposiums. Additionally, a social media campaign targeting zip codes and members of the public that met the inclusion criteria was employed. Emails and letters to potentially eligible patients at UCSF were sent out, and study representatives attended community events to recruit potential participants. Finally, a professional recruitment agency was employed.

Informed consent for participation in this study was obtained from all participants in accordance with ethical guidelines and institutional review board (IRB) approval. Prior to enrollment, potential participants were provided with a comprehensive explanation of the study’s purpose, procedures, potential risks, and benefits. Part of this informed consent process included consent to have de-identified data shared in this dataset. Only those who voluntarily agreed to participate and signed the informed consent form participated in the study. The data presented in this dataset comes from the study approved by UCSF IRB #21-35637.

Data acquisition

Data collected to create this dataset was originally based on the dataset requirements for ISO 80601-2-61:2017 and 2013 FDA 510(k) guidelines for pulse oximeter premarket notifications. These initial parameters were expanded to include more parameters known to or hypothesized to impact pulse oximeter performance. The final list of parameters was generated based on discussions via the OpenOximetry Collaborative Community and the EquiOx prospective clinical trial (ClinicalTrials.gov #NCT05554510, Fig. 1).

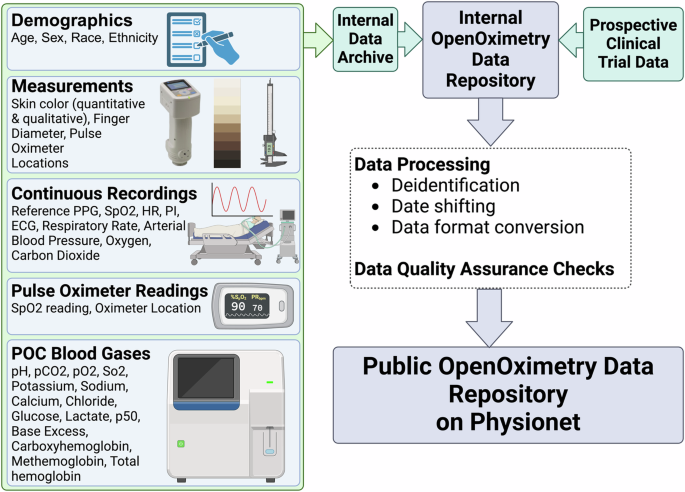

Fig. 1
figure 1

Overview of the OpenOximitry Pulse Oximeter Performance Data Dataset. Data are collected from multiple sources at study time and are de-identified, dates shifted, and converted into open and accessible formats before being included in the Data Dataset.

Full size image

Data in the initial database release were collected from healthy adult humans undergoing controlled desaturation studies that abide by the study protocol from the University of California, San Francisco’s Hypoxia Lab or prospective studies in real-world clinical settings. The protocol followed during these sessions has previously been described by our laboratory.

In brief, during a typical controlled desaturation encounter, demographic information, digit diameter, and both qualitative (Monk skin tone scale) and quantitative (spectrophotometer) skin color information were measured and recorded. Radial arterial access was obtained. Test oximeters were placed on the participant and shielded from each other and ambient light. The participant breathed via a closed-circuit system whereby levels of medical air, nitrogen, and carbon dioxide were adjusted to maintain target arterial oxygen saturation (SaO2) between 70% and 100% and PaCO2 values of 35–45 mm Hg in accordance with ISO80601 standards. These plateaus were estimated using a calculated SaO220; the sequence of plateaus is depicted in Fig. 2. Participants remained motionless, with each desaturation lasting approximately 20 minutes. Pulse oximeter readings (SpO2) were recorded with each arterial blood sample, and research coordinators were blinded to arterial SaO2. Each device was tested on at least four random finger locations, with SpO2 compared to SaO2 (Radiometer ABL90 Flex Plus) to calculate error, bias, precision, and root mean square error (ARMS). The moment at which the blood sample was drawn from the arterial line is digitally recorded to correlate the sample results with the readings from the pulse oximeters. The saturation reading of each test device at the time the sample is taken was simultaneously recorded and was denoted incrementally as the “sample number” within an encounter. This allows direct comparison between the saturation reading of test devices and the values obtained from point-of-care blood gas machines.

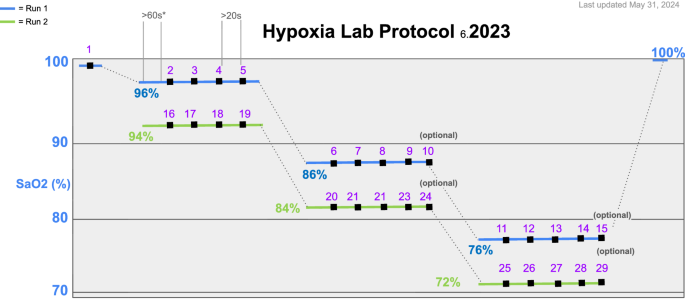

Fig. 2
figure 2

Graphical depiction of the 2023 Hypoxia Lab Study Protocol. Patients are desaturated to the specified SaO2 values, and blood gas samples are drawn while pulse oximeter readings are simultaneously recorded, with each sample/recording being labeled according to the sample number (in purple).

Full size image

For data captured in prospective, real-world clinical studies, adult or pediatric patients were enrolled in accordance with methods approved by local Institutional Review Boards (IRBs). Methods may vary in accordance with their respective study design but include measurement of clinical and study pulse oximeter values and arterial blood gas SaO2 values (and the time interval between observations, when applicable)14.

De-identification

Study data was de-identified by removing all data considered to be an identifier by the HIPAA safe harbor rules. For each study participant, dates were uniformly skewed by a random number of years into the future, plus (or minus) a randomly assigned number of days to preserve seasonality (e.g. to account for increased or decreased sun exposure during certain times of the year) while obfuscating the exact date the study took place. All ages were less than 89.

Participant and encounter IDs were de-identified by hashing the concatenation of the internal participant identifier and a unique, randomly generated salt for each participant. For example, the string “Participant10_63653” might be hashed for a participant, where “Participant10” is the internal identifier and 63653 is a unique, randomly generated value. This ensures that the chronology of encounters or patients cannot be determined using a rainbow table attack (i.e. prevents someone from generating hashes for “Participant1,” “Participant2,” etc. and creating a lookup table to reverse the hash). Furthermore, tables were sorted by encounter or participant ID so that no chronology can be inferred from the ordering of the flat CSV files.

Only data collected under ethical principles outlined in the Declaration of Helsinki is and will be included in dataset releases.

Data Records

Data has been deposited on Physionet21 and can be accessed by making a free account and agreeing to the data use agreement.

Data tables

The OpenOximetry Dataset consists of several tables linked by common identifiers. Most tables have the primary key, encounter_id.

In selecting the data model for our dataset, we opted against utilizing existing data models, such as Observational Medical Outcomes Partnership (OMOP), for several reasons. While OMOP offers robust capabilities tailored for EMRs and large-scale observational health databases, fundamental components of our dataset are beyond the scope of an EMR-centric data model. For example, objective and subjective measures of skin color, finger measurements, and pulse oximeter device data do not easily fit into the OMOP data model. Additionally, we prioritized accessibility for non-technical users to contribute and navigate the data effectively. Given the complexity of OMOP’s schema and its emphasis on structured clinical data, we deemed a simpler data model more suitable for our multi-source dataset, facilitating ease of integration and interpretation across a wider range of contributors. The OMOP common data model has 37 tables and 394 fields, while our data model has six tables and 138 fields. This decision was based on stakeholder input via the Open Oximetry Project Collaborative Community and aligns with our goal of fostering inclusivity and collaboration within our research community, ensuring that all stakeholders can engage meaningfully with the data.

A general description of the tables is given in Table 1 and as follows:

Table 1 Description of each table or file suffix in the data dataset.
Full size table

Patients

This file contains information about individual patients/participants that are taking part in the study. Basic, relatively immutable information, like the patient’s sex, ethnicity, and racial identity, are included in this file, with each participant having one row in the participants file. Participants are given a unique participant ID so that they can be tracked between encounters (i.e., each participant may have many encounters). Additionally, information about the study site is included so that participants can be selected and stratified by site if desired during analysis.

Encounter

This file contains information from each controlled desaturation encounter (or, if prospective data, hospital event). Each row of the encounter table includes information from a single encounter. Examining a single encounter requires looking at only one row of the encounter table; this is not the case for other files. Each encounter corresponds to one participant (i.e., each row has one participant ID). Information about the participant’s current age, which device is used on which finger, finger diameter, and qualitative skin color measurements (e.g., Monk scale at multiple anatomic sites) are included in this file. Dates in the encounter table are offset into the future by a random offset (set per participant) while attempting to preserve seasonality to de-identify the dataset. This preserves intra-participant chronology while inter-participant chronology is obscured.

Pulse oximeter

This table contains pulse oximeter saturation (SpO2) readings for the different test devices. Each row contains one saturation reading from one pulse oximeter, corresponding to a specific controlled desaturation encounter (identified by encounter_id) and a specific blood gas (identified by sample_number). Sample numbers refer to the purple numbers corresponding to blood gas samples taken, as depicted in Fig. 1.

Blood Gas Co-oximetry

The blood gas table contains blood gas data, including arterial functional saturation (SaO2). Each row represents the results from a single blood gas sample and clinical data from that time. These samples are linked to pulse oximeter readings and other data during the same encounter via ‘sample_number’ and ‘encounter_id’. As in the pulse oximeter table, sample numbers from controlled desaturation studies refer to the purple numbers corresponding to blood gas samples taken, as depicted in Fig. 1.

Device

The device table contains descriptive data about the pulse oximeters used in testing. These data will be published when available, though they may not always be available and are not required for publishing data in this dataset. Each row contains data for one pulse oximeter model and includes a unique device ID number, as well as the make, model, and light transmission mode of the oximeter (and probe).

Spectrophotometer

This table contains quantitative skin color and reflectance data. Each row represents one spectrophotometer measurement at a single anatomic site. Spectrophotometer measurements are typically taken three times at each anatomic site to ensure data consistency and are repeated at each encounter. They are linked to the encounter via encounter_id and to the patient via patient_id. Further information can be found on the Hypoxia lab skin color assessment protocol page22.

Waveform files

Continuous waveform data is stored in WFDB or CSV format, with file names corresponding to the encounter.

Up to three different waveform files are available for each encounter:

  • (150hz, base file name): Continuous data contained here includes ECG, oxygen, and carbon dioxide in mmHg, respiratory rate, and blood pressure in mmHg. Recordings are made to 3 decimal places.

  • Reference oximeter readings (2 Hz, file suffix _2hz): Continuous data from devices used as known reference oximeters during an encounter are included as CSV files. These files contain SpO2, HR, and a signal quality indicator recorded at 2 Hz. The calculated saturation (ScalcO2) is the instantaneously estimated SaO2 based on ETO2. Blood sample draws are labeled and correspond to the ‘sample’ number in other tables.

  • Raw PPG (86hz, file suffix _ppg): Raw PPG is included for certain encounters, and PPG files are named according to their corresponding encounter. Both infrared and red data are stored, and this data is both unscaled and unfiltered. However, in this version of the database, they are not time-synchronized to the other waveform data from the same encounter.

In the v1.0 release of the dataset on Physionet, there are 144 study participants. 77 identify as female. Among these 144 study participants, there are 466 encounters. The mean number of encounters per participant is 3.2 (standard deviation 3.65); the maximum number of encounters that a participant had was 21. 67 participants had one encounter, while 77 returned for more than one encounter. The mean age at encounter was 27 years (ranging from 17–47 years). A total of 53 devices were tested in the initial data release.

Technical Validation

Data changes from time of storage to dataset upload were minimized as much as possible. Most processing was done to de-identify data, convert waveform files to WFDB format, and validate de-identification and data conversion. Waveform data was stored in plain text format during studies and was converted to WFDB format without further processing.

Data storage

The raw data is stored in a series of databases on REDCap (Vanderbilt University, Nashville, TN, USA), a web-based tool designed to capture data for clinical research. REDCap was chosen for a number of reasons: (1) it allowed for data storage similar to traditional databases, (2) it has a graphical front-end that allows for manual data entry of database fields (e.g., SpO2) by research staff, (3) data can be updated and accessed programmatically via the API, and (4) REDCap is FDA compliant with 21 CFR Part 11. The raw data generated by blood gas analyzers, lab equipment, and research staff are ingested by a series of Python scripts to generate the public-facing version of the database.

The code used to build the database is stored under version control and was regularly reviewed by laboratory members. Frequent feedback from colleagues, as well as embedded code to assert and verify that the data that was being saved in the dataset matches the data that was saved at study time, helped further validate the data stored in the repository. For example, the code used to build the database asserts that one of the waveform files written to disk matches the waveform data that was intended to be stored by reading the file from disk and comparing the values. If the values do not match, the data processing code will cause an exception, alerting whoever is running the code of the inconsistency. The dataset-build process generates graphs of critical measured parameters, allowing for verification that the dataset contains rational values. Additionally, some data in flat files were manually verified against the data stored at the time of the study to ensure accuracy.

Usage Notes

Data access

The OpenOximetry database contains information about research participants and the care of patients, so access is restricted. Researchers are required to request access to the database formally. Access can be requested through Physionet21 by making a free account and agreeing to the data use agreement.

Joining tables

Users may filter and join tables to obtain the data set required. For instance, to examine the paired SpO2 and SaO2 measurements for a specific pulse oximeter, the user would first filter the ‘encounter’ table based on ‘device_id’. This table would then be joined on ‘encounter_id’ and ‘device_id’ to the ‘pulseoximeter’ table (to obtain SpO2 values) and to the ‘abg’ table on ‘encounter_id’ and ‘sample’ (to obtain the ABG results for each sample during the encounter). Demographics or skin color data could be added by joining again on the ‘patient’ or ‘spectrophotometer’ tables.

High-resolution waveform files included in this dataset are stored in WFDB format. Within the waveform directory, intermediate directories 0–9 and a-f contain all waveform records for encounters that begin with that character. For example, the waveform records for encounter b94d27b9934d3e08a52e52d7da7dabfac484efe37a5380ee9088f7ace2efcde9 would be found in the b intermediate directory, as the first character of the encounter ID is b. Additionally, raw PPG data in this release is available for only a subset of encounters as a separate, time-synced WFDB file (suffix _ppg), recorded at 86 Hz.

There are several potential use cases for this data that have not yet been explored. The data set contains many physiologic variables that could affect pulse oximeter performance but have not been explored. In addition, questions regarding the interaction of these variables and quantitative and qualitative skin color are possible. As a repository of skin color data, separate questions may be asked regarding the relationship of quantitative and qualitative skin color measurements. Finally, analysis of high frequency PPG, respiratory and blood pressure waveforms can be analyzed for their interaction on pulse oximeter performance or the physiologic effects of hypoxemia.

While this dataset provides valuable insights, it’s important to acknowledge that no dataset is without its limitations. The OpenOximetry Dataset is focused on quantifying pulse oximeter performance under ideal, controlled conditions, which may not fully capture the variability encountered in real-world clinical settings.

Agreeing to the terms of a Data Use Agreement is required to access the data. Terms of this agreement include but are not limited to not attempting to identify any individual in the dataset, maintaining dataset security, not selling or distributing data, and using the data in the dataset only for scientific research without resale of the data.
