Background & Summary

Open-ocean pelagic ecosystems are under-represented in databases of marine biodiversity, despite holding the largest biomass of organisms on Earth1. The open-ocean pelagic community predominantly consists of fish, crustaceans and cephalopods that inhabit mesopelagic (200–1000 m) and bathypelagic (1000 m to >4000 m) depths2. Many pelagic species undertake diel vertical migration (DVM), moving from the depths to shallower waters at dusk and in the reverse direction at dawn, possibly constituting the largest animal migration on the planet3. This has implications for carbon sequestration and climate regulation, as organisms actively transport organic carbon from the surface to the deep ocean3,4,5,6.

Mesopelagic fishes are a central component of open-ocean pelagic communities dominating global vertebrate biomass with estimates of up to 10 billion tons4,7,8. They are thought to represent a key link to coupling physical-biogeochemical models to the population dynamics of top-predators6,9. Thus, the open-ocean pelagic environment and its inhabitants are critical components for the provision of globally important ecosystem services1,2.

In the Southern Ocean, mesopelagic fishes are key prey for sentinel species such as seals and seabirds10,11,12. As major consumers of secondary productivity (zooplankton) they also exert control on lower trophic levels of oceanic food webs13,14. Despite their ecologically important role, there are gaps in our knowledge of their biodiversity, abundance, biomass, and the processes that shape their distribution, life cycles and behaviour4,8,15,16,17,18,19. Mesopelagic fishes are difficult to sample due to their patchy distribution and ability to avoid and escape pelagic nets8,20,21. This is confounded by the differences in catch efficiency between gear types, leading to biased estimates of abundance and biomass4,8.

Mesopelagic fishes are likely to be impacted by ocean-warming with evidence indicating future range shifts of temperate species, range reductions of Antarctic species16,22 and possible biogeographic shifts in body size patterns23. This will have implications for the predators that feed upon them14 and potentially more broadly for global biogeochemical cycles24. Tracking the future distribution and abundance of species requires the development of reliable population baseline estimates and an understanding of the biases associated with different sampling strategies25,26,27,28.

The advent of biodiversity informatics has seen the development of open-access biodiversity data repositories, such as the Global Biodiversity Information Facility (GBIF) and the Ocean Biogeographic Information System (OBIS), to enhance research output in the context of a global biological monitoring system29. However, much of the data for mesopelagic fishes archived in these repositories are for species occurrence only, without information on abundance or biomass. Often, the methodological metadata (such as net-type or depth of trawl) are also lacking, further limiting the scope of the analyses1,30.

Decades of data from net sampling of the pelagic environment exist for localised regions of the Southern Ocean as part of multiple national Antarctic research programs31. Here, we take the important step of integrating and standardising the format of published and unpublished survey data on the abundance, biomass, biodiversity, and methodological metadata for mesopelagic fishes of the Southern Ocean. We collected and synthesised data from the Scotia Sea14,32,33,34, the Antarctic Peninsula35,36, the Lazarev Sea37,38, the Kerguelen Plateau39,40,41,42,43, East Antarctica44, Macquarie Island45,46 and unpublished data from the Indian Ocean from Japan’s national Antarctic program into a single dataset called Myctobase (Fig. 1).

Fig. 1
figure 1

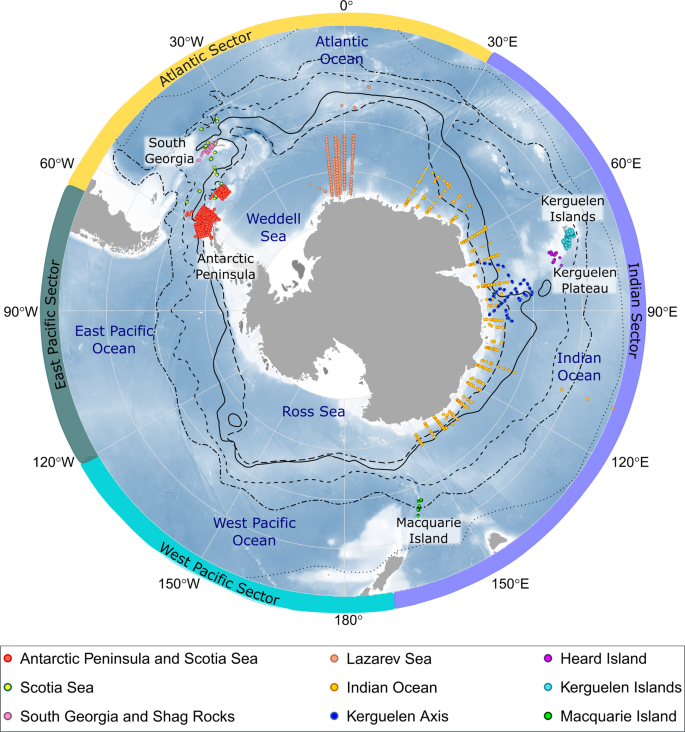

The sampling locations of mesopelagic fish trawl stations that are currently held in Myctobase. Trawl stations are colour coded to correspond to the location listed in Online-only Table 1 (colour key is indicated within the black box). Black lines indicate mean frontal positions52. Starting from the outer line, frontal features are as follows: Subtropical Front (dotted line); Subantarctic Front (dash-dot line); Polar Front (dashed line); southern Antarctic Circumpolar Current Front (solid line); southern boundary of the ACC (long dashed line). Numbered labels around the outside of the map indicate the longitude. Each latitude line represents 10° of latitude where 75° S is at the Antarctic continent and 40° S is at the external line.

Full size image

The long-term aims of Myctobase are (1) to provide a single findable, standardised, and citable resource for multiple combined datasets; (2) to provide the baseline data upon which to measure the status and future trends of the mesopelagic fish assemblage; (3) to support further research such as investigating the patterns and biophysical drivers of diversity; and (4) to provide the broadscale spatiotemporal perspective necessary for the holistic management and conservation of the open-ocean pelagic ecosystem in the Southern Ocean. The dataset is available on GBIF, OBIS and Zenodo to support the management of the open-ocean pelagic ecosystem. Researchers wishing to contribute to this project should contact the corresponding authors. We hope that this database will continue to grow, providing a resource for ongoing monitoring of the Southern Ocean pelagic ecosystem.

Methods

Sampling design

Samples were collected onboard multiple national Antarctic research cruises between the years 1991–2016 and for the year 2019 and jointly covered all calendar months (Online-only Table 1). Net sampling occurred predominantly in the Indian and Atlantic Sectors of the Southern Ocean (Fig. 1).

Mesopelagic fishes were sampled using a range of gear types as a “standard” sampling gear does not currently exist21. Samples were collected from pelagic trawls using opening-closing net systems with a range of Rectangular Midwater Trawl (RMT) and International Young Gadoid Pelagic Trawl (IYGPT) nets, an Isaacs-Kidd Midwater Trawl (IKMT) net and a Matsuda-Oozeki-Hu Trawl (MOHT) net (Table 1, Online-only Table 2). Opening-closing net systems allowed for the sampling of discrete depth intervals and included stratified oblique and horizontal trawls. Survey designs (for trawl locations) included randomised design, designated stations, and target trawls on acoustically detected aggregations of fish (see Online-only Table 1 for more information on sampling methodology).

Table 1 Data in Myctobase were collected with the following net types which are commonly referred to by their associated acronyms.
Full size table

Once onboard, samples were sorted to the lowest taxonomic level possible using published guides41,47 and personal/institutional reference collections. Taxonomic identities were verified in home laboratories. Standard length (mm) and wet weight (g) measurements were taken onboard with a motion compensated balance or in home laboratories. Samples were preserved in either ethanol, formalin or frozen for further analyses.

Detailed information on methodologies utilised for each research cruise can be found in the relevant citations listed in Online-only Table 1.

Data collection and processing

Potential data holders were identified by compiling a metadata catalogue of scientific publications and existing survey data for Southern Ocean mesopelagic fishes. Data holders were invited to contribute published and unpublished data to the Myctobase project. A standardised template for the collation of multiple datasets was created using Darwin Core terms48 where possible. The terms used in the template alongside definitions for each term can be found in Table 1. Data were collated with R statistical software, version 4. 0. 449.

Units of measurement were standardised across datasets. Length and weight measurements were converted into millimetres and grams, respectively. The taxonomy of each observation was verified and associated aphia IDs (globally unique and stable identifiers for each taxonomic name) were retrieved from the World Register of Marine Species using the R package, WoRMS50 (Fig. 2).

Fig. 2
figure 2

Schematic illustrating the quality control and processing steps leading to the standardised data output of Myctobase. The standardised data are made available through Zenodo, the Antarctic Biodiversity Portal, the Global Biodiversity Information Facility (GBIF) and the Ocean Biogeographic Information System (OBIS). Abbreviations under ‘Individual occurrence’ are standard length (SL) and wet weight (WW).

Full size image

Abundance was calculated for each net haul by species per filtered volume of water. This was performed by dividing the species count (n) by the volume filtered (m3). This was not possible for all net hauls and species as count and volume filtered information were not always recorded or technical difficulties were encountered during the research cruise. Methodology for calculating volume filtered varied between datasets. Several cruises used mechanical flow meters while others used a calculation where the nets filtering area (m2) was multiplied by the distance it was towed (m). The filtering area of the MOHT net was calculated by multiplying the net mouth area by a coefficient estimated from calibration tows in calm seas. The coefficient was estimated under a calm sea condition using a net frame with a flowmeter which was vertically deployed up to 100 m wire out. The net frame was retrieved slowly to the sea surface and a count from the flowmeter was recorded. This procedure was repeated five times and an average value was calculated to obtain the coefficient. For some datasets, volume filtered was not previously calculated, but the information needed to calculate the volume filtered had been recorded. In these instances, we retrospectively calculated the volume filtered using this information. This was shown in a separate column to the values that were obtained at the time of a cruise, this is labelled volumeFiltered2 in the database. Detailed information on the methodologies utilised to obtain volume filtered, including our retrospective calculations, for each cruise can be found in Online-only Table 2.

The solar position and day/night information was added for each observation based on the date, time and the start latitude and longitude of each net haul using the R package, maptools51 (Fig. 2). Solar position is the angle of the sun in relation to the horizon (0°), thus dawn was defined as a solar position of −12° to 12° before midday, and dusk was defined as a solar position of 12° to −12° after midday. Day was defined as the period after dawn and before dusk and night was defined as the period after dusk and before dawn. We added the zone (eg. Northern, Subantarctic and Antarctic) in which net hauls were undertaken using the definitions in52. The sector in which the net haul was undertaken was additionally added following definitions in53, which define four major sectors: Atlantic, Indian, West Pacific and East Pacific (Fig. 2).

Data Records

The dataset is comprised of three comma-separated files which are freely available at Zenodo54. Filenames adhere as closely as possible to the naming convention set out by the Darwin Core Standard48. The first file (event.csv) describes the survey methodology. Each row has its own unique event ID, which consists of the institute, cruise, event number (as recorded in the voyage logbook) and the net number (institute_cruise_event_net). An event ID represents the sampling event or net haul and contains the details of the event including date, time, position (latitude, longitude, and depth), sampling protocol, net type, net mesh size, tow speed, volume filtered and haul type (station, routine, target, test, surface or failed). The second file (groupOccurrence.csv) contains the catch data linked to the survey methodology by an event ID. Each row has its own unique occurrence ID, which is the event ID and aphia ID (retrieved from WoRMS) combined (eventID_aphiaID). An occurrence ID contains taxonomic information (eg. phylum, class, order, and family), the number of individuals (n) and estimated abundance (n_m3) for the associated sampling event. The final file (individualOccurrence.csv) contains measurements of individuals. Each row contains the event and occurrence ID, which links each measurement to the first and second file, and a ‘catalogNumber’, linking the data to the original dataset for traceability. Rows also contain taxonomic information, standard length (mm), weight (g), life stage and reproductive maturity of the individual (following definitions in55) and sex, where available. Additional notes on the preservation method and whether the specimen was measured before or after preservation are included. The presence of NA values in Myctobase are indicative of missing data. See associated metadata record for definitions and units for each variable (Supplementary Table 1). Citations for all datasets held in Myctobase can be found in Online-only Table 1.

Spatial and temporal coverage

Myctobase currently holds 4780 net hauls from 3775 sampling stations and 72 different research cruises from across the Southern Ocean. There are currently 17,491 occurrence records in Myctobase.

The highest concentration of data points is within the Atlantic Sector (45% of net hauls) spanning from the Antarctic continent to the Polar Front at 50° S (Fig. 1). The East and West Pacific Sector stands as a major gap in the spatial coverage of Myctobase (21% and 1% of net hauls in the East and West, respectively).

Vertically, data extend from the surface down to a maximum depth of 2000 m. More than half of the trawls took place in the epipelagic layer at 0–200 m (n = 3713). Data from the mesopelagic (200–1000 m) and bathypelagic (>1000 m) layers were also recorded from stratified oblique trawls.

Data span from 1991–2016 and 2019, with no data for 2017 and 2018 (Online-only Table 1). The year 2006 contains the highest number of net hauls (11%). Cumulatively, the datasets within Myctobase cover data for every month (NB. not every month of every year), with 76% of net hauls occurring in the summer months (November to March).

Records of occurrence

The four most abundant fish families in Myctobase are Paralepididae, Nototheniidae, Myctophidae and Bathylagidae. Myctophidae make up the highest number of records in Myctobase for both the Atlantic and Indian sectors (Fig. 3). In the Indian Ocean sector, the highest number of records for Myctophidae are in the Subantarctic zone. Conversely, in the Atlantic Ocean sector the highest number of records for Myctophidae are in the Antarctic zone. There are a similar number of records for Bathylagidae, Nototheniidae and Paralepididae in the Indian sector for both the Antarctic and Subantarctic zones. In the Atlantic Ocean sector, the highest number of records for Bathylagidae, Nototheniidae and Paralepididae are in the Antarctic zone.

Fig. 3
figure 3

The number of records of occurrence for the four most abundant fish families in the groupOccurrence data record of Myctobase. Data are divided into Ocean Sectors (Atlantic and Indian) and zones (Antarctic and Subantarctic) of the Southern Ocean. Zones of the Southern Ocean are defined by52.

Full size image

Technical Validation

The final dataset was subject to quality control and validation processes. Rather than removing ambiguous or incomplete records altogether, two extra columns were added to the event information (event.csv). The first column labelled validation is an index used to indicate whether the record passed quality control measures (0 = fail, 1 = pass). The second column labelled validationDescription details the reasons for a failure. Indexing the data in this way prevents the loss of potentially valuable data. For example, some events are missing latitude and longitude information, however a more general sampling location is often available and may be enough for regional analyses (Fig. 2).

The R package obistools56 was used to validate sampling locations and dates of events. Sampling locations on land or at depth values higher than the bathymetry raster used in obistools did not pass the quality control step and thus were given a ‘0’ in the validation column. Further, records missing latitude, longitude and date/time data were similarly identified. Records where technical difficulties were recorded, such as net failing to open or close were also allocated a ‘0’ in the validation column (Fig. 2).

Abundance was standardised to number of individuals per m3 (n_m3) for all datasets. In some instances, abundance could not be calculated due to missing count or volume filtered data. Additionally, abundances were not calculated for US AMLR Program as this data were considered bycatch and not the sole focus of the sampling program. Subsequently, this data is important for documenting the species observed and overall distribution in the region of the Antarctic Peninsula. Important information regarding the use of abundance values is available in ‘Usage Notes’.

Although the purpose of the dataset is to document the occurrences and relevant metadata of mesopelagic fish species, we also retained records of cephalopods. Occurrence records of cephalopods alongside those of fish were included in some of the datasets contributed to Myctobase. Cephalopods are similarly important species of the open-ocean pelagic community and are a key group supporting the flow of energy from primary producers to higher order predators in Southern Ocean food webs57,58,59. Data on squid are limited due to their low catchability with scientific nets59. As such, we retained records to maximise availability of valuable data. The data are structured to enable users to easily filter out cephalopod occurrences if they are not of interest.

Taxonomic fields within the final dataset were checked for spelling errors and to verify the usage of valid/accepted names according to WoRMS. Where appropriate, records were corrected. All original data records were archived for future data checking and validation. Users can provide feedback for any data record to the corresponding authors.

Usage Notes

Myctobase will enhance research capacity by facilitating international effort toward observing and modelling mesopelagic fish taxa. The data held in Myctobase are suitable for a number of applications, for example, investigating the biophysical determinants shaping patterns of occurrence and biodiversity. Further examples of data use can be found in the citations listed in Online-only Table 1. Data can be analysed using a variety of statistical software such as R49 or Matlab60.

Myctobase contains data from 72 different research cruises across the Southern Ocean. Each cruise employed a specific sampling strategy and provided varying levels of detail on methodology and samples collected. The different sampling methodologies used between datasets necessitates caution when comparing abundance estimates, as well as length and weight measurements across research cruises. The biases associated with net type and mesh size of the net have previously been described8,21, and are likely to influence the final output of analyses that use data from different projects. For example, the IYGPT has a larger mesh size at the front of the net limiting the size of fish that may be caught due to smaller fish escaping through the mesh. The minimum size limit has been suggested to be approximately 25–35 mm61. This suggests that nets with larger mesh sizes may not be appropriate for calculating densities of species that can escape the net. However this is a complex issue which requires further study as the net will also exert a herding effect on fish32. Biases should be considered and acknowledged. Myctobase provides detailed information for each sampling event to ensure that researchers can account for these differences in their analyses or to enable comparison of data using similar methods.

Further, abundance values should be treated as relative rather than absolute values due to the patchy distribution of species and the limited spatial and temporal coverage of sampling creating uncertainty around estimates4,8. Data are best used to demonstrate the community composition, distribution, and occurrence of fish species, life history and relative abundance within the Southern Ocean. For example, there are a multitude of available modelling techniques which may be used to predict a species geographic distribution in relation to environmental variables62,63. Furthermore, this information provides the data necessary for ground-truthing acoustic data64.

We anticipate that Myctobase will continue to grow into a fully circumpolar database with continued collaboration from across the scientific marine community. We invite researchers to contact the corresponding author(s) to contribute data (particularly from under-represented regions, taxa, and data types such as abundance data), including data from unpublished research which can be embargoed until publication.

Terms of use

The database is released under a CC-BY license. Users are encouraged to formally cite the data record used according to the standards and format of the journal in which they are published.
