Background & Summary

The Winchmore field trials are the longest running trials of grazed and irrigated pasture, globally1. The initial aims of the experiments were to: (1) establish the response of pasture (ryegrass and white clover) production (kg ha−1 yr−1) and productivity (production per unit of phosphorus input) to increasing rates of phosphorus (P) fertiliser applied as single superphosphate (SSP) or reactive phosphate rock (RPR), and (2) measure the response of pasture to different rates of irrigation at the same rate of SSP. Since their establishment in 1949 for the irrigation trial and 1952 for the fertiliser trial, the data have laid the foundation of productive irrigation systems that earn several billions in revenue annually in New Zealand and overseas and provisioned data to support 475 publications2.

The initial focus on production and productivity revealed important findings on the optimal management of productive pastures. For instance, in response to P applications, the rate of organic P accumulation increased quickly and then reached a plateau, presumably as all plant-P is supplied from inorganic sources. This isolated an agronomic optimum Olsen P concentration for pasture production at 15–20 mg kg−1, mostly as inorganic P3. Additional data showed that this concentration allowed the proportion of ‘P-hungry’ nitrogen (N)-fixing legumes in the sward that was economically optimal and supported increased soil biodiversity4,5,6,7. However, ancillary trial data also showed that rapid declines in pasture production were possible if P applications were stopped, for example, in response to short-term price rises, such as the 800% increase in P fertiliser prices seen in 20088,9.

More recently the focus has shifted to environmental issues such as water and soil quality. The trial’s range of soil Olsen P concentrations was used to show an increase in P losses in runoff (up to 7 kg P ha1 yr−1) in response to flood irrigation10. The loss of P increased exponentially beyond an Olsen P of 25 mg kg−1 affirming advice that exceeding the agronomic optimum represents an unnecessary risk to surface water quality3. The analysis of soils in the Winchmore plots over time has quantified how fast soils are accumulating cadmium (Cd) applied as a by-product of SSP and RPR application11,12. Subsequent modelling has led to national policies to decrease Cd-concentrations in P-fertilisers and minimise the risk of Cd contaminating livestock13,14,15. Additional work included these topsoils along with a range of other soils from around New Zealand of high fertility but different rainfall and hypothesized that while initially accumulating carbon (C), concentrations had reached a plateau and the higher Olsen P soils were potentially losing C16. This would have impacted upon the accuracy of national inventories for CO2 emissions; however, subsequent research established that over the depth of the profile (1-m), C stocks were not different between the different fertiliser treatments but was if compared to an unirrigated treatment where poorer pasture quality and cycling allowed C to accumulate17,18,19.

The original station operators had the vision to archive samples of soil, pasture and fertiliser, recognising that advances in analytical techniques may lead to new discoveries. The number of archived soil samples now approaches 7000. Samples of the SSP and RPR fertiliser applied have also been kept since 1998. However, the original archived pasture samples have been lost due to insect damage during storage. Records were also kept of sowing rates and harvest dates, climatic conditions, soil moisture, and monthly pasture production and botanical composition. As part of this publication, these paper records have now been put into electronic format. In this paper we outline the context, structure and potential uses of the data from the Winchmore trials with a view that they be used by the global scientific community.

Methods

Experimental design

The Winchmore Irrigation Research Station is in the centre of the Canterbury plains, the largest area of flat land in New Zealand (43.787° S, 171.795° E; Fig. 1). It is at an altitude of 160 m above sea level, a mean annual temperature of 12 °C, and has an annual rainfall of 745 mm (range 491–949 mm)20. The soil is a Lismore stony silt loam classified as an Orthic Brown soil in the New Zealand soil classification and as an Udic Ustochrept in USDA soil classification21. Flood irrigation, known locally as border-check/dyke irrigation, was installed at the site in 1947. However, the two long-term trials, hereafter known as the fertiliser and irrigation trials, were established in 1952 and 1949, respectively.

Fig. 1
figure 1

Location of Winchmore within the Canterbury region (coloured green) and the layout of the long-term fertiliser and irrigation trials over time.

Full size image

Full details of the setup of the fertiliser and irrigation trials between 1949–1951, including the political rationale for the trial, its statistical design, cultivation dates, sowing rates of perennial ryegrass (Lolium spp) and white clover (Trifolium repens) and initial fertiliser and irrigation treatments are available elsewhere20.

The fertiliser trial has 20 border check irrigation bays divided into five treatments each with four replicates set out in a randomised block design (Fig. 1). From 1952/53 to 1957/1958 treatments were: nil (no P applied), 188, 376 (annually and split P applications), and 564 kg SPP ha−1. All P applications occurred annually in autumn except for the 376 kg SSP ha−1 treatment which had two treatments divided into an annual autumn application and split applications in between autumn and spring. From 1958/59 to 1979–80 the nil and 188 and 376 (split autumn and spring application) SSP treatments were unaltered, while P applications were stopped to the annual 376 and 564 SSP treatments. In 1972, 4.4 t/ha of lime (caclium carbonate) was applied to all treatments22. From 1980 onwards the nil, and 188 SSP treatments and the 376 SSP treatment, now receiving winter fertiliser applications, were joined by a treatment applying 250 SSP ha−1 in winter to the previous 376 SSP treatment and a Sechura rock phosphate treatment applying 22 kg P ha−1 in winter to the former 576 SSP treatment.

Each irrigation bay was fenced off, 0.09 ha in size and grazed by separate mobs of sheep at 6, 11, and 17 stock units (with one stock unit equivalent to one ewe at 54 kg live-weight) per replicate for the nil, 188 SSP, and 376 SSP treatments, respectively. This separation prevented carry-over of dung P and other nutrients and contaminants between treatments. No grazing occurred in winter. Flood irrigation was applied when soil moisture content (w w−1) fell below 15% (0–100 mm depth). This occurred on-average 4.3 times per year.

The irrigation trial had 24 irrigation bays (each 0.09 ha in size) which had lime applied to the whole trial in 1948 (5 t ha−1) and 1965 (1.9 t ha−1) to maintain soil pH at 5.5–6.0. From 1951 to 1954 treatments were SSP applied at 250 kg ha−1 in autumn annually and either four replicates of dryland, or five replicates of irrigation applied at one, two, three, six-weekly intervals or at three-weekly intervals in alternate seasons. From 1953/54 to 1956/57 the weekly and two-weekly treatments were replaced by irrigation when soil moisture in the top 100-mm of soil reach 50 and 0% available soil moisture (asm), respectively. In 1958 the irrigation trial was cultivated with a rotary hoe and grubber, 140 kg SSP ha−1 applied and the site re-sown in ryegrass and white clover. From 1958/59–2007 the site had the same blanket application of SSP and four replicates of dryland, while a completely randomised design was used to impose five replicates of four treatments (Fig. 1) that looked at irrigation applied when soil moisture in the top 100-mm of soil reach 10, 15 and 20% (equivalent to 50% asm with 0% asm being wilting point) and irrigation on a 21-day interval. The need for irrigation to the irrigation and fertiliser trials was informed by soil moisture measured weekly by technical staff using a mixture of gravimetric analyses (1950–1985), neutron probe (1985–1990) and time-domain reflectometer (1990-onwards). Irrigation was applied at a rate of 100 mm per event20.

Except for winter, when no grazing occurred, each treatment was rotationally grazed by a separate flock of sheep with 6 and 18 stock units per replicate for the dryland and 20% v/v treatments, respectively.

The irrigation trial finished in October 2007 although the P fertiliser regime continued. All irrigated treatments shifted to the same three weekly schedule as the long-term Fertiliser trial. The dryland treatment remained unirrigated. The Winchmore farm was converted into a commercial irrigated farm operation and sold in 2018. The fertiliser trial was also sold but with a covenant ensuring it continues to operate as per normal except that irrigation from 2018 onwards is now applied by spray irrigation with the aim of ensuring soil moisture is maintained above 90% of field capacity. Since January 2019 there are daily soil moisture meter records from a moisture meter installed into one of the control plots. Soil moisture, rainfall and irrigation are recorded.

The production of the Winchmore trials data records23 involved a three-step process (Fig. 2).

Fig. 2
figure 2

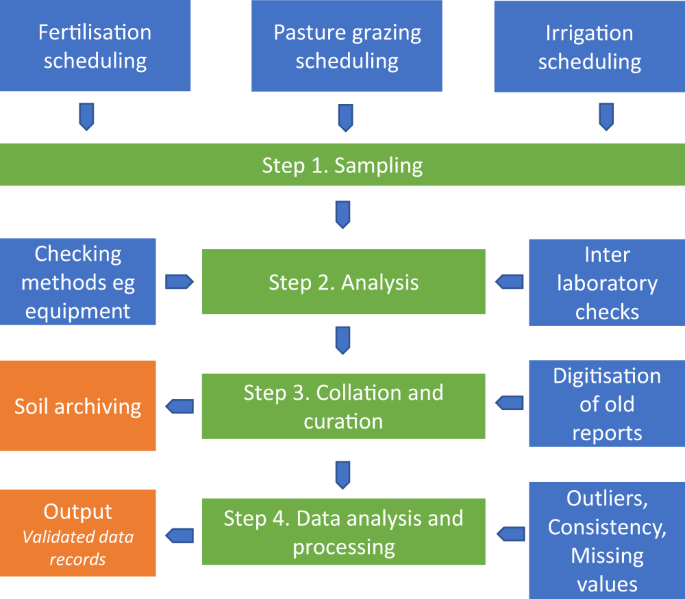

Flowchart of the steps involved in sampling, analysis, collation and curation and data analysis and processing of the databases from the Winchmore Trials. Note that blue and orange boxes are sub tasks associated with each step and resulting outputs, respectively.

Full size image

Step 1: Soil and pasture sampling

Pasture production was measured from two exclusion cages (3.25 m long × 0.6 m wide) per plot24. Areas within each cage were trimmed to 25 mm above ground level and left for a standard grazing interval for that time of year. Following grazing a lawnmower was used to harvest a 0.40 m wide strip in the middle of each enclosure to 25 mm above ground level. The wet weight was determined, and a sub-sample taken to determine dry matter content with a separate sample manually dissected into grass, clover and weeds. All surplus mown herbage was returned to the plot. Approximately 9–10 cuts were made annually. A composite soil sample of 10 cores (2.5 cm diameter and 7.5 cm deep) was collected from each plot. These were collected four times annually (July, prior to fertiliser application, and October, January and April), using established best practices24,25. In 2009 soil samples were also collected from the 0–75, 75–150, 150–250, 250–500, 500–750, and 750–1000 mm depths on both trials17. During 2018, prior to cultivation, soil on the unirrigated, 10 and 20% soil moisture treatments of the irrigation trial were sampled at 0–150, 150–250, 250–500, 500–750, 750–1000, 1000–1500, and 1500–2000 mm depths. The top 250 mm of these samplings were collected by hand using an auger, but deeper depths were excavated via a mechanical digger. Representative sub-samples were taken from each depth. Annual samplings were crushed, dried and sieved <2 mm for storage and later chemical analysis. The depth samplings were crushed, dried and sieved <6 mm for storage and chemical analysis. The mass of stones was recorded during sieving for the depth sampling.

In February 2002 and August 2007 10 cm diameter and 5 cm deep rings were taken in duplicate of the Irrigation trial for later soil physical analyses.

During 2017 soil on all treatments of the fertiliser trial was sampled using a soil corer to 0–75, 75–150, and 150–300 mm depths at five equally spaced distances centrally located down the irrigation bay. A further series of soil samples were obtained from the fertiliser trial during 2018 from the nil, 188 and 376 kg SSP ha−1 yr−1 treatments at 0–75 and 75–175 mm depths at five equally spaced distances down and five locations across the irrigation bay.

Step 2: Soil and fertiliser analyses

Soil chemical samples were commonly analysed for Truog P (1952–1981)26, Olsen P concentration (1976-onwards)27, pH in water28, exchangeable cations (potassium (K), magnesium (Mg), calcium (Ca)29, sulphate-sulphur (S), and occasionally organic S30, reserve K31, inorganic P32, organic C33, organic matter33 and total C34, Cd35, P36, fluorine (F)37, N38 and uranium (U)11. Stored samples of the fertilisers applied from 1998–2010 were also digested and analysed via inductively coupled plasma-optical emission spectroscopy (ICP-OES)11. Several quality assurance checks were made of these analysis and soil moisture measurements (see Technical Validation section). Soil physical measurements of porosity, bulk density, particle size (proportions of sand, silt and clay), and hydraulic conductivity39 were made for samples taken in 2002 and 2007 from the Irrigation trial. Some assessments were made of soil biological diversity in the Irrigation trial (microbial, fungal and invertebrate communities)6,7.

Step 3: Collation and curation

Data were sourced from several technical reports and published articles (Table 1). All data in reports written prior to 1995 had to be digitised before being entered into Excel spreadsheets. Data were converted via a commercial data capture service who used an XML-based data conversion tool, ImageXP with an estimated accuracy of 99.995%40. In addition to records, archived soil samples, each with a unique identifier outlining the trial, year and season of sampling, sample depth and replicate plot number have been stored in a soil archive based at AgResearch’s Ruakura campus in Hamilton, New Zealand. Soil samples exist for approximately 85% of years sampled for the fertiliser and (up to 2007) irrigation trials. Samples of the fertilisers applied to both trials exist in the archive for 1997, 1998, 1999, 2000, 2001, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 and 2019.

Table 1 Summary of the data files available at Figshare23.
Full size table

Step 4: Data analysis and processing

Removal of outliers

We used methods outlined in the literature to check our data for outliers41. We established an acceptable range for daily temperature of −20 to +40 and a daily maximum rainfall of 100 mm as these were consistent with long-term meteorological data collected since 1950. Acceptable ranges for soil moisture, soil Olsen P, K, Mg, Ca and S concentrations were set at 0–100% asm, 1–200 mg Olsen P kg−1, 0.5–12 me Ca 100 g−1, 0.1–5 me K 100 g−1, 0.1–4 me Mg 100 g−1, and 1–120 mg S kg−1. The soil chemical concentrations, for example for Olsen P, corresponded to the maximum that were unlikely to indicate contamination by dung or fertiliser42. An upper range for pasture harvest data was set at 5,000 kg ha−1. Data outside these temperature, moisture, soil Olsen P concentration and pasture harvest ranges were discarded. For soil total Cd, concentrations below a detection limit of 0.5 µg kg−1 were recorded as 0.25 µg kg−1. Checks are continuing for regular soil analysis of K, Mg, Ca or S, while no checks are planned for other soil data owing to their infrequent measurement.

We calculated the mean standard deviation (SD) for soil Olsen P, S, and exchangeable Ca, K, and Mg concentrations in decadal intervals from 1960 and flagged those values that were >± 3SDs away from the mean. These data were inspected manually and excluded if variation was not consistent with other replicate plots. This removed <0.3% of the data.

Consistency

We compared weekly soil moisture across replicates and treatments to determine if irrigation events had occurred as the treatment design called.

Missing values

Our dataset contains some missing values that cause gaps in our data records. These were caused by either no sampling or a loss of data records. Missing values are indicated by blanks in our dataset. In the Fertiliser trial they constituted ~18% of pH and exchangeable cations data for 36 sampling dates and 9% of Olsen P data for 20 sampling dates. However, means were available for most of these dates. In the Irrigation trial, 4% of pH and exchangeable cations data for 6 sampling dates and 5% of Olsen P data for 7 sampling dates. Unlike the Fertiliser trial, means were unavailable for these missing dates.

Future content

The intent of the Winchmore database is for it to be kept live. Updates will be made to the Figshare repository23 as and when new data become available. Additional reports on annual soil chemical analyses and pasture production and botanical composition for the Fertiliser trial are available at www.fertiliser.org.nz.

Data Records

Data are published in five spreadsheets at Figshare23 beginning wither either “Fertiliser trial…” or “Irrigation trial…”. There are two files containing the soil chemistry data for the Fertiliser and Irrigation trials and two files containing pasture production and botanical composition data. Data are also available for irrigation schedules and soil moisture, temperature and physical measures for the Irrigation trial. Note that the Fertiliser trial was irrigated on the same three-weekly schedule as the Irrigation trial. All files have information concerning the trial design and metadata included in the first two tabs.

A summary of the nearly 70-year record of data is given in Table 1 and example of the Olsen P data for the Fertiliser trial in Fig. 3., showing the gradual increase in soil Olsen P concentrations over time.

Fig. 3
figure 3

Mean soil Olsen P concentrations for the long-term fertiliser trial from 1951–2019 for each treatment. Error bars are the 95% confidence interval for the comparison of treatment means.

Full size image

Technical Validation

Storage

The long-term storage of air-dried soils is known to affect some chemical parameters such as a decrease in pH caused by the hydrolysis of Al3+, especially in acid soils when stored in periodically humid air43 and an increase in exchangeable Na (if soils are stored in Na-based glassware44. Other parameters like total C show no change while no data is available for Olsen P, sulphate-S, organic S, or total Cd and U. Fortunately, the Winchmore samples have been stored in paper bags in a naturally low humidity environment (at Winchmore) until 2004 and in 200 mL sealed plastic containers at ambient temperature at AgResearch-Ruakura (Hamilton, New Zealand) since then. Nevertheless, we cannot guarantee that some chemical parameters have not changed during storage.

Validating variation between methods and laboratories

Several of the chemical parameters were validated against reference soils and their methods checked for compatibility over time and between laboratory variation. The use of Truog P until 1976 required data to be converted into Olsen P. An overlap from 1976–1981 allowed a regression equation to be generated to predict Olsen P with a high degree of confidence (Olsen P = 1.376Truog P + 0.06; R2 = 0.91, P < 0.001, n = 118, mean Olsen P = 8.5 and range = 1–28 mg kg−1). Before changing laboratories in the late 1980’s and early 2000’s to test the regularly analysed parameters Olsen P and exchangeable cations, the same subsample of 30 archived soils selected at random from 1960–1980 were sent to the two laboratories and the data checked to see if the variation between mean concentrations was <5%. The same 5% threshold was used to check soil moisture measurements using neutron probes or TDR against the more laborious, but ‘true’ measurements of soil moisture via the gravimetric method.

Measurements of pasture production at the site had been conducted largely by one person for the last 50 years. This person was trained by the original operators of the sites during a brief hand-over period. The same pasture cages have been used since the inception of both trials. A drum-type mower has been used to cut herbage from the trials’ beginning until 1998 from which time a rotary mower has been used.

Of the irregularly measured chemical parameters, total Cd was determined by different machines. Initial measurement using ICP-OES11 yielded more erratic data, especially at higher concentrations, than more recent assessments of the same soils using inductively coupled plasma-mass spectroscopy (ICP-MS)35,45. We include only the latter measurements of total Cd in our dataset as these were included in measurement runs that included checks for Cd concentration in reference soils were no more than 5% greater than the known total Cd concentration35.

Usage Notes

Use

Data from the Winchmore trials have been used in a wide range of academic areas and subsequent extension efforts with farmers. A comprehensive bibliography published in 20122 lists such areas to include journal articles and conference presentations. We grouped these into five broad classes:

  1. 1.

    Improvements in sheep, dairy and deer production (n = 49), which included the establishment and refinement of stocking rates, carrying capacities, feed requirements, nutrient deficiencies, improvements in sheep fertility and liveweight gain and mixed goat and sheep grazing46,47,48.

  2. 2.

    The efficacy and scheduling of irrigation (n = 50), which included engineering requirements for and maintenance of flood irrigation systems, and water use efficiency and the effect on groundwater recharge – leading to the gradual phasing out of flood irrigation to spray irrigation in New Zealand for environmental and financial reasons49,50.

  3. 3.

    Improvements in pasture and crop production (n = 184) which drew from the long-term trials to influence the design and trialling of cereal and legume production trials, the role of long-term no till and crops for ethanol production51,52.

  4. 4.

    Agronomic and environmental soil research (n = 94) that focused on soil moisture levels in response to irrigation over time and modelling fertiliser requirements and losses in response to pasture performance in addition to the aforementioned research into contaminant metals like Cd or environmental issues such as nutrient losses via runoff and leaching39,53,54.

  5. 5.

    Entomology (n = 14) including the long-term monitoring of the lifecycle and impact of grass grub beetle (Costelytra zaelandica) on pasture growth, the presence and behaviour of earthworms in irrigated and dryland pastures, and the presence of insecticide residues such as DDT in the soil7,55,56.

Additional technical reports and miscellaneous publications numbered 43. A search of the Ovid database indicated an additional 44 journal publications since 2012, totalling 475 publications over 70 years of which 94 were in the international literature. This is a similar number over the last 8 years to that produced from the more well-known, and longest running grassland trial in the world, Park Grass at the Rothamsted Research Station in the UK (n = 55; 2007–2016)57. This similarity emphasizes the value of Winchmore as a long-term site of national and potentially global interest.

The future of the long-term fertiliser trial has been secured with a lease in place to the Fertiliser Association of New Zealand out to 2052. The site is managed by AgResearch on behalf of the Association. The long-term lease and a commitment to provide the data under the CC-BY licence will see it used wider and for questions that only long-term trials and the archiving of samples can answer. Such questions include, but are not limited to:

  • defining the concentration of Cd in P fertiliser that can stop or reduce an increase soil total Cd content;

  • the impact on nutrient cycling associated with increasing CO2 concentrations over decadal timeframes; and

  • isolating the biodiversity, function and connections between the soil-plant-animal microbiome.

Data and sample access

The data are available but remain the property of the funders. Users of the data are encouraged to cite its origin (this paper) and the three funding bodies (the New Zealand Government, AgResearch Ltd, and the Fertiliser Association of New Zealand). All of the data files are supplied in read-only form to avoid users unintentionally compromising files. We also encourage users to fill out the Data Use Form. We will use the information provided to track use of the database. Your details will be kept private.

Soil and fertiliser samples may also be available on request by emailing the database managers at winchmore@agresearch.co.nz. We will only consider sending samples to users who have lodged a Data Use Form with us. Given their finite volume, we may require further information to judge the value of the work before samples would be released. Samples would only be provided on the understanding that any analysis data so gained will be available to be archived in this database.
