Main

Shortly after writing down his theory of general relativity, Einstein postulated the existence of gravitational waves1. Just as accelerated charges give rise to electromagnetic waves, so too do accelerated masses generate gravitational radiation. It took one hundred years to reach the technical ability to first detect gravitational waves16 as they emerge from binary inspirals and mergers of black holes and neutron stars—the highest mass density objects in our universe. Today, more than one hundred such events have been observed by the LIGO, Virgo and KAGRA detectors3. The planned third generation of ground-based and space-based gravitational-wave observatories17,18,19, including the recently approved LISA mission, will reach an experimental accuracy enabling unprecedented insights into gravitational, astrophysical, nuclear and fundamental physics.

To benefit from the increased sensitivity of gravitational-wave detectors, corresponding increases in precision are required in our ability to solve the gravitational two-body problem4, described by the highly nonlinear Einstein field equations, and thus predict the gravitational waves produced in a binary encounter. Although numerical relativity, which discretizes spacetime and solves the resulting equations numerically on supercomputers, provides a good option5,6,7, it is slow and computationally expensive (a run for a single configuration can take weeks). As tens of millions of waveform templates are needed for gravitational-wave data analysis, fast approximate analytical results to the two-body problem are therefore also required. These can be generated using perturbation theory, picking one or more small parameters and solving the equations order by order in a series expansion. For the binary inspiral, this includes a slow-velocity and weak-gravitational-field expansion (post-Newtonian)8,9,10, as well as the semi-analytical self-force expansion20,21,22 in a small mass ratio (m1/m2 ≪ 1).

Here we describe a black hole (or neutron star) scattering encounter, which—although asymptotically unbounded—also yields physical data concerning the bound two-body problem, relevant for binary inspirals23,24. In the scattering regime, we may advantageously make use of a weak-gravitational-field expansion, in powers of Newton’s constant G, valid as long as the two bodies are well separated but moving at arbitrary velocities11,12,13,14,15,25 (Fig. 1). The first non-trivial order for such a black-hole scattering was found in 1979 (ref. 26), namely, the sub-leading G2 order27. Rapid progress has been made since then by synergistically porting techniques from quantum field theory (QFT)12,13,14,28, the mathematical framework for elementary particle scattering, to this classical physics problem. The third order (G3) was established in 2019 (refs. 29,30,31,32) and the fourth order (G4) was completed in 2023 (refs. 33,34,35,36,37). At least the fifth order (G5) precision will be needed to prepare for the third generation of gravitational-wave detectors4.

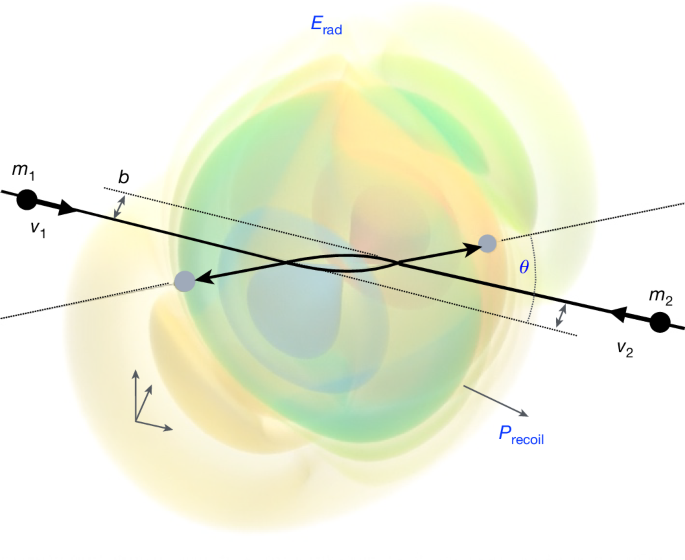

Fig. 1: Gravitational two-body scattering event.
figure 1

Two black holes (or neutron stars) with masses mi and incoming velocities vi, impact parameter b and resulting relative scattering angle θ, radiated gravitational-wave energy Erad and recoil (shown in blue).

Full size image

Being characterized by three fundamental properties—their mass, spin and charge—black holes are, in a sense, the astrophysical equivalents of elementary particles. QFT is a highly mature subject and precise analytic predictions for particle scattering events, used at colliders, such as CERN’s Large Hadron Collider, are commonplace. We benefit from this progress in gravity through the close theoretical link between hyperbolic motion (unbound scattering) and elliptic motion (bound orbits). State-of-the-art technologies for performing the multi-loop Feynman integrals involved in scattering cross-sections have enabled some remarkable predictions in elementary particle physics38,39,40,41 and uncovered surprising connections to algebraic geometry42,43,44,45.

The link to algebraic geometry arises through the function spaces that are needed to express the observables at growing perturbative orders. We typically find generalizations of logarithms, known as multiple polylogarithms, which are well understood. At higher orders, elliptic integrals make their appearance46. Geometrically, these are period integrals over the two non-trivial closed cycles of a family of elliptic curves (also known as tori) (Fig. 2). The physical parameters determine the shape of the latter. Yet, this is just the tip of the iceberg.

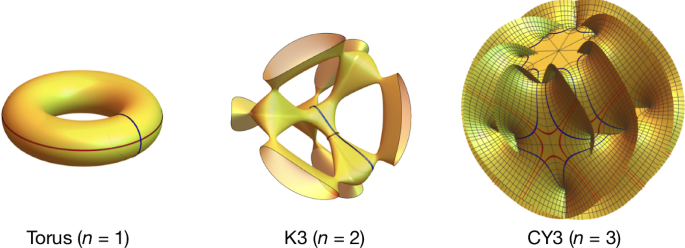

Fig. 2: Graphical representation of the CY n-folds emerging in black-hole scattering.
figure 2

The elliptic curve (topologically a torus) and two-dimensional projections of the K3 surface and CY3 reflecting their symmetries. Red and blue lines are (projections of) the real n-dimensional cycles Γn. The corresponding periods over the n-form Ωn(x), that is, \({\int }_{{\varGamma }_{n}}{\varOmega }_{n}(x)\), depend on the so-called modulus x (related to the relative velocity v of the black holes \(1/\sqrt{1-{(v/c)}^{2}}\) = v1 · v2/c2 = (x + x−1)/2) parametrizing the shape of CY manifolds and yield master integrals in our problem.

Full size image

Recently, it has become evident43,44,45,47,48 that CY manifolds emerge in generalizations of the aforementioned function spaces, which encode Feynman integrals in higher-order perturbation theory. These are complex n-dimensional manifolds whose metric obeys Einstein’s vacuum equations in 2n-spacetime dimensions49. Geometrically, these higher-dimensional CY n-folds represent a beautiful series of critical geometries generalizing the elliptic curve (n = 1) and may be thought of as 2n-dimensional generalizations of the torus. To motivate this, consider the Legendre family of elliptic curves Y2 = X(X − 1)(X − x) with X and Y complex variables. The one-form Ω1 = dX/Y yields the elliptic periods \({\varpi }_{0}=2{\int }_{1}^{\infty }{\rm{d}}X/Y\) and \({\varpi }_{1}=-2{\rm{i}}{\int }_{-\infty }^{0}{\rm{d}}X/Y\), which are expressible through standard elliptic integrals. These satisfy a second-order differential equation \((1+4(2x-1){\partial }_{x}+4x(x-1){\partial }_{x}^{2}){\varpi }_{k}=0\) for k = 0, 1, known as a Picard–Fuchs equation. In turn, CY n-folds exhibit an n-form Ωn, whose periods—integrals over higher-dimensional integration cycles (Fig. 2)—generalize the elliptic integrals. These n-fold periods obey Picard–Fuchs equations of order (n + 1). Although CY twofolds—known as K3 surfaces50—have a unique topology, the topological types of CY (n > 2)-fold are not classified but believed to be finite. CY threefolds (CY3) are of particular interest in string theory, in which they are used to curl up the six extra spacetime dimensions to arrive at the four observable spacetime dimensions51.

Although specific higher-loop Feynman integrals are known to be expressed in terms of CY periods43,44,45,47,48, physical observables tend to be much simpler than the multitude of contributing Feynman integrals. For example, the Feynman integrals occurring in black-hole scattering at orders G4 (refs. 33,34) and G5 (ref. 52) encode K3 periods, but these contributions strongly cancel in the physical observable within the conservative sector at G5 (ref. 53). Similar intriguing cancellations occur in QFT computations54,55. Furthermore, CY n-fold periods have a transcendentality degree45,56 increasing with their dimension n. This leads to the important question of what classes of transcendental functions appear in physical observables in perturbation theory. Before our work, no physical observables were known that feature CY n-fold periods for n ≥ 3. We expect that our findings and the methods described below will have substantial implications for high-precision predictions in particle physics as well.

In this article, we report on a new landmark result of the QFT-based classical general relativity programme by providing complete scattering observables of a binary black hole (or neutron star) encounter up to the fifth order in the weak-field expansion (G5) and sub-leading order in the symmetric mass ratio ν = m1m2/(m1 + m2)2. This encounter is depicted in Fig. 1 and involves two black holes scattering with a deflection angle θ and radiating gravitational waves with total energy Erad. We describe the black holes as point particles, an approximation valid as long as their separation b is large compared with their intrinsic sizes, that is, their Schwarzschild radii 2Gmi/c2—the weak-gravitational-field region. Consequently, the G expansion is really an expansion in the dimensionless quantity GM/bc2 with total mass M = m1 + m2. The two scattering observables θ and Erad, the latter depending on CY3 periods, can be used to calibrate gravitational-waveform models.

The gravitationally interacting two-body system is governed by an action consisting of two worldlines, coupled to the gravitational Einstein–Hilbert term:

$$S=-\,{m}_{1}c\int {\rm{d}}{s}_{1}-{m}_{2}c\int {\rm{d}}{s}_{2}-\frac{{c}^{3}}{16\pi G}\int {{\rm{d}}}^{4}x\sqrt{-g}R[g].$$
(1)

Variation of this action gives rise to the Einstein and geodesic equations. To explain our notation, the proper time intervals \({\rm{d}}{s}_{i}=\sqrt{{g}_{\mu \nu }{\dot{x}}_{i}^{\mu }{\dot{x}}_{i}^{\nu }}{\rm{d}}\tau \) give rise to the followed trajectories \({x}_{i}^{\mu }(\tau )\) (μ = 0, 1, 2, 3) of the ith black hole, parametrized by a time parameter τ (a dot symbolizes a τ derivative). The spacetime metric gμν(x) yields the curvature scalar R[g] and \(g=\det ({g}_{\mu \nu })\).

We calculate the change in four-momentum of each body over the course of scattering, \(\Delta {p}_{i}^{\mu }\), known as the impulse. With the momentum of each body given by \({p}_{i}^{\mu }={m}_{i}{\dot{x}}_{i}^{\mu }\), the impulse is simply the difference between the momentum at late and early times:

$$\begin{array}{l}\Delta {p}_{i}^{\mu }\,=\,{p}_{i}^{\mu }(\tau \to \mathrm{+\infty })-{p}_{i}^{\mu }(\tau \to \mathrm{-\infty })\\ \qquad \,=\,G\Delta {p}_{i}^{(1)\mu }+{G}^{2}\Delta {p}_{i}^{(2)\mu }+{G}^{3}\Delta {p}_{i}^{(3)\mu }+{G}^{4}\Delta {p}_{i}^{(4)\mu }+{G}^{5}\Delta {p}_{i}^{(5)\mu }+\cdots .\end{array}$$
(2)

The initial momentum of each black hole is given by its mass times initial velocity, \({p}_{i}^{\mu }(\tau \to -\infty )={m}_{i}{v}_{i}^{\mu }\). Working in a weak-gravitational-field region, we have series-expanded order by order in Newton’s constant. With results up to G4 already determined33,35,36, and the conservative (non-radiating) part of G5 derived by some of the present authors53, here we extract the subleading-in-ν G5 component from which we will also derive the scattering angle θ and radiated energy flux Erad. Note that ν tends to zero for m1 ≪ m2 and vice versa.

Our calculation is performed using Worldline Quantum Field Theory (WQFT)11,57, in which a Worldline Effective Field Theory action is used to represent the black holes as point particles25,28. This allows us to reinterpret this classical physics problem as one of drawing and calculating perturbative Feynman diagrams (Extended Data Fig. 1). The main benefit of WQFT for classical physics computations is a clean separation between classical and quantum effects. In this language, gravitons (wavy lines) and deflection modes (solid lines) are the quantized excitations of the metric gμν and trajectories \({x}_{i}^{\mu }\). The momenta and energies of these particles are unfixed and must be integrated over. The key principle being exploited here is that tree-level one-point functions, given by a sum of diagrams with a single outgoing line and no internally closed loops, solve the classical equations of motion58. We recursively generated the graphs to be computed at the fifth order in G, yielding a total of 426 diagrams. These diagrams directly translate to mathematical expressions, Feynman integrals, by way of Feynman rules derived from the action in equation (1) (Extended Data Fig. 2).

The resulting Feynman integrals are a staple of perturbative QFT. Individual Feynman integrals, which may diverge in four spacetime dimensions, are treated by working in D dimensions so that divergences appear as (D − 4)−1 poles. Finiteness of our results in the limit D → 4, that is, the cancellation of all intermediate divergences, then provides a useful consistency check. Our calculation of the impulse calls for the evaluation of millions of Feynman integrals, which may have at most 13 propagators of the kinds seen in Extended Data Fig. 2. To evaluate them, we generate linear integration-by-parts (IBP) identities, which reduces the problem to one solving a large system of linear equations. The task was nevertheless enormous and consumed around 300,000 core hours on high-performance computing clusters.

Our task is ultimately to determine expressions for a basis of 236 + 232 master integrals, which split under parity (\({v}_{i}^{\mu }\to -{v}_{i}^{\mu }\)) into two distinct sectors. From these, all other integrals may be expressed as linear combinations using the IBP identities. To do so, we exploit the integrals’ non-trivial dependence on only a single variable x: it derives from the relativistic boost factor \(\gamma =1/\sqrt{1-{(v/c)}^{2}}={v}_{1}\cdot {v}_{2}/{c}^{2}\) for the initial relative velocity v of the two black holes, through γ = (x + x−1)/2. Rather than attempt a direct integration, we may therefore set up two systems of differential equations in x (even and odd parity) as:

$$\frac{{\rm{d}}}{{\rm{d}}x}{\bf{I}}(x,D)=\widehat{M}(x,D){\bf{I}}(x,D).$$
(3)

The integrals to be computed are grouped into vectors I and the matrices \(\widehat{M}\) take a lower block triangular form (Fig. 3). To obtain this system, derivatives of the master integrals with respect to x are re-expressed as linear combinations of the masters themselves using the IBP identities. We solve the system order by order in a series expansion close to D = 4, with higher-order terms given by repeated integrals (with respect to x) of lower-order terms. Boundary conditions on the integrals are fixed in the non-relativistic (low-velocity) limit x → 1.

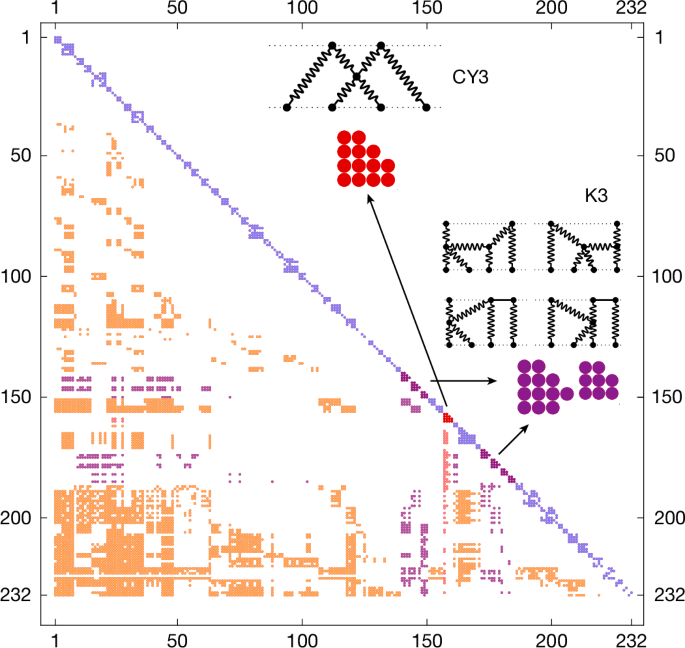

Fig. 3: Non-zero entries of the odd-parity 232 × 232 differential equation matrix \(\widehat{{\boldsymbol{M}}}({\boldsymbol{x}},{\boldsymbol{D}})\).
figure 3

The blocks on the diagonals determine the function spaces of the multiple sub-sectors. The unmagnified diagonal sectors give rise to multiple polylogarithms.

Full size image

Repeated integrations with respect to the kinematic parameter x produce the mathematical functions \({\mathcal{I}}\) appearing in our final result for the impulse:

$${\mathcal{I}}({\phi }_{1},{\phi }_{2},\ldots ,{\phi }_{n};x):= {\int }_{1}^{x}{\rm{d}}{x}^{{\prime} }{\phi }_{1}({x}^{{\prime} }){\mathcal{I}}({\phi }_{2},\ldots ,{\phi }_{n};{x}^{{\prime} }),$$
(4)

with the base case \({\mathcal{I}}(;x)=1\). The nature of the integration kernels ϕi determines the types of function and are associated with underlying geometries. In the simplest case, the kernels ϕi are rational functions with single poles, for example, x−1, (x + 1)−1 or (x − 1)−1, and iterated integrations produce the function class of multiple polylogarithms—including the ordinary logarithm \({\mathcal{I}}({x}^{-1};x)=\log \,x\). Geometrically, we can interpret these integration kernels as periods of a zero-dimensional CY space, given by two points on a sphere. In more complicated scenarios, usually related to higher-loop computations, the ϕi are connected to periods of higher-dimensional algebraic varieties. A key challenge is to understand the kernels and the associated class of iterated integrals occurring in a physical problem. In a G4 calculation of the impulse, squares of elliptic integrals arise, which are geometrically interpreted as periods of a one-parameter K3 surface (Fig. 2). In the odd-parity sector of integrals at the present fifth order in G, the kernels also depend on CY3 periods and we express physical quantities in terms of the corresponding class of iterated functions.

To see the origin of the CY3 periods, and to clarify their precise nature, we examine the differential equation matrix \(\widehat{M}(x,D)\) (see Fig. 3) in the limit D → 4. The diagonal blocks of this matrix are associated with specific Feynman graphs appearing in the impulse, of which the CY3 geometry is isolated to a single 4 × 4 diagonal sub-block. We can decouple these four first-order differential equations such that we obtain a single fourth-order differential equation, which is the Picard–Fuchs equation of the CY threefold:

$$\left[{\left(x\frac{{\rm{d}}}{{\rm{d}}x}-1\right)}^{4}-{x}^{4}{\left(x\frac{{\rm{d}}}{{\rm{d}}x}+1\right)}^{4}\right]\varpi (x)=0.$$
(5)

The latter is solved by the four CY threefold periods \({\varpi }_{k}(x)={\int }_{{\varGamma }_{3}^{k}}{\varOmega }_{3}(x)\), in which the three-form Ω3(x) is integrated over the real three-dimensional cycles \({\varGamma }_{3}^{k}\), k = 0, 1, 2, 3. For an algebraic definition of the CY family together with an explicit expression of Ω3, we refer to refs. 52,59. These integrals appear within the integration kernels ϕi of the iterated integrals (equation (4)).

Our final expression for the fifth-order impulse is involved and described in Methods, in which we also elaborate on the function space. From the impulse, we can derive the scattering angle θ, which measures the angle of deflection between the ingoing and outgoing momenta in the initial centre-of-mass inertial frame (Fig. 1). As the system dissipates energy, it recoils, and so the initial frame choice is not preserved over the course of a scattering event. Like the impulse (equation (2)), the scattering angle is expanded in the weak-field limit with the Gn component, denoted θ(n). These components are also expanded in powers of the symmetric mass ratio ν and at order G5, we have

$${\theta }^{(5)}=\frac{{M}^{5}\varGamma }{{b}^{5}{c}^{10}}({\theta }^{(5,0)}+\nu {\theta }^{(5,1)}+{\nu }^{2}{\theta }^{(5,2)}+{\nu }^{3}{\varGamma }^{-2}{\theta }^{(5,3)}),$$
(6)

with M and Γ = E/M the total mass and mass-rescaled energy of the initial system, respectively. A central result of our work is the computation of all contributions except for θ(5,2). The function space of the angle θ(5) arises from integrals only in the even-parity sector and is simpler than that of the complete impulse. We compare our result with available numerical relativity simulations60 in Fig. 4.

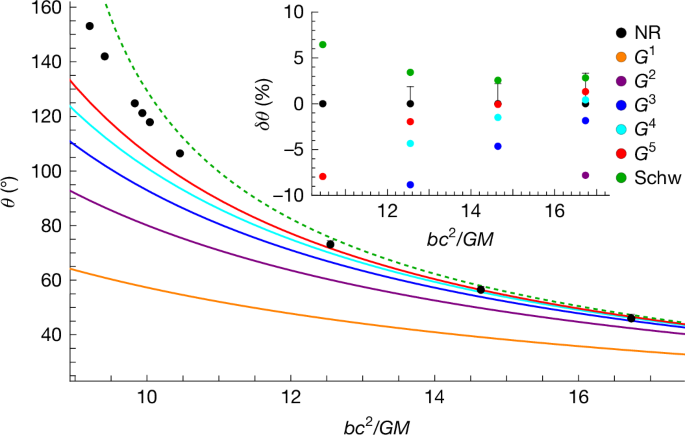

Fig. 4: The scattering angle θ.
figure 4

Scattering angle θ is plotted as a function of the impact parameter in units of the Schwarzschild radius, bc2/GM, up to order G5 for an equal-mass scenario with initial relative velocity v = 0.5125c. The black dots are existing numerical relativity (NR) simulations60. The G5 curve follows from equation (6) (excluding the unknown ν2θ(5,2) contribution). The dashed line is the exact in G (ν = 0) probe limit result for geodesic motion in a Schwarzschild background. The inset plot depicts the relative differences to the numerical relativity data. Larger values of bc2/GM correspond to the perturbative regime. We find agreement with NR within the error for bc2/GM > 12.5. The monotonically falling corrections to the consecutive Gn orders yield an intrinsic error estimate of our G5 results: they are more precise than the NR data for bc2/GM > 14.

Source Data

Full size image

Our other main result is the total radiated energy and momentum from the system over the course of the scattering. Using the principle of four-dimensional momentum conservation, which includes conservation of energy, the total loss of momentum through gravitational-wave emission must balance the change in momenta of the two individual black holes (or neutron stars):

$${P}_{{\rm{rad}}}^{\mu }=-\,\Delta {p}_{1}^{\mu }-\Delta {p}_{2}^{\mu }.$$
(7)

The impulse of the second black hole, \(\Delta {p}_{2}^{\mu }\), can straightforwardly be inferred from that of the first using symmetry. The radiated energy, then, is given simply by the zeroth component of the radiated four-momentum in the centre-of-mass frame \({E}_{{\rm{rad}}}={P}_{{\rm{rad}}}^{0}=-\Delta {p}_{1}^{0}-\Delta {p}_{2}^{0}\), whereas the recoil Precoil derives from its spatial components. Unlike the scattering angle, it includes integrals from the odd-parity sector and so contains CY periods. These terms contribute to the repeated backscattering of radiative gravitons off the potential background—known as the ‘tail-of-tail’ effect.

Summarizing, in this work, we have extended the state of the art of the gravitational two-body problem to a new perturbative order (G5) to the sub-leading mass ratio level ν. Our analytical findings require the use of a new class of functions, CY threefold periods, in the radiative sector. These methodological advances will also benefit particle phenomenology, in which CY periods appear in higher-loop-order diagrams43,44,45,47,48. By comparing with numerical relativity data, we demonstrated percent-level agreement in the perturbative domain. These results provide input data for high-precision waveform models using effective-one-body resummation techniques24,60,61,62 that can now be developed. For the comparable-mass case, we foresee the need to also incorporate next-to-next-to-leading-order mass ratio (ν2) contributions, in which new CY threefolds are expected to make their appearance52. This we leave for future studies.

Methods

Integrand generation and integral family

We use the WQFT formalism11,57,63 that quantizes the worldline deflections \({z}_{i}^{\mu }(\tau )\) and graviton field hμν(x) arising in the background field expansions \({x}_{i}^{\mu }(\tau )={b}_{i}^{\mu }+{v}_{i}^{\mu }\tau +{z}_{i}^{\mu }(\tau )\) and \({g}_{\mu \nu }={\eta }_{\mu \nu }+\sqrt{32{\rm{\pi }}G}{h}_{\mu \nu }\), respectively (now setting c = 1). In the gravitational sector, we use a nonlinearly extended de Donder gauge that simplifies the three-graviton and four-graviton vertices (see Supplementary Information). The worldline actions (equation (1)) are improved by making use of the proper time gauge \({\dot{x}}_{i}^{2}=1\) for the ith black hole:

$${S}_{i}=-\,\frac{{m}_{i}}{2}\int {\rm{d}}\tau \,{g}_{\mu \nu }[{x}_{i}(\tau )]\,{\dot{x}}_{i}^{\mu }(\tau ){\dot{x}}_{i}^{\nu }(\tau ).$$
(8)

This ensures a linear coupling to the graviton hμν. At the present four-loop (G5 or 5PM) order, we require up to six-graviton vertices that derive from the Einstein–Hilbert action plus gauge-fixing term—taken in D = 4 − 2ϵ dimensions. We also require the single-graviton emission plus (0,…, 5)-deflection vertices derived from equation (8). We provide the explicit vertices and graviton gauge-fixing function in a Zenodo repository submission64 accompanying this article; an analytic expression for the n-deflection worldline vertex was given in refs. 11,63.

The full 5PM integrand is generated using the Berends–Giele-type recursion relation discussed in ref. 65 and sorted into five self-force (SF) sectors according to their scaling with the masses m1 and m2:

$$\begin{array}{l}\Delta {p}_{1}^{(5)\mu }={m}_{1}{m}_{2}\left({m}_{2}^{4}\Delta {p}_{{\rm{0SF}}}^{(5)\mu }+{m}_{1}{m}_{2}^{3}\Delta {p}_{{\rm{1SF}}}^{(5)\mu }\right.\\ \qquad \quad \,\left.+{m}_{1}^{2}{m}_{2}^{2}\Delta {p}_{{\rm{2SF}}}^{(5)\mu }+{m}_{1}^{3}{m}_{2}\Delta {p}_{\overline{1{\rm{S}}{\rm{F}}}}^{(5)\mu }+{m}_{1}^{4}\Delta {p}_{\overline{0{\rm{S}}{\rm{F}}}}^{(5)\mu }\right).\end{array}$$
(9)

The powers of the masses follow from the number of times a worldline is touched in a given graph. Here we compute the sub-leading self-force (1SF) contributions \(\Delta {p}_{{\rm{1SF}}}^{(5)\mu }\) and \(\Delta {p}_{\overline{1{\rm{S}}{\rm{F}}}}^{(5)\mu }\), as well as reproducing the 0SF contributions \(\Delta {p}_{{\rm{0SF}}}^{(5)\mu }\) and \(\Delta {p}_{\overline{0{\rm{S}}{\rm{F}}}}^{(5)\mu }\) that follow from the geodesic motion in a Schwarzschild background. The resulting integrand is reduced to scalar integrals by means of tensor reduction and ‘planarized’ using partial fraction (eikonal) identities as described in ref. 53. In summary, all integrals are mapped to the 5PM-1SF planar family \({\int }_{{\ell }}:=\int {d}^{D}{\ell }/(2\pi {)}^{D}\), \(\bar{\delta }(x)\,:=\,2\pi \delta (x)\)

$${{\mathcal{I}}}_{\{n\}}^{\{\sigma \}}={\int }_{{{\ell }}_{1}\cdots {{\ell }}_{4}}\frac{{\bar{\delta }}^{({\bar{n}}_{1}-1)}({{\ell }}_{1}\cdot {v}_{1}){\prod }_{i=2}^{L}{\bar{\delta }}^{({\bar{n}}_{i}-1)}({{\ell }}_{i}\cdot {v}_{2})}{{\prod }_{i=1}^{4}{D}_{i}^{{n}_{i}}({\sigma }_{i})\prod _{I < J}{D}_{IJ}^{{n}_{IJ}}},$$
(10a)

in which {σ} and {n} denote causal i0+ prescriptions and integer powers of propagators, respectively. The four worldline propagators Di(σi) appearing are (i = 2, 3, 4)

$${D}_{1}={{\ell }}_{1}\cdot {v}_{2}+{\sigma }_{1}\,i{0}^{+},\,{D}_{i}={{\ell }}_{i}\cdot {v}_{1}+{\sigma }_{i}\,i{0}^{+}$$
(10b)

and the 14 gravitons propagators DIJ with I = (0, 1, i, q) are

$$\begin{array}{l}{D}_{1j}={({{\ell }}_{1}-{{\ell }}_{j})}^{2}+{\sigma }_{4+j}{\rm{sign}}({{\ell }}_{1}^{0}-{{\ell }}_{j}^{0})i{0}^{+},\,{D}_{q1}={({{\ell }}_{1}+q)}^{2}\\ {D}_{ij}={({{\ell }}_{i}-{{\ell }}_{j})}^{2},\,{D}_{qi}={({{\ell }}_{i}+q)}^{2},\,{D}_{01}={{\ell }}_{1}^{2},\,{D}_{0i}={{\ell }}_{i}^{2}.\end{array}$$
(10c)

There are at most three bulk graviton propagators D1i that may go on-shell at 5PM order.

IBP reduction

IBP identities66,67,68 are used to reduce to master integrals. We use a future release of KIRA 3.0 (refs. 69,70) adapted to our needs that uses the FireFly71,72 library for reconstructing rational functions through finite-field sampling. We have 45 top-level sectors in the 5PM-1SF family that have been described in ref. 53. The integrals encountered in the planar family (equations (10a)–(10c)) have propagator powers in the range ni/IJ ∈ [−9, 8]. The strategies applied to reduce the runtime of the IBP reduction are comparable with the conservative case53. The final set of needed IBP replacement rules to master integrals generated comprises about 30 GB of data and can be made available on request.

Differential equations and function space

The method of differential equations73,74,75 is used, in which the matrices in equation (3) depend on the parameters x and the dimensional regulator ϵ = (4 − D)/2. We take the physical limit ϵ → 0 to compute our observables. Therefore, we need the solutions of the integrals expanded in ϵ. To systematically compute this expansion, we transform equation (3) into canonical form75 such that the ϵ dependence is factored out of the differential equation matrix:

$$\frac{{\rm{d}}}{{\rm{d}}x}{\bf{J}}(x,{\epsilon })={\epsilon }\widehat{A}(x){\bf{J}}(x,{\epsilon }),$$
(11)

with J(x, ϵ) = \(\widehat{{\bf{T}}}(x,{\epsilon })\)I(x, ϵ) and \({\epsilon }\widehat{A}(x)=(\widehat{T}(x,{\epsilon })\widehat{M}(x,{\epsilon })+d\widehat{T}(x,{\epsilon })/dx)T{(x,{\epsilon })}^{-1}\). The solution is then a path-ordered matrix exponential:

$${\bf{J}}={\mathcal{P}}\,\text{exp}\,[{\epsilon }{\int }_{1}^{x}{\rm{d}}{x}^{{\prime} }\widehat{A}({x}^{{\prime} })]\,{\bf{j}},$$
(12)

in which j encodes the boundary values of our integrals at x = 1.

We take a bottom-up approach to determine the required transformation \(\widehat{T}(x,{\epsilon })\). For this, we sort our integrals into groups sharing the same set of propagators. These so-called sectors are ordered from lower (fewer propagators) to higher (more propagators), resulting in the block diagonal matrix in Fig. 3. We begin by ϵ-factorizing the lower sectors and then move on to the higher sectors. First, we transform the diagonal blocks, which are identified with the maximal cuts76, into ϵ-form and then proceed to the off-diagonal contributions. The IBP reductions were fully completed for all integrals before the diagonal blocks were identified. Particularly for handling sectors coupled to the CY3 diagonal sector, it is important to choose a good initial basis of integrals such that the relevant couplings are as simple as possible. As we proceed to canonicalize, we adapt and improve our choice of initial basis accordingly.

The simplest diagonal blocks to canonicalize are those containing only multiple polylogarithms77,78,79, depicted in lilac in Fig. 3. The algorithm CANONICA80 finds the necessary transformation to ϵ-form for these blocks by making a suitable ansatz. It is noteworthy that the complexity of this transformation, as well as the runtime, depends highly on the choice of initial integrals. In general, we pick our initial basis integrals so that the regulator ϵ does not appear non-trivially in the denominators of the differential equation (3).

Diagonal blocks containing a K3 surface, depicted in purple in Fig. 3, are handled using INITIAL81. The INITIAL algorithm requires a pure seed integral to construct an ϵ-factorized differential equation through an ansatz tailored to the specific seed integral. Note that, in this context, a pure integral is given as a linear combination of iterated integrals (equation (4)) having no non-trivial pre-factors in x. For non-pure integrals, these pre-factors are non-trivial functions and are known as leading singularities. For each K3 sector, we find an appropriate seed integral by analysing the diagonal block at ϵ = 0. We decouple each diagonal K3 block by switching to a derivative basis: \({{\bf{I}}}_{{\rm{K3}}}=({I}_{1},{I}_{2},{I}_{3})\to ({I}_{1},{I}_{1}^{{\prime} },{I}_{1}^{{\prime\prime} })\) or \({{\bf{I}}}_{{\rm{K3}}}=({I}_{1},{I}_{2},{I}_{3},{I}_{4})\to ({I}_{1},{I}_{1}^{{\prime} },{I}_{1}^{{\prime\prime} },{I}_{4})\), depending on the size of the block, in which Ii are the master integrals of this sector—I4 is chosen so that it decouples from I1 and its derivatives as much as possible. The choice of I1 ensures that its third-order differential (Picard–Fuchs) equation (\(\widehat{\theta }=x\frac{{\rm{d}}}{{\rm{d}}x}\)),

$$[{\widehat{\theta }}^{3}-2{x}^{2}(2+4\widehat{\theta }+3{\widehat{\theta }}^{2}+{\widehat{\theta }}^{3})+{x}^{4}{(2+\widehat{\theta })}^{3}]{{I}_{1}| }_{{\epsilon }=0}=0,$$
(13)

has the explicit solution \({{I}_{1}| }_{{\epsilon }=0}\propto {\varpi }_{{\rm{K3}}}={\left(\frac{2}{\pi }\right)}^{2}{K}^{2}(1-{x}^{2})\), that is, it is proportional to a K3 period. Unlike the polylogarithmic case, this third-order differential equation is not factorizable into first-order equations. Using the normalized integral I1/ϖK3 as the seed, INITIAL may then construct an ϵ-form for the diagonal parts of our K3 sectors (similar to the 4PM case).

To canonicalize the single diagonal CY3 block, depicted in red in Fig. 3, we follow the discussion in ref. 52. Similar to K3, we first pick a suitable starting integral and make a basis change \({{\bf{I}}}_{{\rm{CY3}}}=({I}_{1},{I}_{2},{I}_{3},{I}_{4})\to ({I}_{1},{I}_{1}^{{\prime} },{I}_{1}^{{\prime\prime} },{I}_{1}^{\prime\prime\prime })\). The starting integral I1 is chosen so that, when ϵ = 0, it satisfies the Picard–Fuchs equation (5), which is a hypergeometric system. This implies that the periods of our CY3 geometry are given in terms of hypergeometric functions, for example, \({x}_{4}{F}_{3}\left[\frac{1}{2},\frac{1}{2},\frac{1}{2},\frac{1}{2};1,1,1;{x}^{4}\right]\). Moreover, this also gives rise to intriguing arithmetic properties discussed in ref. 59. From this equation and its four fundamental solutions ϖ0,…, ϖ3, which we collect in the Wronskian matrix W(x) = (∂jϖi) with 0 ≤ i, j ≤ 3, we construct in several steps the rotation matrix into ϵ-form. This approach was invented in ref. 82 and further developed in ref. 83, and, in the K3 case, it is equivalent to the INITIAL algorithm. The process involves the following three steps:

  1. 1.

    We split the Wronskian matrix into a semi-simple and unipotent part \(\widehat{W}={\widehat{W}}^{{\rm{ss}}}\times {\widehat{W}}^{{\rm{u}}}\). Naively, we can understand this splitting as a decomposition of the maximal cuts of the CY3 sector into their leading singularities and pure parts. The unipotent part is named after the unipotent differential equation it fulfils:

    $$({\rm{d}}-{A}^{{\rm{u}}}(x)){\widehat{W}}^{{\rm{u}}}(x)=0,$$
    (14)

    in which Au(x) is nilpotent. The matrix Au(x) can generally be written in terms of invariants, known as Y-invariants, of the CY variety and was explicitly given for our CY3 in ref. 52.

  2. 2.

    We rotate our integrals with the inverse of Wss, which strips them of their leading singularities. (The analogous operation for K3 is normalizing I1 with the K3 period ϖK3, leaving only the pure part.) To parametrize all degrees of freedom in Wss of a CY3, we need the holomorphic solution ϖ0, an extra function

    $${\alpha }_{1}=\frac{{\varpi }_{0}^{2}}{x({\varpi }_{0}{\varpi }_{1}^{{\prime} }-{\varpi }_{0}^{{\prime} }{\varpi }_{1})},$$
    (15)

    called the structure series, and their derivatives. The appearance of α1 is new compared with the K3 case and shows the increased complexity in structure of a CY3. In ref. 84, the structure series α1 (and more generally the Y-invariants) are generally defined and used to construct a normal form of a CY differential equation; more specifically, for our CY3, they were derived in ref. 52. For ϵ-factorizing our differential equations, it is important that this normal form of the CY differential equation is in a factorized form with respect to its derivatives. To eliminate all redundancies in this step, we must use Griffiths transversality—an essential property of CY geometries that yields quadratic relations between their periods—to simplify the form of \({\widehat{W}}^{{\rm{ss}}}\).

  3. 3.

    After completing these steps and appropriately rescaling in ϵ to arrange the weights of the integrals, the diagonal block of our CY3 looks like:

    $$\begin{array}{l}\frac{{\rm{d}}}{{\rm{d}}x}{\widetilde{{\bf{I}}}}_{{\rm{CY3}}}\,=\,\mathop{\sum }\limits_{i=-2}^{1}{{\epsilon }}^{i}{\widehat{{\bf{M}}}}_{{\rm{CY3}}}^{i}(x){\widetilde{{\bf{I}}}}_{{\rm{CY3}}},\,{\rm{with}}\\ {\widetilde{{\bf{I}}}}_{{\rm{CY3}}}\,=\,{T}_{{\epsilon }-{\rm{scalings}}}{({\widehat{W}}^{{\rm{ss}}})}^{-1}{{\bf{I}}}_{{\rm{CY3}}}.\end{array}$$
    (16)

    We find an ϵ-form by acting with a suitable set of transformation matrices on \({\widetilde{{\bf{I}}}}_{{\rm{CY3}}}\), working order by order in ϵ starting from ϵ−2. The process requires us to introduce four new functions Gi(x) (i = 1,…, 4), which obey a first-order differential equation containing ϖ0, α1, their derivatives and Gj(x) functions with j < i. For example,

    $${G}_{1}^{{\prime} }(x)=-\frac{96x({x}^{4}+1){\varpi }_{0}{(x)}^{2}}{{(x-1)}^{2}{(x+1)}^{2}({x}^{2}+{1}^{2}){\alpha }_{1}(x)}.$$
    (17)

    Because of this structure, the functions Gi(x) are all expressible as iterated integrals of CY periods and associated functions. These functions were previously introduced in terms of a different variable in ref. 52 and are listed for our conventions in the Supplementary Information of this article.

We now have the ϵ-form of the diagonal part of the CY3 sector and, thus, a canonical form of all diagonal blocks. We refer to this intermediate basis, in which all diagonal blocks are in ϵ-form, as \({\mathfrak{J}}\). The next stage in canonicalization involves tackling the off-diagonal blocks. To do so, we distinguish between off-diagonal blocks coupled to the CY3 sector, which require special care, and the rest.

We have developed our own algorithm to transform the off-diagonal entries of our differential equation that do not couple to the CY3 sector but can depend on K3 functions. This algorithm uses FINITEFLOW85 and MultivariateApart86 and provides suitable ansätze also including elliptic contributions for the required transformations. It is similar to algorithms used for polylogarithmic off-diagonals, such as those found in CANONICA or Libra87.

For sectors polylogarithmic or K3 on their diagonal blocks, yet also coupled to the CY3 sector, a good initial basis of integrals is essential to minimize these couplings. One possibility to identify such candidates is to perform an integrand analysis, usually done in the Baikov representation88,89 of the integrals. However, we instead found it simpler to use the diagonals themselves to derive constraints on the initial choice of integrals, expanding on the ideas of ref. 90. Having now found canonical masters on the diagonals, that is, the maximal cuts, our strategy is to choose initial candidate integrals that are related as closely as possible to these canonical masters within their respective diagonal blocks. More precisely, we search for candidates that, on their diagonal blocks, are given by a linear combination of the canonical maximal cut integrals and overall functions of ϵ and x:

$${I}_{i}^{{\rm{candidate}}}=f({\epsilon })g(x)\sum _{k}{c}_{k}{{\mathfrak{J}}}_{k},$$
(18)

in which the ck are constant numbers.

We expect that such a ‘good’ choice of candidate integrals only requires minimal corrections to form a canonical basis. For certain sectors that are polylogarithmic on their corresponding diagonal block, we need to enlarge these types of constraint by combining different polylogarithmic sectors and requiring equation (18) to hold beyond a single diagonal block. Thus, we obtain further conditions resulting from off-diagonal couplings between separate polylogarithmic blocks. In some instances, we can also relax the condition in equation (18) by considering the ck(x) as functions of x and still find easy transformations. The use of IBPs makes this procedure efficient and allows us to find all transformations for the coupling to the CY3 manually, proceeding similarly as for the diagonal of the CY3 sector. We build successive transformations, removing iteratively all nonlinear-in-ϵ contributions, starting with the highest negative power of ϵ. By doing so, for some integrals, we need to introduce 16 new functions G5(x),…, G20(x), which again satisfy first-order differential equations listed in the Supplementary Information. More specifically, for the mixings between K3 and CY3 sectors, we introduce new functions whose first-order differential equations contain the periods of both the K3 and the CY3. For example,

$${G}_{8}^{{\prime} }(x)=\frac{{\varpi }_{{\rm{K3}}}(x){G}_{3}(x){\varpi }_{0}(x){\alpha }_{1}^{{\prime} }(x)}{{\alpha }_{1}{(x)}^{2}}.$$
(19)

This concludes the canonicalization process of the whole differential equation system.

Having converted our matrix into its canonical form, \(\widehat{A}(x)\) provides all integration kernels needed to express the master integrals as iterated integrals (equation (4)). We selected a set of linearly independent kernels by examining their small velocity expansion. Our observables consist of iterated integrals that include K3, CY3 and mixed integration kernels, functions from the rotation matrix \(\widehat{T}(x,{\epsilon })\) and algebraic functions from the decomposition in terms of initial master integrals. We need at most four-times-iterated integrals; all multiple polylogarithms are constructed from the kernels \(\{\frac{1}{x},\frac{1}{1\pm x},\frac{x}{1+{x}^{2}}\}\) and have a maximum transcendental weight of 3. Let us also note that the K3 and CY3 periods occurring above are related to those of the Legendre curve by a symmetric and a Hadamard product, respectively52,59.

Boundary fixing

A complete solution to the differential equation (3) requires the determination of integration constants in the form of boundary integrals, that is, master integrals in the static limit x → 1 (v → 0), which are functions only of ϵ. As the integration and x → 1 limit do not commute, we use the method of regions91,92,93 to isolate contributions with definite (ϵ-dependent) scalings in the velocity v and series-expand integrals at the level of the integrand. These so-called regions are associated with different velocity scalings of the bulk graviton momenta ℓi, which can be either potential (P) or radiative (R):

$${{\ell }}_{i}^{{\rm{P}}}=({{\ell }}_{i}^{0},{{\ell }}_{i})\approx (v,1),\,{{\ell }}_{i}^{{\rm{R}}}=({{\ell }}_{i}^{0},{{\ell }}_{i})\approx (v,v).$$
(20)

There are three propagators {D12, D13, D14} that may enter both regions; the rest are kinematically restricted to P (including the velocity-suppressed P: (v2, v)) by the presence of energy-conserving delta functions δ(ℓi · vj). We thus denote the four possible regions as (PPP), (PPR), (PRR) and (RRR). We needed to evaluate 14 + 14 (even + odd) boundary integrals in the (PPR), 5 + 5 in the (PRR) and 4 + 4 in the (RRR) sectors, as well as the 28 + 18 (PPP) boundary integrals that were already determined in the conservative case53 (here there is no distinction between Feynman and retarded bulk propagators). We perform all integrals analytically and check them numerically using pySecDec94,95,96,97,98,99 and AMPred100,101,102,103.

All new boundary integrals for us to evaluate, as compared with ref. 53, contain radiative graviton propagators. Our main strategy is to perform them by means of Schwinger parametrization, in which we also benefit by explicitly integrating out loops involving only gravitons, leaving lower-loop integrals. In doing so, we evaluate at most two-loop integrals in all but two cases. These two cases are genuine three-loop integrals for which we did not manage the integration over Schwinger parameters and therefore moved over to the time domain to establish identities at the level of the series coefficients. In general, our integrations yield generalized hypergeometric functions pFq, which can be series-expanded in ϵ by numerically expanding them to high precision and reconstructing analytic expressions using an ansatz and an integer relation algorithm. Expressions for all boundary integrals, and our methodology for deriving them, are elaborated in the Supplementary Information.

Results

Our main results are full expressions—including dissipation—for the 1SF and \(\overline{1{\rm{S}}{\rm{F}}}\) parts of the momentum impulse, \(\Delta {p}_{{\rm{1SF}}}^{(5)\mu }\) and \(\Delta {p}_{\overline{1{\rm{S}}{\rm{F}}}}^{(5)\mu }\) (equation (9)). They are expanded on basis vectors:

$$\Delta {p}_{1{\rm{SF}}}^{(5)\mu }=\frac{1}{{b}^{5}}({\widehat{b}}^{\mu }{c}_{b}(\gamma )+{\check{v}}_{2}^{\mu }{c}_{v}(\gamma )+{\check{v}}_{1}^{\mu }{c}_{v}^{{\prime} }(\gamma )),$$
(21a)
$$\Delta {p}_{\overline{1{\rm{SF}}}}^{(5)\mu }=\frac{1}{{b}^{5}}({\widehat{b}}^{\mu }{\bar{c}}_{b}(\gamma )+{\check{v}}_{2}^{\mu }{\bar{c}}_{v}(\gamma )+{\check{v}}_{1}^{\mu }{\bar{c}}_{v}^{{\prime} }(\gamma )),$$
(21b)

also pulling out an overall factor of the impact parameter b. This decomposition constitutes a split into parts originating from integrals of even and odd parity in \({v}_{i}^{\mu }\). The basis vectors are the impact parameter \({\widehat{b}}^{\mu }=({b}_{2}^{\mu }-{b}_{1}^{\mu })/b\) and dual velocity vectors \({\check{v}}_{1}^{\mu }=(\gamma {v}_{2}^{\mu }-{v}_{1}^{\mu })/({\gamma }^{2}-1)\) and \({\check{v}}_{2}^{\mu }=(\gamma {v}_{1}^{\mu }-{v}_{2}^{\mu })/({\gamma }^{2}-1)\). The main coefficients of interest here are \(\{{c}_{b},{\bar{c}}_{b}\}\) and \(\{{c}_{v},{\bar{c}}_{v}\}\), because the set \(\{{c}_{v}^{{\prime} },{\bar{c}}_{v}^{{\prime} }\}\) being determined by lower-PM results from using preservation of mass \({p}_{1}^{2}={({p}_{1}+\Delta {p}_{1})}^{2}\). The coefficients are further decomposed into those with an even or odd number of radiative gravitons in the boundary fixing:

$${c}_{w}(\gamma )={c}_{w,{\rm{even}}}(\gamma )+{c}_{w,{\rm{odd}}}(\gamma ),$$
(22a)
$${\bar{c}}_{w}(\gamma )={\bar{c}}_{w,{\rm{even}}}(\gamma )+{\bar{c}}_{w,{\rm{odd}}}(\gamma ),$$
(22b)

with w ∈ {b, v}. The even part is defined from (PPP) + (PRR) and the odd part from (PPR) + (RRR). The two parts have distinctive parities under flipping the sign of the relative velocity v → −v. Even and odd sectors then give rise to integer and half-integer post-Newtonian (PN) orders, respectively.

The 1SF and \(\overline{1{\rm{S}}{\rm{F}}}\) parts of the impulse therefore each consist of four non-trivial coefficients, labelled by b or v, each having an even or odd number of radiative gravitons R. We expand each of these in sets of basis functions F(γ) with coefficient functions d(γ), being polynomial up to factors of (γ2 − 1),

$$\begin{array}{l}{c}_{w,z}(\gamma )\,=\,\sum _{\alpha }{d}_{w,z}^{(\alpha )}(\gamma ){F}_{w,z}^{(\alpha )}(\gamma )\\ \,\,\,\,+\,\sum _{\alpha }{d}_{w,z}^{(\alpha ,{\rm{tail}})}(\gamma ){F}_{w,z}^{(\alpha ,{\rm{tail}})}(\gamma )\log (\gamma -1),\end{array}$$
(23)

barred coefficients being expanded in the same way. Here z ∈ {even, odd} counts the parity of radiative gravitons. The second line with a logarithm produced from the cancellation of 1/ϵ poles between the different boundary regions is associated with tails. It is relevant for all coefficients except cb,odd, \({\bar{c}}_{b,{\rm{odd}}}\) and cv,even. The b-type basis functions are all multiple polylogarithms of maximum weight three and, thus, relatively simple. By contrast, the v-type basis functions are much more complex. They generally have the structure of equation (4) with kernels depending on the CY periods. All basis functions and polynomial coefficients are provided in the ancillary file in our repository submission64.

The total loss of four-momentum at 5PM order, using equation (7), is given schematically by (see, for example, ref. 104):

$$\begin{array}{l}{P}_{{\rm{rad}}}^{(5)\mu }=\frac{{M}^{6}{\nu }^{2}}{{b}^{5}}\left([{r}_{1}(\gamma ){\widehat{b}}^{\mu }+{r}_{2}(\gamma )({v}_{1}^{\mu }-{v}_{2}^{\mu })]\frac{{m}_{1}-{m}_{2}}{M}\right.\\ \qquad \,\,\,\left.+[{v}_{1}^{\mu }+{v}_{2}^{\mu }][{r}_{3}(\gamma )+\nu {r}_{4}(\gamma )]\right).\end{array}$$
(24)

Our \(1{\rm{SF}}/\overline{1{\rm{S}}{\rm{F}}}\) result fixes all coefficients except r4(γ). Similarly, we may derive the relative scattering angle105,106 \(\theta =\arccos ({{\bf{p}}}_{{\rm{in}}}\cdot {{\bf{p}}}_{{\rm{out}}}/| {{\bf{p}}}_{{\rm{in}}}| | {{\bf{p}}}_{{\rm{out}}}| )\). Here pin = p1 = −p2 is the incoming momentum in the centre-of-mass frame and

$${{\bf{p}}}_{{\rm{out}}}={{\bf{p}}}_{{\rm{in}}}+\Delta {{\bf{p}}}_{1}+\frac{{E}_{1}}{E}{{\bf{P}}}_{{\rm{recoil}}}+{\mathcal{O}}({G}^{6}),$$
(25)

is the (relative) outgoing momentum. We expand the scattering angle in G:

$$\begin{array}{l}\theta =\varGamma \mathop{\sum }\limits_{n=1}^{5}{\left(\frac{GM}{b}\right)}^{n}\mathop{\sum }\limits_{m=0}^{\left\lfloor \frac{n-1}{2}\right\rfloor }{\nu }^{m}{\theta }^{(n,m)}(\gamma )\\ \quad +\frac{1}{\varGamma }\mathop{\sum }\limits_{n=4}^{5}{\left(\frac{GM}{b}\right)}^{n}{\nu }^{n-2}{\theta }^{(n,n-2)}(\gamma )+{\mathcal{O}}({G}^{6}).\end{array}$$
(26)

Both the angle and \({P}_{{\rm{rad}}}^{(5)\mu }\) expansion coefficients are separated into parts even and odd under v → −v and expanded on suitable basis functions. All of these results can be found in the observables.m ancillary file in our repository submission64.

Checks

Our result for the impulse has been checked internally by the cancellation of 1/ϵ poles and obeying the mass condition \({p}_{1}^{2}={({p}_{1}+\Delta {p}_{1})}^{2}\)—verifying the \(\{{c}_{v}^{{\prime} },{\bar{c}}_{v}^{{\prime} }\}\) coefficients (equations (21a) and (21b)). We have also checked that the (PPP) 1SF contribution is related to its \(\overline{1{\rm{S}}{\rm{F}}}\) counterpart by symmetry. Furthermore, we have performed several checks using the non-relativistic (v → 0) limit. First, PN results for the relative scattering angle at 5PM and to first order in self-force are known to 5.5PN order104,105,107. These include conservative terms at integer PN orders, starting from 0PN order, which were already matched in ref. 53, plus dissipative terms appearing at 2.5PN, 3.5PN, 4PN, 4.5PN, 5PN and 5.5PN orders, which we reproduce. Furthermore, and in the same works104,105,107, dissipative PN results for the radiation of energy and recoil of the two-body system were reported at a relative 3PN order to their leading order. These allow us to perform non-trivial checks on r1(γ), r2(γ) and r3(γ) of equation (24) to relative 3PN order.

As an example of our results, we print explicitly the series expansion in v of the G5 component of Erad:

$$\begin{array}{l}{E}_{{\rm{rad}}}^{(5)}\,=\,\frac{{M}^{6}{\nu }^{2}}{\varGamma {b}^{5}}[(1-\gamma ){r}_{2}(\gamma )+(1+\gamma ){r}_{3}(\gamma )+{\mathcal{O}}(\nu )]\\ \,\,=\,\frac{{M}^{6}{\nu }^{2}\pi }{5\varGamma {b}^{5}{v}^{3}}\left[122+\frac{\mathrm{3,583}}{56}{v}^{2}+\frac{297{\pi }^{2}}{4}{v}^{3}-\frac{\mathrm{71,471}}{504}{v}^{4}\right.\\ \qquad \,+\,\left(\frac{\mathrm{9,216}}{7}-\frac{\mathrm{24,993}{\pi }^{2}}{224}\right){v}^{5}\\ \qquad \,+\,\left(\frac{\mathrm{2,904,562,807}}{\mathrm{6,899,200}}+\frac{99{\pi }^{2}}{2}-\frac{\mathrm{10,593}}{70}\log \frac{v}{2}\right){v}^{6}\\ \qquad \,+\,\left(\frac{\mathrm{7,296}}{7}-\frac{\mathrm{2,927}{\pi }^{2}}{28}\right){v}^{7}\\ \qquad \,+\,\left(\frac{\mathrm{4,924,457,539}}{\mathrm{29,429,400}}+\frac{\mathrm{8,301}{\pi }^{2}}{112}-\frac{\mathrm{491,013}}{\mathrm{3,920}}\log \frac{v}{2}\right){v}^{8}\\ \qquad \,\left.+\,\left(\frac{\mathrm{99,524,416}}{\mathrm{40,425}}-\frac{\mathrm{46,290,891}{\pi }^{2}}{\mathrm{157,696}}\right){v}^{9}+{\mathcal{O}}({v}^{10},\nu )\right].\end{array}$$
(27)

The terms in the square brackets up to v6 reproduce the known PN results of Erad, with the remaining three lines providing further hitherto unknown terms. Naturally, this series expansion can be extended to any order in v using our present results. Explicit results relevant for the PN checks of the relative scattering angle and recoil are given in the Supplementary Information.
