A rewritable optical storage medium of silk proteins using near-field nano-optics

Abstract

Nanoscale lithography and information storage in biocompatible materials offer possibilities for applications such as bioelectronics and degradable electronics for which traditional semiconductor fabrication techniques cannot be used. Silk fibroin, a natural protein renowned for its strength and biocompatibility, has been widely studied in this context. Here, we present the use of silk film as a biofunctional medium for nanolithography and data storage. Using tip-enhanced near-field infrared nanolithography, we demonstrate versatile manipulation and characterize the topography and conformation of the silk in situ. In particular, we fabricate greyscale and dual-tone nanopatterns with full-width at half-maximum resolutions of ~35 nm, creating an erasable ‘silk drive’ that digital data can be written to or read from. As an optical storage medium, the silk drive can store digital and biological information with a capacity of ~64 GB inch⁻² and exhibits long-term stability under various harsh conditions. As a proof-of-principle demonstration, we show that this silk drive can be biofunctionalized to exhibit chromogenic reactions, resistance to bacterial infection and heat-triggered, enzyme-assisted decomposition.

Main

Over the past two decades, many lithographic strategies, including those using deep ultraviolet or extreme ultraviolet light sources¹, dual-beam systems² and three-dimensional storage architectures³, have been developed to increase optical storage density to several hundreds of GB inch⁻². However, to achieve a high spatial resolution, many of these methods inevitably require sophisticated fabrication procedures that are inefficient in terms of both time and cost. Furthermore, conventional optical lithography suffers from the diffraction limit, which prevents further increase in storage density beyond the current industry standard. At the turn of the century, IBM described an atomic force microscope (AFM)-based data-storage scheme, the ‘Millipede’, that had the potential to achieve multi-TB inch⁻² capacity at high data writing and reading rates with 30–40 nm spatial resolution⁴. Although the work represented a technological leap and led to further research on probe-based storage schemes, commercial applications remain a distant prospect.

Scattering-type scanning near-field optical microscopy (s-SNOM) offers a promising option for high-resolution nanofabrication⁵, especially on soft materials⁶, and can achieve super-resolution imaging beyond the diffraction limit⁷. The near-field evanescent wave that s-SNOM generates serves as an effective tool to induce locally confined high-field optical phenomena. This has enabled fabrication⁸, manipulation^9,10,11 and characterization^12,13 of photosensitive structures at the nanoscale. In particular, evanescent fields have been used in the processing of nanoscale features on material surfaces^14,15,16, for the fabrication of optical nanodevices¹⁷ and for nanolithography of polymeric materials^18,19,20. Because it is minimally invasive, requires no vacuum and exhibits sensitivity to protein conformation, mid-infrared s-SNOM is also suitable for the nanoscale characterization of biomaterials that can immobilize and interact with biological entities such as bacteria, viruses, enzymes and biomarkers. By developing the lithographic capabilities of mid-infrared s-SNOM, while retaining its imaging capabilities, nanoscale manipulation and characterization of functional biomaterials can therefore be integrated into a single platform. This closed-loop lithography platform can simplify bionanofabrication and produce probe-based storage schemes for the storage and manipulation of biological information.

To increase photolithographic efficiency and subsequent information storage in biomaterials, synergies between the medium material, the incident light and the properties of the scanning head must be optimized. In this context, silk fibroin—a naturally occurring protein derived from Bombyx mori silkworms—is a perfect fit. As a biocompatible ‘green’ medium, silk undergoes nanoscale polymorphic transitions upon exposure to electrons^21,22, ion beams²³ or light^24,25,26. Silk has also long been appreciated for its mechanical strength, biocompatibility, biodegradability, ease of functionalization and tunable water-solubility^27,28,29.

These favourable properties led us to investigate silk protein as a rewritable optical storage medium. We showed that tip-enhanced near-field infrared nanolithography (TNINL) can induce controlled topographical and/or phase changes of the silk protein layer with a full-width at half-maximum (FWHM) spatial resolution of ~35 nm. These patterns have 100 nm spacing, equivalent to a storage capacity of ~64 GB inch⁻². Repeated writing and erasing are possible in an ambient environment. Information can be retained under harsh conditions, including high humidity, high magnetic fields and clinical-level gamma radiation.

In situ patterning and characterization

To prepare the silk drives, thin films on either a gold or a silicon substrate were made by spin-coating aqueous silk solution extracted from silkworm cocoons. This approach also included an optional functionalization step involving the mixing and application of appropriate dopants (Fig. 1a and Supplementary Fig. 1)³⁰. Nanopatterning of this prepared silk film was done using s-SNOM with a quantum cascade laser as a monochromatic mid-infrared laser source (Fig. 1b). The laser frequency was tunable from 1,495 to 1,790 cm⁻¹, covering the amide I and II absorption bands of silk proteins in the mid-infrared regime. The laser beam was p-polarized and split by the beam splitter of an asymmetric Michelson interferometer. The reflected beam served as the reference while the transmitted beam was focused onto the apex of the oscillating probe of an AFM using a high numerical aperture parabolic mirror. Tip-enhanced radiative heat transfer under the apex induced local topographic and/or conformational transitions in the silk film. The near-field light contained local information with subdiffraction-limit resolution and was scattered back onto the mercury–cadmium–telluride detector through the beam splitter.

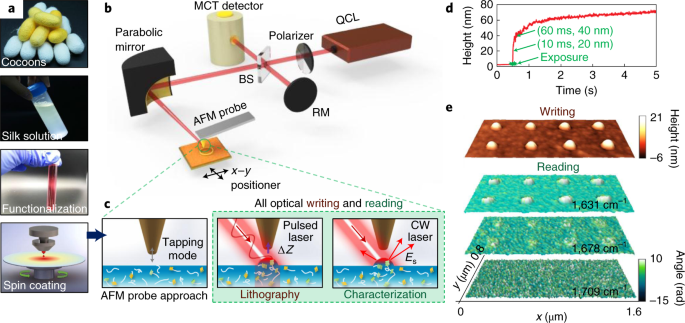

Fig. 1: In situ patterning and characterization of the silk drive using TNINL.

a, Sample preparation using a silk solution extracted from silkworm cocoons. b, s-SNOM optical layout. The laser beam emitted from the quantum cascade laser (QCL) was directed onto the beam splitter (BS) of an asymmetric Michelson interferometer. The transmitted beam was focused onto the probe tip, while reflected beam was directed onto the reference mirror (RM), which is driven to oscillate at the probe frequency. MCT, mercury–cadmium–telluride. c, Schematics of the working principle behind the tip-based patterning and characterization. The prepared silk film underwent topological and conformational transitions under tip-enhanced infrared illumination, and these changes were imaged in situ. CW, continuous wave. d, Real-time monitoring of the silk surface topography during ~5 s pulsed laser exposure with wavenumber 1,658 cm⁻¹. e, AFM topography and near-field phase images collected using three different illumination wavelengths. ΔZ, topographic modification; E_s, scattered electric field.

As shown in Fig. 1c, patterning and characterization were performed consecutively within the same s-SNOM system. Patterning was performed with a pulsed laser with up to 500 mW peak power, 100 kHz pulse rate and a 1% duty cycle, while characterization was performed with continuous-wave illumination with an average output power of ~5 mW. Pulsed laser exposure time was controlled using an aperture beam shutter with an activation time of ~10 ms. While the topographic modification was being induced by the tip of the oscillating AFM probe, a piezoelectric actuator was used to maintain a constant tip–sample distance. The time-dependent height change on an ~150-nm-thick silk film on the gold substrate indicated that the patterning was completed in ~10 ms (Fig. 1d). The bottlenecks are likely the shutter speed and the probe oscillation frequency. Multimodal characterization by s-SNOM simultaneously acquires topography and near-field images. The latter are sensitive to shifts in vibrational fingerprints and thus provide better chemical sensitivity that can detect conformational shifts in silk. Figure 1e shows the patterned dot array and the corresponding near-field phase images collected at 1,631, 1,678 and 1,709 cm⁻¹. The near-field phase shift resembles the far-field absorbance spectra with a higher contrast at the infrared absorption peaks^31,32. The image at 1,631 cm⁻¹ shows the highest contrast; there was no notable contrast at 1,709 cm⁻¹, indicating the conformational transition from amorphous (~1,650 cm⁻¹) to β sheet (~1,631 cm⁻¹) in post-exposure silk proteins (Supplementary Figs. 2–4)²².

Patterning mechanisms

To understand the energy transfer of the process, the electric field distribution of the tip–sample interface was numerically calculated using a commercial electromagnetic solver. With the conic probe, plasmonic enhancement occurred in the small gap between the gold-coated tip and the sample surface. The enhanced field amplitude was up to four orders of magnitude stronger and depended on both the tip and sample parameters (Fig. 2a). A full-wave electromagnetic simulation was also conducted to show that a sharper tip resulted in better field confinement, thereby leading to better lithographic resolution (Supplementary Fig. 5).

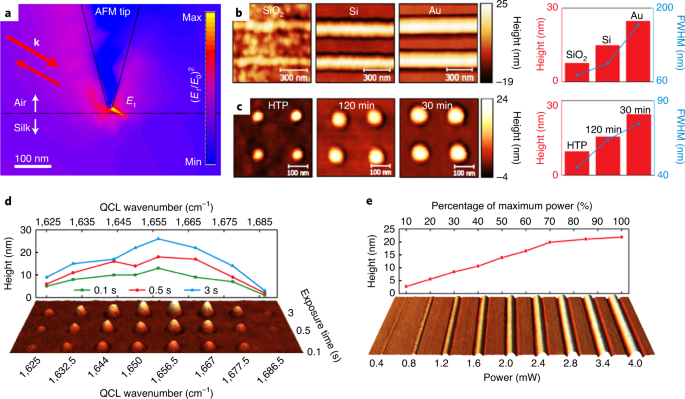

Fig. 2: Mechanisms of TNINL.

a, Numerical simulation of the electric field distribution at the tip–sample interface, where the tip apex was illuminated with the incident laser beam. The electric field was concentrated near the tip–sample interface. k, wave vector of incident radiation; E₀ and E_t, incident and tip-enhanced electric fields, respectively. b,c, AFM topography and corresponding feature sizes of patterned nanostructures obtained with three different substrates (b) and three silk films with different average molecular weights obtained by boiling under different conditions (c). Data are arranged in order of increasing electrical conductivity and molecular weight, respectively. d, Heights and AFM topography of dots written with different frequencies and exposure times of the incident laser. e, Heights and AFM topography of one-dimensional lines written by sweeping the laser power.

In addition, the optical conductivity of the supporting substrate for the silk film also played an important role in the near-field enhancement. Figure 2b shows the nanodots patterned on 150 nm silk films on SiO₂, silicon and gold substrates using the same lithographic parameters. Plasmonic coupling between the gold-coated substrate and the gold-coated probe strongly enhanced the field amplitude³³. This facilitated stronger radiative heat transfer to the silk and resulted in greater film modification, that is, higher sensitivity and sharper edges, than observed with other substrates. Unless otherwise noted, all nanostructures described herein were fabricated on gold substrates. Note that the supporting gold film also acted as a sacrificial layer; as such, the nanopatterns on the silk film could be released and transferred to other substrates, including curved ones, after etching away the supporting/sacrificial gold layer (Supplementary Fig. 6).

The average molecular weight of silk also regulates the resulting feature size: larger molecular weights result in larger features. This effect was examined by preparing batches of silk solutions with three different degumming conditions. The first two batches had larger molecular weights and were prepared by boiling silk fibres in LiBr solutions under atmospheric pressure for 30 min and 120 min. The third batch had the smallest average protein size and was prepared by boiling it at an elevated temperature and pressure for 120 min (HTP, high temperature and pressure). These three batches were spin-coated to form 80-nm-thick films and were patterned using identical parameters (Fig. 2c). The fine-grained HTP silk had a better spatial resolution, whereas the coarse-grained 30 min silk yielded larger patterns.

To further explore the control parameters, we investigated how TNINL depended on laser frequency and power. Figure 2d shows an array of nanodots patterned using different laser frequencies with identical laser powers and exposure times. The largest feature size was observed when patterning with a laser frequency of 1,656.5 cm⁻¹, which corresponds to the absorption peak of the amide I band of the amorphous silk. As the frequency was tuned away, the feature sizes gradually decreased until no topographic modification was observed. This was because amorphous silk does not absorb strongly at wavenumbers smaller than 1,625 cm⁻¹ or greater than 1,686.5 cm⁻¹. Next, line patterns were formed by displacing the sample under the tip during continuous beam exposure. These patterns were then used to investigate the influence of laser power. AFM topography of these line patterns is shown in Fig. 2e and Supplementary Fig. 7; these patterns were fabricated on a 125-nm-thick silk film using gradually increasing laser power (0.4–4 mW). From 0.4 to 2.8 mW, the feature size increased in an approximately linear fashion. Above 2.8 mW, the feature size remained nearly constant. Finally, silk film thickness also impacted the feature size produced by near-field irradiation (Supplementary Fig. 8).

Greyscale nanostructuring and digital information storage

A variety of patterns, including zero-dimensional nanodots, one-dimensional line patterns, two-dimensional shapes and a ‘UT’ logo, were readily fabricated (Fig. 3a,b). The smallest feature size produced in this study was ~35 nm in nanodots patterned onto HTP silk film (Fig. 3a, bottom). Since the wavelength of the exposure laser was 6.02 μm, the 35 nm feature size was two orders of magnitude smaller than the diffraction limit. The probes used in this study had a measured diameter of ~35 nm, which was comparable in size to the smallest pattern (Fig. 3a). Hence, the probe geometry appeared to be the limiting factor for the resulting spatial resolution; this limitation may be improved by using probes with smaller diameters. In addition, TNINL allows a certain degree of control in the dimension perpendicular to the sample surface because the pattern heights can be easily controlled by changing the laser power and/or frequency. This added flexibility allowed for the fabrication of more complicated nanostructures, as demonstrated by the greyscale patterning shown in Fig. 3c. The spiral nanostructure exhibited a ‘trapping maze’ with radially varying height. This was achieved by setting the laser power to increase every 90° of rotation as the probe moved from the centre towards the edge of the spiral. The ability to pattern in greyscale with built-in feedback for height optimization has the potential to further improve storage density by using recording strategies optimized for probe-based devices, such as mark-length³⁴ and multilevel³⁵ recording schemes.

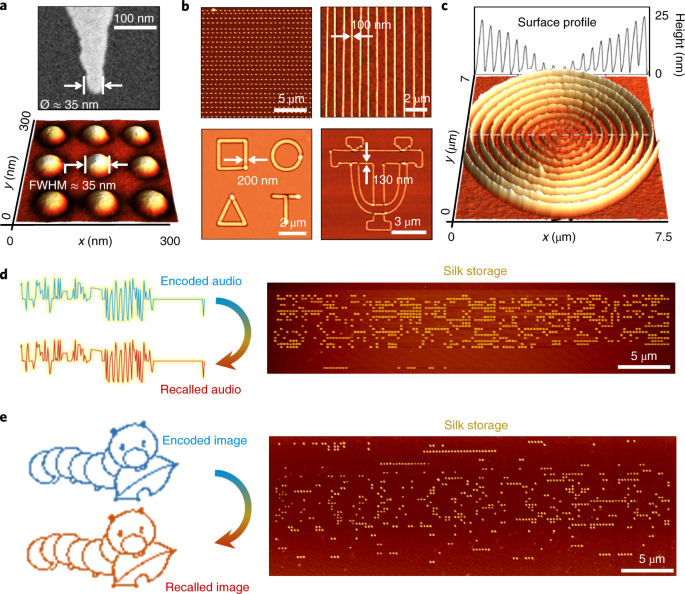

Fig. 3: TNINL-mediated analogue and digital patterning of the silk drive.

a, Representative scanning electron microscopy image of an AFM probe (top) and nanostructure topography with an ~35 nm feature size (bottom). b, Periodically arranged zero-dimensional nanodots, one-dimensional lines, two-dimensional patterns and a ‘UT’ logo. c, Greyscale nanopattern of a spiral. As the probe scanned the spiral path, the exposure intensity was incrementally increased every 90° of rotation. This resulted in a linear increase in nanopattern height from the centre to the periphery of the pattern. The line profile across the pattern is shown at the top. d,e, A MIDI audio (d) and a BMP image (e) stored on the silk drive in binary format; both were readable with high fidelity. The encoded (blue) and recalled (red) audio record and/or image were processed in false colours.

The silk film can be patterned into high-density nanodot arrays. Thus, the silk drive is a usable data-storage device, in which digits 1 and 0 are represented by a nanodot or the relatively flat intervening surface, respectively. As a proof of concept, common computer file formats were selected and encoded to demonstrate the ability to store arbitrary digital information. As shown in Fig. 3d,e, the files consisted of a 20 s audio recording of birdsong (MIDI format) and an image of a silkworm (BMP format). The audio and image files were converted into binary data (Supplementary Figs. 9 and 10) and written onto the silk drive according to the aforementioned encoding rule. Topographical images containing the encoding information were formed as the probe scanned along the contours of the silk drive. The newly acquired binary digits were decoded to reconstruct the original files without distortion (see Supplementary Audios 1 and 2, for the encoded and recalled audio), indicating the reliability of the silk drive for data storage. The fabrication was conducted on a 1 cm × 1 cm silk film. The largest scanning area in a single operation is currently limited by the scan range of the AFM in our setup (100 μm × 100 μm), but future work could easily increase this size.

The data on the silk drive could be erased and rewritten. Three pattern types (types I, II and III) can be induced using different laser powers (Fig. 4a). The patterns shown in Fig. 4b were created on an ~70-nm-thick amorphous silk film. Type I patterns were induced when the laser power was between 0.31 and 0.36 mW; types II and III patterns were induced when the laser power was between 0.36 and 2.35 mW and above 2.35 mW, respectively. The type I pattern was postulated to form at the onset of the glass transition of the protein. As the temperature was increased further, the type II pattern formed by an attractive interaction between the tip and the film, yielding a dot-like structure on the silk surface. Finally, the type III pattern formed as a result of the thermal degradation induced by a larger input power (above 2.35 mW) and was characterized by a decrease in volume. With a relatively high laser power, the transition to the type III pattern was induced by increasing the exposure time and therefore the energy input to the silk. Collectively, these three different processes allowed us to write and erase existing patterns (Fig. 4c,d, and Supplementary Note 1).

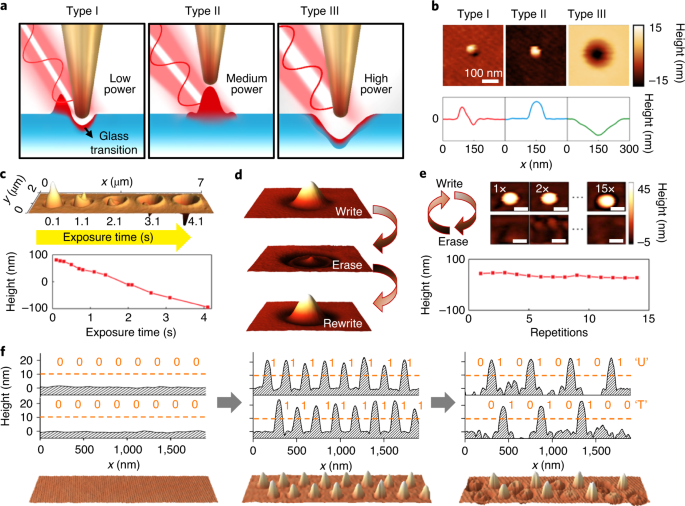

Fig. 4: Writing and erasing data on the silk drive.

a,b, Three different types of patterning (I, II and III) shown schematically (a) and topographically (b). Types I and II were formed by tapping-probe-induced glass transition of silk, while type III was formed by thermal degradation of the silk itself. c, Thermal degradation of the silk under high-intensity laser irradiation. The depth of the hole was proportional to the exposure time. d, Erasing and rewriting a silk drive using the type I and II processes, respectively. e, Repeated writing and erasing of a nanodot up to 15 times without substantial loss of silk mass using type I and II processes. f, A proof-of-principle demonstration of writing and erasing data on a silk drive to encode ‘UT’ in binary ASCII code. Left, before writing; middle, writing only 1; right, selective thermal degradation. Top, AFM profile; bottom, corresponding AFM topography.

We found two principal ways to erase previously created nanodot patterns. The first method relies on thermal degradation of the silk (Fig. 4d), while the second relies on inducing a glass transition in a small fraction of silk, that is, type I patterning. As shown in Fig. 4e, the second method was more advantageous because it resulted in no substantial thermal degradation of the sample and could be repeated indefinitely (Supplementary Fig. 11). As a proof-of-principle demonstration of the second method, we encoded binary data onto the silk film using a write-and-erase mode, which spelled out ‘UT’ in ASCII encoding for the final product (Fig. 4f). Further improvements in the areal density of silk drives should be achievable by encoding multilevel data onto a single greyscale pattern based on different heights and conformations.

Biocompatible and biologically functionalized silk drives

Highly cross-linked silk can, in principle, be stored in ambient conditions for many years without noticeable changes³⁶. Cross-linking makes silk more resistant to various harsh conditions and hence can be used to tune silk properties to specific needs; for example, it is possible to control the in vivo degradation rate. Water-based processing allows a variety of biotic and abiotic dopants to be easily incorporated into silk matrix, and this approach can be used to functionalize and further customize silk drives. In turn, silk matrix can help stabilize and preserve the functions of entrapped dopants. These features distinguish silk drives from existing solid-state devices and make them well suited for storing digital and biological information (for example, the activities of embedded biological components).

Figure 5 shows a set of experiments performed in this context. First, we tested the robustness of the silk drive and its data content against heat, moisture, high-dose radiation and high-intensity magnetic fields. We found that the silk drive was able to withstand a variety of harsh conditions (Fig. 5a and Supplementary Figs. 12–15). The robustness of the silk drive makes it a suitable carrier for tagged biosamples with nanoscale dimensions. As a demonstration, silk drives were doped with clinically relevant blood biomarkers—haemoglobin, albumin and glucose—and the corresponding digital tags were written with TNINL. Biomarker activities were then measured by enzyme-linked immunosorbent assay, which was repeated following 7 and 14 d of storage in ambient conditions. The results showed that the biomarker activities and the information were preserved despite the absence of refrigeration (Fig. 5b and Supplementary Fig. 16).

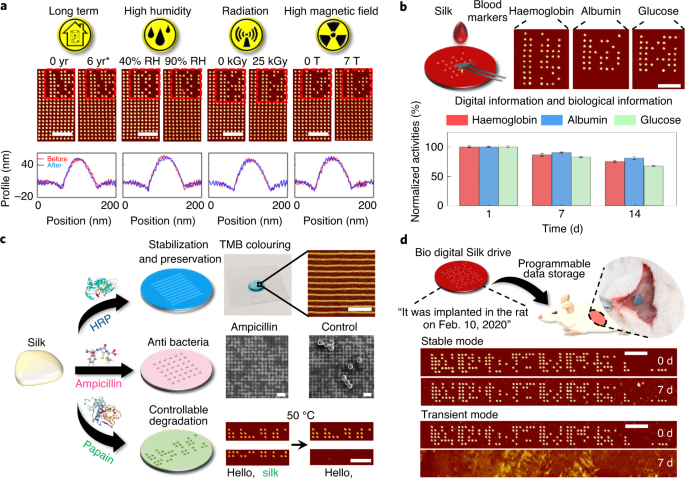

Fig. 5: High degree of robustness and biologically relevant functionalities of the silk drive.

a, The silk drive shows a high degree of robustness under various harsh conditions, including high temperature (accelerated aging test at 120 °C for 52 h, equivalent to ~6 yr at room temperature; see Supplementary Note 3 for more information), high humidity (up to a relative humidity (RH) of ~90%), high-dose radiation (25 kGy radiation safe) and high magnetic fields (7 T MRI compatible). The asterisk indicates that 6 yr is the equivalent time obtained from the accelerated experiment. Scale bars, 1 μm. b, Clinically relevant biomarkers in blood can be immobilized, preserved and tagged on the silk drive. The nanopatterns are digital tags for ‘Haemoglobin’, ‘Albumin’ and ‘Glucose’ in ASCII. The error bars are calculated from the uncertainty on the activities of the biomarkers. Scale bar, 1 μm. c, The silk drive can also be functionalized with various biologically active dopants, such as horseradish peroxidase (HRP), ampicillin and papain, thereby further customizing the drive with additional functionalities. The silk matrix can, in turn, help stabilize and preserve dopant activities. Top: color reaction of the nanopatterned HRP-doped silk drive when it was exposed to TMB solution. Middle: SEM images of the ampicillin-doped and pure silk drives after bacterial contamination. Bottom: AFM images of the papain-doped and pure silk drives after a water bath (50 ℃) for 10 min. The nanopatterns are digital tags for ‘Hello, silk’ and ‘Hello,’ in ASCII. TMB, tetramethylbenzidine. Scale bars, 1 μm. d, The rate of degradation of the silk drive in vivo can be fine-tuned by cross-linking it to different degrees. The silk drive in stable mode is highly cross-linked and degrades much more slowly than the amorphous silk drive in transient mode. The nanopatterns are digital tags for ‘it was implanted in the rat on Feb. 10, 2020’ in ASCII. Scale bars, 1 μm.

To demonstrate the possibility of functionalizing the silk drive with other thermolabile biological components, silk films doped with horseradish peroxidase were prepared and processed. The films were subsequently exposed to tetramethylbenzidine solution. The appearance of coloured product indicates that enzymatic activities were not impaired by the TNINL processes (Fig. 5c, top). The silk drive can also be functionalized with ampicillin to make it resistant to bacterial contamination, which may induce data loss. To this end, in vitro experiments were conducted to verify the efficacy of the antifouling/antimicrobial property of our silk drive (Fig. 5c, middle and Supplementary Fig. 17).

Under certain circumstances, it is necessary to trigger the immediate degradation of the stored information. Externally triggered enzymatic degradation of a silk drive is a novel, transient data-storage scheme that is particularly useful in implantable devices, secure data storage and/or data concealment. To illustrate this concept, a message ‘Hello, silk’ was written onto pure and papain-doped silk substrates, respectively. The word ‘silk’ was then selectively erased by exposing the message-containing region of the doped silk to an elevated temperature of ~50 °C, thereby activating the enzymatic activities of papain, which induce rapid degradation of the silk (Fig. 5c, bottom and Supplementary Fig. 18).

Finally, we carried out a set of in vivo experiments to evaluate the feasibility of our protein-based silk drives (encapsulated in a ‘silk pocket’, prepared using a method reported previously³⁷) for implantable device applications (Fig. 5d and Supplementary Fig. 19). Two types of silk drives were used, cross-linked and uncross-linked, for lasting and transient data storage, respectively. The message ‘It was implanted in the rat on Feb. 10, 2020’ encoded in binary ASCII was inscribed on the implanted devices, which were then individually placed in the subdermal region of two Sprague Dawley rats. The implanted devices were then retrieved and examined after one week. Microscopic images showed that the nanopatterns on the cross-linked silk substrate remained nearly intact and the stored information was successfully retrieved. In contrast, the nanopatterns on the uncross-linked substrate had largely disappeared due to degradation of the silk substrate. As a result, there was no useful or recoverable information, underscoring the effectiveness of the cross-linked device for implantable data storage with a controlled lifetime. Histological sections also showed that the surrounding tissues near the implantation sites for both devices were undisturbed by the implantation and there were no adverse inflammatory responses (Supplementary Fig. 20).

Conclusions

TNINL, described herein, is a versatile nanopatterning approach capable of manipulating the topography and conformation of silk. Using a scanning probe coupled to a mid-infrared laser, which is tuned to the molecular fingerprint of silk (λ ≈ 6 µm), TNINL demonstrated the capability to pattern subdiffractional nanopillars (FWHM ≈ λ/170 µm) and arbitrarily shaped greyscale nanostructures. We showed that the same system can be used for near-field spectroscopic characterization of the patterned structures.

We also introduced silk drives as a biofunctional optical storage medium capable of storing digital and biological information. Digital data were written onto, and read and erased from, a silk drive using TNINL, demonstrating a storage capacity over an order of magnitude better than those of conventional optical storage devices, such as double-layer Blu-ray discs. Compatibility with biointerfaces and soft surfaces is one of the strengths of these drives, and their in vivo degradation rate can be controlled by taking advantage of the polymorphism of silk. We also demonstrated that silk drives exhibit robustness under a range of harsh conditions and can immobilize and preserve various biological dopants, such as enzymes and blood biomarkers. Finally, we demonstrated that silk drives can be biofunctionalized to be thermolabile or resistant to bacterial contaminations.

Substantial improvements in the speed and storage capacity of silk drives are expected with further optimization and utilization of recent advances in scanning probe lithography. These advances include incorporation of a probe array for parallel operations, use of writing strategies optimized for scanning probes and integration of silk drives into on-chip devices. Synchronization of the laser pulse rate and the probe frequency can further improve speed and energy efficiency, while using sharper probes can further enhance the spatial resolution. Silk drives are unlikely in the foreseeable future to match the speed and storage capacity of state-of-the-art solid-state devices at a competitive cost. Nevertheless, the unique set of features of the silk drive outlined here presents new opportunities for biointegrated electronics and nanofabrication.

Methods

Silk drive preparation

Silk solution was prepared using an established purification protocol³⁰. B. mori cocoons were boiled for several minutes in aqueous 0.02 M Na₂CO₃ (Sigma-Aldrich) to remove sericin. The degummed cocoons were then allowed to dry for more than 2 d, after which they were dissolved in a 9.3 M LiBr solution (Sigma-Aldrich) at 60 °C for 4 h. The solution was dialysed for 2 d in ultrapure water using Slide-a-Lyzer dialysis cassettes (molecular weight cut-off 3,500; Pierce), after which it was centrifuged for 2 × 20 min at 18,000 r.p.m. The prepared silk solution was then spin coated onto a polished silicon substrate coated with a thin gold layer to form the silk drive.

Enzyme-assisted degradable silk drive preparation

Papain-doped (0.3 mg mL⁻¹ in ~6.7 wt%) silk solution and then pure silk solution (~6.7 wt%) were spin coated on the same 1 cm × 1 cm substrate to form a heterogeneous silk drive. The heterogeneous silk drive was then annealed using a facile water vapour annealing process.

Freestanding silk drive preparation

Silicon substrate was spin coated with photoresist; gold film was then evaporated on top of the photoresist. A cross-linked silk drive was fabricated onto the gold layer. The silk drive was then released from the silicon substrate by acetone immersion. The gold film under the silk was then wet etched with KI gold etchant (1:4:40 I₂/KI/H₂O). The cross-linked silk film was resistant to this gold etchant.

s-SNOM

A commercially available s-SNOM (Neaspec) with a mid-infrared quantum cascade laser (MIRCat, Daylight Solutions), tunable between 1,495 and 1,790 cm⁻¹, was used in this study. The AFM was operated in tapping mode. Gold-coated AFM tips with ~250 kHz resonance (Tap300GB-G, Budget Sensors) were used to achieve a satisfactory infrared near-field signal. The infrared near-field signal was detected simultaneously with AFM signals, using a pseudoheterodyne technique and a lock-in amplifier. The lock-in frequency was set at the second or third harmonics of the tip tapping frequency to yield background-free, near-field amplitude and phase information with a spatial resolution of up to 10 nm.

File coding and decoding

Binary data from audio and image files were created using a custom script to first open and read the binary digits. Each digit was given a pixel code by a binary-to-topography conversion and written onto the silk drive. The stored data in the silk drive were read out by the AFM and then translated into a recognizable file using a custom script.

In vitro antibiotic activity characterization

Staphylococcus aureus culture was plated on tryptic soy agar plates. Cross-linked silk drives fabricated from ampicillin-doped (20 mg mL⁻¹ in ~6.7 wt% silk solution) and pure silk solution (~6.7 wt%) were embedded into these S. aureus plates. After embedding, plates were incubated overnight at 37 °C to allow lawn growth. After 24 h, the zone of inhibition was measured.

Microscopic evaluation of antibacterial efficiency

After incubation, samples were washed with 10 mM PBS and fixed in 2.5% glutaraldehyde for 3 h, then gently washed with 10 mM PBS and progressively dehydrated in graded ethanol solutions (50%, 75% and 95% v/v). A Hitachi S4800 field-emission scanning electron microscope, operated at 1 kV, was used to determine bacterial attachment and proliferation on the silk drives.

Evaluation of biomarkers preservation efficiency

Silk solutions containing albumin, glucose and haemoglobin (a mixture of albumin 14.33 mg mL⁻¹, glucose 0.33 mg mL⁻¹ and haemoglobin 26.67 mg mL⁻¹) were prepared to fabricate the silk drives. The remaining activities of the biospecimens were assessed on days 1, 7 and 14. Albumin and glucose levels were measured using a commercially available albumin assay kit by the bromocresol green method (Kwork number 191015) and a commercially available glucose assay kit by the hexose kinase method (Kwork number 190830). All kits were used according to the manufacturer’s instructions. Haemoglobin levels were measured using a commercially available haemoglobin enzyme-linked immunosorbent assay kit (Mlbio number ml016122) according to the manufacturer’s guidelines.

Animal experiments

All animal experiments were conducted in accordance with approved Institutional Animal Care and Use Committee protocols at Huashan Hospital of Fudan University. Sprague Dawley rats (6–8 weeks old) were anaesthetized with an intraperitoneal injection of ketamine and xylazine. Depth of anaesthesia was monitored by palpebral and withdrawal reflexes to confirm that the animal had reached stage 3 of anaesthesia. Once the animal was lightly anaesthetized, its back was shaved and the incision site cleaned with 70% ethanol, followed by a betadine surgical scrub. Once stage 3 was confirmed, a small longitudinal incision was made through the skin and the ethylene-oxide-sterilized implants were then inserted. The incision was closed with a Dexon 5–0 suture. The animal was given a dose of analgesia (subcutaneous buprenorphine) as soon as the surgery was completed and was monitored until it was ambulatory.
