Skip to main content

Thank you for visiting nature.com. You are using a browser version with limited support for CSS. To obtain the best experience, we recommend you use a more up to date browser (or turn off compatibility mode in Internet Explorer). In the meantime, to ensure continued support, we are displaying the site without styles and JavaScript.

Visualization of moiré superlattices

Abstract

Moiré superlattices in van der Waals heterostructures have given rise to a number of emergent electronic phenomena due to the interplay between atomic structure and electron correlations. Indeed, electrons in these structures have been recently found to exhibit a number of emergent properties that the individual layers themselves do not exhibit. This includes superconductivity1,2, magnetism3, topological edge states4,5, exciton trapping6 and correlated insulator phases7. However, the lack of a straightforward technique to characterize the local structure of moiré superlattices has thus far impeded progress in the field. In this work we describe a simple, room-temperature, ambient method to visualize real-space moiré superlattices with sub-5-nm spatial resolution in a variety of twisted van der Waals heterostructures including, but not limited to, conducting graphene, insulating boron nitride and semiconducting transition metal dichalcogenides. Our method uses piezoresponse force microscopy, an atomic force microscope modality that locally measures electromechanical surface deformation. We find that all moiré superlattices, regardless of whether the constituent layers have inversion symmetry, exhibit a mechanical response to out-of-plane electric fields. This response is closely tied to flexoelectricity wherein electric polarization and electromechanical response is induced through strain gradients present within moiré superlattices. Therefore, moiré superlattices of two-dimensional materials manifest themselves as an interlinked network of polarized domain walls in a non-polar background matrix.

Access options

Rent or Buy article

Get time limited or full article access on ReadCube.

from$8.99

All prices are NET prices.

Fig. 1: Stacking order domains in twisted bilayer graphene and visualization by PFM.

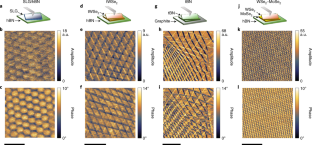

Fig. 2: Examples of PFM imaging of moiré superlattices in various vdW heterostructures.

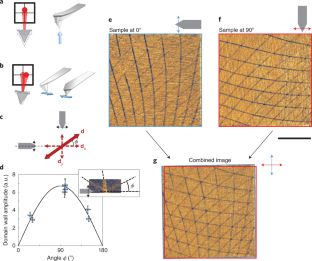

Fig. 3: PFM imaging modes, cantilever dynamics and the resulting effects on contrast in tBLG.

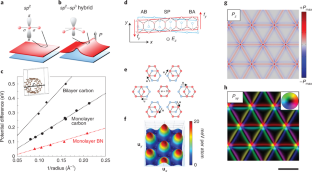

Fig. 4: Strain-gradient and curvature induced polarization.

Data availability

Data is available from the corresponding author upon request.

References

  1. 1.

    Cao, Y. et al. Unconventional superconductivity in magic-angle graphene superlattices. Nature 556, 43–50 (2018).

    CAS  Article  Google Scholar

  2. 2.

    Yankowitz, M. et al. Tuning superconductivity in twisted bilayer graphene. Science 363, 1059–1064 (2019).

    CAS  Article  Google Scholar

  3. 3.

    Sharpe, A. L. et al. Emergent ferromagnetism near three-quarters filling in twisted bilayer graphene. Science 365, 605–608 (2019).

    CAS  Article  Google Scholar

  4. 4.

    Huang, S. et al. Topologically protected helical states in minimally twisted bilayer graphene. Phys. Rev. Lett. 121, 037702 (2018).

    CAS  Article  Google Scholar

  5. 5.

    Sunku, S. S. et al. Photonic crystals for nano-light in moiré graphene superlattices. Science 362, 1153–1156 (2018).

    CAS  Article  Google Scholar

  6. 6.

    Seyler, K. L. et al. Signatures of moiré-trapped valley excitons in MoSe2/WSe2 heterobilayers. Nature 567, 66–70 (2019).

    CAS  Article  Google Scholar

  7. 7.

    Cao, Y. et al. Correlated insulator behaviour at half-filling in magic-angle graphene superlattices. Nature 556, 80–84 (2018).

    CAS  Article  Google Scholar

  8. 8.

    Yoo, H. et al. Atomic and electronic reconstruction at the van der Waals interface in twisted bilayer graphene. Nat. Mater. 18, 448–453 (2019).

    CAS  Article  Google Scholar

  9. 9.

    Alden, J. S. et al. Strain solitons and topological defects in bilayer graphene. Proc. Natl Acad. Sci. USA 110, 11256–11260 (2013).

    CAS  Article  Google Scholar

  10. 10.

    Zhang, C. et al. Interlayer couplings, moiré patterns, and 2D electronic superlattices in MoS2/WSe2 hetero-bilayers. Sci. Adv. 3, e1601459 (2017).

    Article  Google Scholar

  11. 11.

    Kerelsky, A. et al. Maximized electron interactions at the magic angle in twisted bilayer graphene. Nature 572, 95–100 (2019).

    CAS  Article  Google Scholar

  12. 12.

    Gargiulo, F. & Yazyev, O. V. Structural and electronic transformation in low-angle twisted bilayer graphene. 2D Mater. 5, 015019 (2017).

    Article  Google Scholar

  13. 13.

    Chandratre, S. & Sharma, P. Coaxing graphene to be piezoelectric. Appl. Phys. Lett. 100, 023114 (2012).

    Article  Google Scholar

  14. 14.

    Ong, M. T. & Reed, E. J. Engineered piezoelectricity in graphene. ACS Nano 6, 1387–1394 (2012).

    CAS  Article  Google Scholar

  15. 15.

    da Cunha Rodrigues, G. et al. Strong piezoelectricity in single-layer graphene deposited on SiO2 grating substrates. Nat. Commun. 6, 7572 (2015).

    Article  Google Scholar

  16. 16.

    Wang, X. et al. Observation of a giant two-dimensional band-piezoelectric effect on biaxial-strained graphene. NPG Asia Mater. 7, e154–e154 (2015).

    CAS  Article  Google Scholar

  17. 17.

    Van der Donck, M., De Beule, C., Partoens, B., Peeters, F. M. & Van Duppen, B. Piezoelectricity in asymmetrically strained bilayer graphene. 2D Mater. 3, 035015 (2016).

    Article  Google Scholar

  18. 18.

    Balke, N. et al. Differentiating ferroelectric and nonferroelectric electromechanical effects with scanning probe microscopy. ACS Nano 9, 6484–6492 (2015).

    CAS  Article  Google Scholar

  19. 19.

    Kalinin, S. V., Jesse, S., Tselev, A., Baddorf, A. P. & Balke, N. The role of electrochemical phenomena in scanning probe microscopy of ferroelectric thin films. ACS Nano 5, 5683–5691 (2011).

    CAS  Article  Google Scholar

  20. 20.

    Labuda, A. & Proksch, R. Quantitative measurements of electromechanical response with a combined optical beam and interferometric atomic force microscope. Appl. Phys. Lett. 106, 1–5 (2015).

    Article  Google Scholar

  21. 21.

    Kalinin, S. V. et al. Vector piezoresponse force microscopy. Microsc. Microanal. 12, 206–220 (2006).

    CAS  Article  Google Scholar

  22. 22.

    Wang, B., Gu, Y., Zhang, S. & Chen, L.-Q. Flexoelectricity in solids: progress, challenges, and perspectives. Prog. Mater. Sci. 106, 100570 (2019).

    CAS  Article  Google Scholar

  23. 23.

    Dumitrică, T., Landis, C. M. & Yakobson, B. I. Curvature-induced polarization in carbon nanoshells. Chem. Phys. Lett. 360, 182–188 (2002).

    Article  Google Scholar

  24. 24.

    Kalinin, S. V. & Meunier, V. Electronic flexoelectricity in low-dimensional systems. Phys. Rev. B 77, 033403 (2008).

    Article  Google Scholar

  25. 25.

    Kothari, M., Cha, M. & Kim, K. Critical curvature localization in graphene. I. Quantum-flexoelectricity effect. Proc. R. Soc. A 474, 20180054 (2018).

    Article  Google Scholar

  26. 26.

    Kundalwal, S. I., Meguid, S. A. & Weng, G. J. Strain gradient polarization in graphene. Carbon 117, 462–472 (2017).

    CAS  Article  Google Scholar

  27. 27.

    Dreyer, C. E., Stengel, M. & Vanderbilt, D. Current-density implementation for calculating flexoelectric coefficients. Phys. Rev. B 98, 075153 (2018).

    CAS  Article  Google Scholar

  28. 28.

    Stengel, M. Surface control of flexoelectricity. Phys. Rev. B 90, 201112 (2014).

    Article  Google Scholar

  29. 29.

    Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 77, 3865 (1996).

    CAS  Article  Google Scholar

  30. 30.

    Blöchl, P. E. Projector augmented-wave method. Phys. Rev. B 50, 17953 (1994).

    Article  Google Scholar

  31. 31.

    Kresse, G. & Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 54, 11169 (1996).

    CAS  Article  Google Scholar

  32. 32.

    Monkhorst, H. J. & Pack, J. D. Special points for brillouin-zone integrations. Phys. Rev. B 13, 5188 (1976).

    Article  Google Scholar

  33. 33.

    Popov, A. M., Lebedeva, I. V., Knizhnik, A. A., Lozovik, Y. E. & Potapkin, B. V. Commensurate-incommensurate phase transition in bilayer graphene. Phys. Rev. B. 84, 045404 (2011).

    Article  Google Scholar

Download references

Acknowledgements

This work is supported by the Programmable Quantum Materials (Pro-QM) programme at Columbia University, an Energy Frontier Research Center established by the Department of Energy (grant no. DE-SC0019443). L.J.M. acknowledges support from the Swiss National Science Foundation (grant no. P400P2_186744). Synthesis of MoSe2 and WSe2 was supported by the National Science Foundation Materials Research Science and Engineering Centers programme through Columbia in the Center for Precision Assembly of Superstratic and Superatomic Solids (DMR-1420634). The Flatiron Institute is a division of the Simons Foundation. C.E.D. acknowledges support from the National Science Foundation under grant no. DMR-1918455. M.S. and K.S. acknowledge the support of the European Research Council under the European Union’s Horizon 2020 research and innovation programme (grant agreement no. 724529), Ministerio de Economia, Industria y Competitividad through grant nos. MAT2016-77100-C2-2-P and SEV-2015-0496, and the Generalitat de Catalunya (grant no. 2017SGR 1506). We thank D. Griffin and T. Walsh from Oxford Instruments Asylum Research for confirmation of PFM results.

Author information

Affiliations

Authors

Contributions

L.J.M. conceived the concept of the study and initiated the first PFM experiments. A.K., N.R.F., E.-M.S., A.G., Y.Z., S.L.M., W.W., Y.B. and L.Z. provided additional samples and experimental results. K.S., M.S. and C.E.D performed theoretical calculations and simulations. K.W. and T.T. provided hBN crystals. J.H., X.Z., D.N.B., C.D., C.E.D. and A.N.P. advised. L.J.M and A.N.P. wrote the manuscript with assistance from all authors.

Corresponding author

Correspondence to Abhay N. Pasupathy.

Ethics declarations

Competing interests

The authors declare no competing interests.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Example of large-scale mapping of moiré superlattice.

A lateral PFM image for a scan of 8 × 8 µm2; topography (a), phase (b) and amplitude (c) demonstrating that this technique can be used to observe the moiré across length scales that span orders of magnitude. Note the huge variation in moiré wavelength from ~500 to ~50 nm and presence of large strains.

Extended Data Fig. 2 Example of mapping of two co-existing moiré superlattices.

Amplitude (a) and phase (b) images clearly show a strained moiré superlattice due to the twisted bilayer of graphene with wavelength \(\lambda _m^{tBLG}\sim 70\,{\mathrm{nm}}\) and a second smaller wavelength related to the bottom layer of graphene with the hBN flake of \(\lambda _m^{SLG}\sim 4.5\,{\mathrm{nm}}\).

Supplementary information

Supplementary Information

Supplementary sections 1–7, Figs. 1–7 and refs. 1 and 2.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

McGilly, L.J., Kerelsky, A., Finney, N.R. et al. Visualization of moiré superlattices. Nat. Nanotechnol. 15, 580–584 (2020). https://doi.org/10.1038/s41565-020-0708-3

Download citation

Further reading

Search

Quick links

Find nanotechnology articles, nanomaterial data and patents all in one place. Visit Nano by Nature Research
