Eukaryotic cells, when exposed to environmental or internal stress, activate the integrated stress response (ISR) to restore homeostasis and promote cell survival. Specific stress stimuli prompt dedicated stress kinases to phosphorylate eukaryotic initiation factor 2 (eIF2). Phosphorylated eIF2 (p-eIF2) in turn sequesters the eIF2-specific guanine exchange factor eIF2B to block eIF2 recycling, thereby halting translation initiation and reducing global protein synthesis. To circumvent stress-induced translational shutdown, viruses encode ISR antagonists. Those identified so far prevent or reverse eIF2 phosphorylation. We now describe two viral proteins—one from a coronavirus and the other from a picornavirus—that have independently acquired the ability to counteract the ISR at its very core by acting as a competitive inhibitor of p-eIF2–eIF2B interaction. This allows continued formation of the eIF2-GTP-Met-tRNAi ternary complex and unabated global translation at high p-eIF2 levels that would otherwise cause translational arrest. We conclude that eIF2 and p-eIF2 differ in their interaction with eIF2B to such effect that p-eIF2–eIF2B association can be selectively inhibited.
Translation is a fundamental, energy-intensive biosynthetic process. When exposed to a variety of environmental and internal stress conditions, eukaryotic cells switch on a regulatory pathway—the integrated stress response (ISR)—that acts at the level of translation initiation (reviewed in ref. 1) to suppress global protein synthesis while enhancing translation of several proteins involved in cellular recovery. While primarily aimed at energy conservation, restoration of homeostasis and cell survival, the ISR will signal towards cell death under conditions of severe and unmitigated stress.
In mammalian cells, ISR signalling is initiated by any of four distinct serine/threonine kinases (that is, protein kinase R (PKR), PKR-like endoplasmic reticulum kinase (PERK), heme-regulated inhibitor (HRI) and general control non-depressible 2 (GCN2)), each of which is dedicated to sensing different types of stress stimuli. For example, PKR is triggered by cytoplasmic double-stranded RNA (dsRNA) of cellular or viral origin2. Upon detection of their respective stimulus, these proteins self-activate and phosphorylate their common target, the α-subunit of eukaryotic initiation factor 2 (eIF2). Native, non-phosphorylated eIF2 is a heterotrimeric protein complex that associates with GTP and Met-tRNAi to form the ternary complex as a key step in translation initiation. During translation initiation, GTP is hydrolysed to GDP. Subsequently, eIF2-GDP is recycled to eIF2-GTP by the eIF2-specific guanine exchange factor (GEF) eIF2B3. Phosphorylated eIF2 (p-eIF2) interferes with eIF2–GDP/GTP exchange by stably interacting with eIF2B4. As cellular concentrations of eIF2 greatly exceed those of eIF2B5,6, even modest levels of p-eIF2 suffice to effectively inhibit eIF2B function7, causing ternary complex levels to drop and translation to halt.
ISR-induced downregulation of virus protein synthesis is an effective antiviral defence mechanism. Many viruses encode antagonistic proteins that allow them to evade or divert the detrimental consequences of the ISR. These viral ISR antagonists fall into different groups. Class 1 antagonists, such as influenza A virus NS1 (ref. 8) and Middle East respiratory syndrome coronavirus 4a9, avert eIF2 kinase activation; for example, by sequestering or degrading the stressor. In contrast, class 2 antagonists, such as vaccinia virus K3L10,11, prevent eIF2 phosphorylation by binding and inhibiting the function of the (activated) sensor. Finally, class 3 antagonists, such as herpes simplex virus ICP34.5 and alphacoronavirus p7, induce dephosphorylation of eIF2α by recruiting the cellular phosphatase PP1 (refs. 12,13). In a search for other types of ISR antagonist, we focused on coronaviruses—a group of positive-strand RNA viruses of exceptional genetic complexity. In addition to a strictly conserved set of structural and non-structural proteins, coronaviruses encode a wide variety of accessory proteins that are genus, clade or species specific. One of these—the open reading frame 10 (ORF10)-encoded accessory protein (AcP10) of beluga whale coronavirus (Bw-CoV) SW1—attracted our attention because of its sequence similarity to cellular uridine cytidine kinases (UCKs)14. Here, we show that AcP10, while retaining UCK activity, also has a UCK-independent function as an ISR antagonist. We demonstrate that AcP10 differs in its mode of action from all other viral ISR antagonists described so far and counteracts the ISR at its core by acting as a competitive inhibitor of the p-eIF2–eIF2B interaction. AcP10 thereby allows ternary complex formation and translation to proceed unimpaired even at very high levels of p-eIF2. Furthermore, this ISR evasion strategy is not exclusive to Bw-CoV, as we show that Aichivirus (AiV; genus Kobuvirus)—a human gastroenteric picornavirus—encodes a protein (AiVL) that blocks the ISR via a mechanism similar to that of AcP10. Using a recombinant AiV with a defective L gene, we show that AiVL acts as ISR antagonist also in the natural context of AiV-infected cells, where this function is essential for optimum virus propagation.
AcP10 is a uridine kinase and an ISR antagonist
AcP10 is encoded by one of eight accessory genes found in Bw-CoV SW1 and related viruses in bottlenose dolphins (for a schematic representation of the 31.7-kilobase viral genome, see Fig. 1a). In accordance with its sequence similarity to cellular UCKs (Fig. 1b,c), recombinant AcP10 catalysed the ATP-dependent conversion of uridine into UMP in vitro (Fig. 1d). This enzymatic activity was lost upon substitution of residues in the predicted catalytic and ATP-binding sites (Asp 41 to Ala or Lys 16 to Asn, respectively) that are strictly conserved among cellular UCKs and critical for their function. Thus, AcP10 was unambiguously identified as a uridine kinase. Remarkably, however, AcP10 has an additional function as an ISR antagonist, as we discovered in transient expression experiments. We and others previously reported that transfection of HeLa cells with enhanced green fluorescent protein plasmids (pEGFPs) triggers the ISR via dsRNA-dependent activation of PKR resulting in the formation of stress granules9,15,16. Activation can be blocked by the expression of dsRNA-binding ISR antagonists, such as influenza virus NS1 and Middle East respiratory syndrome coronavirus p4a9. Surprisingly, cells expressing AcP10-EGFP were consistently devoid of stress granules (Fig. 1f, left), providing an indication that AcP10 counteracts the ISR.
To test whether AcP10, like NS1, acts in a PKR-specific manner, transfected cells were treated with arsenite, to induce the ISR also via HRI. Under these conditions, AcP10—but not NS1—prevented stress granule formation (Fig. 1f, middle). However, AcP10 did not block stress granule production in cells treated with the ISR-independent translation inhibitor pateamine A (Fig. 1f, right). The data thus suggest that AcP10 targets the ISR downstream of the eIF2α kinases. This function is UCK independent, because UCK-deficient AcP10 mutants still suppressed stress granule formation (Fig. 1g). To identify AcP10 residues that are critical to ISR inhibition, we performed alanine screening on a selection of histidines and potentially phosphorylated serines and threonines (16 in total), all surface exposed in the UCK fold (for a predicted three-dimensional structure, see Extended Data Fig. 1). Of the mutants tested, AcP10H193A, AcP10H200A and the double mutant AcP10H193A/H200A (henceforth called AcP10(SA–)) no longer suppressed the formation of stress granules (Fig. 1g). However, they still exhibited uridine kinase activity (Fig. 1e), demonstrating that the ISR inhibitor and UCK functions of AcP10 are separable and hence independent.
Consistent with a role as UCK and ISR antagonist, AcP10-EGFP localized to the cytosol. However, we did note that the protein largely accumulated in perinuclear deposits, apparently in aggregated form (Fig. 1f,g). Indeed, upon fractionation of Triton X-100 lysates of transfected cells, most AcP10 was insoluble and resided in the pellet with only about 20% remaining in the supernatant (Extended Data Fig. 2). Importantly, stress granule formation was also blocked in cells that expressed AcP10-EGFP at very low levels, and those that lacked AcP10 deposits (see also Extended Data Fig. 3b). The aggregation of AcP10-EGFP at high intracellular concentrations thus appears irrelevant to ISR inhibition. In addition, the inactive mutant AcP10(SA−) also accumulated in aggregates, indicating that the presence of perinuclear deposits per se does not interfere with stress granule formation.
AcP10 rescues global translation in the presence of p-eIF2
As AcP10’s ability to inhibit the ISR is not specific for a particular eIF2 kinase nor type of stressor, we assessed whether AcP10 induces eIF2 dephosphorylation (class 3 antagonist) by analysing its impact on p-eIF2α levels in stressed cells.
Cells dually stressed by DNA transfection and arsenite treatment had high levels of p-eIF2α compared with non-stressed cells, and global translation was markedly reduced, as measured by western blot detection of puromycin incorporation (Fig. 2a). AcP10 did not affect eIF2 phosphorylation, as p-eIF2α levels in AcP10-expressing cell populations were identical to those in the controls. Nevertheless, AcP10 efficiently rescued global protein synthesis. Translation was also restored by UCK-deficient AcP10D41A but not by AcP10(SA−) or NS1. Of note, the analyses were performed on total cell populations in which only 30–50% of the cells produced AcP10. To quantitatively assess to what extent AcP10 rescues translation during stress, global protein synthesis was measured in individual cells by flow cytometry. In cells stressed by DNA transfection exclusively (Fig. 2b) or by a combination of transfection and arsenite treatment (Extended Data Fig. 3a), AcP10 allowed protein synthesis to proceed unhindered at rates indistinguishable from those in non-stressed cells. Notably, minute amounts of AcP10, barely detectable by fluorescence microscopy or flow cytometry, sufficed to block stress granule formation (Extended Data Fig. 3b) and to fully rescue translation (Extended Data Fig. 3c).
Unfortunately, we were unable to study the role of AcP10 in cells infected with Bw-CoV SW1, as this virus has not yet been isolated in cultured cells and, hence, no reverse genetics system has been established. To investigate whether AcP10 also inhibits the ISR in virus-infected cells, we resorted to a model based on recombinant encephalomyocarditis virus mutant EMCV-Lzn, in which the autologous ISR antagonist (the leader (L) protein) is inactivated. Consequently, the mutant virus can no longer counteract the ISR17; thus, it can be used as a convenient platform for the identification and characterization of ISR antagonists of other viruses9,18. Infection with EMCV-Lzn, EMCV-Lzn-AcP10 or EMCV-Lzn-AcP10(SA−) (Extended Data Fig. 4) induced eIF2α phosphorylation to similar extents. However, only cells infected with EMCV-Lzn-AcP10 were devoid of stress granules (Fig. 2c) and displayed translation rates similar as those in non-infected cells (Fig. 2d). These observations provide formal evidence that AcP10 also counters the ISR in virus-infected cells.
Recently, a small molecule inhibitor of the ISR (ISRIB) was described to render cells less sensitive to p-eIF2. ISRIB promotes the assembly of the fully active decameric eIF2B complex, and thereby increases eIF2B GEF activity19,20,21,22. However, ISRIB does not prevent p-eIF2 from binding eIF2B and thus cannot counteract the ISR at high intracellular p-eIF2 concentrations that sequester virtually all eIF2B. For this reason, ISRIB fails to rescue translation in HeLa cells treated with arsenite concentrations >100 μM23, even at high ISRIB concentrations (200 nM, which is 40 times ISRIB’s reported half-maximum effective concentration20). In contrast with ISRIB, AcP10 remained fully active even in cells exposed to arsenite concentrations of up to 500 μM (Fig. 2e). The combined data suggest that AcP10 blocks the ISR downstream of eIF2α phosphorylation, not by any mechanism previously described for other viral ISR antagonists or ISRIB, but by allowing global translation to proceed seemingly unimpaired even at high intracellular concentrations of p-eIF2α.
AcP10 prevents upstream ORF (uORF)-mediated translation upregulation in stressed cells
While global translation rates decline in stressed cells, the production of a subset of proteins is promoted. Among these proteins is activating transcription factor 4 (ATF4)—a key effector of the ISR. Its synthesis is under the control of a cis-acting messenger RNA (mRNA) regulatory element, which comprises two upstream ORFs (uORF1 and uORF2). The regulatory mechanism is based on cap-dependent translation of uORF1 with resumed scanning of 40S ribosomes and re-initiation at downstream start codons dependent on the rate of ternary complex formation and recruitment. At physiological ternary complex concentrations, re-initiation preferentially occurs at uORF2, preventing ATF4 expression. However, when ternary complex concentrations drop, the ribosomes bypass the uORF2 AUG codon and ATF4 expression is switched on. Predictably, when ternary complex concentrations fall even further, the ATF4 AUG codon is also bypassed causing ATF4 expression to be switched off again24,25,26. To study whether AcP10 affects uORF-mediated translation regulation under conditions of stress, an expression vector was constructed encoding EGFP under control of the ATF4 regulatory element (Fig. 3a). EGFP expression was measured in cells under conditions of increasing stress, and the effect of AcP10 co-expression was assessed with the inactive mutant AcP10(SA−) serving as a negative control. In accordance with our observations for global protein synthesis, translation from a control reporter construct lacking the ATF4 regulatory element was salvaged by wild-type AcP10 even under conditions of extreme stress, but was inhibited in stressed cells expressing AcP10(SA−) (Fig. 3b,c). Conversely, EGFP expression under control of the ATF4 regulatory element was upregulated in AcP10(SA−)-producing cells, albeit only when exposed to moderate stress (25 μM arsenite) (Fig. 3c, right). Importantly, under identical conditions, this upregulation did not occur in AcP10-expressing cells. These data suggest that AcP10 allows formation of ternary complexes to proceed, irrespective of the p-eIF2 concentrations.
eIF2B is a cellular interaction partner of AcP10
To determine how AcP10 renders cells resistant to p-eIF2α and maintains ternary complex concentrations at sufficient levels to allow unperturbed translation, its cellular interaction partners were identified by tandem affinity purification (TAP) mass spectrometry (see Methods for experimental details). Figure 4a shows a STRING (Search Tool for the Retrieval of Interacting Genes/Proteins) analysis of all proteins that were two- to fivefold, five- to tenfold or greater than tenfold enriched in peptide spectral matches (PSMs) in the AcP10 sample compared with each of the controls, using a threshold of at least 25 PSMs detected. SAINT probability scores27 and fold enrichment in spectral counts as calculated relative to the negative control (foot-and-mouth disease virus leader proteinase) are shown in Fig. 4b. Importantly, among the hits with the highest PSM enrichment factors were all three subunits of eIF2 (eIF2α, eIF2β and eIF2γ) and all five subunits of eIF2B (eIF2Bα, eIF2Bβ, eIF2Bγ, eIF2Bδ and eIF2Bε) (see also Supplementary Table 1). Since the eIF2B subunits of humans and beluga whales are 92–96% identical, AcP10 probably has the same interaction, and consequently function, in its natural host.
The interaction of AcP10 with eIF2 and eIF2B was confirmed by western blot analysis using antibodies directed against eIF2Bε (representing the eIF2B complex) and eIF2α (representing the eIF2 complex) (Fig. 4c). Notably, yeast eIF2 was shown to stably interact with eIF2B under the conditions used in these pull-down experiments, but to dissociate from eIF2B under high-salt conditions28. To determine whether AcP10 binds eIF2, eIF2B or the eIF2–eIF2B macrocomplex, the pull-down samples were subjected to high-salt elution to disrupt eIF2–eIF2B interaction28. While most eIF2α ended up in the supernatant fraction (Fig. 4c; lanes marked ‘sup.’), eIF2Bɛ remained AcP10 associated (Fig. 4c; lanes marked ‘beads’). To corroborate the observations and to gain further insight into how AcP10 associates with eIF2B, AcP10 affinity pull-down samples purified from HEK293T cell lysates were subjected to lysine-specific chemical cross-linking and mass spectrometry analysis using described procedures29. Of the 86 cross-linked dipeptides that were identified, most were intra-links within AcP10 or eIF2B. However, six of them involved a linkage of AcP10 to eIF2Bε (n = 2) or eIF2Bδ (n = 4). One additional dipeptide arose from a cross-link between the amino (N)-terminal S-tag of AcP10 and eIF2Bε (Extended Data Fig. 5). Collectively, the data suggest that AcP10 binds directly to eIF2B, and that eIF2 is co-purified in AcP10–eIF2B complexes owing to its association with eIF2B.
eIF2B preferentially binds eIF2 over p-eIF2 in the presence of AcP10
AcP10 renders eIF2B insensitive to p-eIF2 in stressed cells but does not noticeably affect translation in non-stressed cells. The data therefore suggest that AcP10 affects the interaction of eIF2B with p-eIF2, but not with eIF2. The fact that eIF2, through its association with eIF2B, co-purifies with the AcP10–eIF2B complex (Fig. 4c) provided an experimental approach to study the impact of AcP10 on the interaction of eIF2B with eIF2 and p-eIF2. AcP10–eIF2B complexes were isolated from HEK293T cells transiently expressing TAP-tagged AcP10 and stressed by exposure to arsenite concentrations of up to 500 µM. Strikingly, even under conditions of severe stress (Fig. 5a; ‘total lysate’; 500 µM arsenite), AcP10–eIF2B complexes were devoid of detectable p-eIF2 (Fig. 5a; ‘TAP tag’). These data suggest that eIF2 associated with AcP10–eIF2B is in its non-phosphorylated form and that AcP10 precludes the p-eIF2–eIF2B interaction in stressed cells.
For independent confirmation of these observations, we performed the reciprocal experiment entailing a pull-down analysis targeting eIF2B instead of AcP10. HeLa cells stably expressing FLAG-tagged eIF2Bβ30 were transfected to transiently express EGFP-tagged AcP10 or AcP10(SA−) and either left untreated or stressed using 500 µM arsenite. eIF2B complexes and associated proteins were purified by FLAG-tag chromatography, and amounts of co-purified eIF2α, p-eIF2α and AcP10 were assessed (Fig. 5b). In stressed cell cultures expressing AcP10, eIF2B macrocomplexes contained 70% less p-eIF2 than in stressed cell cultures expressing AcP10(SA−). Since this reduction was achieved within a cell population in which 70% of the cells expressed AcP10 (Fig. 5c), this finding suggests that very little, if any, p-eIF2 binds to eIF2B in AcP10-expressing cells. The results strongly support the notion that AcP10, through its association with eIF2B, selectively hampers p-eIF2–eIF2B interaction and thereby promotes continued eIF2B-mediated eIF2–GDP/GTP exchange, ternary complex formation and translation. The data also provide an indication of the AcP10 mechanism. In TAP-tagged purified AcP10–eIF2B complexes, the amounts of associated eIF2B (Fig. 5a, right) consistently declined with increasing intracellular levels of p-eIF2 (Fig. 5a, left). This finding strongly supports a mechanism of competitive binding. Additional support comes from experiments that revealed an association also between AcP10(SA−) and eIF2B in non-stressed cells, but not in stressed cells (Fig. 5b). Apparently, the mutations in AcP10(SA−) reduce its binding affinity for eIF2B rather than prevent binding altogether, explaining why eIF2B was lost during protracted (20 h), multistep TAP-tag purification (Fig. 5a) but not during the relatively rapid (3 h), one-step FLAG-tag isolation procedure. Importantly, eIF2B purified from stressed cells was associated with large quantities of p-eIF2 but no AcP10(SA−). The data suggest that, as a consequence of its reduced affinity, AcP10(SA−) is displaced from eIF2B by p-eIF2 more readily than wild-type AcP10, again consistent with competitive binding. From the combined results, we conclude that AcP10 salvages global translation in stressed cells in the face of ISR activation by acting as a competitive inhibitor of p-eIF2–eIF2B association. This competition may be achieved by overlapping binding sites of AcP10 and p-eIF2 on eIF2B. Alternatively, the AcP10–eIF2B interaction may lock eIF2B in a conformation that does not allow p-eIF2 binding and vice versa.
The L protein of the picornavirus AiV inhibits the ISR via an AcP10-like mechanism
AcP10 inhibits the ISR via a mechanism that to the best of our knowledge has not been described before. This prompted the question of whether other viruses, unrelated to Bw-CoV, might encode stress inhibitors with a similar mechanism. To study this, we focused on L proteins encoded by picornaviruses. Like the coronavirus accessory proteins, picornavirus L proteins are generally dispensable for virus replication in vitro and highly diverse in sequence, structure and function, although often involved in counteracting antiviral responses31. We found that the L protein of the human gastroenteric pathogen AiV, like AcP10, prevents both PKR- and HRI-dependent stress granule formation, but not stress granule formation induced by pateamine A (Fig. 6a). Furthermore, flow cytometry analysis showed that AiVL rescues translation even at high levels of p-eIF2 (Fig. 6b). To identify residues important for AiVL’s ISR antagonist function, we used an alanine scanning approach and determined two cysteines in AiVL (C53 and C56) to be essential for inhibition of stress granule formation (Extended Data Fig. 6a), for the rescue of translation in the presence of p-eIF2α (Extended Data Fig. 6b) and for binding eIF2B (Extended Data Fig. 6c). Importantly, as shown in Extended Data Fig. 6c, AiVLC56A fails to bind eIF2B even when expressed at higher levels than wild-type AiVL. Subunits of eIF2B co-purified from cell lysates with AiVL as bait but not with mutant LC56A, and eIF2B–AiVL complexes were stable under high-salt conditions that disrupt eIF2–eIF2B interaction, strongly suggesting that AiVL binds eIF2B directly (Fig. 6c). Accordingly, AiVL co-purified with eIF2B in reciprocal pull-down assays (Fig. 6d). Importantly, eIF2B complexes purified from cells expressing AiVL, relative to those purified from cells expressing AiVLC65A, contained strongly reduced amounts of p-eIF2, suggesting that AiVL, like AcP10, prevents p-eIF2–eIF2B association (Fig. 6e,f).

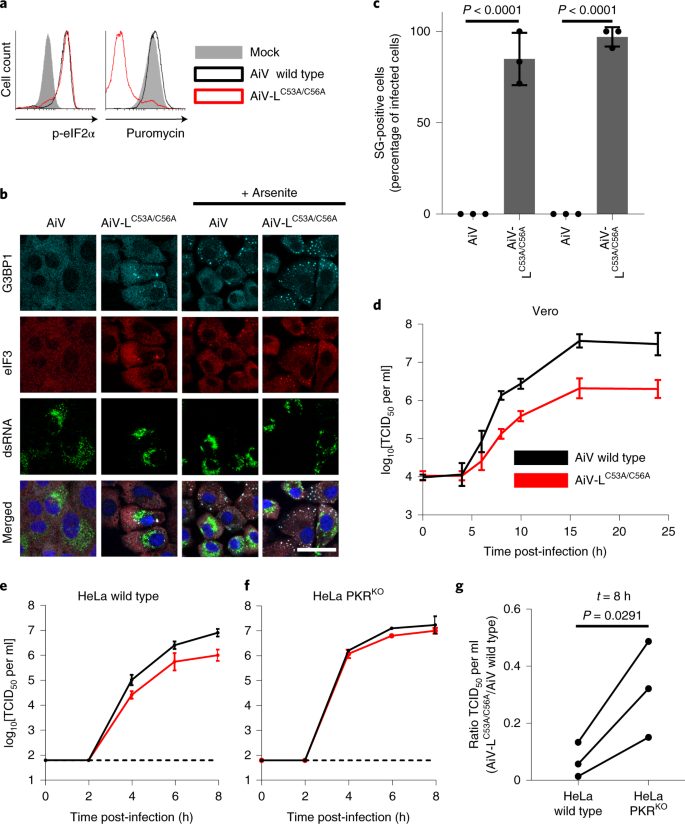

To test the function of AiVL in the context of the natural infection, we generated a recombinant AiV in which the L protein was inactivated by a double C53A/C56A mutation through reverse genetics. Cells infected with wild-type AiV or AiV-LC53A/C56A contained similar quantities of dsRNA and equally high levels of p-eIF2 (Fig. 7a,b). In those infected with AiV-LC53A/C56A, global translation was severely repressed (Fig. 7a) and stress granules were formed (Fig. 7b,c). In contrast, in cells infected with wild-type AiVL, stress granules were not observed at any time during infection and global translation rates remained intact (Fig. 7a–c and Extended Data Fig. 7). To assess the impact of loss of AIVL function on virus propagation, we performed single-step growth curve analyses of wild-type AiV and AiV-LC53A/C56A. Inactivation of AiVL consistently resulted in delayed propagation and tenfold lower titres in Vero E6 cells (Fig. 7d). To determine whether this replication defect of AiV-LC53A/C56A is caused by its inability to counteract the ISR, we transfected HeLa wild-type and HeLa PKRKO cells with in vitro-transcribed viral RNA and assessed the production of infectious virus over time. We resorted to RNA transfections because HeLa cells are not susceptible to AiV. In Hela wild-type cells, AiV-LC53A/C56A displayed a substantial loss of fitness and replicated to titres roughly 15- to 20-fold lower than those of wild-type AiV (Fig. 7e,g). However, in HeLa PKRKO cells, AiV-LC53A/C56A replication was largely rescued (on average only threefold lower titres compared with wild-type AiV; Fig. 7f,g). The findings indicate that the reduced propagation of AiV-LC53A/C56A in wild-type HeLa cells is predominantly caused by PKR-induced ISR activation and that inhibition of the ISR by AiVL is necessary for optimum virus replication. Taken together, our data show that AiVL counteracts the ISR in a manner similar to that of AcP10, not only under conditions of heterologous expression, but also in AiV-infected cells, and that this function is necessary for efficient AiV propagation under natural conditions.
ISR-mediated inhibition of (viral) protein synthesis presents a potent antiviral defence mechanism. Consequently, numerous viruses have evolved strategies to either prevent activation of ISR sensor proteins or to reverse eIF2 phosphorylation. Here, we report the identification of viral ISR antagonists that do not impact the level of p-eIF2, but instead target the ISR at its core: the interplay between p-eIF2 and eIF2B. The coronavirus protein AcP10 and the picornavirus protein AiVL engage in stable interactions with eIF2B and act as competitive inhibitors of p-eIF2 binding, without affecting the association of eIF2B’s substrate eIF2. Consequently, eIF2B GEF activity cannot be inhibited by p-eIF2, ensuring ongoing translation even under stress conditions in which the majority of the cellular eIF2 pool is phosphorylated. Bw-CoV AcP10 and AiVL share no significant sequence identity, there are no indications for structural similarity, and while the origin of AcP10 as uridine kinase is evident, that of AiVL is unknown. Our findings thus suggest that representatives of two distinct orders of positive-strand RNA viruses adopted a similar strategy of suppressing the ISR through convergent evolution. In line with the classification of viral ISR inhibition as presented in the introduction, we refer to these proteins as class 4 ISR antagonists.
AcP10 and AiVL mode of action and implications
The results from reciprocal affinity purification assays and (cross-linking) mass spectrometry provide unambiguous evidence that AcP10 and AiVL associate with eIF2B. It remains to be determined whether they prevent p-eIF2 from binding by directly blocking the p-eIF2 binding site, or indirectly by inducing an eIF2B conformation incompatible with the p-eIF2–eIF2B interaction. Interestingly, recent cryogenic electron microscopy structures for mammalian eIF2–eIF2B and p-eIF2–eIF2B complexes32,33 combined with the results from our cross-linking/mass spectrometry analysis of AcP10–eIF2B suggest that AcP10 roughly localizes to an area of eIF2B close to the eIF2Bα/eIF2Bδ interface that is occupied by p-eIF2α but not eIF2α. Whether AcP10 binds eIF2B as a monomer or homomultimer, and whether AcP10 does so in its UCK fold or in an alternative conformation, remain open questions. Elucidation of the details of the molecular mechanism by which AcP10 and AiVL inhibit the ISR awaits structural analysis of their complexes with eIF2B. This notwithstanding, our findings challenge the view in the field that eIF2 and p-eIF2 bind to eIF2B in essentially identical fashion34,35; if this were the case, we would expect any antagonist disrupting p-eIF2 –eIF2B and p-eIF2–eIF2B, blocking formation of the latter complex exclusively, eIF2 and p-eIF2 must differ in their binding characteristics. These findings not only further our molecular insight into the eIF2–eIF2B interaction but may also be of future clinical relevance. Chronic activation of the ISR has been implicated in a variety of conditions, including developmental defects, prion disease, traumatic brain injury and cancer20,36,37,38. Adverse effects of the ISR can be alleviated by pharmacological modulation, as demonstrated with a small molecule inhibitor, ISRIB, that boosts eIF2B’s basal GEF activity by promoting eIF2B dimerization19,20,39,38,40,41,42,]. Our observations suggest that the p-eIF2–eIF2B association may present another druggable vulnerability of the ISR. Future comparative structural analyses of eIF2B macrocomplexes containing AcP10 or AiVL, eIF2 and/or p-eIF2 may reveal target binding sites on eIF2B amenable to structure-based drug design and thereby facilitate the development of new, and possibly more potent, ISR inhibitors of therapeutic relevance.
AcP10 origin and evolution from UCK to ISR antagonist
Coronaviruses are exceptional among RNA viruses with respect to genetic complexity and genome plasticity, probably owing to their propensity for frequent heterologous RNA recombination. During coronavirus radiation and diversification, a basic set of genes for the replication machinery and structural proteins was complemented by a specific set of accessory genes, which are unique to specific virus (sub)groups and reflect their different evolutionary trajectories. These accessory genes, encoding proteins that increase viral fitness in a variety of ways, often are of unknown origin without cellular or viral counterpart, and in many cases may well have evolved de novo. AcP10 is one of the few coronavirus accessory proteins for which an origin may be inferred. AcP10 shares ~30% sequence identity with cellular UCKs—an ancient protein family widely distributed in Bacteria and Eukarya43—and hence its gene is clearly of cellular origin, either acquired directly from a host or through an unknown viral intermediate. The donor of the gene is not immediately evident as AcP10 is distinct from all cellular UCKs described so far, as well as from those found in giant viruses, and the phylogenetic signal has been blurred, probably due to extensive genetic drift. Importantly, however, AcP10’s function as an UCK is conserved, indicating that the UCK function has been advantageous to the virus over the course of evolution. The acquisition of this gene probably provided the virus with an opportunity to explore sequence space, since any adaptation that does not interfere with its primary UCK function is allowed. This may ultimately have yielded a second, UCK-independent function for AcP10 as an extraordinarily potent antagonist of the ISR.
HeLa R19, BHK-21, Vero E6 and HEK293T cells were cultured in Dulbecco’s modified Eagle’s medium supplemented with 10% (vol/vol) foetal calf serum at 37 °C. BHK-21 cells, HEK293T cells and Vero E6 cells, obtained from the American Type Culture Collection (ATCC) (that is, ATCC CCL-10, ATCC CRL-3216 and ATCC CRL-1586, respectively) were validated by ATCC through short tandem-repeat profiling. HeLa R19 cells were obtained from G. Belov (University of Maryland and Virginia–Maryland Regional College of Veterinary Medicine)44,45. HeLa R19-eIF2Bβ-3×FLAG cells were kindly provided by the laboratory of D. Ron, having previously been created by inserting a triple FLAG sequence at the N terminus of the eIF2Bβ gene by CRISPR–Cas9 gene editing30. HeLa R19 PKRKO were created by inactivating the PKR gene using CRISPR–Cas9. Knockout was confirmed using western blotting and PCR amplification of the genomic region of interest9. All cell lines were tested and found negative for Mycoplasma contamination.
Recombinant proteins for uridine kinase assays were expressed in HEK293T cells using pCAGGS plasmids (Addgene; plasmid 41583) in which the original coding sequence was replaced with ORFs that encode the indicated Strep-tagged proteins under the control of a chicken β-actin promoter. For mammalian overexpression of EGFP fusion proteins in Immunofluorescence assay (IFA) and flow cytometry experiments, we used pEGFP-N constructs (ClonTech; plasmid U55762.1).
The ATF4 reporter construct (pcDNA3-ATF4-RE-EGFP-Strep2) was created in the context of a pcDNA3.1 vector (Addgene; plasmid V790-20) and induces expression of an mRNA that contains the ATF4 upstream ORFs, as well as an ORF encoding a Strep-tagged EGFP protein. The mRNA encoded by the ATF4 reporter construct and the mRNA encoded by the negative control (pcDNA3-EGFP-Strep2) reporter construct are schematically shown in Fig. 3a.
For overexpression of TAP-tagged proteins in co-immunoprecipitation experiments, we used pcDNA3.1 constructs encoding the indicated proteins with an N-terminal multi-component TAP tag (S-tag, 3C protease cleavage site, Strep2-tag and FLAG-tag). The EMCV infectious clone pM16.1 (ref. 17) and AiV infectious clone pAV46 were described previously. A full list of the plasmids used in this study is given in Supplementary Table 2.
EMCV-Lzn was described previously17. The gene encoding AcP10 or AcP10(SA−) with a carboxy-terminal VFETQ|G cleavage site was inserted at the 5′ end of the viral polyprotein coding sequence in the pM16.1 infectious clone (resulting in pM16.1-AcP10-Lzn-VFETQG and pM16.1-AcP10H193A/H200A-Lzn-VFETQG, respectively)17. AiV was obtained from the pAV infectious clone46, and mutant AiV was obtained from pAV in which double the mutation C53A/C56A in L was introduced by site-directed mutagenesis (pAV-LC53A/C56A). To create infectious virus, pM16.1 and pAV plasmids were linearized by BamHI or HindIII restriction, respectively, and infectious RNA was synthesized by in vitro transcription from a T7 promoter using the RiboMAX in vitro transcription system (Promega). The RNA was purified using the NucleoSpin RNA mini kit (Macherey-Nagel) according to the manufacturer’s protocol, and a total of 1 µg RNA was subsequently transfected in a subconfluent T225 flask of BHK-21 cells (EMCV) or Vero cells (AiV) using Lipofectamine 2000 (Invitrogen) transfection reagent according to the manufacturer’s protocol. After 2–4 d, when complete cytopathic effect was observed, virus stocks were freeze-thawed three times and cell debris spun down. Virus in the supernatants was purified and concentrated by ultracentrifugation (100,000g) for 16 h on a 30% sucrose cushion, and virus pellets were resuspended in phosphate-buffered saline (PBS). The integrity of the ORF10 gene in EMCV-Lzn-AcP10 and EMCV-Lzn-AcP10(SA−), and the AiVL gene in AiV and AiVC53/56A, was confirmed by isolation of the viral RNA using the NucleoSpin RNA virus mini kit (Macherey-Nagel) according to the manufacturer’s protocol. Subsequently, complementary DNA was synthesized using the SuperScript III first-strand synthesis system (Invitrogen) according to the manufacturer’s protocol, and the region of interest was PCR amplified and Sanger sequenced.
Uridine kinase assay
Purified protein samples were prepared by transient transfection of pCAGGS-Strep constructs encoding the relevant proteins in HEK293T cells. After overnight expression, cells were lysed in lysis buffer (40 mM Tris-HCl (pH 7.4), 50 mM NaCl, 10 mM EDTA, 1% NP-40 and cOmplete Mini Protease Inhibitor Cocktail (Roche)) and cell debris were removed by centrifugation. Subsequently, soluble Strep-tagged proteins were bound to Strep-Tactin beads (IBA) for 2 h at 4 °C. Samples were washed three times in wash buffer (40 mM Tris-HCl (pH 7.4), 50 mM NaCl and 1 mM EDTA) and the protein was eluted in wash buffer containing 10 mM desthiobiotin. Protein concentrations were measured on a NanoDrop 1000 spectrophotometer (Thermo Fisher Scientific). Reaction mixtures were set up using 100 ng of the indicated purified Strep-tagged protein, 2 µg uridine, 4 µg ATP, 1 mM dithiothreitol (DTT) and 0.1 µg bovine serum albumin (BSA) in 1× NEBuffer 2 (New England Biolabs) in a total volume of 10 µl. After 1 h incubation at 37 °C, a total of 1.5 µl was applied stepwise (6 × 0.25 µl) on a PEI Cellulose F plate (Merck Millipore). The plate was dried after each application. The base of the plate was then put in the mobile phase solution (distilled water + 500 mM NaCl + 1 mM LiCl) until the liquid front almost reached the top of the plate. The presence of U, UMP, ATP and ADP was visualized under a short-wavelength (254 nm) ultraviolet lamp.
HeLa cells were seeded on glass cover slips in a 24-well cluster at subconfluent densities. The cells were transfected overnight with 500 ng of the indicated plasmids using FuGENE 6 reagent (Roche) according to the manufacturer’s protocol. The next day, cells were left untreated, treated with 500 µM arsenite (Riedel-de Haën) or treated with 100 nM pateamine A for 30 min and subsequently fixed in PBS + 4% paraformaldehyde (PFA). Alternatively, cells were infected with the indicated recombinant EMCV (multiplicity of infection (MOI) = 2) for 5 h or AiV (MOI = 1) for 8 h and fixed in PBS + 4% PFA. Samples were permeabilized by incubation in PBS + 0.1% Triton X-100 for 5 min and blocked in block buffer (PBS + 2% BSA + 50 mM NH4Cl) for 1 h. The cells were incubated in block buffer containing mouse anti-hG3BP1 (1:200; BD Biosciences), rabbit anti-hG3BP1 (1:200; Aviva), goat anti-eIF3η (1:200; SantaCruz), rabbit anti-G3BP2 (1:200; Bethyl) and/or mouse anti-dsRNA (1:1,000; English & Scientific Consulting) for 45 min. After three wash steps in block buffer, cells were incubated with secondary antibody donkey anti-Mouse cy5 (The Jackson Laboratory), donkey anti-Rabbit Alexa 647 (Life Technologies), donkey anti-Goat Alexa 568 (Life Technologies) and/or donkey anti-Mouse Alexa 488 (Life Technologies) at a concentration of 1:200 in block buffer. Cells were washed once in block buffer and once in distilled water. Cover glasses were then mounted on slides in FluorSave Reagent (Calbiochem) and visualized by confocal microscopy using a Leica SPE-II (Leica Microsystems).
Flow cytometry assay
HeLa cells were seeded on glass cover slips in a 24-well cluster at subconfluent densities. The next day, cell layers were transfected with 500 ng of the indicated plasmids using FuGENE 6 reagent (Roche) according to the manufacturer’s protocol. After overnight incubation, cells were treated with 500 µM arsenite or left untreated. Alternatively, cells were infected with the indicated recombinant EMCV (MOI = 5) for 5 h, or recombinant AiV (MOI = 5) for 8 h. Puromycin labelling of active translation was done by exposing cells to 20 µg ml−1 puromycin during the final 15 min of the assay. Cells were then released by trypsin treatment and fixed in 4% PFA in PBS for 30 min, and subsequently permeabilized in ice-cold MeOH for 10 min. The samples were washed twice in FACS buffer (PBS + 1% BSA) and subsequently incubated with the primary antibodies mouse anti-Puromycin (Merck Millipore) and rabbit anti-p-eIF2α (Abcam) at 1:100 dilution in FACS buffer for 45 min. Samples were washed twice in FACS buffer and subsequently incubated in the secondary antibodies donkey anti-Mouse Cy5 (The Jackson Laboratory) and goat anti-Rabbit Alexa 594 (Invitrogen) at 1:200 dilution in FACS buffer for 45 min. Samples were washed once in FACS buffer and kept in FACS buffer + 2% PFA at 4 °C until analysis with a FACSCanto II (BD Biosciences). The gating strategy used in the flow cytometry analyses is briefly explained in Extended Data Fig. 8.
Western blot analysis
Cells were lysed in ice-cold lysis buffer (40 mM Tris-HCl (pH 7.4), 150 mM NaCl, 10 mM EDTA, 1% NP-40, phosphatase inhibitor cocktail 2 (Sigma–Aldrich), phosphatase inhibitor cocktail 3 (Sigma–Aldrich) and cOmplete Mini Protease Inhibitor Cocktail (Roche)) for 30 min. Cell debris were pelleted and the protein concentration in the supernatant was determined using the Pierce BCA assay (Thermo Fisher Scientific) according to the manufacturer’s protocol. For each sample, 35 μg protein in 1× Laemmli sample buffer (LSB) was separated on 12.5% sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) gels and transferred to nitrocellulose membranes by wet transfer. Membranes were probed with the indicated primary antibodies, mouse anti-Puromycin (Merck Millipore), rabbit anti-p-eIF2α (Abcam), rabbit anti-eIF2α (Cell Signaling), rabbit anti-EGFP47, mouse anti-Tubulin (Sigma–Aldrich), mouse anti-FLAG (Sigma–Aldrich), rabbit anti-eIF2Bε (Abcam) or rabbit anti-eIF2Bα (Proteintech), all used at 1:1,000 dilution. After three wash steps, membranes were incubated in secondary antibodies goat anti-Mouse IRDye 680 (LI-COR; 1:15,000) or goat anti-Rabbit IRDye 800 (LI-COR; 1:15,000). Fluorescence images were captured using the Odyssey imager (LI-COR). Unless otherwise indicated, all western blots shown within the same figure panels were performed in parallel and analysed using the same settings.
35S radiolabelling assay
HeLa PKRKO cells were seeded in six-well clusters to subconfluent densities. The next day, cells were co-transfected with 1.5 µg pEGFP-N1 plasmid encoding AcP10-EGFP or AcP10(SA−)-EGFP together with 0.5 µg of the indicated pcDNA3 reporter construct using FuGENE 6 transfection reagent. After overnight incubation, the medium was replaced with medium without methionine and cysteine for 30 min. Subsequently, arsenite was added to the medium at the indicated final concentrations for another 30 min. Then, 35S Met/Cys (Perkin Elmer) was added to the medium at a final concentration of 10 µCi ml−1 for 90 min. The supernatant was removed, and cells were washed three times in PBS and then lysed in lysis buffer (20 mM Tris-HCl (pH 7.4), 100 mM NaCl, 1 mM EDTA, 1% Triton X-100 and cOmplete Mini Protease Inhibitor Cocktail (Roche)). Cell debris were spun down, and supernatants were transferred to new tubes. A total of 10 µl of Strep-Tactin beads (IBA) were added to each sample and incubated rotating overnight at 4 °C. The next day, beads were washed three times in RIPA buffer (10 mM Tris-HCl (pH 7.4), 150 mM NaCl, 0.1% sodium dodecyl sulfate, 1% sodium deoxycholate and 1% NP-40) and resuspended in 1× LSB. Subsequently, samples were separated by SDS-PAGE, and gels were vacuum-dried on Whatman paper at 80 °C. Gels were subsequently analysed on a phosphorimager (FUJI). Background subtraction and signal intensity analysis were done using ImageJ software.
Immunoprecipitation of TAP-tagged AcP10
HEK293T cells were transiently transfected with pcDNA3 plasmids encoding the indicated TAP-tagged (S-tag, 3C protease cleavage site, StrepII-tag and FLAG-tag, fused to the protein N terminus) proteins under the control of a cytomegalovirus promoter using polyethylenimine (PEI) transfection. Briefly, for each 14.5 cm dish, 15 µg DNA was mixed with 1.5 ml Opti-MEM. Subsequently, 100 µl of a 1 mg ml−1 PEI solution was added, mixed thoroughly and incubated for 30 min at room temperature before adding to the cells. For each sample, 2 × 107 cells were lysed in lysis buffer (40 mM Tris-HCl (pH 7.4), 50 mM NaCl, 10 mM EDTA, 1% NP-40, cOmplete Mini Protease Inhibitor Cocktail (Roche), phosphatase inhibitor cocktail 2 (Sigma–Aldrich) and phosphatase inhibitor cocktail 3 (Sigma–Aldrich)) for 15 min on ice. After spinning down cell debris, supernatants were incubated with 20 µl S-protein beads (Novagen) for 2 h at 4 °C. S-protein beads were washed three times in wash buffer (40 mM Tris-HCl (pH 7.4), 50 mM NaCl and 1 mM EDTA) and once in 3Cpro cleavage buffer (Thermo Fisher Scientific) and subsequently resuspended in 200 µl 3C cleavage buffer. Protein was released from beads by adding 3Cpro overnight at 4 °C, according to the HRV 3C Protease Solution Kit manufacturer’s protocol (Thermo Fisher Scientific). The next day, the beads were spun down and the supernatant was transferred to a new tube. In total, 10 µl of Strep-Tactin beads (IBA) were added to each sample and incubated for 1 h at 4 °C. Beads were washed three times in wash buffer and then resuspended in 1× LSB. Samples were run on SDS-PAGE gels and used for western blotting or mass spectrometry analysis.
Immunoprecipitation of FLAG-tagged eIF2Bβ
HeLa cells stably expressing FLAG-tagged eIF2Bβ30 were seeded at 2.5 × 106 cells per dish (surface area = 180 cm2), with four dishes per sample. The next day, cells were transfected with 15 µg of the indicated plasmids using Lipofectamine 2000 (Invitrogen) reagent according to the manufacturer’s instructions. After 2 d, ~4 × 107 cells per sample were harvested and lysed in 500 µl lysis buffer (50 mM Tris-HCl (pH 7.4), 150 mM NaCl, 1 mM EDTA, 1 mM DTT, 10% glycerol, 1% Triton X-100, cOmplete Mini Protease Inhibitor Cocktail (Roche), phosphatase inhibitor cocktail 2 (Sigma–Aldrich) and phosphatase inhibitor cocktail 3 (Sigma–Aldrich)). After spinning down the cell debris, supernatants were incubated for 2 h with 20 µl anti-FLAG beads (Sigma–Aldrich), rotating at 4 °C. The beads were washed four times with wash buffer (50 mM Tris-HCl (pH 7.4), 150 mM NaCl, 1 mM EDTA, 1 mM DTT, 10% glycerol and 1% Triton X-100), then resuspended in 1× LSB. Samples were run on SDS-PAGE gels and subsequently used for western blotting.
Affinity purification mass spectrometry
Protein samples prepared as described above were separated by SDS-PAGE and stained with Coomassie colloidal blue (Bio-Rad). Four bands were sliced out from each gel lane, which were then reduced, alkylated and digested as previously described48. Digests were subjected to nano-scale liquid chromatographic tandem mass spectrometry analysis using an Agilent 1290 Infinity ultra-high-performance liquid chromatography system (Agilent) coupled to an Orbitrap Q Exactive Plus mass spectrometer (Thermo Fisher Scientific). Dried peptides were reconstituted in 10% formic acid and delivered to a trap column (Dr. Maisch Reprosil C18; 3 μm; 2 cm × 100 μm) at 5 µl min−1 with solvent A (0.1% formic acid in water). Next, peptides were chromatographically separated onto an analytical column (Agilent Poroshell EC-C18; 2.7 μm; 50 cm × 75 μm) at 300 nl min−1, as previously described49. The gradient was as follows: 13–40% solvent B (0.1% formic acid in 80% acetonitrile) over 65 min, to 100% solvent B over 3 min, then 1 min of 100% solvent B and finally equilibration of the chromatographic columns with 100% solvent A for the following 10 min before injection of the next sample. The total analysis time was 90 min. The eluent was sprayed via distal-coated emitter tips butt-connected to the analytical column. The mass spectrometer was operated in data-dependent mode, automatically switching between mass spectrometry and tandem mass spectrometry. Full-scan mass spectrometry spectra (from m/z 375 to 1,600) were acquired in the Orbitrap with a resolution of 35,000 at m/z 400. The ten most intense ions within the survey scan were selected for high-energy collision dissociation fragmentation with the normalized collision energy set to 25%. The tandem mass spectrometry automatic gain control target value was set to 5 × 104 with a maximum ion injection time of 120 ms. Dynamic exclusion was set to 12 s. Each raw data file recorded by the mass spectrometer was processed and quantified with Proteome Discoverer (version 2.1; Thermo Fisher Scientific) and searched against a Swiss-Prot human database (version 2016 03; 20,199 sequences) supplemented with the Bw-CoV SW1 AcP10 sequence (UniProt ID: B2BW43) using Mascot software (version 2.5.1; Matrix Science). Trypsin/P was chosen as the protease, cysteine carbamidomethylation was selected as the fixed modification, and oxidation of methionine was selected as the variable modification. Precursor and fragment mass tolerance were set to 20 ppm and 0.05 Da, respectively. All PSMs were validated with a 1% false discovery rate using Percolator50. Only PSMs with a minimum length of six amino acids were kept. Proteins were further filtered for contaminants and highly abundant proteins (such as keratins, tubulins and ribosomal proteins), the number of unique peptides (>0) and the number of peptides (>1). Subsequently, the list of identified proteins was subjected to CRAPome analysis51 using default settings. To discriminate bona fide protein interactors of AcP10 from the background, we set a SAINT score threshold of 0.9, and an FC-B score threshold (spectral count fold change between the bait and Lpro control) of 2.
The mass spectrometry proteomics data have been deposited in the ProteomeXchange Consortium via the PRIDE partner repository52 with the dataset identifier PXD011879.
Cross-linking liquid chromatography/mass spectrometry (LC/MS) and data analysis
A total of 5 × 108 HEK293T cells in 40 14.5 cm dishes were transiently transfected with pcDNA3 plasmids encoding TAP-tagged AcP10 using PEI transfection. Briefly, for each dish, 15 µg DNA was mixed with 1.5 ml Opti-MEM. Subsequently, 100 µl of a 1 mg ml−1 PEI solution was added, mixed thoroughly and incubated for 30 min at room temperature before adding to the cells. The next day, the cells were lysed in lysis buffer (40 mM Tris-HCl (pH 7.4), 50 mM NaCl, 10 mM EDTA, 1% NP-40 and cOmplete Mini Protease Inhibitor Cocktail (Roche)) for 15 min on ice. After spinning down the cell debris, the supernatants were incubated with 50 µl Strep-Tactin beads (IBA) for 2 h at 4 °C. The beads were washed four times in wash buffer (40 mM Tris-HCl (pH 7.4), 50 mM NaCl and 1 mM EDTA) and once in PBS. The isolated proteins were then cross-linked on beads using 1 mM disuccinimidyl sulfoxide cross-linker in cross-linking buffer (20 mM HEPES (pH 7.8) and 150 mM NaCl) for 30 min. The cross-linking reaction was quenched with 20 mM Tris-HCl (pH 7.8) for 30 min at room temperature. For on-bead digestion, cross-linked proteins were denatured with 2 mM urea, reduced with 4 mM DTT at 56 °C for 30 min and alkylated with 8 mM iodoacetamide at room temperature for 30 min in the dark. Proteins were digested using trypsin at an enzyme-to-protein ratio of 1:20 (wt/wt) at 37 °C for 2 h. The supernatant was removed from the beads and further digested at 37 °C overnight. Protein digests were desalted using Sep-Pak C18 cartridges (Waters) and dried under vacuum concentrator. The digests were fractionated by strong cation exchange chromatography and five late strong cation exchange fractions were collected for further LC/MS analysis. Protein digests including cross-linked peptides were analysed using an ultra HPLC Agilent 1200 system (Agilent Technologies) coupled online to an Orbitrap Fusion mass spectrometer (Thermo Fisher Scientific). Liquid chromatography/tandem mass spectrometry analysis was performed as previously described using the CID–MS2–MS3–ETD–MS2 acquisition strategy29. Cross-link identification was performed using standalone XlinkX software29. The results were filtered by the 1% false discovery rate and all reported cross-links were manually validated.
Single-step virus replication analysis
Subconfluent layers of Vero cells were infected (MOI = 2) with the AiV wild type or AiV-LC53A/C56A. Alternatively, 500 ng of in vitro-synthesized viral RNA was transfected into subconfluent layers of HeLa or HeLa PKRKO cells in a 12-well cluster using Lipofectamine 2000 (Invitrogen) according to the manufacturer’s instructions. After 1 h, virus or transfection mixtures were washed away twice with PBS and new medium was added. At the indicated time points, cells were freeze-thawed three times to lyse cells and release intracellular virus. The resulting samples were titrated on Vero cells using an end-point dilution assay.
Homology modelling of AcP10 from human UCK1
Models of AcP10 were obtained via homology modelling using as a template a crystal structure of a homologue, human UCK1 (Protein Data Bank ID: 2UVQ). They share about 30% identity and 50% similarity. We performed the modelling with Modeller 9.12 (ref. 53) and its standard loop modelling protocol54. The sequence alignment used comes from NEEDLE55 used with its default parameters. In total, 25 models were generated from which the best model after ranking by DOPE score56 was kept.
Phylogenetic analysis of uridine kinases
A list of uridine kinases was obtained with the NCBI BLAST tool using the AcP10 sequence as the query, with subsequent selection of sequences with at least 95% coverage. To obtain a list of representative sequences from all of the relevant phylogenetic groups, the resulting sequence list was manually supplemented with sequences from Animalia, Archaea, Bacteria and Mimiviridae. The total sequence list was aligned using the Multiple Sequence Comparison by Log-Expectation (MUSCLE) method. Subsequently, a phylogenetic tree was created in MEGA X software57 with the neighbour-joining method, using the number-of-differences substitutions model and a site coverage cut-off of 99%. The final dataset included 173 positions from 300 amino acid sequences.
Statistics and reproducibility
All uridine kinase, immunofluorescence, flow cytometry, end-point dilution and western blot data shown in the figures originate from representative experiments of at least three biologically independent replicates. Quantifications of immunofluorescence images were done using at least three images originating from three biologically independent experiments containing more than ten cells each. The 35S radiolabelling data were based on two biologically independent experiments. The TAP mass spectrometry and cross-linking LC/MS were single experiments.
Further information on research design is available in the Nature Research Reporting Summary linked to this article.
There are no restrictions on data availability. All relevant data are shown in the figures or are available in the extended data files, source data files or Supplementary Tables 1 and 2. The data that support the findings of this study are available from the corresponding author upon request. The AcP10 TAP mass spectrometry data have been deposited in the ProteomeXchange Consortium via the PRIDE partner repository with the dataset identifier PXD011879. Source data are provided with this paper.
Pakos‐Zebrucka, K. et al. The integrated stress response. EMBO Rep. 17, 1374–1395 (2016).
Levin, D. & London, I. M. Regulation of protein synthesis: activation by double-stranded RNA of a protein kinase that phosphorylates eukaryotic initiation factor 2. Proc. Natl Acad. Sci. USA 75, 1121–1125 (1978).
Panniers, R. & Henshaw, E. C. A GDP/GTP exchange factor essential for eukaryotic initiation factor 2 cycling in Ehrlich ascites tumor cells and its regulation by eukaryotic initiation factor 2 phosphorylation. J. Biol. Chem. 258, 7928–7934 (1983).
Rowlands, A. G., Panniers, R. & Henshaw, E. C. The catalytic mechanism of guanine nucleotide exchange factor action and competitive inhibition by phosphorylated eukaryotic initiation factor 2. J. Biol. Chem. 263, 5526–5533 (1988).
Kulak, N. A., Pichler, G., Paron, I., Nagaraj, N. & Mann, M. Minimal, encapsulated proteomic-sample processing applied to copy-number estimation in eukaryotic cells. Nat. Methods 11, 319–324 (2014).
Singh, C. R. et al. Change in nutritional status modulates the abundance of critical pre-initiation intermediate complexes during translation initiation in vivo. J. Mol. Biol. 370, 315–330 (2007).
Leroux, A. & London, I. Regulation of protein synthesis by phosphorylation of eukaryotic initiation factor 2 alpha in intact reticulocytes and reticulocyte lysates. Proc. Natl Acad. Sci. USA 79, 2147–2151 (1982).
Lu, Y., Wambach, M., Katze, M. G. & Krug, R. M. Binding of the influenza virus NS1 protein to double-stranded RNA inhibits the activation of the protein kinase that phosphorylates the eIF-2 translation initiation factor. Virology 214, 222–228 (1995).
Rabouw, H. H. et al. Middle East respiratory coronavirus accessory protein 4a inhibits PKR-mediated antiviral stress responses. PLoS Pathog. 12, e1005982 (2016).
Dar, A. C. & Sicheri, F. X-ray crystal structure and functional analysis of vaccinia virus K3L reveals molecular determinants for PKR subversion and substrate recognition. Mol. Cell 10, 295–305 (2002).
Kawagishi-Kobayashi, M., Silverman, J. B., Ung, T. L. & Dever, T. E. Regulation of the protein kinase PKR by the vaccinia virus pseudosubstrate inhibitor K3L is dependent on residues conserved between the K3L protein and the PKR substrate eIF2alpha. Mol. Cell. Biol. 17, 4146–4158 (1997).
Cruz, J. L. G. et al. Coronavirus gene 7 counteracts host defenses and modulates virus virulence. PLoS Pathog. 7, e1002090 (2011).
Li, Y. et al. ICP34.5 protein of herpes simplex virus facilitates the initiation of protein translation by bridging eukaryotic initiation factor 2α (eIF2α) and protein phosphatase 1. J. Biol. Chem. 286, 24785–24792 (2011).
Mihindukulasuriya, K. A., Wu, G., St. Leger, J., Nordhausen, R. W. & Wang, D. Identification of a novel coronavirus from a beluga whale by using a panviral microarray. J. Virol. 82, 5084–5088 (2008).
Nejepinska, J., Malik, R., Moravec, M. & Svoboda, P. Deep sequencing reveals complex spurious transcription from transiently transfected plasmids. PLoS ONE 7, e43283 (2012).
Nejepinska, J., Malik, R., Wagner, S. & Svoboda, P. Reporters transiently transfected into mammalian cells are highly sensitive to translational repression induced by dsRNA expression. PLoS ONE 9, e87517 (2014).
Hato, S. V. et al. The mengovirus leader protein blocks interferon-α/β gene transcription and inhibits activation of interferon regulatory factor 3. Cell. Microbiol. 9, 2921–2930 (2007).
Visser, L. J. et al. FMDV leader protease cleaves G3BP1 and G3BP2 and inhibits stress granule formation. J. Virol. 93, e00922-18 (2018).
Sidrauski, C. et al. Pharmacological dimerization and activation of the exchange factor eIF2B antagonizes the integrated stress response. eLife 4, e07314 (2015).
Sidrauski, C. et al. Pharmacological brake-release of mRNA translation enhances cognitive memory. eLife 2, e00498 (2013).
Zyryanova, A. F. et al. Binding of ISRIB reveals a regulatory site in the nucleotide exchange factor eIF2B. Science 359, 1533–1536 (2018).
Tsai, J. C. et al. Structure of the nucleotide exchange factor eIF2B reveals mechanism of memory-enhancing molecule. Science 359, eaaq0939 (2018).
Rabouw, H. H. et al. The small molecule ISRIB suppresses the integrated stress response within a defined window of activation. Proc. Natl Acad. Sci. USA 116, 2097–2102 (2019).
Harding, H. P. et al. Regulated translation initiation controls stress-induced gene expression in mammalian cells. Mol. Cell 6, 1099–1108 (2000).
Lu, P. D., Harding, H. P. & Ron, D. Translation reinitiation at alternative open reading frames regulates gene expression in an integrated stress response. J. Cell Biol. 167, 27–33 (2004).
Vattem, K. M. & Wek, R. C. Reinitiation involving upstream ORFs regulates ATF4 mRNA translation in mammalian cells. Proc. Natl Acad. Sci. USA 101, 11269–11274 (2004).
Choi, H. et al. Analyzing protein–protein interactions from affinity purification–mass spectrometry data with SAINT.Curr. Protoc. Bioinformatics 8, 8.15 (2012).
Mohammad-Qureshi, S. S. et al. Purification of FLAG-tagged eukaryotic initiation factor 2B complexes, subcomplexes, and fragments from Saccharomyces cerevisiae. Methods Enzymol. 431, 1–13 (2007).
Liu, F., Lössl, P., Scheltema, R., Viner, R. & Heck, A. J. R. Optimized fragmentation schemes and data analysis strategies for proteome-wide cross-link identification. Nat. Commun. 8, 15473 (2017).
Sekine, Y. et al. Mutations in a translation initiation factor identify the target of a memory-enhancing compound. Science 348, 1027–1030 (2015).
Agol, V. I. & Gmyl, A. P. Viral security proteins: counteracting host defences. Nat. Rev. Microbiol. 8, 867–878 (2010).
Kashiwagi, K. et al. Structural basis for eIF2B inhibition in integrated stress response. Science 364, 495–499 (2019).
Kenner, L. R. et al. eIF2B-catalyzed nucleotide exchange and phosphoregulation by the integrated stress response. Science 364, 491–495 (2019).
Bogorad, A. M., Lin, K. Y. & Marintchev, A. Novel mechanisms of eIF2B action and regulation by eIF2α phosphorylation. Nucleic Acids Res. 45, 11962–11979 (2017).
Kashiwagi, K. et al. Crystal structure of eukaryotic translation initiation factor 2B. Nature 531, 122–125 (2016).
Halliday, M. & Mallucci, G. R. Review: modulating the unfolded protein response to prevent neurodegeneration and enhance memory. Neuropathol. Appl. Neurobiol. 41, 414–427 (2015).
Moreno, J. A. et al. Sustained translational repression by eIF2α-P mediates prion neurodegeneration. Nature 485, 507–511 (2012).
Wang, C. et al. Inhibiting the integrated stress response pathway prevents aberrant chondrocyte differentiation thereby alleviating chondrodysplasia. eLife 7, e37673 (2018).
Nguyen, H. G. et al. Development of a stress response therapy targeting aggressive prostate cancer. Sci. Transl. Med. 10, eaar2036 (2018).
Halliday, M. et al. Partial restoration of protein synthesis rates by the small molecule ISRIB prevents neurodegeneration without pancreatic toxicity. Cell Death Dis. 6, e1672 (2015).
Wong, Y. L. et al. The small molecule ISRIB rescues the stability and activity of vanishing white matter disease eIF2B mutant complexes. eLife 7, e32733 (2018).
Chou, A. et al. Inhibition of the integrated stress response reverses cognitive deficits after traumatic brain injury. Proc. Natl Acad. Sci. USA 114, E6420–E6426 (2017).
Armenta-Medina, D., Segovia, L. & Perez-Rueda, E. Comparative genomics of nucleotide metabolism: a tour to the past of the three cellular domains of life. BMC Genomics 15, 800 (2014).
Belov, G. A., Fogg, M. H. & Ehrenfeld, E. Poliovirus proteins induce membrane association of GTPase ADP-ribosylation factor. J. Virol. 79, 7207–7216 (2005).
Dorobantu, C. M. et al. Recruitment of PI4KIII to coxsackievirus B3 replication organelles is independent of ACBD3, GBF1, and Arf1. J. Virol. 88, 2725–2736 (2014).
Greninger, A. L., Knudsen, G. M., Betegon, M., Burlingame, A. L. & DeRisi, J. L. The 3A protein from multiple picornaviruses utilizes the golgi adaptor protein ACBD3 to recruit PI4KIII. J. Virol. 86, 3605–3616 (2012).
De Jong, A. S. et al. Determinants for membrane association and permeabilization of the coxsackievirus 2B protein and the identification of the Golgi complex as the target organelle. J. Biol. Chem. 278, 1012–1021 (2003).
Shevchenko, A., Wilm, M., Vorm, O. & Mann, M. Mass spectrometric sequencing of proteins from silver-stained polyacrylamide gels. Anal. Chem. 86, 650–658 (1996).
Cristobal, A. et al. In-house construction of a UHPLC system enabling the identification of over 4000 protein groups in a single analysis. Analyst 137, 3541–3548 (2012).
Käll, L., Canterbury, J. D., Weston, J., Noble, W. S. & MacCoss, M. J. Semi-supervised learning for peptide identification from shotgun proteomics datasets. Nat. Methods 4, 923–925 (2007).
Mellacheruvu, D. et al. The CRAPome: a contaminant repository for affinity purification-mass spectrometry data. Nat. Methods 10, 730–736 (2013).
Vizcaíno, J. A. et al. The Proteomics Identifications (PRIDE) database and associated tools: status in 2013. Nucleic Acids Res. 41, D1063–D1069 (2013).
Šali, A. & Blundell, T. L. Comparative protein modelling by satisfaction of spatial restraints. J. Mol. Biol. 234, 779–815 (1993).
Fiser, A., Do, R. K. G. & Šali, A. Modeling of loops in protein structures. Protein Sci. 9, 1753–1773 (2000).
McWilliam, H. et al. Analysis Tool Web Services from the EMBL-EBI. Nucleic Acids Res. 41, W597–W600 (2013).
Shen, M. & Sali, A. Statistical potential for assessment and prediction of protein structures. Protein Sci. 15, 2507–2524 (2006).
Kumar, S., Stecher, G., Li, M., Knyaz, C. & Tamura, K. MEGA X: molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 35, 1547–1549 (2018).
Suzuki, N. N., Koizumi, K., Fukushima, M., Matsuda, A. & Inagaki, F. Structural basis for the specificity, catalysis, and regulation of human uridine-cytidine kinase. Structure 12, 751–764 (2004).
Schmidt, E. K., Clavarino, G., Ceppi, M. & Pierre, P. SUnSET, a nonradioactive method to monitor protein synthesis. Nat. Methods 6, 275–277 (2009).
We thank A. Thomas and J. de Groot-Mijnes for critical reading of the manuscript and helpful suggestions. We thank D. Ron for kindly providing HeLa cells stably expressing 3×FLAG-tagged eIF2Bβ, A. Greninger for the pAV AiV complementary DNA clone, G. Belov for HeLa R19 cells and J. Pelletier for the translation inhibitor pateamine A. The work was supported by the Netherlands Organisation for Scientific Research through a Vici grant (no. NWO-918.12.628) to F.J.M.v.K. and a Veni grant (no. NWO-863.13.008) to M.A.L. P.G., F.L. and A.J.R.H. acknowledge support from the Netherlands Organisation for Scientific Research funding the large-scale proteomics facility Proteins@Work (project 184.032.201) embedded in the Netherlands Proteomics Centre. Work in the laboratories of F.J.M.v.K. and A.J.R.H. is supported by the ULS Molecular Immunology Hub. P.W. is an Investigator of the Howard Hughes Medical Institute.
The authors declare no competing interests.
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Extended Data Fig. 1 Structural modeling of AcP10.
The AcP10 structure was modelled based on its homology to human uridine cytidine kinase 1 (hUCK1, accession number; pdb file 2UVQ). Indicated are the residues important for uridine kinase function (In blue; ATP binding site K16 and catalytic site D41), and those important for AcP10’s ability to antagonize the ISR (In red; H193 and H200).
Extended Data Fig. 2 AcP10 is highly insoluble.
a, Flow cytometry analysis of EGFP expression levels in cells expressing EGFP (top panel) or the AcP10-EGFP fusion protein (bottom panel). b, Cells overexpressing AcP10-EGFP or EGFP were lysed in buffer containing 1% triton X100. The soluble fraction obtained after centrifugation, and the insoluble fraction obtained after resuspension of the cell debris in 8 M urea, were analyzed by Western blot for presence of the overexpressed protein, using an antibody directed against EGFP. These experiments were performed three times independently with similar results.
Extended Data Fig. 3 Low levels of AcP10 are sufficient to fully rescue translation.
a, Flow cytometry analysis of p-eIF2 levels and ongoing translation in pEGFP-AcP10 transfected cells treated with arsenite for 30 min. A mock treated sample is shown in grey fill. AcP10-positive cells are indicated in green, and AcP10-negative cells from the same well are shown in black. b, Immune fluorescence analysis of SG formation in pEGFP-AcP10 transfected cells treated with arsenite for 30 min. Shown are three cells, one of which expresses AcP10 at relatively high levels (●), one expresses AcP10 at low levels (■), and one does not express AcP10 (♦). SG marker G3BP1 was visualized to assess SG formation. The white scale bar indicates 10 μm. c, Flow cytometry analysis of EGFP expression and ongoing translation in a pEGFP-AcP10 transfected cell population treated with arsenite for 30 min. These experiments were performed three times independently with similar results.
Extended Data Fig. 4 Genome compositions of recombinant EMCVs used in this study.
The EMCV genome consists of a 5′ VPg viral protein, a 5′ UTR which includes the EMCV IRES, a single ORF encoding the EMCV polyprotein, and a 3′ UTR which includes a poly-A tail (top panel). In the EMCV-Lzn virus, the endogenous ISR antagonist (L) is inactivated by a double point mutation (second panel). The genes encoding AcP10 or AcP10(SA-) were inserted into the EMCV-Lzn genome to obtain EMCV-Lzn-AcP10 and EMCV-Lzn-AcP10(SA-), respectively. (bottom two panels). The viral proteins are separated from the polyprotein by a 2 A skip site (indicated by the blue arrowhead), or through catalytic activity of the 3 C viral protease (cleavage sites indicated by red arrowheads).
Extended Data Fig. 5 Cross-linking mass-spectrometry analysis of AcP10•eIF2B•eIF2 complexes.
a, Schematic overview of the cross-links identified in AcP10-eIF2B-eIF2 complexes that were affinity purified using TAP-AcP10. Indicated in teal are inter-protein cross-links and indicated in purple are intra-protein cross-links. A single cross-link was formed between two of the same peptides from AcP10 (indicated in red), which may have occurred due to AcP10’s tendency to aggregate. b, Schematic overview of the total number of cross-links found within AcP10 (blue), within the eIF2B complex (green), and between AcP10 and eIF2B subunits (red). If present in resolved parts of eIF2B, the eIF2B residues that cross-linked with AcP10 are indicated in red in the right panel. The subunits of the eIF2B regulatory subcomplex (eIF2Breg) and eIF2B catalytic subcomplex (eIF2Bcat) are shown in shades of green or blue, respectively, as indicated.
Extended Data Fig. 6 Knockout of the ISR inhibition function of AiVL by mutations C53A and C56A.
a, IFA analysis of SG formation in HeLa cells transiently overexpressing the indicated EGFP-AiVL fusion proteins. Before fixation, cells were treated with 500 µM arsenite for 45 min. Quantifications of the percentage of SG positive cells are given in the bar graph in the right panel. Mean ± SD of n = 3 biologically independent experiments are shown. The white scale bar indicates 50 μm. b, Flow cytometry analysis of active translation, as labeled by puromycin incorporation, in cells transiently transfected with plasmids encoding the indicated AiVL proteins. Only transfected cells (EGFPpos) are shown, and cells were further subdivided in p-eIF2αlow (green) and p-eIF2αhigh (red) cells, as shown in Fig. 6b. c, The indicated plasmids were transiently transfected in HeLa-eIF2Bβ-3xflag cells. The next day, eIF2B was isolated from cell lysates, and co-purified EGFP-tagged AiVL or AiVL-C56A was analysed by Western blotting using an antibody directed against EGFP. These experiments were performed three times independently with similar results.
Extended Data Fig. 7 SG formation over time in cells infected with AiV wt or AiV-LC53A/C56A.
Vero cells were infected (MOI = 0.1) with AiV wt or AiV-LC53A/C56A. At the indicated time points p.i. cells were fixed and the presence of SGs in infected cells was assessed by immunofluorescence using antibodies directed against dsRNA, G3BP1, and eIF3. The white scale bar indicates 50 μm. This experiment was performed twice independently with similar results.
Extended Data Fig. 8 Gating strategy used for flow cytometry analyses.
For all flow cytometry samples, live cells were identified based on FSC/SSC profile (top panel). When indicated, transfected cells within the live cell population were selected based on EGFP expression (bottom panel).
Supplementary Table 1
Subunits of the eIF2 and eIF2B complexes co-purified with AcP10 in the affinity pull-down experiments using TAP-tagged AcP10, analysed by mass spectrometry.
Supplementary Table 2
Plasmids used in this study.
Source Data Fig. 1
Statistical source data.
Source Data Fig. 2
Unprocessed western blots.
Source Data Fig. 3
Statistical source data.
Source Data Fig. 3
Unprocessed radioactivity blots.
Source Data Fig. 4
Statistical source data.
Source Data Fig. 4
Unprocessed western blots.
Source Data Fig. 5
Unprocessed western blots.
Source Data Fig. 6
Statistical source data.
Source Data Fig. 6
Unprocessed western blots.
Source Data Fig. 7
Statistical source data.
Source Data Extended Data Fig. 2
Unprocessed western blots.
Source Data Extended Data Fig. 5
Statistical source data.
Source Data Extended Data Fig. 6
Statistical source data.
Source Data Extended Data Fig. 6
Unprocessed western blots.
