A plastid two-pore channel essential for inter-organelle communication and growth of Toxoplasma gondii

Li, Zhu-Hong; King, Thayer P.; Ayong, Lawrence; Asady, Beejan; Cai, Xinjiang; Rahman, Taufiq; Vella, Stephen A.; Coppens, Isabelle; Patel, Sandip; Moreno, Silvia N. J.

doi:10.1038/s41467-021-25987-5

Download PDF

Article
Open access
Published: 04 October 2021

A plastid two-pore channel essential for inter-organelle communication and growth of Toxoplasma gondii

Nature Communications volume 12, Article number: 5802 (2021) Cite this article

4139 Accesses
7 Altmetric
Metrics details

Subjects

Abstract

Two-pore channels (TPCs) are a ubiquitous family of cation channels that localize to acidic organelles in animals and plants to regulate numerous Ca²⁺-dependent events. Little is known about TPCs in unicellular organisms despite their ancient origins. Here, we characterize a TPC from Toxoplasma gondii, the causative agent of toxoplasmosis. TgTPC is a member of a novel clad of TPCs in Apicomplexa, distinct from previously identified TPCs and only present in coccidians. We show that TgTPC localizes not to acidic organelles but to the apicoplast, a non-photosynthetic plastid found in most apicomplexan parasites. Conditional silencing of TgTPC resulted in progressive loss of apicoplast integrity, severely affecting growth and the lytic cycle. Isolation of TPC null mutants revealed a selective role for TPCs in replication independent of apicoplast loss that required conserved residues within the pore-lining region. Using a genetically-encoded Ca²⁺ indicator targeted to the apicoplast, we show that Ca²⁺ signals deriving from the ER but not from the extracellular space are selectively transmitted to the lumen. Deletion of the TgTPC gene caused reduced apicoplast Ca²⁺ uptake and membrane contact site formation between the apicoplast and the ER. Fundamental roles for TPCs in maintaining organelle integrity, inter-organelle communication and growth emerge.

ATP synthase hexamer assemblies shape cristae of Toxoplasma mitochondria

Article Open access 05 January 2021

Molecular characterization and transcriptional regulation of two types of H⁺-pyrophosphatases in the scuticociliate parasite Philasterides dicentrarchi

Article Open access 19 April 2021

An Alveolata secretory machinery adapted to parasite host cell invasion

Article 25 January 2021

Introduction

Two-pore channels (TPCs) constitute a family of intracellular cation channels that localize to acidic organelles such as animal lysosomes and plant vacuoles^1,2. They contain two repeats of a six-transmembrane pore-forming domain, and thus occupy a key intermediate position in the evolution of multi-domain voltage-gated ion channels³. In deuterostome animals, three genes are typically present but the gene encoding TPC3 has undergone lineage-specific loss and is a pseudogene in humans^4,5. Mammalian TPC1 and TPC2 are the target channels for the Ca²⁺ mobilizing messenger NAADP^6,7,8,9. They regulate numerous processes including prominent roles in membrane trafficking and organelle morphology¹⁰ likely through associated NAADP binding proteins¹¹. But some TPCs may also be activated by the endosomal phosphoinositide, PI(3,5)P₂¹². Recent work suggests that TPC2 can switch its ion selectivity in an agonist-dependent manner such that it forms a non-selective cation channel permeable to Ca²⁺ when activated by NAADP and a highly selective Na⁺ channel when activated by PI(3,5)P₂¹³. Most plants possess a single copy of TPC that is structurally similar to animal TPCs but distinguished by the presence of two EF-hands^14,15,16. Arabidopsis TPC is co-regulated by Ca²⁺ and voltage, is a non-selective cation channel and regulates important processes like plant growth, germination and salt-stress^1,14. TPCs have been described in a number of unicellular organisms³. But little is known about these channels in protists¹⁷.

Apicomplexan parasites include the etiologic agents of malaria (Plasmodium spp.), a life-threatening disease, and toxoplasmosis (Toxoplasma gondii), a disease that affects primarily the fetus of pregnant women and immunocompromised patients. T. gondii, as most apicomplexans, possesses a number of features found in plants including a non-photosynthetic plastid termed the apicoplast¹⁸ and a number of plant-like enzymes, some of which localize to the plant-like vacuole (PLV, also termed vacuolar compartment or VAC)^19,20. The apicoplast has been proposed to originate by secondary endosymbiosis of an ancestor that ingested a red alga thereby explaining the presence of four membranes²¹. The outermost membrane is derived from the host endosomal compartment²¹. The apicoplast houses pathways for fatty acid (FASII pathway) and isoprenoid (deoxy-xylulose phosphate (DOXP) pathway) synthesis, iron-sulfur cluster assembly, and a segment of the heme synthesis pathway²². It is therefore an essential organelle with considerable potential for tackling parasitic infection.

In this work, we identify the T. gondii TPC and show that it localizes to the apicoplast. Using reverse genetics approaches, we reveal a critical role for pore activity in apicoplast biogenesis and parasite replication. We also uncover a novel mechanism whereby TPC mediates functional and physical coupling between the apicoplast and the ER through inter-organellar Ca²⁺ transfer.

Results

Toxoplasma possesses a novel TPC

We cloned a full-length cDNA of a putative TPC from T. gondii (TGGT1_311080)²³ by reverse transcription-PCR. Querying of genomic sequences with this sequence (TgTPC) identified a number of homologs in other isosporoid coccidians (e.g. Neospora) and eimeriids (e.g. Eimeria) (Supplementary Table 1) but not in hemosporidians such as Plasmodium. To probe the evolutionary relationship between coccidian TPCs and other TPCs, we performed phylogenetic analysis of the newly identified TPCs with select animal and plant TPCs together with unicellular related TPCs (TPCRs)³. As shown in Fig. 1a, coccidian TPCs did not group with known TPCs but instead formed a distinct clade. TPC homologs were present in chromerids, close free living ancestors of apicomplexa suggesting that the absence of TPCs in hemosporidians was due to lineage-specific loss.

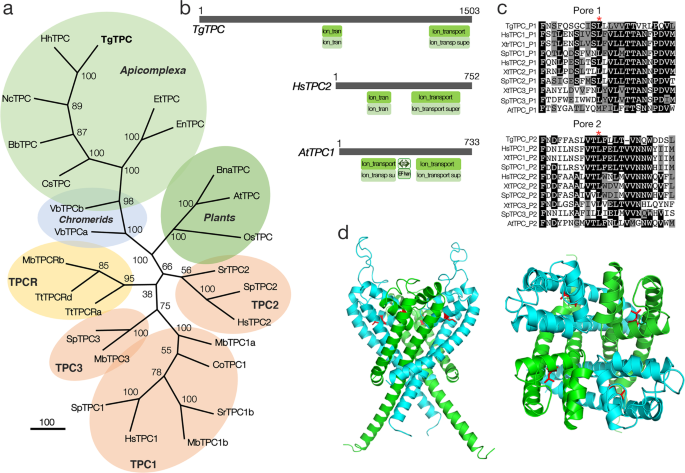

**Fig. 1: Phylogenetic placing and predicted structure of a novel TPC in *Toxoplasma*.**

The open reading frame of TgTPC corresponds to a predicted protein of 1,502 amino acids with an apparent molecular weight of 160 kDa. TgTPC possesses two ion channel domains typical of other TPCs. However, the N-terminus and the linker between the channel domains are extended. The latter lacked EF-hand domains found in plant TPCs (Fig. 1b). TgTPC showed significant overall sequence similarity to other TPCs in the pore regions (Fig. 1c). However, the selectivity filter region in both domains deviated from animal and plant TPCs. Leucine in the first pore helices of both repeat domains that was shown previously to be required for channel activity of animal TPCs⁴, however, was conserved (Fig. 1c, d). TgTPC represents a novel member of the TPC family.

TgTPC localizes to the apicoplast

To investigate the localization and function of T. gondii TPC, we introduced a triple HA epitope-tag at the 3′ terminus of the TgTPC locus and isolated TPC-3HA single cell clones (Fig. 2a). Additionally, the 5′ promoter region of these clones was replaced with a tetracycline-regulatable element²⁴ in the cell line termed iΔTPC-3HA (Fig. 2b) where the expression of tagged TgTPC could be controlled by anhydrotetracycline (ATc). These genetic modifications were done in the TatiΔku80 background cell line that combines regulated gene expression²⁴ with high efficiency of homologous recombination²⁵. A number of cell lines were generated for this work and they are listed in Supplementary Table 2.

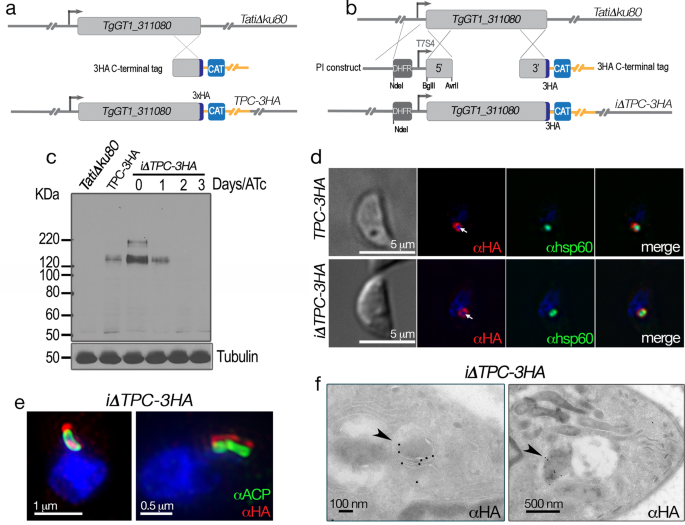

**Fig. 2: The *Toxoplasma* TPC localizes to the apicoplast.**

Southern blot analysis confirmed the insertion of both the tag and promoter element in clonal cell lines (Supplementary Fig. 1). Western blot analysis using anti-HA antibodies revealed a band of ~150 kDa in both lines consistent with the predicted size of TgTPC (Fig. 2c). Note that the protein levels were lower in the TgTPC-3HA line than in the iΔTPC-3HA mutant consistent with the weaker nature of the endogenous promoter. Addition of ATc to cultures of the iΔTPC-3HA mutant down-regulated the expression of TgTPC (Fig. 2c) such that at 48 h after addition of ATc, TgTPC protein was no longer detectable. Immunofluorescence analysis (IFA) revealed HA staining of a distinct organelle that also labeled with DAPI, suggesting a DNA containing organelle like the apicoplast, in both lines (Fig. 2d). Somewhat surprisingly, we found little overlap of staining with cathepsin L, or the vacuolar-H⁺-pyrophosphatase, both markers of the PLV (Supplementary Fig. 2a, b). The PLV is an important acidic organelle where TPCs normally reside in other organisms. Instead, we found substantial co-localization with Hsp60 (Fig. 2d), a luminal marker of the apicoplast²⁶.

To further probe the localization of TgTPC, we performed super-resolution microscopy. In these experiments, we co-labeled the iΔTPC-3HA line with antibodies to HA and a different apicoplast marker, the acyl carrier protein (ACP)²⁷. As shown in Fig. 2e, TgTPC appeared to surround ACP suggesting a non-luminal localization. Consistent with this, cryo-electron microscopy showed expression of TgTPC on peripheral apicoplast membranes (Fig. 2f, arrowheads and Supplementary Fig. 2c). Quantification of gold labeling from 25 images showed 115 marks on apicoplast membranes compared to 35 in the apicoplast lumen and 22 outside the apicoplast. In sum, these data identify TgTPC as a novel apicoplast protein.

TgTPC is required for apicoplast integrity and function

To investigate the physiological role of TgTPC, we down-regulated the expression of TgTPC in the iΔTPC-3HA mutant with ATc. As expected, IFA of tachyzoites cultured in the presence of ATc for 3, 4 or 7 days showed that TgTPC was not expressed (Fig. 3a, red signal). Labeling of two apicoplast markers, ACP (Fig. 3a, +3d, green) and Hsp60 (Fig. 3b, +4d, green) were still evident 3 or 4 days with ATc, respectively. Interestingly, the apicoplast αhsp60 signal (usually stronger than αACP) was no longer detectable after culturing iΔTPC-3HA with ATc for 7 days (Fig. 3a, +7d). Quantitative and morphological analysis of intracellular parasites for the presence of apicoplast is shown in Supplementary Fig. 3a, b. This analysis showed a decrease in the number of apicoplasts labeled with αhsp60 compared to the parental line, in the presence of ATc, beginning at 3 days (+3d). Almost all intracellular parasites lost labeling with αhsp60 at 7 days + ATc (Supplementary Fig. 3a, +7d, middle panel). In contrast, conditional knock down of hydroxyacyl-CoA dehydratase (DEH)²⁸, an essential cytosolic enzyme did not affect apicoplast integrity (Supplementary Fig. 3a, lower panel).

**Fig. 3: Downregulation of the *TgTPC* impacts integrity and function of the apicoplast.**

To characterize further the apicoplast phenotype, we examined tachyzoites following 4 days of ATc treatment. As shown in Fig. 3b apicoplast labeling became diffuse and additional labeling of Hsp60 in the residual body of intracellular parasites was observed (Fig. 3b, arrow). The presence of apicoplast markers in the residual body indicates a defect in segregation of the organelle during cell division^29,30. Transmission electron microscopy of the mutant iΔTPC-3HA cultured with ATc for four days showed that the apicoplast membranes were present but the organelle appeared vacuolated (Fig. 3c and Supplementary Fig. 3c). To examine the consequences of downregulating TgTPC on apicoplast function, we examined lipoylation of the pyruvate dehydrogenase subunit E2 (PDH-E2). This enzyme localizes to the apicoplast and is modified by lipoic acid produced by the FASII pathway. Western blot analysis with anti-lipoylated PDH-E2 antibody³¹ (Fig. 3d) revealed that the lipoylation was reduced at days 3 and 5 compared to controls in the iΔTPC-3HA (+ATc) and was absent after 7 days with ATc (Fig. 3d). This phenotype could result from defective lipoylation or from reduced levels of the apicoplast protein resulting from defective segregation of the organelle.

We next measured growth and general fitness of TgTPC-depleted parasites. Growth was assessed in two ways. In the first approach, we performed plaque assays, in which the parasite engages in repetitive cycles of invasion, replication, and egress causing host cell lysis and formation of plaques observed as white spots by staining with crystal violet. As shown in Fig. 4a, ATc had a substantial effect on the growth of the iΔTPC-3HA mutant (+ATc) but not on the parental cell line (TatiΔku80). Only very small plaques were observed upon downregulation of TgTPC expression (Fig. 4a). In the second approach, we expressed a cytosolic marker (tdTomato) in parental and mutant (iΔTPC-3HA) lines and used its fluorescence as a proxy for the growth of clonal cells²⁷. Downregulation of the expression of TgTPC with ATc substantially decreased parasite growth (Fig. 4b). The growth of these mutants was reduced to almost 15 % after 7 days with ATc. Next, we evaluated intracellular replication by quantifying the number of parasites per Parasitophorous Vacuole (PV). As shown in Fig. 4c, there was a significant reduction in the number of PVs harboring 8 or 16 parasites when the cells were pre-treated with ATc for 4 days with a more noticeable difference at day 7 (Fig. 4c, d). We also examined invasion and egress, two critical steps of the lytic cycle. Egress, stimulated with ionomycin, was significantly prolonged when the iΔTPC-3HA cells were cultured with ATc for 24 h following 4 days pre-incubation (total 5 days) (Fig. 4e). Invasion, evaluated by a red-green assay, was normal at day 4 but markedly reduced after 7 days with ATc (Fig. 4f). All steps of the lytic cycle therefore were affected following extended TPC downregulation and reminiscent of the delayed death phenotype previously observed for apicoplast enzyme inhibitors and genetic disruption of genes required for apicoplast biogenesis or metabolism³⁰.

**Fig. 4: Downregulation of the *TgTPC* disrupts every step of the *Toxoplasma* lytic cycle.**

Collectively, these data show that TgTPC is essential for maintenance of apicoplast integrity and parasite growth.

Isolation of TPC null mutants

Because the apicoplast is an essential organelle³², we sought ways of dissecting physiological roles for TgTPC independent of the apicoplast-related phenotypic changes induced by downregulating TgTPC. To this end, we manually expanded the conditional mutants from the small plaques for 6–8 weeks until the parasites were able to complete the lytic cycle on their own (see scheme in Supplementary Fig. 4 and detailed protocol in Supplementary information). This strategy was followed with two cell lines iΔTPC and iΔTPC-3HA, which were grown with ATc and the cell lines generated were termed iΔTPC-TR and iΔTPC-3HA-TR for Tetracyclin Resistant because after these passages, the small plaques formed by the mutants were not further reduced by ATc. The signal of the apicoplast appeared to be absent in the iΔTPC-3HA-TR line (Supplementary Fig. 4b). Because the genomic locus of the TgTPC gene was still intact in both mutants, we deleted approximately ~5 kb of the TgTPC gene of the iΔTPC-TR line by homologous recombination with an engineered cosmid and isolated clones by limiting dilution (Fig. 5a). Southern blots (Supplementary Fig. 5a) confirmed deletion of the TgTPC gene. These clones, could be stably maintained in culture but they grew at a very low rate. The ΔTPC-a clone was cultured for several months (6-12 months) and, interestingly, apicoplast labeling with ACP was recovered (Fig. 5b). This was reproduced with an independent mutant, ΔTgTPC-c (Supplementary Fig. 5b). Apicoplasts were visible by EM in the ΔTPC-a mutant (Fig. 5c). In accord, the ΔTPC-a mutant showed apicoplast specific lipoylation activity (Fig. 5d).

**Fig. 5: TgTPC regulates replication independent of apicoplast biogenesis.**

Adaptive changes in TPC null mutants are associated with changes in apicoplast DNA content

We considered a potential genomic compensatory change resulting in the recovery of apicoplast function in the ΔTPC-a mutant. To investigate this, we performed whole-genome sequencing of the mutant and mapped it to the reference strain TgGT1 (ToxoDB)³³. Two addtional clones (ΔTPC-b and ΔTPC-c-5) plus the original tetracycline resistant (iΔTPC-TR) and the iΔTPC were also sequenced for comparison (Supplementary Table 3). The analyzed sequences did not reveal any notable change in their genome except for a few indels within intergenic regions.

We then investigated if the apicoplast DNA content in the ΔTPC mutant played a role in its adaptation. We had observed that the ΔTPC clones contained varying levels of apicoplast DNA (Supplementary Fig. 5c, d) and the ΔTPC-a mutant showed high apicoplast DNA content after being in culture for several months (Supplementary Fig. 5d). We used the sequencing data and estimated the copy numbers of apicoplast DNA per cell by calculating the ratio of apicoplast DNA coverage to the haploid nuclear genome (assuming that apicoplast and nuclear DNA were amplified and sequenced at equal rate) (Supplementary Fig. 6a). This result confirmed the variable amounts of apicoplast DNA previously seen in the mutants. The TR cell line which showed almost no apicoplast labeling by IFA, had the lowest apicoplast DNA content (only ~2–3 copies per cell). The two clones of ΔTPC, from which genomic DNA was extracted very early after subcloning, had slightly higher apicoplast DNA than the TR line. A subclone of ΔTPC-c named ΔTPC-c-5 that was cultured longer showed the highest apicoplast DNA content.

To further evaluate temporal changes in apicoplast DNA, we re-evaluted the apicoplast DNA of the ΔTPC-a mutant 1 month after subcloning (ΔTPC-a-1m,) and compared it with the same clone cultured in vitro for one year (ΔTPC-a-12m). The ΔTPC-a-12m cells possessed apicoplast DNA at the same level as iΔTPC parasites while the ΔTPC-a-1m mutant showed much lower levels of apicoplast DNA (Supplementary Fig. 6b).

We also examined temporal changes of apicoplast DNA in iΔTPC-3HA-TR cells when cultured with ATc (Supplementary Fig. 6c). We observed a decrease of apicoplast DNA after 4 days. When the iΔTPC-3HA-TR mutant was grown for 42 days with ATc, the apicoplast DNA was lowest (note at this stage the IFA did not show strong apicoplast labeling, Supplementary Fig. 4b) but it increased after 3 months of culture with ATc (Supplementary Fig. 6c). At this point, we observed brightly labeled apicoplasts in a proportion of the iΔTPC-3HA-TR mutant (Supplementary Fig. 6d). All subclones of the iΔTPC-3HA-TR cell line (we tested 12) showed some bright IFA apicoplast signal in a portion of the cells after 3-4 months in culture (we show clone 1 and 2 in Supplementary Fig. 6d). ΔTPC-c-5 with the highest apicoplast DNA showed the most consistent apicoplast labeling.

Taken together, these data show that the recuperation of the apicoplast DNA positively impacted the growth of TPC-depleted cells.

TgTPC regulates replication independent of apicoplast biogenesis

We next analyzed the phenotype of the ΔTPC-a null mutant. As shown in Fig. 5e, f, growth of the ΔTPC-a mutant was severely retarded similar to the conditional mutant, iΔTPC-3HA (+ATc) (Fig. 4b). To determine specificity, we took two approaches. In the first approach, we complemented the ΔTPC-a cells with the complete cDNA of the TgTPC gene to generate the ΔTPC-a-TPC complemented mutant. The presence of TgTPC cDNA in the ΔTPC-a-TPC cells was confirmed by PCR (Supplementary Fig. 7). The ΔTPC-a-TPC clone was fully rescued and grew at a similar rate to the wild type clone (Fig. 5e, f, green). In the second approach, we complemented the ΔTPC-a cells with a conditional copy of TgTPC (Supplementary Fig. 8a, b). The resulting iΔTPC-iTPC mutant also showed full recovery of growth (Supplementary Fig. 8c, d, green). Importantly, culturing these cells with ATc to acutely down regulate TgTPC resulted in the same delayed death phenotype as the original iΔTPC mutant. Thus, the addition of ATc blocked expression of the exogenous copy of TgTPC in the ΔTPC-a-iTPC mutant, and inhibited plaque formation (Supplementary Fig. 8c, +ATc) and growth (Supplementary Fig. 8d, gold). This result indicates that the adaptation of the ΔTPC-a mutant (and the other genome sequenced clones) most likely did not result from a compensatory mutation in its nuclear genome as this would have countered the deleterious effect of downregulating the exogenous TgTPC. However, we can not discard the possibility of other compensatory effects that could account for the differences between the phenotypes in the “adapted” ∆TPC-a mutant and the i∆TPC + ATc mutant.

Further analysis showed that host invasion (Supplementary Fig. 9a) and egress (Supplementary Fig. 9b) were not affected in the ΔTPC-a null mutants. This was in contrast to the significant reduction in the conditional mutant iΔTPC + ATc (Fig. 4c–f). Moreover, motility was not significantly affected upon TPC knockout in contrast to the conditional mutants (Supplementary Fig. 9c, d). These differences indicate that the slow growth phenotype of the ΔTPC-a mutant may result from a replication defect due to deficient production of essential metabolites like isoprenoids, which are synthesized by apicoplast enzymes³⁴. These enzymes may not be working optimally because of the silenced TgTPC. In this regard, culturing the ΔTPC-a cells in the presence of geranylgeraniol (GGOH), an essential isoprenoid metabolite, partially rescued growth (Fig. 5g). Interestingly, GGOH had no effect on the growth of the parental cell line RH (Fig. 5h). The product of the apicoplast isoprenoid pathway, isopentenyl diphosphate (IPP) could not be tested because it does not permeate through parasite membranes³⁴.

Collectively, these data identify a specific role for TgTPC in replication and suggest that the effects of TPC depletion on other aspects of the lytic cycle (invasion, egress or motility) are a secondary consequence of apicoplast functional disruption.

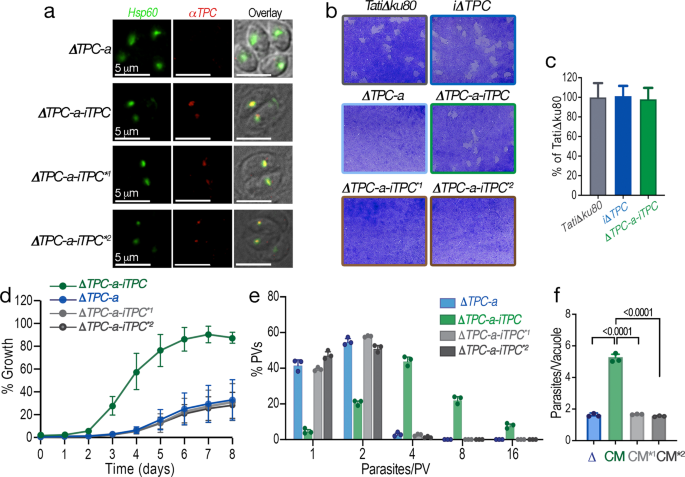

Regulation of replication by TgTPC requires an intact pore

To gain further mechanistic insight into how TgTPC regulates replication, we complemented the ΔTPC-a mutants with regulatable copies of the TgTPC tagged with a cMyc epitope at their C-termini. We used both wild type TgTPC and mutant TgTPCs in which conserved Leu residues in either the first or second pore domain where substituted for Pro (Fig. 1c). These parasites were termed ΔTPC-a-iTPC^*1 and ΔTPC-a-iTPC^*2, respectively. Figure 6a shows IFAs of the complemented parasites using an anti-cMyc antibody. TgTPC expression was readily detectable in all three lines but not in the parental TPC null mutant line. Counter staining with an apicoplast marker showed that wild type and mutant TPCs localized to the apicoplast. The western blots in Supplementary Fig. 8b confirmed expression of the TgTPC at similar levels in the three lines.

Plaque analyses showed that TPC-null parasites complemented with wild type TgTPC formed normal plaques (Fig. 6bmiddle panels, ΔTPC-a-iTPC). This rescue provides further evidence that TgTPC is required for growth (Fig. 6c). In stark contrast, complementation of TPC-null cells with the mutated versions of the TgTPC gene failed to restore plaques (Fig. 6b, bottom panels) indicating a requirement for conserved residues within the pore for TPC functionality. Further growth analysis of mutants transfected with the tdTomato gene also showed that the pore mutant of the TgTPC gene was unable to rescue the growth defect of the ΔTPC-a mutants (Fig. 6d).

To analyze further the replication defect of the ΔTPC-a mutant, we quantified PVs 24 h post-infection (Fig. 6e, f). Most PVs from ΔTPC-a parasites contained 2 parasites indicative of a replication defect (Fig. 6f, blue bars). In contrast, ΔTPC-a-iTPC parasites formed PVs containing on average ~4–8 parasites with the expected distribution indicative of a normal replication cycle (Fig. 6f, green bars). As with the plaque and growth kinetic analyses, complementation of ΔTPC-a cells with mutant TPCs failed to rescue the replication defect (Fig. 6e, f, light and dark grey bars).

Collectively, these data are consistent with TgTPC directly impacting T. gondii replication and highlight the importance of the pore domain for its function.

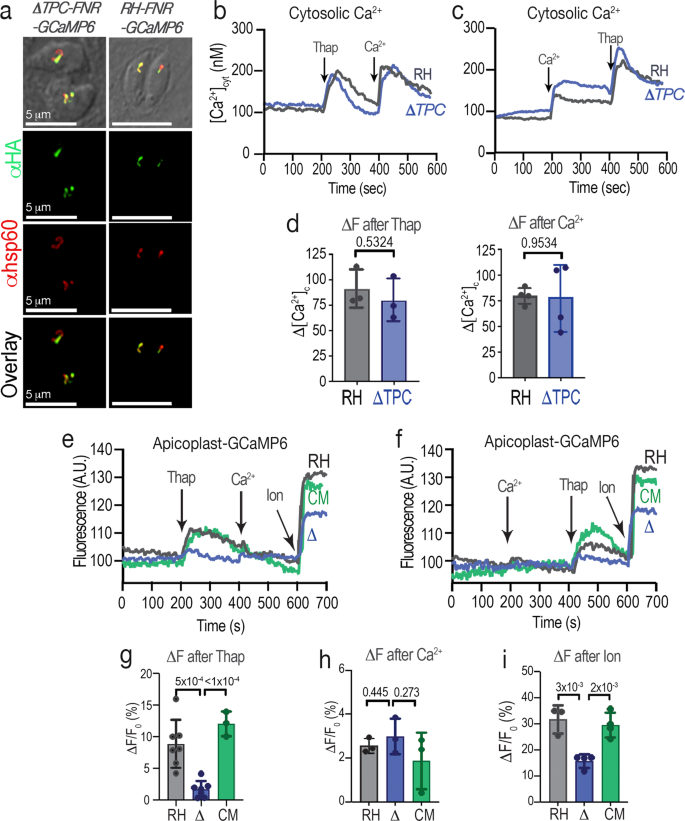

TgTPC mediates selective Ca²⁺ exchange between the endoplasmic reticulum and the apicoplast

TPCs function as Ca²⁺ release channels in both animal and plant cells. We therefore examined the impact of TgTPC on Ca²⁺ dynamics. To directly monitor Ca²⁺ in the apicoplast lumen, we developed a novel HA-tagged reporter comprising the apicoplast targeting signal of ferredoxin oxido-reductase (FNR)³⁵ and the genetically-encoded Ca²⁺ indicator GCaMP6f³⁶. The construct was expressed in both control (RH, parental cell line of TatiΔku80) and ΔTPC-a mutant parasites and the resulting clonal cell lines generated termed RH-FNR-GCaMP6-HA and ΔTPC-FNR-GCaMP6-HA, respectively. IFA of GCaMP6-HA showed co-localization with the apicoplast marker, Hsp60 in both lines (Fig. 7a). Western blot analysis of total lysates revealed equivalent expression (Supplementary Fig. 10a). The reporter also responded similarly to the addition of the Ca²⁺ chelator EGTA and Ca²⁺ upon permeabilization of cell suspensions with Triton X-100 (Supplementary Fig. 10b-c).

We loaded the RH-FNR-GCaMP6-HA and ΔTPC-FNR-GCaMP6-HA tachyzoites with the chemical Ca²⁺ indicator Fura-2 to simultaneously measure cytosolic (Fig. 7b–d) and apicoplast (Fig. 7e–g) Ca²⁺ levels in live cells. The addition of thapsigargin (Thap), which blocks the endoplasmic reticulum SERCA pump, caused an increase in cytosolic Ca²⁺ in control cells due to leak of Ca²⁺ from the ER (Fig. 7b and c, dark gray traces). The addition of Ca²⁺ after Thap (Fig. 7b) or prior to Thap (Fig. 7c) also led to an increase in cytosolic Ca²⁺ due to influx from the extracellular milieu. Interestingly, when measuring apicoplast GCaMP6 fluorescence (Fig. 7e, f, dark gray traces and bars in g), the addition of Thap resulted in an increase in apicoplast Ca²⁺. In stark contrast, there was little effect of extracellular Ca²⁺ (Fig. 7e, f). These data indicate that the apicoplast selectively sequesters Ca²⁺ released from the ER.

We next tested the response of the ΔTPC-a mutant to Thap and Ca²⁺ (Fig. 7b, c, blue traces and bars). The cytosolic Ca²⁺ increases after Thap or Ca²⁺ were unchanged in the ΔTPC-a mutants indicating that ER Ca²⁺ release and Ca²⁺ influx were not affected by TgTPC deletion (Fig. 7b–d, blue traces and bars). However, the Thap-induced Ca²⁺ signals in the apicoplast were almost absent in the ΔTPC-a mutants (Fig. 7e, f, compare dark gray and blue traces after addition of Thap, quantifications shown in Fig. 7g). The quantification of the ΔTPC-a mutant response to extracellular Ca²⁺ is shown in Fig. 7h. The ionophore ionomycin which causes Ca²⁺ release from the ER³⁷ and other organelles also caused an increase in apicoplast Ca²⁺ uptake in the RH, which was also significantly reduced in the ΔTPC-a (Fig. 7e-f, quantification shown in Fig. 7i). The phenotype of the ΔTPC-a mutant was not due to defective ER Ca²⁺ handling because ER Ca²⁺ uptake and leak was indistinguishable between the TatiΔku80 and ΔTPC-a mutants (Supplementary Fig. 10d). This experiment was done using digitonin-permeabilized parasites previously loaded with the low-affinity Ca²⁺ indicator MagFluo4, which compartmentalizes into and reports Ca²⁺ in the ER lumen³⁸.

To assess the specificity of the Ca²⁺ handling phenotype seen in the TPC knockout, we complemented the ΔTPC-FNR-GCaMP6-HA mutant with the TgTPC gene (ΔTPC-TPC-FNR-GCaMP6). The Thap and the ionomycin induced Ca²⁺ signals were recovered to the same levels as the parental in the complemented mutant (Fig. 7e-i, green traces and bars).

These results identify the apicoplast as a Ca²⁺-signaling organelle and reveal a physiological role for TgTPC in regulating selective take up of Ca²⁺ from the ER.

TgTPC regulates contact site formation between the endoplasmic reticulum and the apicoplast

Inter-organelle transfer of Ca²⁺ is often ascribed to Ca²⁺ microdomains formed by membrane contact sites³⁹. We therefore performed super-resolution microscopy to probe physical interaction between the ER and the apicoplast. Parasites were transfected with p30-GFP-HDEL⁴⁰, which labels the endoplasmic reticulum with GFP and IFA performed using antibodies to GFP and the plastid ubiquitin-like protein (PUBL)⁴¹. This analysis showed the proximity of both organelles especially noticeable at specific extensions of the ER membranes (Supplementary Fig. 11, arrows).

To more directly probe proximity, we performed electron microscopy. As shown in Fig. 8a (upper panels), we resolved numerous apicoplast-ER contact sites in TatiΔKu80 cells (small arrows). Recent studies in mammalian cells identified a role for TPCs in regulating contact site-formation between late-endosomes and the ER⁴². We therefore compared apicoplast-ER contact sites in TatiΔKu80 (Fig. 8a upper panels), ΔTPC (Fig. 8a, middle panels) and complemented ΔTPC-a-TPC parasites (Fig. 8a, bottom panels) cells. As summarized in Fig. 8b, TPC depletion decreased the % of apicoplasts in contact with ER by ~3-fold. To further analyze this defect, we quantified the minimum distance between the organelles. This distance was significantly increased in the TPC null cells (Fig. 8b, right). Both effects were rescued by TPC expression. Immuno-EM localization of TPCs in TPC-3HA cells (Fig. 8c, arrows) revealed the presence of TgTPC at or near the contact site.

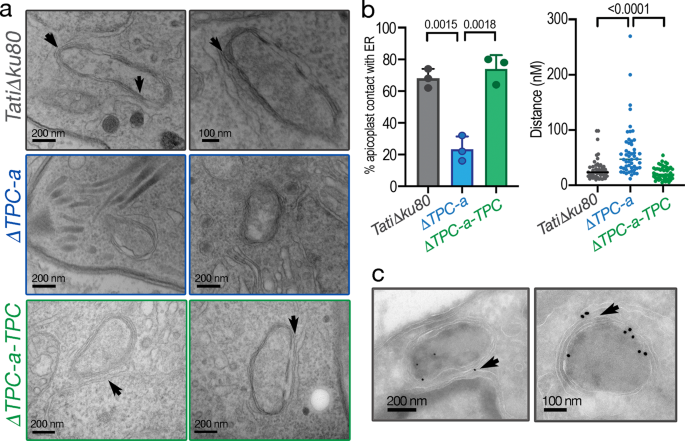

**Fig. 8: TgTPC regulates contact site formation between the endoplasmic reticulum and the apicoplast.**

In summary, our results show that the apicoplast is physically as well as functionally coupled to ER Ca²⁺ stores through TgTPC.

Discussion

We report the presence and functional role of the T. gondii two-pore channel (TgTPC). The channel localizes to the apicoplast and it is important for tachyzoite growth. Conditional silencing of TgTPC impacted all the steps of the T. gondii lytic cycle including host cell invasion, replication, motility and egress. Additionally, apicoplast morphology was altered and its essential functions were repressed. Interestingly, the phenotypic examination of null TPC mutants exposed the main impact of TgTPC in parasite replication while the other defects observed with conditional silencing of the gene resulted from apicoplast dysfunction. The severe growth phenotype caused by the deletion of TgTPC was fully complemented by the expression of TPC and the predicted pore domain was essential for the function of TgTPC. Based on the complementation and its reversibility by conditional silencing of the complementing copy of TgTPC, we propose a role for TgTPC in maintaining the integrity of the apicoplast and its biogenesis. We demonstrate for the first time the presence of Ca²⁺ in the apicoplast and the involvement of TgTPC in its uptake and find a role for TgTPC in maintaining contact with the ER to facilitate this.

As a product of a secondary endosymbiosis process, the apicoplast is surrounded by membranes derived from the cyanobacterium that gave origin to the plastid, the endosymbiotic alga, and the host endosomal compartment²¹. Metal ions play essential roles for the activity of more than one-third of all resident enzymes and considering the large number of essential activities present in the apicoplast, it is likely that ions will be highly regulated in the organelle. No regulators of Ca²⁺ levels in the apicoplast have been reported until now. The discovery of a TPC localized to the apicoplast is therefore a unique finding. Although our data identify pore-dependent defects in growth and disrupted Ca²⁺ homeostasis, direct electrophysiogical characterization of TgTPCs is warranted. One essential apicoplast metabolic pathway of cyanobacterial origin is the 1-deoxy-D-xylulose-5-phosphate (DOXP) pathway, which synthesizes the five-carbon precursor of isoprenoids, isopenthenyl diphosphate (IPP)³⁴. IPP was found to be the most critical product of the apicoplast in some life stages of the malaria parasite^22,43. In this regard, interfering with other aspects of apicoplast maintenance or metabolism would also impact the ability of the organelle to supply IPP. In our experiments, Geranylgeraniol (GGOH), the downstream product of IPP partially rescued the retarded growth of the TgTPC null mutants. It could not fully replace IPP, as it could be needed for other functions upstream the production of GGOH like farnesylation of proteins. This could explain the partial rescue by GGOH.

TPCs function as Ca²⁺ release channels in animal cells and are activated by the second messenger nicotinic acid adenine dinucleotide phosphate (NAADP)^6,7,8. This could be the case for TgTPC. It has been demonstrated that ADP-ribosyl cyclases, which generate NAADP and cyclic ADP ribose⁴⁴ are present in tachyzoites⁴⁵. Animal TPCs also function as Na⁺ channels when activated directly by PI(3,5)P₂ (phosphatidylinositol 3,5-bisphosphate)^12,46,47. In this regard, it was proposed that PI(3,5)P₂ might be synthesized at the apicoplast membrane by PIKfyve^48,49 to maintain the morphology of the apicoplast⁵⁰.

Our direct Ca²⁺ measurements within the apicoplast lumen identify the apicoplast as a novel Ca²⁺ store. We show that Ca²⁺ release from the ER but not Ca²⁺ influx results in Ca²⁺ uptake into the apicoplast. This highly selective transfer suggests a tight coupling between Ca²⁺ release and Ca²⁺ uptake and is reminiscent of ER-mitochondrial coupling⁵¹. Our identification of contact sites between the ER and the apicoplast would facilitate communication between the two. Similar contacts have been identified in T. gondii⁵² and Sarcocystis⁵³. Importantly, we show that deletion of TgTPC disrupts Ca²⁺ uptake and contact. TgTPC therefore appears to regulate membrane contact site formation similar to the role reported for TPC1 at ER-endosome junctions in mammalian cells⁴². In this scenario, TgTPC would facilitate Ca²⁺ uptake through a second transporter at the contact site. Alternatively, TgTPC might directly mediate Ca²⁺ uptake akin to the mitochondrial Ca²⁺ uniporter at ER-mitochondria junctions. This model would necessitate a lumen negative membrane potential. How uptake of Ca²⁺ into the apicoplast multi-membrane system is transmitted to the lumen requires investigation. Regardless of the exact mechanism, communication between the apicoplast and the ER is essential for apicoplast function and cell growth and identifies TgTPC as a novel protein worth exploring as a potential target for combatting Toxoplasmosis.

Methods

Phylogenetics

Multiple sequence alignment and phylogenetic reconstruction. Protein sequences were aligned using either MAFFT or T-Coffee and columns containing more than 50% gaps were subsequently removed from the sequence alignment using GapStreeze (Gap Strip/Squeeze v 2.1.0). Unambiguous sequence alignments were then converted to PHYLIP or NEXUS format. Identifiers for metazoan and unicellular TPCs are listed in Supplementary Table 1. ProtTest was utilized to select the best-fit evolution model and parameter estimates for the phylogenetic analyses. Maximum likelihood phylogeny with 100 bootstrap replicates was performed using PHYML (version 3.1) with the LG amino acid substitution model, estimated proportion of invariable sites, empirical amino acid frequency estimation, and the four-category discrete gamma model (LG + I + G + F) selected by ProtTest (Version 3.4.2)^54,55. Consensus trees were obtained using the CONSENSE program from the PHYLIP package (Version 3.69).

Structural modeling

Domain architecture of TPCs was predicted using Batch CD-Search⁵⁶. Sequences corresponding to the pore region of domain I and domain II of TgTPC1 were submitted to iTASSER and the top models for each assembled as a tetramer based on the structure of Arabidopsis TPC (pdb:5dqq). The tetramer was locally minimized using the YASARA NOVA forcefield⁵⁷ and presented using PyMOL.

Toxoplasma growth

T. gondii tachyzoites (RH strain, TatiΔku80) were cultured in hTERT human fibroblasts⁵⁸ using Dulbecco’s modified minimal essential media (DMEM) with 1% fetal bovine serum. Extracellular tachyzoites were collected from cultures containing 50–75% of egressed parasites. Intracellular tachyzoites were manually released by scrapping off and passing the suspension through a 27 G needle. Parasites (both intracellular and extracellular) were purified as described¹⁹. Electroporation was performed using a Gene Pulser Xcell from BioRad. Stable transfectants were selected with 20 µM chloramphenicol or 1 µM pyrimethamine and cloned by limiting dilution. The TatiΔku80 mutant, was a gift from Dr. Boris Striepen.

Generation of mutants

The TgTPC cDNA was amplified with primers 1 and 2 (Supplementary Table 4) (underlined nucleotides correspond to restriction sites for BglII and AvrII). The PCR product was cloned in the Zero Blunt TOPO cloning vector, followed by sequencing and subsequent cloning into the pDTM3 vector¹⁹. For in situ tagging, a fragment of approximately 2 kbs was amplified from the genomic locus (3′ region) of the TgTPC gene using primers 3 and 4 (Supplementary Table 4). The fragment was cloned in the pLic-3HA-CAT plasmid²⁴ and the construct was linearized with SphI for transfection of TatiΔku80 parasites. Clonal cell lines were generated after selection and subcloning and termed TPC-3HA. A promoter insertion plasmid was generated by cloning two fragments from the 5′ end of the TgTPC gene into the pDT7S4myc plasmid²⁴. One fragment corresponds to the TgTPC 5′ flanking region (predicted promoter/5′UTR) and was amplified with primers 5 and 6 (underlined sequences correspond to NdeI restriction sites). The second fragment corresponds to the 5′ TgTPC coding sequence beginning with the start codon, which was amplified with primers 1 and 7 (Supplementary Table 4) (underlined sequences correspond to BglII and AvrII restriction sites). The plasmid was linearized with AvrII for transfection of TatiΔku80 and TPC-3HA cells. The clonal lines created after selection and subcloning were termed iΔTPC and iΔTPC-3HA.

Cosmid PSBLZ79, which contains the TgTPC genomic locus was obtained from Dr. L. David Sibley (Washington University). The knockout cassette (chloramphenicol acetyl-transferase (CAT) gene for T. gondii and gentamicin for E. coli selection) from pH3CG⁵⁹ was amplified with primers 8 and 9 (Supplementary Table 4). The TgTPC gene targeting cosmid construct was made by replacing ~ 5 kb of the 5′ end of the TgTPC gene with the knockout cassette. This was done by recombineering in E. coli EL250 as described previously³¹. The TgTPC targeting cosmid was then electroporated into iΔTPC-TR cells. After chloramphenicol selection several ΔTPC clones were isolated and one was selected for further studies: ΔTPC-a. For complementation of ΔTPC-a cells, a plasmid pDTM3-TPC was used. The introduced cDNA was confirmed by PCR with primers 1 and 10 that amplify a 2.4 kb cDNA fragment. These two primers failed to amplify T. gondii genomic DNA because of the presence of introns. Primers 11 and 12 were used as controls to amplify the 5′UTR region from wild type parasites. Supplementary Table 2 lists all the cell lines created in this study and a detailed explanation of how the ΔTPC mutant was generated.

Complementation with a conditional copy of TgTPC

The cDNA of the TgTPC was cloned in the Zero blunt Topo vector from Invitrogen. Mutations in the pore domains of the protein were generated with a GeneArt® Site-Directed Mutagenesis System from Invitrogen. The oligonucleotides used for mutations in the Pore 1 domain were 13 and 14. The oligonucleotides used for mutations in the Pore 2 domain were 15 and 16. Mutations were verified by sequencing. Both wild type and pore mutants were cloned in the vector pDT7S4myc²⁴ for overexpression in T. gondii. The pDT7S4myc vector contains a regulatable element that allows the regulation of the downstream gene with addition of ATc. This strategy works only if the construct is introduced into parasites that express the tetracycline transactivator.

Southern blot analyses and apicoplast DNA quantification

T. gondii genomic DNA was purified and digested with EcoRI for Southern blot analysis. The probe against the coding sequence of the TgTPC gene was generated by PCR with primers 1 and 17. The probe against the 3′-UTR was amplified with primers 18 and 19. The probe used for apicoplast DNA was generated by using primers: 20 and 21⁶⁰. For nuclear DNA the probe used was generated against the TgFPPS gene⁵⁹. For quantification of the apicoplast DNA, purified PCR products were labeled with ³²P by random priming. Southern blot signals for apicoplast DNA and nuclear DNA (TgFPPS) in the same membrane were quantified by PhosphorImager and ImageQuant software.

Whole-genome sequencing of ΔTPC mutants

Genomic DNAs from the mutant strains was extracted by using the quick DNA miniprep plus kit from Zymo Research, and sent to BGI (Beijing Genomics Institute) genomics (San Jose, CA, USA) for whole-genome sequencing. The genomic DNA of the iΔTPC-TR, ΔTPC-a and ΔTPC-b cells was extracted from frozen stocks prepared soon after the mutants were generated. These cells have been cultured in vitro for a much shorter time than the mutant used for the analysis presented in Supplementary Fig. 5d. The whole-genome re-sequencing (WGRS) of the T. gondii mutants (3 Gb of Sequencing per library for about 37X coverage) and the bioinformatics analysis of the sequencing data were performed in BGI headquarters (ShenZhen, China).

Growth analysis

Plaque and growth assays were performed as described⁵⁹. All mutant lines (iΔTPC-3HA, iΔTPC, ΔTPC and complemented cells) were transfected with a plasmid containing a tandem dimer Tomato (tdTomato) gene³⁴. Red parasites were enriched by FACS sorting and subcloned by limiting dilution. A standard curve was developed to calibrate fluorescence levels to number of parasites for each parasite line. For replication experiments, hTERT cells were grown on 35 mm Mattek dishes and each dish infected with 50,000 tdTomato-expressing parasites. 24 h after infection counting parasites per PV was done in a fluorescence microscope. For each experiment, at least 100 PVs were counted. Results were the average of 3 independents experiments. For egress assays, monolayers of hTERT cells grown in 35 mm Mattek dishes were infected with 50,000 tdTomato-expressing parasites. Egress was triggered with 1 μM ionomycin using 24 h old cultures. The invasion was evaluated using a red-green assay⁶¹. 2.5 × 10⁷ tachyzoites were added to subconfluent hTERT monolayers and allowed to settle for 15 min on ice, then incubated for 2 min at 37 °C. Subsequently, the medium was aspirated and fixed with 2.5% formaldehyde for 20 min. Subsequent steps were done as published⁶¹. Three independent experiments were done, each one by triplicate, counting 8 randomly selected fields per individual coverslip. The number of invaded parasites was calculated as the difference between the total number of parasites (green) and the number of attached parasites (red). Results are expressed as means ± S.D. Statistical analysis was performed using the Student’s t-test. Differences were considered significant if P-values were < 0.05.

For migration experiments, freshly lysed parasites were filtered and incubated in ringer buffer at 37 °C. 5 × 10⁶ parasites were added to BD Biosciences membranes containing 200 μL of the same solution in the upper chamber and 500 μL in the lower chamber. Parasites were allowed to migrate through the 3 μm pore and samples from the lower chamber were taken at 5, 10, 15, 30, 60, 90, and 120 min for counting. Negative controls were done pre-incubating with 50 nM bafilomycin A or 500 nM cytochalasin D for 15 min.

Microscopy and western blot analyses

Tachyzoites were grown on hTERT cells on cover slips for ~ 24 h, washed twice with buffer A with glucose (BAG, 116 mM NaCl, 5.4 mM KCl, 0.8 mM MgSO₄, 50 mM HEPES, pH 7.2, and 5.5 mM glucose) and fixed with 4% paraformaldehyde for 1 h, followed by permeabilization with 0.3% Triton X-100 for 20 min, and blocking with 3% bovine serum albumin. IFAs were performed as previously described¹⁹. Fluorescence images were collected with an Olympus IX-71 inverted fluorescence microscope with a Photometrix CoolSnapHQ CCD camera driven by DeltaVision software (Applied Precision, Seattle, WA). Super-resolution microscopy was performed using a Zeiss ELYRA S1 (SR-SIM) microscope with a high-resolution Axio observer Z1 inverted microscope stand with transmitted (HAL), UV (HBO,) and high-power solid-state laser illumination sources (405/488/561 nm), a 100x oil immersion objective, and an Andor iXon EM-CCD camera and acquired using the ZEN software (Zeiss) with a SIM analysis module. Rat anti-HA antibody from Roche was used at a dilution of 1:25. Mouse anti-HA antibody from Covance was used at a dilution of 1:200. The Rabbit anti-hsp60 antibody was used at 1:1,000 and the rabbit anti ACP antibody was used at a dilution 1:200. Both apicoplast antibodies were a gift from Boris Striepen. Mouse anti c-myc antibody was from Sigma and was used at a dilution of 1:500.

For immunoelectron microscopy, freshly isolated parasites were fixed with 4% paraformaldehyde, 0.05% glutaraldehyde in PBS, pH 7.4, on ice for 1 h. After fixation, the parasites were pelleted and gently resuspended in PBS. Parasite suspensions were sent to Washington University Microcopy service for analysis. Dr. Wandy Beatty performed the cryo immune EM analysis as described¹⁹.

Western blot analysis was performed as previously described⁶². Rat anti-HA antibody from Roche was used at a dilution of 1:200. Mouse anti-HA antibody from Covance was used at a dilution of 1:1,000. Secondary goat anti-rat or mouse antibody conjugated with HRP was used at 1:5,000. Mouse anti-α-tubulin at a dilution of 1:5,000 was used for loading control. Anti-lipoylated-PDH-E2 antibody (clone3H-2H4), was a gift from Dr. Eric Gershwin, UC Davis⁶³ and was used at 1:1,500 dilution. Apicoplast function was evaluated as described previously³¹.

Calcium measurements

Parasites were purified and loaded with Fura 2-AM as described^64,65. An Hitachi F-7000 spectrofluorometer was used for calcium measurements. Conditions and calibration were as published^65,66.

For ER calcium measurements, cells were resuspend to a final density of 1 × 10⁹ cells/ml in HBS buffer (135 mM NaCl, 5.9 mM KCl, 1.2 mM MgCl₂, 11.6 mM HEPES, 1.5 mM CaCl₂, 11.5 mM glucose) containing 1 mg/ml BSA, 0.2 mg/ml of pluronic F127 and 20 μM Mag-Fluo-4-AM. Loading was for 60 min in the dark at room temperature. Subsequently, parasites were washed 3 times and the cell pellet resuspended in 1.8 ml CLM (20 mM NaCl, 140 mM KCl, 20 mM PIPES, pH 7.0) containing 1 mM EGTA at 1 × 10⁹ cells/ml. Cells were permeabilized with 30 μg/ml digitonin for 5 min. Permeabilized cells were washed 3 times with CLM containing 1 mM EGTA and resuspended to a final density of 1 × 10⁹ cells/ml and kept in ice. For each test, 50 μl (5 × 10⁷) of the suspension was added into 1.95 ml of CLM containing 1 mM EGTA with 375 µM CaCl₂ (220 nM free Ca²⁺).

Targeting genetically encoded calcium indicator GCaMP6f into the apicoplast

The N-terminal targeting sequence of the apicoplast protein ferredoxin reductase (FNR) (150 aa) fused with the GCaMP6f gene was used for apicoplast targeting⁶⁷. The FNR sequence was amplified by primers 22 and 23 (Supplementary Table 4). The GCaMP6f gene was amplified by primers 24 and 25. The PCR products were purified and the construct created by overlapping PCR which was cloned into pCR-Blunt II-TOPO vector. The sequence was verified by sequencing and the FNR-GCaMP6 fragment was digested with BglII and AvrII and cloned into the same restriction sites of pDT7S4H3⁶⁸. This final plasmid was electroporated into RH and ΔTPC-a parasites. After selection with pyrimethamine, parasites were FACS sorted and subcloned. Expression of FNR-GCaMP6f in both cells was verified by IFA and western blot analysis (Fig. 7a and Supplementary Fig. 10a). To complement the TgTPC gene in the parasites expressing FNR-GCaMP6f, we transfected the plasmid pDTM3-TgTPC into the ΔTPC-FNR-GCaMP6 mutant. After culturing for 18 days, the transfected cells were subcloned. TgTPC complemented clones were verified by PCR. This clone was named ΔTPC-TPC-FNR-GCaMP6 (or CM in Fig. 7). The parasites expressing FNR-GCaMP6 were collected, washed, and suspended in Buffer A with glucose at a density of 10⁹/ml. 50 μl of parasites were transferred into a cuvette with 1.95 ml of Ringer buffer (no calcium) containing 100 µM EGTA₂. Fluorescence of FNR-GCaMP6 parasites was recorded in a Hitachi F7000 fluorescence spectrometer.

Transmission electron microsopy

For ultrastructural observations of intracellular T. gondii by thin-section transmission electron microscopy (EM), infected human foreskin fibroblast cells were fixed in 2.5% glutaraldehyde in 0.1 mM sodium cacodylate (EMS) and processed as described⁶⁹. Ultrathin sections of infected host cells were stained before examination with a Hitachi 7600 EM under 80 kV. For quantitative measurement of distance between organelles, the closest point between T. gondii’s apicoplast and ER membrane was measured using a line measurement tool. A distance between membranes of 30 nm or less was defined as membrane contact. The first 50 parasites with a visible ER and apicoplast were used for quantification. Statistics calculated from three technical replicates. Quantification was performed following a blinded setup.

Statistics

Statistical analyses were performed by Student’s t-test using GraphPad PRISM version 8.2. Error bars shown represent mean ± SD (standard deviation) of at least three independent biological replicates.

Reporting summary

Further information on research design is available in the Nature Research Reporting Summary linked to this article.

Data availability

The sequencing data generated in this study have been deposited in the NCBI database under accession code PRJNA695295. The data is available for public access. All other data generated or analyzed in this study are included in the article (and its supplementary information files). Source data are provided with this paper.
