Despite six decades of efforts to synthesize peptides and proteins bearing multiple disulfide bonds, this synthetic challenge remains an unsolved problem in most targets (e.g., knotted mini proteins). Here we show a de novo general synthetic strategy for the ultrafast, high-yielding formation of two and three disulfide bonds in peptides and proteins. We develop an approach based on the combination of a small molecule, ultraviolet-light, and palladium for chemo- and regio-selective activation of cysteine, which enables the one-pot formation of multiple disulfide bonds in various peptides and proteins. We prepare bioactive targets of high therapeutic potential, including conotoxin, RANTES, EETI-II, and plectasin peptides and the linaclotide drug. We anticipate that this strategy will be a game-changer in preparing millions of inaccessible targets for drug discovery.
After production in the ribosome, most proteins undergo further maturation through covalent modifications, which alter their structure, localization or function and aberrations in these steps are associated with numerous diseases1. While unmodified proteins can be readily obtained by biological expression, the preparation of posttranslationally modified proteins remains challenging, increasing demand for their chemical synthesis1,2.
Disulfide bonds, one of the most widespread covalent modifications, influences the three-dimensional architecture and function of peptides and proteins exist in many target of therapeutic interest such as in the insulin hormone, the coronavirus (SARS-CoV-2) spike protein3,4, and in natural libraries of toxin peptides among others. Unfortunately, performing studies with isolated or biologically expressed peptides and proteins that contain disulfide bonds, is time-consuming and often impractical and even impossible for various targets, driving the great interest in finding approaches for their efficient synthesis. Yet, their chemical synthesis remains as a long standing synthetic challenge for over six decades5,6,7,8, leaving various potential therapeutic targets inaccessible3,6,7,9.
This synthetic challenge led to exploration of two main strategies; (1) oxidative folding, which is common and depends on the protein folding pathway conferring the correct disulfide connectivities under thermodynamic control (e.g., the correct isomer out of the 75 possibilities for three disulfide bonds). This strategy suffers from various drawbacks such as long reaction times (up to several days), low yields or lack of success in many targets, probably due to the accumulation of kinetically trapped folded intermediate (dead-ends) (Fig. 1a)3,6,7,10. (2) The second strategy is based on stepwise formation of disulfide bonds employing orthogonally protected cysteine (Cys). Here, the removal of protecting groups (PGs) can lead to significant irreversible amino acids (AAs) side reactions and disulfide bonds isomerization, in addition to the lengthy process (several days) due to long reactions time and the necessity for multiple purification steps, which also leads to significant loss of material (Fig. 1b)11,12,13,14.
Here we show, an effective synthetic approach based on a general design for the synthesis of peptides and proteins containing disulfide bonds. Our strategy relies on small molecule activation of the Cys side chain via the disulfiram (DSF) and ultraviolet (UV) light/Pd chemoselective chemistries for one-pot and ultrafast formation of two or three disulfide bonds (Fig. 1c). We demonstrate the power and potential of this strategy for the preparation of various challenging targets in the efficient chemical syntheses of α-conotoxin SI peptide, RANTES protein from the chemokine family, EETI-II trypsin inhibitor knotted mini protein, plectasin antimicrobial peptide and the linaclotide peptide drug.
Results and discussion
We set out to design an effective set of sequential reactions guided by the following considerations. First, the synthesis must be accomplished rapidly to eliminate accumulation of side products and/or reshuffling. Second, the chemistry should be carried out under aqueous denaturation conditions to avoid aggregation and kinetically trapped folding intermediates. Third, all steps must be performed in a one-pot operation for efficient synthesis3,9.
Devising efficient synthesis of α-conotoxin and RANTES with two disulfide bonds
As a model system we chose the well characterized and studied α-conotoxin SI peptide, composed of 13 AAs and having two disulfide bonds between Cys (2&7) and Cys (3&13) that induce the 310 helix shape15. This peptide belongs to the Conus venoms conotoxin family— bearing multiple disulfide bonds that stabilize their compact structures. Such properties are responsible for their potency against voltage-gated ion channels, G-protein-coupled receptors and neurotransmitter transporters, making them attractive leads for drug development6.
Direct disulfide bond formation from a protected Cys precursor has been challenging due to several side reactions and/or to reshuffling when multiple disulfide bonds exist. A recent study has shown that Pd and diethyldithiocarbamate (DTC) shown an effective removal of acetamidomethyl (Acm) PG and the direct formation of a single disulfide bond in peptides with no side reaction16. Yet, avoiding reshuffling remains a significant challenge in exploring these reagents in the efficient synthesis of peptides and proteins with multiple disulfide bonds. Nevertheless, we speculated that the Pd thiophilic nature and disulfiram (DSF), the oxidized and possibly more reactive form of DTC, could be employed to tackle this synthetic problem.

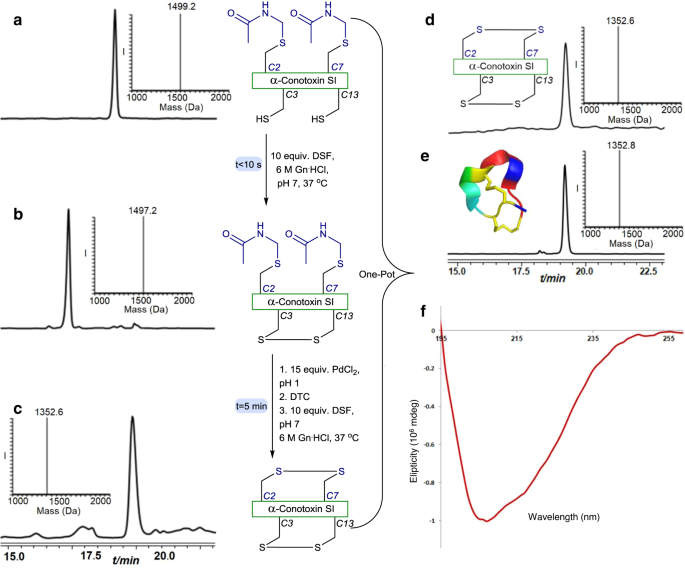

To examine this notion, we prepared the linear α-conotoxin SI peptide by solid phase peptide synthesis (SPPS), with two Cys (3&13) protected with the trityl PG to afford the free S–H of these Cys residues after trifluoroacetic acid (TFA) cleavage, and two additionally modified Cys (2&7) with the (Acm) moiety, (Supplementary Fig. 1). Exposing α-conotoxin SI to DSF at 37 °C, pH 7, led to the immediate formation of the first disulfide bond between Cys (3&13), as detected by HPLC-ESI MS. To form the second bond between Cys (2&7) we added, in situ, PdCl2 for 5 min in pH 1. Notably carrying out this step at higher pHs led to significant disulfide reshuffling. Although the exact pathway of the reshuffling step still unclear, this on the other hand highlights the challenge in this synthetic endeavor. Subsequently, we added DTC, as a Pd scavenger16, and a fresh amount of DSF followed by adjustment of the reaction to pH 7. The second disulfide bond was formed immediately as shown by HPLC-MS analysis and we isolated the desired product in 48% yield (Fig. 2a–c). Circular dichroism (CD) measurements showed the expected signature of the 310 helix native isomer (Supplementary Fig. 2 and Fig. 2f) confirming the formation of the native α-conotoxin SI peptide with the correct disulfide bonds15. In addition, the chromatographic retention time of our synthetic product matched perfectly to the commercially available peptide (Fig. 2d, e, respectively).

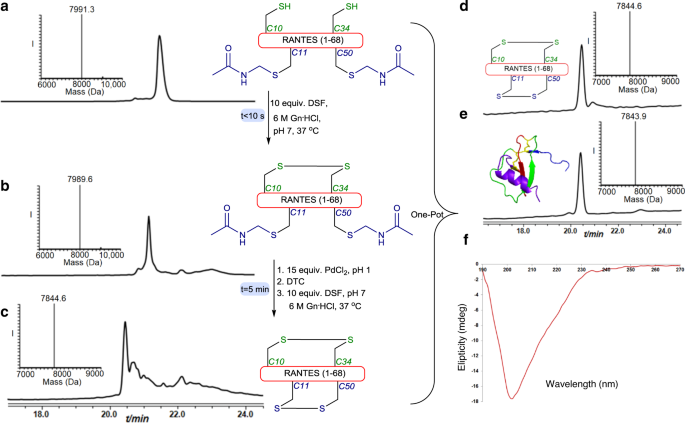

These encouraging results motivated us to examine our set of conditions in more challenging synthetic systems. Therefore, we chose the RANTES chemokine protein from the cytokine family that directs trafficking of leukocytes during inflammation17. We prepared this protein, composed of 68 AAs and two disulfide bonds between Cys (10&34) and Cys (11&50)18, via SPPS with Cys 10 and 34 in the free form, and Cys 11 and 50 modified with the Acm (Supplementary Fig. 3). Applying our developed synthesis afforded the native protein with the correct disulfides within 5 min, which was isolated in 35% yield for the two oxidation steps (Fig. 3a–c). The chromatographic retention time of the product matched perfectly with the commercially available protein and the CD signature of the correct isomer folding was detected (Fig. 3d–f).
One-pot formation of three disulfide bonds: plectasin and linaclotide syntheses
Next we sought to develop conditions for formation of three disulfide bonds in a one-pot operation taking advantage of the above describe conditions. We searched for possible orthogonal chemistry with the Pd and DSF before or after the Acm removal and in presence of at least a single disulfide bond. Therefore, we envisioned a possible pathway involving Pd/light irradiation, as disulfide bond is known to be stable to light irradiation19. To evaluate this notion, we synthesized the α-conotoxin peptide bearing two Cys (3&13) modified with 2-nitrobenzyl (NBzl) and other two Cys (2&7) modified with Acm. We examined the use of the NBzl photosensitive PG under exposure to our conditions because of its relatively easy incorporation to the Cys side chains and its high stability in SPPS20,21. To our pleasant surprise when the α-conotoxin peptide was exposed to UV light in presence of DSF at pH 7, a fast (within 8 min) and simultaneous decaging and selective disulfide formation, was observed without affecting the Acm (Supplementary Fig. 4). Notably, this decaging step was expedited by the disulfide formation in presence of DSF20. Following the UV step, we then added PdII and DTC/DSF, which led to the formation of the desired product within only 5 min without any detectable side products (Supplementary Fig. 4).
Based on these results with the model peptide, we designed the following synthetic one pot operation for the synthesis of peptides and proteins with three disulfide bonds, which includes; (1) DSF mediated formation of the first disulfide bond (<10 s), (2) UV light exposure (~8 min) to form the second disulfide bond from a Cys (NBzl) precursor, (3) PdII DTC/DSF mixture mediated third disulfide bond formation from a Cys (Acm) precursor (~5 min).

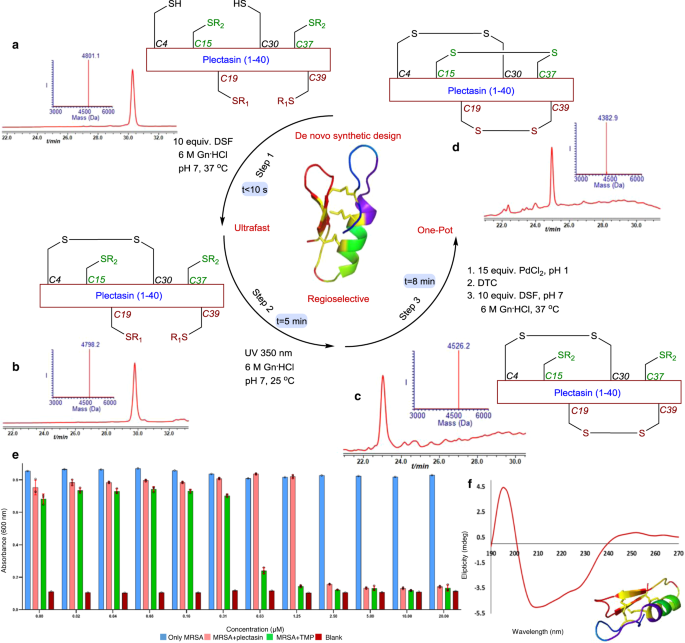

To evaluate the practicability of this design, we chose the plectasin peptide, known as a fungal defensin potently active against drug-resistant Gram-positive bacteria (e.g., streptococci)22. This peptide is made of 40 AAs with three disulfide bonds between Cys (4&30), Cys (19&39), Cys (15&37) and shares structural features with the other members of this family. The linear polypeptide was assembled via SPPS protocol, bearing two free Cys (4&30), two Cys modified with NBzl (19&39) and two Cys modified by Acm (15&37) (Supplementary Fig. 5). The peptide was subjected to our synthetic design and a single product was formed within 13 min and was isolated in 43% yield (Fig. 4a–d). The folded protein eluted with the same retention time as the product obtained via oxidative folding following previously used protocols (Supplementary Fig. 6), exhibited the expected biological antibiotic activity (Fig. 4e) and showed the expected CD signature of the natural isomer laddered shape and (Fig. 4f)23. Using our protocol we have also prepared the linaclotide drug for chronic constipation and irritable bowel syndrome, made of a 14 AAs peptide and bearing three disulfide bonds (Fig. 5 and Supplementary Figs. 7, 8)3.
Synthesis of EETI-II knotted mini protein
With these results in hands, we decided to examine our synthetic design on a more challenging example from the knotted protein family. The synthesis of molecular knots has been a challenging problem that has spurred synthetic efforts for the past 50 years24. In particular the synthesis of Cys knot structural motif that has exceptional effects on peptide/protein chemo, mechano and proteolytic stability has remained difficult to the point of seemingly impossible7. We chose as a representative example the well-studied EETI-II mini protein, composed of 28-residues and belonging to the squash family of trypsin inhibitors, which has never been
prepared using the stepwise approach25,26. Using native chemical ligation in solution or on resin coupled with oxidative folding the protein was successfully prepared. Yet, the oxidative folding step took up to 10 days for completion25. To examine our strategy we used SPPS to afford the linear peptide bearing free Cys (9&21), Cys (15&27) modified with NBzl and Cys (2&19) modified with the Acm (Supplementary Fig. 9). Applying our synthetic three steps operation, the protein was formed with native disulfide connectivities within 13 min (Fig. 6 and Supplementary Fig. 10). The product was isolated in 32% yield and showed the native biological activity25 in addition to the expected unique CD signature (Fig. 7).
In summary, we introduced here a straightforward synthetic scheme applying activation of the Cys side chain by DSF, UV light, and Pd for chemoselective and regioselective formation of multiple disulfide bonds, tackling a decades old standing problem in peptide and protein chemistry. This efficient three step, one-pot operation was demonstrated in the syntheses of representative examples from various large peptide/protein families. This strategy is currently restricted to three disulfide bonds and the synthesis of targets with more than three disulfide bonds will require the development of additional chemistry for chemoselective and regioselective disulfide bond formation. We anticipate that this synthetic design will pave the way for the synthesis of currently inaccessible targets due to its excellent efficiency and simplicity. Moreover, we envision with the recent technological progress in SPPS employing flow27,28,29 and robotic chemistry30, the generation of combinatorial libraries of peptides and proteins bearing multiple disulfide bonds for drug discovery and various other applications.
The following stock solutions were prepared; (#1) 3 mg PdCl2 was dissolved in 100 µl (170 mM) 6 M Gn.HCl buffer, pH 7. (#2) 5 mg DSF was dissolved in 100 µl (170 mM) ACN. (#3) 25 mg DTC was dissolved in 100 µl (1 M) H2O. (#4) 1 mg LiS was dissolved in 100 µl (222 mM) H2O. (#5) 1 mg glutathione (GSH) was dissolved in 100 µl (33 mM) H2O.
α-conotoxin SI synthesis
The lyophilized conotoxin peptide (0.5 mg, 0.3 nmol) was dissolved in 670 µl (0.5 mM) 6 M Gn.HCl buffer, pH 7, and treated with 10 equiv. DSF (20 µl from stock) for 10 s at 37 °C. Subsequently, the pH of the reaction was adjusted to 1 using 0.1 M HCl and 15 equiv. PdCl2 (30 µl from stock #1) was added for 5 min at 37 °C. Then, 30 equiv. (20 µl from stock #3) DTC followed by 10 equiv. DSF were added. pH adjustment to 7 and incubation at 37 °C for 10 s immediately afforded the native α-conotoxin SI.
The lyophilized plectasin peptide (0.5 mg, 0.1 nmol) was dissolved in 208 µl (0.5 mM) 6 M Gn.HCl buffer, pH 7, and treated with 10 equiv. DSF (6 µl from stock #2) for 10 s followed by exposure to UV irradiation at 350 nm for 8 min at room temperature. Subsequently the pH of the reaction was adjusted to 1 by 0.1 M HCl and 15 equiv. PdCl2 (9 µl from stock #1) was added for 5 min at 37 °C. Then, 30 equiv. (3 µl from stock #3) DTC was added followed by in situ addition of 2 equiv. LiS (1 µl from stock #4) and 10 equiv. DSF. pH adjustment to 7 and incubation at 37 °C for 10 s immediately afforded the native plectasin. The addition of 2 equiv. LiS was found to facilitate the recovery of the peptide from the bounded Pd residues.
The lyophilized EETI-II peptide (0.5 mg, 0.1 nmol) was dissolved in 303 µl 6 M Gn.HCl buffer, pH 7 (0.5 mM), and treated with 10 equiv. DSF (9 µl from stock #2) was added for 10 s followed by exposure to UV irradiation at 350 nm for 8 min at room temperature. Subsequently the pH of the reaction was adjusted to 1 using 0.1 M HCl and 15 equiv. PdCl2 (13 µl from stock #1) was added for 5 min at 37 °C. Then, 30 equiv. (4 µl from stock) DTC followed by in situ addition of 10 equiv. DSF, pH adjustment to 7 and incubation at 37 °C for 10 s afforded the native EETI-II.
The lyophilized linaclotide peptide (0.5 mg, 0.2 nmol) was dissolved in 515 µl 6 M Gn.HCl buffer, pH 7, (0.5 mM) and treated with 10 equiv. DSF (15 µl from stock #2) for 10 s followed by exposure to UV irradiation at 350 nm for 8 min at room temperature. Subsequently the pH of the reaction was adjusted to 1 by 0.1 M HCl and 15 equiv. PdCl2 (23 µl from stock #1) was added for 5 min at 37 °C. Then, 30 equiv. of DTC (7 µl from stock #3) followed by 2 equiv. GSH 10 equiv. (16 µl from stock # 5) and 10 equiv. DSF were added in situ. pH adjustment to 7 and incubation at 37 °C for 10 s immediately afforded the native linaclotide. The addition of 2 equiv. of GSH was found to facilitate the recovery of the peptide from the bounded Pd residues.
Further information on research design is available in the Nature Research Reporting Summary linked to this article.
The authors declare that the data supporting the findings of this study are available within the paper and its supplementary information files. All data are available from the corresponding author upon reasonable request.
Kulkarni, S. S., Sayers, J., Premdjee, B. & Payne, R. J. Rapid and efficient protein synthesis through expansion of the native chemical ligation concept. Nat. Rev. Chem. 2, 0122 (2018).
Bondalapati, S., Jbara, M. & Brik, A. Expanding the chemical toolbox for the synthesis of large and uniquely modified proteins. Nat. Chem. 8, 407–418 (2016).
Góngora-Benítez, M., Tulla-Puche, J. & Albericio, F. Multifaceted roles of disulfide bonds. peptides as therapeutics. Chem. Rev. 114, 901–926 (2014).
Lan, J. et al. Structure of the SARS-CoV-2 spike receptor-binding domain bound to the ACE2 receptor. Nature 581, 215–220 (2020).
Katsoyannis, P. G. Synthesis of insulin. Science 154, 1509–1514 (1966).
Jin, A. H. et al. Conotoxins: chemistry and biology. Chem. Rev. 119, 11510–11549 (2019).
De Veer, S. J., Kan, M. W. & Craik, D. J. Cyclotides: from structure to function. Chem. Rev. 119, 12375–12421 (2019).
Tombling, B. J., Wang, C. K. & Craik, D. J. EGF-like and other disulfide-rich microdomains as therapeutic scaffolds. Angew. Chem. Int. Ed. 59, 11218–11232 (2020).
Craik, D. J. Protein folding: turbo-charged crosslinking. Nat. Chem. 4, 600–602 (2012).
Dobson, C. M. Protein folding and misfolding. Nature 426, 884–890 (2003).
Ottl, J. & Moroder, L. Disulfide-bridged heterotrimeric collagen peptides containing the collagenase cleavage site of collagen type I. Synthesis and conformational properties. J. Am. Chem. Soc. 121, 653–661 (1999).
Akaji, K., Fujino, K., Tatsumi, T. & Kiso, Y. Total synthesis of human insulin by regioselective disulfide formation using the silyl chloride-sulfoxide method. J. Am. Chem. Soc. 115, 11384–11392 (1993).
Kobori, T., Iwamoto, S., Takeyasu, K. & Ohtani, T. Disulfide bond rearrangement during regioselective oxidation in PhS(O)Ph/CH3SiCl3 mixture for the synthesis of α-Conotoxin GI. Pept. Sci. 85, 392–406 (2007).
He, R., Pan, J., Mayer, J. P. & Liu, F. Stepwise construction of disulfides in peptides. ChemBioChem 21, 1101–1111 (2020).
Benie, A. J., Whitford, D., Hargittai, B., Barany, G. & Janes, R. W. Solution structure of α-conotoxin SI. FEBS Lett. 476, 287–295 (2000).
Laps, S., Sun, H., Kamnesky, G. & Brik, A. Palladium-mediated direct disulfide bond formation in proteins containing S-acetamidomethyl-cysteine under aqueous conditions. Angew. Chem. Int. Ed. 58, 5729–5733 (2019).
Hartley, O. et al. Medicinal chemistry applied to a synthetic protein: development of highly potent HIV entry inhibitors. Proc. Natl Acad. Sci. USA 101, 16460–16465 (2004).
Guan, X. et al. O-GalNAcylation of RANTES improves its properties as a human immunodeficiency virus type 1 entry inhibitor. Biochemistry 57, 136–148 (2018).
Patil, N. A., Karas, J. A., Wade, J. D., Hossain, M. A. & Tailhades, J. Rapid photolysis-mediated folding of disulfide-rich peptides. Chem. Eur. J. 25, 8599–8603 (2019).
Erlich, L. A., Kumar, K. S. A., Haj-Yahya, M., Dawson, P. E. & Brik, A. N-methylcysteine-mediated total chemical synthesis of ubiquitin thioester. Org. Biomol. Chem. 8, 2392–2396 (2010).
Isidro-Llobet, A., Álvarez, M. & Albericio, F. Amino acid-protecting groups. Chem. Rev. 109, 2455–2504 (2009)..
Mygind, P. H. et al. Plectasin is a peptide antibiotic with therapeutic potential from a saprophytic fungus. Nature 437, 975–980 (2005).
Mandal, K. et al. Racemic crystallography of synthetic protein enantiomers used to determine the X-ray structure of plectasin by direct methods. Protein Sci. 18, 1146–1154 (2009).
Forgan, R. S., Sauvage, J. P. & Stoddart, J. F. Chemical topology: complex molecular knots, links, and entanglements. Chem. Rev. 111, 5434–5464 (2011).
Johnson, E. C. B., Durek, T. & Kent, S. B. H. Total chemical synthesis, folding, and assay of a small protein on a water-compatible solid support. Angew. Chem. Int. Ed. 45, 3283–3287 (2006).
Gates, Z. P. et al. Xenoprotein engineering via synthetic libraries. Proc. Natl Acad. Sci. USA 115, 5298–5306 (2018).
Hartrampf, N. et al. Synthesis of proteins by automated flow chemistry. Science 368, 980–987 (2020).
Chisholm, T. S., Clayton, D., Dowman, L. J., Sayers, J. & Payne, R. J. Native chemical ligation-photodesulfurization in flow. J. Am. Chem. Soc. 140, 9020–9024 (2018).
Agouridas, V. et al. Native chemical ligation and extended methods: mechanisms, catalysis, scope, and limitations. Chem. Rev. 119, 7328–7443 (2019).
Burger, B. et al. A mobile robotic chemist. Nature 583, 237–241 (2020).
A.B. holds the Jordan and Irene Tark Academic Chair. This project has received funding from the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation program (grant agreement no. ). S.L. thanks the Technion for the Jacobs fellowship for excellence. We thank Prof. Michael M. Meijler from the Department of Chemistry, Ben-Gurion University, for his assistance with the plectasin activity assay. We thank Dr. Muhammad Jbara for useful discussion.
The authors declare no competing interests.
Peer review information Nature Communications thanks Gonçalo Bernardes, John Wade and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.
