Introduction

Midkine (MDK) is a heparin-binding growth factor first discovered as a highly expressed gene during mouse embryogenesis [1]. To date, MDK is viewed as a multifunctional protein and along with pleiotrophin (PTN), they form a structurally unique family of heparin-binding growth factors [2]. MDK is a soluble secreted protein that is highly elevated in various diseases, such as cancer, and therefore it could serve as a valuable disease biomarker [3]. In many types of cancer, MDK has been shown to be overexpressed [3], especially during tumor progression into more advanced stages [4]. Of note, MDK expression in tumors has been determined by blood [5, 6], urinary [7], and tumor analysis [8].

MDK is implicated in various physiological processes such as development, reproduction, and repair thus playing important roles in the pathogenesis of malignant and other diseases [9]. Therefore, this protein is expressed by a variety of cells under physiological and pathological conditions. Under physiological conditions significant MDK expression is observed in the epidermis [10], bronchial epithelium [11], and lymphocytes [12, 13]. Contrarily, in another study, MDK was shown to be expressed in several tumor cell lines, but not in blood-derived normal cells, including monocytes, lymphocytes, or activated T lymphocytes [14]. Consistent with its role during mouse embryogenesis, MDK is expressed in embryonic stem cells and its role in their survival has been well documented [15]. In particular, MDK is intensely expressed in the midgestation stage and from the mode of its distribution, has been suggested to play roles in neurogenesis, epithelial–mesenchymal interactions and mesoderm remodeling [16, 17]. Moreover, the mode of MDK location is consistent with its multiple roles in neurogenesis. MDK is strongly expressed in the basal layer of the cerebral cortex, which is rich in neural precursor cells, including neural stem cells and also in radical glial processes, which are extensive neutral stem cells derived processes [18].

In spite of the roles of MDK in development mentioned above, MDK-deficient mice are born without major defects [19]. However, mice deficient in both genes MDK and PTN are born smaller in size, and about 50% of them die before 4 weeks (see in [9]), suggesting that MDK and PTN potentially compensate for each other during embryogenesis [9]. Furthermore, mice deficient in MDK or PTN exhibit a moderate auditory deficit, while mice deficient in both present with more severe phenotype [20]. Moreover, mice deficient in MDK exhibit normal phenotypes in overall neural functions [19], although more in-depth analysis revealed deficits in specific neural functions [21].

Of note, MDK is strongly expressed by the majority of tumor cells in human malignant tumors [9, 22] and this will be the highlighted topic of the current review. As mentioned, MDK functions as a cytokine and growth factor with complex biological functions, and is implicated in a variety of (patho)physiological processes [4]. MDK is involved in the acquisition of multiple hallmarks of cancer: it promotes tumor cell proliferation, transformation, and epithelial-to-mesenchymal (EMT) transition; [22,23,24] it has angiogenic [25], mitogenic [26], antiapoptotic [27], and antitumor immunity [28] roles, and it has also been involved in chemoresistance [29]. The wide expression of MDK in many tumors, its causative involvement in cancer development and progression, as well as its potential role as a cancer biomarker, are currently under investigation, because of the many potential translational applications, as will be outlined below.

In this review, we offer a detailed insight on the functions and the molecular and biological significance of MDK in cancer. Specifically, we provide an updated and critical viewpoint on the involvement of MDK in cancer progression and response to chemotherapy, as well as its emerging roles in antitumor immunity and inflammation. Furthermore, we highlight and explore the significance of this protein as a tentative tumor biomarker in different types of cancer, as well as its potential as a drug therapeutic target.

Genomic and protein domain organization of MDK

The human MDK gene, located on 11q11.2 chromosome, encodes a 15.5-kDa protein rich in basic and cysteine amino acids (UniProtKB - P21741 (MK_HUMAN)) [30,31,32].

In the promoter region of MDK, there are functional binding sites for retinoic acid receptor [33] and a hypoxia responsive element, possibly involved in the increased expression of MDK in various tumors [34]. Hypoxia induces MDK expression through the binding of the HIF-1a to a hypoxia responsive element in MDK promoter [34]. There is also a binding site for the product of Wilms’ tumor suppressor gene [35] for MDK upregulation in Wilm’s tumor cells [36]. Contrarily, MDK was shown to be downregulated by cortisol in fetal lung development via a glucocorticoid receptor action [37].

The MDK human gene consists of four coding exons. Due to the differential splicing and differences in the transcription initiation site, there are seven isoforms in the MDK mRNA. Two isoforms are generated by skipping a coding exon and yield truncated MDK (tMDK) (Fig. 1a). A tMDK variant derived from mRNA without the second coding exon is tumor-specific and might be of diagnostic value [9]. Different other tMDK variants have also been reported in the literature. For instance, a truncated MDK variant (tMDKC) resulting from a deletion of part of exon 3 plus most of exon 4, encodes a putative 62 amino acid product [38]. Another variant (tMDK) has also been identified in Wilms’s tumor tissues [39] and in a variety of metastatic gastrointestinal cancers. It remains to be elucidated whether such truncated variants play any role in a physiological, besides neoplastic, context. Moreover, an isoform with two extended amino acids at the N-terminal is present in MDK (the first two MDK residues (valine (V) and alanine (A)), called the ‘VA-MDK’ [40] (Fig. 1a). Therefore these two forms (the conventional MDK and the ‘VA-MDK’) (Fig. 1a) may occur simultaneously in vivo [40] and may have a different biological significance.

Fig. 1
figure 1

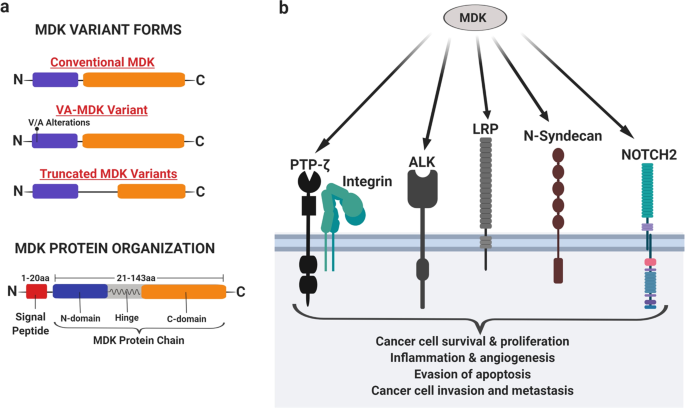

Structural domain organization and candidate receptors of MDK protein. a MDK isoforms and splice variants. The conventional and ‘VA-MDK’ variants differing in the N-terminal sequence in two amino acids [(the first two MDK residues (valine(V) and alanine(A)], as well as truncated MDK forms, are displayed in a comparative manner. The protein domain organization of MDK according to Uniprot Database [UniProtKB - P21741 (MK_HUMAN)], is shown in the bottom half of the panel. MDK is a secreted protein of 15.5 kDa containing a signal peptide for secretion (aa 1–20) and the main protein chain (aa 21–143), composed of two domains (N-Domain and C-Domain) held together by disulfide linkages. The C-terminal located domain is responsible for midkine activity and the N-terminal domain is required for dimerization [2]. b MDK interactions with different plasma membrane receptors, including syndecans, integrins, protein tyrosine phosphatase ζ (PTPζ), anaplastic lymphoma kinase (ALK), low-density lipoprotein (LDL)-receptor-related protein (LRP), and Notch2 receptor. All (or some) of these receptors could function as a multimolecular complex coordinated to transduce the MDK signal into the cell by different signaling pathways, thus regulating different cancer-related phenotypes

Full size image

Mutations in MDK gene were not found in high frequency; a mutation was only found in lung cancer, cervical cancer, and malignant melanoma patients respectively (http://www.oasis-genomics.org/, TCGA). Moreover, only three missense mutation types of unknown significance identified in lung cancer (lung squamous cell carcinoma and lung adenocarcinoma) and one nonsense mutation in lung adenocarcinoma (cBioPortal for Cancer Genomics).

MDK protein contains a signal peptide for secretion (aa 1–20) and the main protein chain (aa 21–143) with two distinct domains (N-terminal and C-terminal domain) flanked by intra-domain with disulfide bridges [41] (Fig. 1a). MDK and PTN share 50% sequence homology with cysteine and tryptophan residues being conserved in humans [9]. Among the two conserved MDK domains, the C-domain has been considered to play more important role in MDK function, exerting neurite-promoting activity [22]. Moreover, two heparin-binding sites are present in the C-domain of human MDK [22]. The N-domain appears to be important for the stability of MDK as the C-terminal half of MDK is more susceptible to chymotrypsin digestion [42], involved in MDK dimerization [22]. Overall, further studies of the expression and function of MDK variants in health and disease are clearly warranted, and the relative expression levels of full-length vs. MDK variants (for both gene and protein levels) (Fig. 1a) might prove to be diagnostically useful.

Implications of MDK in the hallmarks of cancer

MDK is a protein that initiates signaling through ligand-dependent receptor activation for a biological response [43]. To date, there have been key advances made on elucidating the functional MDK-mediated mechanisms, including diverse receptors and complicated intracellular signaling pathways. The glycosaminoglycan (GAG)-recognizing activity of MDK is important for this mechanism of action. For this reason, proteoglycans including receptor-like protein tyrosine phosphatase- ζ (PTP-ζ) [44], syndecans [17], and glypican-2 [45], demonstrate a strong affinity for MDK (Fig. 1b). Other proteins, such as low-density lipoprotein receptor-related protein (LRP) [46], α4β1-integrin, and α6β1-integrin [47] also serve as putative MDK receptors, which, together with PTP-ζ form a receptor complex for MDK binding (Fig. 1b). In general, the interactions of MDK with the above mentioned receptors or receptor complexes promote cancer cell growth, migration, metastasis, and angiogenesis [23] via the activation of downstream signaling cascades [44, 46] (Fig. 1b).

As already explained, MDK is a growth factor overexpressed in various human malignancies [43, 48], and the downstream signaling events may be linked to a vast plethora of phenotypic characteristics leading to cancer development and progression [25, 49,50,51] (Fig. 1b). In this chapter, we describe the involvement of MDK in cancer-related signaling from the viewpoint of the well-described hallmarks of cancer, as described by Hanahan and Weinberg [52] and indicated briefly as an illustration in Fig. 2.

Fig. 2
figure 2

Implications of MDK in the hallmarks of cancer. a MDK-mediated proliferation/growth signaling through conventional intracellular circuitries and pathways (Src/MAPK/PI3K; akt/mTORC1/NF-kappaB), b MDK involvement in angiogenesis and microvascular density through conventional cancer-associated angiogenic pathways, c MDK-mediated regulation of cancer cell invasion and metastasis via at least three disparate mechanisms: (i) epithelial-to-mesenchymal (EMT) transition, (ii) extracellular proteolytic relationships with kallikrein-related peptidases (KLKs) in the tumor microenvironment, (iii) MDK-driven neolymphangiogenesis via mTOR signaling pathway activation and increased VEGFR3 expression, d MDK involvement in antitumor immunity. MDK-specific cytotoxic T lymphocytes can lyse tumor cells. e MDK-dependent immune cell chemotaxis: Neutrophil/macrophage adhesion and chemotaxis are mediated via an LRP1/β2-integrin signaling interplay that facilitates their trafficking during cancer-associated acute inflammation

Full size image

MDK-mediated proliferation/growth signaling, and apoptosis evasion

Recent studies demonstrated that MDK binds to heparan sulfate and chondroitin sulfate and activates several signaling pathways contributing to cell growth and proliferation [9] via downstream signaling systems such as the Src family kinases and the tyrosine phosphorylation of PI3-kinase and MAP kinases [46, 51] (Fig. 2a).

Moreover, it was demonstrated that the resistance of glioma cells to tetrahydrocannabinol (THC) relies on the MDK-mediated stimulation of anaplastic lymphoma kinase (ALK), making the cells resistant to autophagy-mediated cell death in vitro and in vivo [53, 54]. In particular MDK, modulates p8/TRB3 expression as well as the activity of the Akt/mTORC1 axis, via the ALK receptor, to prevent the autophagy-mediated cell death by THC cannabinoids [55] (Fig. 2a). In vivo MDK silencing or ALK pharmacological inhibition sensitizes cannabinoid-resistant tumors to THC antitumoral action [55], suggesting that MDK/ALK axis could be an efficient target for glioma therapies. Previous reports also suggested that ALK is included in the receptor complex of MDK along with LRP and integrins [9, 54]. In specific, after activation of the receptor complex by MDK, ALK phosphorylates the insulin receptor substrate-1, and activates MAP kinase and PI3-kinase leading to transcriptional activation of nuclear factor kappa-light chain-enhancer of activated B cells (NF-κB) [54] (Fig. 2a). Taken together, MDK acts through diverse downstream signaling pathways, including, but not limited to, the Src and NF-κB to elicit protumoral responses in many cancer types. Interestingly, MDK may also be implicated in survival pathways in hematopoietic malignancies. Foremost, MDK enhances the survival of mature B cells and the suppression of MDK-dependent survival pathway might be considered for treatment of B cell malignancies [56].

MDK-mediated angiogenesis

Of note, the tumor growth-promoting activity of MDK is also partially due to its ability to promote tumor angiogenesis. MDK, apart from a heparin-binding cytokine or a cancer cell growth factor, is also a potent proangiogenic factor [57, 58]. Enhanced tumor growth after subcutaneous injection of MDK into nude mice was in part associated with increased microvessel density, indicating enhanced proliferation of endothelial cells within the tumor [25] (Fig. 2b). Interestingly, high MDK expression was localized in tumor endothelial cells of human neural tumor tissues, suggesting that endothelial cells also can represent the source of MDK during tumor angiogenesis [59]. In addition, conditioned media of cancer cells, artificially induced to overexpress MDK has been shown to induce angiogenesis by promoting proliferation of endothelial cells in vitro [58]. Antisense oligonucleotides against MDK inhibited growth of endothelial cells in vitro and tumor-induced angiogenesis in a chorioallantoic membrane (CAM) assay and tumor vascularization in vivo [60]. Mechanistically, MDK seems to control plasma bioavailability of vascular endothelial growth factor-A, which in turn, is related to the expression of neuronal nitric oxide synthase (Nos1) and endothelial Nos (Nos3) in endothelial cells, and eventually angiogenesis [61] (Fig. 2b).

Although speculative, there is now a compelling line of evidence suggesting that MDK could be involved in hypoxia-mediated tumor angiogenesis: (i) hypoxia induces MDK expression through the binding of HIF-1a to a hypoxia responsive element on the MDK promoter [34], (ii) MDK was also shown to be implicated in hypoxia-induced angiogenesis in nonneoplastic contexts such as ischemia of adult normal tissues [62], (iii) hypoxia increases MDK protein levels in human polymorphonuclear neutrophils (PMN), monocytes, and human umbilical vein endothelial cells [62] and (iv) as already mentioned, the tumor growth-promoting activity of MDK has been found to be due to its ability to promote tumor angiogenesis [58]. The precise mechanistic underpinnings remain to be elucidated.

MDK-mediated cancer invasion and metastasis

MDK has been proposed to mediate metastasis by its combined mitogenic, proinflammatory, and angiogenic functions [4, 63, 64]. Of note, MDK has been linked to EMT [65, 66] (Fig. 2c, i) and has been described to interact with various protein members of the TGF-β pathway in vitro [65], a central mediator pathway for EMT [67], thus leading to increased migration of cancer cells in vitro and in vivo [66]. In addition, MDK was described to mediate cell survival and growth mainly through phosphatidylinositol 3-kinase (PI3K) and extracellular signal-regulated kinase (ERK) signaling [68, 69]. However, the expression of cell–cell and cell–matrix adhesion molecules ICAM-1, E-cadherin, periostin, and MDK was not significantly linked to metastatic disease in pancreatic ductal adenocarcinomas (PDACs) cells [65]. Furthermore, estrogen enhanced MDK expression in accordance with an increase of EMT, whereas knockdown of MDK blocked EMT under estrogen stimulation in lung adenocarcinoma, indicating a pivotal role of MDK in progression of estrogen-regulated EMT [70]. After ligand–receptor interactions of PTPζ with MDK, tyrosine phosphorylation was increased in cytoplasmic signaling molecules, such as β-catenin [71, 72]. Dephosphorylation of β-catenin is a critical step in the canonical Wnt signaling. In normal osteoblasts, MDK has been shown to inhibit osteoblast proliferation by interfering in Wnt signaling via inhibition of the PTPζ-mediated dephosphorylation of β-catenin [71]. In glioma development, the Wnt/β-catenin/MDK molecular network as control mechanism was further revealed. It was found that Wnt3a administration or transfection of a constitutively activated β-catenin promoted MDK expression in glioma cells [73]. Furthermore, a TCF/LEF binding site was identified, with which beta-catenin interacts, on the proximal promoter region of MDK gene [73].

In another study, an interaction between the Notch2 receptor and MDK (Fig. 2c, i), in PDAC cells activated Notch signaling, induced EMT upregulated NF-kB, and increased chemoresistance in a downstream sequence [74].The interaction of Notch2 and MDK was observed in vitro, with the treatment of Notch2–positive PDAC cells with soluble MDK resulting in Notch2 activation and linked to upregulation of Notch downstream targets (Hes-1 and NF-kB/RelA) [74]. Similarly, it was also demonstrated that MDK binds to the Notch2 receptor in HaCaT, thus activating Notch2 signaling and leading to an MDK-induced cross talk of Notch2/Jak2/Stat3 signaling pathways that regulate cell plasticity and motility contributing to EMT, as well as to later stages of tumorigenesis [75].

Proteolytic enzyme networks may also participate in MDK-induced metastasis [76, 77] (Fig. 2c, ii). Interestingly, kallikrein-related peptidases (KLKs), the largest family of extracellular serine peptidases known to-date [78], may play a leading role in the regulation of the cell-biological programs, facilitating cancer progression, particularly through extracellular hydrolysis of crucial mediators such as cell–cell adhesion proteins, membrane-bound proteins and receptors, cytokines and growth factors, ECM proteins, as well as other KLKs [78]. MDK was identified as a key substrate for the two chymotrypsin KLKs (KLK7 and KLK9) [76, 77] upon specific cleavage, suggesting a potential role of the KLK7/9-MDK axis in cancer progression and metastasis, especially in tumors with aberrant deregulation of KLK7/9 expression [79, 80]. Future studies should investigate the exact roles of extracellular proteolytic networks in MDK cleavage regulation and MDK-driven metastasis.

A prometastatic role of MDK in melanoma progression was based on its link to neolymphangiogenesis via the mTOR signaling pathway [81] (Fig. 2c, iii). MDK binds heparan sulfate and lymphatic endothelial cells, thus activating mTOR signaling to increase the expression of VEGFR3, through which major lymphangiogenic signals are transduced [81]. These signals stimulate the systemic lymphangiogenesis and tumor cell transmigration through the lymphatic endothelium in premetastatic sites (Fig. 2c, iii). As expected, the silencing of MDK decreased lymphangiogenesis and metastasis in lymph nodes and lungs, while MDK overexpression caused the opposite effect in immunodeficient nu/nu mice [81].

MDK-mediated antitumor immunity and inflammatory response

Involvement of MDK in antitumor immunity

The emerging appreciation of the MDK function in the immune system has been assessed, by sculpting myeloid cell phenotype and driving immune cell chemotaxis [14] (Fig. 2d). In addition, it has been shown that in vitro stimulation of CD8+ T cells collected from HLA-A2 healthy donors and immunization of HLA-A2 transgenic mice, identified two CD8+ T cell epitopes, which demonstrate that MDK-specific cytotoxic T lymphocytes can lyse tumor cells [14] (Fig. 2d). One of these CD8+ T cell epitopes resides in the signal peptide, as described previously for other secreted tumor antigens [82], suggesting that MDK could be a novel candidate for cancer vaccine development. Moreover, the capacity of MDK to prime CD4+ T lymphocytes in humans and localized several CD4+ T cell epitopes of MDK-restricted to different HLA-DR molecules was also identified [28]. Two CD4+ T cell epitopes, overlapping MDK signal peptide but differing in their processing outcome in tumor cells, were responsible for a large proportion of the T cell response [28].

MDK-mediated tumor promoting inflammation

MDK is one of the growth factors that modulate inflammation [83], in part due to presenting similar properties with antibacterial proteins triggering the activation of the innate immune system [84]. MDK expression is strongly induced during inflammatory processes [85], leading to increased angiogenesis. Neutrophils, which also play a role in angiogenesis [86], have a designated role in MDK-mediated inflammation. MDK seems to support the PMN adhesion by promoting high affinity of β2-integrins, thereby facilitating PMN trafficking during acute inflammation (Fig. 2e). The suppression/blocking of low-density lipoprotein receptor-related protein 1 (LRP1) suggested that it may act as a receptor for MDK on PMNs [87] (Fig. 2e). Besides neutrophils, MDK also regulates macrophage chemotaxis [85] and MDK-deficient mice displayed lower neutrophil and macrophage numbers in a model of early-stage of fracture healing [88]. The important role for the proinflammatory cytokines MDK and IL-6 in the response to fracture in estrogen-deficient mice was also assessed [89], and demonstrated increased MDK levels after fracture in mice and female fracture patients after menopause. Given the above, the role of MDK in the neutrophil and macrophage-mediated inflammatory responses in cancer need to be confirmed and elucidated. In this context, the potential pharmacological targeting of MDK as a potential antiinflammatory therapy should also be assessed.

MDK as a diagnostic and prognostic cancer biomarker

MDK overexpression at the gene and the protein level within the tumor is a typical feature of cancer and has been reported for several different cancer types [90,91,92,93]. As a plasma-secreted protein, MDK has also been found increased in the blood and urine of patients with malignant tumors [94, 95]. Although there are studies showing lack of association between MDK plasma levels and diagnostic accuracy or prognostic significance (i.e., endometrial cancer) [96], MDK has been reported as a potential diagnostic and prognostic cancer biomarker associated with poor survival [97, 98]. Because it is not cancer-specific, but related to the tumorigenic process as described above, MDK may be considered as multicancer biomarker. Since there is an urgent need for the discovery of novel tumor biomarkers, here, we detail the potential of MDK as a cancer biomarker, and its role in prognosis and/or diagnosis in certain types of cancer (Table 1).

Table 1 The role of MDK as a diagnostic and prognostic biomarker in different types of cancer
Full size table

Pancreatic cancer

Pancreatic cancer is one of the most aggressive human malignant cancers associated with rapid progression and poor prognosis [99]. Insufficient diagnostic tools and therapeutic options for PDAC still substantiate its ranking as fourth leading cause of cancer-related death. Therefore, a better understanding of newly identified and cancer-specific key molecules that could serve as novel diagnostic and prognostic tumor markers for PDAC are needed. Foremost, MDK mRNA was found to be overexpressed in pancreatic cancer tissues compared with normal tissues, suggesting that MDK is an early disturbed molecule in the course of pancreatic neoplasmatogenesis [100]. Importantly, serum MDK concentrations were found significantly elevated in patients with PDAC compared with healthy individuals [101], suggesting a potential role of MDK as a diagnostic marker for PDAC.

Lung cancer

Lung cancer is the leading cause of cancer-related mortality worldwide [102]. The incidence of non-small cell lung cancer (NSCLC), a major form of lung cancer, has increased in the past several decades. Early stage detection of lung cancer is a key aspect that may offer more treatment options and a greater chance of survival to patients. MDK is one of the six-biomarker blood test for the detection of early stage lung cancer at risk populations [3]. A significant association was observed between overexpressed MDK (mRNA and protein levels) with malignant status and poor prognosis in NSCLC patients [103]. MDK levels were found to be useful, minimally invasive biomarkers for NSCLC detection and prognosis [104].

Bladder cancer

Bladder cancer (BCa) is the most common malignancy of the urinary tract in the elderly population and the sixth most common cancer in men worldwide [105]. Although a great effort was performed to investigate putative urinary biomarkers suitable for the noninvasive diagnosis of BCa, a routine application of these tests is not recommended for the primary detection of BCa [106]. MDK protein expression in BCa and its correlation with a poor outcome in invasive bladder carcinomas has been reported [107], and increased MDK protein levels in urine specimens from BCa patients [7, 108, 109] was demonstrated. Importantly, the correlation between MDK protein concentration in urine and disease progression in terms of tumor stage and grade has been previously investigated [108]. MDK protein showed a substantial elevation in the urine of patients, although not in the urine of those with early-stage low-grade tumors [108]. In another study, increased MDK levels were normalized to urinary creatinine, indicating that MDK may potentially be suitable marker for the identification of patients with high risk BCa [106].

Liver cancer

Hepatocellular carcinoma (HCC) is a common primary liver cancer and one of the most aggressive cancers worldwide [110]. Early diagnosis has been considered as the most important factor to achieve long-term survival for HCC patients [111] and the emergence of novel specific and sensitive biomarkers is essential. MDK mRNA levels were higher in HCC specimens than in noncancerous tissues [112], as well as serum MDK protein levels [94] and IHC analysis showed high MDK expression in HCC patients [113]. Of note, the diagnostic signature approach using a combined score of MDK with other four biomarkers rather than a single one, may improve the prediction accuracy of the HCC patients [112] and the MDK levels in HCC with intra-hepatic metastasis were significantly higher than without [114]. MDK increased the diagnostic yield in alpha-fetoprotein (AFP)-negative HCC and had greater diagnostic performance than AFP, osteopontin, and dickkopf-1 in the diagnosis of nonalcoholic steatohepatitis-HCC, thus playing a promising role in the asymptomatic diagnosis of HCC [115].

Melanoma

Melanoma is the most deadly type of skin cancer because of its early spread via the lymphatic vessels into lymph nodes and distant organs [116]. Cutaneous melanoma is a type of cancer with an inherent potential for lymph node colonization, which is generally preceded by neolymphangiogenesis [116, 117]. The question whether tumor lymphangiogenesis occurs in human malignant melanomas of the skin and whether the extent of tumor lymphangiogenesis is related to the risk for lymph node metastasis and to patient survival has been highly challenging to answer. Analysis of the melanoma secreted proteome in cell lines and validation in clinical specimens, showed that MDK is a systematic inducer of neolymphangiogenesis that defines melanoma patient prognosis [81, 116]. More specifically, an independent series of sentinel lymph node analysis from patients with stage II–III melanoma showed that patients with high nodal MDK expression had significantly worse disease-free survival than patients with low nodal MDK expression [81, 116].

Brain tumors

Brain neoplasms are highly fatal and gliomas (including astrocytomas and the highest grade glioblastoma) are the most common type of primary malignant brain tumor. Gliomas are common primary brain tumors with poor outcome despite the strong treatment trials [118]. Since the clinical outcome is poor, the identification of new biomarkers for improving prognosis is highly important. Previous reports showed that increased levels of MDK expression correlate with the progression of human astrocytomas [119]. MDK overexpression was significantly correlated to poor survival outcome in high-grade stage of human gliomas [118]. Moreover, the co-expression of MDK and PTN correlates with poor survival in glioma patients, suggesting that they may be used as both early diagnostic and independent prognostic markers [120].

Esophageal cancer

The 5-year survival rate of esophageal cancer is less than 10% in developing countries, and more than 90% of these cancers are squamous cell carcinomas (ESCC) [121]. Early detection is associated with improved survival in ESCC, therefore, there is a necessity for novel biomarkers to guide therapeutic management. MDK has been found to be overexpressed in various human esophageal malignant tumors [122, 123]. The expression of MDK was correlated with poor tumor cell differentiation (poorly differentiated tumor cells-weak MDK expression) in ESCC [124]. High serum MDK levels were associated with tumor size, immunoreactivity, and poor survival in patients with esophageal cancer [125].

Breast cancer

Breast cancer is a complex genetic and highly prevalent disease and although several biomarkers have been extensively studied, only few have been approved for clinical use [126]. Different subtypes of breast cancer show diverse clinical outcome and may have different prognosis. Nowadays, there is still an urgent need to explore novel molecular targets that serve as prognostic biomarkers and novel therapeutic targets. Foremost, plasma and tissue MDK levels measurements in breast cancer patients were found abnormally elevated compared with healthy individuals [127, 128], suggesting that MDK is disturbed early on in the course of disease progression. Moreover, increased plasma MDK levels in combination with conventional markers (such as CA15–3, CEA, and NCC‐ST435) provided significant improvement for breast cancer diagnosis [127]. Furthermore, increased MDK levels were correlated with menopausal status and nuclear grade in primary invasive breast cancer without distant metastasis [127]. Although promising, the clinical significance of MDK in the plasma of breast cancer patients needs further exploration.

Ovarian cancer

Ovarian cancer is the 8th most common cancer in women and the 2nd most common type of gynecological cancer in the world [129]. The development of more accurate and “early detection” tests for ovarian cancer are undoubtedly the top priority for reducing mortality. A prior study has confirmed the utility of both MDK and anterior gradient 2 (AGR2) proteins as plasma biomarkers for ovarian cancer and, when combined in a multianalyte panel (consisting of MDK, AGR2, and CA125), it was shown these two proteins to significantly improve the diagnostic efficiency of CA125 [130].

The role of MDK as a predictive cancer biomarker in chemotherapy

Accumulating evidence indicates that MDK plays an important role as a drug-resistance regulatory factor. For example, it was previously demonstrated that MDK protects cancer cells against cannabinoid and doxorubicin treatment [55, 131, 132]. Furthermore, MDK was overexpressed in drug-resistant gastric cancer cell sublines compared with the parental drug-sensitive ones [133]. Contrarily, other studies indicate that MDK downregulation induces cisplatin resistance in oral squamous [134] and renal carcinomas [135]. These observations collectively suggest that MDK may potentially induce either a drug-resistant or a drug-sensitive cancer cell phenotype, depending on the context.

Several studies merely focused on the effect of MDK expression in tumor microenvironment (TME) cells on chemoresistance via different mechanisms. For example, it has been shown that MDK activated the Akt signaling pathway that provides cytoprotective signals to doxorubicin [136], as opposed to the MDK-sensitized ovarian cancer cells to paclitaxel and/or cisplatin [137]. In another study, it was demonstrated that the cytotoxic effect of cisplatin on the human gastric cancer cell line AGS was attenuated by recombinant human MDK, and was promoted by suppressing MDK through downregulation of Notch pathway ligands and receptors [138]. Ovarian cancer cell lines expressing MDK levels were also used to detect drug cytotoxicity in vitro [137]; MDK could inhibit the expression of the multidrug resistance-associated protein 3 and as such, enhanced the cytotoxicity of paclitaxel and/or cisplatin [137]. MDK was also shown to have cytoprotective effect against cell-damaging effects of cisplatin, in part through the enhancement of Bcl-2 expression in Wilms’ tumor [36]. Moreover, investigating the role of MDK in the interplay between stromal cells and tumor cells, it was found that cancer-associated fibroblasts (CAFs) in the TME contribute to high MDK levels in tumors and that CAF-derived MDK can promote cisplatin resistance [139]. In another study, Hu et al. found that MDK expression causes increased efflux of chemotherapeutic drugs in lymphoblastic leukemia cells [140].

Overall, it appears that MDK may protect cancer cells from the cytotoxic effects of chemotherapy (chemoresistance), however in some cases enhance the chemosensitivity, depending on the drug/tumor type combination. It is crucial to understand the molecular mechanisms that drive the MDK-induced chemotherapeutic agent resistance and/or chemosensitivity as they may aid the introduction of new therapies in cancer.

Strategies for MDK-mediated therapeutics in cancer

A growing body of evidence, including evidence described in the current review, has demonstrated that MDK is a promising candidate as a therapeutic target for many human carcinomas [64]. MDK inhibitors including antibodies, aptamers, GAGs, peptides, and low molecular weight compounds, are currently under preclinical development [18]. MDK inhibition was found to induce apoptosis [141] and suppress tumor growth and metastasis [142]. Indeed, MDK gene knockdown by siRNA significantly induced apoptosis, while rec-MDK increased cell proliferation in osteosarcoma [142]. Along the same study, inhibition of MDK-mediated signaling by anti-MDK monoclonal antibody suppressed the in vitro and in vivo growth in osteosarcoma [142]. Moreover, (siRNA)-mediated inhibition of MDK expression and antisense MDK oligodeoxyribonucleotides had antitumor activity [143, 144].

Other trials suggested an MDK promoter-based conditionally replicative adenovirus therapy for tumors highly expressing MDK [145,146,147]. An oncolytic adenovirus was engineered, whose replication is under the control of the MDK promoter, to inhibit the growth of glioblastoma xenografts [18]. Interestingly, there is also a great interest in the discovery of synthesized tetrasaccharide derivatives following the GAG-related sequence GlcNAc-β(1→4)-Glc-β(1→3) that strongly interact with the heparin-binding growth factor MDK [148].

MDK has also demonstrated synergism with natural compounds with anticancer properties. In ovarian cancer, combined treatment of dihydroartemisinin and curcumin synergistically exhibited prominent antitumor activity via attenuation of MDK expression [149]. In another study, targeting MDK siRNA and quercetin administration synergistically reduced the cell survival, induced apoptosis and caused G1 phase cell cycle arrest more effectively than the individual therapy [150].

There are different MDK-mediated pathways that affect chemoresistsance. MDK upregulation has been linked to the failure of cancer therapies such as chemotherapy [133]. Several studies indicate the secretion and overexpression of MDK in drug-resistant cells [55, 151] and as such, targeting MDK could provide a new therapeutic approach for treating MDK-expressing tumors [141]. By inhibiting/blocking the MDK mode of action prior to, or during, chemotherapy may force chemoresistant cells to revert to sensitive cells and may thus provide a tremendous benefit to patients with advanced cancers not responding to conventional treatments. Interestingly, the relationship between MDK expression, tumor response and chemotherapy response is complex and may depend upon tumor type, disease etiology, and may also be stage-specific.

Overall, patient outcome can be improved with the future development of novel therapies interfering with identified MDK signaling pathways or the mechanisms of MDK-mediated chemoresistance (i.e., interference of the MDK-mediated expression that regulates drug efflux upstream of the p-glycoprotein and the other transporter proteins in lymphoblastic leukemia cells) [140]. Novel therapies applied with MDK inhibitors can serve in a more selective and less cytotoxic manner with maximum efficiency and without resistance and/or recurrence. In future trials we anticipate that, combined treatment of MDK inhibitors or mAbs with chemotherapeutic drugs and not single drug treatment, may cause significant tumor retardation without side effects in xenograft nude mice tumor model and clinical trials as a safe therapeutic regimen. Since mice lacking the MDK gene are viable [20, 141], targeting MDK with novel inhibitors is an attractive therapeutic approach, because its inhibition is unlikely to have systemic deleterious effects. Although further studies are needed, including identification of MDK direct targets, additional structural modification and safety validation, MDK inhibitors look promising therapeutic targets for the treatment of several cancers.

Although MDK has been suggested as a potential, novel therapeutic drug for cancer therapy, we cannot exclude the role that the tumor microenvironment may play in obfuscating therapeutic efficacy, especially in highly desmoplastic tumors [152], such as in the highly fibrotic cancers (i.e., in pancreatic cancer), in which MDK has been suggested to play a role in invasion and metastasis) [65]. Collagen accumulation in desmoplastic pancreatic cancer could be a profound obstacle for the delivery of drugs targeting MDK (i.e., MDK inhibitors or mAbs etc). Novel technologies aiming at improved drug delivery methods (i.e., nanoparticles etc) [153] will be paramount in solving these issues.

Overall, MDK could represent a promising molecular target for cancer therapy, therefore, it is important to explore the implicated regulatory MDK-mediated mechanisms in cancer progression and metastasis.

Future perspectives

In this review we have summarized the multiple biological functions of MDK, a heparin-binding growth factor and cytokine frequently upregulated in many malignancies, strongly suggesting its involvement in cancer development and progression, and further delineating its role as a cancer biomarker and a novel therapeutic target.

We reviewed here that a large number of studies have demonstrated higher MDK expression in malignant tissues [3]. The main advantage regarding the applicability of MDK in clinical practice is that it is a soluble cytokine, which is easily measurable in the peripheral circulation, making it a relatively convenient and noninvasive biomarker [3]. Its potential role as a tumor biomarker constitutes MDK a sound target for diagnostic tests measuring circulating growth factors, and indeed, such MDK tests are currently tested in the clinic. MDK has already been shown to significantly improve detection, management and treatment of cancer, and there is significant promise for developing further MDK-based diagnostics in the future. However, there is also a prominent disadvantage in this landscape: the lack of specificity. To overcome this issue, a number of studies have combined MDK with other biomarkers (multianalyte biomarker panel), suggesting that this approach could outperform other current serum biomarkers for early detection of malignancies. In any case, large cohort analyses have not yet performed to evaluate the utility of MDK as a cancer biomarker in any of the aforementioned contexts.

The mechanism by which MDK induces tumorigenesis has been related to cancer cell proliferation, survival, antiapoptosis, angiogenesis, and EMT-regulation [22, 23]. MDK functions are mediated mainly through specific receptor binding, which triggers well-known downstream signaling pathways implicated in tumor growth and metastasis, such as the mitogen-activated protein kinase (MAPK), PI3K/Akt, and extracellular signal-regulated kinase 1/2 (ERK 1/2) [22, 23]. Importantly, melanoma metastasis was one of the highlighted topics in a recent study by Olmeda et al., describing that the top candidate mediator of melanoma lymphangiogenesis and metastasis was MDK, underscoring its potential as a therapeutic target in melanoma metastasis [81]. Moreover, MDK is an angiogenic factor that mainly promotes tumor growth and progression [25], although the exact mechanisms of MDK-mediated angiogenesis need to be further elucidated. The delineation of the MDK-mediated angiogenesis mechanisms along with the development of MDK inhibitors as antiangiogenic therapeutic aspects is highly recommended.

Several studies focus merely on tumor-derived MDK-mediated chemoresistance in both an autocrine- and stromal-mediated paracrine-derived manner [131, 139]. However, the role of MDK in drug resistance has remained largely elusive, underscoring the need to explore the potential MDK-mediated mechanisms underlying chemoresistance and/or chemosensitivity in order to enhance its effect and prolong patient survival.

We have also examined recent observations of MDK serving as a therapeutic target for certain human carcinomas. A better understanding of the MDK-mediated signaling pathways may open up novel therapeutic strategies for a large number of cancer subtypes. Conditional transgenic mice using CRISPR-Cas9 technology and newly identified MDK inhibitors will constitute novel and powerful tools towards this cause. An alternative therapeutic method could be the inhibition of MDK-cell surface receptors interaction with novel lead compounds. The wealth of novel small molecule inhibitors that have, or will be, successfully developed against MDK and/or its receptors, substantiates MDK as an attractive drug target in cancer.

Because of its wide expression in cancer tissues and its contribution to tumorigenesis, MDK can be considered as a tumor-shared antigen and appears to be an attractive cancer vaccine candidate. MDK-based vaccination using peptides, DNA, the whole protein, or viral vectors could be applied to patients who have a significant level of MDK in their body fluids [14].

Immune checkpoint blockade immunotherapy employs antibody targeting of specific inhibitory receptors and ligands, such as cytotoxic T-lymphocyte associated antigen 4, programmed cell death protein 1 (PD-1), and programmed cell death ligand 1 (PD-L1) [154]. For instance one of the common immunotherapeutic drugs (Pembrolizumab) is a humanized monoclonal antibody targeting PD-1 and has been approved for the treatment of many primaries including, unresectable or metastatic melanomas [155] metastatic NSCLC [156], advanced urothelial cancer [157] and against any unresectable or metastatic solid tumor with DNA mismatch repair deficiency or a microsatellite instability-high state or colon cancer that exhibits progression under treatment (FDA approval, May 2017). Since MDK is a pan-cancer biomarker expressed in a wide range of cancer tissues, it could serve as a predictive biomarker for the likelihood of a patient responding favorably to therapy or developing toxicity, and allow for the monitoring of their therapeutic outcome. Therefore, MDK as a secreted protein could be served as a routinely available blood or urine biomarker that may have shown promise in predicting immunotherapy response. Moreover, evaluated and highly specific MDK monoclonal antibodies could be used in combination with the already recommended immune checkpoint inhibitors (i.e., PD-1/PD-L1) (i.e., Pembrolizumab monoclonal antibody) that may improve the therapeutic efficiency and the clinical outcome of cancer patients.

New and exciting findings in the MDK field are now beginning to emerge, however a lot is still to be achieved, and several questions remain unanswered: (i) what is the relative functional contribution of the different MDK forms in cancer progression?, (ii) are there specific MDK mutations that correlate its expression with cancer disease progression?, (iii) what type of inhibitors should we develop for compatible clinical trials and would these inhibitors be promising therapeutic targets in personalized medicine? Many challenges lie ahead before our complete understanding on the MDK-related network, contributing to MDK-driven cancer tumorigenesis and response to therapy.
