Adequate blood flow and oxygen delivery to the peripheral tissues of a sick, newborn infant is a sine qua non of neonatal intensive care. The adequacy of tissue oxygen delivery is difficult to measure directly, and thus it is usual to measure surrogate variables that may be related to tissue oxygen availability and are more amenable to continuous monitoring, such as arterial oxygen saturation and arterial blood pressure.

Peripheral oxygen delivery is determined by peripheral blood flow (PBF) and arterial oxygen content. PBF is related to vascular resistance and blood pressure, which in turn depends on cardiac function; arterial oxygen content depends on the blood Hb concentration and arterial Po2.

As blood flow is related to vascular resistance and blood pressure, there are a number of other factors that may influence blood flow and thus oxygen delivery to the peripheral tissues. These include blood gases, peripheral temperature, arterial Hb concentration, and cardiac function. During the first few hours after birth, which is a period of great instability for the critically ill preterm infant when blood pressure, left ventricular output and systemic blood flow are all low (1–3), PBF and thus oxygen delivery may be inadequate.

Peripheral fractional oxygen extraction (FOE), the ratio of oxygen consumption to oxygen delivery (4), gives information on the adequacy of tissue oxygenation. Raised FOE most likely represents decreased oxygen delivery, which may be due to reduced blood flow (poor perfusion) or reduced arterial oxygen content (hypoxaemia).

This study explored the relationships between physiologic variables and both PBF and peripheral FOE during the first 12 h after birth in a group of sick, ventilated, very low birth weight infants. The hypothesis tested was that PBF and peripheral FOE were correlated with mean arterial blood pressure.

METHODS AND SUBJECTS

The study was approved by the Liverpool Children's Regional Ethics Committee. Informed consent was obtained from the parents before making any measurements.

All infants were delivered at less than 32 wk of gestation and were of birth weight below 1500 g. All infants had an umbilical arterial catheter for continuous blood pressure monitoring and intermittent blood sampling, and were receiving conventional mechanical ventilation. During the period over which this study was carried out there were 26 consecutive admissions to the neonatal intensive care unit of infants meeting all the eligibility criteria; of these two parents refused consent and therefore 24 infants were studied. All measurements were made within the first 12 h after birth.

PBF and FOE measurement.

Both PBF and peripheral FOE were measured using a complete peripheral venous occlusion technique, with measurement of changes in oxygenated and deoxygenated Hb (HbO and Hb) concentration made using near infrared spectroscopy (Hammamatsu NIRO 500, Hammamatsu UK). Transmitting and receiving near infrared optodes were secured to the anterior and posterior aspects of the upper part of the right forearm, and the inter-optode distance was measured using calipers. All inter-optode distances were between 1.0 and 1.5 cm, the distance being limited by the size of the forearm. The differential path length factor used was 3.59, a figure generated by time of flight measurement of the adult forearm (5). Light was excluded using an occlusive blanket. The near infrared spectroscope locked in a set level of laser activity, which resulted in an arbitrary baseline, against which relative changes could be measured. The spectroscope recorded the quantity of near infrared photons reaching the receiving optode every 0.5 s. The arterial oxygen saturation was measured using a pulse oximeter (Datex, Finland), with the probe located on the right hand. The pulse oximeter generated a saturation reading every 0.5 s at the same time as measurements were made by the near infrared spectroscope. Both the oximetry and near infrared data were collected in real-time and stored on a laptop computer for later analysis. The mean arterial oxygen Hb saturation (Sao2) for the 5 s immediately preceding the peripheral venous occlusion was taken as the value for Sao2.

Once the infant was settled, after 5 s to obtain a suitably steady baseline, a peripheral venous occlusion was performed using a sphygmomanometer cuff inflated to below diastolic arterial blood pressure. The typical mean central venous pressure in very low birth weight infants is 5 mm Hg (6), and a cuff pressure of 10 mm Hg was sufficient. Inadvertent arterial occlusion was avoided by observing the spectroscope signal, the invasive diastolic blood pressure value, and the saturation wave form. Five measurements, taken consecutively once steady baseline was again achieved, were made.

PBF was calculated from peripheral Hb flow, measured using near infrared spectroscopy. The total venous occlusion caused pooling of venous blood and a consequent rise in the amount of venous Hb present in the field of study. The change in total Hb (HbT), which is the sum of the changes in oxygenated and deoxygenated Hb as measured by spectroscopy, is related to peripheral Hb flow as follows:

where PHbF is peripheral Hb flow, ΔHbT is the change in total (oxygenated + deoxygenated) Hb, and t is the elapsed time.

Peripheral Hb flow was determined from the slope of the line that resulted from plotting ΔHbT against time. The mean of the five measurements was taken as the final value. This technique has been compared with measurement of Hb flow by plethysmography in human adults, with good correlation (r = 0.94) between the two methods (7).

PBF was then calculated from the peripheral Hb flow data as follows:

where PBF is peripheral blood flow. The calculation of PBF involves a constant (0.0645), which incorporates the molecular weight of Hb and conversion into mL/100 mL/min. PHbF is peripheral Hb flow, measured by near infrared spectroscopy, measured in μmol/100 mL/min. Hb is arterial Hb concentration, determined by laboratory analysis, measured in g/dL.

Peripheral FOE was calculated from peripheral venous saturation, which was also measured using the complete peripheral venous occlusion technique. For each of the 10 subsequent half-second intervals immediately after the venous occlusion, the change in oxygenated Hb (ΔHbO) and deoxygenated Hb (ΔHb) that resulted from the pooling of venous blood was calculated. This technique has been shown to be preferable to using ΔHbO and ΔHb at the peak of the curve, or to calculating area under the curve (8). Measurements were only accepted if there was a preceding steady baseline for both oxygenated and deoxygenated Hb, followed by a rise in both during the venous occlusion, with both returning to the preexisting baseline immediately after the compression. The mean of 10 readings of ΔHbO and ΔHb were used to calculate peripheral venous saturation, using the equation:

where Svo2 is the peripheral venous oxygen saturation, ΔHbO is the mean change in oxygenated Hb over the 5 s after venous occlusion, and ΔHb is the mean change in deoxygenated Hb over the 5 s after venous occlusion.

As was done for PBF, the mean of the five measurements was taken as the final value of peripheral venous oxygen saturation.

Peripheral FOE was then calculated from the venous saturation data as follows:

where FOE is peripheral fractional oxygen extraction, Sao2 is arterial oxygen Hb saturation, measured at the right hand by pulse oximetry, and Svo2 is peripheral venous oxygen Hb saturation, measured by near infrared spectroscopy and venous occlusion.

Echocardiographic measurement of endocardial fractional shortening.

The shortening fraction was measured by echocardiography (Vingmed CFM 725 ultrasound scanner, Vingmed, Norway) with a 7.5 MHz probe (GE Ultrasound, USA). Fractional shortening was assessed by a standard technique (9), using M-mode echocardiography and a parasternal long axis window. Measurements of left ventricular diameter at the end of diastole and end of systole were made, commencing immediately after cessation of the near infrared measurements. The fractional shortening was calculated using the formula:

where FS is endocardial fractional shortening, LVEDD is left ventricular diameter at the end of diastole, and LVESD is left ventricular diameter at the end of systole.

The measurement was repeated three times, and the mean of the three readings taken as the final value for endocardial fractional shortening.

Measurement of other variables.

All infants had an indwelling arterial catheter for continuous blood pressure monitoring. Arterial blood samples were taken for blood gas measurement after completion of the near infrared and echocardiographic studies. Peripheral temperature was measured using a skin probe attached to the sole of the foot.

Statistics.

Data were analyzed using SPSS version 11.0.0 (SPSS, USA). Data were generally summarized as mean ± SD, or median (interquartile range) when the data did not demonstrate a normal distribution. Normality of data were ascertained using histogram plots and Shapiro-Wilk test. Variables tested for their relationship to PBF were blood pressure, FS, peripheral temperature, Po2 (Pao2), and Pco2 (Paco2), but not Hb as this variable was used to calculate PBF. Variables tested for their relationship to peripheral FOE were blood pressure, FS, peripheral temperature, Pao2, Hb, and Paco2. Variables related to PBF and peripheral FOE were ascertained by multivariate analysis, looking for the most statistically significant model that explained most of the variation in the dependent. All variables were entered into the model, and then removed at a significance level of p ≥ 0.1. The relationships were further examined using Pearson correlation coefficients, taking p < 0.05 as significant.

RESULTS

Measurements.

All 24 infants had successful measurements of peripheral Hb flow and SvO2, permitting calculation of values for PBF and peripheral FOE in all infants. Of the 24 infants, two were receiving i.v. inotropic support at the time of measurement; these infants had similar values of PBF and oxygen extraction to the other infants in the study, and they were therefore included in the analysis.

The demographic details are summarized in Table 1 The summary data for PBF, peripheral FOE and other measured variables are given in Table 2.

Table 1 Demographic details for 24 infants studied
Full size table
Table 2 Summary results for 24 infants studied
Full size table

Multiple linear regression.

Linear regression analyses to examine the determinants of PBF and peripheral FOE were performed separately.

The best model for PBF involved only peripheral temperature, endocardial fractional shortening, and arterial Po2 (Pao2) (R2 = 0.66, p = 0.0002). This model is summarized in Table 3.

Table 3 Summary of the most significant model, as demonstrated by the significance of the F statistic, for determining peripheral blood flow
Full size table

The best model for peripheral FOE involved only endocardial fractional shortening, Pao2, arterial Pco2 (Paco2) and arterial Hb concentration (R2 = 0.70, p = 0.0003). This model is summarized in Table 4.

Table 4 Summary of the most significant model, as demonstrated by the significance of the F statistic, for determining peripheral FOE
Full size table

Mean arterial blood pressure.

Blood pressure was not implicated in either multiple linear regression or bivariate analyses. The relationships between both PBF and peripheral FOE and mean arterial blood pressure are presented in Figure 1. There was no significant correlation between mean arterial blood pressure and either PBF (r = −0.30, n = 24, p = NS) or peripheral FOE (r = 0.06, n = 24, p = NS).

Figure 1
figure 1

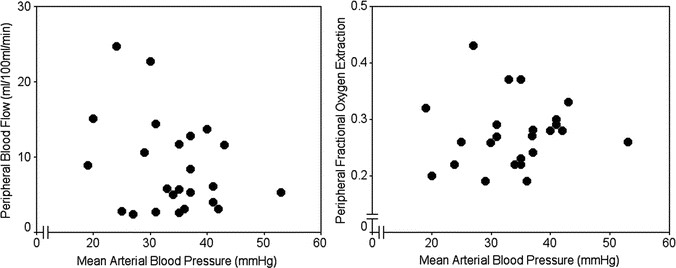

Peripheral blood flow and fractional oxygen extraction plotted against mean arterial blood pressure. There were no significant correlations between blood pressure and either PBF (r = −0.30, n = 24, p = NS) or peripheral FOE (r = 0.06, n = 24, p = NS).

Full size image

Endocardial fractional shortening.

Endocardial fractional shortening was implicated in both multiple linear regressions. The relationships between both PBF and peripheral FOE and endocardial fractional shortening are presented in Figure 2. There was a significant positive correlation between fractional shortening and PBF (r = 0.56, n = 23, p = 0.005), and a significant negative correlation between fractional shortening and peripheral FOE (r = −0.48, n = 23, p = 0.02).

Figure 2
figure 2

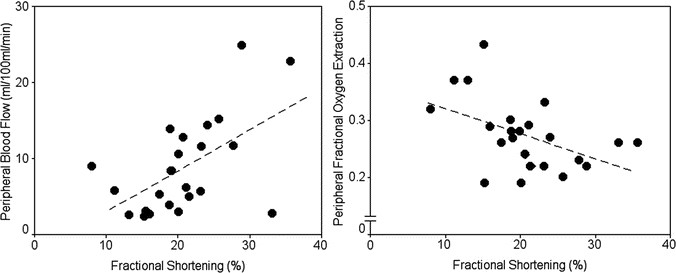

Peripheral blood flow and fractional oxygen extraction plotted against endocardial fractional shortening. There were significant correlations between endocardial fractional shortening and both peripheral blood flow (r = 0.56, n = 23, p = 0.005) and peripheral fractional oxygen extraction (r = −0.48, n = 23, p = 0.02).

Full size image

Blood gases: Paco2 and Pao2.

Blood gases were implicated in both multiple linear regressions. The relationships between both PBF and peripheral FOE and Paco2 are presented in Figure 3. There was no significant correlation between Paco2 and PBF (r = 0.15, n = 24, p = NS), although there was a significant negative correlation between Paco2 and peripheral FOE (r = −0.53, n = 24, p = 0.008).

Figure 3
figure 3

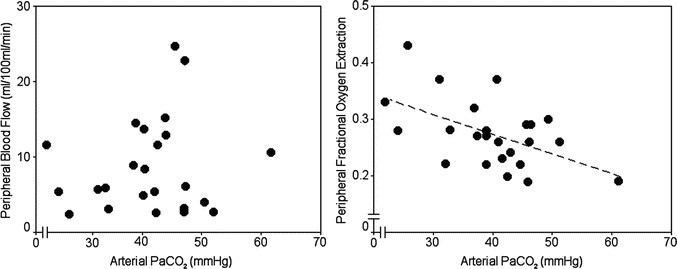

Peripheral blood flow and fractional oxygen extraction plotted against arterial Pco2 (Paco2). There was a significant correlation between Paco2 and peripheral fractional oxygen extraction (r = −0.53, n = 24, p = 0.008), but not between Paco2 and peripheral blood flow (r = 0.15, n = 24, p = NS).

Full size image

The relationships between both PBF and peripheral FOE and Pao2 are presented in Figure 4. There was a significant negative correlation between PBF and Pao2 (r = −0.50, n = 24, p = 0.01) and a significant positive correlation between peripheral FOE and Pao2 (r = 0.52, n = 24, p = 0.02).

Figure 4
figure 4

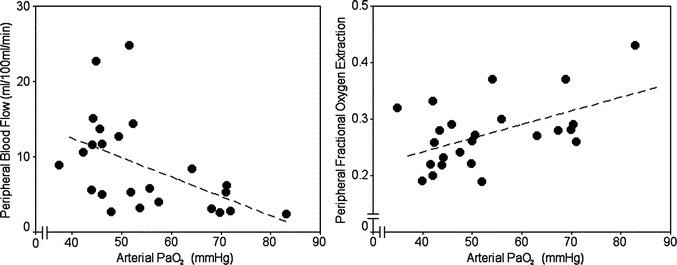

Peripheral blood flow and fractional oxygen extraction plotted against arterial Po2. There were significant correlations between Pao2 and both peripheral blood flow (r = −0.50, n = 24, p = 0.01) and peripheral fractional oxygen extraction (r = 0.52, n = 24, p = 0.02).

Full size image

Peripheral temperature.

Temperature was implicated in the analysis to determine the variables influencing PBF. The relationships between both PBF and peripheral FOE and peripheral temperature are presented in Figure 5. There was a significant positive correlation between peripheral temperature and PBF (r = 0.52, n = 23, p = 0.01), but no significant correlation between peripheral temperature and peripheral FOE (r = −0.18. n = 23, p = NS).

Figure 5
figure 5

Peripheral blood flow and fractional oxygen extraction plotted against peripheral temperature. There was a significant correlation between peripheral temperature and peripheral blood flow (r = 0.52, n = 23, p = 0.01), but not between peripheral temperature and peripheral fractional oxygen extraction (r = −0.18, n = 23, p = NS).

Full size image

Arterial Hb concentration.

The Hb concentration was implicated in the analysis to determine the variables influencing peripheral FOE. It was not included in the analysis to determine the variables influencing PBF. There was no significant correlation between either PBF or peripheral FOE and arterial Hb concentration.

DISCUSSION

The principal aim of this study was to examine the relationship between mean arterial blood pressure and two measures of perfusion and oxygenation in the peripheral tissues, these being PBF and FOE. In addition, other variables that may potentially influence PBF and peripheral FOE were also studied.

In this group of 24 sick, ventilated, very low birth weight preterm infants, there was no relationship between mean arterial blood pressure and either PBF or peripheral FOE (Fig. 1) during the first few hours after birth. It is noteworthy that there was a significant association between fractional shortening and both PBF and peripheral FOE. It is likely that these findings reflect the relationship between blood pressure, blood flow, and vascular resistance. Vascular resistance is increased by peripheral vasoconstriction, which is an important physiologic mechanism for the maintenance of arterial blood pressure and central blood flow to essential organs such as the brain and heart in a variety of situations, such as low cardiac output. Vasoconstriction would cause reduced PBF and oxygen delivery, which are detectable using near infrared spectroscopy. Hence, variables related to cardiac output, such as fractional shortening, would be expected to demonstrate a positive correlation with PBF, as demonstrated in this group of infants (Fig. 2).

When PBF is decreased there will naturally follow a reduction in peripheral oxygen delivery. If the peripheral tissue metabolic rate and thus oxygen consumption is preserved in the face of reduced PBF, there must be a corresponding increase in peripheral FOE. In this case, there would be a negative correlation between fractional shortening and peripheral FOE, as demonstrated in this group (Fig. 2).

Although in this study fractional shortening was used as a measure of cardiac function, this method has its limitations. The circulation of the newborn infant undergoes a transition from right to left ventricular dominance during the days after birth. Right and left ventricular outputs change significantly during this period, and left ventricular output is affected by ductal shunting (3,10). During this time fractional shortening does not change significantly suggesting that adaptive changes and the reduction in ductal shunt have less of an effect on this measurement than on others, such as measurements of cardiac output. Nevertheless, fractional shortening is influenced by preload and afterload, and may thus be influenced by other aspects of neonatal intensive care, such as fluid management, inotropes or ventilation strategies. Some, but not all, of these problems would have been circumvented by an alternative assessment of cardiac function or systemic blood flow, such as right ventricular output or superior vena cava flow (3,11).

Variables other than fractional shortening also demonstrated significant associations with PBF and peripheral FOE, e.g. blood gases as shown in Figures 3 and 4. There was a strong negative correlation between Paco2 and peripheral FOE (Fig. 3). A likely explanation is through the potent vasodilating effect of Paco2. This effect has been demonstrated in both the cerebral and peripheral circulations of animals and humans (12–14), and it seems to operate even in the very immature human. This explanation implies that peripheral FOE decreased with increased Paco2 because of increased peripheral oxygen delivery, a likely consequence of increased blood flow because of vasodilatation.

An unexpected finding was that there was no relationship between Paco2 and PBF (Fig. 3). Inspection of the two panels of Figure 3 shows that some infants with higher values of Paco2 had low rather than high blood flow, despite the fact that all infants with higher values of Paco2 had lower levels of peripheral FOE. This suggested that increased blood flow, and consequent increased oxygen delivery, was not the explanation for the low peripheral FOE observed in these infants. As peripheral FOE is the ratio of oxygen consumption to oxygen delivery, the low peripheral FOE in these infants may have been due to reduced oxygen consumption rather than to increased blood flow and oxygen delivery in at least some of the infants. The negative correlation between Paco2 and peripheral FOE, in the absence of any demonstrated relationship between Paco2 and PBF, implies that Paco2 and peripheral oxygen consumption were directly related.

It has long been known that active hyperventilation increases the total body consumption of oxygen in animals, even in passively hyperventilated dogs where there is no increase in the work of breathing (15,16). This relationship also exists in humans, as demonstrated by measurements in adults undergoing cardiopulmonary bypass, which indicated that increased Paco2 had an inverse effect upon the oxygen consumption of peripheral tissues (17). This negative correlation has also been demonstrated in a study of peripheral oxygen consumption in ventilated infants recovering from cardiac surgery (18).

There are two possible mechanisms for the relationship between Paco2 and oxygen consumption that we have demonstrated. First, there may be a direct effect of carbon dioxide on utilization of oxygen at the cellular level. It might be that high Paco2 levels in this group of sick infants caused cellular acidosis with consequently diminished metabolism and decreased oxygen consumption. Second, it is also plausible that there was redistribution of blood flow to other vascular beds. As there was no significant correlation between Paco2 and PBF this second explanation cannot be solely responsible for our findings, but it remains possible that altered blood flow played some part.

The effect of Pao2 was more consistent than that of Paco2 (Fig. 4). There was a significant negative correlation between Pao2 and PBF, suggesting that infants with high Pao2 have reduced peripheral perfusion, and the positive correlation between Pao2 and peripheral FOE would be in keeping with this. This finding is in keeping with known data concerning the responsiveness of vascular beds to Pao2; oxygen has a potent effect on vascular tone, causing most vascular beds, such as the cerebral circulation and the ductus arteriosus, to vasoconstrict, but other vessels, notably the pulmonary vascular bed, to vasodilate. Pao2 has been proposed as a local regulator of peripheral tissue perfusion, by virtue of its direct effect on the peripheral microvasculature (19). Studies in an acute hemorrhage model in the rat have demonstrated that administration of oxygen increases peripheral vascular resistance without influencing renal or splanchnic perfusion, and improves blood pressure (20,21). These findings suggest that oxygen has a marked effect on vascular tone, sufficient to produce clinically relevant changes in this rat model of hemorrhage. Our study appears to indicate that oxygen has a similar effect in the sick, immature, ventilated human infant.

The mechanism by which oxygen induces these changes is not clear. A model whereby precapillary metarterioles, vessels sensitive to changes in arterial Pao2, control the perfusion of downstream capillaries, might explain our findings. In this model, these vessels respond to an increase in Pao2 by decreasing functional capillary density by redistribution of capillary blood flow, possibly through high-flow capillaries (22). Thus, high values for Pao2 could be associated with reduced tissue blood flow at the microvascular level, and a corresponding increase in peripheral oxygen extraction, both detectable using near infrared spectroscopy, as demonstrated in this study. Nevertheless, this hypothesis does not explain the exact mechanism by which oxygen may induce vasoconstriction. One plausible mechanism involves the neutralization of nitric oxide, a potent endogenous vasodilator, by reactive oxygen species (20). Some evidence for this hypothesis comes from studies that demonstrate reduced vascular tone when levels of reactive oxygen species are reduced (23).

Peripheral temperature was also implicated in the determination of peripheral tissue oxygenation. Temperature exhibited a significant positive correlation with PBF but not peripheral FOE (Fig. 5). The relationship with PBF suggested that as the peripheries became cooler, blood flow and thus oxygen delivery would decrease. The absence of any correlation between peripheral temperature and peripheral FOE would be expected if there was a corresponding reduction in metabolic activity and thus also oxygen consumption, as described in term infants during limb cooling (24). Both oxygen consumption and oxygen delivery would be decreased, and peripheral FOE, the ratio of the two, would remain unchanged, as observed in this study. The results presented here confirm the important influence of temperature on the clinical status of sick and very immature infants.

The study also examined the effect of blood Hb concentration, although the analysis could not be as exhaustive as with other variables, as the formula for calculating PBF included both Hb flow and the arterial Hb concentration, and thus the inclusion of Hb in the multivariate analysis would have been inappropriate. Although bivariate analysis did not demonstrate a significant correlation between PBF and Hb concentration, when it was included in the multivariate analysis for peripheral FOE, Hb concentration was a significant determinant. This might be expected as Hb has an obvious role in the delivery of oxygen.

This study has demonstrated the complexity of peripheral tissue oxygenation, with cardiac function, blood gases, Hb, and peripheral temperature all playing a part in determining blood flow and oxygen extraction in the sick, preterm infant. Other factors such as the administration of vasoactive medications or ventilation strategy may also play a role, although these factors were not examined in this study. Clinicians need to bear this complexity in mind. Blood pressure did not appear to be important, and thus this study adds to the weight of evidence that indicates that this is a poor surrogate measurement for the adequacy of oxygen delivery to the peripheral tissues. Direct measurement of PBF or tissue metabolism using near infrared spectroscopy would probably give more useful information. Nevertheless, although these measurements have been validated against blood co-oximetry in human adults (25) and infants (26), they can only be made intermittently by a trained operator and are thus not appropriate for general clinical use. Further research is needed to find other better measures of peripheral perfusion and oxygenation which may be easily and continuously monitored, and which could this be more useful in a clinical setting.
