Introduction

To smoothly integrate renewable energy into a smart grid system, an inexpensive and efficient energy storage device is urgently needed for large-scale applications.1 The increasing costs and limited availability of lithium suggest that an alternative to lithium-ion batteries should be developed to meet the demands of large-scale energy storage.2, 3, 4, 5, 6 Rechargeable sodium-ion batteries have chemical storage mechanisms similar to their lithium-ion counterparts and are expected to be low cost and chemically sustainable as a result of an almost infinite supply of sodium.7, 8, 9, 10, 11, 12, 13, 14, 15 Meanwhile, the feasible replacement of Cu with Al current collectors (an alloying reaction does not occur between Na and Al) will further reduce the substantial costs and weight for next-generation batteries.

Layered sodium oxide NaxMeO2 (Me=3d transition metal) materials, owing to their large specific capacity and reversible insertion/extraction, have been studied intensely for sodium-ion battery applications for decades. Layered NaxMeO2 polytypes obtained through chemical solid-state synthesis mainly show two different structures: P2 and O3 (Figure 1).16 They have been extensively studied as electrode materials for rechargeable sodium-ion batteries.17, 18 Owing to direct Na-ion diffusion and a more open framework, the original structure of the P2 phases is more easily preserved during the sodium extraction process,19, 20, 21, 22 although a partial P2–O2 phase transition is found in the literature.23, 24 In contrast, the O3 phase always transforms to the P3 phase via gliding of the MeO2 slabs (1/3, 2/3, 0) that results from the presence of intermediate tetrahedral sites between two octahedral sites (Figure 1).25 As two main electrochemical products, the P2 and P3 phases have the same sodium accommodation as prismatic sites. Thus far, the connection and distinction between the layered structures of P2 and P3 has been rarely established. As shown in the bottom of Figure 1, the local environment of the Na ions at prismatic sites in the P2 and P3 phases along with the diffusion pathway are markedly different that immediately determines their respective electrochemical kinetics. No research has been done on the Na-ion conduction of the P3 phase as electrode materials until now, partly because the P3 phase is rarely directly synthesized.27, 28 Furthermore, the phase transition and relative electrochemical properties are very dependent on the sodium content;29, 30 therefore, a couple consisting of the P2 and P3 phases having nearly the same compositions is quite essential for conducting this study. Some fundamental issues still need clarification. For instance, what is the best choice between P2 and P3 phases for high-performance electrode materials? How can we understand their structure–properties relationship more clearly?

Figure 1
figure 1

The classification of the layered sodium oxide (NaxMeO2), electrochemical phase transition induced by sodium extraction and Na-ion migration paths in different layered structures. Note that the P2 phase more easily maintains its original structure, and the O3 phase always transforms to the P3 phase during the sodium intercalation process. The yellow and blue balls represent the sodium and transition-metal atoms, respectively. The red circles and shaded parts indicate the intermediate site during sodium diffusion and the interspace between the two sites, respectively. The red lines below show the direct Na migration for the P2 and P3 phases, and the indirect migration for the O2 and O3 phases.

Full size image

In this work, we present layered P2-Na0.62Cr0.63Ti0.37O2 and P3-Na0.63Cr0.63Ti0.37O2 with nearly the same compositions and excellent structural stability, enabling the systematic study of the crystal–structure and electrochemical–property relationships. The electrochemical tests illustrate that the P2 phase shows a more evident plateau at 0.73 V, lower than that of the P3 phase, and it has a reversible capacity of 110 mAh g−1, higher than that of P3. With a rate of 10C, the P2 phase still delivers a large capacity (66 mAh g−1) that is 56% of the capacity at a rate of 0.2C. After 1000 cycles at a 5C rate, the capacity retention is 77.5%. The superior rate capability and excellent cycling performances far surpass those of the P3 phase and even those of other sodium anode materials.31, 32, 33, 34 P2-Na0.62Ti0.37Cr0.63O2, with its usable discharge capacity, safe potential and outstanding rate capability and cycling performance, is a promising candidate for long-life and high-rate sodium-ion batteries. The crystal structures and the charge compensation mechanisms in the layered P2 and P3 structures are first confirmed by atomic-scale characterizations based on spherical aberration-corrected electron microscopy. Most importantly, the first-principles calculation is commonly used to identify a smoother diffusion of Na in the P2 phase compared with the diffusion in the P3 phase. The P2 phase shows a lower sodium diffusion barrier than P3 for sodium multi-vacancies, and it is essentially revealed that the Na diffusion kinetics are mainly determined by the structural difference (P2 vs P3). The superiority of P2 sodium storage is independent of the transition metal ions, a characteristic that can also be applied to other P-type layered oxides. These insights create a deeper understanding of the crystal structure–electrochemical performance relationship and also provide new avenues for designing advanced electrode materials for sodium-ion batteries.

Materials and methods

Material preparation

The P2- and P3-NTCO raw materials were synthesized via a traditional solid-state reaction. All solid chemical compounds were purchased from Wako Pure Chemicals Industries Ltd (Osaka, Japan). The Na2CO3, Cr2O3 and TiO2 (anatase form) precursors with the same stoichiometric proportion were well ground in an agate mortar at a rotation rate of 200 r min−1 for 20 h. Owing to the volatility of sodium at high temperatures, an excess 5 wt% of Na2CO3 was added. The mixture was dried for 12 h at 100 °C. The obtained powders were pressed into pellets, and then the pellets were heat treated in Ar flow. P3-NTCO was synthesized at a temperature of 900 °C for 20 h. P2-NTCO was obtained when heat treatment temperature and duration were set to 1000 °C and 20 h, respectively. A P2 and P3 mixed composite was also obtained at 950 °C and 20 h. The heated pellets were quenched to room temperature and stored in an argon-filled glove box until use. The molar ratios of the metal ions in the layered P2 and P3 samples were chemically analyzed by inductively coupled plasma mass spectrometry, and the Na/Ti/Cr ratios were determined to be 0.62:0.37:0.63 and 0.63:0.37:0.63, respectively, that matched well with our designed materials.

Characterizations

The X-ray diffraction (XRD) patterns were performed using Cu-Kα radiation on a Bruker D8 Advance Diffractometer (Karlsruhe, Germany). A JEOL-2100F STEM (Tokyo, Japan) equipped with a double aberration corrector for both probe-forming and imaging lenses was used to perform high-angle annular dark-field (HAADF) and annular bright-field (ABF) imaging and was operated at 200 KV. The convergence angle was 25 mrad, and the angular range of collected electrons for HAADF imaging was ∼60–250 mrad. The discharged electrodes scratched off from the electrodes of the sodium half-cells were subjected to ex situ XRD on a Bruker D8 Advance Diffractometer.

Electrochemistry

The electrochemical tests were carried out using CR2032 coin-type cells consisting of a working electrode and a Na counter electrode. The working electrodes were prepared with a weight ratio of 75% active material, 20% teflonized acetylene black and 5% polytetrafluoroethylene. Pellets for half-cells were pressed into the form of aluminum screens ∼3 mg in mass and 7 mm in diameter (the loading mass was ∼1.95 mg cm−2) and then dried under vacuum at ∼110 °C for 5 h before assembling the cells. The cells were assembled in a glove box filled with dried argon gas. The electrolyte was 1 mol dm−3 NaClO4 dissolved in propylene carbonate (Tomiyama Pure Chemical Industries, Fukushima, Japan) with 2 vol% fluorinated ethylene carbonate as an electrolyte additive. A glass fiber was used as the separator of the sodium half-cells. The galvanostatic charge/discharge tests of P2- and P3-NTCO/Na half-cells were performed using a Hokuto Denko HJ1001SD8 battery tester (Tokyo, Japan) at different current densities within a cutoff voltage window of 0.15–2.5 V vs Na/Na+ at 25 °C after a 12 h rest. 1C corresponds to 100 mA g−1 in the cell tests.

First-principles calculation

Spin-polarized calculations were performed using the Vienna Ab-initio Simulation Package (VASP)35, 36 within the projector augmented wave approach.37 Generalized gradient approximation in the parameterization of the PBE (Perdew–Burke–Ernzerhof)38 pseudopotential was used to describe the exchange–correlation potential. The minimum energy pathways and saddle points of the Na+ migration were calculated with the nudged elastic band method.39 This approach duplicates a series of images between the starting point and the ending point of a diffusing ion to simulate the intermediate states with the positions of the starting point and the end point fixed. The supercell comprises 3 × 3 × 1 conventional unit cells, corresponding to 18 and 27 formula units for the P2 and P3 phases, respectively. The single or multiple vacancy models were constructed by removing one or more Na ions in the same Na layer. For the case of multiple Na vacancy, all possible non-equivalent configurations were calculated, and then the energetically favorable states were adopted for investigating the Na-ion transport behavior. Owing to the large supercell adopted in the nudged elastic band calculations, only the Γ point was adopted for k-point sampling to reduce the computational cost. The plane-wave cutoff was set to 520 eV. Geometry optimizations were performed by using conjugate gradient minimization until all the forces acting on the ions were less than 0.01 eV Å−1 per atom.

Galvanostatic intermittent titration technique (GITT) test

The chemical diffusion coefficient of Na+ (DNa) is calculated according to Equation (1) and its simplified form Equation (2) derived by Weppner and Huggins40 as follows:41

where VM is the molar volume of the compound, and MB and mB are the molecular weight and the mass of the active materials, respectively; S is the interface area between the active material and the electrolyte and L is radius of the active particle.

Results

Structural characterization

The crystal structures of the samples annealed at different temperatures (900, 950 and 1000 °C) for 20 h were recorded by XRD in Supplementary Figure S1. These materials show the different crystal structures: P3 structure synthesized at 900 °C, P2 structure at 1000 °C and the mixture of P2 and P3 at 950 °C. An overlapping of the (00l) reflections can be observed for the layered P-type phases in Supplementary Figure S1. It has been demonstrated that a P3–P2 phase transition could be achieved in high-temperature conditions rather than through an electrochemical reaction because of the high energy required to break/reform the Me-O bonds for this transformation.26 The P2 and P3 phases display almost the same composition (P2-Na0.62Ti0.37Cr0.63O2 and P3-Na0.62Ti0.37Cr0.63O2), hereafter denoted as P2-NTCO and P3-NTCO, respectively. Note that the simultaneous synthesis of the layered P2 and P3 phases with the same stoichiometries is the key to making a fair comparison, and this is quite rare to the best of our knowledge.

Figure 2a shows the Rietveld plots of P2-NTCO, and all the diffraction lines are indexed to a hexagonal lattice with space group P63/mmc. The lattice parameters are refined to be a=b=2.9410(1) Å, c=11.2639(3) Å and V=84.375(4) Å3 with a convergence factor Rwp-factor (9.55%) and χ2 (2.210) value using GSAS+EXPGUI suite42, 43 (detailed crystallographic data on refined P2-NTCO are listed in Supplementary Table S1). The crystal structures of P2-NTCO are displayed in Figures 2b and c, characterized by ABBA oxygen stacking including two MeO6 octahedra per unit cell (Figure 2b) and offer two different sites for Na cations, either sharing faces with two MeO6 octahedra of adjacent slabs or sharing edges with six MeO6 octahedra (Figure 2c). The XRD and Rietveld plots of P3-NTCO are shown in Figure 2d, indicating that all of the diffraction lines can be assigned to the P3-type structure with space group . The Rietveld refinement of the XRD pattern successfully produced reasonably a low Rwp-factor (8.75%) and χ2 (1.623) value based on P3 models. The P3 phase was fitted for the lattice parameters of a=b=2.9466(2) Å, c=16.8758(11) Å and V=127.652(19) Å3. The calculated XRD patterns of P3 were in good agreement with the experimental data, and the detailed refinement results are also shown in Supplementary Table S1. Figures 2e and f also show the crystal structure of P3-NTCO with ABBCCA oxygen stacking, and three MeO2 sheets per unit cell (Figure 2e) had prisms sharing one face with one MeO6 octahedron and three edges with MeO6 octahedra of the next layer, resulting in only one sodium site (Figure 2f). Supplementary Figure S2 displays the scanning electron microscope images of P2- and P3-NTCO samples, and it can be seen that the primary particles of P2- and P3-NTCO without post-treatment were mainly distributed in the same range of 0.5–1.5 μm. The similar particle distribution of the P2- and P3-NTCO samples ensures a fair comparison of the two different structures.

Figure 2
figure 2

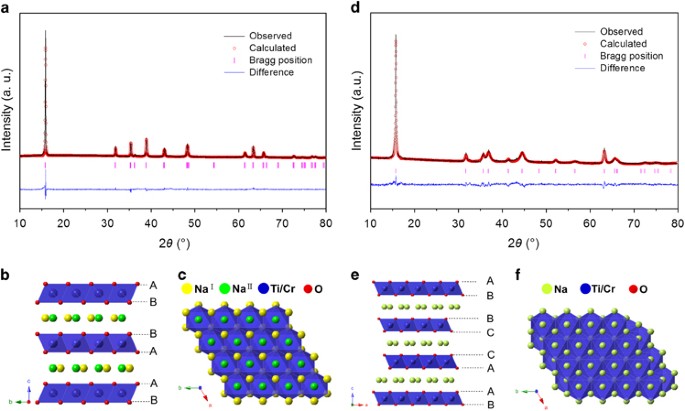

The structure of the P-type NTCO (Na0.62Ti0.37Cr0.63O2) materials. (a) The X-ray diffraction (XRD) and Rietveld plots are shown for the P2-NTCO compounds with the experimental data in black dots, the calculated curves in red and the difference curve in blue; the standard Bragg reflections are shown as pink short vertical bars. (b) The P2-type crystal structure viewed along the a axis shows the two different Na-ion sites in green and yellow. (c) The P2-type crystal structure viewed along c axis shows that every NaI (edge-sharing) site is surrounded by three NaII (face-sharing) sites, and every NaII site is surrounded by three NaI sites. (d) The XRD and Rietveld plots are shown for refined P3-NTCO with the experimental data in black dots, the calculated curves in red and the difference curve in blue; the standard Bragg reflections are shown as pink short vertical bars. (e) The P3-type crystal structure viewed along the a axis shows only one type of Na-ion site in the green-yellow color. (f) The P3-type crystal structure is viewed along the c axis showing that every Na site is edge-sharing at one side and face-sharing at the other side. Note that a part of the sodium prisms is open to show the short distances between the sodium sites that cannot be occupied simultaneously.

Full size image

To further determine the atomistic crystal structures of the P2- and P3-NTCO materials, advanced spherical aberration-corrected electron microscopy experiments were performed at the atomic scale, shown in Figure 3. Figures 3a and b indicate the experimental and simulated selected area electron diffraction patterns of the P2 phase, respectively. The bright spots of the P2 phase projected along the [010] direction in Figure 3a corresponds to a typical diffraction pattern for a P2 structure lattice that perfectly matches the simulated stacking sequences along the b-axis crystallographic direction in Figure 3b. The local structure of the P2-NTCO materials was analyzed with atomic resolution via HAADF and ABF-scanning transmission electron microscopy (STEM). The bright-dot contrast in the HAADF-STEM images (Figure 3c) and the dark-dot contrast in the ABF-STEM images (Figure 3d) reveal the transition-metal (Ti and Cr) atom column positions. The corresponding fast Fourier transform in Figure 3c is consistent with the selected area electron diffraction pattern. The relatively weak dark-dot localized between the interlayers in the ABF-STEM images (Figure 3d) corresponds to the sodium and oxygen atom columns. Figures 3e and f indicate the experimental and simulated selected area electron diffraction patterns of P3 phase. The bright spots projected along the [010] direction in Figure 3e can be assigned to characteristic reflections originating from the P3 structure lattices, consistent with the simulated results in Figure 3f. The HAADF and ABF-STEM images are also shown in Figures 3g and h. The corresponding fast Fourier transform is inserted in Figure 3g.

Figure 3
figure 3

Scanning transmission electron microscopy (STEM) imaging of P-type NTCO (Na0.62Ti0.37Cr0.63O2) materials. (a) The experimental selected area electron diffraction (SAED) patterns of P2-NTCO viewed along the [010] zone axis and (b) the simulated SAED patterns of P2-NTCO viewed along the [010] direction. (c) The high-angle annular dark-field (HAADF)-STEM image of P2-NTCO and (d) the annular bright-field (ABF)-STEM image of P2-NTCO. (e) The experimental SAED patterns of P3-NTCO viewed along the [010] zone axis and (f) the simulated SAED patterns of P3-NTCO viewed along the [010] direction. (g) The HAADF-STEM image of P3-NTCO and (h) the ABF-STEM image of P2-NTCO. Images (i) and (j) are enlarged ABF-STEM images extracted from (c) and (d), showing the ABBAAB stacking of P2. Images (k) and (l) are enlarged ABF-STEM images extracted from (g) and (h), showing the ABBCCAAB stacking of P2.

Full size image

To directly compare the crystal structures of P2- and P3-NTCO, their enlarged ABF- and HAADF-STEM images are shown in Figures 3i–l. In Figure 3j, the enlarged HAADF-STEM image from Figure 3d, the detailed atomic arrangements are shown and exhibit a stacking sequence of ABBA, characterizing the layered P2 phase. The atomic model of the layered P2 phase is inserted for convenient visualization. The ABF-STEM observations of octahedral MeO2 (Me=Ti and Cr) are highly consistent with the structural model, as highlighted by the blue shading in Figure 3j. The alkali metal atoms are held by the MeO2 layers. Specifically, every two layers of MeO2 are structurally a symmetric mirror image for the P2 phase. The enlarged ABF-STEM image in Figure 3l extracted from Figure 3g exhibits the detailed atomic arrangements with regard to the ABBCCA stacking sequence of the layered P3 phase, and the atomic model of the layered P3 structures is also inserted for easy comparison. Furthermore, Supplementary Figures S3a and b show the chemical composition of the pristine P2 and P3 phases via electron energy loss spectroscopy (EELS) mapping, indicating that the Na, Ti, Cr and O elements are uniformly distributed in material particles.

Sodium storage performance

The electrochemical properties of P2- and P3-NTCO anode materials are characterized by galvanostatic discharge–charge tests in half-cells with a voltage range of 0.15–2.5 V at a 0.25C rate vs Na+/Na, shown in Figure 4. A reversible discharge capacity of 110 mAh g−1 is obtained for P2-NTCO and 102 mAh g−1 for P3-NTCO in the subsequent cycles at a discharge–charge rate of 0.25C (Figure 4a). The average potentials are also marked in Figure 4a, and 0.73 V is obtained for P2-NTCO that is lower than that of P3-NTCO (0.82 V). The typical dQ/dV curves of the P2 and P3 phases are compared in Supplementary Figure S4, and a couple of sharper redox peaks are associated with the evident plateau-like features in the discharge–charge curves of P2; meanwhile, the P3 phase shows slope-like features in the dQ/dV curves (Supplementary Figure S5). These results indicate that when assembling full cells with the same cathode, the cells using a P2-NTCO as the anode will provide a higher average voltage, larger energy density and better plateau characteristic than those using P3. The discharge–charge profiles of P2- and P3-NTCO in Na half-cells with different rates of 0.25C, 0.5C, 1C, 2.5C, 5C and 10C are examined and shown in Figure 4b, and their comparison plots are shown in Figure 4c. At the same C-rate, all of the layered P2 phase samples exhibit a higher discharge capacity than that of the P3 phase. For instance, the layered P2- and P3-NTCO phases deliver a discharge capacity of 99 and 82 mAh g−1 at a 1C rate, respectively. The discharge capacity gap between P2- and P3-NTCO is more remarkable with the rate increase; the discharge capacities are 78 mAh g−1 for P2-NTCO and 54 mAh g−1 for P3-NTCO at 5C rate, and 67 mAh g−1 for P2-NTCO and 38 mAh g−1 for P3-NTCO at a 10C rate, respectively. To investigate the capacity contribution of the conductive carbon additive, the electrochemical performance of acetylene black is investigated in Supplementary Figure S6. Many sodium ions can be inserted into acetylene black during the first cycle, and a few sodium ions can be extracted, indicative of an irreversible process and low coulombic efficiency during the first cycle. A reversible capacity of ∼30 mAh g−1 can be obtained in the first and subsequent cycles, contributing to a small amount of the electrode capacity. To confirm the solid-electrolyte interphase film of the P2- and P3-NTCO samples, the TEM experiments before and after the discharge process are performed. Supplementary Figures S7a and b are TEM images of the pristine P2- and P3-NTCO samples, where no obvious solid-electrolyte interphase SEI films are observed in the surfaces. After fully discharging up to 0.15 V, the discharged P2- and P3-NTCO samples (Supplementary Figures S7c and d) have a layer of amorphous materials, indicating that the solid-electrolyte interphase films formed after the first sodium insertion, leading to an irreversible capacity during the first cycle. Moreover, the thickness of the solid-electrolyte interphase films of the discharged P2- and P3-NTCO samples is similar, ∼15 nm.

Figure 4
figure 4

The electrochemical performance of the P2- and P3-NTCO (Na0.62Ti0.37Cr0.63O2) compounds. (a) The typical discharge–charge profiles between the 0.15 and 2.5 V region at a 0.2C rate (1C rate corresponding to 100 mA g−1). (b) The rate capability at different rates of 0.25C, 0.5C, 1C, 2.5C, 5C and 10C. (c) The plots of the reversible capacity versus the C rates. (d) The cycling performance of 400 cycles with the Coulombic efficiency at a 5C rate. (e) The cycling performance of 1000 cycles with Coulombic efficiency for only P2-NTCO at a 5C rate.

Full size image

The cycle stability and the coulombic efficiency are evaluated at a rate of 5C in Figure 4d. The capacity of the P2-NTCO after 400 cycles with a 5C rate remains at 66 mAh g−1, the corresponding capacity retention is 91.2% and the average coulombic efficiency is close to 100%, demonstrating good electrochemical reversibility. However, the capacity retention of P3-NTCO after 400 cycles with a 5C rate is only 84.0%. The long-term cycling performance is further studied for P2-NTCO at a higher rate of 5C (Figure 4e). A capacity retention of 77.5% was measured even after 1000 cycles, and the capacity decay rates only amounted to ∼0.0225% per cycle. The good cycling performance of P2-NTCO is mostly attributed to the enhanced structural stability of the layered P2-Na0.62Ti0.37Cr0.63O2 electrode material during sodium ion insertion/extraction processes. Therefore, the appealing electrochemical performance of P2-NTCO, which features an excellent long-term cycle stability and Coulombic efficiency, can prompt the use of rechargeable sodium-ion batteries for large-scale energy-storage devices.

Charge compensation and sodium storage mechanisms

To further understand the structural and valence evolution of P2- and P3-NTCO during Na insertion, ex situ XRD and EELS experiments are performed. Supplementary Figure S8 shows the ex situ XRD patterns of P2-NTCO and P3-NTCO, closely matching the standard reflection of the P2 and P3 structures, respectively, and there is no evident appearance of a consistent P2-O2 or P3-O3 phase transition upon Na insertion, potentially indicating the approximate single-phase mechanism. The refinement results are shown in Supplementary Table S2, and the volume change of P2 is ∼0.3%, which is less than that of P3 (∼0.7%), revealing that the P2 phase possesses less lattice strain and better structural stability upon cycling. The minimal volume change in P2 could contribute to long-term cycling with enhanced capacity retention. The stable P-type framework during the electrochemical process has a positive influence on the following Na-ion diffusion study. Figure 5 shows that the atomic resolution STEM-EELS line scanning was performed vertically throughout the c-axis, providing an energy resolution of 0.5 eV. The Ti L2,3 and Cr L2,3 edges were acquired simultaneously, and a suitable energy dispersion of 0.3 eV per pixel was selected. In this way, the pristine and discharged P2- and P3-NTCO particles (Figures 5a and b) were investigated, respectively. Figure 5c shows the high-resolution EELS profiles to quantitatively understand the elemental information and valence state of the NTCO system. Remarkably, in the process of discharging the P2 and P3 samples, the critical excitation energy for Ti-L3 shifts to 459.1 eV from the original 461.4 eV, and for Ti-L2, it shifts to 453.9 eV from 456.2 eV. For the ELNES of Ti L2,3, the major difference in the electron structure of the pristine and discharged Ti element (in P2 or P3 phases) is the degree of occupancy of the t2g level. Ti3+ has one t2g electron and Ti4+ has none, and this is very noticeably reflected in the position of the fine Ti L2,3 edges. Thus, the shift of Ti L2,3 is assigned to the formation of Ti3+ during the discharging process. However, the peak position and energy shift exhibited as well as the ratio of integrated L3 and L2 peaks seldom change regarding the Cr L2,3 edges, verifying the invariant Cr3+ during the charge–discharge process. From a conventional atomic physical point of view, transition metal atoms (Ti/Cr) combined with electronegative atoms (oxygen) or trapped inside an electronegative environment always exhibit a shift in energy, meaning that there is slight overoxidation of the Ti/Cr atoms. For these anode materials, only the Ti L2,3 edge changes significantly, corresponding to the Ti4+–Ti3+ reduction during Na insertion.

Figure 5
figure 5

The electron energy loss spectroscopy (EELS) analysis showing the remarkable valence change of titanium in the P2- and P3-NTCO (Na0.62Ti0.37Cr0.63O2) compounds. (a) The EELS mapping of pristine P2-NTCO; the white rectangle of the scanning transmission electron microscopy (STEM) image indicates the analysis area. The colorful atomic resolution STEM-EELS line scanning images show Ti and Cr along the c axis before and after discharge. (b) The EELS mapping of pristine P3-NTCO; the white rectangle of the STEM image indicates the analysis area. The colorful atomic resolution STEM-EELS line scanning images show Ti and Cr along the c axis before and after discharge. (c) The high-resolution EELS profiles of the P2- and P3-NTCO compounds.

Full size image

Discussion

The phase stability of both the P2 and P3 phases during the electrochemical measurements, as evidenced by the above ex situ XRD results, allows us to assess the difference between the Na-ion transport of the P2 and P3 phases by employing density functional theory-based first-principles calculations. The EELS data have shown that only Ti redox works during the charge–discharge process, and the Cr ions are electrochemically inactive. Accordingly, the P2-Na0.62Ti0.37Cr0.63O2 and P3-Na0.63Ti0.37Cr0.63O2 used in our work are considered to be Cr-substituted Na0.6TiO2. For convenience, we first study P2- and P3-NaxTiO2. As mentioned earlier, there are two crystallographically distinguishable trigonal prismatic Na sites in P2-NaxTiO2, denoted by the NaI and NaII sites (Figures 2b and c). The NaIO6 prism is face-sharing with TiO6 octahedra, and the NaIIO6 prism is edge-sharing with TiO6 octahedra. In contrast, all Na sites in the P3 phase are crystallographically equivalent, edge-sharing with TiO6 octahedra at one side and face-sharing with TiO6 octahedron at another side (Figures 2e and f). Here, we divide the Na sites of the P3 phase into NaI and NaII, analogous to the P2 phase. It should be noted that this is an artificial classification for a convenient comparison between the P2 and P3 phases in the following calculations. The computational results show that for stoichiometric P2-NaTiO2, all Na ions occupy the NaII sites, consistent with previous computational research on P2-NaCoO2.44 For stoichiometric P3-NaTiO2, the ground state is such that either the NaI or NaII sites are fully occupied by Na ions because P3-NaITiO2 and P3-NaIITiO2 are equivalent. In this work, P3-NaIITiO2 was used for direct comparison with the P2 phase.

From the 2D visualization of Na layer in Supplementary Figure S9a, we see that a NaI site is a nearest neighbor to three NaII sites, and vice versa. Therefore, Na diffusion in the Na layer inevitably involves repeating NaI → NaII → NaI migrations. Under the single vacancy approximation, calculation results show that the activation energy of Na diffusion is much higher in the P2 phase than that in the P3 phase (Supplementary Figures S9c and d). From Supplementary Figure S9b, we can see that the transient state is reached when a Na ion occupies the NaI site, and thus the above results are easy to understand: in the P2 phase, the face-sharing NaI site endures more electrostatic repulsion from the Ti ions, leading to a high energy barrier during the Na-ion diffusion process; for comparison, the NaI site is equivalent to the NaII site in the P3 phase, resulting in a lower Na-ion diffusion barrier.

Under the single vacancy approximation, the calculations seem to contradict the experiments, suggesting better Na-ion diffusion kinetics in the P2 phase than in the P3 phase. Nevertheless, for the P-type NaxMeO2 (Me=3d transition metal), the Na content x is <1.0 (0.6 < x < 1.0 in our case); therefore, Na vacancy clusters are always expected in practical electrode materials. Next, we tried to study the Na diffusion behavior in the presence of more vacancies. The divacancy model is constructed by removing two adjacent Na ions from NaII site, as shown in Supplementary Figure S10a. After relaxation, the Na ion nearest the divacancy migrate from the NaII site to the NaI site between the two vacancies (Supplementary Figure S10b). This spontaneous migration is consistent with a previous report, indicating that the Na ion starts to occupy the NaI site when more than one Na vacancy is formed. Moreover, we find no stable configuration other than that shown in Supplementary Figure S10b, suggesting that all Na ions are fixed in the case of divacancy, and more vacancies are necessary for Na-ion diffusion.

Based on the above ‘rigid’ divacancy model, we created more Na vacancies to study the Na-ion diffusion process in the presence of a NaI ion. For the three vacancies condition (Figure 6a), the energy barrier of the Na-ion migration from one NaII site to another in the P2 phase is calculated to be 120 meV (Figure 6b) that is not only far below the single vacancy case but also lower than that of the three vacancies condition in the P3 phase (Figure 6c). In the case of four vacancies (Figure 6d), the Na-ion migration barrier is calculated to be 190 and 220 meV for the P2 and P3 phases, respectively (Figures 6e and f). After introducing the Cr element into Ti sites (NaxTi0.44Cr0.56O2), the calculation results in Figure 7 show that the Cr-substituted NaxTiO2 exhibit nearly the same behavior as the pristine NaxTiO2. That is, the Na-diffusion barrier of the P2 phase is much higher than that of the P3 phase in the case of a single vacancy; meanwhile, in the presence of multiple vacancies, the Na-diffusion barrier of the P2 phase is largely reduced to a value even lower than that of the P3 phase. The above results suggest that the Na diffusion kinetics are mainly determined by a structural difference (P2 vs P3) rather than by the type of transition metal ions (Ti or Cr). Therefore, we focus on the structural difference between the P2 and P3 structures in the following discussions.

Figure 6
figure 6

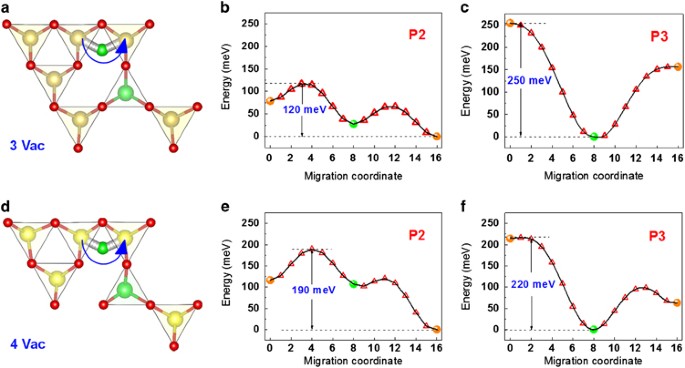

The calculated energy barriers and trajectories of Na-ion diffusion in P2- and P3-NaTiO2. (a) A schematic of the Na-ion diffusion path in layered P-type structures in the case of three Na vacancies. The NaIO6 and NaIIO6 prisms are represented by the green and yellow colors, respectively. (b) The Na-ion diffusion barrier of the P2-type phase under the condition of three Na vacancies. (c) The Na-ion diffusion barrier of the P3-type phase under the condition of three Na vacancies. (d) A schematic of the Na-ion diffusion path in layered P-type structures in the case of four Na vacancies. (e) The Na-ion diffusion barrier of the P2-type phase under the condition of three Na vacancies. (f) The Na-ion diffusion barrier of the P3-type phase under the condition of three Na vacancies.

Full size image
Figure 7
figure 7

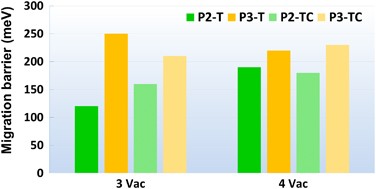

The calculated energy barrier of the Na-ion diffusion process for the following types: three vacancies (3 Vac) and four vacancies (4 Vac), and in NaTiO2 (solid bars) and NaTi0.44Cr0.56O2 (shaded bars) with layered P2 (green) and P3 (orange) structures, suggesting that the Na diffusion kinetics are determined by a structural difference (P2 vs P3) and independent of the transition metal ions.

Full size image

By analyzing the above calculation results, we see that the energy barrier of the Na-ion diffusion is largely determined by the energy differences between the NaI and NaII sites. The site energy difference can approximately be attributed to the intralayer Na interaction and the transition metal (Ti or Cr) repulsion. We qualitatively show the effects of the two main factors on the NaI site energy (relative to the NaII site) in Supplementary Table S3. Notably, the values provided in Supplementary Table S3 are approximations, and the energy barrier of the ionic diffusion results from complex interactions between the diffusion ions and the surrounding crystal lattice. Under the single vacancy approximation, the intralayer Na-ion interactions (in both the P2 and P3 phases) cause an increase of ca. 0.2 eV in the energy of the NaI sites (relative to that of the NaII sites), denoted by an up arrow. The transition metal repulsion, however, differs in the two phases. For the P2 phase, as we have mentioned earlier, the NaI ion endures a much higher electrostatic repulsion from the transition metal ions (ca. 0.3 eV), greatly increasing the NaI site energy (to ca. 0.5 eV); meanwhile, in the P3 phase, the NaI ion gains no more energy from the transition metal repulsion compared with the NaII ion, and therefore the relative energy of the NaI site is solely determined by the intralayer Na-ion interactions, leading to a much lower energy barrier.

In the case of more Na vacancies, the essential difference observed from the single vacancy approximation lies in the occupation of the NaI site. The occupied NaI site reduces the site energy of its adjacent NaI site (ca. −0.2 eV), making the NaI site more energetically favorable than the NaII site. Therefore, the intralayer Na-ion interaction of more Na vacancy cases is represented by a down arrow in Supplementary Table S3. Because the transition metal repulsion has no contribution to the relative energy of the NaI site in the P3 phase, we can see from Figures 6c and f that the Na ion reaches an energy minimum at the NaI site. For the P2 phase, however, the transition metal repulsion tends to increase the relative energy of the NaI site (ca. 0.3 eV), thereby counterbalancing the intralayer Na-ion interaction to some extent, resulting in a low activation energy barrier for Na-ion diffusion (ca. 0.1 eV). In aggregate, the mobility of the Na ions in the P2 phase are greatly promoted given the presence of multiple vacancies, further demonstrating the excellent electrochemical performance of the P2-NTCO electrode.

In addition to the first-principles calculation, the GITT was also experimentally performed to compare the Na-ion mobilities in the P2 and P3-NTCO materials. Supplementary Figure S11 shows the variation of the chemical diffusion coefficient of Na-ions (DNa) determined from the GITT profiles in P2-NTCO and P3-NTCO, respectively. Both the Na-ion diffusion coefficients present a downward trend during the discharge process and a rising trend during the charge process. This variation of sodium ion diffusion during the whole cycling process likely results from an increase or decrease in the sodium content in the crystal structure. The DNa in P2-NTCO exhibits 1 × 10−12–2 × 10−13 cm2 S−1, which is remarkably higher than the corresponding Na diffusivity in P3-NTCO (2 × 10−13–9 × 10−14 cm2 S−1). Both the calculation results and the GITT measurement demonstrate that Na-ion diffusion in the P2 phase is faster than that of P3 phase, indirectly evidencing multiple-vacancy Na-ion diffusion in the P2 phase.

In summary, the polytype P2-Na0.62Ti0.37Cr0.63O2 and P3-Na0.63Ti0.37Cr0.63O2 with nearly the same compositions and different layered structures were successfully synthesized. Their sodium storage performances were systematically investigated and compared, and the bridge between the crystal structures, migration paths and electrochemical properties was thoroughly outlined for the first time. An excellent rate capability (66 mAh g−1 at a 10C rate) and cycling performance (77.5% capacity retention after 1000 cycles) as well as a safe sodium insertion/extraction potential of 0.73 V in P2-Na0.62Ti0.37Cr0.63O2 suggest that it is a promising anode candidate for sodium-ion batteries for large-scale energy storage. The high safety, suitable voltage, usable capacity and superior cycling performance characteristics make layered titanium-based oxides highly promising anode candidates for practical sodium-ion batteries (Supplementary Table S4). When applied in electrical energy storage such as in a smart grid, the safety and long life are the most critical factors other than capacity. Therefore, the development of new layered titanium-based oxides advances sodium-ion batteries toward large-scale applications. The first-principles calculation was conducted to investigate the essential distinction between the P2 and P3 phase. The density functional theory calculations clearly reveal that the sodium diffusion barrier in the P2 phase is greatly reduced under the condition of multi-vacancies to a value even lower than that of the P3 phase. GITT results also illustrate that the P2 phase possesses smoother sodium-ion diffusion than the P3 phase. In essence, Na diffusion kinetics are mainly determined by a structural difference (P2 vs P3) rather than the type of transition metal ions (Ti or Cr). The crystal structure–migration path–electrochemical performance relationship was established in layered P-type structures for the first time, and this work, combining experimental and calculated methods, also provides new avenues for designing advanced electrode materials of sodium-ion batteries.
