Hypermethylation of the p16 Gene and Lack of p16 Expression in Hepatoblastoma

Abstract

Hepatoblastoma is the most frequent pediatric liver tumor that develops mostly in young children. Abnormal regulation of cell cycle regulatory genes including p16 has been described, displaying no p16 mRNA and p16 protein in hepatoblastomas. The inactivation of p16, leading to the disruption of cell cycle control is involved in many types of human malignancies. However, the mechanism of the p16 inactivation in hepatoblastomas has not yet been elucidated. In this present study, we examined the methylation status of the p16 gene promoter by using methylation-specific PCR in 24 cases of hepatoblastomas and in 20 cases of corresponding non-neoplastic liver tissue. Aberrant methylation of 5′ CpG islands of p16 was present in 12 of 24 (50.0%) cases of hepatoblastoma. Clinicopathologic parameters were not associated with the methylation status of p16. To correlate the methylation status of p16 with the expression of p16, immunohistochemical staining was done in tumors and non-neoplastic liver tissue. All non-neoplastic liver tissues displayed moderate, but heterogeneous immunoreactivity for p16. Eight of 12 (66.6%) methylation-positive hepatoblastomas showed a complete lack of immunoreactivity for p16. The other 4 methylation-positive hepatoblastomas had heterogeneous immunoreactivity. Nine of 12 (75.0%) unmethylated cases of hepatoblastoma displayed diffuse immunoreactivity, whereas 3 cases of unmethylated hepatoblastoma were not immunostained for p16. Our data indicate that the hypermethylation of p16 is a major mechanism of the transcriptional repression of p16 in hepatoblastomas, and we suggest that the inactivation of p16, leading to the lack of p16, may play an important role in the tumorigenesis of hepatoblastomas.

INTRODUCTION

Hepatoblastoma is the most frequent pediatric liver tumor that develops mostly in young children <2 years of age (1). The histopathologic characteristics of hepatoblastoma are well known, and hepatoblastoma prognosis has improved significantly as a result of the application of preoperative chemotherapy and has a current projected 3-year overall survival rate of 62–70% (2). Regarding the pathogenesis of hepatoblastoma, several molecular mechanisms have been suggested, including loss of heterozygosity on chromosome 11p (3) and alterations of the APC (4) or p53 (5) genes. In addition, transcriptional alterations of cell cycle regulatory genes have been reported recently (6, 7, 8).

Abnormal control of the cell cycle, especially in the transition from the G1 to the S phase, is involved in many types of human carcinogenesis (9). Among the elements of the complex molecular machinery of the G1-phase progression, p16 is a negative regulatory protein, whereas cyclin D1 and cyclin-dependent kinase 4(Cdk4) are positive regulators. P16 binds competitively to the Cdk 4, which inhibits the interaction of Cdk 4 with cyclin D1 and leads to the inhibition of the G1 phase of the cell cycle (10, 11, 12). Thus, the inactivation of the p16 gene, leading to the disruption of cell cycle control, is involved in the pathogenesis of many types of human malignant tumors (13, 14, 15). An analysis of cell cycle regulators in hepatoblastomas (6) including the p16 gene did not detect deletions or point mutations of the p16 gene, although the p16 gene was not transcribed in the tumor tissues as well as it was transcribed in the matched normal liver tissue. In addition, an immunoblot analysis demonstrated that the level of the p16 transcripts correlated well with the p16 protein level (6). However, the investigators did not elucidate the mechanism of the p16 gene inactivation. In contrast, Kim et al. (7) reported that p16 protein was expressed in all areas of a tumor in 6 of 17 sporadic hepatoblastomas, whereas the expression of p16 was inconclusive in the remaining 11 cases. These contrasting observations suggest that there may be a subpopulation of hepatoblastomas in which p16 expression is negatively regulated. Therefore, in our present study, we examined the expression of the p16 protein and the methylation status of the p16 gene promoter to characterize the mechanism of the p16 inactivation and role of p16 protein in the development of hepatoblastomas.

MATERIALS AND METHODS

Tissue Samples

We retrieved 24 cases of hepatoblastoma from the files of the departments of pathology of Asan Medical Center and Seoul National University Hospital between 1991 and 2000. Most patients did not receive preoperative chemotherapy or radiotherapy. All patients underwent tumor resection of curative intent. Representative sections from the tumor and non-neoplastic liver were fixed in 10% buffered formalin and embedded in paraffin.

DNA Extraction and Methylation-Specific PCR (MSP)

Tissues were digested in a lysis buffer (50 mm Tris, pH 8.5; 1 mm EDTA; 0.5% Tween 20) with proteinase K (500 μg/mL, Boehringer Mannheim, Germany) at 60° C for 2 days, and after boiling for 2 minutes, the sample was centrifuged at 13,000 rpm. The supernatant was directly modified with sodium bisulfite to determine the methylation status of the p16 gene by MSP, as described elsewhere (16). PCR was performed at 94° C for 5 minutes, followed by 28 cycles at 94° C for 30 seconds, 65° C for 30 seconds, and 72° C for 30 seconds, with a final extension for 10 minutes at 72° C. The reaction mixture was in a 25-μL volume containing 50 ng of modified DNA, 10 pmol of primers, 0.2 mm of dNTP, and 1 U of Taq polymerase (Takara, Kyoto, Japan) in a 1× PCR buffer (10 mm Tris, pH 8.3; 50 mm KCl; and 1.5 mm MgCl₂). Sequences of PCR primers were the same as described elsewhere (16). The PCR products were analyzed on a 2.5% agarose gel, stained with ethidium bromide, and visualized by UV illumination.

DNA Sequencing

The PCR products were purified using a JETSORB gel extraction kit (Genomed, Bad Oeynhausen, Germany), and both strands were sequenced with both PCR primers by an ABI PRISM 377 × L DNA sequencer (PE Biosystem) for confirmation.

Immunohistochemistry and Analysis of Immunohistochemical Results

Four- to 6-μm-thick sections were cut from the 10% buffered formalin-fixed and paraffin-embedded tissues. The sections were mounted on poly-l-lysine-coated glass slides and baked at 60° C for 15 minutes. The slides were deparaffinized in xylene, rehydrated in graded alcohol, and washed in tap water. Endogeneous peroxidase activity was blocked by incubating sections with 3% H₂O₂. The slides were placed in a steam cooker filled with a 10 mm sodium citrate buffer, pH 6.0, for antigen retrieval. After treatment with 10% normal goat serum for 10 minutes to block nonspecific protein binding, a 1:100 dilution of a mouse monoclonal antibody to p16 (SC1661; Santa Cruz Biochemicals, Santa Cruz, CA) was applied for 1 hour. After reaction with a mouse biotinylated secondary antibody for 1 hour, antigen–antibody reactions were visualized using a streptavidin–horseradish peroxidase conjugate (DAKO LSAB kit; DAKO, Los Angeles, CA) with diaminobenzidine as the chromogen. The slides were counterstained with Harris hematoxylin for 3–5 minutes.

Two independent pathologists screened all sections. Cytoplasmic immunoreactivity was ignored, and only nuclear staining was interpreted as positive immunoreactivity for p16. Normal lymphocytes or Kupffer cells were used as an internal positive control. We defined the immunostaining results as follows: negative, <10% of tumor cells were positive; heterogenously positive, 10–75% of tumor cells were positive; diffusely positive, >75% of tumor cells were positive.

RESULTS

Clinicopathologic Analysis

Clinicopathologic data on each patient, including histologic classification (17), are presented in Table 1. Staging is based on the system devised by Greenberg and Filler (18). The median age of patients was 2 years. During the follow-up period, five cases recurred, including three cases that had metastasized.

TABLE 1 Clinicopathologic Summary of 24 Hepatoblastomas

Methylation Status of the p16 Gene in Hepatoblastomas

Aberrant hypermethylation of 5′ CpG islands of the p16 gene was detected in 12 of 24 (50.0%) cases of hepatoblastoma by MSP (Fig. 1 and Table 2), whereas no aberrant methylation was detected in 20 cases of non-neoplastic liver. Specificity of the p16 methylation status was confirmed by bisulfite sequencing analysis (Fig. 2). Bisulfite sequencing of methylated p16 gene in three cases revealed that all 10 CpG sites in the genes promoter remained cytosine (Fig. 2). This indicated that cytosine in the CpG site in the methylated p16 gene was 100% methylated because methylated cytosine remains after bisulfite treatment, maintaining the CpG site. Unmethylated cytosine is changed to uracil after bisulfite treatment and becomes thymine during PCR amplification. Clinicopathologic parameters, including histologic type and tumor size, were not associated with the methylation status of the p16 gene.

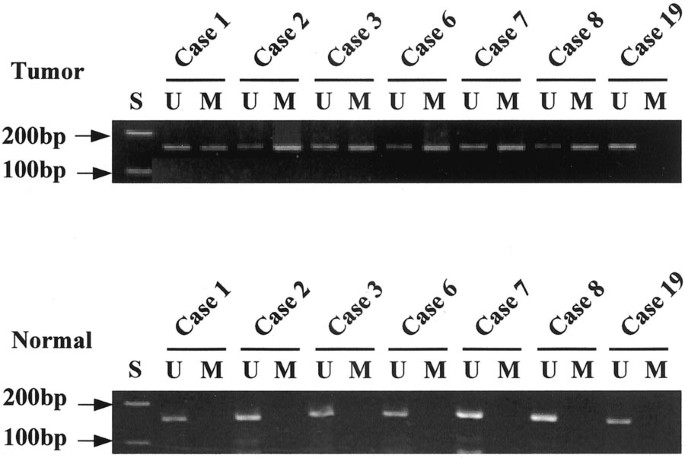

FIGURE 1

Methylation status of p16 in methylated (Cases 1, 2, 3, 6, 7, and 8) and unmethylated (Case 19) hepatoblastomas (Tumor) and their normal livers (Normal). DNA extracted from hepatoblastomas was amplified by PCR with primers specific to the unmethylated (U) or the methylated (M) CpG islands of the p16 gene after modification with sodium bisulfite. The expected sizes of the PCR products of p16 were 151 bp with U primers and 150 bp with M primers. Molecular size markers are in S lane.

TABLE 2 Correlation of the Expression of p16 with the Methylation Status of p16 in Hepatoblastomas

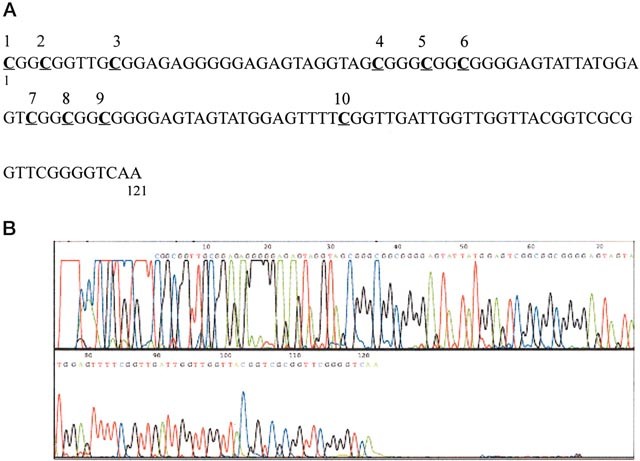

FIGURE 2

Methylation status at CpG sites of the p16 gene in Case 10. A, the nucleotide sequnces between +167 and +317 of the p16 gene. The individual CpG sites are numbered sequentially. Cytosines at the CpG sites are in bold. B, all CpG sites contained methylated cytosine.

Methylation Density of CpG Islands in the p16 Gene

In 4 cases of methylation-positive hepatoblastomas, the expression of p16 was the same as that in the surrounding non-neoplastic liver tissue. The discrepancy between the methylation status of p16 and the immunoreactivity for p16 could be related to the methylation density of the CpG islands because it has been shown that the level of transcriptional repression is dependent on methylation density. To clarify this discrepancy, we examined three cases of methylation-positive and p16-expressing hepatoblastoma (Cases 10, 11, and 12) and two cases of methylation positive but p16-negative hepatoblastoma (Cases 3 and 5) for the methylation density of the p16 gene using bisulfite sequencing analysis. We sequenced the amplified PCR products of the p16 gene, covering the region +167 to +317 (22). Five methylation-positive cases were extensively methylated, and 10 CpG sites examined contained methylated cytosine (Fig. 2). This demonstrated that the p16 methylation in the 10 CpG islands of the promoter region had no bearing on p16 gene expression.

Expression of p16 Protein in Hepatoblastomas

To correlate the methylation status of the p16 gene with the expression of p16, immunohistochemical analysis was done in the hepatoblastoma as well as in the surrounding non-neoplastic liver tissue. All non-neoplastic liver tissue displayed moderate immunoreactivity for p16 in most liver cell nuclei (Fig. 3A). Eight of 12 (66.6%) methylation-positive cases revealed a complete lack of immunoreactivity for p16 (Fig. 3B). The other 4 methylation-positive cases had heterogeneous immunoreactivity (Fig. 3C-3D). Nine of 12 (75.0%) unmethylated cases of hepatoblastoma displayed diffuse immunoreactivity (Fig. 3E–F), whereas 3 cases of unmethylated hepatoblastoma were negative for p16. The correlation between the immunohistochemical results and the methylation status was not, however, statistically significant (P = .1, Fisher's exact test). The expression of p16 was not associated with histologic subtypes of hepatoblastoma.

FIGURE 3

Immunohistochemical staining for p16. A, non-neoplastic liver displays moderate expression of p16 in the nucleus. B, a representative case of methylation-positive embryonal type hepatoblastoma; tumor cells are entirely negative for p16 (Case 8). Granular immunopositivity corresponds to the cytoplasmic pigment such as iron or lipofuscin pigments. C (Case 10) & D (Case 12), two representative cases of methylation-positive hepatoblastoma exhibiting variably heterogeneous nuclear expression of p16 (arrows). E (Case 19) & F (Case 14), two representative cases of methylation-negative hepatoblastoma: >90% of tumor cells are strongly positive for p16 regardless of the histologic type.

DISCUSSION

In the present study, we first report a high frequency of aberrant methylation of the p16 gene promoter (50.0%) in hepatoblastomas. p16 is a negative cell cycle regulator that is involved in the pathogenesis and development of many types of human malignancies (13, 14, 15). The role of cell cycle regulators has been described recently in hepatoblastoma (6, 7, 8). However, the genetic analysis of the cyclin-dependent kinase inhibitors and cyclin Ds revealed that the p16 and p15 genes were transcriptionally silenced in hepatoblastomas as well as in nontumorous liver tissue (6). Thus, the role of p16 in the development of hepatoblastomas has been underestimated. Several mechanisms of the p16 inactivation, such as point mutation, homozygous deletion, loss of heterozygosity, and hypermethylation, have been reported in different types of human malignancies (19, 20, 21). Iolascon et al. (6) demonstrated the transcriptional silencing of p16 in hepatoblastomas and examined genetic alterations including homozygous deletion, mutation, and loss of heterozygosity of 9p21. However, they did not detect any genetic abnormalities of the p16 gene in the cases they examined, and they did not investigate the methylation status of p16. Thus, the high frequency of the p16 hypermethylation in our cases suggests that the hypermethylation of p16 is a major mechanism for the transcriptional repression of p16 in hepatoblastomas.

The aberrant methylation of p16 indicates that the expression of p16 can be various in hepatoblastomas, because hypermethylation of the p16 gene can repress the transcription of the gene, thereby affecting the protein expression. There were four subgroups of hepatoblastomas according to the methylation status of p16 and the p16 expression. Among 12 cases of unmethylated hepatoblastoma, 9 cases (66.6%) were positive for p16, whereas 8 of 12 (75.0%) methylation-positive hepatoblastomas were not immunoreactive for p16. These observations indicate that the hypermethylation of p16 plays an important role in the loss of p16 in hepatoblastoma as it does in the adult liver cancer, hepatocellular carcinoma.

In the present study, 4 cases of methylation-positive hepatoblastoma expressed p16 heterogeneously. This finding may be explained by a high sensitivity of the MSP method, or partial or hemimethylation of the p16 gene. First, MSP is very sensitive and can detect methylated DNA at a level of 0.1% (16). If tumor cells contained both methylated and unmethylated DNA, and the proportion of methylated DNA was as low as 0.1% of the total DNA, the sample would be classified as having a methylation-positive pattern, but it would show positive immunoreactivity in 99.9% of unmethylated tumor cells. Thus the methylation status detected by the MSP method may need to correlate with an immunohistochemical analysis to validate the biological function of hypermethylation. Second, it has been reported that the reduction of p16 expression is associated with limited CpG methylation (20). This indicates that incomplete methylation may result in partial loss of p16 expression. In the analysis of methylation density in the three cases of hepatoblastoma that were positive for methylation and p16 expression in the present study, we found extensive methylation in all sequenced clones. These results suggest that partial methylation of the CpG island sites that were examined in this study did not contribute to the immunoreactivity in our cases. However, incomplete methylation at other CpG islands cannot be excluded. PCR results showed that both unmethylated and methylated DNA were present in all 4 cases. The unmethylated DNA in PCR analysis may be from either nontumor cells or an unmethylated population of tumor cells. The latter may account for the p16 expressing tumor cells of the present cases. Third, hemimethylation has been reported in cell lines such as the colon cancer cell line, HCT116 (22). The analysis of hemimethylation of tumor cells, however, is hampered by unmethylated DNA from nontumor cells in primary tumors. In addition, most methylation-positive cases with negative immunoreactivity also had unmethylated DNA, suggesting that the amplified unmethylated DNA could come mainly from non-tumor tissues. Therefore, the p16 immunopositivity in those cases is unlikely to be attributable to p16 hemimethylation.

The three cases that were negative for both methylation and immunoreactivity suggested that molecular mechanisms, such as homozygous deletion or genetic mutation, might be responsible for the lack of p16. Neither of these events, however, was detected in the study by Iolascon et al. (6). Further analysis is necessary to elucidate racial difference of the frequency of such genetic alterations in hepatoblastomas.

In conclusion, our data indicate that hypermethylation of the p16 gene promoter is a major mechanism of the transcriptional inactivation of p16 and accounts for the lack or decrease of p16 expression in hepatoblastomas. Thus, we suggest that the aberrant methylation status of p16 may play an important role in the tumorigenesis of a subpopulation of hepatoblastomas.
