Main

The importance of distinguishing the different types of renal cell carcinoma is underscored by the fact that they have different prognoses.1, 2, 3 CD10, a cell surface metalloproteinase localized to the proximal nephron of the normal adult kidney,4 has been proposed as a useful tool in the differential diagnosis of renal epithelial neoplasms.5, 6, 7 This molecule has been described as a positive immunohistochemical marker for the two most common types of kidney cancer, clear cell and papillary renal cell carcinomas.5, 6, 7, 8, 9 Previous studies analyzing CD10 immunoreactivity in a total of 25 chromophobe renal cell carcinomas have found negative reactions,5, 7 whereas Holm-Nielsen et al10 found CD10 expressed in all three chromophobe carcinomas studied and Higgins et al11 found a positive reaction in one of three tumors tested. In this study we undertook to investigate CD10 and parvalbumin immunoreactivity in a large series of clear cell, papillary, and chromophobe renal cell carcinomas.

Materials and methods

Patients and Tissue Samples

We studied the immunohistochemical expression of CD10 and parvalbumin in 75 clear cell renal cell carcinomas, 51 papillary renal cell carcinomas and 38 chromophobe renal cell carcinomas (including 36 of the classic type and two eosinophilic variants), retrieved from the files of the Renal Tumor Registry of the Department of Pathology of the University of Verona, Verona, Italy. These included eight metastases of clear cell renal cell carcinoma (three adrenal, one pulmonary, one hepatic and four pancreatic), two lymph nodal metastases of papillary renal cell carcinoma and one pancreatic metastasis of chromophobe renal cell carcinoma.

CD10 expression was considered negative in cases with completely absent immunohistochemical reactions or with a few scattered positive neoplastic cells.

After we found expression of CD10 in a subset of chromophobe renal cell carcinomas, including cases with aggressive features (pT3a and pT3b and pancreatic metastasis), we added four cases of chromophobe renal cell carcinoma, two with lymph nodal and pulmonary metastases and two with sarcomatoid transformation, coming from the Departments of Pathology of Innsbruck University, Austria, Indiana University, Indianapolis, IN, USA, Istituto Europeo di Oncologia, Milano, Italy, and Hôpital Européen George Pompidou, Paris, France, to further attempt to correlate CD10 expression with clinicopathologic parameters.

We evaluated the following clinicopathologic parameters: sex, age, type of surgery and follow-up data; size, laterality and involvement of perinephric adipose tissue; Hale's colloidal iron stain (a diagnostic hallmark of chromophobe renal cell carcinoma), Fuhrman's grade, mitotic activity (mitotic figures per 50 high power fields), necrosis, vascular invasion, extrarenal extension, and metastases. The tumors were staged using the AJCC/TNM Staging System 2002 and the histopathological parameters were evaluated on an average of 3.7 tumor sections.

The immunohistochemical expression of CD10 was also evaluated in five fetal kidneys (from 16 to 23 weeks of gestation) and in unaffected samples of the kidneys harboring the tumors.

Immunohistochemical Analysis

For all tumors, serial 5 μm sections were immunostained with antibodies recognizing the following markers: CD10 (anti-CD10, 56C6 Novocastra, Burlingame, CA, USA; dilution, 1:20), and parvalbumin (PA-235, Sigma Chemical Company, St Louis, MO, USA; dilution, 1:500). Immunoreactions were developed using three different nonbiotin, highly sensitive systems (Envision peroxidase detection system, DAKO, Carpinteria, CA, USA; Envision-alkaline-phosphatase detection system, DAKO, Carpinteria, CA, USA; polymer-system, Biogenex, San Ramon, CA, USA) preventing possible false-positive staining due to endogenous biotin present in the tissue.

Sections of normal adult and fetal renal parenchyma were immunostained using single and multiple marker procedures. In the latter procedure, the sections were consecutively tested for CD10 and parvalbumin, utilizing double Envision-peroxidase immunostaining, followed by Envision-alkaline-phosphatase immunostaining.

Western Blot Analysis

The samples of two chromophobe renal carcinomas and their normal controls (a chronic lymphocytic leukemia cell line as negative control, and a follicular lymphoma cell line as positive control for CD10) were lysed in a buffer containing 20 mM Tris-HCl, pH 8, 100 mM NaCl, 0.5% Triton X-100, 10 mM NaF2, 1 mM Na3VO4, 200 mM DTT, 1 mM PMSF and a cocktail of protease inhibitors for 1 h on ice.

After centrifugation at 12 000 g for 10 min, protein extracts were recovered and protein concentration was measured by protein assay (Bio- Rad).

Proteins (30 μg) were separated on a 12% SDS–PAGE and transferred into Hybond-P PVDF membranes. Equal loading of samples was checked by staining with Ponceau-S. Membranes were then incubated for 1 h at room temperature with the blocking reagent: 5% nonfat dried milk in PBST, washed three times in PBST and than incubated overnight at 4°C with mouse monoclonal antibodies: anti-CD10 (56C6 Novocastra) and anti-parvalbumin (PA-235, Sigma Chemical Company) at, respectively, 1:33 and 1:2500 final dilution. After three washes in PBST, membranes were incubated for 1 h at room temperature with an anti-mouse Ig horseradish-peroxidase-coniugated antibody from sheep (NXA 931 Amersham Pharmacia Biotech Europe Freiburg, Germany) at 1:10 000 diluition.

After three washes in PBST membranes were revealed with an enhanced chemiluminescence (ECL) system (Amersham Life Science, Freiburg, Germany).

Full range rainbow (Amersham Life Science, England) was run on each gel as standard molecular-weight marker.

Statistical Analysis

The Pearson χ2 and the Student's t-test analyses were used to compare categorical and continuous variables. We tested the possible association between CD10 expression and the clinicopathologic features including gender, age, tumor size, Fuhrman's grade, necrosis, mitotic figures and clinical aggressiveness, which was defined as pathologically proven locally advanced tumors (pT3a and pT3b), presence of synchronous or metachronous distant metastases, or presence of sarcomatoid transformation. Linear regression was used to perform multivariate analysis, which included only the variables significant at univariate analysis. In all the statistical analyses, a two-sided P<0.05 was considered significant. All data were analyzed using the 10.1 Statistical Package for the Social Sciences (SPSS) software.

Results

Clinical and Pathologic Findings

The clinical and pathologic findings of chromophobe carcinomas of our series are summarized in Table 1.

Table 1 Clinical, macroscopic, histopathological and immunohistochemical findings of 42 cases of chromophobe renal cell carcinomas
Full size table

Ages ranged from 28 to 81 years (mean 55 years). The female-to-male ratio was 1.3:1. Nephrectomy was the rule, but in six cases a tumorectomy or polar/wedge resection (one case) had been performed. A nephrectomy and a controlateral tumorectomy were performed in a patient affected by bilateral tumors.

Tumors ranged from 25 to 170 mm in diameter (mean 70 mm). A total of 23 tumors affected the left kidney and 19 the right kidney. TNM stages (2002) were: T1a in seven cases, T1b in 14 cases, T2 in 17 cases, T3a and T3b in one case, respectively, at the time of the nephrectomy or tumorectomy.

Morphologically, nuclei of the neoplastic cells were grade 2 in 25 tumors and grade 3 in 17 (Figure 1a). No mitotic figures could be found in 14 tumors, whereas in 9 primary neoplasms there were more than 5 mitotic figures per 50 high-power fields (Figure 1b). Necrosis was seen in 15 primary tumors, including both gross (10 cases) and microscopic (five cases) foci. Involvement of the renal vein and perinephric fat invasion were observed in one case each.

Figure 1
figure 1

(a) Chromophobe renal cell carcinoma (hematoxylin and eosin, × 20). (b) Chromophobe renal cell carcinoma with focus on two mitotic figures (arrows) (hematoxylin and eosin, × 40). (c) Metastasis of chromophobe renal cell carcinoma to retroperitoneal lymph node (hematoxylin and eosin, × 20). (d) Pulmonary metastasis of chromophobe renal cell carcinoma (hematoxylin and eosin, × 40). (e) Pancreatic metastasis of chromophobe renal cell carcinoma (hematoxylin and eosin stain, × 10). (f) Chromophobe renal cell carcinoma with sarcomatoid transformation (hematoxylin and eosin, × 20).

Full size image

Retroperitoneal lymph nodal (Figure 1c), pulmonary (Figure 1d) and pancreatic (Figure 1e) metachronous metastases of chromophobe carcinoma were found 5, 10 and 12 years after surgery, respectively. Sarcomatoid changes were present in two cases (Figure 1f). A median follow-up of 103 months (8.6 years) was available for 25 patients. No follow-up information was available regarding the two cases with sarcomatoid changes. All patients with follow-up data are alive, including those with metastatic disease. The patient with the bilateral tumors displayed a classic chromophobe renal cell carcinoma (nephrectomy) and a synchronous contralateral clear cell renal cell carcinoma (50 mm in diameter, nuclear grade 2, treated with tumorectomy).

Histochemical Findings

All but one chromophobe renal cell carcinomas stained with Hale's colloidal iron histochemical method.

Immunohistochemical Findings

Fetal and normal adult kidney

In fetal kidney, CD10 was extensively expressed in podocytes within the glomeruli, in the Bowman's capsule, in the epithelial cells of the proximal tubules and collecting duct cells of the medullary region. CD10 immunostain was absent in the renal structures of the nephrogenic zone, which is present at the capsular surface of the kidney as well as in the midplane of the cortical columns of Bertin, the zone of contact between adjacent lobes (Figure 2a).

Figure 2
figure 2figure 2

(a) CD10 immunostain (Envision peroxidase detection system, DAKO) in fetal kidney (23th week): CD10 was extensively expressed in the podocytes of the glomeruli, in Bowman's capsule, in the epithelial cells of the proximal tubules, and in the collecting duct cells of the medullary region (frame). CD10 immunostain was not expressed in the renal structures of the nephrogenic zone, as well as in the midplane of the cortical columns of Bertini, the zone of contact between adjacent lobes. (b) Section of normal adult renal parenchyma consecutively immunostained for CD10 (Envision alkaline-phosphatase detection system, DAKO) and parvalbumin (Envision peroxidase detection system, DAKO). CD10 stained the glomerular epithelium, Bowman's capsule and the normal proximal tubular cells, which showed strong surface membrane staining. Parvalbumin was constantly and strongly expressed, with a cytoplasmic and nuclear pattern, in a variable number of cells of distal convoluted tubules, connecting tubule, and in a subset of collecting duct cells, likely intercalated cells. (c) A case of CD10-positive chromophobe renal cell carcinoma: the neoplastic cells displayed a strong, cytoplasmic granular staining with a surface immunoreactivity highlighting microlumina (Envision alkaline-phosphatase detection system, DAKO). (d) CD10 immunostain in a case of chromophobe renal cell carcinoma (Envision peroxidase detection system, DAKO) underlining the patchy staining pattern. (e) CD10 immunostain in the retroperitoneal lymph nodal metastasis of chromophobe renal cell carcinoma (Envision peroxidase detection system, DAKO). (f) Parvalbumin immunostain in the retroperitoneal lymph nodal metastasis of chromophobe renal cell carcinoma (Envision peroxidase detection system, DAKO). (g) Parvalbumin immunostain in the pulmonary metastasis of chromophobe renal cell carcinoma (Envision peroxidase detection system, DAKO). (h) Parvalbumin immunostain in a case of chromophobe renal cell carcinoma with sarcomatoid transformation: positive stain in the epithelial component and negative in the sarcomatoid area (Envision peroxidase detection system, DAKO).

Full size image

In normal adult kidney, CD10 stained the glomerular epithelium, Bowman's capsule and the normal proximal tubular cells, which showed a strong surface membrane staining (Figure 2b).

Parvalbumin was constantly and strongly expressed, with a cytoplasmic and nuclear pattern, in a variable number of cells of distal convoluted tubules, connecting tubules, and in a subset of collecting duct cells, likely intercalated cells (Figure 2b).

Renal tumors

The results describing the immunoreactivity of CD10 and parvalbumin on the chromophobe renal cell carcinomas are summarized in Table 1.

Of 42 primary chromophobe renal cell carcinomas, 11 (26%) were immunoreactive for CD10. These included five (71%) of the seven cases with aggressive features, whereas only three (9%) of the 35 without aggressive features. In the positive tumors, the neoplastic cells displayed a strong, cytoplasmic granular staining, with an immunoreactivity highlighting intercellular and intracellular microlumina (Figure 2c). No significant differences in the immunoreactivity of the three different cell types described by Akhtar et al12 in chromophobe renal cell carcinoma were observed. The percentage of CD10 positive tumor cells varied from 30 to 90% in different tumors, with an alternation between positive and negative areas (Figure 2d).

Two of the three cases with distant metastases were CD10 immunoreactive (Figure 2e). The CD10 reactivity was always concordant in the primary and metastatic tumors. One of the two chromophobe renal cell carcinomas with areas of sarcomatoid transformation was CD10-positive both in the residual chromophobe cell component and in the spindle cell component.

All 75 of the clear cell renal cell carcinomas and 32 of 51 (63%) papillary renal cell carcinomas showed membranous immunostaining for CD10. The metastases of both types were also positive.

All chromophobe renal cell carcinomas, including the metastases (Figure 2f, g), showed a strong cytoplasmic and nuclear immunoreactivity for parvalbumin. Sarcomatoid areas, when present, were negative (Figure 2h). All of the clear cell and papillary renal cell carcinomas did not express significant levels of parvalbumin.

Western Blot Findings

The specificity of immunodetection of both CD10 and parvalbumin was confirmed by Western blot analysis in two samples of chromophobe renal cell carcinomas (Figure 3). The Western blots showed bands consistent with the 100 kDa CD10 protein in the CD10-positive samples (chromophobe renal cell carcinoma, normal renal parenchyma and a follicular lymphoma cell line used as control). The band was not found with CD10-negative tumors. The analysis for anti-parvalbumin displayed a band consistent with the 12 kDa parvalbumin protein in a chromophobe renal cell carcinoma and in normal renal parenchyma, but not in the control.

Figure 3
figure 3

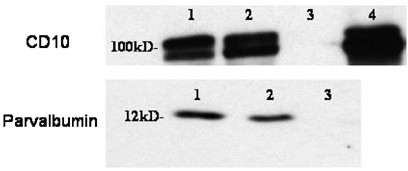

Western blot for anti-CD10 showing bands corresponding in size to the 100 kDa protein in one case of chromophobe renal cell carcinoma and in the positive control (follicular lymphoma cell line), but not in the negative control (chronic lymphocytic leukemia). Lane 1: chromophobe renal cell carcinoma; lane 2: normal kidney adjacent to chromophobe renal cell carcinoma; lane 3: chronic lymphocytic leukemia cell line; lane 4: follicular lymphoma cell line. Western blot for antiparvalbumin showing bands corresponding in size to the 12 kDa protein in a case of chromophobe renal cell carcinoma but not in the negative control (chronic lymphocytic leukemia cell line). Lane 1: chromophobe renal cell carcinoma; lane 2: normal kidney adjacent to chromophobe renal cell carcinoma; lane 3: chronic lymphocytic leukemia.

Full size image

Statistical Findings

The statistical findings are summarized in Tables 2 and 3. The statistical analysis of the data showed significant association of CD10-positive chromophobe renal cell carcinomas with clinical aggressiveness (P=0.003), as previously defined, and with the presence of mitotic figures (P=0.04). At univariate analysis, only the presence of necrosis (P<0.001) and CD10 expression (P=0.003) were significant. Both of them were independent predictive variables in multivariate analysis (Table 3).

Table 2 Correlation between clinical and pathological variables with CD10 analysis
Full size table
Table 3 Clinical aggressiveness: univariate and multivariate analyses (P<0.05)
Full size table

Discussion

In this study, we detected the expression of CD10 in 26% of chromophobe renal cell carcinomas. This is significant because it shows that CD10 is not a specific marker for clear cell and papillary renal cell carcinomas as has been asserted in previous reports. However, by including parvalbumin in the immunohistochemical panel for the differential diagnosis of primary and metastatic renal cell carcinomas, diagnostic specificity can be improved, especially in assessing metastases where oncocytoma is not a consideration. Parvalbumin is a calcium-binding protein proposed recently as a useful marker to identify renal epithelial neoplasms with differentiation toward the distal nephron such as chromophobe renal cell carcinoma and oncocytoma.13, 14, 15 In this study, we demonstrated that parvalbumin immunostained all 42 chromophobe renal cell carcinoma and used Western blot analysis to confirm the presence of parvalbumin in the neoplastic cells. In our study, we found that all metastatic clear cell and papillary renal cell carcinomas and two of the three metastatic chromophobe renal cell carcinomas were positive for CD10. Immunohistochemistry for parvalbumin would clarify this differential diagnosis since it is consistently positive in chromophobe renal cell carcinoma and negative in clear cell and papillary renal cell carcinomas. The same approach can be used with primary tumors if oncocytoma is not a consideration.

Endogenous biotin in kidney tissue and renal tumors can lead to confusing results. In this study, three different developing systems that are not sensitive to endogenous biotin were used to overcome this problem. The results were identical with each of the developing systems. Using these systems, clear cell renal cell carcinoma appears to be consistently negative for parvalbumin. This difference in methodology may account for differences between the results of this study and the results of previous studies that used methods sensitive to endogenous biotin.

CD10 immunoreactivity was observed in the collecting duct cells of the fetal kidney between the 16th and 23rd weeks of gestation. This correlates with the observation of CD10 expression in chromophobe renal cell carcinomas, since these tumors exhibit other forms of differentiation toward the collecting duct phenotype.13, 16 The presence of markers of different segments of the nephron may reflect abnormal gene expression associated with the neoplastic changes of chromophobe renal cell carcinoma. Our investigation of fetal kidney has shown that CD10 expression is present in epithelial cells of both the proximal and distal nephron.

This study also found a statistically significant relationship between CD10 expression and clinicopathologic aggressiveness in chromophobe renal cell carcinomas (P=0.003). CD10 expression was also correlated with the presence of mitotic figures (P=0.04). The measures of clinicopathologic aggressiveness included renal vein involvement, perinephric fat invasion and distant metastases, all of which are quite uncommon in chromophobe renal cell carcinomas.17, 18 This suggests that detection of CD10 in a chromophobe renal cell carcinoma may indicate the potential for more aggressive behavior than is expected in other chromophobe renal cell carcinomas. Moreover, among the traditional pathological parameters, only the presence of necrosis predicted clinical aggressiveness in this set of chromophobe renal cell carcinomas. Multivariate analysis showed independent predictive roles for both CD10 expression and presence of necrosis.

Most renal epithelial neoplasms can be diagnosed reliably by experienced pathologists on the basis of hematoxylin and eosin morphology alone, but numerous difficult cases exist. Data about the expression profiling of renal epithelial neoplasms have been growing in the recent literature15, 19, 20, 21, 22 and the search for immunohistochemical markers uniquely positive for the most common renal cell neoplasms is extensive.5, 13, 15, 22, 23, 24, 25

CD10 has been suggested as a marker useful in the differential diagnosis of renal tumors.5, 6, 7, 8 Droz et al8 observed CD10 immunoreactivity in all 28 renal cell carcinomas tested and Chu and Arber6 reported 41 out of 46 renal cell carcinomas (clear cell and papillary renal cell carcinomas) positive for CD10, but no chromophobe renal cell carcinomas were evaluated in these studies. Avery et al5 found CD10 in 58 of 62 (94%) clear cell and 13 of 14 (93%) papillary renal cell carcinomas, whereas all 19 chromophobe renal cell carcinomas were considered negative in that study. Kim and Kim7 also reported most clear cell and papillary renal cell carcinomas as positive for CD10, but found chromophobe renal cell carcinoma to be negative for this marker.

At variance with these studies, we found that 11 of 42 (26%) chromophobe renal cell carcinomas were immunoreactive for CD10. The neoplastic cells displayed a strong cytoplasmic granular staining, with an immunoreactivity highlighting intercellular and intracellular lumens, this latter corresponding to the intracytoplasmic lumens described in chromophobe renal cell carcinoma by Krishnan and Truong.26 We confirmed the presence of the CD10 protein in the neoplastic cells by Western blot analysis. The population of CD10-positive neoplastic cells ranged from 30 to 90% of the entire population with an alternation between positive and negative areas in the same tumor that could cause negative results if CD10 immunohistochemistry is used in tissue microarray analysis.
