Abstract
The degree of tumor load reduction after therapy is an important prognostic factor for patients with CML. Conventional metaphase analysis has been considered to be the ‘gold standard’ for evaluating patient response to treatment but this technique normally requires bone marrow aspiration and is therefore invasive. The frequency of cytogenetic analyses can be considerably reduced if patients are also monitored by molecular methods, which can be performed on peripheral blood specimens. Of the various techniques available, most attention has been paid to RT-PCR for BCR-ABL mRNA since this is by far the most sensitive. Simple, non-quantitative RT-PCR analysis gives only limited information on patients after treatment. Quantitative RT-PCR assays have been developed to monitor the kinetics of residual BCR-ABL transcripts over time. Variables in the quantitative PCR assay may be controlled for by quantification of transcripts of a normal gene (eg ABL or glucose-6-phosphate dehydrogenase, G6PD) as an internal standard. After allogeneic stem cell transplantation, most patients become RT-PCR negative, often after a period of low level positivity that may persist for several months. Those patients destined to relapse are characterized by the reappearance and/or rising levels of BCR-ABL transcripts. In contrast, for patients treated with interferon-α (IFN) residual disease is rarely, if ever, eliminated. The actual level of minimal residual disease in complete cytogenetic responders to IFN correlates with the probability of relapse. New quantitative real time procedures promise to simplify the protocols that are currently in use, but standardization and the introduction of rigorous, internationally accepted controls are required to enable RT-PCR to become a robust and routine basis for therapeutic decisions.
Introduction
Chronic myelogenous leukemia (CML) constitutes a clinical model for molecular detection and therapy surveillance of malignant disease since this entity was the first leukemia shown to be associated with a specific chromosomal rearrangement, the Philadelphia (Ph) translocation t(9;22)(q34;q11),123 which generates two chimeric genes: BCR-ABL45 on the derivative chromosome 22, and ABL-BCR on the derivative chromosome 9. BCR-ABL is transcribed and translated in most patients into a 210 kDa fusion protein with deregulated tyrosine kinase activity. ABL-BCR is expressed in about 60% of patients with CML, but probably lacks any biological function6 (review, see Ref. 7).
The degree of tumor load reduction is an important prognostic factor for patients with CML on therapy.8 Response is expressed at three levels: (1) hematological response, defined as the normalization of the peripheral blood values and of spleen size; (2) cytogenetic response defined as the proportion of residual Ph-positive metaphases; and (3) molecular response defined according to the method used as the proportion of the residual BCR-ABL gene, transcript, or protein. The principle aim of residual disease analysis in patients with CML is to determine patient response to treatment and to enable early diagnosis of relapse.
Detection and quantification of BCR-ABL-positive cells
Cytogenetic analysis of bone marrow metaphases
The Ph chromosome is present in about 90% of patients with a clinical presentation consistent with CML. Three to five percent of patients show a normal chromosome 22 but molecular evidence of the BCR-ABL translocation. At presentation cytogenetic analysis usually reveals the Ph chromosome in 100% of cells analyzed with standard 20–30 cell analysis. Conventional cytogenetics is still considered the ‘gold standard’ for evaluating this response.
Major drawbacks of cytogenetics are the requirement of bone marrow cells in mitosis, and the analysis of relatively small numbers of metaphases, resulting in significant sampling errors.9 The major advantage of cytogenetics is the early detection of clonal evolution consistent with acceleration of the disease.1011
The frequency of cytogenetic analysis can be reduced if patients are monitored by other methods, such as quantitative Southern blot, fluorescence in situ hybridization (FISH), quantitative Western blot, or quantitative RT-PCR. In CML molecular methods can be performed on peripheral blood specimens and are therefore less invasive than conventional cytogenetic analysis of bone marrow metaphases. Furthermore, these techniques are applicable to Ph-negative, BCR-ABL positive cases.
Fluorescence in situ hybridization (FISH)
FISH analysis is typically performed by co-hybridization of a BCR and an ABL probe to denatured metaphase chromosomes or interphase nuclei. Probes are large genomic clones, such as cosmids or YACs, and are labeled with different fluorochromes. Dual-color FISH using probes for BCR and ABL genes allows the specific detection of the BCR-ABL gene fusion in interphase and/or metaphase nuclei. Most cells exhibit four distinct signals, two of each color corresponding to the two normal BCR and ABL alleles. CML cells are recognized by the juxtaposition of one of the BCR and ABL signals.12 FISH analysis does not depend on the presence of the typical Ph chromosome and will detect rare BCR and ABL variant fusions.12131415 The lineage of positive and negative cells can be determined in combination with conventional May–Grünwald staining or immunocytochemistry.1617
A limitation of interphase FISH method is the background of a variant proportion of false positive cells, depending on the probe/detection system used.18192021 In practice, the limit of detection of CML cells is typically 1–5% and depends in part on which probes are used, the size of the nucleus, the precise position of the breakpoint within the ABL gene and the criteria used to define co-localization.22 The advantage of FISH over conventional cytogenetics is the analysis of a larger number of nuclei, resulting in smaller sampling errors.23 Therefore, FISH is applicable for quantification of residual disease in partial, minor, and nonresponders to IFN-α242526 and for determination of the BCR-ABL positivity of individual cell colonies,27 or the proportion of BCR-ABL-positive cells in small samples, such as highly enriched cell fractions.28
The specificity of interphase FISH can be increased by introducing an additional probe that permits identification of both the Ph chromosome and the derivative 9 chromosome in Ph+ cells, thus lowering the rate of false positivity.29303132 In many cases, however, large genomic deletions around the Ph-translocation breakpoints preclude the use of these techniques.32
The development of a ‘hypermetaphase FISH’ based on improved culture techniques and computerized analysis of a large number of metaphases made it possible to distinguish different levels of Ph chromosome positivity at presentation. Where readings can be obtained on 500 cells, one can reliably estimate parameters which characterize MRD. However, hypermetaphase FISH is evaluating only cycling cells and cannot count Ph+ cells that do not enter division.333435
Southern blot analysis
Southern blotting exploits the fact that the breakpoint within the BCR gene in most cases falls in a limited area, the 5.8 kb major breakpoint cluster region (M-bcr).4 Genomic DNA extracted from leukocytes from a patient is digested by a set of appropriate restriction enzymes (eg BglII, XbaI, HindIII, EcoRI, BamHI), fractionated on an agarose gel, transferred to a nylon membrane and hybridized to two labeled DNA probes derived from the 3′ and 5′ portion of M-bcr. After autoradiography, a band corresponding to the unrearranged BCR allele is visible; for patients with CML, one or two additional bands may reveal the rearranged BCR allele. Using this technique, a BCR rearrangement is detectable in about 98% of Ph-positive patients and in a significant proportion of Ph-negative cases.36 For routine use, BglII and XbaI are sufficient, which are informative in almost all cases. However, since there are rare restriction site polymorphisms in the M-bcr, the finding of a rearrangement with at least two restriction enzymes is generally considered necessary to exclude a false-positive result in any new patient.3738 False-negative results may arise because the rearranged band is too large, too small or coincidentally exactly the same size as the normal allele, as a result of partial deletion of BCR sequences on the translocated allele39 or of rare variants that have breakpoints outside the M-bcr.144041 False-positive or -negative results are, however, rare.36
After therapy Southern blot analysis allows quantification of the proportion of cells with BCR rearrangement compared to all cells investigated. The proportion of CML cells is determined by twice the intensity of the rearranged band divided by the sum of the intensities of the rearranged plus germline bands (BCR ratio). This is because each CML cell contributes signals from one normal and one rearranged chromosome 22, whereas the normal cells contribute identical signals from two normal chromosomes.3642 The level of disease detected in contemporaneous peripheral blood and bone marrow samples is essentially identical4243 and therefore peripheral blood is usually used for analysis. Quantitative Southern blot allows the detection and quantification of down to 1–5% leukemic cells.3643 To evaluate the response to treatment, the knowledge of the initial restriction pattern and intensity of the rearranged band is mandatory. Complete cytogenetic responses are associated with disappearance of rearranged BCR bands in most cases.364445
The BCR ratio is usually lower than the proportion of Ph-positive metaphases. The reason for this is that Southern blotting analyses a large number of dividing and resting cells, including BCR-ABL-negative lymphocytes and cytogenetic analysis provides information only on a small number of dividing myeloid cells.3642 Empirically derived cut-off points in the BCR ratio were introduced in order to define molecular response groups: a BCR ratio of 0% was defined as complete response, and ratios of 1–24%, 25–50%, and >50% were defined as partial, minor, and no molecular response, respectively. Using these cut-off points, a major cytogenetic response could be predicted or excluded in more than 90% of cases.36 The main advantage of Southern blotting over cytogenetics is the independence from dividing cells which permits the use of peripheral blood instead of bone marrow.
Western blot analysis
Western blotting can be used to detect BCR-ABL proteins directly in cell extracts qualitatively and quantitatively both in bone marrow and in peripheral blood. Leukocytes are lysed in the presence of potent protease inhibitors, fractionated on a polyacrylamide gel, transferred to a nylon membrane and probed with an anti-ABL antibody. Different types of BCR-ABL proteins (p190, p210, p230, rare variants) can be distinguished from p145 ABL by differences in migration.14 The limit of sensitivity is about 0.5–1%. A quantitative Western blot assay found a linear correlation between BCR-ABL/ABL protein ratios and contemporaneous conventional cytogenetics.4647
Reverse transcriptase polymerase chain reaction (RT-PCR)
In 1989, first encouraging results concerning detection of MRD by PCR in CML patients after allogeneic bone marrow transplantation were reported.48 However, conflicting data from a comparative multicenter study revealed serious problems of the method with a high rate of false-positive results and provoked an open discussion.4950 Over the past 10 years, PCR has been optimized and developed. Specificity has been considerably increased by the partial standardization of methodology and the introduction of rigorous precautions to avoid contamination.51 Sensitivity has been improved by using nested primer pairs and performing two consecutive PCR steps. In view of the limited value of qualitative PCR for monitoring CML patients after therapy, quantitative BCR-ABL PCR assays were developed to monitor patients after stem cell transplantation5253or treatment with interferon α (IFN)5455 and are now in routine clinical use.
Screening for BCR-ABL mRNA transcripts at diagnosis
For diagnostic samples, the use of multiplex PCR has been suggested to detect simultaneously several kinds of BCR-ABL and BCR transcripts as internal controls in one reaction56 by using three BCR and one ABL primer. This method allows the reliable detection of typical BCR-ABL transcripts, such as b2a2 or b3a2, and atypical types, eg transcripts lacking ABL exon a2 (b2a3 and b3a3), transcripts resulting from BCR breakpoints outside M-bcr, such as e1a2, e6a2 or e19a2,141557 or transcripts with inserts between BCR and ABL exons.58
Detection of minimal residual disease, ‘nested'RT-PCR
Since patients with leukemia at presentation or relapse usually have a total burden of more than 1012 malignant cells,59 and cytogenetics, Western blot, and conventional FISH have a sensitivity of maximum 1%, a patient with negative results may harbor as few as zero or as many as 1010 residual leukemic cells. At this point, the patient is judged to be in clinical and hematologic remission, although the term ‘remission’ refers only to a arbitrary point of a continuum of residual leukemic cell numbers.60
RT-PCR for BCR-ABL mRNA is by far the most sensitive assay in the context of residual disease analysis and can detect a single leukemia cell in a background of 105–106 normal cells. Therefore, PCR is up to four orders of magnitude more sensitive than conventional methods. However, patients who have no residual disease detectable by RT-PCR may still harbor up to a million malignant cells that could contribute to subsequent relapse. The sensitivity with which residual disease can be detected will be limited by the amount of peripheral blood or bone marrow that can be analysed.
By nested RT-PCR with two pairs of (‘nested’) primers corresponding to appropriate BCR and ABL exons used in two rounds of amplification residual CML cells after treatment can be specifically detected with a sensitivity of up to 1 in 106 cells.61
This qualitative method has been used for MRD detection after allogeneic stem cell transplantation. Most transplant centers have demonstrated that the majority of patients is PCR positive in the first 6 months after transplantation, two thirds of patients become PCR negative during follow-up due to the graft-versus-leukemia effect, persistent PCR negativity after 1 year is a marker for good prognosis, and PCR-positive patients more than 6 months after BMT have a great risk of relapse (Figure 1).62 However, qualitative PCR cannot predict relapse in the individual patient.52636465 In the majority of cases after transplantation, RT-PCR and DNA-PCR (using patient specific primers) results are concordant, ie that patients in remission do not generally harbor a substantial pool of CML cells that do not express BCR-ABL mRNA.66

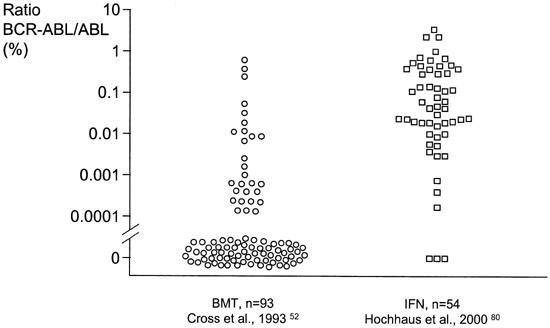

Quantitative PCR analysis for the ratio BCR-ABL/ABL in complete cytogenetic responders after allogeneic stem cell transplantation and interferon (IFN) therapy. Two thirds of patients after allogeneic bone marrow transplantation (BMT) are after 6 months RT-PCR negative,52 whereas almost all patients after IFN therapy are persistently RT-PCR positive. Only three out of 54 patients showed transient PCR negativity.80
Nested PCR is essentially useless in patients after IFN-α therapy even in cytogenetic remission, since almost all patients remain repeatedly positive.67
If the RT-PCR method is pushed to extreme, BCR-ABL mRNA can be detected at a very low level of 1 to 10 transcripts per 108 cells in many normal individuals with a frequency that is age dependent (Figure 2).6869 It has been suggested that BCR-ABL, and probably several other fusion genes, are being continuously formed in mitotic cells in the normal bone marrow, but only the combination of an in frame BCR-ABL fusion in the correct primitive hematopoietic progenitor would have the selective advantage to become functional as an expanding clone.70 In addition, it is possible that BCR-ABL alone is not sufficient to result in the expansion of myeloid cell numbers, and that other co-operating genetic events may be required.
Schematic illustration of therapeutic response of CML patients on molecular level. Almost all interferon (IFN)-treated patients remain RT-PCR positive,80 the majority of patients after allogeneic stem cell transplantation become RT-PCR negative.52 Healthy donors may be RT-PCR positive for BCR-ABL transcripts using an optimized, very sensitive PCR strategy.6869
Quantitative PCR
In view of the very limited value of qualitative PCR, several groups have developed quantitative PCR assays to estimate the amount of residual disease in positive specimens. Most groups have initially used competitive PCR strategies that can effectively control for variations in amplification efficiency and reaction kinetics.5254717273
In general, nested PCR is performed using serial dilutions of a BCR-ABL competitor construct added to the same volume of patients’ cDNA. The equivalence point at which the competitor and sample band would be of equal intensity is determined by densitometry.5255 In order to standardize results for both quality and quantity of blood, RNA, and cDNA quantification of transcripts of normal housekeeping genes, such as ABL or glucose-6-phosphate dehydrogenase (G6PD) has been employed. The standardized results are expressed as the ratios BCR-ABL/ABL or BCR-ABL/G6PD in per cent. The quantification of the transcript level of control genes is of particular importance if different RNA qualities are expected, ie in particular if samples are mailed, eg in multicenter trials.
In patients after allogeneic stem cell transplantation, rising or persistently high levels of BCR-ABL mRNA can be detected prior to cytogenetic or hematologic relapse. Low or falling BCR-ABL transcript levels are associated with continuous remission, whilst high or rising BCR-ABL transcript levels predict relapse.525363747576
Quantitative PCR is the method of choice to determine the best time point for therapeutic interventions in the case of relapse after stem cell transplantation. Quantitative PCR data has been used to determine the optimum time point to initiate donor lymphocyte transfusions77 and to monitor its response.78 The great majority of patients who respond to donor lymphocyte infusions achieve durable molecular remission (RT-PCR negativity) with a median follow-up of more than 2 years.78
Quantitative RT-PCR for BCR-ABL has been shown to be a reliable method for monitoring residual leukemia load in mobilized peripheral blood stem cells, particularly in Ph-negative collections. Quantitative RT-PCR allows selection of the best available collections for reinfusion into patients after myeloablative therapy (autografting).79
Almost all patients after IFN-α therapy are persistently positive for BCR-ABL transcripts. The median ratios of complete, partial, minor, and nonresponders differ significantly. The results of IFN-α nonresponders and patients at diagnosis are not different.5567 Cytogenetic response to IFN-α (complete, partial, minor/none) was compared to molecular response by introducing cut-off points for the BCR-ABL/ABL ratio. Optimum cut-off points were 2% and 14%, ie a complete response is associated with a ratio up to 2%, a partial response with a ratio of 2 and 14%, and a minor or nonresponse with a ratio of >14%.55
All 54 patients investigated who had achieved complete response to IFN-α treatment had molecular evidence of residual disease during complete remission, although three patients were intermittently negative by RT-PCR. It should be noted that this level of sensitivity can be reached only if at least 5 × 107 cells (10–20 ml of peripheral blood) are processed and that the actual level of sensitivity for each specimen can only be determined by quantification of a control gene. The levels of residual disease in complete responders spans a range over four orders of magnitude.67 In general, BCR-ABL transcript numbers were inversely related to the duration of CR. The median ratio of BCR-ABL to ABL transcripts at the time of maximal response for each patient was 0.045% (range 0–3.6%). During the period of observation 14 patients relapsed – 11 cytogenetically to chronic phase disease and three directly to blastic phase. The median ratio of BCR-ABL/ABL at maximal response was significantly higher in patients who relapsed than in those who remained in CR.80 The findings also show that the level of residual disease falls with time in patients who maintain their cytogenetic response to IFN, but molecular evidence of disease is rarely if ever eliminated. In other series, the frequency of PCR negativity in complete cytogenetic responders is higher in a long-term follow-up using a RT-PCR strategy with a lower sensitivity.81
RT-PCR analysis of CFU-GM colonies grown from bone marrow of eight complete cytogenetic responders demonstrated that residual disease resides in myeloid colony-forming cells which may have the potential to repopulate the bone marrow and contribute to relapse.82 Therefore, it is unlikely that CML can be cured by IFN-α therapy. However, since the actual level of residual BCR-ABL transcripts is related to the probability of relapse, molecular monitoring may identify a subset of patients for whom treatment may be safely withdrawn.80
Recently, novel real time PCR procedures have been developed that promise to simplify existing protocols. Several procedures for quantification of BCR-ABL mRNA using the TaqMan system have been developed.83848586 The assay is based on the use of the 5′ nuclease activity of Taq polymerase to cleave a nonextendible dual-labeled hybridization probe during the extension phase of PCR. One fluorescent dye serves as a reporter and its emission spectra is quenched by the second fluorescent dye. The nuclease degradation of the probe releases the quenching resulting in an increase of fluorescent emission. The fluorescence is monitored by a sequence detector in real time. CT (threshold cycle) values are calculated by determining the point at which the fluorescence exceeds a threshold limit. CT corresponds to the amount of target transcripts in the sample.87
An alternative real time RT-PCR approach for detection and quantification of BCR-ABL fusion transcripts has been established using the LightCycler technology,8889 which combines rapid thermocycling with online fluorescence detection of PCR product formation as it occurs. Fluorescence monitoring of PCR amplification is based on the concept of fluorescence resonance energy transfer (FRET) between two adjacent hybridization probes carrying donor and acceptor fluorophores. Excitation of a donor fluorophore (fluorescein) with an emission spectrum that overlaps the excitation spectrum of an acceptor fluorophore results in nonradioactive energy transfer to the acceptor (Figure 3). Once conditions are established, the amount of fluorescence resulting from the two probes is proportional to the amount of PCR product. Due to amplification in glass capillaries with a low volume/surface ratio PCR reaction times have been reduced to less than 30 min.

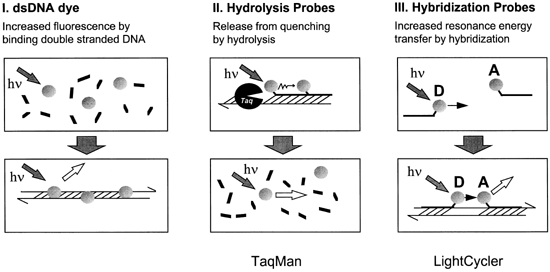

Real time fluorescence detection of PCR products during the amplification phase (Real-time PCR). Fluorescence labeling can be performed (I) by nonspecific binding of an appropriate dye to double stranded DNA (eg SYBR Green), (II) by hybridization of TaqMan probes carrying quencher and reporter dyes which are cleaved during elongation, or (III) by hybridization to a pair of probes labeled with a donor (D) and an acceptor (A) dye with increased fluorescence in juxtaposition (LightCycler method).
A pair of probes was designed that was complementary to ABL exon 3, thus enabling detection of all known BCR-ABL variants and also normal ABL as an internal control. Conditions were established to amplify less than 10 target molecules/reaction, and to detect one CML cell in 105 cells from healthy donors, and one K562 cell in 107 HL60 cells. To determine the utility of the assay, BCR-ABL and ABL transcripts in a series of 254 samples from 120 patients with CML after therapy were quantified. The level of residual disease was expressed as the ratio of BCR-ABL/ABL. A highly significant correlation was seen between the BCR-ABL/ABL ratios determined by the LightCycler and (1) the BCR-ABL/ABL ratios obtained by nested competitive RT-PCR performed with the same cDNA samples; (2) the proportion of Philadelphia chromosome-positive metaphases determined by contemporaneous cytogenetics; and (3) the BCR ratio determined by Southern blot analysis.90
Real time PCR approaches are reliable and sensitive methods to monitor CML patients after therapy. The major advantages of the methodology are (1) amplification and product analysis are performed in the same reaction vessel, avoiding the risk of contamination, and (2) the results are standardized by the quantification of housekeeping genes.
Conclusion
Quantitative determination of residual disease levels after treatment for patients with CML may be achieved by various methods. However, there is a need to standardize methodologies and interpretation of results in order to reduce inter-laboratory variation. The development of new real time RT-PCR procedures offers a unique opportunity for this to be achieved and we believe that quantitative real time PCR will shortly become a routine and robust basis for clinical decision making, not only in CML but also in other leukemias with specific molecular markers.
References
Nowell PC, Hungerford DA . A minute chromosome in human chronic granulocytic leukemia Science 1960 132: 1497–1501
Rowley JD . A new consistent chromosome abnormality in chronic myelogenous leukaemia detected by quinacrine fluorescence and Giemsa staining Nature 1973 243: 290–293
Sawyers CL . Chronic myeloid leukemia New Engl J Med 1999 340: 1330–1340
Groffen J, Stephenson JR, Heisterkamp N, de Klein A, Bartram CR, Grosveld G . Philadelphia chromosomal breakpoints are clustered within a limited region, bcr, on chromosome 22 Cell 1984 36: 93–99
Stam K, Heisterkamp N, Grosveld G, de Klein A, Verma RS, Coleman M, Dosik H, Groffen J . Evidence of a new chimeric bcr/c-abl mRNA in patients with chronic myelocytic leukemia and the Philadelphia chromosome New Engl J Med 1985 313: 1429–1433
Melo JV, Gordon DE, Cross NCP, Goldman JM . The ABL-BCR fusion gene is expressed in chronic myeloid leukemia Blood 1993 81: 158–165
Thijsen SFT, Schuurhuis GJ, van Oostveen JW, Ossenkoppele GJ . Chronic myeloid leukemia from basics to bedside Leukemia 1999 13: 1646–1674
Hehlmann R, Heimpel H . Current aspects of drug therapy in Philadelphia-positive CML: Correlation of tumor burden with survival Leuk Lymphoma 1996 22: (Suppl. 1) 161–167
Hook EB . Exclusion of chromosomal mosaicism: tables of 90%, 95%, and 99% confidence limits and comments on use Am J Hum Genet 1977 29: 94–97
Cortes J, Talpaz M, O'Brien S, Rios MB, Majlis A, Keating M, Freireich EJ, Kantarjian H . Suppression on cytogenetic clonal evolution with interferon alfa therapy in patients with Philadelphia chromosome-positive chronic myelogenous leukemia J Clin Oncol 1998 16: 3279–3285
Kantarjian HM, Dixon D, Keating MJ, Talpaz M, Walters RS, McCredie KB, Freireich EJ . Characteristics of accelerated disease in chronic myelogenous leukemia Cancer 1988 61: 1441–1446
Tkachuk DC, Westbrook CA, Andreeff M, Donlon TA, Cleary ML, Suryanarayan K, Homge M, Redner A, Gray J, Pinkel D . Detection of bcr-abl fusion in chronic myelogeneous leukemia by in situ hybridization Science 1990 250: 559–562
Nacheva E, Holloway T, Brown K, Bloxham D, Green AR . Philadelphia-negative chronic myeloid leukaemia: detection by FISH of BCR-ABL fusion gene localized either to chromosome 9 or chromosome 22 Br J Haematol 1994 87: 409–412
Hochhaus A, Reiter A, Skladny H, Melo JV, Sick C, Berger U, Guo JQ, Arlinghaus RB, Hehlmann R, Goldman JM, Cross NCP . A novel BCR-ABL fusion gene (e6a2) in a patient with Philadelphia chromosome negative chronic myelogenous leukemia Blood 1996 88: 2236–2240
Melo JV . The diversity of BCR-ABL fusion proteins and their relationship to leukemia phenotype Blood 1996 88: 2375–2384
Weber-Matthiesen K, Winkemann M, Müller-Hermelink A, Schlegelberger B, Grote W . Simultaneous fluorescence immunophenotyping and interphase cytogenetics: a contribution to characterization of tumor cells J Histochem Cytochem 1992 40: 171–175
Haferlach T, Winkemann M, Nickenig C, Meeder M, Ramm-Petersen L, Schoch R, Nickelsen M, Weber-Matthiesen K, Schlegelberger B, Schoch C, Gassmann W, Löffler H . Which compartments are involved in Philadelphia-chromosome positive chronic myeloid leukaemia? An answer at the single cell level by combining May-Grünwald-Giemsa staining and fluorescence in situ hybridization techniques Br J Haematol 1997 97: 99–106
Bentz M, Cabot G, Moos M, Speicher MR, Ganser A, Lichter P, Döhner H . Detection of chimeric BCR-ABL genes on bone marrow samples and blood smears in chronic myeloid and acute lymphoblastic leukemia by in situ hybridization Blood 1994 83: 1922–1928
Garcia-Isidoro M, Tabernero MD, Garcia JL, Najera ML, Hernandez JM, Wiegant J, Raap A, San Miguel J, Orfao A . Detection of the Mbcr/abl translocation in chronic myeloid leukemia by fluorescence in situ hybridization: comparison with conventional cytogenetics and implications for minimal residual disease detection Hum Pathol 1997 28: 154–159
Cuneo A, Bigoni R, Emmanuel B, Smit E, Rigolin GM, Roberti MG, Bardi MG, Piva N, Scapoli G, Castoldi G, Van den Berghe H, Hagemeijer A . Fluorescence in situ hybridization for the detection and monitoring of the Ph-positive clone in chronic myelogenous leukemia: comparison with metaphase banding analysis Leukemia 1998 12: 1718–1723
Yanagi M, Shinjo K, Takeshita A, Tobita T, Yano K, Kobayashi M, Terasaki H, Naoe T, Ohnishi K, Ohno R . Simple and reliably sensitive diagnosis and monitoring of Philadelphia chromosome-positive cells in chronic myeloid leukemia by interphase fluorescence in situ hybridization of peripheral blood cells Leukemia 1999 13: 542–552
Chase A, Grand F, Zhang JG, Blackett N, Goldman J, Gordon M . Factors influencing the false positive and negative rates of BCR-ABL fluorescence in-situ hybridization Genes Chromosom Cancer 1997 18: 246–253
Cox Froncillo MC, Cantonetti M, Masi M, Lentini R, Giudiceandrea P, Maffei L, Tribalto M, Amadori S, Papa G . Cytogenetic analysis is non-informative for assessing the remission rate in chronic myeloid leukemia (CML) patients on interferon-alpha (IFN-alpha) therapy Cancer Genet Cytogenet 1995 84: 15–18
Mühlmann J, Thaler J, Hilbe W, Bechter O, Erdel M, Utermann G, Duba HC . Fluorescence in situ hybridization (FISH) on peripheral blood smears for monitoring Philadelphia chromosome-positive chronic myeloid leukemia (CML) during interferon treatment: a new strategy for remission asssessment Genes Chromosom Cancer 1998 21: 90–100
Cox Froncillo MC, Maffei L, Cantonetti M, Del Poeta G, Lentini R, Bruno A, Masi M, Tribalto M, Amadori S . FISH analysis for CML monitoring? Ann Hematol 1996 73: 113–119
Tchirkov A, Giollant M, Tavernier F, Briancon G, Tournilhac O, Kwiatkowski F, Philippe P, Choufi B, Demeocq F, Travade P, Malet P . Interphase cytogenetics and competitive RT-PCR for residual disease monitoring in patients with chronic myeloid leukaemia during interferon-α therapy Br J Haematol 1998 101: 552–557
Verfaillie C, Bhatia R, Miller W, Mortari F, Roy V, Burger S, McCullough J, Stieglbauer K, Dewald G, Heimfeld S, Miller JS, McGlave P . BCR/ABL-negative primitive progenitors suitable for transplantation can be selected from the marrow of most early-chronic phase but not accelerated-phase chronic myelogenous leukemia patients Blood 1996 87: 4770–4779
Kirk JA, Reems JA, Roecklein BA, Van Devanter DR, Bryant EM, Radich J, Edmands S, Lee A, Torok Storb B . Benign marrow progenitors are enriched in the CD34+/HLA-DRlo population but not in the CD34+/CD38lo population in chronic myeloid leukemia: an analysis using interphase fluorescence in situ hybridization Blood 1995 86: 737–743
Sinclair PB, Green AR, Grace C, Nacheva EP . Improved sensitivity of BCR-ABL detection: a triple-probe three-color fluorescence in situ hybridization system Blood 1997 90: 1395–1402
Buno I, Wyatt WA, Zinsmeister AR, Dietz-Band J, Silver RT, Dewald GW . A special fluorescent in situ hybridization technique to study peripheral blood and assess the effectiveness of interferon therapy in chronic myeloid leukemia Blood 1998 92: 2315–2321
Dewald GW, Wyatt WA, Juneau AL, Carlson RO, Zinsmeister AR, Jalal SM, Spurbeck JL, Silver RT . Highly sensitive fluorescence in situ hybridization method to detect double BCR/ABL fusion and monitor response to therapy in chronic myeloid leukemia Blood 1998 91: 3357–3365
Grand F, Kulkarni S, Chase A, Goldman JM, Gordon MY, Cross NCP . Frequent deletion of hSNF5/INI1, a component of the SWI/SNF complex, during progression of chronic myeloid leukemia Cancer Res 1999 59: 3870–3874
El Rifai W, Ruutu T, Vettentanta K, Temtamy S, Knuutila S . Minimal residual disease after allogeneic bone marrow transplantation for chronic myeloid leukaemia: a metaphase-FISH study Br J Haematol 1996 92: 365–369
Seong DC, Kantarjian HM, Ro JY, Talpaz M, Xu J, Robinson JR, Deisseroth AB, Champlin RE, Siciliano MJ . Hypermetaphase fluorescence in situ hybridization for quantitative monitoring of Philadelphia chromosome-positive cells in patients with chronic myelogenous leukemia during treatment Blood 1995 86: 2343–2349
Seong D, Giralt S, Fischer H, Hayes K, Glassman A, Arlinghaus R, Xu J, Kantarjian H, Siciliano M, Champlin R . Usefulness of detection of minimal residual disease by ‘hypermetaphase’ fluorescent in situ hybridization after allogeneic BMT for chronic myelogenous leukemia Bone Marrow Transplant 1997 19: 565–570
Reiter A, Skladny H, Hochhaus A, Seifarth W, Heimpel H, Bartram CR, Cross NCP, Hehlmann R . Molecular response of CML patients treated with interferon-α monitored by quantitative Southern blot analysis Br J Haematol 1997 97: 86–93
Fishleder AJ, Shadrach B, Tuttle C . bcr rearrangement: potential false positive secondary to an EcoRI restriction fragment length polymorphism Leukemia 1989 3: 746–748
Grossman A, Mathew A, O'Connell MP, Tiso P, Distenfeld A, Benn P . Multiple restriction enzyme digests are required to rule out polymorphism in the molecular diagnosis of chronic myeloid leukemia Leukemia 1990 4: 63–64
Popenoe DW, Schaefer Rego K, Mears JG, Bank A, Leibowitz D . Frequent and extensive deletion during the 9,22 translocation in CML Blood 1986 68: 1123–1128
Bartram CR, Bross Bach U, Schmidt H, Waller HD . Philadelphia-positive chronic myelogenous leukemia with breakpoint 5′ of the breakpoint cluster region but within the bcr gene Blut 1987 55: 505–511
Saglio G, Guerrasio A, Rosso C, Zaccaria A, Tassinari A, Serra A, Rege Cambrin G, Mazza U, Gavosto F . New type of Bcr/Abl junction in Philadelphia chromosome-positive chronic myelogenous leukemia Blood 1990 76: 1819–1824
Stock W, Westbrook CA, Peterson B, Arthur DC, Szatrowski TP, Silver RT, Sher DA, Wu D, LeBeau MM, Schiffer CA, Bloomfield CD . Value of molecular monitoring during treatment of chronic myeloid leukemia: a Cancer and Leukemia Group B Study J Clin Oncol 1997 15: 26–36
Verschraegen CF, Talpaz M, Hirsch Ginsberg CF, Pherwani R, Rios MB, Stass SA, Kantarjian HM . Quantification of the breakpoint cluster region rearrangement for clinical monitoring in Philadelphia chromosome-positive chronic myeloid leukemia Blood 1995 85: 2705–2710
Steegmann JL, Requena MJ, Casado LF, Pico M, Panarrubia MJ, Ferro MT, Resino M, Fernandez-Ranada JM . Southern technique and cytogenetics are complementary and must be used together in the evaluation of Ph1, M-BCR positive chronic myeloid leukemia (CML) patients treated with alpha interferon (IFN-ALPHA) Am J Hematol 1996 53: 169–174
Yoffe G, Blick M, Kantarjian H, Spitzer G, Gutterman J, Talpaz M . Molecular analysis of interferon-induced suppression of Philadelphia chromosome in patients with chronic myeloid leukemia Blood 1987 69: 961–963
Guo JQ, Lian JY, Xian YM, Lee MS, Deisseroth AB, Stass SA, Champlin RE, Talpaz M, Wang JY, Arlinghaus RB . BCR-ABL protein expression in peripheral blood cells of chronic myelogenous leukemia patients undergoing therapy Blood 1994 83: 3629–3637
Guo JQ, Lian J, Glassman A, Talpaz M, Kantarjian H, Deisseroth AB, Arlinghaus RB . Comparison of bcr-abl protein expression and Philadelphia chromosome analyses in chronic myelogenous leukemia patients Am J Clin Pathol 1996 106: 442–448
Morgan GJ, Hughes T, Janssen JW, Gow J, Guo AP, Goldman JM, Wiedemann LM, Bartram CR . Polymerase chain reaction for detection of residual leukaemia Lancet 1989 1: 928–929
Hughes T, Martiat P, Morgan G, Sawyers C, Witte ON, Goldman JM . Significance of residual leukaemia transcripts after bone marrow transplant for CML Lancet 1990 335: 50
Hughes T, Janssen JWG, Morgan G, Martiat P, Saglio G, Pignon JM, Pignatti FP, Mills K, Keating A, Gluckman E, Bartram CR, Goldman JM . False-positive results with PCR to detect leukaemia-specific transcript Lancet 1990 335: 1037–1038
Hughes T, Goldman JM . Improved results with PCR for chronic myeloid leukaemia Lancet 1990 336: 812
Cross NCP, Feng L, Chase A, Bungey J, Hughes TP, Goldman JM . Competitive polymerase chain reaction to estimate the number of BCR-ABL transcripts in chronic myeloid leukemia patients after bone marrow transplantation Blood 1993 82: 1929–1936
Lion T, Henn T, Gaiger A, Kalhs P, Gadner H . Early detection of relapse after bone marrow transplantation in patients with chronic myelogenous leukaemia Lancet 1993 341: 275–276
Malinge MC, Mahon FX, Delfau MH, Daheron L, Kitzis A, Guilhot F, Tanzer J, Grandchamp B . Quantitative determination of the hybrid Bcr-Abl RNA in patients with chronic myelogenous leukaemia under interferon therapy Br J Haematol 1992 82: 701–707
Hochhaus A, Lin F, Reiter A, Skladny H, Mason PJ, van Rhee F, Shepherd PCA, Allan NC, Hehlmann R, Goldman JM, Cross NCP . Quantification of residual disease in chronic myelogenous leukemia patients on interferon-α therapy by competitive polymerase chain reaction Blood 1996 87: 1549–1555
Cross NCP, Melo JV, Feng L, Goldman JM . An optimized multiplex polymerase chain reaction (PCR) for detection of BCR-ABL fusion mRNAs in haematological disorders Leukemia 1994 8: 186–189
Melo JV, Myint H, Galton DA, Goldman JM . P190BCR-ABL chronic myeloid leukaemia: the missing link with chronic myelomonocytic leukaemia? Leukemia 1994 8: 208–211
Rubinstein R, Purves LR . A novel BCR-ABL rearrangement in a Philadelphia chromosome-positive chronic myelogenous leukaemia variant with thrombocythaemia Leukemia 1998 12: 230–232
Clarkson B, Strife A . Linkage of proliferative and maturational abnormalities in chronic myelogenous leukemia and relevance to treatment Leukemia 1993 7: 1683–1721
Morley A . Quantifying leukemia New Engl J Med 1998 339: 627–629
van Dongen JJM, MacIntyre EA, Gabert JA, Delabesse E ., Rossi V, Saglio G, Gotardi E, Rambaldi A, Dotti G, Giesinger F, Parreira A, Gameiro P, Gonzalez Diaz M, Malec M, Langerak AW, San Miguel JF, Biondi A. Standardized RT-PCR analysis of fusion gene transcripts from chromosome aberrations in acute leukemia for detection of minimal residual disease Leukemia 1999 12: 1901–1928
Cross NCP . Assessing residual leukaemia Baillières Clin Haematol 1997 10: 389–403
Cross NCP, Feng L, Zhang JG, Goldman JM . Competitive PCR to monitor residual disease after bone marrow transplantation for chronic myeloid leukaemia. In: Borden EC, Goldman JM, Grignani F (eds) Molecular Diagnosis and Monitoring of Leukaemia and Lymphoma Ares-Serono Symposia Publications: Rome 1994 119–126
Potter MN, Cross NCP, van Dongen JJ, Saglio G, Oakhill A, Bartram CR, Goldman JM . Molecular evidence of minimal residual disease after treatment for leukaemia and lymphoma: an updated meeting report and review Leukemia 1993 7: 1302–1314
Reiter E, Greinix HT, Keil F, Brugger S, Rabitsch W, Schulenburg A, Mannhalter C, Schwarzinger I, Worel N, Volc-Platzer B, Fischer G, Dieckmann K, Hinterberger W, Schneider B, Haas OA, Geissler K, Kalhs P . Long-term follow-up of patients after related- and unrelated-donor bone marrow transplantation for chronic myelogenous leukemia Ann Hematol 1999 78: 507–513
Zhang JG, Lin F, Chase A, Goldman JM, Cross NCP . Comparison of genomic DNA and cDNA for detection of residual disease after treatment of chronic myeloid leukemia with allogeneic bone marrow transplantation Blood 1996 87: 2588–2593
Hochhaus A, Lin F, Reiter A, Skladny H, van Rhee F, Shepherd PCA, Allan NC, Hehlmann R, Goldman JM, Cross NCP . Variable numbers of BCR-ABL transcripts persist in CML patients whoachieve complete cytogenetic remission with interferon-α Br J Haematol 1995 91: 126–131
Biernaux C, Loos M, Sels A, Huez G, Stryckmans P . Detection of major bcr-abl gene expression at a very low level in blood cells of some healthy individuals Blood 1995 88: 3118–3122
Bose S, Deininger M, Gora-Tybor J, Goldman JM, Melo JV . The presence of typical and atypical BCR-ABL fusion genes in leukocytes of normal individuals: biological significance and implications for the assessment of minimal residual disease Blood 1998 92: 3362–3367
Melo JV . The molecular biology of chronic myeloid leukaemia Leukemia 1996 10: 751–756
Lion T, Izraeli S, Henn T, Gaiger A, Mor W, Gadner H . Monitoring of residual disease in chronic myelogenous leukemia by quantitative polymerase chain reaction Leukemia 1992 6: 495–499
Thompson JD, Brodsky I, Yunis JJ . Molecular quantification of residual disease in chronic myelogenous leukemia after bone marrow transplantation Blood 1992 79: 1629–1635
Nagel S, Schmidt M, Thiede C, Huhn D, Neubauer A . Quantification of Bcr-Abl transcripts in chronic myelogenous leukemia (CML) using standardized, internally controlled, competitive differential PCR (CD-PCR) Nucleic Acids Res 1996 24: 4102–4103
Delage R, Soiffer RJ, Dear K, Ritz J . Clinical significance of bcr-abl gene rearrangement detected by polymerase chain reaction after allogeneic bone marrow transplantation in chronic myelogenous leukemia Blood 1991 78: 2759–2767
Lin F, van Rhee F, Goldman JM, Cross NCP . Kinetics of increasing BCR-ABL transcript numbers in chronic myeloid leukemia patients who relapse after bone marrow transplantation Blood 1996 87: 4473–4478
Lin F, Kirkland MA, van Rhee F, Chase A, Coulthard S, Bungey J, Goldman JM, Cross NCP . Molecular analysis of transient cytogenetic relapse after allogeneic bone marrow transplantation for chronic myeloid leukaemia Bone Marrow Transplant 1996 18: 1147–1152
van Rhee F, Lin F, Cullis JO, Spencer A, Cross NCP, Chase A, Garicochea B, Bungey J, Barrett J, Goldman JM . Relapse of chronic myeloid leukemia after allogeneic bone marrow transplant: the case for giving donor leukocyte transfusions before the onset of hematologic relapse Blood 1994 83: 3377–3383
Raanani P, Dazzi F, Sohal J, Szydlo R, van Rhee F, Reiter A, Lin F, Goldman JM, Cross NCP . The rate and kinetics of molecular response to donor leucocyte transfusions in chronic myeloid leukaemia patients treated for relapse after allogeneic bone marrow transplantation Br J Haematol 1997 99: 945–950
Corsetti MT, Lerma E, Dejana A, Basta P, Ferrara R, Benvenuto F, Vassallo F, Abate M, Piaggio G, Parodi C, Sessarego M, Pira GL, Manca F, Carella AM . Quantitative competitive reverse transcriptase-polymerase chain reaction for BCR-ABL on Philadelphia-negative leukaphereses allows the selection of low-contaminated peripheral blood progenitor cells for autografting in chronic myelogenous leukemia Leukemia 1999 13: 999–1008
Hochhaus A, Reiter A, Saußele S, Reichert A, Emig M, Kaeda J, Schultheis B, Berger U, Shepherd PCA, Allan N, Hehlmann R, Goldman JM, Cross NCP, for the German CML Study Group and the UK MRC CML Study Group . Molecular heterogeneity in complete cytogenetic responders after interferon-α therapy for chronic myeloid leukaemia: low levels of minimal residual disease are associated with continuing remission Blood 2000 95: 62–66
Kurzrock R, Estrov Z, Kantarjian H, Talpaz M . Conversion of interferon-induced, long-term cytogenetic remissions in chronic myelogenous leukemia to polymerase chain reaction negativity J Clin Oncol 1998 16: 1526–1531
Reiter A, Marley SB, Hochhaus A, Sohal J, Raanani P, Hehlmann R, Gordon MY, Goldman JM, Cross NCP . BCR-ABL positive progenitors in chronic myeloid leukaemia patients in complete cytogenetic remission after treatment with interferon-α Br J Haematol 1998 102: 1271–1278.y
Mensink E, van de Locht A, Schattenberg A, Linders E, Schaap N, Guerts van Kessel A, de Witte T . Quantitation of minimal residual disease in Philadelphia chromosome positive chronic myeloid leukaemia patients using real-time quantitative RT-PCR Br J Haematol 1998 102: 768–774
Preudhomme C, Révillion F, Merlat A, Hornez L, Roumier C, Duflos-Grardel N, Jouet JP, Cosson A, Peyrat JP, Fenaux P . Detection of BCR-ABL transcripts in chronic myeloid leukemia (CML) using a ‘real time’ quantitative RT-PCR assay Leukemia 1999 13: 957–964
Eder M, Battner K, Kafert S, Stucki A, Ganser A, Hertenstein B . Monitoring of BCR-ABL expression using real-time RT-PCR in CML after bone marrow or peripheral blood stem cell transplantation Leukemia 1999 13: 1383–1389
Branford S, Hughes TP, Rudzki Z . Monitoring chronic myeloid leukaemia therapy by real-time quantitative PCR in blood is a reliable alternative to bone marrow cytogenetics Br J Haematol 1999 107: 587–599
Heid CA, Stevens J, Livak KJ, Williams PM . Real time quantitative PCR Genome Res 1996 6: 986–994
Wittwer CT, Herrmann MG, Moss AA, Rasmussen RP . Continuous fluorescence monitoring of rapid cycle DNA amplification Biotechniques 1997 22: 130–138
Wittwer CT, Ririe KM, Andrew RV, David DA, Gundry RA, Balis UJ . The LightCycler: a microvolume multisample fluorimeter with rapid temperature control Biotechniques 1997 22: 176–181
Emig M, Saussele S, Wittor H, Weisser A, Reiter A, Willer A, Berger U, Hehlmann R, Cross NCP, Hochhaus A . Accurate and rapid analysis of residual disease in patients with CML using specific fluorescent hybridization probes for real time quantitative RT-PCR Leukemia 1999 13: 1825–1832
Acknowledgements
The authors thank the Deutsche José-Carreras-Stiftung eV, the Leukaemia Research Fund (UK), the Tumorzentrum Heidelberg/Mannheim, and the Forschungsfonds der Fakultät für Klinische Medizin, Mannheim, Germany for financial support. The paper is based on a presentation at the ‘Workshop on Minimal residual disease’ at Reisensburg Castle/Ulm, Germany, funded by the Kind-Philipp-Foundation, October 24–26, 1999.
